TTreeViewer Class Reference

A graphic user interface designed to handle ROOT trees and to take advantage of TTree class features.

It uses ROOT native GUI widgets adapted for "drag and drop" functionality. in the same session.

The following capabilities are making the viewer a helpful tool for analysis:

• several trees may be opened in the same session;
• branches and leaves can be easily browsed or scanned;
• fast drawing of branch expressions by double-clicking;
• new variables/selections easy to compose with the built-in editor;
• histograms can be composed by dragging leaves or user-defined expressions to X, Y and Z axis items;
• the tree entries to be processed can be selected with a double slider;
• selections can be defined and activated by dragging them to the 'Cut' item;
• all expressions can be aliased and aliases can be used in composing others;
• input/output event lists easy to handle;
• menu with histogram drawing options;
• user commands may be executed within the viewer and the current command can be echoed;
• current 'Draw' event loop is reflected by a progress bar and may be interrupted by the user;
• all widgets have self-explaining tool tips and/or context menus;
• expressions/leaves can be dragged to a 'scan box' and scanned by double-clicking this item. The result can be redirected to an ASCII file;

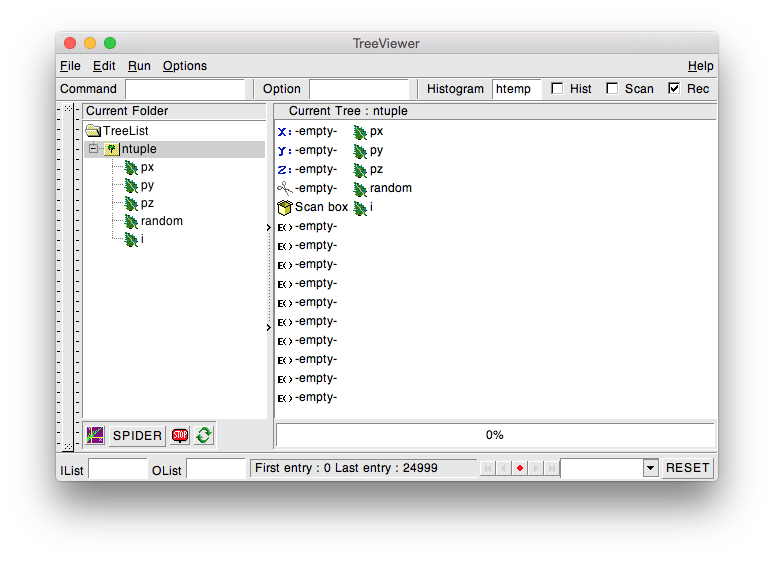

The layout has the following items:

• a menu bar with entries : File, Edit, Run, Options and Help;
• a toolbar in the upper part where you can issue user commands, change the drawing option and the histogram name, three check buttons Hist, Rec and Scan.HIST toggles histogram drawing mode, REC enables recording of the last command issued and SCAN enables redirecting of TTree::Scan command in an ASCII file (see -Scanning expressions-);
• a button bar in the lower part with : buttons DRAW/STOP that issue histogram drawing and stop the current command respectively, two text widgets where input and output event lists can be specified, a message box and a RESET button on the right that clear edited expression content (see Editing...)
• a tree-type list on the main left panel where you can select among trees or branches. The tree/branch will be detailed in the right panel. Mapped trees are provided with context menus, activated by right-clicking;
• a view-type list on the right panel. The first column contain X, Y and Z expression items, an optional cut and ten optional editable expressions. Expressions and leaf-type items can be dragged or deleted. A right click on the list-box or item activates context menus.

Opening a new tree and saving a session :

To open a new tree in the viewer use <File/Open tree file> menu The content of the file (keys) will be listed. Use <SetTreeName> function from the context menu of the right panel, entering a tree name among those listed.

To save the current session, use <File/Save> menu or the <SaveSource> function from the context menu of the right panel (to specify the name of the file - name.C)

To open a previously saved session for the tree MyTree, first open MyTree in the browser, then use <File/Open session> menu.

Dragging items:

Items that can be dragged from the list in the right : expressions and leaves. Dragging an item and dropping to another will copy the content of first to the last (leaf->expression, expression->expression). Items far to the right side of the list can be easily dragged to the left (where expressions are placed) by dragging them to the left at least 10 pixels.

Editing expressions:

Any editable expression from the right panel has two components : a true name (that will be used when TTree::Draw() commands are issued) and an alias. The visible name is the alias. Aliases of user defined expressions have a leading ~ and may be used in new expressions. Expressions containing boolean operators have a specific icon and may be dragged to the active cut (scissors item) position.

The expression editor can be activated by double-clicking empty expression, using <EditExpression> from the selected expression context menu or using <Edit/Expression> menu.

The editor will pop-up in the left part, but it can be moved. The editor usage is the following :

• you can write C expressions made of leaf names by hand or you can insert any item from the right panel by clicking on it (recommandable);
• you can click on other expressions/leaves to paste them in the editor;
• you should write the item alias by hand since it not only make the expression meaningful, but it also highly improve the layout for big expressions
• you may redefine an old alias - the other expressions depending on it will be modified accordingly. An alias must not be the leading string of other aliases. When Draw commands are issued, the name of the corresponding histogram axes will become the aliases of the expressions.

User commands can be issued directly from the textbox labeled "Command" from the upper-left toolbar by typing and pressing Enter at the end.

Another way is from the right panel context menu : ExecuteCommand. All commands can be interrupted at any time by pressing the STOP button from the bottom-left You can toggle recording of the current command in the history file by checking the Rec button from the top-right

Context menus

You can activate context menus by right-clicking on items or inside the right panel.

Context menus for mapped items from the left tree-type list : The items from the left that are provided with context menus are tree and branch items. You can directly activate the MENU marked methods of TTree from this menu.

Context menu for the right panel:

A general context menu is activated if the user right-clicks the right panel.

Commands are :

• EmptyAll : clears the content of all expressions;
• ExecuteCommand : execute a ROOT command;
• MakeSelector : equivalent of TTree::MakeSelector();
• NewExpression : add an expression item in the right panel;
• Process : equivalent of TTree::Process();
• SaveSource : save the current session as a C++ macro;
• SetScanFileName : define a name for the file where TTree::Scan command is redirected when the <Scan> button is checked;
• SetTreeName : open a new tree with this name in the viewer;

A specific context menu is activated if expressions/leaves are right-clicked.

Commands are :

• Draw : draw a histogram for this item;
• EditExpression : pops-up the expression editor;
• Empty : empty the name and alias of this item;
• RemoveItem : removes clicked item from the list;
• Scan : scan this expression;
• SetExpression : edit name and alias for this item by hand;

Starting the viewer

1. From the TBrowser: Select a tree in the TBrowser, then call the StartViewer() method from its context menu (right-click on the tree).
2. From the command line: Start a ROOT session in the directory where you have your tree. You will need first to load the library for TTreeViewer and optionally other libraries for user defined classes (you can do this later in the session) :

   root [0] gSystem->Load(\"TTreeViewer\");

   Supposing you have the tree MyTree in the file MyFile, you can do :

   root [1] TFile file("Myfile");
   root [2] new TTreeViewer("Mytree");

   or :

   root [2] TTreeViewer *tv = new TTreeViewer();
   root [3] tv->SetTreeName("Mytree");

The HISTOGRAM and OPTION boxes

As explained before, in the top bar, there is the "Histogram" box, prepopulated with the string "htemp", which will be the variable name where the drawn histogram will be stored. You can modify it to specify e.g. a specific 2D binning "htemp(100,0,10, 20,0,5)", in the same way that you would do it when calling TTree::Draw ( "x >> htemp(...)" ). Likewise, there is the "Option" box, where you can specify drawing options such as "SAME", "COLZ", etc. In fact, once you click on the Draw icon, the resulting behind-the-scenes executed command will be added to the ROOT history. You can go back to the command line and press arrow-up, to be able to edit it further if you prefer the command line rather than the GUI.

Comparing different cuts

It's a common use case to define different cuts on your data and compare them in the same canvas. To do so, define an expression e1 and e2 by double clicking on the empty "E<>" icons. Drag-and-drop e1 into the scissors icon, click then on the Draw icon. Then, add the "same" to the "Option" box, and change "htemp" to "htemp2", finally drag-and-drop e2 to the scissors, and click on the Draw icon again. Finally, right click on the resulting histogram (htemp2), choose "DrawPanel" and change the color to make it distinguishable. You can also define, directly by double-clicking on the scissors icons, or by generating a third expression e3, more complex cuts such as (~e1) && (~e2), or (~e1) || !(~e2). Parentheses are important.

Definition at line 54 of file TTreeViewer.h.

Public Types
enum	{ kSingleKey = (1ULL << (0)) , kOverwrite = (1ULL << (1)) , kWriteDelete = (1ULL << (2)) }
enum	{   kIsOnHeap = 0x01000000 , kNotDeleted = 0x02000000 , kZombie = 0x04000000 , kInconsistent = 0x08000000 ,   kBitMask = 0x00ffffff }
enum	EDeprecatedStatusBits { kObjInCanvas = (1ULL << (3)) }
enum	EEditMode {   kEditEnable = 0 , kEditDisable = (1ULL << (0)) , kEditDisableEvents = (1ULL << (1)) , kEditDisableGrab = (1ULL << (2)) ,   kEditDisableLayout = (1ULL << (3)) , kEditDisableResize = (1ULL << (4)) , kEditDisableHeight = (1ULL << (5)) , kEditDisableWidth = (1ULL << (6)) ,   kEditDisableBtnEnable = (1ULL << (7)) , kEditDisableKeyEnable = (1ULL << (8)) }
enum	EListItemType {   kLTNoType = 0 , kLTPackType = (1ULL << (0)) , kLTTreeType = (1ULL << (1)) , kLTBranchType = (1ULL << (2)) ,   kLTLeafType = (1ULL << (3)) , kLTActionType = (1ULL << (4)) , kLTDragType = (1ULL << (5)) , kLTExpressionType = (1ULL << (6)) ,   kLTCutType = (1ULL << (7)) }
	Item types used as user data. More...
enum	EStatusBits { kIsHtmlView = (1ULL << (14)) }

Public Member Functions
	TTreeViewer (const char *treeName=nullptr)
	TTreeViewer default constructor.
	TTreeViewer (const TTree *tree)
	~TTreeViewer () override
void	AbstractMethod (const char *method) const
	Call this function within a function that you don't want to define as purely virtual, in order not to force all users deriving from that class to implement that maybe (on their side) unused function; but at the same time, emit a run-time warning if they try to call it, telling that it is not implemented in the derived class: action must thus be taken on the user side to override it.
virtual void	Activate (Bool_t)
void	ActivateButtons (bool first, bool previous, bool next, bool last)
virtual void	AddFrame (TGFrame *f, TGLayoutHints *l=nullptr)
	Add frame to the composite frame using the specified layout hints.
void	AddInput (UInt_t emask)
	Add events specified in the emask to the events the frame should handle.
virtual void	AppendPad (Option_t *option="")
	Append graphics object to current pad.
void	AppendTree (TTree *tree)
Bool_t	AreSignalsBlocked () const
virtual Bool_t	BindKey (const TGWindow *w, Int_t keycode, Int_t modifier) const
	Bind key to a window.
Bool_t	BlockSignals (Bool_t b)
virtual void	Browse (TBrowser *b)
	Browse object. May be overridden for another default action.
virtual void	ChangeBackground (Pixel_t back)
	Change frame background color.
virtual void	ChangedBy (const char *method)
void	ChangeOptions (UInt_t options) override
	Change composite frame options. Options is an OR of the EFrameTypes.
virtual void	ChangeSubframesBackground (Pixel_t back)
	Change background color for this frame and all subframes.
ULong_t	CheckedHash ()
	Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.
virtual const char *	ClassName () const
	Returns name of class to which the object belongs.
virtual void	Cleanup ()
	Cleanup and delete all objects contained in this composite frame.
virtual void	Clear (Option_t *="")
virtual TObject *	Clone (const char *newname="") const
	Make a clone of an object using the Streamer facility.
void	CloseWindow () override
	Close and delete main frame.
void	CollectClassSignalLists (TList &list, TClass *cls)
	Collect class signal lists from class cls and all its base-classes.
virtual Int_t	Compare (const TObject *obj) const
	Compare abstract method.
Bool_t	Connect (const char *signal, const char *receiver_class, void *receiver, const char *slot)
	Non-static method is used to connect from the signal of this object to the receiver slot.
virtual void	Connected (const char *)
Bool_t	Contains (Int_t x, Int_t y) const
virtual void	Copy (TObject &object) const
	Copy this to obj.
void	Delete (Option_t *) override
	Delete this object.
virtual void	DeleteWindow ()
	Delete window.
virtual void	Destroyed ()
virtual void	DestroySubwindows ()
	destroy sub windows
virtual void	DestroyWindow ()
	destroy window
Bool_t	Disconnect (const char *signal=nullptr, void *receiver=nullptr, const char *slot=nullptr)
	Disconnects signal of this object from slot of receiver.
virtual void	Disconnected (const char *)
virtual Int_t	DistancetoPrimitive (Int_t px, Int_t py)
	Computes distance from point (px,py) to the object.
void	DontCallClose ()
	Typically call this method in the slot connected to the CloseWindow() signal to prevent the calling of the default or any derived CloseWindow() methods to prevent premature or double deletion of this window.
void	DoRefresh ()
virtual void	Draw (Option_t *option="")
	Default Draw method for all objects.
virtual void	DrawBorder ()
	Draw frame border.
void	DrawClass () const override
	Draw class inheritance tree of the class to which this object belongs.
TObject *	DrawClone (Option_t *="") const override
	Draw a clone of this object in the current selected pad with: gROOT->SetSelectedPad(c1).
virtual void	DrawCopy (Handle_t, Int_t, Int_t)
void	Dump () const override
	Dump contents of object on stdout.
void	EditExpression ()
void	Emit (const char *signal)
	Activate signal without args.
template<typename T>
void	Emit (const char *signal, const T &arg)
	Activate signal with single parameter.
template<typename... T>
void	EmitVA (const char *signal_name, Int_t, const T &... params)
	Emit a signal with a varying number of arguments.
void	Empty ()
void	EmptyAll ()
virtual void	Error (const char *method, const char *msgfmt,...) const
	Issue error message.
virtual void	Execute (const char *method, const char *params, Int_t *error=nullptr)
	Execute method on this object with the given parameter string, e.g.
virtual void	Execute (TMethod *method, TObjArray *params, Int_t *error=nullptr)
	Execute method on this object with parameters stored in the TObjArray.
void	ExecuteCommand (const char *command, bool fast=false)
void	ExecuteDraw ()
virtual void	ExecuteEvent (Int_t event, Int_t px, Int_t py)
	Execute action corresponding to an event at (px,py).
void	ExecuteSpider ()
TTVLVEntry *	ExpressionItem (Int_t index)
TList *	ExpressionList ()
virtual void	Fatal (const char *method, const char *msgfmt,...) const
	Issue fatal error message.
virtual TGFrameElement *	FindFrameElement (TGFrame *f) const
	Find frame-element holding frame f.
virtual TObject *	FindObject (const char *name) const
	Must be redefined in derived classes.
virtual TObject *	FindObject (const TObject *obj) const
	Must be redefined in derived classes.
virtual Pixel_t	GetBackground () const
TList *	GetBindList () const
Int_t	GetBorderWidth () const
void	GetClassHints (const char *&className, const char *&resourceName) const
TGClient *	GetClient () const
UInt_t	GetDefaultHeight () const override
TGDimension	GetDefaultSize () const override
	std::cout << fWidth << "x" << fHeight << std::endl;
UInt_t	GetDefaultWidth () const override
virtual TDNDData *	GetDNDData (Atom_t)
virtual Int_t	GetDragType () const
	Returns drag source type.
virtual Option_t *	GetDrawOption () const
	Get option used by the graphics system to draw this object.
virtual Int_t	GetDropType () const
	Returns drop target type.
virtual UInt_t	GetEditDisabled () const
UInt_t	GetEventMask () const
virtual Pixel_t	GetForeground () const
	Return frame foreground color.
TGFrameElement *	GetFrameElement () const
TGFrame *	GetFrameFromPoint (Int_t x, Int_t y) override
	Get frame located at specified point.
const char *	GetGrOpt ()
UInt_t	GetHeight () const
const char *	GetIconName () const override
	Returns mime type name of object.
const char *	GetIconPixmap () const
Handle_t	GetId () const
virtual TGLayoutManager *	GetLayoutManager () const
virtual TList *	GetList () const
TList *	GetListOfClassSignals () const
	Returns pointer to list of signals of this class.
TList *	GetListOfConnections () const
TList *	GetListOfSignals () const
virtual const TGWindow *	GetMainFrame () const
	Returns top level main frame.
UInt_t	GetMaxHeight () const
UInt_t	GetMaxWidth () const
UInt_t	GetMinHeight () const
UInt_t	GetMinWidth () const
void	GetMWMHints (UInt_t &value, UInt_t &funcs, UInt_t &input) const
const char *	GetName () const override
	Return unique name, used in SavePrimitive methods.
virtual char *	GetObjectInfo (Int_t px, Int_t py) const
	Returns string containing info about the object at position (px,py).
virtual Option_t *	GetOption () const
virtual UInt_t	GetOptions () const
const TGWindow *	GetParent () const
TGDimension	GetSize () const
Int_t	GetState (TGFrame *f) const
	Get state of sub frame.
virtual const char *	GetTitle () const
	Returns title of object.
TTree *	GetTree ()
virtual UInt_t	GetUniqueID () const
	Return the unique object id.
UInt_t	GetWidth () const
const char *	GetWindowName () const
void	GetWMPosition (Int_t &x, Int_t &y) const
void	GetWMSize (UInt_t &w, UInt_t &h) const
void	GetWMSizeHints (UInt_t &wmin, UInt_t &hmin, UInt_t &wmax, UInt_t &hmax, UInt_t &winc, UInt_t &hinc) const
EInitialState	GetWMState () const
Int_t	GetX () const
Int_t	GetY () const
Bool_t	HandleButton (Event_t *event) override
	Handle mouse button events.
Bool_t	HandleClientMessage (Event_t *event) override
	Handle client messages sent to this frame.
virtual Bool_t	HandleColormapChange (Event_t *)
virtual Bool_t	HandleConfigureNotify (Event_t *event)
	This event is generated when the frame is resized.
Bool_t	HandleCrossing (Event_t *) override
virtual Bool_t	HandleDNDDrop (TDNDData *)
virtual Atom_t	HandleDNDEnter (Atom_t *)
virtual Bool_t	HandleDNDFinished ()
virtual Bool_t	HandleDNDLeave ()
virtual Atom_t	HandleDNDPosition (Int_t, Int_t, Atom_t, Int_t, Int_t)
Bool_t	HandleDoubleClick (Event_t *) override
Bool_t	HandleDragDrop (TGFrame *frame, Int_t x, Int_t y, TGLayoutHints *lo) override
	Handle drop event.
Bool_t	HandleDragEnter (TGFrame *) override
	Handle drag enter event.
Bool_t	HandleDragLeave (TGFrame *) override
	Handle drag leave event.
Bool_t	HandleDragMotion (TGFrame *) override
	Handle drag motion event.
Bool_t	HandleEvent (Event_t *event) override
	Handle all frame events.
virtual Bool_t	HandleExpose (Event_t *event)
Bool_t	HandleFocusChange (Event_t *) override
virtual Bool_t	HandleIdleEvent (TGIdleHandler *)
Bool_t	HandleKey (Event_t *event) override
	Handle keyboard events.
Bool_t	HandleMotion (Event_t *event) override
	Handle mouse motion events.
Bool_t	HandleSelection (Event_t *event) override
	Handle primary selection event.
virtual Bool_t	HandleSelectionClear (Event_t *)
Bool_t	HandleSelectionRequest (Event_t *event) override
	Handle selection request event.
bool	HandleTimer (TTimer *timer) override
	Execute action in response of a timer timing out.
virtual Bool_t	HasConnection (const char *signal_name) const
	Return true if there is any object connected to this signal.
ULong_t	Hash () const override
	Return hash value for this object.
Bool_t	HasInconsistentHash () const
	Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.
virtual void	HideFrame (TGFrame *f)
	Hide sub frame.
virtual void	HighPriority (const char *signal_name, const char *slot_name=nullptr)
virtual void	IconifyWindow ()
	iconify window
virtual void	Info (const char *method, const char *msgfmt,...) const
	Issue info message.
virtual Bool_t	InheritsFrom (const char *classname) const
	Returns kTRUE if object inherits from class "classname".
virtual Bool_t	InheritsFrom (const TClass *cl) const
	Returns kTRUE if object inherits from TClass cl.
void	Inspect () const override
	Dump contents of this object in a graphics canvas.
void	InvertBit (UInt_t f)
TClass *	IsA () const override
virtual Bool_t	IsActive () const
Bool_t	IsArranged (TGFrame *f) const
	Get state of sub frame.
Bool_t	IsArranged (TGFrameElement *ptr) const
Bool_t	IsComposite () const override
bool	IsCutEnabled ()
Bool_t	IsDestructed () const
	IsDestructed.
Bool_t	IsDNDSource () const
Bool_t	IsDNDTarget () const
Bool_t	IsEditable () const override
	Return kTRUE if frame is being edited.
Bool_t	IsEqual (const TObject *obj) const override
	Equal comparison (TGObjects are equal if they have the same window identifier).
virtual Bool_t	IsFolder () const
	Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).
Bool_t	IsLayoutBroken () const override
virtual Bool_t	IsMapped ()
	Returns kTRUE if window is mapped on screen, kFALSE otherwise.
Bool_t	IsMapSubwindows () const override
Bool_t	IsOnHeap () const
bool	IsScanRedirected ()
virtual Bool_t	IsSortable () const
Bool_t	IsVisible (TGFrame *f) const
	Get state of sub frame.
Bool_t	IsVisible (TGFrameElement *ptr) const
Bool_t	IsZombie () const
void	Layout () override
	Layout the elements of the composite frame.
virtual void	LowerWindow ()
	lower window
virtual void	LowPriority (const char *signal_name, const char *slot_name=nullptr)
virtual void	ls (Option_t *option="") const
	The ls function lists the contents of a class on stdout.
Int_t	MakeSelector (const char *selector=nullptr)
void	MapRaised () override
	map raised
void	MapSubwindows () override
	Map all sub windows that are part of the composite frame.
void	MapWindow () override
	map window
void	MayNotUse (const char *method) const
	Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).
void	Message (const char *msg) override
void	Move (Int_t x, Int_t y) override
	Move frame.
void	MoveResize (Int_t x, Int_t y, UInt_t w=0, UInt_t h=0) override
	Move and/or resize the frame.
Int_t	MustCleanup () const override
void	NewExpression ()
virtual Bool_t	Notify ()
	This method must be overridden to handle object notification (the base implementation is no-op).
virtual Int_t	NumberOfConnections () const
	Return number of connections for this object.
virtual Int_t	NumberOfSignals () const
	Return number of signals for this object.
void	Obsolete (const char *method, const char *asOfVers, const char *removedFromVers) const
	Use this method to declare a method obsolete.
void	operator delete (void *, size_t)
	Operator delete for sized deallocation.
void	operator delete (void *ptr)
	Operator delete.
void	operator delete (void *ptr, void *vp)
	Only called by placement new when throwing an exception.
void	operator delete[] (void *, size_t)
	Operator delete [] for sized deallocation.
void	operator delete[] (void *ptr)
	Operator delete [].
void	operator delete[] (void *ptr, void *vp)
	Only called by placement new[] when throwing an exception.
void *	operator new (size_t sz)
void *	operator new (size_t sz, void *vp)
void *	operator new[] (size_t sz)
void *	operator new[] (size_t sz, void *vp)
virtual void	Paint (Option_t *option="")
	This method must be overridden if a class wants to paint itself.
virtual void	Pop ()
	Pop on object drawn in a pad to the top of the display list.
void	Print (Option_t *option="") const override
	Print all frames in this composite frame.
void	PrintEntries ()
Long64_t	Process (const char *filename, Option_t *option="", Long64_t nentries=TTree::kMaxEntries, Long64_t firstentry=0)
virtual void	ProcessedConfigure (Event_t *event)
virtual void	ProcessedEvent (Event_t *event)
bool	ProcessMessage (Longptr_t msg, Longptr_t parm1, Longptr_t parm2) override
virtual void	RaiseWindow ()
	raise window
virtual Int_t	Read (const char *name)
	Read contents of object with specified name from the current directory.
virtual void	ReallyDelete ()
virtual void	RecursiveRemove (TObject *obj)
	Recursively remove this object from a list.
virtual void	RemoveAll ()
	Remove all frames from composite frame.
virtual void	RemoveBind (const TGWindow *w, Int_t keycode, Int_t modifier) const
	Remove key binding.
virtual void	RemoveFrame (TGFrame *f)
	Remove frame from composite frame.
void	RemoveInput (UInt_t emask)
	Remove events specified in emask from the events the frame should handle.
void	RemoveItem ()
void	RemoveLastRecord ()
void	ReparentWindow (const TGWindow *p, Int_t x=0, Int_t y=0) override
	Reparent window, make p the new parent and position the window at position (x,y) in new parent.
virtual void	RequestFocus ()
	request focus
void	ResetBit (UInt_t f)
virtual void	Resize (TGDimension size)
	Resize the frame.
void	Resize (UInt_t w=0, UInt_t h=0) override
	Resize the frame.
void	SaveAs (const char *filename="", Option_t *option="") const override
	Write this TGObject to a file using TImage, if filename's extension signals a valid TImage::EImageFileType, as defined by TImage::GetImageFileTypeFromFilename().
virtual Bool_t	SaveFrameAsCodeOrImage ()
	Opens dialog window allowing user to save the frame contents as a ROOT macro or as an image.
virtual Bool_t	SaveFrameAsCodeOrImage (const TString &fileName)
	Saves the frame contents as a ROOT macro or as an image, depending on the extension of the fileName argument.
void	SavePrimitive (std::ostream &out, Option_t *option="") override
	Save a main frame widget as a C++ statement(s) on output stream out.
virtual void	SavePrimitiveSubframes (std::ostream &out, Option_t *option="")
	Auxiliary protected method used to save subframes.
void	SaveSource (const char *filename="", Option_t *option="") override
	Save the GUI main frame widget in a C++ macro file.
void	SaveUserColor (std::ostream &out, Option_t *)
	Save a user color in a C++ macro file - used in SavePrimitive().
virtual void	SendCloseMessage ()
	Send close message to self.
virtual void	SendMessage (const TGWindow *w, Longptr_t msg, Longptr_t parm1, Longptr_t parm2)
	Send message (i.e.
void	SetBackgroundColor (Pixel_t back) override
	Set background color (override from TGWindow base class).
virtual void	SetBackgroundPixmap (Pixmap_t pixmap)
	set background pixmap
void	SetBit (UInt_t f)
void	SetBit (UInt_t f, Bool_t set)
	Set or unset the user status bits as specified in f.
void	SetClassHints (const char *className, const char *resourceName)
	Set the windows class and resource name.
void	SetCleanup (Int_t mode=kLocalCleanup) override
	Turn on automatic cleanup of child frames in dtor.
void	SetCurrentRecord (Long64_t entry)
void	SetCutMode (bool enabled=true)
void	SetDNDSource (Bool_t onoff)
void	SetDNDTarget (Bool_t onoff)
virtual void	SetDragType (Int_t type)
	SetDragType.
void	SetDrawOption (Option_t *="") override
	Set drawing option for object.
virtual void	SetDropType (Int_t type)
	SetDropType.
void	SetEditable (Bool_t on=kTRUE) override
	Switch ON/OFF edit mode.
void	SetEditDisabled (UInt_t on=1) override
	Set edit disable flag for this frame and subframes.
virtual void	SetForegroundColor (Pixel_t)
void	SetFrameElement (TGFrameElement *fe)
void	SetGrOpt (const char *option)
virtual void	SetHeight (UInt_t h)
void	SetHistogramTitle (const char *title)
void	SetIconName (const char *name)
	Set window icon name. This is typically done via the window manager.
void	SetIconPixmap (char **xpm_array)
	Set window icon by xpm array.
const TGPicture *	SetIconPixmap (const char *iconName)
	Set window icon pixmap by name.
void	SetLayoutBroken (Bool_t on=kTRUE) override
	Set broken layout. No Layout method is called.
virtual void	SetLayoutManager (TGLayoutManager *l)
	Set the layout manager for the composite frame.
void	SetMapSubwindows (Bool_t on) override
virtual void	SetMaxHeight (UInt_t h)
virtual void	SetMaxWidth (UInt_t w)
virtual void	SetMinHeight (UInt_t h)
virtual void	SetMinWidth (UInt_t w)
void	SetMWMHints (UInt_t value, UInt_t funcs, UInt_t input)
	Set decoration style for MWM-compatible wm (mwm, ncdwm, fvwm?).
virtual void	SetName (const char *name)
void	SetNexpressions (Int_t expr)
void	SetRecordName (const char *name)
void	SetScanFileName (const char *name="")
void	SetScanMode (bool mode=true)
void	SetScanRedirect (bool mode)
void	SetSession (TTVSession *session)
virtual void	SetSize (const TGDimension &s)
void	SetTree (TTree *tree)
void	SetTreeName (const char *treeName)
virtual void	SetUniqueID (UInt_t uid)
	Set the unique object id.
void	SetUserCode (const char *code, bool autoexec=true)
virtual void	SetWidth (UInt_t w)
void	SetWindowName (const char *name=nullptr) override
	Set window name. This is typically done via the window manager.
void	SetWMPosition (Int_t x, Int_t y)
	Give the window manager a window position hint.
void	SetWMSize (UInt_t w, UInt_t h)
	Give the window manager a window size hint.
void	SetWMSizeHints (UInt_t wmin, UInt_t hmin, UInt_t wmax, UInt_t hmax, UInt_t winc, UInt_t hinc)
	Give the window manager minimum and maximum size hints.
void	SetWMState (EInitialState state)
	Set the initial state of the window. Either kNormalState or kIconicState.
virtual void	SetX (Int_t x)
virtual void	SetY (Int_t y)
virtual void	ShowFrame (TGFrame *f)
	Show sub frame.
void	Streamer (TBuffer &) override
	Stream an object of class TObject.
void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)
bool	SwitchTree (Int_t index)
virtual void	SysError (const char *method, const char *msgfmt,...) const
	Issue system error message.
Bool_t	TestBit (UInt_t f) const
Int_t	TestBits (UInt_t f) const
virtual Bool_t	TranslateCoordinates (TGFrame *child, Int_t x, Int_t y, Int_t &fx, Int_t &fy)
	Translate coordinates to child frame.
void	UnmapWindow () override
	unmap window
void	UpdateCombo ()
void	UpdateRecord (const char *name="new name")
virtual void	UseCurrentStyle ()
	Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.
virtual void	Warning (const char *method, const char *msgfmt,...) const
	Issue warning message.
virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0)
	Write this object to the current directory.
virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) const
	Write this object to the current directory.

Static Public Member Functions
static Bool_t	AreAllSignalsBlocked ()
	Returns true if all signals are blocked.
static Bool_t	BlockAllSignals (Bool_t b)
	Block or unblock all signals. Returns the previous block status.
static TClass *	Class ()
static const char *	Class_Name ()
static constexpr Version_t	Class_Version ()
static Bool_t	Connect (const char *sender_class, const char *signal, const char *receiver_class, void *receiver, const char *slot)
	This method allows to make a connection from any object of the same class to a single slot.
static Bool_t	Connect (TQObject *sender, const char *signal, const char *receiver_class, void *receiver, const char *slot)
	Create connection between sender and receiver.
static const char *	DeclFileName ()
static Bool_t	Disconnect (const char *class_name, const char *signal, void *receiver=nullptr, const char *slot=nullptr)
	Disconnects "class signal".
static Bool_t	Disconnect (TQObject *sender, const char *signal=nullptr, void *receiver=nullptr, const char *slot=nullptr)
	Disconnects signal in object sender from slot_method in object receiver.
static const TGGC &	GetBckgndGC ()
	Get background color graphics context.
static const TGGC &	GetBlackGC ()
	Get black graphics context.
static Pixel_t	GetBlackPixel ()
	Get black pixel value.
static Int_t	GetCounter ()
	Return global window counter (total number of created windows).
static Pixel_t	GetDefaultFrameBackground ()
	Get default frame background.
static Pixel_t	GetDefaultSelectedBackground ()
	Get default selected frame background.
static Longptr_t	GetDtorOnly ()
	Return destructor only flag.
static const TGGC &	GetHilightGC ()
	Get highlight color graphics context.
static Bool_t	GetObjectStat ()
	Get status of object stat flag.
static const TGGC &	GetShadowGC ()
	Get shadow color graphics context.
static const TGGC &	GetWhiteGC ()
	Get white graphics context.
static Pixel_t	GetWhitePixel ()
	Get white pixel value.
static void	SetDtorOnly (void *obj)
	Set destructor only flag.
static void	SetObjectStat (Bool_t stat)
	Turn on/off tracking of objects in the TObjectTable.

Protected Types
enum	{ kOnlyPrepStep = (1ULL << (3)) }
enum	{ kDeleteWindowCalled = (1ULL << (15)) }
enum	{ kDontCallClose = (1ULL << (14)) }

Protected Member Functions
void	DoRedraw () override
	Redraw the frame.
virtual void	Draw3dRectangle (UInt_t type, Int_t x, Int_t y, UInt_t w, UInt_t h)
	Draw 3D rectangle on the frame border.
TString	GetMWMfuncString () const
	used in SaveSource()
TString	GetMWMinpString () const
	used in SaveSource()
TString	GetMWMvalueString () const
	used in SaveSource()
TString	GetOptionString () const
	Returns a frame option string - used in SavePrimitive().
const TGResourcePool *	GetResourcePool () const
void *	GetSender () override
virtual const char *	GetSenderClassName () const
void	MakeZombie ()
TString	SaveCtorArgs (std::ostream &out, UInt_t dflt_options=kChildFrame, Bool_t check_white_pixel=kFALSE)
	Return options and custom color as constructor args Used in the SavePrimitive methods, includes comma "," if any argument is not default.
virtual void	StartGuiBuilding (Bool_t on=kTRUE)
	Go into GUI building mode.

Static Protected Member Functions
static Int_t	CheckConnectArgs (TQObject *sender, TClass *sender_class, const char *signal, TClass *receiver_class, const char *slot)
	Checking of consistency of sender/receiver methods/arguments.
static TString	CompressName (const char *method_name)
	Removes "const" words and blanks from full (with prototype) method name and resolve any typedefs in the method signature.
static Bool_t	ConnectToClass (const char *sender_class, const char *signal, TClass *receiver_class, void *receiver, const char *slot)
	This method allows to make connection from any object of the same class to the receiver object.
static Bool_t	ConnectToClass (TQObject *sender, const char *signal, TClass *receiver_class, void *receiver, const char *slot)
	Create connection between sender and receiver.
static Time_t	GetLastClick ()
	Get time of last mouse click.
static void	SavePrimitiveConstructor (std::ostream &out, TClass *cl, const char *variable_name, const char *constructor_agrs="", Bool_t empty_line=kTRUE)
	Save object constructor in the output stream "out".
static void	SavePrimitiveDraw (std::ostream &out, const char *variable_name, Option_t *option=nullptr)
	Save invocation of primitive Draw() method Skipped if option contains "nodraw" string.
static TString	SavePrimitiveVector (std::ostream &out, const char *prefix, Int_t len, Double_t *arr, Int_t flag=0)
	Save array in the output stream "out" as vector.

Protected Attributes
Pixel_t	fBackground
	frame background color
TList *	fBindList
	list with key bindings
Int_t	fBorderWidth
	frame border width
TString	fClassName
	WM class name.
TGClient *	fClient
	Connection to display server.
Int_t	fDNDState
	EDNDFlags.
Atom_t *	fDNDTypeList
	handles DND types
UInt_t	fEditDisabled
	flags used for "guibuilding"
UInt_t	fEventMask
	currently active event mask
TGFrameElement *	fFE
	pointer to frame element
UInt_t	fHeight
	frame height
TString	fIconName
	icon name
TString	fIconPixmap
	icon pixmap name
Handle_t	fId
	X11/Win32 Window identifier.
Bool_t	fLayoutBroken
	no layout manager is used
TGLayoutManager *	fLayoutManager
	layout manager
TList *	fList
	container of frame elements
TList *	fListOfConnections
	! list of connections to this object
TList *	fListOfSignals
	! list of signals from this object
Bool_t	fMapSubwindows
	kTRUE - map subwindows
UInt_t	fMaxHeight
	maximal frame height
UInt_t	fMaxWidth
	maximal frame width
UInt_t	fMinHeight
	minimal frame height
UInt_t	fMinWidth
	minimal frame width
Int_t	fMustCleanup
	cleanup mode (see EFrameCleanup)
UInt_t	fMWMFuncs
	MWM functions.
UInt_t	fMWMInput
	MWM input modes.
UInt_t	fMWMValue
	MWM decoration hints.
TString	fName
	name of the window used in SavePrimitive()
Bool_t	fNeedRedraw
	kTRUE if window needs to be redrawn
UInt_t	fOptions
	frame options
const TGWindow *	fParent
	Parent window.
TString	fResourceName
	WM resource name.
Bool_t	fSignalsBlocked
	! flag used for suppression of signals
UInt_t	fWidth
	frame width
TString	fWindowName
	window name
UInt_t	fWMHeight
	WM height.
UInt_t	fWMHeightInc
	WM height increments.
EInitialState	fWMInitState
	WM initial state.
UInt_t	fWMMaxHeight
	WM max height.
UInt_t	fWMMaxWidth
	WM max width.
UInt_t	fWMMinHeight
	WM min height.
UInt_t	fWMMinWidth
	WM min width.
UInt_t	fWMWidth
	WM width.
UInt_t	fWMWidthInc
	WM width increments.
Int_t	fWMX
	WM x position.
Int_t	fWMY
	WM y position.
Int_t	fX
	frame x position
Int_t	fY
	frame y position

Static Protected Attributes
static Bool_t	fgAllSignalsBlocked = kFALSE
static const TGGC *	fgBckgndGC = nullptr
static const TGGC *	fgBlackGC = nullptr
static Pixel_t	fgBlackPixel = 0
static Int_t	fgCounter = 0
	counter of created windows in SavePrimitive
static Window_t	fgDbw = 0
static Int_t	fgDbx = 0
static Int_t	fgDby = 0
static Pixel_t	fgDefaultFrameBackground = 0
static TGLayoutHints *	fgDefaultHints = nullptr
static Pixel_t	fgDefaultSelectedBackground = 0
static const TGGC *	fgHilightGC = nullptr
static Bool_t	fgInit = kFALSE
static UInt_t	fgLastButton = 0
static Time_t	fgLastClick = 0
static const TGGC *	fgShadowGC = nullptr
static UInt_t	fgUserColor = 0
static const TGGC *	fgWhiteGC = nullptr
static Pixel_t	fgWhitePixel = 0

Private Member Functions
void	BuildInterface ()
const char *	Cut ()
Int_t	Dimension ()
void	DoError (int level, const char *location, const char *fmt, va_list va) const override
	Interface to ErrorHandler (protected).
const char *	EmptyBrackets (const char *name)
const char *	En (Int_t n)
const char *	Ex ()
const char *	Ey ()
const char *	Ez ()
void	MapBranch (TBranch *branch, const char *prefix="", TGListTreeItem *parent=nullptr, bool listIt=true)
void	MapOptions (Long_t parm1)
void	MapTree (TTree *tree, TGListTreeItem *parent=nullptr, bool listIt=true)
const char *	ScanList ()
void	SetFile ()
void	SetParentTree (TGListTreeItem *item)

Static Private Member Functions
static void	AddToTObjectTable (TObject *)
	Private helper function which will dispatch to TObjectTable::AddObj.

Private Attributes
UInt_t	fBits
	bit field status word
UInt_t	fUniqueID
	object unique identifier
TTree *	fTree
	Selected tree.
TTVSession *	fSession
	Current tree-viewer session.
const char *	fFilename
	Name of the file containing the tree.
const char *	fSourceFile
	Name of the C++ source file - default treeviewer.C.
TString	fLastOption
	Last graphic option.
TTree *	fMappedTree
	Listed tree.
TBranch *	fMappedBranch
	Listed branch.
Int_t	fDimension
	Histogram dimension.
bool	fVarDraw
	True if an item is double-clicked.
bool	fScanMode
	Flag activated when Scan Box is double-clicked.
TContextMenu *	fContextMenu
	Context menu for tree viewer.
TGSelectBox *	fDialogBox
	Expression editor.
TList *	fTreeList
	List of mapped trees.
Int_t	fTreeIndex
	Index of current tree in list.
const TGPicture *	fPicX
	Pictures for X expressions.
const TGPicture *	fPicY
	Pictures for Y expressions.
const TGPicture *	fPicZ
	Pictures for Z expressions.
const TGPicture *	fPicDraw
	Pictures for Draw buttons.
const TGPicture *	fPicStop
	Pictures for Stop buttons.
const TGPicture *	fPicRefr
	Pictures for Refresh buttons ///<ia.
Cursor_t	fDefaultCursor
	Default cursor.
Cursor_t	fWatchCursor
	Watch cursor.
TTimer *	fTimer
	Tree viewer timer.
bool	fCounting
	True if timer is counting.
bool	fStopMapping
	True if branch don't need remapping.
bool	fEnableCut
	True if cuts are enabled.
Int_t	fNexpressions
	Number of expression widgets.
Menu bar, menu bar entries and layouts
TGLayoutHints *	fMenuBarLayout
TGLayoutHints *	fMenuBarItemLayout
TGLayoutHints *	fMenuBarHelpLayout
TGMenuBar *	fMenuBar
TGPopupMenu *	fFileMenu
TGPopupMenu *	fEditMenu
TGPopupMenu *	fRunMenu
TGPopupMenu *	fOptionsMenu
TGPopupMenu *	fOptionsGen
TGPopupMenu *	fOptions1D
TGPopupMenu *	fOptions2D
TGPopupMenu *	fHelpMenu
Toolbar and hints
TGToolBar *	fToolBar
TGLayoutHints *	fBarLayout
Widgets on the toolbar
TGLabel *	fBarLbl1
	Label of command text entry.
TGLabel *	fBarLbl2
	Label of option text entry.
TGLabel *	fBarLbl3
	Label of histogram name text entry.
TGCheckButton *	fBarH
	Checked for drawing current histogram with different graphic option.
TGCheckButton *	fBarScan
	Checked for tree scan.
TGCheckButton *	fBarRec
	Command recording toggle.
TGTextEntry *	fBarCommand
	User command entry.
TGTextEntry *	fBarOption
	Histogram drawing option entry.
TGTextEntry *	fBarHist
	Histogram name entry.
Frames
TGHorizontalFrame *	fHf
	Main horizontal frame.
TGDoubleVSlider *	fSlider
	Vertical slider to select processed tree entries;.
TGVerticalFrame *	fV1
	List tree mother.
TGVerticalFrame *	fV2
	List view mother.
TGCompositeFrame *	fTreeHdr
	Header for list tree.
TGCompositeFrame *	fListHdr
	Header for list view.
TGLabel *	fLbl1
	Label for list tree.
TGLabel *	fLbl2
	Label for list view.
TGHorizontalFrame *	fBFrame
	Button frame.
TGHorizontalFrame *	fHpb
	Progress bar frame.
TGHProgressBar *	fProgressBar
	Progress bar.
TGLabel *	fBLbl4
	Label for input list entry.
TGLabel *	fBLbl5
	Label for output list entry.
TGTextEntry *	fBarListIn
	Tree input event list name entry.
TGTextEntry *	fBarListOut
	Pree output event list name entry.
TGPictureButton *	fDRAW
	DRAW button.
TGTextButton *	fSPIDER
	SPIDER button.
TGPictureButton *	fSTOP
	Interrupt current command (not yet).
TGPictureButton *	fREFR
	REFRESH button ///<ia.
TGStatusBar *	fStatusBar
	Status bar.
TGComboBox *	fCombo
	Combo box with session records.
TGPictureButton *	fBGFirst
TGPictureButton *	fBGPrevious
TGPictureButton *	fBGRecord
TGPictureButton *	fBGNext
TGPictureButton *	fBGLast
TGTextButton *	fReset
	clear expression's entries
ListTree
TGCanvas *	fTreeView
	ListTree canvas container.
TGListTree *	fLt
	ListTree with file and tree items.
ListView
TGListView *	fListView
	ListView with branches and leaves.
TTVLVContainer *	fLVContainer
	Container for listview.
TList *	fWidgets
	List of widgets to be deleted.

Static Private Attributes
static Longptr_t	fgDtorOnly = 0
	object for which to call dtor only (i.e. no delete)
static Bool_t	fgObjectStat = kTRUE
	if true keep track of objects in TObjectTable

Friends
class	TGButton
class	TGClient

#include <TTreeViewer.h>

Inheritance diagram for TTreeViewer:

Member Enumeration Documentation

anonymous enum

anonymous enum

protectedinherited

Enumerator

kOnlyPrepStep

Used to request that the class specific implementation of TObject::Write just prepare the objects to be ready to be written but do not actually write them into the TBuffer. This is just for example by TBufferMerger to request that the TTree inside the file calls TTree::FlushBaskets (outside of the merging lock) and TBufferMerger will later ask for the write (inside the merging lock). To take advantage of this feature the class needs to overload TObject::Write and use this enum value accordingly. (See TTree::Write and TObject::Write) Do not use, this feature will be migrate to the Merge function (See TClass and TTree::Merge)

Definition at line 106 of file TObject.h.

anonymous enum

anonymous enum

inherited

Enumerator
kSingleKey	write collection with single key
kOverwrite	overwrite existing object with same name
kWriteDelete	write object, then delete previous key with same name

Definition at line 99 of file TObject.h.

anonymous enum

anonymous enum

protectedinherited

Enumerator
kDeleteWindowCalled

Definition at line 83 of file TGFrame.h.

anonymous enum

anonymous enum

inherited

Enumerator
kIsOnHeap	object is on heap
kNotDeleted	object has not been deleted
kZombie	object ctor failed
kInconsistent	class overload Hash but does call RecursiveRemove in destructor
kBitMask

Definition at line 89 of file TObject.h.

anonymous enum

anonymous enum

protectedinherited

Enumerator
kDontCallClose

Definition at line 402 of file TGFrame.h.

EDeprecatedStatusBits

enum TObject::EDeprecatedStatusBits

inherited

Enumerator
kObjInCanvas	for backward compatibility only, use kMustCleanup

Definition at line 84 of file TObject.h.

EEditMode

enum TGWindow::EEditMode

inherited

Enumerator
kEditEnable	allow edit of this window
kEditDisable	disable edit of this window
kEditDisableEvents	window events cannot be edited
kEditDisableGrab	window grab cannot be edited
kEditDisableLayout	window layout cannot be edited
kEditDisableResize	window size cannot be edited
kEditDisableHeight	window height cannot be edited
kEditDisableWidth	window width cannot be edited
kEditDisableBtnEnable	window can handle mouse button events
kEditDisableKeyEnable	window can handle keyboard events

Definition at line 55 of file TGWindow.h.

EListItemType

enum TTreeViewer::EListItemType

Item types used as user data.

Enumerator
kLTNoType
kLTPackType
kLTTreeType
kLTBranchType
kLTLeafType
kLTActionType
kLTDragType
kLTExpressionType
kLTCutType

Definition at line 61 of file TTreeViewer.h.

EStatusBits

enum TGWindow::EStatusBits

inherited

Enumerator
kIsHtmlView

Definition at line 68 of file TGWindow.h.

Constructor & Destructor Documentation

TTreeViewer() [1/2]

TTreeViewer::TTreeViewer

(

const char *

treeName = nullptr

)

TTreeViewer default constructor.

Definition at line 340 of file TTreeViewer.cxx.

TTreeViewer() [2/2]

TTreeViewer::TTreeViewer

(

const TTree *

tree

)

~TTreeViewer()

TTreeViewer::~TTreeViewer ( )

override

Member Function Documentation

AbstractMethod()

void TObject::AbstractMethod ( const char * method ) const

inherited

Call this function within a function that you don't want to define as purely virtual, in order not to force all users deriving from that class to implement that maybe (on their side) unused function; but at the same time, emit a run-time warning if they try to call it, telling that it is not implemented in the derived class: action must thus be taken on the user side to override it.

In other word, this method acts as a "runtime purely virtual" warning instead of a "compiler purely virtual" error.

Warning

This interface is a legacy function that is no longer recommended to be used by new development code.

Note

The name "AbstractMethod" does not imply that it's an abstract method in the strict C++ sense.

Definition at line 1149 of file TObject.cxx.

Activate()

virtual void TGFrame::Activate ( Bool_t )

inlinevirtualinherited

Reimplemented in TGLBEntry, TGLVEntry, TGPopupMenu, and TGTreeLBEntry.

Definition at line 212 of file TGFrame.h.

ActivateButtons()

void TTreeViewer::ActivateButtons	(	bool	first,
		bool	previous,
		bool	next,
		bool	last )

AddFrame()

void TGCompositeFrame::AddFrame ( TGFrame * f, TGLayoutHints * l = nullptr )

virtualinherited

Add frame to the composite frame using the specified layout hints.

If no hints are specified default hints TGLayoutHints(kLHintsNormal,0,0,0,0) will be used. Most of the time, however, you will want to provide specific hints. User specified hints can be reused many times and need to be destroyed by the user. The added frames cannot not be added to different composite frames but still need to be deleted by the user.

Reimplemented in TGDockableFrame, TGFileContainer, TGPack, and TGSplitFrame.

Definition at line 1109 of file TGFrame.cxx.

AddInput()

void TGFrame::AddInput ( UInt_t emask )

inherited

Add events specified in the emask to the events the frame should handle.

Definition at line 331 of file TGFrame.cxx.

AddToTObjectTable()

void TObject::AddToTObjectTable ( TObject * op )

staticprivateinherited

Private helper function which will dispatch to TObjectTable::AddObj.

Included here to avoid circular dependency between header files.

Definition at line 195 of file TObject.cxx.

AppendPad()

void TObject::AppendPad ( Option_t * option = "" )

virtualinherited

Append graphics object to current pad.

In case no current pad is set yet, create a default canvas with the name "c1".

Definition at line 204 of file TObject.cxx.

AppendTree()

void TTreeViewer::AppendTree

(

TTree *

tree

)

AreAllSignalsBlocked()

Bool_t TQObject::AreAllSignalsBlocked ( )

staticinherited

Returns true if all signals are blocked.

Definition at line 1045 of file TQObject.cxx.

AreSignalsBlocked()

Bool_t TQObject::AreSignalsBlocked ( ) const

inlineinherited

Definition at line 91 of file TQObject.h.

BindKey()

Bool_t TGMainFrame::BindKey ( const TGWindow * w, Int_t keycode, Int_t modifier ) const

virtualinherited

Bind key to a window.

Definition at line 1629 of file TGFrame.cxx.

BlockAllSignals()

Bool_t TQObject::BlockAllSignals ( Bool_t b )

staticinherited

Block or unblock all signals. Returns the previous block status.

Definition at line 1053 of file TQObject.cxx.

BlockSignals()

Bool_t TQObject::BlockSignals ( Bool_t b )

inlineinherited

Definition at line 92 of file TQObject.h.

Browse()

void TObject::Browse ( TBrowser * b )

virtualinherited

Browse object. May be overridden for another default action.

Reimplemented in RooPlot, ROOT::Experimental::XRooFit::xRooNode, ROOT::Internal::THnBaseBrowsable, TApplicationRemote, TASImage, TAxis3D, TBaseClass, TBranch, TBranchClones, TBranchElement, TBranchObject, TBranchSTL, TBrowserObject, TCanvas, TChain, TClass, TCollection, TCollectionPropertyBrowsable, TDatabasePDG, TDirectory, TDirectoryFile, TEfficiency, TF1, TFolder, TGenerator, TGeoManager, TGeometry, TGeoNode, TGeoOverlap, TGeoTrack, TGeoVolume, TGraph2D, TGraph, TH1, THbookBranch, THbookFile, THbookKey, THnBase, THStack, TKey, TKeyMapFile, TLeaf, TMacro, TMapFile, TMultiDimFit, TMultiGraph, TNode, TNtuple, TNtupleD, TPad, TPair, TParticleClassPDG, TPrincipal, TRecorder, TRemoteObject, TROOT, TRootIconList, TSPlot, TStyle, TSystemDirectory, TSystemFile, TTask, TTree, TTreePerfStats, and TVirtualBranchBrowsable.

Definition at line 218 of file TObject.cxx.

BuildInterface()

void TTreeViewer::BuildInterface ( )

private

ChangeBackground()

void TGFrame::ChangeBackground ( Pixel_t back )

virtualinherited

Change frame background color.

Reimplemented in TGListBox, TGScrollBar, and TGView.

Definition at line 285 of file TGFrame.cxx.

ChangedBy()

virtual void TQObject::ChangedBy ( const char * method )

inlinevirtualinherited

Definition at line 199 of file TQObject.h.

ChangeOptions()

void TGCompositeFrame::ChangeOptions ( UInt_t options )

overridevirtualinherited

Change composite frame options. Options is an OR of the EFrameTypes.

Reimplemented from TGFrame.

Definition at line 1035 of file TGFrame.cxx.

ChangeSubframesBackground()

void TGCompositeFrame::ChangeSubframesBackground ( Pixel_t back )

virtualinherited

Change background color for this frame and all subframes.

Definition at line 1280 of file TGFrame.cxx.

CheckConnectArgs()

Int_t TQObject::CheckConnectArgs ( TQObject * sender, TClass * sender_class, const char * signal, TClass * receiver_class, const char * slot )

staticprotectedinherited

Checking of consistency of sender/receiver methods/arguments.

Returns -1 on error, otherwise number or arguments of signal function. Static method.

Definition at line 175 of file TQObject.cxx.

CheckedHash()

ULong_t TObject::CheckedHash ( )

inlineinherited

Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.

The intent is for this routine to be called instead of directly calling the function Hash during "insert" operations. See TObject::HasInconsistenTObjectHash();

(*) The setup is consistent when all classes in the class hierarchy that overload TObject::Hash do call ROOT::CallRecursiveRemoveIfNeeded in their destructor. i.e. it is safe to call the Hash virtual function during the RecursiveRemove operation.

Definition at line 332 of file TObject.h.

Class()

TClass * TTreeViewer::Class ( )

static

Returns

TClass describing this class

Class_Name()

const char * TTreeViewer::Class_Name ( )

static

Returns

Name of this class

Class_Version()

constexpr Version_t TTreeViewer::Class_Version ( )

inlinestaticconstexpr

Returns

Version of this class

Definition at line 254 of file TTreeViewer.h.

ClassName()

const char * TObject::ClassName ( ) const

virtualinherited

Returns name of class to which the object belongs.

Definition at line 227 of file TObject.cxx.

Cleanup()

void TGCompositeFrame::Cleanup ( )

virtualinherited

Cleanup and delete all objects contained in this composite frame.

This will delete all objects added via AddFrame(). CAUTION: all objects (frames and layout hints) must be unique, i.e. cannot be shared.

Reimplemented in TGSplitFrame, and TGToolBar.

Definition at line 959 of file TGFrame.cxx.

Clear()

virtual void TObject::Clear ( Option_t * = "" )

inlinevirtualinherited

Reimplemented in JetEvent, RooLinkedList, ROOT::TSchemaRule, ROOT::v5::TFormula, TBackCompFitter, TBits, TBranchRef, TBtree, TCanvas, TClonesArray, TCollection, TDictAttributeMap, TDirectory, TEventList, TFitter, TFolder, TFormula, TFumili, TGeoCombiTrans, TGeoGenTrans, TGeoHMatrix, TGeoRotation, TGHtml, TGraph2D, TGTextEdit, TGTextEntry, TGTextView, TGView, THashList, THashTable, TLegend, TLinearFitter, TList, TListOfDataMembers, TListOfEnums, TListOfEnumsWithLock, TListOfFunctions, TListOfFunctionTemplates, TMap, TMatrixT< Element >, TMatrixT< AReal >, TMatrixT< Double_t >, TMatrixT< Float_t >, TMatrixTBase< Element >, TMatrixTBase< Double_t >, TMatrixTBase< Float_t >, TMatrixTSparse< Element >, TMatrixTSparse< Double_t >, TMatrixTSparse< Float_t >, TMatrixTSym< Element >, TMatrixTSym< Double_t >, TMatrixTSym< Float_t >, TMrbSubevent_Caen, TMultiDimFit, TMVA::MinuitWrapper, TMVA::ResultsClassification, TMVA::ResultsMulticlass, TMVA::ResultsRegression, TNamed, TNotifyLinkBase, TObjArray, TOrdCollection, TPad, TPaveText, TPrincipal, TProcessID, TRefArray, TRefTable, TStreamerInfo, TTask, TUsrHitBuffer, TVectorT< Element >, TVectorT< Double_t >, TVectorT< Float_t >, TViewPubDataMembers, TViewPubFunctions, TVirtualFitter, TVirtualPad, and TVirtualStreamerInfo.

Definition at line 127 of file TObject.h.

Clone()

TObject * TObject::Clone ( const char * newname = "" ) const

virtualinherited

Make a clone of an object using the Streamer facility.

If the object derives from TNamed, this function is called by TNamed::Clone. TNamed::Clone uses the optional argument to set a new name to the newly created object.

If the object class has a DirectoryAutoAdd function, it will be called at the end of the function with the parameter gDirectory. This usually means that the object will be appended to the current ROOT directory.

Reimplemented in RooAbsArg, RooAbsBinning, RooAbsCollection, RooAbsStudy, RooCatType, RooCmdArg, RooDataHist, RooDataSet, RooFitResult, RooLinkedList, RooStats::HypoTestResult, RooStats::ModelConfig, RooStudyPackage, RooTemplateProxy< T >, RooTemplateProxy< const RooHistFunc >, RooTemplateProxy< RooAbsCategory >, RooTemplateProxy< RooAbsPdf >, RooTemplateProxy< RooAbsReal >, RooTemplateProxy< RooAbsRealLValue >, RooTemplateProxy< RooMultiCategory >, RooTemplateProxy< RooRealVar >, RooWorkspace, TASImage, TChainIndex, TClass, TCollection, TF1, TFunction, TFunctionTemplate, TH1, TImage, TMethod, TMethodCall, TMinuit, TMVA::MinuitWrapper, TNamed, TStreamerInfo, and TTreeIndex.

Definition at line 243 of file TObject.cxx.

CloseWindow()

void TTreeViewer::CloseWindow ( )

overridevirtual

Close and delete main frame.

We get here in response to ALT+F4 or a window manager close command. To terminate the application when this happens override this method and call gApplication->Terminate(0) or make a connection to this signal (if after the slot this method should not be called call DontCallClose() in the slot). By default the window will be deleted.

Reimplemented from TGMainFrame.

CollectClassSignalLists()

void TQObject::CollectClassSignalLists ( TList & list, TClass * cls )

inherited

Collect class signal lists from class cls and all its base-classes.

The recursive traversal is not performed for classes not deriving from TQClass.

Definition at line 447 of file TQObject.cxx.

Compare()

Int_t TObject::Compare ( const TObject * obj ) const

virtualinherited

Compare abstract method.

Must be overridden if a class wants to be able to compare itself with other objects. Must return -1 if this is smaller than obj, 0 if objects are equal and 1 if this is larger than obj.

Reimplemented in RooAbsArg, RooDouble, TCollection, TEnvRec, TFileInfo, TGeoBranchArray, TGeoOverlap, TGFSFrameElement, TGLBFrameElement, TNamed, TObjString, TParameter< AParamType >, TParameter< Long64_t >, TStructNode, TStructNodeProperty, and TUrl.

Definition at line 258 of file TObject.cxx.

CompressName()

TString TQObject::CompressName ( const char * method_name )

staticprotectedinherited

Removes "const" words and blanks from full (with prototype) method name and resolve any typedefs in the method signature.

If a null or empty string is passed in, an empty string is returned.

Example:

CompressName(" Draw(const char *, const char *,
               Option_t * , Int_t , Int_t)");

returns the string "Draw(char*,char*,char*,int,int)".

Definition at line 94 of file TQObject.cxx.

Connect() [1/3]

Bool_t TQObject::Connect ( const char * class_name, const char * signal, const char * cl, void * receiver, const char * slot )

staticinherited

This method allows to make a connection from any object of the same class to a single slot.

Signal and slot string must have a form: "Draw(char*, Option_t* ,Int_t)" All blanks and "const" words will be removed,

cl != 0 - class name, it can be class with or without dictionary, e.g interpreted class. Example:

TGButton *myButton;
TH2F     *myHist;

TQObject::Connect("TGButton", "Clicked()",
                  "TH2F", myHist, "Draw(Option_t*)");

cl == 0 - corresponds to function (interpereted or global) the name of the function is defined by the slot string, parameter receiver should be 0. Example:

TGButton *myButton;
TH2F     *myHist;

TQObject::Connect("TGButton", "Clicked()",
                  0, 0, "hsimple()");

Warning:

If receiver class not derived from TQObject and going to be deleted, disconnect all connections to this receiver. In case of class derived from TQObject it is done automatically.

Definition at line 791 of file TQObject.cxx.

Connect() [2/3]

Bool_t TQObject::Connect ( const char * signal, const char * receiver_class, void * receiver, const char * slot )

inherited

Non-static method is used to connect from the signal of this object to the receiver slot.

Warning! No check on consistency of sender/receiver classes/methods.

This method makes possible to have connection/signals from interpreted class. See also RQ_OBJECT.h.

Definition at line 865 of file TQObject.cxx.

Connect() [3/3]

Bool_t TQObject::Connect ( TQObject * sender, const char * signal, const char * cl, void * receiver, const char * slot )

staticinherited

Create connection between sender and receiver.

Signal and slot string must have a form: "Draw(char*, Option_t* ,Int_t)" All blanks and "const" words will be removed,

cl != 0 - class name, it can be class with or without dictionary, e.g interpreted class. Example:

TGButton *myButton;
TH2F     *myHist;

TQObject::Connect(myButton,"Clicked()",
                  "TH2F", myHist,"Draw(Option_t*)");

cl == 0 - corresponds to function (interpereted or global) the name of the function is defined by the slot string, parameter receiver should be 0. Example:

TGButton *myButton;
TH2F     *myHist;

TQObject::Connect(myButton,"Clicked()",
                  0, 0,"hsimple()");

Warning: If receiver is class not derived from TQObject and going to be deleted, disconnect all connections to this receiver. In case of class derived from TQObject it is done automatically.

Definition at line 699 of file TQObject.cxx.

Connected()

virtual void TQObject::Connected ( const char * )

inlinevirtualinherited

Definition at line 194 of file TQObject.h.

ConnectToClass() [1/2]

Bool_t TQObject::ConnectToClass ( const char * class_name, const char * signal, TClass * cl, void * receiver, const char * slot )

staticprotectedinherited

This method allows to make connection from any object of the same class to the receiver object.

Receiver class needs to have a dictionary.

Definition at line 615 of file TQObject.cxx.

ConnectToClass() [2/2]

Bool_t TQObject::ConnectToClass ( TQObject * sender, const char * signal, TClass * cl, void * receiver, const char * slot )

staticprotectedinherited

Create connection between sender and receiver.

Receiver class needs to have a dictionary.

Definition at line 559 of file TQObject.cxx.

Contains()

Bool_t TGFrame::Contains ( Int_t x, Int_t y ) const

inlineinherited

Definition at line 240 of file TGFrame.h.

Copy()

void TObject::Copy ( TObject & object ) const

virtualinherited

Copy this to obj.

Reimplemented in ROOT::v5::TFormula, TArc, TArrow, TAxis3D, TAxis, TBox, TColor, TCrown, TDirectory, TDirectoryFile, TEllipse, TF12, TF1, TF1AbsComposition, TF1Convolution, TF1NormSum, TF2, TF3, TFile, TFolder, TFormula, TFrame, TGTextEdit, TGTextView, TH1, TH1C, TH1D, TH1F, TH1I, TH1L, TH1S, TH2, TH2C, TH2D, TH2F, TH2I, TH2L, TH2Poly, TH2S, TH3, TH3C, TH3D, TH3F, TH3I, TH3L, TH3S, THelix, TLatex, TLegend, TLegendEntry, TLine, TMarker, TMathText, TNamed, TPaletteAxis, TPave, TPaveClass, TPaveLabel, TPieSlice, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TProfile2D, TProfile3D, TProfile, TStyle, TSystemDirectory, TSystemFile, TText, TWbox, and TXTRU.

Definition at line 159 of file TObject.cxx.

Cut()

const char * TTreeViewer::Cut ( )

private

DeclFileName()

const char * TTreeViewer::DeclFileName ( )

inlinestatic

Returns

Name of the file containing the class declaration

Definition at line 254 of file TTreeViewer.h.

Delete()

void TTreeViewer::Delete ( Option_t * option )

inlineoverridevirtual

Delete this object.

Typically called as a command via the interpreter. Normally use "delete" operator when object has been allocated on the heap.

Reimplemented from TGFrame.

Definition at line 213 of file TTreeViewer.h.

DeleteWindow()

void TGFrame::DeleteWindow ( )

virtualinherited

Delete window.

Use single shot timer to call final delete method. We use this indirect way since deleting the window in its own execution "thread" can cause side effects because frame methods can still be called while the window object has already been deleted.

Reimplemented in TGTextEditor.

Definition at line 268 of file TGFrame.cxx.

Destroyed()

virtual void TQObject::Destroyed ( )

inlinevirtualinherited

Reimplemented in TQConnection.

Definition at line 197 of file TQObject.h.

DestroySubwindows()

void TGWindow::DestroySubwindows ( )

virtualinherited

destroy sub windows

Definition at line 198 of file TGWindow.cxx.

DestroyWindow()

void TGWindow::DestroyWindow ( )

virtualinherited

destroy window

Definition at line 190 of file TGWindow.cxx.

Dimension()

Int_t TTreeViewer::Dimension ( )

private

Disconnect() [1/3]

Bool_t TQObject::Disconnect ( const char * class_name, const char * signal, void * receiver = nullptr, const char * slot = nullptr )

staticinherited

Disconnects "class signal".

The class is defined by class_name. See also Connect(class_name,signal,receiver,slot).

Definition at line 1004 of file TQObject.cxx.

Disconnect() [2/3]

Bool_t TQObject::Disconnect ( const char * signal = nullptr, void * receiver = nullptr, const char * slot = nullptr )

inherited

Disconnects signal of this object from slot of receiver.

Equivalent to Disconnect(this, signal, receiver, slot)

Definition at line 1023 of file TQObject.cxx.

Disconnect() [3/3]

Bool_t TQObject::Disconnect ( TQObject * sender, const char * signal = nullptr, void * receiver = nullptr, const char * slot = nullptr )

staticinherited

Disconnects signal in object sender from slot_method in object receiver.

For objects derived from TQObject signal-slot connection is removed when either of the objects involved are destroyed.

Disconnect() is typically used in three ways, as the following examples shows:

• Disconnect everything connected to an object's signals:

  Disconnect(myObject);

• Disconnect everything connected to a signal:

  Disconnect(myObject, "mySignal()");

• Disconnect a specific receiver:

  Disconnect(myObject, 0, myReceiver, 0);

0 may be used as a wildcard in three of the four arguments, meaning "any signal", "any receiving object" or "any slot in the receiving object", respectively.

The sender has no default and may never be 0 (you cannot disconnect signals from more than one object).

If signal is 0, it disconnects receiver and slot_method from any signal. If not, only the specified signal is disconnected.

If receiver is 0, it disconnects anything connected to signal. If not, slots in objects other than receiver are not disconnected

If slot_method is 0, it disconnects anything that is connected to receiver. If not, only slots named slot_method will be disconnected, and all other slots are left alone. The slot_method must be 0 if receiver is left out, so you cannot disconnect a specifically-named slot on all objects.

Definition at line 956 of file TQObject.cxx.

Disconnected()

virtual void TQObject::Disconnected ( const char * )

inlinevirtualinherited

Definition at line 195 of file TQObject.h.

DistancetoPrimitive()

Int_t TObject::DistancetoPrimitive ( Int_t px, Int_t py )

virtualinherited

Computes distance from point (px,py) to the object.

This member function must be implemented for each graphics primitive. This default function returns a big number (999999).

Reimplemented in TASImage, TAxis3D, TAxis, TBox, TBRIK, TColorWheel, TCrown, TCurlyArc, TCurlyLine, TDiamond, TEfficiency, TEllipse, TF1, TF2, TF3, TFileDrawMap, TGenerator, TGeoBBox, TGeoCompositeShape, TGeoCone, TGeoConeSeg, TGeoEltu, TGeoHalfSpace, TGeoHype, TGeoNode, TGeoOverlap, TGeoParaboloid, TGeoPcon, TGeoPgon, TGeoScaledShape, TGeoShape, TGeoShapeAssembly, TGeoSphere, TGeoTessellated, TGeoTorus, TGeoTrack, TGeoTube, TGeoTubeSeg, TGeoVGShape, TGeoVolume, TGeoXtru, TGL5DDataSet, TGLHistPainter, TGLParametricEquation, TGLScenePad, TGLTH3Composition, TGLViewer, TGraph2D, TGraph, TGraphEdge, TGraphNode, TGraphPolargram, TH1, THistPainter, THStack, TLine, TMarker3DBox, TMarker, TMultiGraph, TNode, TPad, TPaletteAxis, TParallelCoord, TParallelCoordRange, TParallelCoordVar, TParticle, TPave, TPCON, TPie, TPieSlice, TPoints3DABC, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TPrimary, TScatter2D, TScatter, TSPHE, TSpider, TSpline, TStyle, TText, TTreePerfStats, TTUBE, TTUBS, TVirtualHistPainter, and TXTRU.

Definition at line 284 of file TObject.cxx.

DoError()

void TTreeViewer::DoError ( int level, const char * location, const char * fmt, va_list va ) const

overrideprivatevirtual

Interface to ErrorHandler (protected).

Reimplemented from TObject.

DontCallClose()

void TGMainFrame::DontCallClose ( )

inherited

Typically call this method in the slot connected to the CloseWindow() signal to prevent the calling of the default or any derived CloseWindow() methods to prevent premature or double deletion of this window.

Definition at line 1772 of file TGFrame.cxx.

DoRedraw()

void TGFrame::DoRedraw ( )

overrideprotectedvirtualinherited

Redraw the frame.

Reimplemented from TGWindow.

Reimplemented in TGGroupFrame, TGHProgressBar, TGHSlider, TGIcon, TGIconLBEntry, TGLabel, TGLBContainer, TGLBEntry, TGLineLBEntry, TGLPShapeObjEditor, TGLVEntry, TGLWidget, TGMdiTitleIcon, TGMenuTitle, TGPictureButton, TGPopupMenu, TGProgressBar, TGRadioButton, TGShapedFrame, TGSpeedo, TGSplitButton, TGSplitTool, TGStatusBar, TGStatusBarPart, TGTable, TGTableCell, TGTextButton, TGTextEntry, TGTextLBEntry, TGTreeLBEntry, TGTripleHSlider, TGTripleVSlider, TGuiBldDragManager, TGuiBldHintsButton, TGuiBldMenuTitle, TGuiBldNameFrame, TGuiBldToolButton, TGView, TGVProgressBar, and TGVSlider.

Definition at line 422 of file TGFrame.cxx.

DoRefresh()

void TTreeViewer::DoRefresh

(

)

Draw()

void TObject::Draw ( Option_t * option = "" )

virtualinherited

Default Draw method for all objects.

Reimplemented in RooAbsData, RooPlot, RooStats::HypoTestInverterPlot, RooStats::SamplingDistPlot, ROOT::Experimental::XRooFit::xRooNLLVar::xRooHypoPoint, ROOT::Experimental::XRooFit::xRooNLLVar::xRooHypoSpace, ROOT::Experimental::XRooFit::xRooNode, ROOT::RGeoPainter, TArrow, TASImage, TBox, TBrowser, TButton, TCanvas, TChain, TClass, TClassTree, TCollection, TColorWheel, TDiamond, TDirectory, TEfficiency, TEllipse, TEveGeoNode, TEveGeoTopNode, TF1, TF2, TF3, TFile, TFITSHDU, TFrame, TGenerator, TGeoBatemanSol, TGeometry, TGeoNode, TGeoOverlap, TGeoPainter, TGeoParallelWorld, TGeoPhysicalNode, TGeoPolygon, TGeoShape, TGeoTrack, TGeoVGShape, TGeoVolume, TGItemContext, TGListTree, TGPicture, TGraph2D, TGraph, TGraphPolar, TGraphPolargram, TGraphStruct, TGraphTime, TH1, THelix, THStack, TLegend, TMarker, TMatrixTBase< Element >, TMatrixTBase< Double_t >, TMatrixTBase< Float_t >, TMultiDimFit, TMultiGraph, TMultiLayerPerceptron, TNode, TNodeDiv, TPad, TParallelCoord, TParallelCoordRange, TParallelCoordVar, TPave, TPaveLabel, TPavesText, TPaveText, TPie, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TRatioPlot, TSpider, TSpline, TStructViewer, TStructViewerGUI, TTree, TTreePerfStats, TVectorT< Element >, TVectorT< Double_t >, TVectorT< Float_t >, TVirtualPad, and TWbox.

Definition at line 293 of file TObject.cxx.

Draw3dRectangle()

void TGFrame::Draw3dRectangle ( UInt_t type, Int_t x, Int_t y, UInt_t w, UInt_t h )

protectedvirtualinherited

Draw 3D rectangle on the frame border.

Definition at line 349 of file TGFrame.cxx.

DrawBorder()

void TGFrame::DrawBorder ( )

virtualinherited

Draw frame border.

Reimplemented in TGButtonGroup, TGCanvas, TGColorFrame, TGComboBox, TGDockButton, TGedPatternFrame, TGGroupFrame, TGHorizontal3DLine, TGHSplitter, TGListBox, TGMdiCornerWinResizer, TGMdiHorizontalWinResizer, TGMdiVerticalWinResizer, TGMdiWinResizer, TGPopupMenu, TGScrollBar, TGScrollBarElement, TGSplitTool, TGStatusBar, TGTab, TGTabElement, TGTableCell, TGTextEntry, TGToolTip, TGVertical3DLine, TGView, TGViewPort, and TGVSplitter.

Definition at line 413 of file TGFrame.cxx.

DrawClass()

void TGFrame::DrawClass ( ) const

inlineoverridevirtualinherited

Draw class inheritance tree of the class to which this object belongs.

If a class B inherits from a class A, description of B is drawn on the right side of description of A. Member functions overridden by B are shown in class A with a blue line crossing-out the corresponding member function. The following picture is the class inheritance tree of class TPaveLabel:

Reimplemented from TObject.

Definition at line 264 of file TGFrame.h.

DrawClone()

TObject * TGFrame::DrawClone ( Option_t * option = "" ) const

inlineoverridevirtualinherited

Draw a clone of this object in the current selected pad with: gROOT->SetSelectedPad(c1).

If pad was not selected - gPad will be used.

Note

For histograms, use the more specialised TH1::DrawCopy().

Reimplemented from TObject.

Definition at line 263 of file TGFrame.h.

DrawCopy()

virtual void TGFrame::DrawCopy ( Handle_t , Int_t , Int_t  )

inlinevirtualinherited

Reimplemented in TGIconLBEntry, TGLineLBEntry, TGLVEntry, TGTableCell, TGTextLBEntry, and TGTreeLBEntry.

Definition at line 211 of file TGFrame.h.

Dump()

void TGFrame::Dump ( ) const

inlineoverridevirtualinherited

Dump contents of object on stdout.

Using the information in the object dictionary (class TClass) each data member is interpreted. If a data member is a pointer, the pointer value is printed

The following output is the Dump of a TArrow object:

fAngle                   0           Arrow opening angle (degrees)
fArrowSize               0.2         Arrow Size
fOption.*fData
fX1                      0.1         X of 1st point
fY1                      0.15        Y of 1st point
fX2                      0.67        X of 2nd point
fY2                      0.83        Y of 2nd point
fUniqueID                0           object unique identifier
fBits                    50331648    bit field status word
fLineColor               1           line color
fLineStyle               1           line style
fLineWidth               1           line width
fFillColor               19          fill area color
fFillStyle               1001        fill area style

Reimplemented from TObject.

Reimplemented in TGPack.

Definition at line 265 of file TGFrame.h.

EditExpression()

void TTreeViewer::EditExpression

(

)

Emit() [1/2]

void TQObject::Emit ( const char * signal )

inlineinherited

Activate signal without args.

Example: theButton->Emit("Clicked()");

Definition at line 174 of file TQObject.h.

Emit() [2/2]

template<typename T>

void TQObject::Emit ( const char * signal, const T & arg )

inlineinherited

Activate signal with single parameter.

Example:

theButton->Emit("Progress(Long64_t)",processed)

If we call Emit with an array of the parameters, they should be converted to Longptr_t type. Example:

TQObject *processor; // data processor
TH1F     *hist;      // filled with processor results

processor->Connect("Evaluated(Float_t,Float_t)",
                   "TH1F",hist,"Fill12(Axis_t,Axis_t)");

Longptr_t args[2];
args[0] = (Longptr_t)processor->GetValue(1);
args[1] = (Longptr_t)processor->GetValue(2);

processor->Emit("Evaluated(Float_t,Float_t)",args);

Definition at line 164 of file TQObject.h.

EmitVA()

template<typename... T>

void TQObject::EmitVA ( const char * signal_name, Int_t , const T &... params )

inlineinherited

Emit a signal with a varying number of arguments.

Definition at line 100 of file TQObject.h.

Empty()

void TTreeViewer::Empty

(

)

EmptyAll()

void TTreeViewer::EmptyAll

(

)

EmptyBrackets()

const char * TTreeViewer::EmptyBrackets ( const char * name )

private

En()

const char * TTreeViewer::En ( Int_t n )

private

Error()

void TObject::Error ( const char * location, const char * fmt, ... ) const

virtualinherited

Issue error message.

Use "location" to specify the method where the error occurred. Accepts standard printf formatting arguments.

Reimplemented in TFitResult.

Definition at line 1098 of file TObject.cxx.

Ex()

const char * TTreeViewer::Ex ( )

private

Execute() [1/2]

void TObject::Execute ( const char * method, const char * params, Int_t * error = nullptr )

virtualinherited

Execute method on this object with the given parameter string, e.g.

"3.14,1,\"text\"".

Reimplemented in ROOT::R::TRInterface, TCling, TContextMenu, TInterpreter, and TMethodCall.

Definition at line 378 of file TObject.cxx.

Execute() [2/2]

void TObject::Execute ( TMethod * method, TObjArray * params, Int_t * error = nullptr )

virtualinherited

Execute method on this object with parameters stored in the TObjArray.

The TObjArray should contain an argv vector like:

argv[0] ... argv[n] = the list of TObjString parameters

Reimplemented in ROOT::R::TRInterface, TCling, TContextMenu, TInterpreter, and TMethodCall.

Definition at line 398 of file TObject.cxx.

ExecuteCommand()

void TTreeViewer::ExecuteCommand	(	const char *	command,
		bool	fast = false )

ExecuteDraw()

void TTreeViewer::ExecuteDraw

(

)

ExecuteEvent()

void TObject::ExecuteEvent ( Int_t event, Int_t px, Int_t py )

virtualinherited

Execute action corresponding to an event at (px,py).

This method must be overridden if an object can react to graphics events.

Reimplemented in TASImage, TASPaletteEditor::LimitLine, TAxis3D, TAxis, TBox, TButton, TCanvas, TCrown, TCurlyArc, TCurlyLine, TDiamond, TEfficiency, TEllipse, TF1, TF2, TF3, TFrame, TGenerator, TGeoManager, TGeoNode, TGeoOverlap, TGeoShape, TGeoTrack, TGeoVolume, TGL5DDataSet, TGLEventHandler, TGLHistPainter, TGLParametricEquation, TGLScenePad, TGLTH3Composition, TGLViewer, TGraph2D, TGraph, TGraphEdge, TGraphNode, TGraphPolargram, TGroupButton, TH1, THistPainter, TLine, TLink, TMarker3DBox, TMarker, TNode, TPad, TPaletteAxis, TParallelCoord, TParallelCoordRange, TParallelCoordVar, TParticle, TPave, TPie, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TPrimary, TScatter2D, TScatter, TSliderBox, TSpider, TSpline, TText, TTreePerfStats, TView3D, TView, TVirtualHistPainter, and TWbox.

Definition at line 415 of file TObject.cxx.

ExecuteSpider()

void TTreeViewer::ExecuteSpider

(

)

ExpressionItem()

TTVLVEntry * TTreeViewer::ExpressionItem

(

Int_t

index

)

ExpressionList()

TList * TTreeViewer::ExpressionList

(

)

Ey()

const char * TTreeViewer::Ey ( )

private

Ez()

const char * TTreeViewer::Ez ( )

private

Fatal()

void TObject::Fatal ( const char * location, const char * fmt, ... ) const

virtualinherited

Issue fatal error message.

Use "location" to specify the method where the fatal error occurred. Accepts standard printf formatting arguments.

Definition at line 1126 of file TObject.cxx.

FindFrameElement()

TGFrameElement * TGCompositeFrame::FindFrameElement ( TGFrame * f ) const

virtualinherited

Find frame-element holding frame f.

Definition at line 1086 of file TGFrame.cxx.

FindObject() [1/2]

TObject * TObject::FindObject ( const char * name ) const

virtualinherited

Must be redefined in derived classes.

This function is typically used with TCollections, but can also be used to find an object by name inside this object.

Reimplemented in RooAbsCollection, RooLinkedList, TBtree, TCollection, TDirectory, TFolder, TGeometry, TGraph2D, TGraph, TH1, THashList, THashTable, THbookFile, TList, TListOfDataMembers, TListOfEnums, TListOfEnumsWithLock, TListOfFunctions, TListOfFunctionTemplates, TListOfTypes, TMap, TObjArray, TPad, TROOT, TViewPubDataMembers, and TViewPubFunctions.

Definition at line 425 of file TObject.cxx.

FindObject() [2/2]

TObject * TObject::FindObject ( const TObject * obj ) const

virtualinherited

Must be redefined in derived classes.

This function is typically used with TCollections, but can also be used to find an object inside this object.

Reimplemented in RooAbsCollection, RooLinkedList, TBtree, TCollection, TDirectory, TFolder, TGeometry, TGraph2D, TGraph, TH1, THashList, THashTable, THbookFile, TList, TListOfDataMembers, TListOfEnums, TListOfEnumsWithLock, TListOfFunctions, TListOfFunctionTemplates, TListOfTypes, TMap, TObjArray, TPad, TROOT, TViewPubDataMembers, and TViewPubFunctions.

Definition at line 435 of file TObject.cxx.

GetBackground()

virtual Pixel_t TGFrame::GetBackground ( ) const

inlinevirtualinherited

Definition at line 194 of file TGFrame.h.

GetBckgndGC()

const TGGC & TGFrame::GetBckgndGC ( )

staticinherited

Get background color graphics context.

Definition at line 767 of file TGFrame.cxx.

GetBindList()

TList * TGMainFrame::GetBindList ( ) const

inlineinherited

Definition at line 476 of file TGFrame.h.

GetBlackGC()

const TGGC & TGFrame::GetBlackGC ( )

staticinherited

Get black graphics context.

Definition at line 727 of file TGFrame.cxx.

GetBlackPixel()

ULong_t TGFrame::GetBlackPixel ( )

staticinherited

Get black pixel value.

Definition at line 714 of file TGFrame.cxx.

GetBorderWidth()

Int_t TGFrame::GetBorderWidth ( ) const

inlineinherited

Definition at line 235 of file TGFrame.h.

GetClassHints()

void TGMainFrame::GetClassHints ( const char *& className, const char *& resourceName ) const

inlineinherited

Definition at line 481 of file TGFrame.h.

GetClient()

TGClient * TGObject::GetClient ( ) const

inlineinherited

Definition at line 42 of file TGObject.h.

GetCounter()

Int_t TGWindow::GetCounter ( )

staticinherited

Return global window counter (total number of created windows).

Definition at line 326 of file TGWindow.cxx.

GetDefaultFrameBackground()

ULong_t TGFrame::GetDefaultFrameBackground ( )

staticinherited

Get default frame background.

Definition at line 675 of file TGFrame.cxx.

GetDefaultHeight()

UInt_t TGCompositeFrame::GetDefaultHeight ( ) const

inlineoverridevirtualinherited

Reimplemented from TGFrame.

Reimplemented in TGNumberEntry.

Definition at line 316 of file TGFrame.h.

GetDefaultSelectedBackground()

ULong_t TGFrame::GetDefaultSelectedBackground ( )

staticinherited

Get default selected frame background.

Definition at line 688 of file TGFrame.cxx.

GetDefaultSize()

TGDimension TGCompositeFrame::GetDefaultSize ( ) const

inlineoverridevirtualinherited

std::cout << fWidth << "x" << fHeight << std::endl;

Reimplemented from TGFrame.

Reimplemented in TGGroupFrame, TGListBox, TGListTree, TGShutter, TGStatusBar, TGView, and TGViewPort.

Definition at line 318 of file TGFrame.h.

GetDefaultWidth()

UInt_t TGCompositeFrame::GetDefaultWidth ( ) const

inlineoverridevirtualinherited

Reimplemented from TGFrame.

Reimplemented in TGLBContainer.

Definition at line 314 of file TGFrame.h.

GetDNDData()

virtual TDNDData * TGFrame::GetDNDData ( Atom_t )

inlinevirtualinherited

Reimplemented in TGListTree, and TRootObjItem.

Definition at line 277 of file TGFrame.h.

GetDragType()

Int_t TGFrame::GetDragType ( ) const

virtualinherited

Returns drag source type.

If frame is not "draggable" - return zero

Definition at line 816 of file TGFrame.cxx.

GetDrawOption()

Option_t * TObject::GetDrawOption ( ) const

virtualinherited

Get option used by the graphics system to draw this object.

Note that before calling object.GetDrawOption(), you must have called object.Draw(..) before in the current pad.

Reimplemented in TBrowser, TFitEditor, TGedFrame, TGFileBrowser, TRootBrowser, and TRootBrowserLite.

Definition at line 445 of file TObject.cxx.

GetDropType()

Int_t TGFrame::GetDropType ( ) const

virtualinherited

Returns drop target type.

If frame cannot accept drop - return zero

Definition at line 825 of file TGFrame.cxx.

GetDtorOnly()

Longptr_t TObject::GetDtorOnly ( )

staticinherited

Return destructor only flag.

Definition at line 1196 of file TObject.cxx.

GetEditDisabled()

virtual UInt_t TGWindow::GetEditDisabled ( ) const

inlinevirtualinherited

Definition at line 112 of file TGWindow.h.

GetEventMask()

UInt_t TGFrame::GetEventMask ( ) const

inlineinherited

Definition at line 157 of file TGFrame.h.

GetForeground()

Pixel_t TGFrame::GetForeground ( ) const

virtualinherited

Return frame foreground color.

Reimplemented in TGTextEntry.

Definition at line 295 of file TGFrame.cxx.

GetFrameElement()

TGFrameElement * TGFrame::GetFrameElement ( ) const

inlineinherited

Definition at line 237 of file TGFrame.h.

GetFrameFromPoint()

TGFrame * TGCompositeFrame::GetFrameFromPoint ( Int_t x, Int_t y )

overridevirtualinherited

Get frame located at specified point.

Reimplemented from TGFrame.

Definition at line 1300 of file TGFrame.cxx.

GetGrOpt()

const char * TTreeViewer::GetGrOpt

(

)

GetHeight()

UInt_t TGFrame::GetHeight ( ) const

inlineinherited

Definition at line 227 of file TGFrame.h.

GetHilightGC()

const TGGC & TGFrame::GetHilightGC ( )

staticinherited

Get highlight color graphics context.

Definition at line 747 of file TGFrame.cxx.

GetIconName()

const char * TGMainFrame::GetIconName ( ) const

inlineoverridevirtualinherited

Returns mime type name of object.

Used by the TBrowser (via TGMimeTypes class). Override for class of which you would like to have different icons for objects of the same class.

Reimplemented from TObject.

Definition at line 479 of file TGFrame.h.

GetIconPixmap()

const char * TGMainFrame::GetIconPixmap ( ) const

inlineinherited

Definition at line 480 of file TGFrame.h.

GetId()

Handle_t TGObject::GetId ( ) const

inlineinherited

Definition at line 41 of file TGObject.h.

GetLastClick()

Time_t TGFrame::GetLastClick ( )

staticprotectedinherited

Get time of last mouse click.

Definition at line 777 of file TGFrame.cxx.

GetLayoutManager()

virtual TGLayoutManager * TGCompositeFrame::GetLayoutManager ( ) const

inlinevirtualinherited

Reimplemented in TGNumberEntry, and TGTab.

Definition at line 340 of file TGFrame.h.

GetList()

virtual TList * TGCompositeFrame::GetList ( ) const

inlinevirtualinherited

Definition at line 312 of file TGFrame.h.

GetListOfClassSignals()

TList * TQObject::GetListOfClassSignals ( ) const

inherited

Returns pointer to list of signals of this class.

Definition at line 431 of file TQObject.cxx.

GetListOfConnections()

TList * TQObject::GetListOfConnections ( ) const

inlineinherited

Definition at line 89 of file TQObject.h.

GetListOfSignals()

TList * TQObject::GetListOfSignals ( ) const

inlineinherited

Definition at line 88 of file TQObject.h.

GetMainFrame()

const TGWindow * TGWindow::GetMainFrame ( ) const

virtualinherited

Returns top level main frame.

Reimplemented in TRootBrowser, and TRootBrowserLite.

Definition at line 150 of file TGWindow.cxx.

GetMaxHeight()

UInt_t TGFrame::GetMaxHeight ( ) const

inlineinherited

Definition at line 231 of file TGFrame.h.

GetMaxWidth()

UInt_t TGFrame::GetMaxWidth ( ) const

inlineinherited

Definition at line 230 of file TGFrame.h.

GetMinHeight()

UInt_t TGFrame::GetMinHeight ( ) const

inlineinherited

Definition at line 229 of file TGFrame.h.

GetMinWidth()

UInt_t TGFrame::GetMinWidth ( ) const

inlineinherited

Definition at line 228 of file TGFrame.h.

GetMWMfuncString()

TString TGMainFrame::GetMWMfuncString ( ) const

protectedinherited

used in SaveSource()

Returns MWM function hints as a string - used in SavePrimitive().

Definition at line 2586 of file TGFrame.cxx.

GetMWMHints()

void TGMainFrame::GetMWMHints ( UInt_t & value, UInt_t & funcs, UInt_t & input ) const

inlineinherited

Definition at line 483 of file TGFrame.h.

GetMWMinpString()

TString TGMainFrame::GetMWMinpString ( ) const

protectedinherited

used in SaveSource()

Returns MWM input mode hints as a string - used in SavePrimitive().

Definition at line 2623 of file TGFrame.cxx.

GetMWMvalueString()

TString TGMainFrame::GetMWMvalueString ( ) const

protectedinherited

used in SaveSource()

Returns MWM decoration hints as a string - used in SavePrimitive().

Definition at line 2546 of file TGFrame.cxx.

GetName()

const char * TGWindow::GetName ( ) const

overridevirtualinherited

Return unique name, used in SavePrimitive methods.

Reimplemented from TObject.

Definition at line 334 of file TGWindow.cxx.

GetObjectInfo()

char * TObject::GetObjectInfo ( Int_t px, Int_t py ) const

virtualinherited

Returns string containing info about the object at position (px,py).

This method is typically overridden by classes of which the objects can report peculiarities for different positions. Returned string will be re-used (lock in MT environment).

Reimplemented in TASImage, TAxis3D, TColorWheel, TF1, TF2, TFileDrawMap, TGeoNode, TGeoTrack, TGeoVolume, TGL5DDataSet, TGLHistPainter, TGLParametricEquation, TGLTH3Composition, TGraph, TH1, THistPainter, TNode, TPaletteAxis, TParallelCoordVar, and TVirtualHistPainter.

Definition at line 491 of file TObject.cxx.

GetObjectStat()

Bool_t TObject::GetObjectStat ( )

staticinherited

Get status of object stat flag.

Definition at line 1181 of file TObject.cxx.

GetOption()

virtual Option_t * TObject::GetOption ( ) const

inlinevirtualinherited

Reimplemented in TArrow, TAxis3D, TFile, TGaxis, TGeoVolume, TH1, THelix, TLegendEntry, TMapFile, TNode, TPave, TPoints3DABC, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TPSocket, TSelector, TSocket, and TUDPSocket.

Definition at line 147 of file TObject.h.

GetOptions()

virtual UInt_t TGFrame::GetOptions ( ) const

inlinevirtualinherited

Definition at line 199 of file TGFrame.h.

GetOptionString()

TString TGFrame::GetOptionString ( ) const

protectedinherited

Returns a frame option string - used in SavePrimitive().

Definition at line 2512 of file TGFrame.cxx.

GetParent()

const TGWindow * TGWindow::GetParent ( ) const

inlineinherited

Definition at line 83 of file TGWindow.h.

GetResourcePool()

const TGResourcePool * TGFrame::GetResourcePool ( ) const

inlineprotectedinherited

Definition at line 123 of file TGFrame.h.

GetSender()

void * TGFrame::GetSender ( )

inlineoverrideprotectedvirtualinherited

Reimplemented from TQObject.

Definition at line 118 of file TGFrame.h.

GetSenderClassName()

virtual const char * TQObject::GetSenderClassName ( ) const

inlineprotectedvirtualinherited

Reimplemented in TQObjSender.

Definition at line 58 of file TQObject.h.

GetShadowGC()

const TGGC & TGFrame::GetShadowGC ( )

staticinherited

Get shadow color graphics context.

Definition at line 757 of file TGFrame.cxx.

GetSize()

TGDimension TGFrame::GetSize ( ) const

inlineinherited

Definition at line 232 of file TGFrame.h.

GetState()

Int_t TGCompositeFrame::GetState ( TGFrame * f ) const

inherited

Get state of sub frame.

Definition at line 1210 of file TGFrame.cxx.

GetTitle()

const char * TObject::GetTitle ( ) const

virtualinherited

Returns title of object.

This default method returns the class title (i.e. description). Classes that give objects a title should override this method.

Reimplemented in Axis2, TASImage, TAxis, TBaseClass, TClassMenuItem, TEveGeoNode, TEvePointSet, TGaxis, TGGroupFrame, TGLabel, TGLVEntry, TGTextButton, TGTextEntry, TGTextLBEntry, TKey, TMapFile, TNamed, TPad, TPair, TParallelCoordSelect, TParticle, TPaveLabel, TPrimary, TQCommand, TRootIconList, and TVirtualPad.

Definition at line 507 of file TObject.cxx.

GetTree()

TTree * TTreeViewer::GetTree ( )

inline

Definition at line 224 of file TTreeViewer.h.

GetUniqueID()

UInt_t TObject::GetUniqueID ( ) const

virtualinherited

Return the unique object id.

Definition at line 480 of file TObject.cxx.

GetWhiteGC()

const TGGC & TGFrame::GetWhiteGC ( )

staticinherited

Get white graphics context.

Definition at line 737 of file TGFrame.cxx.

GetWhitePixel()

ULong_t TGFrame::GetWhitePixel ( )

staticinherited

Get white pixel value.

Definition at line 701 of file TGFrame.cxx.

GetWidth()

UInt_t TGFrame::GetWidth ( ) const

inlineinherited

Definition at line 226 of file TGFrame.h.

GetWindowName()

const char * TGMainFrame::GetWindowName ( ) const

inlineinherited

Definition at line 478 of file TGFrame.h.

GetWMPosition()

void TGMainFrame::GetWMPosition ( Int_t & x, Int_t & y ) const

inlineinherited

Definition at line 485 of file TGFrame.h.

GetWMSize()

void TGMainFrame::GetWMSize ( UInt_t & w, UInt_t & h ) const

inlineinherited

Definition at line 486 of file TGFrame.h.

GetWMSizeHints()

void TGMainFrame::GetWMSizeHints ( UInt_t & wmin, UInt_t & hmin, UInt_t & wmax, UInt_t & hmax, UInt_t & winc, UInt_t & hinc ) const

inlineinherited

Definition at line 487 of file TGFrame.h.

GetWMState()

EInitialState TGMainFrame::GetWMState ( ) const

inlineinherited

Definition at line 491 of file TGFrame.h.

GetX()

Int_t TGFrame::GetX ( ) const

inlineinherited

Definition at line 233 of file TGFrame.h.

GetY()

Int_t TGFrame::GetY ( ) const

inlineinherited

Definition at line 234 of file TGFrame.h.

HandleButton()

Bool_t TGMainFrame::HandleButton ( Event_t * event )

overridevirtualinherited

Handle mouse button events.

Reimplemented from TGCompositeFrame.

Definition at line 1671 of file TGFrame.cxx.

HandleClientMessage()

Bool_t TGMainFrame::HandleClientMessage ( Event_t * event )

overridevirtualinherited

Handle client messages sent to this frame.

Reimplemented from TGFrame.

Definition at line 1719 of file TGFrame.cxx.

HandleColormapChange()

virtual Bool_t TGFrame::HandleColormapChange ( Event_t * )

inlinevirtualinherited

Definition at line 173 of file TGFrame.h.

HandleConfigureNotify()

Bool_t TGFrame::HandleConfigureNotify ( Event_t * event )

virtualinherited

This event is generated when the frame is resized.

Reimplemented in TGHSlider, TGLWidget, TGMdiContainer, TGMdiDecorFrame, TGSlider, TGSplitFrame, TGTextEntry, TGTripleHSlider, TGTripleVSlider, TGuiBldDragManager, TGViewPort, TGVSlider, TRootContainer, and TRootEmbeddedContainer.

Definition at line 435 of file TGFrame.cxx.

HandleCrossing()

Bool_t TGCompositeFrame::HandleCrossing ( Event_t * )

inlineoverridevirtualinherited

Reimplemented from TGFrame.

Reimplemented in TGedNameFrame, TGListTree, TGTextEdit, TGTextView, TGViewFrame, TRootContainer, and TRootEmbeddedContainer.

Definition at line 328 of file TGFrame.h.

HandleDNDDrop()

virtual Bool_t TGFrame::HandleDNDDrop ( TDNDData * )

inlinevirtualinherited

Reimplemented in TGListTree, TGTextView, TRootCanvas, and TRootEmbeddedCanvas.

Definition at line 278 of file TGFrame.h.

HandleDNDEnter()

virtual Atom_t TGFrame::HandleDNDEnter ( Atom_t * )

inlinevirtualinherited

Reimplemented in TGFileItem, TGListTree, TGTextView, TRootCanvas, and TRootEmbeddedCanvas.

Definition at line 281 of file TGFrame.h.

HandleDNDFinished()

virtual Bool_t TGFrame::HandleDNDFinished ( )

inlinevirtualinherited

Reimplemented in TGContainer, TGFileItem, and TRootObjItem.

Definition at line 283 of file TGFrame.h.

HandleDNDLeave()

virtual Bool_t TGFrame::HandleDNDLeave ( )

inlinevirtualinherited

Reimplemented in TGFileItem, TGListTree, TGTextView, TRootCanvas, and TRootEmbeddedCanvas.

Definition at line 282 of file TGFrame.h.

HandleDNDPosition()

virtual Atom_t TGFrame::HandleDNDPosition ( Int_t , Int_t , Atom_t , Int_t , Int_t  )

inlinevirtualinherited

Reimplemented in TGFileItem, TGListTree, TGTextView, TRootCanvas, and TRootEmbeddedCanvas.

Definition at line 279 of file TGFrame.h.

HandleDoubleClick()

Bool_t TGCompositeFrame::HandleDoubleClick ( Event_t * )

inlineoverridevirtualinherited

Reimplemented from TGFrame.

Reimplemented in TGContainer, TGHeaderFrame, TGLBContainer, TGListTree, TGMdiTitleBar, TGTextEdit, TGTextView, TGViewFrame, TRootContainer, and TRootEmbeddedContainer.

Definition at line 327 of file TGFrame.h.

HandleDragDrop()

Bool_t TGCompositeFrame::HandleDragDrop ( TGFrame * frame, Int_t x, Int_t y, TGLayoutHints * lo )

overridevirtualinherited

Handle drop event.

Reimplemented from TGFrame.

Definition at line 1413 of file TGFrame.cxx.

HandleDragEnter()

Bool_t TGCompositeFrame::HandleDragEnter ( TGFrame * )

overridevirtualinherited

Handle drag enter event.

Reimplemented from TGFrame.

Definition at line 1357 of file TGFrame.cxx.

HandleDragLeave()

Bool_t TGCompositeFrame::HandleDragLeave ( TGFrame * )

overridevirtualinherited

Handle drag leave event.

Reimplemented from TGFrame.

Definition at line 1387 of file TGFrame.cxx.

HandleDragMotion()

Bool_t TGCompositeFrame::HandleDragMotion ( TGFrame * )

overridevirtualinherited

Handle drag motion event.

Reimplemented from TGFrame.

Definition at line 1405 of file TGFrame.cxx.

HandleEvent()

Bool_t TGFrame::HandleEvent ( Event_t * event )

overridevirtualinherited

Handle all frame events.

Events are dispatched to the specific event handlers.

Reimplemented from TGWindow.

Reimplemented in TGuiBldDragManager.

Definition at line 449 of file TGFrame.cxx.

HandleExpose()

virtual Bool_t TGWindow::HandleExpose ( Event_t * event )

inlinevirtualinherited

Reimplemented in TGContainer, TGuiBldDragManager, TGView, TGViewFrame, TRootContainer, and TRootEmbeddedContainer.

Definition at line 101 of file TGWindow.h.

HandleFocusChange()

Bool_t TGCompositeFrame::HandleFocusChange ( Event_t * )

inlineoverridevirtualinherited

Reimplemented from TGFrame.

Reimplemented in TGHtml, and TGTextEdit.

Definition at line 331 of file TGFrame.h.

HandleIdleEvent()

virtual Bool_t TGWindow::HandleIdleEvent ( TGIdleHandler * )

inlinevirtualinherited

Reimplemented in TGHtml.

Definition at line 105 of file TGWindow.h.

HandleKey()

Bool_t TGMainFrame::HandleKey ( Event_t * event )

overridevirtualinherited

Handle keyboard events.

Reimplemented from TGCompositeFrame.

Reimplemented in TGMsgBox, TGTextEditor, TRootBrowser, TRootBrowserLite, TRootDialog, and TRootGuiBuilder.

Definition at line 1598 of file TGFrame.cxx.

HandleMotion()

Bool_t TGMainFrame::HandleMotion ( Event_t * event )

overridevirtualinherited

Handle mouse motion events.

Reimplemented from TGCompositeFrame.

Definition at line 1683 of file TGFrame.cxx.

HandleSelection()

Bool_t TGMainFrame::HandleSelection ( Event_t * event )

overridevirtualinherited

Handle primary selection event.

Reimplemented from TGCompositeFrame.

Definition at line 1695 of file TGFrame.cxx.

HandleSelectionClear()

virtual Bool_t TGFrame::HandleSelectionClear ( Event_t * )

inlinevirtualinherited

Reimplemented in TGTextEntry, TGTextView, and TGViewFrame.

Definition at line 172 of file TGFrame.h.

HandleSelectionRequest()

Bool_t TGMainFrame::HandleSelectionRequest ( Event_t * event )

overridevirtualinherited

Handle selection request event.

Reimplemented from TGFrame.

Definition at line 1707 of file TGFrame.cxx.

HandleTimer()

bool TTreeViewer::HandleTimer ( TTimer * timer )

overridevirtual

Execute action in response of a timer timing out.

This method must be overridden if an object has to react to timers.

Reimplemented from TGWindow.

HasConnection()

Bool_t TQObject::HasConnection ( const char * signal_name ) const

virtualinherited

Return true if there is any object connected to this signal.

Only checks for object signals.

Definition at line 523 of file TQObject.cxx.

Hash()

ULong_t TGObject::Hash ( ) const

inlineoverridevirtualinherited

Return hash value for this object.

Note: If this routine is overloaded in a derived class, this derived class should also add

ROOT::CallRecursiveRemoveIfNeeded(*this)

Otherwise, when RecursiveRemove is called (by ~TObject or example) for this type of object, the transversal of THashList and THashTable containers will will have to be done without call Hash (and hence be linear rather than logarithmic complexity). You will also see warnings like

Error in <ROOT::Internal::TCheckHashRecursiveRemoveConsistency::CheckRecursiveRemove>: The class SomeName overrides
TObject::Hash but does not call TROOT::RecursiveRemove in its destructor.

Reimplemented from TObject.

Definition at line 43 of file TGObject.h.

HasInconsistentHash()

Bool_t TObject::HasInconsistentHash ( ) const

inlineinherited

Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.

missing call to RecursiveRemove in destructor).

Note: Since the consistency is only tested for during inserts, this routine will return true for object that have never been inserted whether or not they have a consistent setup. This has no negative side-effect as searching for the object with the right or wrong Hash will always yield a not-found answer (Since anyway no hash can be guaranteed unique, there is always a check)

Definition at line 366 of file TObject.h.

HideFrame()

void TGCompositeFrame::HideFrame ( TGFrame * f )

virtualinherited

Hide sub frame.

Reimplemented in TGPack.

Definition at line 1182 of file TGFrame.cxx.

HighPriority()

void TQObject::HighPriority ( const char * signal_name, const char * slot_name = nullptr )

virtualinherited

1. If slot_name = 0 => makes signal defined by the signal_name to be the first in the fListOfSignals, this decreases the time for lookup.
2. If slot_name != 0 => makes slot defined by the slot_name to be executed first when signal_name is emitted. Signal name is not compressed.

Definition at line 473 of file TQObject.cxx.

IconifyWindow()

void TGWindow::IconifyWindow ( )

virtualinherited

iconify window

Definition at line 222 of file TGWindow.cxx.

Info()

void TObject::Info ( const char * location, const char * fmt, ... ) const

virtualinherited

Issue info message.

Use "location" to specify the method where the warning occurred. Accepts standard printf formatting arguments.

Definition at line 1072 of file TObject.cxx.

InheritsFrom() [1/2]

Bool_t TObject::InheritsFrom ( const char * classname ) const

virtualinherited

Returns kTRUE if object inherits from class "classname".

Reimplemented in TClass.

Definition at line 549 of file TObject.cxx.

InheritsFrom() [2/2]

Bool_t TObject::InheritsFrom ( const TClass * cl ) const

virtualinherited

Returns kTRUE if object inherits from TClass cl.

Reimplemented in TClass.

Definition at line 557 of file TObject.cxx.

Inspect()

void TGFrame::Inspect ( ) const

inlineoverridevirtualinherited

Dump contents of this object in a graphics canvas.

Same action as Dump but in a graphical form. In addition pointers to other objects can be followed.

The following picture is the Inspect of a histogram object:

Reimplemented from TObject.

Definition at line 266 of file TGFrame.h.

InvertBit()

void TObject::InvertBit ( UInt_t f )

inlineinherited

Definition at line 206 of file TObject.h.

IsA()

TClass * TTreeViewer::IsA ( ) const

inlineoverridevirtual

Returns

TClass describing current object

Reimplemented from TGMainFrame.

Definition at line 254 of file TTreeViewer.h.

IsActive()

virtual Bool_t TGFrame::IsActive ( ) const

inlinevirtualinherited

Reimplemented in TGFileItem, TGLBEntry, TGLVEntry, and TGTabElement.

Definition at line 213 of file TGFrame.h.

IsArranged() [1/2]

Bool_t TGCompositeFrame::IsArranged ( TGFrame * f ) const

inherited

Get state of sub frame.

Definition at line 1236 of file TGFrame.cxx.

IsArranged() [2/2]

Bool_t TGCompositeFrame::IsArranged ( TGFrameElement * ptr ) const

inlineinherited

Definition at line 354 of file TGFrame.h.

IsComposite()

Bool_t TGCompositeFrame::IsComposite ( ) const

inlineoverridevirtualinherited

Reimplemented from TGFrame.

Definition at line 355 of file TGFrame.h.

IsCutEnabled()

bool TTreeViewer::IsCutEnabled ( )

inline

Definition at line 226 of file TTreeViewer.h.

IsDestructed()

Bool_t TObject::IsDestructed ( ) const

inlineinherited

IsDestructed.

Note

This function must be non-virtual as it can be used on destructed (but not yet modified) memory. This is used for example in TClonesArray to record the element that have been destructed but not deleted and thus are ready for re-use (by operator new with placement).

Returns

true if this object's destructor has been run.

Definition at line 186 of file TObject.h.

IsDNDSource()

Bool_t TGFrame::IsDNDSource ( ) const

inlineinherited

Definition at line 274 of file TGFrame.h.

IsDNDTarget()

Bool_t TGFrame::IsDNDTarget ( ) const

inlineinherited

Definition at line 275 of file TGFrame.h.

IsEditable()

Bool_t TGCompositeFrame::IsEditable ( ) const

overridevirtualinherited

Return kTRUE if frame is being edited.

Reimplemented from TGWindow.

Reimplemented in TGNumberEntry.

Definition at line 919 of file TGFrame.cxx.

IsEqual()

Bool_t TGObject::IsEqual ( const TObject * obj ) const

overridevirtualinherited

Equal comparison (TGObjects are equal if they have the same window identifier).

If the TGObjects have not been created by the Window manager (e.g. a TGLVEntry), then fall back to the default TObject equal comparison

Reimplemented from TObject.

Definition at line 78 of file TGObject.cxx.

IsFolder()

Bool_t TObject::IsFolder ( ) const

virtualinherited

Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).

Reimplemented in ROOT::Experimental::XRooFit::xRooNode, ROOT::Internal::THnBaseBrowsable, TApplicationRemote, TAxis3D, TBaseClass, TBranch, TBranchClones, TBranchElement, TBranchObject, TBranchSTL, TBrowserObject, TCanvas, TClass, TCollection, TDatabasePDG, TDirectory, TFolder, TGeoManager, TGeometry, TGeoNode, TGeoNodeMatrix, TGeoOverlap, TGeoTrack, TGeoVolume, THbookFile, THbookKey, THnBase, TKey, TMapFile, TMultiDimFit, TNode, TPad, TPair, TParticleClassPDG, TPrincipal, TRemoteObject, TROOT, TRootIconList, TSPlot, TSystemDirectory, TTask, TTree, and TVirtualBranchBrowsable.

Definition at line 579 of file TObject.cxx.

IsLayoutBroken()

Bool_t TGCompositeFrame::IsLayoutBroken ( ) const

inlineoverridevirtualinherited

Reimplemented from TGFrame.

Definition at line 359 of file TGFrame.h.

IsMapped()

Bool_t TGWindow::IsMapped ( )

virtualinherited

Returns kTRUE if window is mapped on screen, kFALSE otherwise.

Definition at line 293 of file TGWindow.cxx.

IsMapSubwindows()

Bool_t TGCompositeFrame::IsMapSubwindows ( ) const

inlineoverridevirtualinherited

Reimplemented from TGWindow.

Definition at line 365 of file TGFrame.h.

IsOnHeap()

Bool_t TObject::IsOnHeap ( ) const

inlineinherited

Definition at line 160 of file TObject.h.

IsScanRedirected()

bool TTreeViewer::IsScanRedirected

(

)

IsSortable()

virtual Bool_t TObject::IsSortable ( ) const

inlinevirtualinherited

Reimplemented in RooAbsArg, RooDouble, TCollection, TFileInfo, TGeoBranchArray, TGeoOverlap, TGFSFrameElement, TGLBFrameElement, TNamed, TObjString, TParameter< AParamType >, TParameter< Long64_t >, TPave, TStructNode, TStructNodeProperty, TUri, and TUrl.

Definition at line 158 of file TObject.h.

IsVisible() [1/2]

Bool_t TGCompositeFrame::IsVisible ( TGFrame * f ) const

inherited

Get state of sub frame.

Definition at line 1223 of file TGFrame.cxx.

IsVisible() [2/2]

Bool_t TGCompositeFrame::IsVisible ( TGFrameElement * ptr ) const

inlineinherited

Definition at line 352 of file TGFrame.h.

IsZombie()

Bool_t TObject::IsZombie ( ) const

inlineinherited

Definition at line 161 of file TObject.h.

Layout()

void TGCompositeFrame::Layout ( )

overridevirtualinherited

Layout the elements of the composite frame.

Reimplemented from TGFrame.

Reimplemented in TGContainer, TGLBContainer, TGListBox, TGListTree, TGMdiDecorFrame, TGMenuBar, TGPack, TGShutter, TGTextView, TGView, and TGViewPort.

Definition at line 1249 of file TGFrame.cxx.

LowerWindow()

void TGWindow::LowerWindow ( )

virtualinherited

lower window

Reimplemented in TGDragWindow.

Definition at line 214 of file TGWindow.cxx.

LowPriority()

void TQObject::LowPriority ( const char * signal_name, const char * slot_name = nullptr )

virtualinherited

1. If slot_name = 0 => makes signal defined by the signal_name to be the last in the fListOfSignals, this increase the time for lookup.
2. If slot_name != 0 => makes slot defined by the slot_name to be executed last when signal_name is emitted. Signal name is not compressed.

Definition at line 500 of file TQObject.cxx.

ls()

void TObject::ls ( Option_t * option = "" ) const

virtualinherited

The ls function lists the contents of a class on stdout.

Ls output is typically much less verbose then Dump().

Reimplemented in ROOT::Detail::TSchemaRuleSet, ROOT::Experimental::XRooFit::xRooBrowser, ROOT::TSchemaRule, TAnnotation, TApplication, TBox, TCanvas, TChain, TChainElement, TClass, TClassTree, TCollection, TColor, TDirectory, TDirectoryFile, TEllipse, TFile, TFolder, TFree, TFriendElement, TFunction, TGeometry, TGeoNode, TGFrameElement, TGLayoutHints, THbookFile, THStack, TImage, TKey, TLine, TMapFile, TMarker, TNamed, TNode, TPad, TParameter< AParamType >, TParameter< Long64_t >, TPave, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TQCommand, TQConnection, TQConnectionList, TQSlot, TQUndoManager, TROOT, TStatistic, TStreamerBase, TStreamerElement, TStreamerInfo, TStreamerSTL, TTask, TText, TVirtualPad, and TVirtualStreamerInfo.

Definition at line 598 of file TObject.cxx.

MakeSelector()

Int_t TTreeViewer::MakeSelector

(

const char *

selector = nullptr

)

MakeZombie()

void TObject::MakeZombie ( )

inlineprotectedinherited

Definition at line 55 of file TObject.h.

MapBranch()

void TTreeViewer::MapBranch ( TBranch * branch, const char * prefix = "", TGListTreeItem * parent = nullptr, bool listIt = true )

private

MapOptions()

void TTreeViewer::MapOptions ( Long_t parm1 )

private

MapRaised()

void TGFrame::MapRaised ( )

inlineoverridevirtualinherited

map raised

Reimplemented from TGWindow.

Definition at line 207 of file TGFrame.h.

MapSubwindows()

void TGCompositeFrame::MapSubwindows ( )

overridevirtualinherited

Map all sub windows that are part of the composite frame.

Reimplemented from TGWindow.

Reimplemented in TGPack.

Definition at line 1156 of file TGFrame.cxx.

MapTree()

void TTreeViewer::MapTree ( TTree * tree, TGListTreeItem * parent = nullptr, bool listIt = true )

private

MapWindow()

void TGFrame::MapWindow ( )

inlineoverridevirtualinherited

map window

Reimplemented from TGWindow.

Definition at line 206 of file TGFrame.h.

MayNotUse()

void TObject::MayNotUse ( const char * method ) const

inherited

Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).

Definition at line 1160 of file TObject.cxx.

Message()

void TTreeViewer::Message ( const char * msg )

overridevirtual

Reimplemented from TQObject.

Move()

void TGFrame::Move ( Int_t x, Int_t y )

overridevirtualinherited

Move frame.

Reimplemented from TGWindow.

Reimplemented in TGMdiDecorFrame, and TGMdiFrame.

Definition at line 585 of file TGFrame.cxx.

MoveResize()

void TGFrame::MoveResize ( Int_t x, Int_t y, UInt_t w = 0, UInt_t h = 0 )

overridevirtualinherited

Move and/or resize the frame.

If w=0 && h=0 - Resize to default size

Reimplemented from TGWindow.

Reimplemented in TGIcon, TGListBox, TGMdiDecorFrame, TGPack, and TGScrollBar.

Definition at line 621 of file TGFrame.cxx.

MustCleanup()

Int_t TGCompositeFrame::MustCleanup ( ) const

inlineoverridevirtualinherited

Reimplemented from TGWindow.

Definition at line 362 of file TGFrame.h.

NewExpression()

void TTreeViewer::NewExpression

(

)

Notify()

Bool_t TObject::Notify ( )

virtualinherited

This method must be overridden to handle object notification (the base implementation is no-op).

Different objects in ROOT use the Notify method for different purposes, in coordination with other objects that call this method at the appropriate time.

For example, TLeaf uses it to load class information; TBranchRef to load contents of referenced branches TBranchRef; most notably, based on Notify, TChain implements a callback mechanism to inform interested parties when it switches to a new sub-tree.

Reimplemented in h1analysis, h1analysisTreeReader, TARInterruptHandler, TASInputHandler, TASInterruptHandler, TASLogHandler, TASSigPipeHandler, TBlinkTimer, TBranchElement, TBranchRef, TBreakLineCom, TBrowserTimer, TCollection, TDelCharCom, TDelTextCom, TFileHandler, TGContainerKeyboardTimer, TGContainerScrollTimer, TGInputHandler, TGLRedrawTimer, TGTextEditHist, TGuiBldDragManagerRepeatTimer, TIdleTimer, TInsCharCom, TInsTextCom, TInterruptHandler, TLeafObject, TMessageHandler, TNotifyLink< Type >, TNotifyLink< RNoCleanupNotifierHelper >, TNotifyLink< ROOT::Detail::TBranchProxy >, TNotifyLink< TTreeReader >, TPopupDelayTimer, TProcessEventTimer, TRefTable, TRepeatTimer, TSBRepeatTimer, TSelector, TSelectorDraw, TSelectorEntries, TSignalHandler, TSingleShotCleaner, TSocketHandler, TStdExceptionHandler, TSysEvtHandler, TTermInputHandler, TThreadTimer, TTimeOutTimer, TTimer, TTipDelayTimer, TTree, TTreeFormula, TTreeFormulaManager, TTreeReader, TViewTimer, and TViewUpdateTimer.

Definition at line 618 of file TObject.cxx.

NumberOfConnections()

Int_t TQObject::NumberOfConnections ( ) const

virtualinherited

Return number of connections for this object.

Definition at line 547 of file TQObject.cxx.

NumberOfSignals()

Int_t TQObject::NumberOfSignals ( ) const

virtualinherited

Return number of signals for this object.

Only checks for object signals.

Definition at line 537 of file TQObject.cxx.

Obsolete()

void TObject::Obsolete ( const char * method, const char * asOfVers, const char * removedFromVers ) const

inherited

Use this method to declare a method obsolete.

Specify as of which version the method is obsolete and as from which version it will be removed.

Definition at line 1169 of file TObject.cxx.

operator delete() [1/3]

void TObject::operator delete ( void * ptr, size_t size )

inherited

Operator delete for sized deallocation.

Definition at line 1234 of file TObject.cxx.

operator delete() [2/3]

void TObject::operator delete ( void * ptr )

inherited

Operator delete.

Definition at line 1212 of file TObject.cxx.

operator delete() [3/3]

void TObject::operator delete ( void * ptr, void * vp )

inherited

Only called by placement new when throwing an exception.

Definition at line 1266 of file TObject.cxx.

operator delete[]() [1/3]

void TObject::operator delete[] ( void * ptr, size_t size )

inherited

Operator delete [] for sized deallocation.

Definition at line 1245 of file TObject.cxx.

operator delete[]() [2/3]

void TObject::operator delete[] ( void * ptr )

inherited

Operator delete [].

Definition at line 1223 of file TObject.cxx.

operator delete[]() [3/3]

void TObject::operator delete[] ( void * ptr, void * vp )

inherited

Only called by placement new[] when throwing an exception.

Definition at line 1274 of file TObject.cxx.

operator new() [1/2]

void * TObject::operator new ( size_t sz )

inlineinherited

Definition at line 189 of file TObject.h.

operator new() [2/2]

void * TObject::operator new ( size_t sz, void * vp )

inlineinherited

Definition at line 191 of file TObject.h.

operator new[]() [1/2]

void * TObject::operator new[] ( size_t sz )

inlineinherited

Definition at line 190 of file TObject.h.

operator new[]() [2/2]

void * TObject::operator new[] ( size_t sz, void * vp )

inlineinherited

Definition at line 192 of file TObject.h.

Paint()

void TObject::Paint ( Option_t * option = "" )

virtualinherited

This method must be overridden if a class wants to paint itself.

The difference between Paint() and Draw() is that when a object draws itself it is added to the display list of the pad in which it is drawn (and automatically redrawn whenever the pad is redrawn). While paint just draws the object without adding it to the pad display list.

Reimplemented in ROOT::Experimental::RTreeMapPainter, ROOT::RGeoPainter, TAnnotation, TArrow, TASImage, TASPaletteEditor::LimitLine, TASPaletteEditor::PaintPalette, TAxis3D, TBits, TBox, TButton, TCanvas, TClassTree, TCollection, TColorWheel, TCrown, TDiamond, TDirectory, TEfficiency, TEllipse, TEveArrow, TEveCaloViz, TEveDigitSet, TEveGeoShape, TEveGeoTopNode, TEvePlot3D, TEvePointSet, TEveProjectionAxes, TEveScene, TEveShape, TEveStraightLineSet, TEveText, TEveTriangleSet, TExec, TF1, TF2, TF3, TFile, TFileDrawMap, TFrame, TGaxis, TGenerator, TGeoBoolNode, TGeoIntersection, TGeoNode, TGeoOverlap, TGeoPainter, TGeoPhysicalNode, TGeoShape, TGeoSubtraction, TGeoTrack, TGeoUnion, TGeoVGShape, TGeoVolume, TGL5DDataSet, TGLHistPainter, TGLParametricEquation, TGLTH3Composition, TGraph2D, TGraph2DPainter, TGraph, TGraphEdge, TGraphNode, TGraphPolargram, TGraphTime, TH1, THistPainter, THStack, TLatex, TLegend, TLine, TMacro, TMarker3DBox, TMarker, TMathText, TMultiGraph, TNode, TNodeDiv, TPad, TPaletteAxis, TParallelCoord, TParallelCoordRange, TParallelCoordVar, TParticle, TPave, TPaveLabel, TPaveStats, TPavesText, TPaveText, TPie, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TPrimary, TRatioPlot, TScatter2D, TScatter, TShape, TSpectrum2Painter, TSpider, TSpline, TSQLFile, TStyle, TText, TTreePerfStats, TVirtualGeoPainter, TVirtualGeoTrack, TVirtualHistPainter, TVirtualPad, TWbox, and TXMLFile.

Definition at line 631 of file TObject.cxx.

Pop()

void TObject::Pop ( )

virtualinherited

Pop on object drawn in a pad to the top of the display list.

I.e. it will be drawn last and on top of all other primitives.

Reimplemented in TFrame, TPad, and TVirtualPad.

Definition at line 640 of file TObject.cxx.

Print()

void TGCompositeFrame::Print ( Option_t * option = "" ) const

overridevirtualinherited

Print all frames in this composite frame.

Reimplemented from TObject.

Reimplemented in TGTextEdit.

Definition at line 1258 of file TGFrame.cxx.

PrintEntries()

void TTreeViewer::PrintEntries

(

)

Process()

Long64_t TTreeViewer::Process	(	const char *	filename,
		Option_t *	option = "",
		Long64_t	nentries = TTree::kMaxEntries,
		Long64_t	firstentry = 0 )

ProcessedConfigure()

virtual void TGFrame::ProcessedConfigure ( Event_t * event )

inlinevirtualinherited

Definition at line 179 of file TGFrame.h.

ProcessedEvent()

virtual void TGFrame::ProcessedEvent ( Event_t * event )

inlinevirtualinherited

Definition at line 181 of file TGFrame.h.

ProcessMessage()

bool TTreeViewer::ProcessMessage ( Longptr_t msg, Longptr_t parm1, Longptr_t parm2 )

overridevirtual

Reimplemented from TGCompositeFrame.

RaiseWindow()

void TGWindow::RaiseWindow ( )

virtualinherited

raise window

Reimplemented in TGDragWindow, and TRootCanvas.

Definition at line 206 of file TGWindow.cxx.

Read()

Int_t TObject::Read ( const char * name )

virtualinherited

Read contents of object with specified name from the current directory.

First the key with the given name is searched in the current directory, next the key buffer is deserialized into the object. The object must have been created before via the default constructor. See TObject::Write().

Reimplemented in TBuffer, TKey, TKeySQL, and TKeyXML.

Definition at line 673 of file TObject.cxx.

ReallyDelete()

virtual void TGFrame::ReallyDelete ( )

inlinevirtualinherited

Reimplemented in TEveBrowser, TRootBrowser, TRootBrowserLite, TRootCanvas, and TRootControlBar.

Definition at line 155 of file TGFrame.h.

RecursiveRemove()

void TObject::RecursiveRemove ( TObject * obj )

virtualinherited

Recursively remove this object from a list.

Typically implemented by classes that can contain multiple references to a same object.

Reimplemented in RooAbsCollection, RooAbsData, RooLinkedList, RooMCStudy, ROOT::Internal::TCheckHashRecursiveRemoveConsistency, ROOT::RBrowserDataCleanup, RooWorkspace, TBrowser, TChain, TCling, TCollection, TDialogCanvas, TDirectory, TEfficiency, TFileMerger, TFitEditor, TFolder, TFriendElement, TGedEditor, TGeometry, TGFileBrowser, TGraph2D, TGraph, TH1, TH1Editor, TH2Editor, THashList, THistPainter, THStack, TInspectCanvas, TLegend, TList, TListOfDataMembers, TListOfEnums, TListOfEnumsWithLock, TListOfFunctions, TListOfFunctionTemplates, TMultiGraph, TNode, TObjArray, TObjectRefSpy, TObjectSpy, TPad, TProcessID, TROOT, TRootBrowser, TRootBrowserHistory, TRootBrowserLite, TRootContextMenu, TTree, TTreePlayer, TViewPubDataMembers, TViewPubFunctions, and TVirtualPad.

Definition at line 684 of file TObject.cxx.

RemoveAll()

void TGCompositeFrame::RemoveAll ( )

virtualinherited

Remove all frames from composite frame.

Reimplemented in TGComboBox, TGContainer, TGLBContainer, TGListBox, and TRootIconBox.

Definition at line 1123 of file TGFrame.cxx.

RemoveBind()

void TGMainFrame::RemoveBind ( const TGWindow * w, Int_t keycode, Int_t modifier ) const

virtualinherited

Remove key binding.

Definition at line 1652 of file TGFrame.cxx.

RemoveFrame()

void TGCompositeFrame::RemoveFrame ( TGFrame * f )

virtualinherited

Remove frame from composite frame.

Reimplemented in TGPack, TGSplitFrame, TGuiBldEditor, and TGuiBldNameFrame.

Definition at line 1141 of file TGFrame.cxx.

RemoveInput()

void TGFrame::RemoveInput ( UInt_t emask )

inherited

Remove events specified in emask from the events the frame should handle.

Definition at line 340 of file TGFrame.cxx.

RemoveItem()

void TTreeViewer::RemoveItem

(

)

RemoveLastRecord()

void TTreeViewer::RemoveLastRecord

(

)

ReparentWindow()

void TGFrame::ReparentWindow ( const TGWindow * p, Int_t x = 0, Int_t y = 0 )

inlineoverridevirtualinherited

Reparent window, make p the new parent and position the window at position (x,y) in new parent.

Reimplemented from TGWindow.

Definition at line 204 of file TGFrame.h.

RequestFocus()

void TGWindow::RequestFocus ( )

virtualinherited

request focus

Definition at line 230 of file TGWindow.cxx.

ResetBit()

void TObject::ResetBit ( UInt_t f )

inlineinherited

Definition at line 203 of file TObject.h.

Resize() [1/2]

void TGFrame::Resize ( TGDimension size )

virtualinherited

Resize the frame.

Reimplemented in TGHSlider, TGIcon, TGListBox, TGScrollBar, TGTableCell, TGTableHeader, and TGVSlider.

Definition at line 612 of file TGFrame.cxx.

Resize() [2/2]

void TGFrame::Resize ( UInt_t w = 0, UInt_t h = 0 )

overridevirtualinherited

Resize the frame.

If w=0 && h=0 - Resize to default size

Reimplemented from TGWindow.

Reimplemented in TGHSlider, TGIcon, TGListBox, TGPack, TGScrollBar, TGTableCell, TGTableHeader, and TGVSlider.

Definition at line 597 of file TGFrame.cxx.

SaveAs()

void TGObject::SaveAs ( const char * filename = "", Option_t * option = "" ) const

overridevirtualinherited

Write this TGObject to a file using TImage, if filename's extension signals a valid TImage::EImageFileType, as defined by TImage::GetImageFileTypeFromFilename().

Otherwise forward to TObject::SaveAs().

Reimplemented from TObject.

Definition at line 54 of file TGObject.cxx.

SaveCtorArgs()

TString TGFrame::SaveCtorArgs ( std::ostream & out, UInt_t dflt_options = kChildFrame, Bool_t check_white_pixel = kFALSE )

protectedinherited

Return options and custom color as constructor args Used in the SavePrimitive methods, includes comma "," if any argument is not default.

Definition at line 2493 of file TGFrame.cxx.

SaveFrameAsCodeOrImage() [1/2]

Bool_t TGMainFrame::SaveFrameAsCodeOrImage ( )

virtualinherited

Opens dialog window allowing user to save the frame contents as a ROOT macro or as an image.

Returns kTRUE if something was saved.

This is bound to Ctrl-S by default.

Definition at line 1519 of file TGFrame.cxx.

SaveFrameAsCodeOrImage() [2/2]

Bool_t TGMainFrame::SaveFrameAsCodeOrImage ( const TString & fileName )

virtualinherited

Saves the frame contents as a ROOT macro or as an image, depending on the extension of the fileName argument.

If preexisting, the file is overwritten. Returns kTRUE if something was saved.

Definition at line 1556 of file TGFrame.cxx.

SavePrimitive()

void TGMainFrame::SavePrimitive ( std::ostream & out, Option_t * option = "" )

overridevirtualinherited

Save a main frame widget as a C++ statement(s) on output stream out.

Reimplemented from TGCompositeFrame.

Reimplemented in TGTransientFrame.

Definition at line 3042 of file TGFrame.cxx.

SavePrimitiveConstructor()

void TObject::SavePrimitiveConstructor ( std::ostream & out, TClass * cl, const char * variable_name, const char * constructor_agrs = "", Bool_t empty_line = kTRUE )

staticprotectedinherited

Save object constructor in the output stream "out".

Can be used as first statement when implementing SavePrimitive() method for the object

Definition at line 777 of file TObject.cxx.

SavePrimitiveDraw()

void TObject::SavePrimitiveDraw ( std::ostream & out, const char * variable_name, Option_t * option = nullptr )

staticprotectedinherited

Save invocation of primitive Draw() method Skipped if option contains "nodraw" string.

Definition at line 845 of file TObject.cxx.

SavePrimitiveSubframes()

void TGCompositeFrame::SavePrimitiveSubframes ( std::ostream & out, Option_t * option = "" )

virtualinherited

Auxiliary protected method used to save subframes.

Definition at line 2641 of file TGFrame.cxx.

SavePrimitiveVector()

TString TObject::SavePrimitiveVector ( std::ostream & out, const char * prefix, Int_t len, Double_t * arr, Int_t flag = 0 )

staticprotectedinherited

Save array in the output stream "out" as vector.

Create unique variable name based on prefix value Returns name of vector which can be used in constructor or in other places of C++ code If flag === kTRUE, just add empty line If flag === 111, check if array is empty and return nullptr or <vectorname>.data()

Definition at line 796 of file TObject.cxx.

SaveSource()

void TTreeViewer::SaveSource ( const char * filename = "", Option_t * option = "" )

overridevirtual

Save the GUI main frame widget in a C++ macro file.

Reimplemented from TGMainFrame.

SaveUserColor()

void TGFrame::SaveUserColor ( std::ostream & out, Option_t * option )

inherited

Save a user color in a C++ macro file - used in SavePrimitive().

Definition at line 2471 of file TGFrame.cxx.

ScanList()

const char * TTreeViewer::ScanList ( )

private

SendCloseMessage()

void TGMainFrame::SendCloseMessage ( )

virtualinherited

Send close message to self.

This method should be called from a button to close this window.

Definition at line 1736 of file TGFrame.cxx.

SendMessage()

void TGFrame::SendMessage ( const TGWindow * w, Longptr_t msg, Longptr_t parm1, Longptr_t parm2 )

virtualinherited

Send message (i.e.

event) to window w. Message is encoded in one long as message type and up to two long parameters.

Definition at line 637 of file TGFrame.cxx.

SetBackgroundColor()

void TGFrame::SetBackgroundColor ( Pixel_t back )

overridevirtualinherited

Set background color (override from TGWindow base class).

Same effect as ChangeBackground().

Reimplemented from TGWindow.

Reimplemented in TGLBEntry, TGuiBldToolButton, and TGView.

Definition at line 304 of file TGFrame.cxx.

SetBackgroundPixmap()

void TGWindow::SetBackgroundPixmap ( Pixmap_t pixmap )

virtualinherited

set background pixmap

Reimplemented in TGView.

Definition at line 246 of file TGWindow.cxx.

SetBit() [1/2]

void TObject::SetBit ( UInt_t f )

inlineinherited

Definition at line 202 of file TObject.h.

SetBit() [2/2]

void TObject::SetBit ( UInt_t f, Bool_t set )

inherited

Set or unset the user status bits as specified in f.

Definition at line 888 of file TObject.cxx.

SetClassHints()

void TGMainFrame::SetClassHints ( const char * className, const char * resourceName )

inherited

Set the windows class and resource name.

Used to get the right resources from the resource database. However, ROOT applications will typically use the .rootrc file for this.

Definition at line 1850 of file TGFrame.cxx.

SetCleanup()

void TGCompositeFrame::SetCleanup ( Int_t mode = kLocalCleanup )

overridevirtualinherited

Turn on automatic cleanup of child frames in dtor.

if mode = kNoCleanup - no automatic cleanup if mode = kLocalCleanup - automatic cleanup in this composite frame only if mode = kDeepCleanup - automatic deep cleanup in this composite frame and all child composite frames (hierarchical)

Attention! Hierarchical cleaning is dangerous and must be used with caution. There are many GUI components (in ROOT and in user code) which do not use Clean method in destructor ("custom deallocation"). Adding such component to GUI container which is using hierarchical cleaning will produce seg. violation when container is deleted. The reason is double deletion: first when Clean method is invoked, then at "custom deallocation". We are going to correct all ROOT code to make it to be consistent with hierarchical cleaning scheme.

Reimplemented from TGFrame.

Definition at line 1064 of file TGFrame.cxx.

SetCurrentRecord()

void TTreeViewer::SetCurrentRecord

(

Long64_t

entry

)

SetCutMode()

void TTreeViewer::SetCutMode ( bool enabled = true )

inline

Definition at line 238 of file TTreeViewer.h.

SetDNDSource()

void TGFrame::SetDNDSource ( Bool_t onoff )

inlineinherited

Definition at line 270 of file TGFrame.h.

SetDNDTarget()

void TGFrame::SetDNDTarget ( Bool_t onoff )

inlineinherited

Definition at line 272 of file TGFrame.h.

SetDragType()

void TGFrame::SetDragType ( Int_t type )

virtualinherited

SetDragType.

Definition at line 801 of file TGFrame.cxx.

SetDrawOption()

void TGFrame::SetDrawOption ( Option_t * option = "" )

inlineoverridevirtualinherited

Set drawing option for object.

This option only affects the drawing style and is stored in the option field of the TObjOptLink supporting a TPad's primitive list (TList). Note that it does not make sense to call object.SetDrawOption(option) before having called object.Draw().

Reimplemented from TObject.

Reimplemented in TRootBrowserLite.

Definition at line 267 of file TGFrame.h.

SetDropType()

void TGFrame::SetDropType ( Int_t type )

virtualinherited

SetDropType.

Definition at line 808 of file TGFrame.cxx.

SetDtorOnly()

void TObject::SetDtorOnly ( void * obj )

staticinherited

Set destructor only flag.

Definition at line 1204 of file TObject.cxx.

SetEditable()

void TGCompositeFrame::SetEditable ( Bool_t on = kTRUE )

overridevirtualinherited

Switch ON/OFF edit mode.

If edit mode is ON it is possible:

1. embed other ROOT GUI application (a la ActiveX)

For example: TGMainFrame *m = new TGMainFrame(gClient->GetRoot(), 500, 500); m->SetEditable(); gSystem->Load("$ROOTSYS/test/Aclock"); // load Aclock demo Aclock a; gROOT->Macro("$ROOTSYS/tutorials/visualisation/gui/guitest.C"); m->SetEditable(0); m->MapWindow();

Reimplemented from TGWindow.

Reimplemented in TRootContainer, and TRootEmbeddedContainer.

Definition at line 940 of file TGFrame.cxx.

SetEditDisabled()

void TGCompositeFrame::SetEditDisabled ( UInt_t on = 1 )

overridevirtualinherited

Set edit disable flag for this frame and subframes.

• if (on & kEditDisable) - disable edit for this frame and all subframes.

Reimplemented from TGWindow.

Definition at line 1014 of file TGFrame.cxx.

SetFile()

void TTreeViewer::SetFile ( )

private

SetForegroundColor()

virtual void TGFrame::SetForegroundColor ( Pixel_t )

inlinevirtualinherited

Reimplemented in TGLabel, TGProgressBar, TGTextButton, TGTextEntry, and TGTextView.

Definition at line 198 of file TGFrame.h.

SetFrameElement()

void TGFrame::SetFrameElement ( TGFrameElement * fe )

inlineinherited

Definition at line 238 of file TGFrame.h.

SetGrOpt()

void TTreeViewer::SetGrOpt

(

const char *

option

)

SetHeight()

virtual void TGFrame::SetHeight ( UInt_t h )

inlinevirtualinherited

Reimplemented in TGTableHeader.

Definition at line 249 of file TGFrame.h.

SetHistogramTitle()

void TTreeViewer::SetHistogramTitle

(

const char *

title

)

SetIconName()

void TGMainFrame::SetIconName ( const char * name )

inherited

Set window icon name. This is typically done via the window manager.

Definition at line 1793 of file TGFrame.cxx.

SetIconPixmap() [1/2]

void TGMainFrame::SetIconPixmap ( char ** xpm_array )

inherited

Set window icon by xpm array.

That allows to have icons builtin to the source code.

For example,

#include "/home/root/icons/bld_rgb.xpm"
//bld_rgb.xpm contains char *bld_rgb[] array
main_frame->SetIconPixmap(bld_rgb);

Definition at line 1831 of file TGFrame.cxx.

SetIconPixmap() [2/2]

const TGPicture * TGMainFrame::SetIconPixmap ( const char * iconName )

inherited

Set window icon pixmap by name.

This is typically done via the window manager. Icon can be in any image format supported by TImage, e.g. GIF, XPM, PNG, JPG .. or even PS, PDF (see EImageFileTypes in TImage.h for the full list of supported formats).

For example, main_frame->SetIconPixmap("/home/root/icons/bld_rgb.png");

Definition at line 1808 of file TGFrame.cxx.

SetLayoutBroken()

void TGCompositeFrame::SetLayoutBroken ( Bool_t on = kTRUE )

overridevirtualinherited

Set broken layout. No Layout method is called.

Reimplemented from TGFrame.

Definition at line 1004 of file TGFrame.cxx.

SetLayoutManager()

void TGCompositeFrame::SetLayoutManager ( TGLayoutManager * l )

virtualinherited

Set the layout manager for the composite frame.

The layout manager is adopted by the frame and will be deleted by the frame.

Reimplemented in TGListBox, TGShutter, and TGView.

Definition at line 992 of file TGFrame.cxx.

SetMapSubwindows()

void TGCompositeFrame::SetMapSubwindows ( Bool_t on )

inlineoverridevirtualinherited

Reimplemented from TGWindow.

Definition at line 364 of file TGFrame.h.

SetMaxHeight()

virtual void TGFrame::SetMaxHeight ( UInt_t h )

inlinevirtualinherited

Definition at line 253 of file TGFrame.h.

SetMaxWidth()

virtual void TGFrame::SetMaxWidth ( UInt_t w )

inlinevirtualinherited

Definition at line 252 of file TGFrame.h.

SetMinHeight()

virtual void TGFrame::SetMinHeight ( UInt_t h )

inlinevirtualinherited

Definition at line 251 of file TGFrame.h.

SetMinWidth()

virtual void TGFrame::SetMinWidth ( UInt_t w )

inlinevirtualinherited

Definition at line 250 of file TGFrame.h.

SetMWMHints()

void TGMainFrame::SetMWMHints ( UInt_t value, UInt_t funcs, UInt_t input )

inherited

Set decoration style for MWM-compatible wm (mwm, ncdwm, fvwm?).

Definition at line 1860 of file TGFrame.cxx.

SetName()

virtual void TGWindow::SetName ( const char * name )

inlinevirtualinherited

Definition at line 121 of file TGWindow.h.

SetNexpressions()

void TTreeViewer::SetNexpressions

(

Int_t

expr

)

SetObjectStat()

void TObject::SetObjectStat ( Bool_t stat )

staticinherited

Turn on/off tracking of objects in the TObjectTable.

Definition at line 1188 of file TObject.cxx.

SetParentTree()

void TTreeViewer::SetParentTree ( TGListTreeItem * item )

private

SetRecordName()

void TTreeViewer::SetRecordName

(

const char *

name

)

SetScanFileName()

void TTreeViewer::SetScanFileName

(

const char *

name = ""

)

SetScanMode()

void TTreeViewer::SetScanMode ( bool mode = true )

inline

Definition at line 244 of file TTreeViewer.h.

SetScanRedirect()

void TTreeViewer::SetScanRedirect

(

bool

mode

)

SetSession()

void TTreeViewer::SetSession

(

TTVSession *

session

)

SetSize()

virtual void TGFrame::SetSize ( const TGDimension & s )

inlinevirtualinherited

Definition at line 254 of file TGFrame.h.

SetTree()

void TTreeViewer::SetTree

(

TTree *

tree

)

SetTreeName()

void TTreeViewer::SetTreeName

(

const char *

treeName

)

SetUniqueID()

void TObject::SetUniqueID ( UInt_t uid )

virtualinherited

Set the unique object id.

Definition at line 899 of file TObject.cxx.

SetUserCode()

void TTreeViewer::SetUserCode	(	const char *	code,
		bool	autoexec = true )

SetWidth()

virtual void TGFrame::SetWidth ( UInt_t w )

inlinevirtualinherited

Reimplemented in TGTableHeader.

Definition at line 248 of file TGFrame.h.

SetWindowName()

void TGMainFrame::SetWindowName ( const char * name = nullptr )

overridevirtualinherited

Set window name. This is typically done via the window manager.

Reimplemented from TGWindow.

Definition at line 1780 of file TGFrame.cxx.

SetWMPosition()

void TGMainFrame::SetWMPosition ( Int_t x, Int_t y )

inherited

Give the window manager a window position hint.

Definition at line 1873 of file TGFrame.cxx.

SetWMSize()

void TGMainFrame::SetWMSize ( UInt_t w, UInt_t h )

inherited

Give the window manager a window size hint.

Definition at line 1885 of file TGFrame.cxx.

SetWMSizeHints()

void TGMainFrame::SetWMSizeHints ( UInt_t wmin, UInt_t hmin, UInt_t wmax, UInt_t hmax, UInt_t winc, UInt_t hinc )

inherited

Give the window manager minimum and maximum size hints.

Also specify via winc and hinc the resize increments.

Definition at line 1898 of file TGFrame.cxx.

SetWMState()

void TGMainFrame::SetWMState ( EInitialState state )

inherited

Set the initial state of the window. Either kNormalState or kIconicState.

Definition at line 1916 of file TGFrame.cxx.

SetX()

virtual void TGFrame::SetX ( Int_t x )

inlinevirtualinherited

Definition at line 246 of file TGFrame.h.

SetY()

virtual void TGFrame::SetY ( Int_t y )

inlinevirtualinherited

Definition at line 247 of file TGFrame.h.

ShowFrame()

void TGCompositeFrame::ShowFrame ( TGFrame * f )

virtualinherited

Show sub frame.

Reimplemented in TGPack.

Definition at line 1196 of file TGFrame.cxx.

StartGuiBuilding()

void TGFrame::StartGuiBuilding ( Bool_t on = kTRUE )

protectedvirtualinherited

Go into GUI building mode.

Definition at line 833 of file TGFrame.cxx.

Streamer()

void TTreeViewer::Streamer ( TBuffer & R__b )

overridevirtual

Stream an object of class TObject.

Reimplemented from TGMainFrame.

StreamerNVirtual()

void TTreeViewer::StreamerNVirtual ( TBuffer & ClassDef_StreamerNVirtual_b )

inline

Definition at line 254 of file TTreeViewer.h.

SwitchTree()

bool TTreeViewer::SwitchTree

(

Int_t

index

)

SysError()

void TObject::SysError ( const char * location, const char * fmt, ... ) const

virtualinherited

Issue system error message.

Use "location" to specify the method where the system error occurred. Accepts standard printf formatting arguments.

Definition at line 1112 of file TObject.cxx.

TestBit()

Bool_t TObject::TestBit ( UInt_t f ) const

inlineinherited

Definition at line 204 of file TObject.h.

TestBits()

Int_t TObject::TestBits ( UInt_t f ) const

inlineinherited

Definition at line 205 of file TObject.h.

TranslateCoordinates()

Bool_t TGCompositeFrame::TranslateCoordinates ( TGFrame * child, Int_t x, Int_t y, Int_t & fx, Int_t & fy )

virtualinherited

Translate coordinates to child frame.

Definition at line 1324 of file TGFrame.cxx.

UnmapWindow()

void TGFrame::UnmapWindow ( )

inlineoverridevirtualinherited

unmap window

Reimplemented from TGWindow.

Definition at line 208 of file TGFrame.h.

UpdateCombo()

void TTreeViewer::UpdateCombo

(

)

UpdateRecord()

void TTreeViewer::UpdateRecord

(

const char *

name = "new name"

)

UseCurrentStyle()

void TObject::UseCurrentStyle ( )

virtualinherited

Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.

Reimplemented in TAxis3D, TCanvas, TFrame, TGraph, TH1, TPad, TPaveStats, TPaveText, and TTree.

Definition at line 909 of file TObject.cxx.

Warning()

void TObject::Warning ( const char * location, const char * fmt, ... ) const

virtualinherited

Issue warning message.

Use "location" to specify the method where the warning occurred. Accepts standard printf formatting arguments.

Definition at line 1084 of file TObject.cxx.

Write() [1/2]

Int_t TObject::Write ( const char * name = nullptr, Int_t option = 0, Int_t bufsize = 0 )

virtualinherited

Write this object to the current directory.

For more see the const version of this method.

Reimplemented in ROOT::TBufferMergerFile, TBuffer, TCollection, TDirectory, TDirectoryFile, TFile, TMap, TParallelMergingFile, TSQLFile, TTree, and TXMLFile.

Definition at line 989 of file TObject.cxx.

Write() [2/2]

Int_t TObject::Write ( const char * name = nullptr, Int_t option = 0, Int_t bufsize = 0 ) const

virtualinherited

Write this object to the current directory.

The data structure corresponding to this object is serialized. The corresponding buffer is written to the current directory with an associated key with name "name".

Writing an object to a file involves the following steps:

• Creation of a support TKey object in the current directory. The TKey object creates a TBuffer object.
• The TBuffer object is filled via the class::Streamer function.
• If the file is compressed (default) a second buffer is created to hold the compressed buffer.
• Reservation of the corresponding space in the file by looking in the TFree list of free blocks of the file.
• The buffer is written to the file.

Bufsize can be given to force a given buffer size to write this object. By default, the buffersize will be taken from the average buffer size of all objects written to the current file so far.

If a name is specified, it will be the name of the key. If name is not given, the name of the key will be the name as returned by GetName().

The option can be a combination of: kSingleKey, kOverwrite or kWriteDelete Using the kOverwrite option a previous key with the same name is overwritten. The previous key is deleted before writing the new object. Using the kWriteDelete option a previous key with the same name is deleted only after the new object has been written. This option is safer than kOverwrite but it is slower. NOTE: Neither kOverwrite nor kWriteDelete reduces the size of a TFile– the space is simply freed up to be overwritten; in the case of a TTree, it is more complicated. If one opens a TTree, appends some entries, then writes it out, the behaviour is effectively the same. If, however, one creates a new TTree and writes it out in this way, only the metadata is replaced, effectively making the old data invisible without deleting it. TTree::Delete() can be used to mark all disk space occupied by a TTree as free before overwriting its metadata this way. The kSingleKey option is only used by TCollection::Write() to write a container with a single key instead of each object in the container with its own key.

An object is read from the file into memory via TKey::Read() or via TObject::Read().

The function returns the total number of bytes written to the file. It returns 0 if the object cannot be written.

Reimplemented in TBuffer, TCollection, TDirectory, TDirectoryFile, TFile, TMap, TParallelMergingFile, TSQLFile, TTree, and TXMLFile.

Definition at line 964 of file TObject.cxx.

Friends And Related Symbol Documentation

TGButton

friend class TGButton

friend

Definition at line 57 of file TTreeViewer.h.

TGClient

friend class TGClient

friend

Definition at line 56 of file TTreeViewer.h.

Member Data Documentation

fBackground

Pixel_t TGFrame::fBackground

protectedinherited

frame background color

Definition at line 95 of file TGFrame.h.

fBarCommand

TGTextEntry* TTreeViewer::fBarCommand

private

User command entry.

Definition at line 135 of file TTreeViewer.h.

fBarH

TGCheckButton* TTreeViewer::fBarH

private

Checked for drawing current histogram with different graphic option.

Definition at line 132 of file TTreeViewer.h.

fBarHist

TGTextEntry* TTreeViewer::fBarHist

private

Histogram name entry.

Definition at line 137 of file TTreeViewer.h.

fBarLayout

TGLayoutHints* TTreeViewer::fBarLayout

private

Definition at line 124 of file TTreeViewer.h.

fBarLbl1

TGLabel* TTreeViewer::fBarLbl1

private

Label of command text entry.

Definition at line 129 of file TTreeViewer.h.

fBarLbl2

TGLabel* TTreeViewer::fBarLbl2

private

Label of option text entry.

Definition at line 130 of file TTreeViewer.h.

fBarLbl3

TGLabel* TTreeViewer::fBarLbl3

private

Label of histogram name text entry.

Definition at line 131 of file TTreeViewer.h.

fBarListIn

TGTextEntry* TTreeViewer::fBarListIn

private

Tree input event list name entry.

Definition at line 155 of file TTreeViewer.h.

fBarListOut

TGTextEntry* TTreeViewer::fBarListOut

private

Pree output event list name entry.

Definition at line 156 of file TTreeViewer.h.

fBarOption

TGTextEntry* TTreeViewer::fBarOption

private

Histogram drawing option entry.

Definition at line 136 of file TTreeViewer.h.

fBarRec

TGCheckButton* TTreeViewer::fBarRec

private

Command recording toggle.

Definition at line 134 of file TTreeViewer.h.

fBarScan

TGCheckButton* TTreeViewer::fBarScan

private

Checked for tree scan.

Definition at line 133 of file TTreeViewer.h.

fBFrame

TGHorizontalFrame* TTreeViewer::fBFrame

private

Button frame.

Definition at line 150 of file TTreeViewer.h.

fBGFirst

TGPictureButton* TTreeViewer::fBGFirst

private

Definition at line 163 of file TTreeViewer.h.

fBGLast

TGPictureButton* TTreeViewer::fBGLast

private

Definition at line 167 of file TTreeViewer.h.

fBGNext

TGPictureButton* TTreeViewer::fBGNext

private

Definition at line 166 of file TTreeViewer.h.

fBGPrevious

TGPictureButton* TTreeViewer::fBGPrevious

private

Definition at line 164 of file TTreeViewer.h.

fBGRecord

TGPictureButton* TTreeViewer::fBGRecord

private

Definition at line 165 of file TTreeViewer.h.

fBindList

TList* TGMainFrame::fBindList

protectedinherited

list with key bindings

Definition at line 416 of file TGFrame.h.

fBits

UInt_t TObject::fBits

privateinherited

bit field status word

Definition at line 47 of file TObject.h.

fBLbl4

TGLabel* TTreeViewer::fBLbl4

private

Label for input list entry.

Definition at line 153 of file TTreeViewer.h.

fBLbl5

TGLabel* TTreeViewer::fBLbl5

private

Label for output list entry.

Definition at line 154 of file TTreeViewer.h.

fBorderWidth

Int_t TGFrame::fBorderWidth

protectedinherited

frame border width

Definition at line 93 of file TGFrame.h.

fClassName

TString TGMainFrame::fClassName

protectedinherited

WM class name.

Definition at line 420 of file TGFrame.h.

fClient

TGClient* TGObject::fClient

protectedinherited

Connection to display server.

Definition at line 25 of file TGObject.h.

fCombo

TGComboBox* TTreeViewer::fCombo

private

Combo box with session records.

Definition at line 162 of file TTreeViewer.h.

fContextMenu

TContextMenu* TTreeViewer::fContextMenu

private

Context menu for tree viewer.

Definition at line 86 of file TTreeViewer.h.

fCounting

bool TTreeViewer::fCounting

private

True if timer is counting.

Definition at line 99 of file TTreeViewer.h.

fDefaultCursor

Cursor_t TTreeViewer::fDefaultCursor

private

Default cursor.

Definition at line 96 of file TTreeViewer.h.

fDialogBox

TGSelectBox* TTreeViewer::fDialogBox

private

Expression editor.

Definition at line 87 of file TTreeViewer.h.

fDimension

Int_t TTreeViewer::fDimension

private

Histogram dimension.

Definition at line 83 of file TTreeViewer.h.

fDNDState

Int_t TGFrame::fDNDState

protectedinherited

EDNDFlags.

Definition at line 97 of file TGFrame.h.

fDNDTypeList

Atom_t* TGMainFrame::fDNDTypeList

protectedinherited

handles DND types

Definition at line 415 of file TGFrame.h.

fDRAW

TGPictureButton* TTreeViewer::fDRAW

private

DRAW button.

Definition at line 157 of file TTreeViewer.h.

fEditDisabled

UInt_t TGWindow::fEditDisabled

protectedinherited

flags used for "guibuilding"

Definition at line 32 of file TGWindow.h.

fEditMenu

TGPopupMenu* TTreeViewer::fEditMenu

private

Definition at line 112 of file TTreeViewer.h.

fEnableCut

bool TTreeViewer::fEnableCut

private

True if cuts are enabled.

Definition at line 101 of file TTreeViewer.h.

fEventMask

UInt_t TGFrame::fEventMask

protectedinherited

currently active event mask

Definition at line 96 of file TGFrame.h.

fFE

TGFrameElement* TGFrame::fFE

protectedinherited

pointer to frame element

Definition at line 98 of file TGFrame.h.

fFileMenu

TGPopupMenu* TTreeViewer::fFileMenu

private

Definition at line 111 of file TTreeViewer.h.

fFilename

const char* TTreeViewer::fFilename

private

Name of the file containing the tree.

Definition at line 78 of file TTreeViewer.h.

fgAllSignalsBlocked

Bool_t TQObject::fgAllSignalsBlocked = kFALSE

staticprotectedinherited

Definition at line 55 of file TQObject.h.

fgBckgndGC

const TGGC * TGFrame::fgBckgndGC = nullptr

staticprotectedinherited

Definition at line 109 of file TGFrame.h.

fgBlackGC

const TGGC * TGFrame::fgBlackGC = nullptr

staticprotectedinherited

Definition at line 105 of file TGFrame.h.

fgBlackPixel

Pixel_t TGFrame::fgBlackPixel = 0

staticprotectedinherited

Definition at line 104 of file TGFrame.h.

fgCounter

Int_t TGWindow::fgCounter = 0

staticprotectedinherited

counter of created windows in SavePrimitive

Definition at line 31 of file TGWindow.h.

fgDbw

Window_t TGFrame::fgDbw = 0

staticprotectedinherited

Definition at line 113 of file TGFrame.h.

fgDbx

Int_t TGFrame::fgDbx = 0

staticprotectedinherited

Definition at line 112 of file TGFrame.h.

fgDby

Int_t TGFrame::fgDby = 0

staticprotectedinherited

Definition at line 112 of file TGFrame.h.

fgDefaultFrameBackground

Pixel_t TGFrame::fgDefaultFrameBackground = 0

staticprotectedinherited

Definition at line 101 of file TGFrame.h.

fgDefaultHints

TGLayoutHints * TGCompositeFrame::fgDefaultHints = nullptr

staticprotectedinherited

Definition at line 299 of file TGFrame.h.

fgDefaultSelectedBackground

Pixel_t TGFrame::fgDefaultSelectedBackground = 0

staticprotectedinherited

Definition at line 102 of file TGFrame.h.

fgDtorOnly

Longptr_t TObject::fgDtorOnly = 0

staticprivateinherited

object for which to call dtor only (i.e. no delete)

Definition at line 49 of file TObject.h.

fgHilightGC

const TGGC * TGFrame::fgHilightGC = nullptr

staticprotectedinherited

Definition at line 107 of file TGFrame.h.

fgInit

Bool_t TGFrame::fgInit = kFALSE

staticprotectedinherited

Definition at line 100 of file TGFrame.h.

fgLastButton

UInt_t TGFrame::fgLastButton = 0

staticprotectedinherited

Definition at line 111 of file TGFrame.h.

fgLastClick

Time_t TGFrame::fgLastClick = 0

staticprotectedinherited

Definition at line 110 of file TGFrame.h.

fgObjectStat

Bool_t TObject::fgObjectStat = kTRUE

staticprivateinherited

if true keep track of objects in TObjectTable

Definition at line 50 of file TObject.h.

fgShadowGC

const TGGC * TGFrame::fgShadowGC = nullptr

staticprotectedinherited

Definition at line 108 of file TGFrame.h.

fgUserColor

UInt_t TGFrame::fgUserColor = 0

staticprotectedinherited

Definition at line 114 of file TGFrame.h.

fgWhiteGC

const TGGC * TGFrame::fgWhiteGC = nullptr

staticprotectedinherited

Definition at line 106 of file TGFrame.h.

fgWhitePixel

Pixel_t TGFrame::fgWhitePixel = 0

staticprotectedinherited

Definition at line 103 of file TGFrame.h.

fHeight

UInt_t TGFrame::fHeight

protectedinherited

frame height

Definition at line 88 of file TGFrame.h.

fHelpMenu

TGPopupMenu* TTreeViewer::fHelpMenu

private

Definition at line 118 of file TTreeViewer.h.

fHf

TGHorizontalFrame* TTreeViewer::fHf

private

Main horizontal frame.

Definition at line 142 of file TTreeViewer.h.

fHpb

TGHorizontalFrame* TTreeViewer::fHpb

private

Progress bar frame.

Definition at line 151 of file TTreeViewer.h.

fIconName

TString TGMainFrame::fIconName

protectedinherited

icon name

Definition at line 418 of file TGFrame.h.

fIconPixmap

TString TGMainFrame::fIconPixmap

protectedinherited

icon pixmap name

Definition at line 419 of file TGFrame.h.

fId

Handle_t TGObject::fId

protectedinherited

X11/Win32 Window identifier.

Definition at line 24 of file TGObject.h.

fLastOption

TString TTreeViewer::fLastOption

private

Last graphic option.

Definition at line 80 of file TTreeViewer.h.

fLayoutBroken

Bool_t TGCompositeFrame::fLayoutBroken

protectedinherited

no layout manager is used

Definition at line 295 of file TGFrame.h.

fLayoutManager

TGLayoutManager* TGCompositeFrame::fLayoutManager

protectedinherited

layout manager

Definition at line 293 of file TGFrame.h.

fLbl1

TGLabel* TTreeViewer::fLbl1

private

Label for list tree.

Definition at line 148 of file TTreeViewer.h.

fLbl2

TGLabel* TTreeViewer::fLbl2

private

Label for list view.

Definition at line 149 of file TTreeViewer.h.

fList

TList* TGCompositeFrame::fList

protectedinherited

container of frame elements

Definition at line 294 of file TGFrame.h.

fListHdr

TGCompositeFrame* TTreeViewer::fListHdr

private

Header for list view.

Definition at line 147 of file TTreeViewer.h.

fListOfConnections

TList* TQObject::fListOfConnections

protectedinherited

! list of connections to this object

Definition at line 52 of file TQObject.h.

fListOfSignals

TList* TQObject::fListOfSignals

protectedinherited

! list of signals from this object

Definition at line 51 of file TQObject.h.

fListView

TGListView* TTreeViewer::fListView

private

ListView with branches and leaves.

Definition at line 179 of file TTreeViewer.h.

fLt

TGListTree* TTreeViewer::fLt

private

ListTree with file and tree items.

Definition at line 174 of file TTreeViewer.h.

fLVContainer

TTVLVContainer* TTreeViewer::fLVContainer

private

Container for listview.

Definition at line 180 of file TTreeViewer.h.

fMappedBranch

TBranch* TTreeViewer::fMappedBranch

private

Listed branch.

Definition at line 82 of file TTreeViewer.h.

fMappedTree

TTree* TTreeViewer::fMappedTree

private

Listed tree.

Definition at line 81 of file TTreeViewer.h.

fMapSubwindows

Bool_t TGCompositeFrame::fMapSubwindows

protectedinherited

kTRUE - map subwindows

Definition at line 297 of file TGFrame.h.

fMaxHeight

UInt_t TGFrame::fMaxHeight

protectedinherited

maximal frame height

Definition at line 92 of file TGFrame.h.

fMaxWidth

UInt_t TGFrame::fMaxWidth

protectedinherited

maximal frame width

Definition at line 91 of file TGFrame.h.

fMenuBar

TGMenuBar* TTreeViewer::fMenuBar

private

Definition at line 110 of file TTreeViewer.h.

fMenuBarHelpLayout

TGLayoutHints* TTreeViewer::fMenuBarHelpLayout

private

Definition at line 109 of file TTreeViewer.h.

fMenuBarItemLayout

TGLayoutHints* TTreeViewer::fMenuBarItemLayout

private

Definition at line 108 of file TTreeViewer.h.

fMenuBarLayout

TGLayoutHints* TTreeViewer::fMenuBarLayout

private

Definition at line 107 of file TTreeViewer.h.

fMinHeight

UInt_t TGFrame::fMinHeight

protectedinherited

minimal frame height

Definition at line 90 of file TGFrame.h.

fMinWidth

UInt_t TGFrame::fMinWidth

protectedinherited

minimal frame width

Definition at line 89 of file TGFrame.h.

fMustCleanup

Int_t TGCompositeFrame::fMustCleanup

protectedinherited

cleanup mode (see EFrameCleanup)

Definition at line 296 of file TGFrame.h.

fMWMFuncs

UInt_t TGMainFrame::fMWMFuncs

protectedinherited

MWM functions.

Definition at line 423 of file TGFrame.h.

fMWMInput

UInt_t TGMainFrame::fMWMInput

protectedinherited

MWM input modes.

Definition at line 424 of file TGFrame.h.

fMWMValue

UInt_t TGMainFrame::fMWMValue

protectedinherited

MWM decoration hints.

Definition at line 422 of file TGFrame.h.

fName

TString TGWindow::fName

protectedinherited

name of the window used in SavePrimitive()

Definition at line 30 of file TGWindow.h.

fNeedRedraw

Bool_t TGWindow::fNeedRedraw

protectedinherited

kTRUE if window needs to be redrawn

Definition at line 29 of file TGWindow.h.

fNexpressions

Int_t TTreeViewer::fNexpressions

private

Number of expression widgets.

Definition at line 102 of file TTreeViewer.h.

fOptions

UInt_t TGFrame::fOptions

protectedinherited

frame options

Definition at line 94 of file TGFrame.h.

fOptions1D

TGPopupMenu* TTreeViewer::fOptions1D

private

Definition at line 116 of file TTreeViewer.h.

fOptions2D

TGPopupMenu* TTreeViewer::fOptions2D

private

Definition at line 117 of file TTreeViewer.h.

fOptionsGen

TGPopupMenu* TTreeViewer::fOptionsGen

private

Definition at line 115 of file TTreeViewer.h.

fOptionsMenu

TGPopupMenu* TTreeViewer::fOptionsMenu

private

Definition at line 114 of file TTreeViewer.h.

fParent

const TGWindow* TGWindow::fParent

protectedinherited

Parent window.

Definition at line 28 of file TGWindow.h.

fPicDraw

const TGPicture* TTreeViewer::fPicDraw

private

Pictures for Draw buttons.

Definition at line 93 of file TTreeViewer.h.

fPicRefr

const TGPicture* TTreeViewer::fPicRefr

private

Pictures for Refresh buttons ///<ia.

Definition at line 95 of file TTreeViewer.h.

fPicStop

const TGPicture* TTreeViewer::fPicStop

private

Pictures for Stop buttons.

Definition at line 94 of file TTreeViewer.h.

fPicX

const TGPicture* TTreeViewer::fPicX

private

Pictures for X expressions.

Definition at line 90 of file TTreeViewer.h.

fPicY

const TGPicture* TTreeViewer::fPicY

private

Pictures for Y expressions.

Definition at line 91 of file TTreeViewer.h.

fPicZ

const TGPicture* TTreeViewer::fPicZ

private

Pictures for Z expressions.

Definition at line 92 of file TTreeViewer.h.

fProgressBar

TGHProgressBar* TTreeViewer::fProgressBar

private

Progress bar.

Definition at line 152 of file TTreeViewer.h.

fREFR

TGPictureButton* TTreeViewer::fREFR

private

REFRESH button ///<ia.

Definition at line 160 of file TTreeViewer.h.

fReset

TGTextButton* TTreeViewer::fReset

private

clear expression's entries

Definition at line 168 of file TTreeViewer.h.

fResourceName

TString TGMainFrame::fResourceName

protectedinherited

WM resource name.

Definition at line 421 of file TGFrame.h.

fRunMenu

TGPopupMenu* TTreeViewer::fRunMenu

private

Definition at line 113 of file TTreeViewer.h.

fScanMode

bool TTreeViewer::fScanMode

private

Flag activated when Scan Box is double-clicked.

Definition at line 85 of file TTreeViewer.h.

fSession

TTVSession* TTreeViewer::fSession

private

Current tree-viewer session.

Definition at line 77 of file TTreeViewer.h.

fSignalsBlocked

Bool_t TQObject::fSignalsBlocked

protectedinherited

! flag used for suppression of signals

Definition at line 53 of file TQObject.h.

fSlider

TGDoubleVSlider* TTreeViewer::fSlider

private

Vertical slider to select processed tree entries;.

Definition at line 143 of file TTreeViewer.h.

fSourceFile

const char* TTreeViewer::fSourceFile

private

Name of the C++ source file - default treeviewer.C.

Definition at line 79 of file TTreeViewer.h.

fSPIDER

TGTextButton* TTreeViewer::fSPIDER

private

SPIDER button.

Definition at line 158 of file TTreeViewer.h.

fStatusBar

TGStatusBar* TTreeViewer::fStatusBar

private

Status bar.

Definition at line 161 of file TTreeViewer.h.

fSTOP

TGPictureButton* TTreeViewer::fSTOP

private

Interrupt current command (not yet).

Definition at line 159 of file TTreeViewer.h.

fStopMapping

bool TTreeViewer::fStopMapping

private

True if branch don't need remapping.

Definition at line 100 of file TTreeViewer.h.

fTimer

TTimer* TTreeViewer::fTimer

private

Tree viewer timer.

Definition at line 98 of file TTreeViewer.h.

fToolBar

TGToolBar* TTreeViewer::fToolBar

private

Definition at line 123 of file TTreeViewer.h.

fTree

TTree* TTreeViewer::fTree

private

Selected tree.

Definition at line 76 of file TTreeViewer.h.

fTreeHdr

TGCompositeFrame* TTreeViewer::fTreeHdr

private

Header for list tree.

Definition at line 146 of file TTreeViewer.h.

fTreeIndex

Int_t TTreeViewer::fTreeIndex

private

Index of current tree in list.

Definition at line 89 of file TTreeViewer.h.

fTreeList

TList* TTreeViewer::fTreeList

private

List of mapped trees.

Definition at line 88 of file TTreeViewer.h.

fTreeView

TGCanvas* TTreeViewer::fTreeView

private

ListTree canvas container.

Definition at line 173 of file TTreeViewer.h.

fUniqueID

UInt_t TObject::fUniqueID

privateinherited

object unique identifier

Definition at line 46 of file TObject.h.

fV1

TGVerticalFrame* TTreeViewer::fV1

private

List tree mother.

Definition at line 144 of file TTreeViewer.h.

fV2

TGVerticalFrame* TTreeViewer::fV2

private

List view mother.

Definition at line 145 of file TTreeViewer.h.

fVarDraw

bool TTreeViewer::fVarDraw

private

True if an item is double-clicked.

Definition at line 84 of file TTreeViewer.h.

fWatchCursor

Cursor_t TTreeViewer::fWatchCursor

private

Watch cursor.

Definition at line 97 of file TTreeViewer.h.

fWidgets

TList* TTreeViewer::fWidgets

private

List of widgets to be deleted.

Definition at line 182 of file TTreeViewer.h.

fWidth

UInt_t TGFrame::fWidth

protectedinherited

frame width

Definition at line 87 of file TGFrame.h.

fWindowName

TString TGMainFrame::fWindowName

protectedinherited

window name

Definition at line 417 of file TGFrame.h.

fWMHeight

UInt_t TGMainFrame::fWMHeight

protectedinherited

WM height.

Definition at line 428 of file TGFrame.h.

fWMHeightInc

UInt_t TGMainFrame::fWMHeightInc

protectedinherited

WM height increments.

Definition at line 434 of file TGFrame.h.

fWMInitState

EInitialState TGMainFrame::fWMInitState

protectedinherited

WM initial state.

Definition at line 435 of file TGFrame.h.

fWMMaxHeight

UInt_t TGMainFrame::fWMMaxHeight

protectedinherited

WM max height.

Definition at line 432 of file TGFrame.h.

fWMMaxWidth

UInt_t TGMainFrame::fWMMaxWidth

protectedinherited

WM max width.

Definition at line 431 of file TGFrame.h.

fWMMinHeight

UInt_t TGMainFrame::fWMMinHeight

protectedinherited

WM min height.

Definition at line 430 of file TGFrame.h.

fWMMinWidth

UInt_t TGMainFrame::fWMMinWidth

protectedinherited

WM min width.

Definition at line 429 of file TGFrame.h.

fWMWidth

UInt_t TGMainFrame::fWMWidth

protectedinherited

WM width.

Definition at line 427 of file TGFrame.h.

fWMWidthInc

UInt_t TGMainFrame::fWMWidthInc

protectedinherited

WM width increments.

Definition at line 433 of file TGFrame.h.

fWMX

Int_t TGMainFrame::fWMX

protectedinherited

WM x position.

Definition at line 425 of file TGFrame.h.

fWMY

Int_t TGMainFrame::fWMY

protectedinherited

WM y position.

Definition at line 426 of file TGFrame.h.

fX

Int_t TGFrame::fX

protectedinherited

frame x position

Definition at line 85 of file TGFrame.h.

fY

Int_t TGFrame::fY

protectedinherited

frame y position

Definition at line 86 of file TGFrame.h.

---

The documentation for this class was generated from the following files:

• tree/treeviewer/inc/TTreeViewer.h
• tree/treeviewer/src/TTreeViewer.cxx
