TSpectrum2Painter Class Reference
Histograms » Painting classes » TSpectrum painting class.

Legacy Code

TSpectrum2Painter is a legacy interface: there will be no bug fixes nor new developments. Therefore it is not recommended to use it in new long-term production code. But, depending on the context, using TSpectrum2Painter might still be a valid solution.

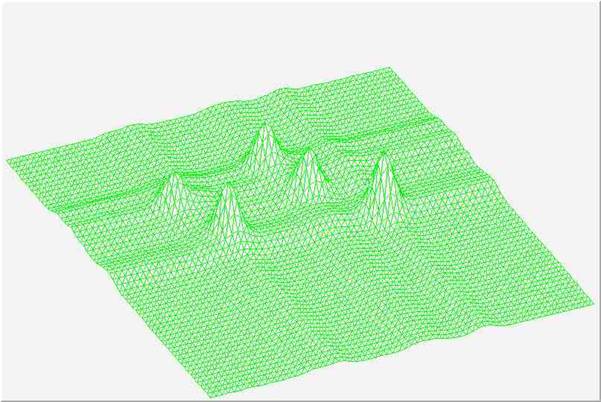

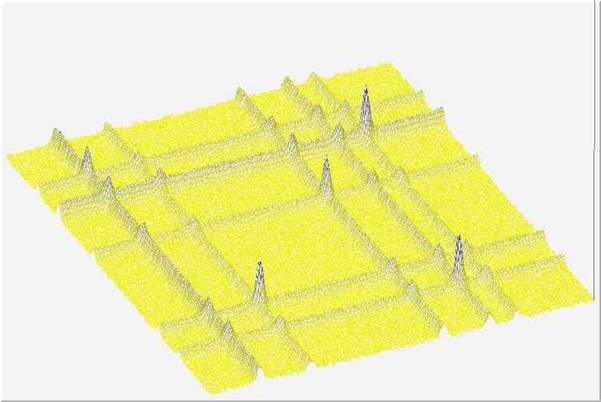

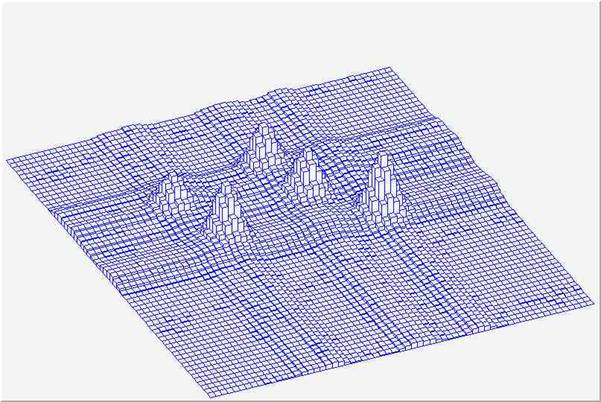

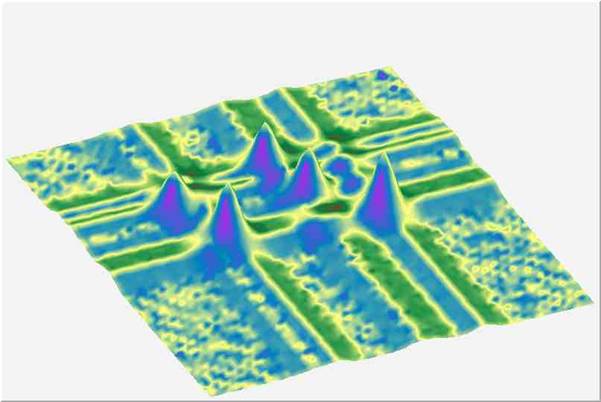

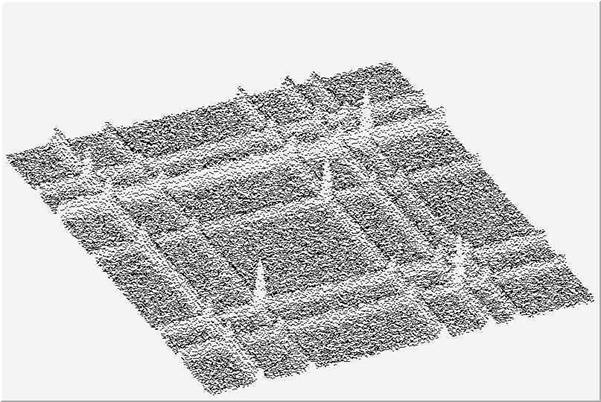

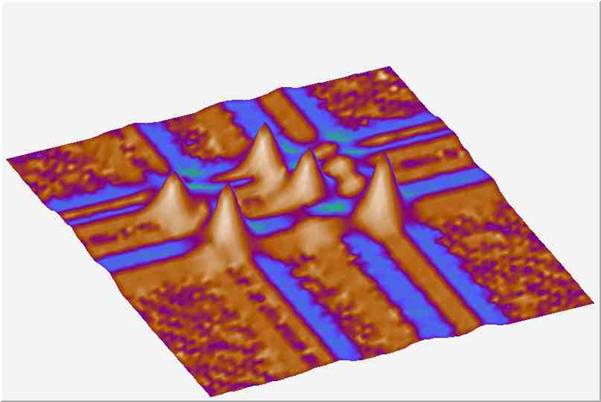

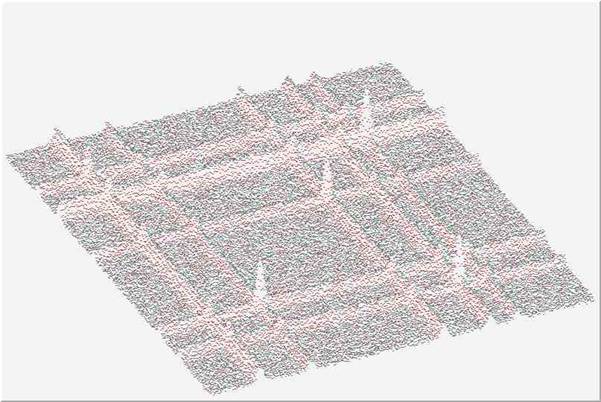

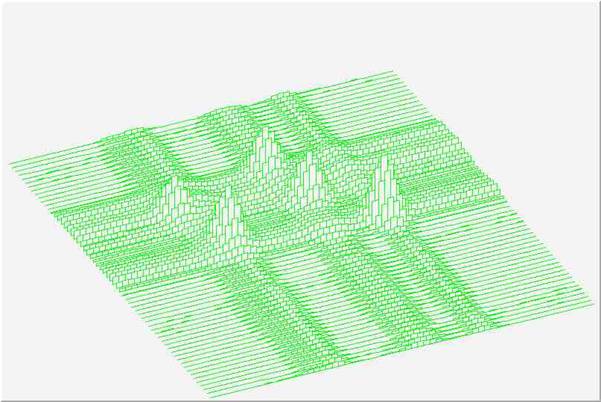

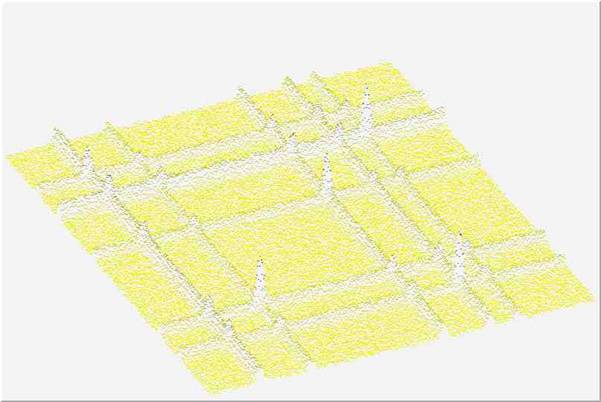

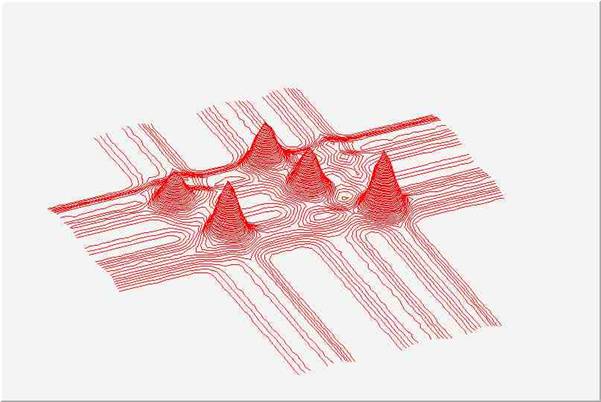

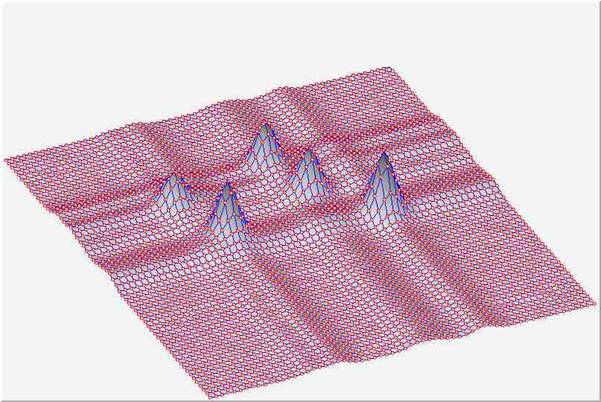

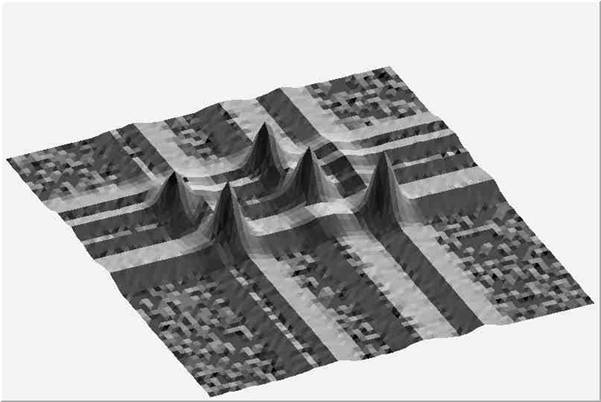

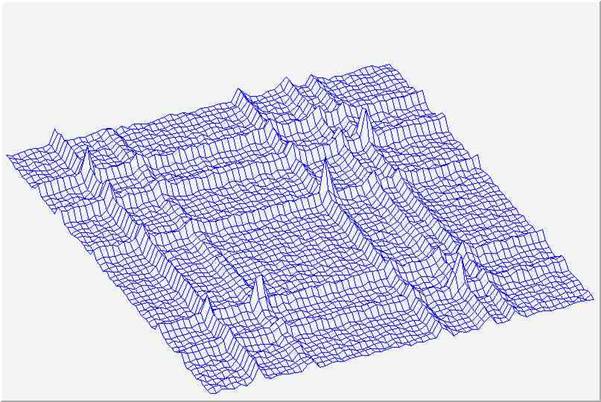

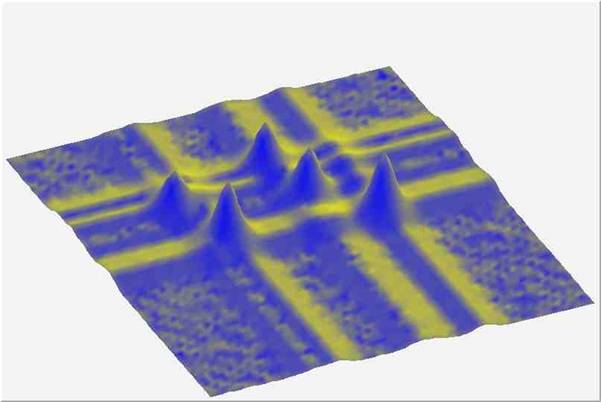

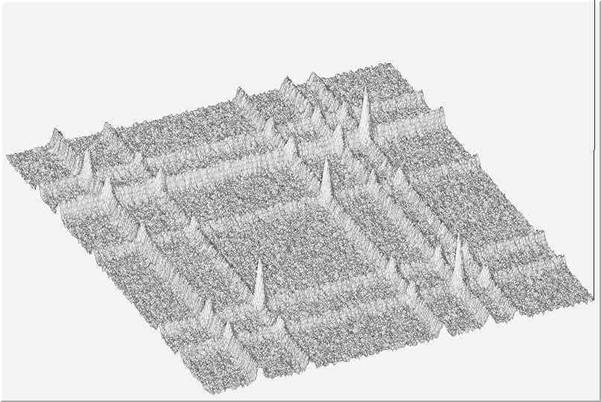

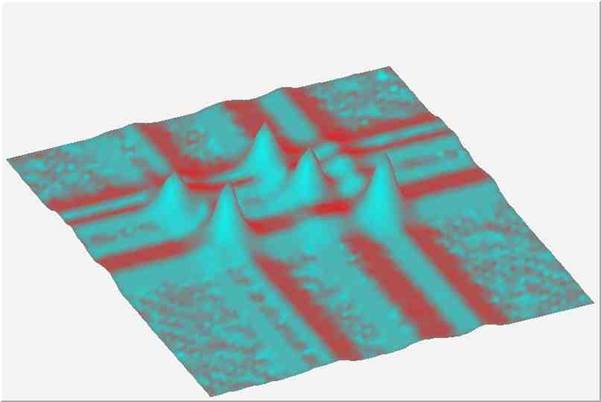

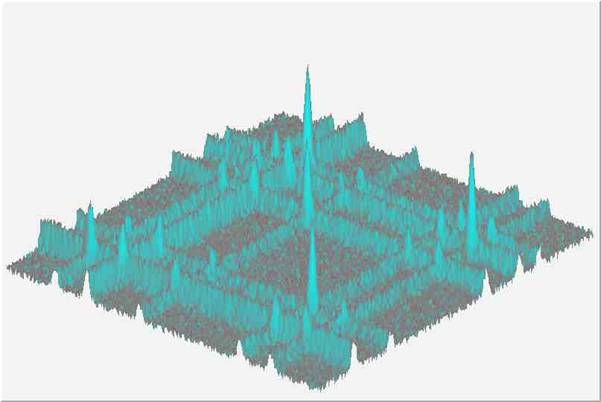

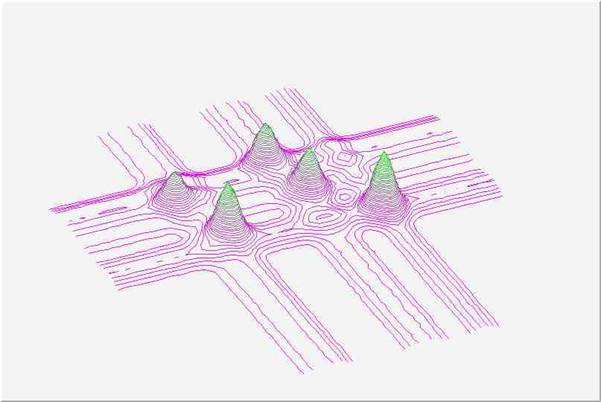

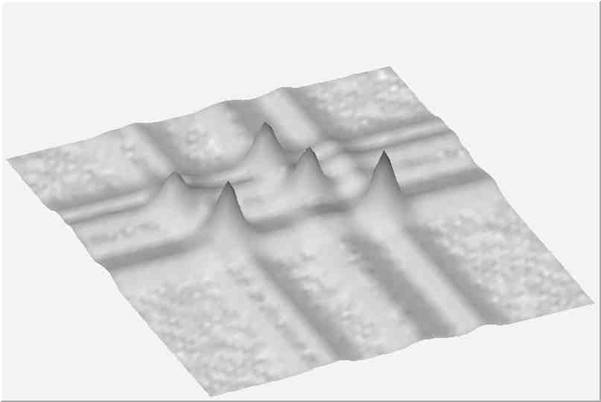

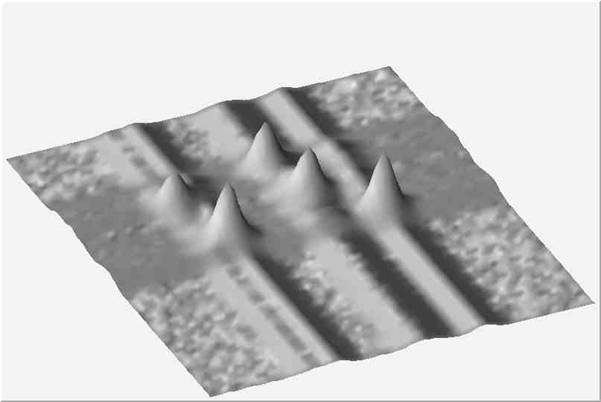

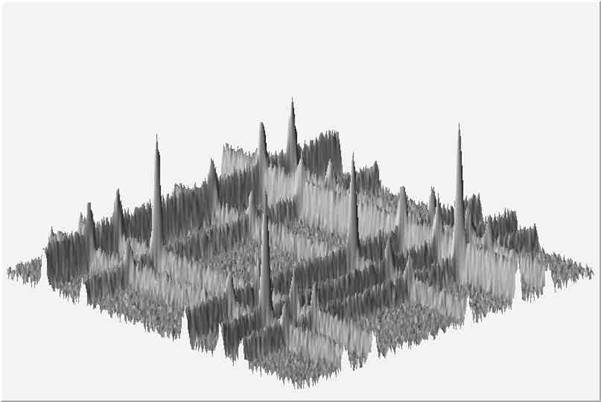

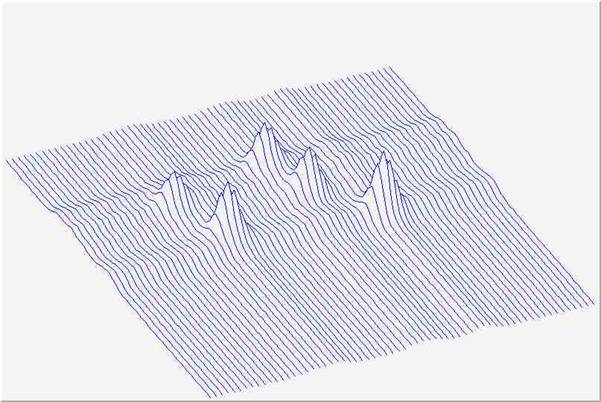

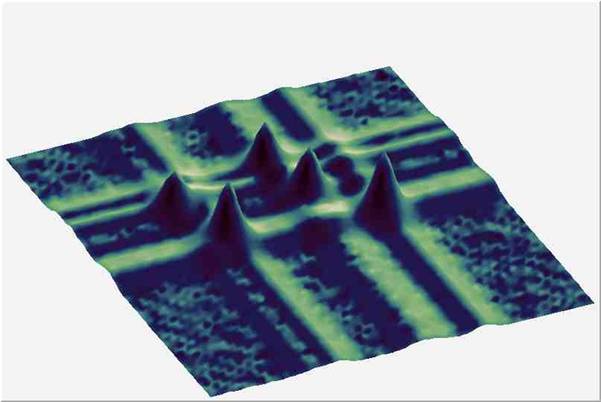

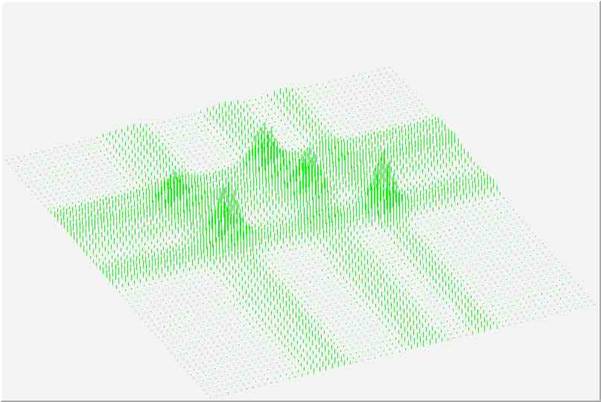

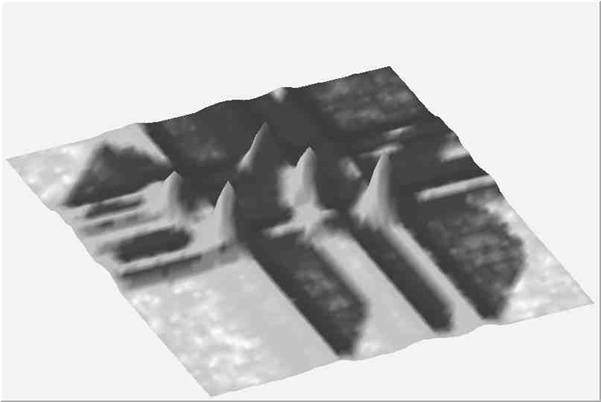

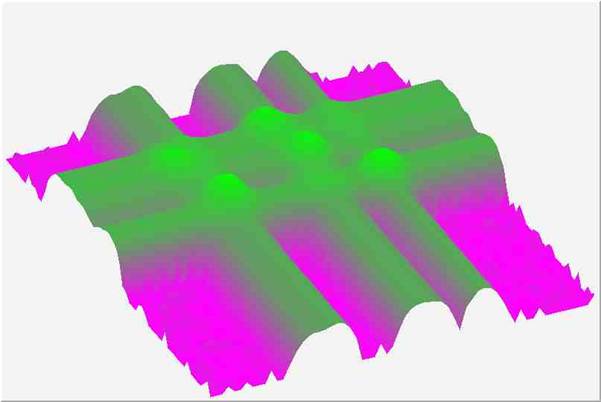

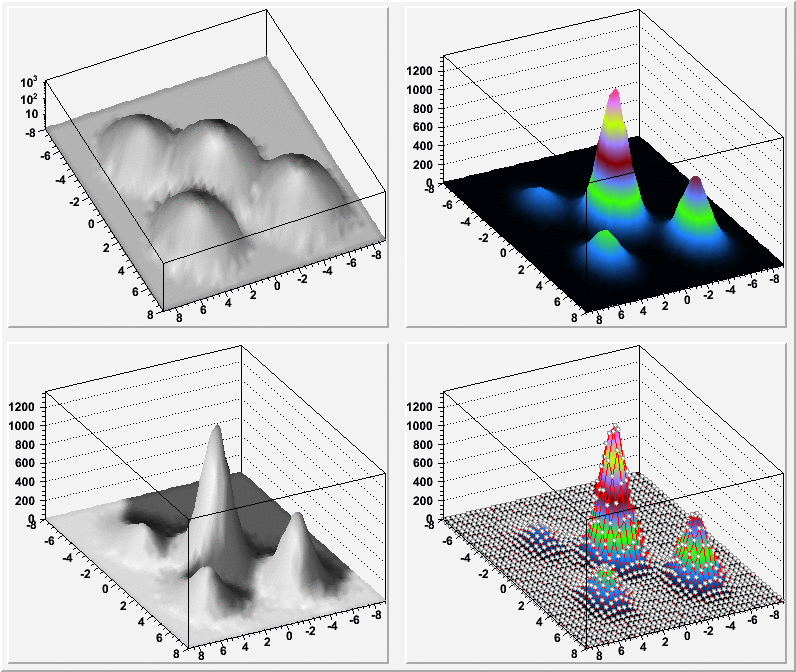

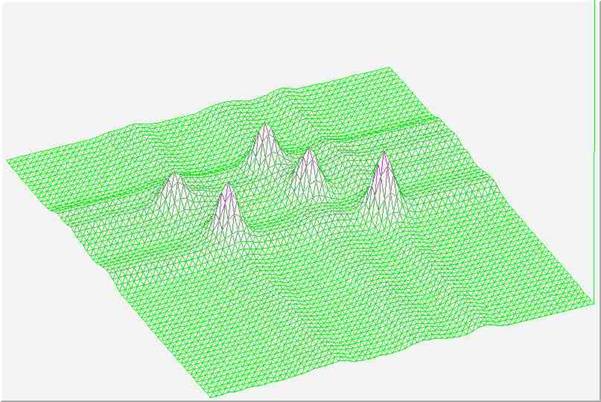

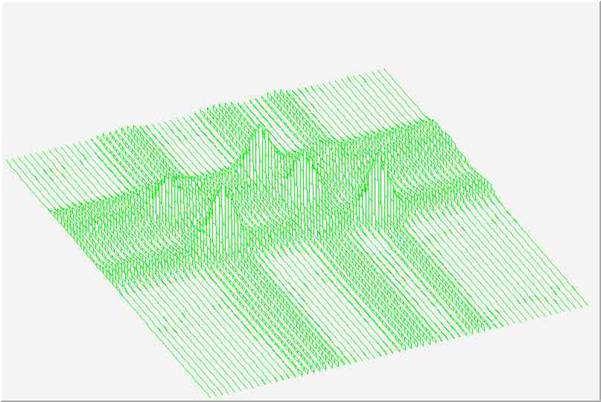

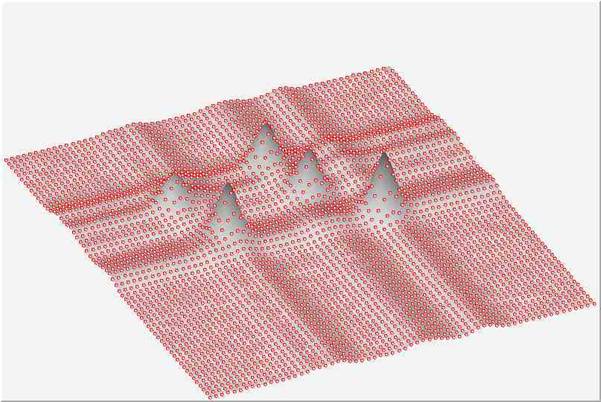

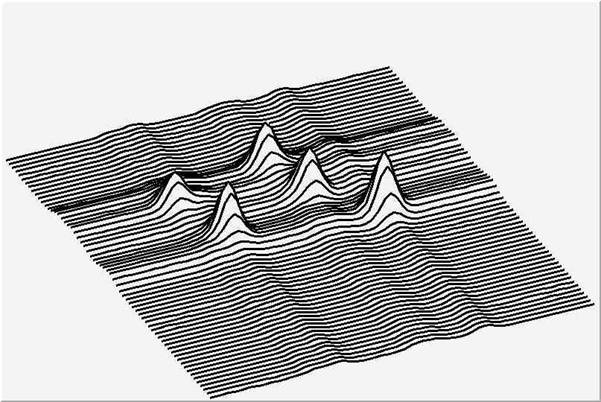

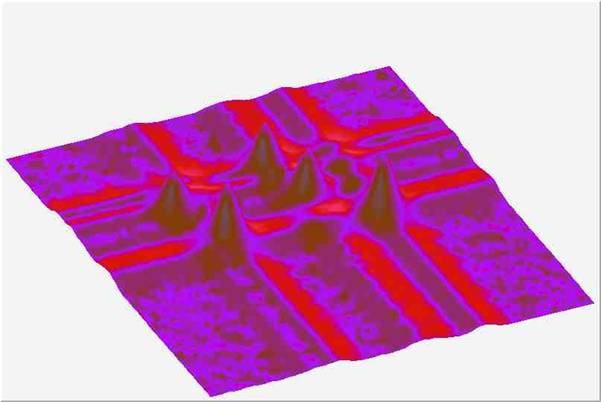

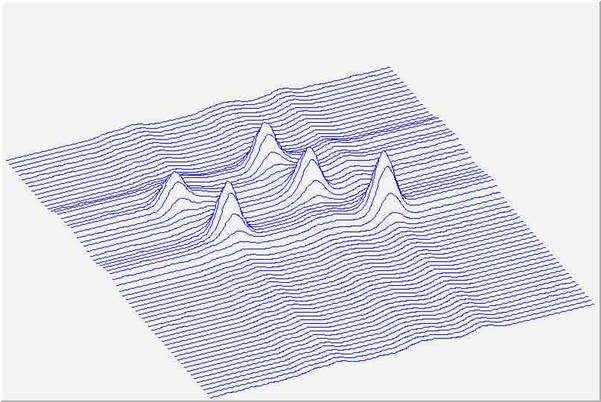

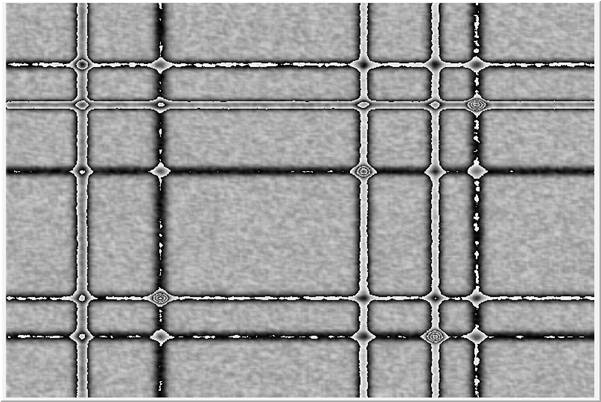

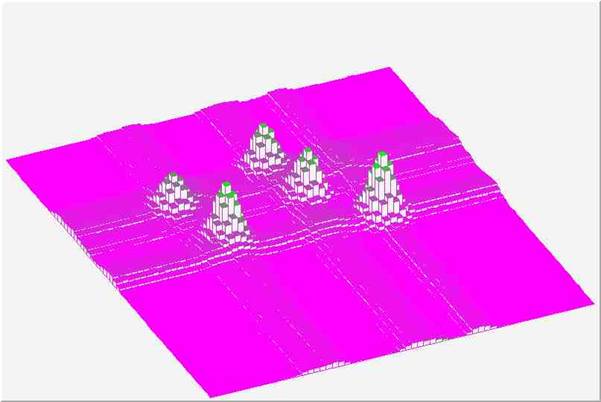

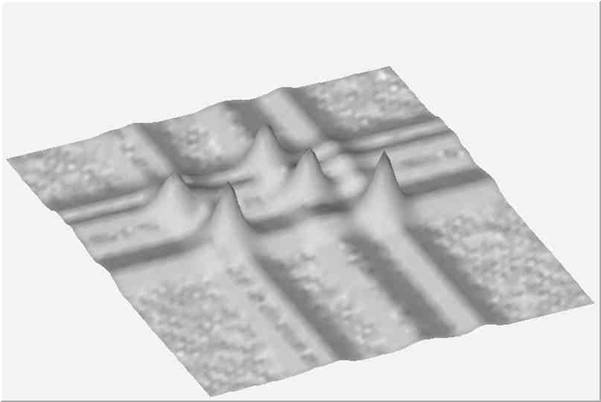

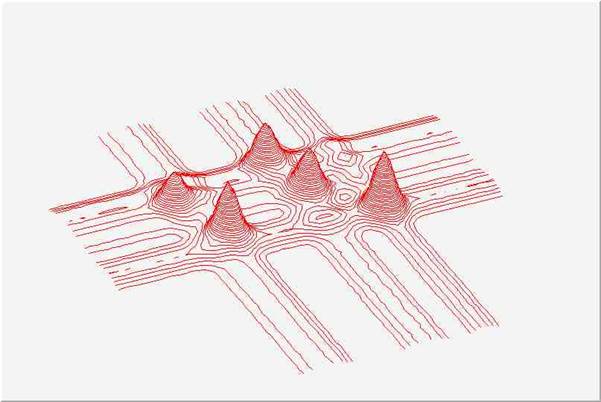

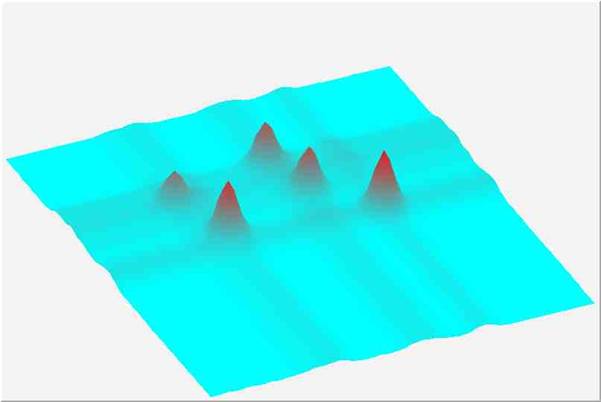

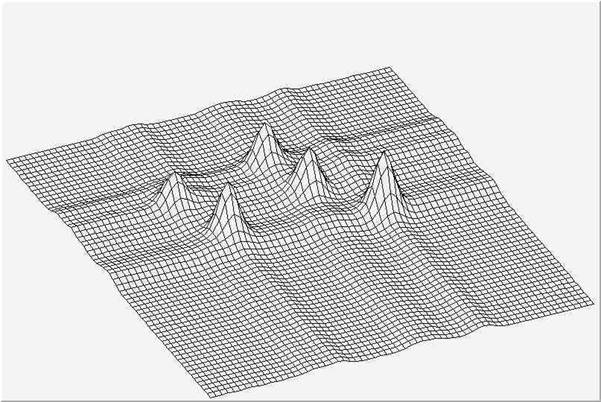

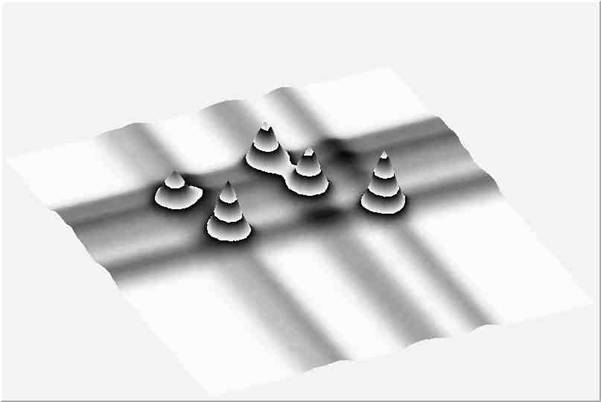

Two-dimensional graphics function

TSpectrum2Painter is a set of graphical functions developed by Miroslav Morhac to paint 2D-histograms in three dimensions. This package is accessed via THistPainter in a transparent way. For the ROOT user it is enough to use the "SPEC" option to draw a 2D-Histogram. This option offers many functionalities detailed in the header of the PaintSpectrum function.

Reference:

Morhac M., Kliman J., Matousek V., Turzo I.: Sophisticated visualization algorithms for analysis of multidimensional experimental nuclear data. Acta Pysica Slovaca Vol. 54/ 4 (2004), pp. 385-400.

Definition at line 30 of file TSpectrum2Painter.h.

Public Types

enum  { kSingleKey = (1ULL << (0)) , kOverwrite = (1ULL << (1)) , kWriteDelete = (1ULL << (2)) }
enum  {
  kModeGroupSimple =0 , kModeGroupHeight =1 , kModeGroupLight =2 , kModeGroupLightHeight =3 ,
  kDisplayModePoints =1 , kDisplayModeGrid =2 , kDisplayModeContours =3 , kDisplayModeBars =4 ,
  kDisplayModeLinesX =5 , kDisplayModeLinesY =6 , kDisplayModeBarsX =7 , kDisplayModeBarsY =8 ,
  kDisplayModeNeedles =9 , kDisplayModeSurface =10 , kDisplayModeTriangles =11 , kZScaleLinear =0 ,
  kZScaleLog =1 , kZScaleSqrt =2 , kColorAlgRgbSmooth =0 , kColorAlgRgbModulo =1 ,
  kColorAlgCmySmooth =2 , kColorAlgCmyModulo =3 , kColorAlgCieSmooth =4 , kColorAlgCieModulo =5 ,
  kColorAlgYiqSmooth =6 , kColorAlgYiqModulo =7 , kColorAlgHvsSmooth =8 , kColorAlgHvsModulo =9 ,
  kShadowsNotPainted =0 , kShadowsPainted =1 , kNotShaded =0 , kShaded =1 ,
  kNoBezierInterpol =0 , kBezierInterpol =1 , kPenStyleSolid =1 , kPenStyleDash =2 ,
  kPenStyleDot =3 , kPenStyleDashDot =4 , kChannelMarksNotDrawn =0 , kChannelMarksDrawn =1 ,
  kChannelMarksStyleDot =1 , kChannelMarksStyleCross =2 , kChannelMarksStyleStar =3 , kChannelMarksStyleRectangle =4 ,
  kChannelMarksStyleX =5 , kChannelMarksStyleDiamond =6 , kChannelMarksStyleTriangle =7 , kChannelGridNotDrawn =0 ,
  kChannelGridDrawn =1
}
enum  {
  kIsOnHeap = 0x01000000 , kNotDeleted = 0x02000000 , kZombie = 0x04000000 , kInconsistent = 0x08000000 ,
  kBitMask = 0x00ffffff
}
enum  EDeprecatedStatusBits { kObjInCanvas = (1ULL << (3)) }
enum  EStatusBits {
  kCanDelete = (1ULL << (0)) , kMustCleanup = (1ULL << (3)) , kIsReferenced = (1ULL << (4)) , kHasUUID = (1ULL << (5)) ,
  kCannotPick = (1ULL << (6)) , kNoContextMenu = (1ULL << (8)) , kInvalidObject = (1ULL << (13))
}

Public Member Functions

 TSpectrum2Painter (TH2 *h2, Int_t bs)
 TSpectrum2Painter normal constructor.
 ~TSpectrum2Painter () override
 TSpectrum2Painter destructor.
void AbstractMethod (const char *method) const
 Call this function within a function that you don't want to define as purely virtual, in order not to force all users deriving from that class to implement that maybe (on their side) unused function; but at the same time, emit a run-time warning if they try to call it, telling that it is not implemented in the derived class: action must thus be taken on the user side to override it.
virtual void AppendPad (Option_t *option="")
 Append graphics object to current pad.
virtual void Browse (TBrowser *b)
 Browse object. May be overridden for another default action.
ULong_t CheckedHash ()
 Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.
virtual const char * ClassName () const
 Returns name of class to which the object belongs.
void Clear (Option_t *option="") override
 Set name and title to empty strings ("").
TObject * Clone (const char *newname="") const override
 Make a clone of an object using the Streamer facility.
Int_t Compare (const TObject *obj) const override
 Compare two TNamed objects.
void Copy (TObject &named) const override
 Copy this to obj.
virtual void Delete (Option_t *option="")
 Delete this object.
virtual Int_t DistancetoPrimitive (Int_t px, Int_t py)
 Computes distance from point (px,py) to the object.
virtual void Draw (Option_t *option="")
 Default Draw method for all objects.
virtual void DrawClass () const
 Draw class inheritance tree of the class to which this object belongs.
virtual TObject * DrawClone (Option_t *option="") const
 Draw a clone of this object in the current selected pad with: gROOT->SetSelectedPad(c1).
virtual void Dump () const
 Dump contents of object on stdout.
virtual void Error (const char *method, const char *msgfmt,...) const
 Issue error message.
virtual void Execute (const char *method, const char *params, Int_t *error=nullptr)
 Execute method on this object with the given parameter string, e.g.
virtual void Execute (TMethod *method, TObjArray *params, Int_t *error=nullptr)
 Execute method on this object with parameters stored in the TObjArray.
virtual void ExecuteEvent (Int_t event, Int_t px, Int_t py)
 Execute action corresponding to an event at (px,py).
virtual void Fatal (const char *method, const char *msgfmt,...) const
 Issue fatal error message.
virtual void FillBuffer (char *&buffer)
 Encode TNamed into output buffer.
virtual TObject * FindObject (const char *name) const
 Must be redefined in derived classes.
virtual TObject * FindObject (const TObject *obj) const
 Must be redefined in derived classes.
void GetAngles (Int_t &alpha, Int_t &beta, Int_t &view)
 Gets angles of the view:
void GetBezier (Int_t &bezier)
 Gets Bezier smoothing switch:
void GetChanGrid (Int_t &enable, Int_t &color)
 This function gets attributes for drawing channel:
void GetChanMarks (Int_t &enable, Int_t &color, Int_t &width, Int_t &height, Int_t &style)
 Gets drawing attributes for channel marks:
void GetColorAlgorithm (Int_t &colorAlgorithm)
 Gets shading color algorithm:
void GetColorIncrements (Double_t &r, Double_t &g, Double_t &b)
 Gets color increments between two color levels for r, g, b components:
void GetContourWidth (Int_t &width)
 Gets width between horizontal slices:
void GetDisplayMode (Int_t &modeGroup, Int_t &displayMode)
 Gets display group mode and display mode: -modeGroup - the following group modes might have been set: simple modes-kPicture2ModeGroupSimple, modes with shading according to light-kPicture2ModeGroupLight, modes with shading according to channels counts-kPicture2ModeGroupHeight, modes of combination of shading according to light and to channels counts-kPicture2ModeGroupLightHeight -displayMode - display modes that might have been set: points, grid, contours, bars, x_lines, y_lines, bars_x, bars_y, needles, surface, triangles.
virtual Option_t * GetDrawOption () const
 Get option used by the graphics system to draw this object.
virtual const char * GetIconName () const
 Returns mime type name of object.
void GetLightHeightWeight (Double_t &weight)
 Gets weight between shading according to fictive light source and according to channels counts:
void GetLightPosition (Int_t &x, Int_t &y, Int_t &z)
 Gets position of fictive light source in 3D space:
const char * GetName () const override
 Returns name of object.
void GetNodes (Int_t &nodesx, Int_t &nodesy)
 Gets nodes in both directions:
virtual char * GetObjectInfo (Int_t px, Int_t py) const
 Returns string containing info about the object at position (px,py).
virtual Option_t * GetOption () const
void GetPenAttr (Int_t &color, Int_t &style, Int_t &width)
 Gets pen attributes: -color - color of spectrum -style - style of pen (solid, dash, dot, dash-dot) -width - width of pen in pixels.
void GetShading (Int_t &shading, Int_t &shadow)
 Gets shading and shadow switches:
const char * GetTitle () const override
 Returns title of object.
virtual UInt_t GetUniqueID () const
 Return the unique object id.
void GetZScale (Int_t &scale)
 Gets z-axis scale:
virtual Bool_t HandleTimer (TTimer *timer)
 Execute action in response of a timer timing out.
ULong_t Hash () const override
 Return hash value for this object.
Bool_t HasInconsistentHash () const
 Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.
virtual void Info (const char *method, const char *msgfmt,...) const
 Issue info message.
virtual Bool_t InheritsFrom (const char *classname) const
 Returns kTRUE if object inherits from class "classname".
virtual Bool_t InheritsFrom (const TClass *cl) const
 Returns kTRUE if object inherits from TClass cl.
virtual void Inspect () const
 Dump contents of this object in a graphics canvas.
void InvertBit (UInt_t f)
TClass * IsA () const override
Bool_t IsDestructed () const
 IsDestructed.
virtual Bool_t IsEqual (const TObject *obj) const
 Default equal comparison (objects are equal if they have the same address in memory).
virtual Bool_t IsFolder () const
 Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).
Bool_t IsOnHeap () const
Bool_t IsSortable () const override
Bool_t IsZombie () const
void ls (Option_t *option="") const override
 List TNamed name and title.
void MayNotUse (const char *method) const
 Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).
virtual Bool_t Notify ()
 This method must be overridden to handle object notification (the base implementation is no-op).
void Obsolete (const char *method, const char *asOfVers, const char *removedFromVers) const
 Use this method to declare a method obsolete.
void operator delete (void *, size_t)
 Operator delete for sized deallocation.
void operator delete (void *ptr)
 Operator delete.
void operator delete (void *ptr, void *vp)
 Only called by placement new when throwing an exception.
void operator delete[] (void *, size_t)
 Operator delete [] for sized deallocation.
void operator delete[] (void *ptr)
 Operator delete [].
void operator delete[] (void *ptr, void *vp)
 Only called by placement new[] when throwing an exception.
void * operator new (size_t sz)
void * operator new (size_t sz, void *vp)
void * operator new[] (size_t sz)
void * operator new[] (size_t sz, void *vp)
void Paint (Option_t *option) override
 Paints histogram according to preset parameters.
virtual void Pop ()
 Pop on object drawn in a pad to the top of the display list.
void Print (Option_t *option="") const override
 Print TNamed name and title.
virtual Int_t Read (const char *name)
 Read contents of object with specified name from the current directory.
virtual void RecursiveRemove (TObject *obj)
 Recursively remove this object from a list.
void ResetBit (UInt_t f)
virtual void SaveAs (const char *filename="", Option_t *option="") const
 Save this object in the file specified by filename.
virtual void SavePrimitive (std::ostream &out, Option_t *option="")
 Save a primitive as a C++ statement(s) on output stream "out".
void SetAngles (Int_t alpha, Int_t beta, Int_t view)
 Sets angles of the view:
void SetBezier (Int_t bezier)
 Sets on/off Bezier smoothing:
void SetBit (UInt_t f)
void SetBit (UInt_t f, Bool_t set)
 Set or unset the user status bits as specified in f.
void SetChanGrid (Int_t enable, Int_t color)
 This function sets enables/disables drawing of channel grid and sets its color: -enable - decides whether the channel grid is shown or not -color - color of channel grid.
void SetChanMarks (Int_t enable, Int_t color, Int_t width, Int_t height, Int_t style)
 Sets enables/disables drawing of channel marks and sets their attributes:
void SetColorAlgorithm (Int_t colorAlgorithm)
 Sets shading color algorithm:
void SetColorIncrements (Double_t r, Double_t g, Double_t b)
 Sets color increments between two color levels for r, g, b components:
void SetContourWidth (Int_t width)
 Sets width between horizontal slices:
void SetDisplayMode (Int_t modeGroup, Int_t displayMode)
 Sets display group mode and display mode:
virtual void SetDrawOption (Option_t *option="")
 Set drawing option for object.
void SetLightHeightWeight (Double_t weight)
 Sets weight between shading according to fictive light source and according to channels counts:
void SetLightPosition (Int_t x, Int_t y, Int_t z)
 Sets position of fictive light source in 3D space:
virtual void SetName (const char *name)
 Set the name of the TNamed.
virtual void SetNameTitle (const char *name, const char *title)
 Set all the TNamed parameters (name and title).
void SetNodes (Int_t nodesx, Int_t nodesy)
 Sets nodes in both directions:
void SetPenAttr (Int_t color, Int_t style, Int_t width)
 Sets pen attributes:
void SetShading (Int_t shading, Int_t shadow)
 Sets on/off shading and shadow switches:
virtual void SetTitle (const char *title="")
 Set the title of the TNamed.
virtual void SetUniqueID (UInt_t uid)
 Set the unique object id.
void SetZScale (Int_t scale)
 Sets z-axis scale:
virtual Int_t Sizeof () const
 Return size of the TNamed part of the TObject.
void Streamer (TBuffer &) override
 Stream an object of class TObject.
void StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)
virtual void SysError (const char *method, const char *msgfmt,...) const
 Issue system error message.
Bool_t TestBit (UInt_t f) const
Int_t TestBits (UInt_t f) const
virtual void UseCurrentStyle ()
 Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.
virtual void Warning (const char *method, const char *msgfmt,...) const
 Issue warning message.
virtual Int_t Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0)
 Write this object to the current directory.
virtual Int_t Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) const
 Write this object to the current directory.

Static Public Member Functions

static TClass * Class ()
static const char * Class_Name ()
static constexpr Version_t Class_Version ()
static const char * DeclFileName ()
static Longptr_t GetDtorOnly ()
 Return destructor only flag.
static Bool_t GetObjectStat ()
 Get status of object stat flag.
static void PaintSpectrum (TH2 *h2, Option_t *option="", Int_t bs=1600)
 This function allows to set all the possible options available in TSpectrum2Painter and paint "h2".
static void SetDtorOnly (void *obj)
 Set destructor only flag.
static void SetObjectStat (Bool_t stat)
 Turn on/off tracking of objects in the TObjectTable.

Protected Types

enum  { kOnlyPrepStep = (1ULL << (3)) }

Protected Member Functions

Int_t BezC (Int_t i)
 This function is called from BezierBlend function.
Double_t BezierBlend (Int_t i, Double_t bezf)
 This function calculates Bezier approximation.
void BezierSmoothing (Double_t bezf)
 Calculates screen coordinates of the smoothed point.
Double_t ColorCalculation (Double_t dx1, Double_t dy1, Double_t z1, Double_t dx2, Double_t dy2, Double_t z2, Double_t dx3, Double_t dy3, Double_t z3)
 Calculates and returns color value for the surface triangle given by function parameters: -dx1,dy1,z1 coordinates of the first point in 3d space -dx2,dy2,z2 coordinates of the second point in 3d space -dx3,dy3,z3 coordinates of the third point in 3d space.
void ColorModel (unsigned ui, unsigned ui1, unsigned ui2, unsigned ui3)
 This function calculates color for one palette entry given by function parameter ui.
void CopyEnvelope (Double_t xr, Double_t xs, Double_t yr, Double_t ys)
 Copies envelope vector, which ensures hidden surface removal for the contours display mode.
virtual void DoError (int level, const char *location, const char *fmt, va_list va) const
 Interface to ErrorHandler (protected).
void DrawMarker (Int_t x, Int_t y, Int_t w, Int_t h, Int_t type)
 Draws channel mark at the screen coordinates x, y.
void Envelope (Int_t x1, Int_t y1, Int_t x2, Int_t y2)
 Ensures hidden surface removal.
void EnvelopeBars (Int_t x1, Int_t y1, Int_t x2, Int_t y2)
 Ensures hidden surface removal for Bars, BarsX and BarsY display modes.
void MakeZombie ()
void SavePrimitiveNameTitle (std::ostream &out, const char *variable_name)
 Save object name and title into the output stream "out".
Double_t ShadowColorCalculation (Double_t xtaz, Double_t ytaz, Double_t ztaz, Double_t shad_noise)
 Determines whether the center of the triangle in 3-d space given by function parameters:
void Slice (Double_t xr, Double_t yr, Double_t xs, Double_t ys, TLine *line)
 Calculates screen coordinates of the line given by two nodes for contours display mode.
void Transform (Int_t it, Int_t jt, Int_t zmt)
 Reads out the value from histogram and calculates screen coordinates.

Static Protected Member Functions

static void SavePrimitiveConstructor (std::ostream &out, TClass *cl, const char *variable_name, const char *constructor_agrs="", Bool_t empty_line=kTRUE)
 Save object constructor in the output stream "out".
static void SavePrimitiveDraw (std::ostream &out, const char *variable_name, Option_t *option=nullptr)
 Save invocation of primitive Draw() method Skipped if option contains "nodraw" string.
static TString SavePrimitiveVector (std::ostream &out, const char *prefix, Int_t len, Double_t *arr, Int_t flag=0)
 Save array in the output stream "out" as vector.

Protected Attributes

Int_t fAlpha
Int_t fBeta
Int_t fBezier
Int_t fBx1
Int_t fBx2
Int_t fBy1
Int_t fBy2
Int_t fBzX [4]
Int_t fBzY [4]
Int_t fChanlineColor
Int_t fChanlineEnDis
Int_t fChanmarkColor
Int_t fChanmarkEnDis
Int_t fChanmarkHeight
Int_t fChanmarkStyle
Int_t fChanmarkWidth
Int_t fColorAlg
Int_t fContWidth
Int_t fDisplayMode
Double_t fDxspline
Double_t fDyspline
Short_t * fEnvelope
 !
Short_t * fEnvelopeContour
 !
Double_t fGbezx
Double_t fGbezy
TH2 * fH2
Double_t fKx
Double_t fKy
Int_t fLevels
Double_t fLHweight
Int_t fLine
Int_t fMaximumXScreenResolution
 !buffers' size
Int_t fModeGroup
Double_t fMxx
Double_t fMxy
Double_t fMyx
Double_t fMyy
TString fName
TColor * fNewColor
 !
Int_t fNewColorIndex
Int_t fNodesx
Int_t fNodesy
Double_t fNuSli
Int_t fPenColor
Int_t fPenDash
Int_t fPenWidth
Double_t fRainbow1Step
Double_t fRainbow2Step
Double_t fRainbow3Step
Int_t fShading
Int_t fShadow
TString fTitle
Double_t fTxx
Double_t fTxy
Double_t fTyx
Double_t fTyy
Double_t fTyz
Int_t fViewAngle
Double_t fVx
Double_t fVy
Int_t fXe
Int_t fXlight
Int_t fXmax
Int_t fXmin
Int_t fXs
Int_t fXt
Int_t fYe
Int_t fYlight
Int_t fYmax
Int_t fYmin
Int_t fYs
Int_t fYt
Double_t fZ
Double_t fZeq
Int_t fZlight
Double_t fZmax
Double_t fZmin
Double_t fZPresetValue
Int_t fZscale

Private Member Functions

 TSpectrum2Painter (const TSpectrum2Painter &)
TSpectrum2Painter & operator= (const TSpectrum2Painter &)

Static Private Member Functions

static void AddToTObjectTable (TObject *)
 Private helper function which will dispatch to TObjectTable::AddObj.

Private Attributes

UInt_t fBits
 bit field status word
UInt_t fUniqueID
 object unique identifier

Static Private Attributes

static Longptr_t fgDtorOnly = 0
 object for which to call dtor only (i.e. no delete)
static Bool_t fgObjectStat = kTRUE
 if true keep track of objects in TObjectTable

#include <TSpectrum2Painter.h>

Inheritance diagram for TSpectrum2Painter:
TNamed TObject

Member Enumeration Documentation

◆ anonymous enum

anonymous enum
protectedinherited
Enumerator
kOnlyPrepStep

Used to request that the class specific implementation of TObject::Write just prepare the objects to be ready to be written but do not actually write them into the TBuffer.

This is just for example by TBufferMerger to request that the TTree inside the file calls TTree::FlushBaskets (outside of the merging lock) and TBufferMerger will later ask for the write (inside the merging lock). To take advantage of this feature the class needs to overload TObject::Write and use this enum value accordingly. (See TTree::Write and TObject::Write) Do not use, this feature will be migrate to the Merge function (See TClass and TTree::Merge)

Definition at line 106 of file TObject.h.

◆ anonymous enum

anonymous enum
inherited
Enumerator
kSingleKey

write collection with single key

kOverwrite

overwrite existing object with same name

kWriteDelete

write object, then delete previous key with same name

Definition at line 99 of file TObject.h.

◆ anonymous enum

anonymous enum
Enumerator
kModeGroupSimple
kModeGroupHeight
kModeGroupLight
kModeGroupLightHeight
kDisplayModePoints
kDisplayModeGrid
kDisplayModeContours
kDisplayModeBars
kDisplayModeLinesX
kDisplayModeLinesY
kDisplayModeBarsX
kDisplayModeBarsY
kDisplayModeNeedles
kDisplayModeSurface
kDisplayModeTriangles
kZScaleLinear
kZScaleLog
kZScaleSqrt
kColorAlgRgbSmooth
kColorAlgRgbModulo
kColorAlgCmySmooth
kColorAlgCmyModulo
kColorAlgCieSmooth
kColorAlgCieModulo
kColorAlgYiqSmooth
kColorAlgYiqModulo
kColorAlgHvsSmooth
kColorAlgHvsModulo
kShadowsNotPainted
kShadowsPainted
kNotShaded
kShaded
kNoBezierInterpol
kBezierInterpol
kPenStyleSolid
kPenStyleDash
kPenStyleDot
kPenStyleDashDot
kChannelMarksNotDrawn
kChannelMarksDrawn
kChannelMarksStyleDot
kChannelMarksStyleCross
kChannelMarksStyleStar
kChannelMarksStyleRectangle
kChannelMarksStyleX
kChannelMarksStyleDiamond
kChannelMarksStyleTriangle
kChannelGridNotDrawn
kChannelGridDrawn

Definition at line 68 of file TSpectrum2Painter.h.

◆ anonymous enum

anonymous enum
inherited
Enumerator
kIsOnHeap

object is on heap

kNotDeleted

object has not been deleted

kZombie

object ctor failed

kInconsistent

class overload Hash but does call RecursiveRemove in destructor

kBitMask

Definition at line 89 of file TObject.h.

◆ EDeprecatedStatusBits

enum TObject::EDeprecatedStatusBits
inherited
Enumerator
kObjInCanvas

for backward compatibility only, use kMustCleanup

Definition at line 84 of file TObject.h.

◆ EStatusBits

enum TObject::EStatusBits
inherited
Enumerator
kCanDelete

if object in a list can be deleted

kMustCleanup

if object destructor must call RecursiveRemove()

kIsReferenced

if object is referenced by a TRef or TRefArray

kHasUUID

if object has a TUUID (its fUniqueID=UUIDNumber)

kCannotPick

if object in a pad cannot be picked

kNoContextMenu

if object does not want context menu

kInvalidObject

if object ctor succeeded but object should not be used

Definition at line 70 of file TObject.h.

Constructor & Destructor Documentation

◆ TSpectrum2Painter() [1/2]

TSpectrum2Painter::TSpectrum2Painter ( TH2 * h2,
Int_t bs )

TSpectrum2Painter normal constructor.

Definition at line 53 of file TSpectrum2Painter.cxx.

◆ ~TSpectrum2Painter()

TSpectrum2Painter::~TSpectrum2Painter ( )
override

TSpectrum2Painter destructor.

Definition at line 176 of file TSpectrum2Painter.cxx.

◆ TSpectrum2Painter() [2/2]

TSpectrum2Painter::TSpectrum2Painter ( const TSpectrum2Painter & )
private

Member Function Documentation

◆ AbstractMethod()

void TObject::AbstractMethod ( const char * method) const
inherited

Call this function within a function that you don't want to define as purely virtual, in order not to force all users deriving from that class to implement that maybe (on their side) unused function; but at the same time, emit a run-time warning if they try to call it, telling that it is not implemented in the derived class: action must thus be taken on the user side to override it.

In other word, this method acts as a "runtime purely virtual" warning instead of a "compiler purely virtual" error.

Warning
This interface is a legacy function that is no longer recommended to be used by new development code.
Note
The name "AbstractMethod" does not imply that it's an abstract method in the strict C++ sense.

Definition at line 1149 of file TObject.cxx.

◆ AddToTObjectTable()

void TObject::AddToTObjectTable ( TObject * op)
staticprivateinherited

Private helper function which will dispatch to TObjectTable::AddObj.

Included here to avoid circular dependency between header files.

Definition at line 195 of file TObject.cxx.

◆ AppendPad()

void TObject::AppendPad ( Option_t * option = "")
virtualinherited

Append graphics object to current pad.

In case no current pad is set yet, create a default canvas with the name "c1".

Definition at line 204 of file TObject.cxx.

◆ BezC()

Int_t TSpectrum2Painter::BezC ( Int_t i)
protected

This function is called from BezierBlend function.

Definition at line 751 of file TSpectrum2Painter.cxx.

◆ BezierBlend()

Double_t TSpectrum2Painter::BezierBlend ( Int_t i,
Double_t bezf )
protected

This function calculates Bezier approximation.

Definition at line 764 of file TSpectrum2Painter.cxx.

◆ BezierSmoothing()

void TSpectrum2Painter::BezierSmoothing ( Double_t bezf)
protected

Calculates screen coordinates of the smoothed point.

Parameter bezf changes within the interval 0 to 1 in 0.1 steps.

Definition at line 779 of file TSpectrum2Painter.cxx.

◆ Browse()

void TObject::Browse ( TBrowser * b)
virtualinherited

Browse object. May be overridden for another default action.

Reimplemented in RooPlot, ROOT::Experimental::XRooFit::xRooNode, ROOT::Internal::THnBaseBrowsable, TApplicationRemote, TASImage, TAxis3D, TBaseClass, TBranch, TBranchClones, TBranchElement, TBranchObject, TBranchSTL, TBrowserObject, TCanvas, TChain, TClass, TCollection, TCollectionPropertyBrowsable, TDatabasePDG, TDirectory, TDirectoryFile, TEfficiency, TF1, TFolder, TGenerator, TGeoManager, TGeometry, TGeoNode, TGeoOverlap, TGeoTrack, TGeoVolume, TGraph2D, TGraph, TH1, THbookBranch, THbookFile, THbookKey, THnBase, THStack, TKey, TKeyMapFile, TLeaf, TMacro, TMapFile, TMultiDimFit, TMultiGraph, TNode, TNtuple, TNtupleD, TPad, TPair, TParticleClassPDG, TPrincipal, TRecorder, TRemoteObject, TROOT, TRootIconList, TSPlot, TStyle, TSystemDirectory, TSystemFile, TTask, TTree, TTreePerfStats, and TVirtualBranchBrowsable.

Definition at line 218 of file TObject.cxx.

◆ CheckedHash()

ULong_t TObject::CheckedHash ( )
inlineinherited

Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.

The intent is for this routine to be called instead of directly calling the function Hash during "insert" operations. See TObject::HasInconsistenTObjectHash();

(*) The setup is consistent when all classes in the class hierarchy that overload TObject::Hash do call ROOT::CallRecursiveRemoveIfNeeded in their destructor. i.e. it is safe to call the Hash virtual function during the RecursiveRemove operation.

Definition at line 332 of file TObject.h.

◆ Class()

TClass * TSpectrum2Painter::Class ( )
static
Returns
TClass describing this class

◆ Class_Name()

const char * TSpectrum2Painter::Class_Name ( )
static
Returns
Name of this class

◆ Class_Version()

constexpr Version_t TSpectrum2Painter::Class_Version ( )
inlinestaticconstexpr
Returns
Version of this class

Definition at line 205 of file TSpectrum2Painter.h.

◆ ClassName()

const char * TObject::ClassName ( ) const
virtualinherited

Returns name of class to which the object belongs.

Definition at line 227 of file TObject.cxx.

◆ Clear()

void TNamed::Clear ( Option_t * option = "")
overridevirtualinherited

Set name and title to empty strings ("").

Reimplemented from TObject.

Reimplemented in TPrincipal, TProcessID, TStreamerInfo, TTask, TVirtualFitter, and TVirtualStreamerInfo.

Definition at line 63 of file TNamed.cxx.

◆ Clone()

TObject * TNamed::Clone ( const char * newname = "") const
overridevirtualinherited

Make a clone of an object using the Streamer facility.

If newname is specified, this will be the name of the new object.

Reimplemented from TObject.

Reimplemented in TStreamerInfo, and TTreeIndex.

Definition at line 73 of file TNamed.cxx.

◆ ColorCalculation()

Double_t TSpectrum2Painter::ColorCalculation ( Double_t dx1,
Double_t dy1,
Double_t z1,
Double_t dx2,
Double_t dy2,
Double_t z2,
Double_t dx3,
Double_t dy3,
Double_t z3 )
protected

Calculates and returns color value for the surface triangle given by function parameters: -dx1,dy1,z1 coordinates of the first point in 3d space -dx2,dy2,z2 coordinates of the second point in 3d space -dx3,dy3,z3 coordinates of the third point in 3d space.

Definition at line 242 of file TSpectrum2Painter.cxx.

◆ ColorModel()

void TSpectrum2Painter::ColorModel ( unsigned ui,
unsigned ui1,
unsigned ui2,
unsigned ui3 )
protected

This function calculates color for one palette entry given by function parameter ui.

Other parameters -ui1,ui2,ui3 represent r, g, b color components of the basic pen color.

Definition at line 474 of file TSpectrum2Painter.cxx.

◆ Compare()

Int_t TNamed::Compare ( const TObject * obj) const
overridevirtualinherited

Compare two TNamed objects.

Returns 0 when equal, -1 when this is smaller and +1 when bigger (like strcmp).

Reimplemented from TObject.

Reimplemented in TStructNodeProperty.

Definition at line 84 of file TNamed.cxx.

◆ Copy()

void TNamed::Copy ( TObject & named) const
overridevirtualinherited

Copy this to obj.

Reimplemented from TObject.

Reimplemented in TPieSlice, TProfile2D, TProfile3D, TProfile, TStyle, TSystemDirectory, TSystemFile, TText, and TXTRU.

Definition at line 93 of file TNamed.cxx.

◆ CopyEnvelope()

void TSpectrum2Painter::CopyEnvelope ( Double_t xr,
Double_t xs,
Double_t yr,
Double_t ys )
protected

Copies envelope vector, which ensures hidden surface removal for the contours display mode.

Definition at line 1142 of file TSpectrum2Painter.cxx.

◆ DeclFileName()

const char * TSpectrum2Painter::DeclFileName ( )
inlinestatic
Returns
Name of the file containing the class declaration

Definition at line 205 of file TSpectrum2Painter.h.

◆ Delete()

void TObject::Delete ( Option_t * option = "")
virtualinherited

Delete this object.

Typically called as a command via the interpreter. Normally use "delete" operator when object has been allocated on the heap.

Reimplemented in RooLinkedList, TAxis, TBtree, TCanvas, TClonesArray, TCollection, TDirectory, TDirectoryFile, TExMap, TFile, TGFrame, TGItemContext, TGTextEdit, THashList, THashTable, TKey, TKeySQL, TKeyXML, TList, TListOfDataMembers, TListOfEnums, TListOfEnumsWithLock, TListOfFunctions, TListOfFunctionTemplates, TMap, TMVA::Results, TObjArray, TObjectTable, TOrdCollection, TProtoClass, TQCommand, TRefArray, TSystemDirectory, TSystemFile, TThread, TTree, TTreeViewer, TViewPubDataMembers, and TViewPubFunctions.

Definition at line 268 of file TObject.cxx.

◆ DistancetoPrimitive()

Int_t TObject::DistancetoPrimitive ( Int_t px,
Int_t py )
virtualinherited

Computes distance from point (px,py) to the object.

This member function must be implemented for each graphics primitive. This default function returns a big number (999999).

Reimplemented in TASImage, TAxis3D, TAxis, TBox, TBRIK, TColorWheel, TCrown, TCurlyArc, TCurlyLine, TDiamond, TEfficiency, TEllipse, TF1, TF2, TF3, TFileDrawMap, TGenerator, TGeoBBox, TGeoCompositeShape, TGeoCone, TGeoConeSeg, TGeoEltu, TGeoHalfSpace, TGeoHype, TGeoNode, TGeoOverlap, TGeoParaboloid, TGeoPcon, TGeoPgon, TGeoScaledShape, TGeoShape, TGeoShapeAssembly, TGeoSphere, TGeoTessellated, TGeoTorus, TGeoTrack, TGeoTube, TGeoTubeSeg, TGeoVGShape, TGeoVolume, TGeoXtru, TGL5DDataSet, TGLHistPainter, TGLParametricEquation, TGLScenePad, TGLTH3Composition, TGLViewer, TGraph2D, TGraph, TGraphEdge, TGraphNode, TGraphPolargram, TH1, THistPainter, THStack, TLine, TMarker3DBox, TMarker, TMultiGraph, TNode, TPad, TPaletteAxis, TParallelCoord, TParallelCoordRange, TParallelCoordVar, TParticle, TPave, TPCON, TPie, TPieSlice, TPoints3DABC, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TPrimary, TScatter2D, TScatter, TSPHE, TSpider, TSpline, TStyle, TText, TTreePerfStats, TTUBE, TTUBS, TVirtualHistPainter, and TXTRU.

Definition at line 284 of file TObject.cxx.

◆ DoError()

void TObject::DoError ( int level,
const char * location,
const char * fmt,
va_list va ) const
protectedvirtualinherited

Interface to ErrorHandler (protected).

Reimplemented in TThread, and TTreeViewer.

Definition at line 1059 of file TObject.cxx.

◆ Draw()

void TObject::Draw ( Option_t * option = "")
virtualinherited

Default Draw method for all objects.

Reimplemented in RooAbsData, RooPlot, RooStats::HypoTestInverterPlot, RooStats::SamplingDistPlot, ROOT::Experimental::XRooFit::xRooNLLVar::xRooHypoPoint, ROOT::Experimental::XRooFit::xRooNLLVar::xRooHypoSpace, ROOT::Experimental::XRooFit::xRooNode, ROOT::RGeoPainter, TArrow, TASImage, TBox, TBrowser, TButton, TCanvas, TChain, TClass, TClassTree, TCollection, TColorWheel, TDiamond, TDirectory, TEfficiency, TEllipse, TEveGeoNode, TEveGeoTopNode, TF1, TF2, TF3, TFile, TFITSHDU, TFrame, TGenerator, TGeoBatemanSol, TGeometry, TGeoNode, TGeoOverlap, TGeoPainter, TGeoParallelWorld, TGeoPhysicalNode, TGeoPolygon, TGeoShape, TGeoTrack, TGeoVGShape, TGeoVolume, TGItemContext, TGListTree, TGPicture, TGraph2D, TGraph, TGraphPolar, TGraphPolargram, TGraphStruct, TGraphTime, TH1, THelix, THStack, TLegend, TMarker, TMatrixTBase< Element >, TMatrixTBase< Double_t >, TMatrixTBase< Float_t >, TMultiDimFit, TMultiGraph, TMultiLayerPerceptron, TNode, TNodeDiv, TPad, TParallelCoord, TParallelCoordRange, TParallelCoordVar, TPave, TPaveLabel, TPavesText, TPaveText, TPie, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TRatioPlot, TSpider, TSpline, TStructViewer, TStructViewerGUI, TTree, TTreePerfStats, TVectorT< Element >, TVectorT< Double_t >, TVectorT< Float_t >, TVirtualPad, and TWbox.

Definition at line 293 of file TObject.cxx.

◆ DrawClass()

void TObject::DrawClass ( ) const
virtualinherited

Draw class inheritance tree of the class to which this object belongs.

If a class B inherits from a class A, description of B is drawn on the right side of description of A. Member functions overridden by B are shown in class A with a blue line crossing-out the corresponding member function. The following picture is the class inheritance tree of class TPaveLabel:

Reimplemented in TGFrame, TSystemDirectory, and TSystemFile.

Definition at line 308 of file TObject.cxx.

◆ DrawClone()

TObject * TObject::DrawClone ( Option_t * option = "") const
virtualinherited

Draw a clone of this object in the current selected pad with: gROOT->SetSelectedPad(c1).

If pad was not selected - gPad will be used.

Note
For histograms, use the more specialised TH1::DrawCopy().

Reimplemented in TAxis, TCanvas, TGFrame, TSystemDirectory, and TSystemFile.

Definition at line 319 of file TObject.cxx.

◆ DrawMarker()

void TSpectrum2Painter::DrawMarker ( Int_t x,
Int_t y,
Int_t w,
Int_t h,
Int_t type )
protected

Draws channel mark at the screen coordinates x, y.

Width of the mark is w, height is h and the type of the mark is determined by the parameter type.

Definition at line 999 of file TSpectrum2Painter.cxx.

◆ Dump()

void TObject::Dump ( ) const
virtualinherited

Dump contents of object on stdout.

Using the information in the object dictionary (class TClass) each data member is interpreted. If a data member is a pointer, the pointer value is printed

The following output is the Dump of a TArrow object:

fAngle 0 Arrow opening angle (degrees)
fArrowSize 0.2 Arrow Size
fOption.*fData
fX1 0.1 X of 1st point
fY1 0.15 Y of 1st point
fX2 0.67 X of 2nd point
fY2 0.83 Y of 2nd point
fUniqueID 0 object unique identifier
fBits 50331648 bit field status word
fLineColor 1 line color
fLineStyle 1 line style
fLineWidth 1 line width
fFillColor 19 fill area color
fFillStyle 1001 fill area style
X
#define X(type, name)
TObject::fUniqueID
UInt_t fUniqueID
object unique identifier
Definition TObject.h:46
TObject::fBits
UInt_t fBits
bit field status word
Definition TObject.h:47
line
TLine * line
Definition entrylistblock_figure1.C:235
style
TCanvas * style()
Definition style.C:1

Reimplemented in TClass, TCollection, TGFrame, TGPack, and TSystemFile.

Definition at line 367 of file TObject.cxx.

◆ Envelope()

void TSpectrum2Painter::Envelope ( Int_t x1,
Int_t y1,
Int_t x2,
Int_t y2 )
protected

Ensures hidden surface removal.

Definition at line 797 of file TSpectrum2Painter.cxx.

◆ EnvelopeBars()

void TSpectrum2Painter::EnvelopeBars ( Int_t x1,
Int_t y1,
Int_t x2,
Int_t y2 )
protected

Ensures hidden surface removal for Bars, BarsX and BarsY display modes.

Definition at line 910 of file TSpectrum2Painter.cxx.

◆ Error()

void TObject::Error ( const char * location,
const char * fmt,
... ) const
virtualinherited

Issue error message.

Use "location" to specify the method where the error occurred. Accepts standard printf formatting arguments.

Reimplemented in TFitResult.

Definition at line 1098 of file TObject.cxx.

◆ Execute() [1/2]

void TObject::Execute ( const char * method,
const char * params,
Int_t * error = nullptr )
virtualinherited

Execute method on this object with the given parameter string, e.g.

"3.14,1,\"text\"".

Reimplemented in ROOT::R::TRInterface, TCling, TContextMenu, TInterpreter, and TMethodCall.

Definition at line 378 of file TObject.cxx.

◆ Execute() [2/2]

void TObject::Execute ( TMethod * method,
TObjArray * params,
Int_t * error = nullptr )
virtualinherited

Execute method on this object with parameters stored in the TObjArray.

The TObjArray should contain an argv vector like:

argv[0] ... argv[n] = the list of TObjString parameters
TObjString
Collectable string class.
Definition TObjString.h:28
n
const Int_t n
Definition legend1.C:16

Reimplemented in ROOT::R::TRInterface, TCling, TContextMenu, TInterpreter, and TMethodCall.

Definition at line 398 of file TObject.cxx.

◆ ExecuteEvent()

void TObject::ExecuteEvent ( Int_t event,
Int_t px,
Int_t py )
virtualinherited

Execute action corresponding to an event at (px,py).

This method must be overridden if an object can react to graphics events.

Reimplemented in TASImage, TASPaletteEditor::LimitLine, TAxis3D, TAxis, TBox, TButton, TCanvas, TCrown, TCurlyArc, TCurlyLine, TDiamond, TEfficiency, TEllipse, TF1, TF2, TF3, TFrame, TGenerator, TGeoManager, TGeoNode, TGeoOverlap, TGeoShape, TGeoTrack, TGeoVolume, TGL5DDataSet, TGLEventHandler, TGLHistPainter, TGLParametricEquation, TGLScenePad, TGLTH3Composition, TGLViewer, TGraph2D, TGraph, TGraphEdge, TGraphNode, TGraphPolargram, TGroupButton, TH1, THistPainter, TLine, TLink, TMarker3DBox, TMarker, TNode, TPad, TPaletteAxis, TParallelCoord, TParallelCoordRange, TParallelCoordVar, TParticle, TPave, TPie, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TPrimary, TScatter2D, TScatter, TSliderBox, TSpider, TSpline, TText, TTreePerfStats, TView3D, TView, TVirtualHistPainter, and TWbox.

Definition at line 415 of file TObject.cxx.

◆ Fatal()

void TObject::Fatal ( const char * location,
const char * fmt,
... ) const
virtualinherited

Issue fatal error message.

Use "location" to specify the method where the fatal error occurred. Accepts standard printf formatting arguments.

Definition at line 1126 of file TObject.cxx.

◆ FillBuffer()

void TNamed::FillBuffer ( char *& buffer)
virtualinherited

Encode TNamed into output buffer.

Reimplemented in TDirectoryFile, TFile, TKey, TKeySQL, TKeyXML, TSQLFile, and TXMLFile.

Definition at line 103 of file TNamed.cxx.

◆ FindObject() [1/2]

TObject * TObject::FindObject ( const char * name) const
virtualinherited

Must be redefined in derived classes.

This function is typically used with TCollections, but can also be used to find an object by name inside this object.

Reimplemented in RooAbsCollection, RooLinkedList, TBtree, TCollection, TDirectory, TFolder, TGeometry, TGraph2D, TGraph, TH1, THashList, THashTable, THbookFile, TList, TListOfDataMembers, TListOfEnums, TListOfEnumsWithLock, TListOfFunctions, TListOfFunctionTemplates, TListOfTypes, TMap, TObjArray, TPad, TROOT, TViewPubDataMembers, and TViewPubFunctions.

Definition at line 425 of file TObject.cxx.

◆ FindObject() [2/2]

TObject * TObject::FindObject ( const TObject * obj) const
virtualinherited

Must be redefined in derived classes.

This function is typically used with TCollections, but can also be used to find an object inside this object.

Reimplemented in RooAbsCollection, RooLinkedList, TBtree, TCollection, TDirectory, TFolder, TGeometry, TGraph2D, TGraph, TH1, THashList, THashTable, THbookFile, TList, TListOfDataMembers, TListOfEnums, TListOfEnumsWithLock, TListOfFunctions, TListOfFunctionTemplates, TListOfTypes, TMap, TObjArray, TPad, TROOT, TViewPubDataMembers, and TViewPubFunctions.

Definition at line 435 of file TObject.cxx.

◆ GetAngles()

void TSpectrum2Painter::GetAngles ( Int_t & alpha,
Int_t & beta,
Int_t & view )

Gets angles of the view:

  • alpha - angle between base line of Canvas and right lower edge of picture base plane
  • beta - angle between base line of Canvas and left lower edge of picture base plane
  • view - rotation angle of the view, it can be 0, 90, 180, 270 degrees

Definition at line 7323 of file TSpectrum2Painter.cxx.

◆ GetBezier()

void TSpectrum2Painter::GetBezier ( Int_t & bezier)

Gets Bezier smoothing switch:

  • bezier - determines Bezier interpolation (applies only for simple display modes group for grid, x_lines, y_lines display modes)

Definition at line 7391 of file TSpectrum2Painter.cxx.

◆ GetChanGrid()

void TSpectrum2Painter::GetChanGrid ( Int_t & enable,
Int_t & color )

This function gets attributes for drawing channel:

  • enable - decides whether the channel grid is shown or not
  • color - color of channel grid

Definition at line 7437 of file TSpectrum2Painter.cxx.

◆ GetChanMarks()

void TSpectrum2Painter::GetChanMarks ( Int_t & enable,
Int_t & color,
Int_t & width,
Int_t & height,
Int_t & style )

Gets drawing attributes for channel marks:

  • enable - decides whether the channel marks are shown or not
  • color - color of channel marks
  • width - width of channel marks in pixels
  • height - height of channel marks in pixels
  • style - style of channel marks (dot, cross, star, rectangle, X, diamond, triangle)

Definition at line 7425 of file TSpectrum2Painter.cxx.

◆ GetColorAlgorithm()

void TSpectrum2Painter::GetColorAlgorithm ( Int_t & colorAlgorithm)

Gets shading color algorithm:

  • colorAlgorithm - rgb smooth algorithm, rgb modulo color component, cmy smooth algorithm, cmy modulo color component, cie smooth algorithm, cie modulo color component, yiq smooth algorithm, yiq modulo color component, hsv smooth algorithm, hsv modulo algorithm

Definition at line 7345 of file TSpectrum2Painter.cxx.

◆ GetColorIncrements()

void TSpectrum2Painter::GetColorIncrements ( Double_t & r,
Double_t & g,
Double_t & b )

Gets color increments between two color levels for r, g, b components:

  • r, g, b - color increments between two color levels

Definition at line 7355 of file TSpectrum2Painter.cxx.

◆ GetContourWidth()

void TSpectrum2Painter::GetContourWidth ( Int_t & width)

Gets width between horizontal slices:

  • width - width between contours, applies only for contours display mode

Definition at line 7401 of file TSpectrum2Painter.cxx.

◆ GetDisplayMode()

void TSpectrum2Painter::GetDisplayMode ( Int_t & modeGroup,
Int_t & displayMode )

Gets display group mode and display mode: -modeGroup - the following group modes might have been set: simple modes-kPicture2ModeGroupSimple, modes with shading according to light-kPicture2ModeGroupLight, modes with shading according to channels counts-kPicture2ModeGroupHeight, modes of combination of shading according to light and to channels counts-kPicture2ModeGroupLightHeight -displayMode - display modes that might have been set: points, grid, contours, bars, x_lines, y_lines, bars_x, bars_y, needles, surface, triangles.

Definition at line 7285 of file TSpectrum2Painter.cxx.

◆ GetDrawOption()

Option_t * TObject::GetDrawOption ( ) const
virtualinherited

Get option used by the graphics system to draw this object.

Note that before calling object.GetDrawOption(), you must have called object.Draw(..) before in the current pad.

Reimplemented in TBrowser, TFitEditor, TGedFrame, TGFileBrowser, TRootBrowser, and TRootBrowserLite.

Definition at line 445 of file TObject.cxx.

◆ GetDtorOnly()

Longptr_t TObject::GetDtorOnly ( )
staticinherited

Return destructor only flag.

Definition at line 1196 of file TObject.cxx.

◆ GetIconName()

const char * TObject::GetIconName ( ) const
virtualinherited

Returns mime type name of object.

Used by the TBrowser (via TGMimeTypes class). Override for class of which you would like to have different icons for objects of the same class.

Reimplemented in ROOT::Experimental::XRooFit::xRooNode, TASImage, TBranch, TBranchElement, TGeoVolume, TGMainFrame, TKey, TMethodBrowsable, TSystemFile, and TVirtualBranchBrowsable.

Definition at line 472 of file TObject.cxx.

◆ GetLightHeightWeight()

void TSpectrum2Painter::GetLightHeightWeight ( Double_t & weight)

Gets weight between shading according to fictive light source and according to channels counts:

  • weight - weight between shading according to fictive light source and according to channels counts, applies only for kPicture2ModeGroupLightHeight modes group

Definition at line 7411 of file TSpectrum2Painter.cxx.

◆ GetLightPosition()

void TSpectrum2Painter::GetLightPosition ( Int_t & x,
Int_t & y,
Int_t & z )

Gets position of fictive light source in 3D space:

  • x, y, z

Definition at line 7367 of file TSpectrum2Painter.cxx.

◆ GetName()

const char * TNamed::GetName ( ) const
inlineoverridevirtualinherited

Returns name of object.

This default method returns the class name. Classes that give objects a name should override this method.

Reimplemented from TObject.

Definition at line 49 of file TNamed.h.

◆ GetNodes()

void TSpectrum2Painter::GetNodes ( Int_t & nodesx,
Int_t & nodesy )

Gets nodes in both directions:

  • nodesx, nodesy, only the bins at the nodes points are displayed

Definition at line 7310 of file TSpectrum2Painter.cxx.

◆ GetObjectInfo()

char * TObject::GetObjectInfo ( Int_t px,
Int_t py ) const
virtualinherited

Returns string containing info about the object at position (px,py).

This method is typically overridden by classes of which the objects can report peculiarities for different positions. Returned string will be re-used (lock in MT environment).

Reimplemented in TASImage, TAxis3D, TColorWheel, TF1, TF2, TFileDrawMap, TGeoNode, TGeoTrack, TGeoVolume, TGL5DDataSet, TGLHistPainter, TGLParametricEquation, TGLTH3Composition, TGraph, TH1, THistPainter, TNode, TPaletteAxis, TParallelCoordVar, and TVirtualHistPainter.

Definition at line 491 of file TObject.cxx.

◆ GetObjectStat()

Bool_t TObject::GetObjectStat ( )
staticinherited

Get status of object stat flag.

Definition at line 1181 of file TObject.cxx.

◆ GetOption()

virtual Option_t * TObject::GetOption ( ) const
inlinevirtualinherited

Reimplemented in TArrow, TAxis3D, TFile, TGaxis, TGeoVolume, TH1, THelix, TLegendEntry, TMapFile, TNode, TPave, TPoints3DABC, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TPSocket, TSelector, TSocket, and TUDPSocket.

Definition at line 147 of file TObject.h.

◆ GetPenAttr()

void TSpectrum2Painter::GetPenAttr ( Int_t & color,
Int_t & style,
Int_t & width )

Gets pen attributes: -color - color of spectrum -style - style of pen (solid, dash, dot, dash-dot) -width - width of pen in pixels.

Definition at line 7298 of file TSpectrum2Painter.cxx.

◆ GetShading()

void TSpectrum2Painter::GetShading ( Int_t & shading,
Int_t & shadow )

Gets shading and shadow switches:

  • shading - determines whether the picture will shaded, smoothed (no shading, shading), for rainbowed display modes only
  • shadow - determines whether shadow will be drawn, for rainbowed display modes with shading according to light

Definition at line 7380 of file TSpectrum2Painter.cxx.

◆ GetTitle()

const char * TNamed::GetTitle ( ) const
inlineoverridevirtualinherited

Returns title of object.

This default method returns the class title (i.e. description). Classes that give objects a title should override this method.

Reimplemented from TObject.

Definition at line 50 of file TNamed.h.

◆ GetUniqueID()

UInt_t TObject::GetUniqueID ( ) const
virtualinherited

Return the unique object id.

Definition at line 480 of file TObject.cxx.

◆ GetZScale()

void TSpectrum2Painter::GetZScale ( Int_t & scale)

Gets z-axis scale:

  • scale - it can be linear, sqrt or log

Definition at line 7335 of file TSpectrum2Painter.cxx.

◆ HandleTimer()

Bool_t TObject::HandleTimer ( TTimer * timer)
virtualinherited

Execute action in response of a timer timing out.

This method must be overridden if an object has to react to timers.

Reimplemented in TGCommandPlugin, TGDNDManager, TGFileContainer, TGHtml, TGLEventHandler, TGPopupMenu, TGraphTime, TGScrollBar, TGShutter, TGTextEdit, TGTextEditor, TGTextEntry, TGTextView, TGToolTip, TGuiBldDragManager, TGWindow, and TTreeViewer.

Definition at line 516 of file TObject.cxx.

◆ Hash()

ULong_t TNamed::Hash ( ) const
inlineoverridevirtualinherited

Return hash value for this object.

Note: If this routine is overloaded in a derived class, this derived class should also add

ROOT::CallRecursiveRemoveIfNeeded(*this)
ROOT::CallRecursiveRemoveIfNeeded
void CallRecursiveRemoveIfNeeded(TObject &obj)
call RecursiveRemove for obj if gROOT is valid and obj.TestBit(kMustCleanup) is true.
Definition TROOT.h:406

Otherwise, when RecursiveRemove is called (by ~TObject or example) for this type of object, the transversal of THashList and THashTable containers will will have to be done without call Hash (and hence be linear rather than logarithmic complexity). You will also see warnings like

Error in <ROOT::Internal::TCheckHashRecursiveRemoveConsistency::CheckRecursiveRemove>: The class SomeName overrides
TObject::Hash but does not call TROOT::RecursiveRemove in its destructor.
TNamed::Hash
ULong_t Hash() const override
Return hash value for this object.
Definition TNamed.h:51
TObject::Error
virtual void Error(const char *method, const char *msgfmt,...) const
Issue error message.
Definition TObject.cxx:1098
TObject::TObject
TObject()
TObject constructor.
Definition TObject.h:259
TROOT::RecursiveRemove
void RecursiveRemove(TObject *obj) override
Recursively remove this object from the list of Cleanups.
Definition TROOT.cxx:2651

Reimplemented from TObject.

Definition at line 51 of file TNamed.h.

◆ HasInconsistentHash()

Bool_t TObject::HasInconsistentHash ( ) const
inlineinherited

Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.

missing call to RecursiveRemove in destructor).

Note: Since the consistency is only tested for during inserts, this routine will return true for object that have never been inserted whether or not they have a consistent setup. This has no negative side-effect as searching for the object with the right or wrong Hash will always yield a not-found answer (Since anyway no hash can be guaranteed unique, there is always a check)

Definition at line 366 of file TObject.h.

◆ Info()

void TObject::Info ( const char * location,
const char * fmt,
... ) const
virtualinherited

Issue info message.

Use "location" to specify the method where the warning occurred. Accepts standard printf formatting arguments.

Definition at line 1072 of file TObject.cxx.

◆ InheritsFrom() [1/2]

Bool_t TObject::InheritsFrom ( const char * classname) const
virtualinherited

Returns kTRUE if object inherits from class "classname".

Reimplemented in TClass.

Definition at line 549 of file TObject.cxx.

◆ InheritsFrom() [2/2]

Bool_t TObject::InheritsFrom ( const TClass * cl) const
virtualinherited

Returns kTRUE if object inherits from TClass cl.

Reimplemented in TClass.

Definition at line 557 of file TObject.cxx.

◆ Inspect()

void TObject::Inspect ( ) const
virtualinherited

Dump contents of this object in a graphics canvas.

Same action as Dump but in a graphical form. In addition pointers to other objects can be followed.

The following picture is the Inspect of a histogram object:

Reimplemented in ROOT::Experimental::XRooFit::xRooNode, TGFrame, TInspectorObject, and TSystemFile.

Definition at line 570 of file TObject.cxx.

◆ InvertBit()

void TObject::InvertBit ( UInt_t f)
inlineinherited

Definition at line 206 of file TObject.h.

◆ IsA()

TClass * TSpectrum2Painter::IsA ( ) const
inlineoverridevirtual
Returns
TClass describing current object

Reimplemented from TNamed.

Definition at line 205 of file TSpectrum2Painter.h.

◆ IsDestructed()

Bool_t TObject::IsDestructed ( ) const
inlineinherited

IsDestructed.

Note
This function must be non-virtual as it can be used on destructed (but not yet modified) memory. This is used for example in TClonesArray to record the element that have been destructed but not deleted and thus are ready for re-use (by operator new with placement).
Returns
true if this object's destructor has been run.

Definition at line 186 of file TObject.h.

◆ IsEqual()

Bool_t TObject::IsEqual ( const TObject * obj) const
virtualinherited

Default equal comparison (objects are equal if they have the same address in memory).

More complicated classes might want to override this function.

Reimplemented in TGObject, TObjString, TPair, and TQCommand.

Definition at line 589 of file TObject.cxx.

◆ IsFolder()

Bool_t TObject::IsFolder ( ) const
virtualinherited

Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).

Reimplemented in ROOT::Experimental::XRooFit::xRooNode, ROOT::Internal::THnBaseBrowsable, TApplicationRemote, TAxis3D, TBaseClass, TBranch, TBranchClones, TBranchElement, TBranchObject, TBranchSTL, TBrowserObject, TCanvas, TClass, TCollection, TDatabasePDG, TDirectory, TFolder, TGeoManager, TGeometry, TGeoNode, TGeoNodeMatrix, TGeoOverlap, TGeoTrack, TGeoVolume, THbookFile, THbookKey, THnBase, TKey, TMapFile, TMultiDimFit, TNode, TPad, TPair, TParticleClassPDG, TPrincipal, TRemoteObject, TROOT, TRootIconList, TSPlot, TSystemDirectory, TTask, TTree, and TVirtualBranchBrowsable.

Definition at line 579 of file TObject.cxx.

◆ IsOnHeap()

Bool_t TObject::IsOnHeap ( ) const
inlineinherited

Definition at line 160 of file TObject.h.

◆ IsSortable()

Bool_t TNamed::IsSortable ( ) const
inlineoverridevirtualinherited

Reimplemented from TObject.

Reimplemented in TStructNodeProperty.

Definition at line 52 of file TNamed.h.

◆ IsZombie()

Bool_t TObject::IsZombie ( ) const
inlineinherited

Definition at line 161 of file TObject.h.

◆ ls()

void TNamed::ls ( Option_t * option = "") const
overridevirtualinherited

List TNamed name and title.

Reimplemented from TObject.

Reimplemented in ROOT::Experimental::XRooFit::xRooBrowser, TNode, TROOT, TStreamerBase, TStreamerElement, TStreamerInfo, TStreamerSTL, TTask, TText, and TVirtualStreamerInfo.

Definition at line 112 of file TNamed.cxx.

◆ MakeZombie()

void TObject::MakeZombie ( )
inlineprotectedinherited

Definition at line 55 of file TObject.h.

◆ MayNotUse()

void TObject::MayNotUse ( const char * method) const
inherited

Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).

Definition at line 1160 of file TObject.cxx.

◆ Notify()

Bool_t TObject::Notify ( )
virtualinherited

This method must be overridden to handle object notification (the base implementation is no-op).

Different objects in ROOT use the Notify method for different purposes, in coordination with other objects that call this method at the appropriate time.

For example, TLeaf uses it to load class information; TBranchRef to load contents of referenced branches TBranchRef; most notably, based on Notify, TChain implements a callback mechanism to inform interested parties when it switches to a new sub-tree.

Reimplemented in h1analysis, h1analysisTreeReader, TARInterruptHandler, TASInputHandler, TASInterruptHandler, TASLogHandler, TASSigPipeHandler, TBlinkTimer, TBranchElement, TBranchRef, TBreakLineCom, TBrowserTimer, TCollection, TDelCharCom, TDelTextCom, TFileHandler, TGContainerKeyboardTimer, TGContainerScrollTimer, TGInputHandler, TGLRedrawTimer, TGTextEditHist, TGuiBldDragManagerRepeatTimer, TIdleTimer, TInsCharCom, TInsTextCom, TInterruptHandler, TLeafObject, TMessageHandler, TNotifyLink< Type >, TNotifyLink< RNoCleanupNotifierHelper >, TNotifyLink< ROOT::Detail::TBranchProxy >, TNotifyLink< TTreeReader >, TPopupDelayTimer, TProcessEventTimer, TRefTable, TRepeatTimer, TSBRepeatTimer, TSelector, TSelectorDraw, TSelectorEntries, TSignalHandler, TSingleShotCleaner, TSocketHandler, TStdExceptionHandler, TSysEvtHandler, TTermInputHandler, TThreadTimer, TTimeOutTimer, TTimer, TTipDelayTimer, TTree, TTreeFormula, TTreeFormulaManager, TTreeReader, TViewTimer, and TViewUpdateTimer.

Definition at line 618 of file TObject.cxx.

◆ Obsolete()

void TObject::Obsolete ( const char * method,
const char * asOfVers,
const char * removedFromVers ) const
inherited

Use this method to declare a method obsolete.

Specify as of which version the method is obsolete and as from which version it will be removed.

Definition at line 1169 of file TObject.cxx.

◆ operator delete() [1/3]

void TObject::operator delete ( void * ptr,
size_t size )
inherited

Operator delete for sized deallocation.

Definition at line 1234 of file TObject.cxx.

◆ operator delete() [2/3]

void TObject::operator delete ( void * ptr)
inherited

Operator delete.

Definition at line 1212 of file TObject.cxx.

◆ operator delete() [3/3]

void TObject::operator delete ( void * ptr,
void * vp )
inherited

Only called by placement new when throwing an exception.

Definition at line 1266 of file TObject.cxx.

◆ operator delete[]() [1/3]

void TObject::operator delete[] ( void * ptr,
size_t size )
inherited

Operator delete [] for sized deallocation.

Definition at line 1245 of file TObject.cxx.

◆ operator delete[]() [2/3]

void TObject::operator delete[] ( void * ptr)
inherited

Operator delete [].

Definition at line 1223 of file TObject.cxx.

◆ operator delete[]() [3/3]

void TObject::operator delete[] ( void * ptr,
void * vp )
inherited

Only called by placement new[] when throwing an exception.

Definition at line 1274 of file TObject.cxx.

◆ operator new() [1/2]

void * TObject::operator new ( size_t sz)
inlineinherited

Definition at line 189 of file TObject.h.

◆ operator new() [2/2]

void * TObject::operator new ( size_t sz,
void * vp )
inlineinherited

Definition at line 191 of file TObject.h.

◆ operator new[]() [1/2]

void * TObject::operator new[] ( size_t sz)
inlineinherited

Definition at line 190 of file TObject.h.

◆ operator new[]() [2/2]

void * TObject::operator new[] ( size_t sz,
void * vp )
inlineinherited

Definition at line 192 of file TObject.h.

◆ operator=()

TSpectrum2Painter & TSpectrum2Painter::operator= ( const TSpectrum2Painter & )
private

◆ Paint()

void TSpectrum2Painter::Paint ( Option_t * option)
overridevirtual

Paints histogram according to preset parameters.

Visualization

Goal: to present 2-dimensional spectra in suitable visual form

This package has several display mode groups and display modes, which can be employed for the presentation of 2-dimensional histograms

Display modes groups:

  • kModeGroupSimple - it covers simple display modes using one color only
  • kModeGroupLight - in this group the shading is carried out according to the position of the fictive light source
  • kModeGroupHeight - in this group the shading is carried out according to the channel contents
  • kModeGroupLightHeight - combination of two previous shading algorithms. One can control the weight between both algorithms.

Display modes:

  • kDisplayModePoints,
  • kDisplayModeGrid,
  • kDisplayModeContours,
  • kDisplayModeBars,
  • kDisplayModeLinesX,
  • kDisplayModeLinesY,
  • kDisplayModeBarsX,
  • kDisplayModeBarsY,
  • kDisplayModeNeedles,
  • kDisplayModeSurface,
  • kDisplayModeTriangles.

one can combine the above given modes groups and display modes. The meaningful combinations (denoted by x) are given in the next table.

Simple Light Height Light-Height
Points X X X X
Grid X X X X
Contours X - X -
Bars X - X -
LinesX X X X X
LinesY X X X X
BarsX X - X -
BarsY X - X -
Needles X - - -
Surface - X X X
Triangles X X X X

Function: void TSpectrum2Painter::SetDisplayMode (Int_t modeGroup, Int_t displayMode)

This function controls the display mode group and display mode of the histogram drawing. To illustrate the possible effects of the various display modes we introduce a set of examples. Default values:

  • modeGroup = kModeGroupLightHeight
  • displayMode = kDisplayModeSurface

Simple modes group, display mode = points, 256 x 256 channels.

Simple modes group, display mode = grid, 64 x 64 channels.

Simple modes group, display mode = contours, 64 x 64 channels.

Simple modes group, display mode = bars, 64 x 64 channels.

Simple modes group, display mode = linesX, 64 x 64 channels.

Simple modes group, display mode = linesY, 64 x 64 channels.

Simple modes group, display mode = barsX, 64 x 64 channels.

Simple modes group, display mode = barsY, 64 x 64 channels.

Simple modes group, display mode = needles, 64 x 64 channels.

Simple modes group, display mode = triangles, 64 x 64 channels.

Light modes group, display mode = points, 256 x 256 channels.

Light modes group, display mode = grid, 256 x 256 channels.

Light modes group, display mode = surface, 64 x 64 channels.

Light modes group, display mode = triangles, 64 x 64 channels.

Height modes group, display mode = points, 256 x 256 channels.

Height modes group, display mode = grid, 256 x 256 channels.

Height modes group, display mode = contours, 64 x 64 channels.

Height modes group, display mode = bars, 64 x 64 channels.

Height modes group, display mode = surface, 64 x 64 channels.

Height modes group, display mode = triangles, 64 x 64 channels.

Light - height modes group, display mode = surface, 64 x 64 channels. The weight between both shading algorithms is set to 0.5. One can observe the influence of both shadings.

Function: TSpectrum2Painter::SetPenAttr(Int_t color,Int_t style,Int_t width)

Using this function one can change pen color, pen style and pen width. Possible pen styles are:

  • kPenStyleSolid,
  • kPenStyleDash,
  • kPenStyleDot,
  • kPenStyleDashDot.

Default values:

  • color = kBlack
  • style = kPenStyleSolid
  • width = 1

Simple modes group, display mode = linesX, 64 x 64 channels. Pen width = 3.

Function: TSpectrum2Painter::SetNodes(Int_t nodesx,Int_t nodesy)

Sometimes the displayed region is rather large. When displaying all channels pictures become very dense and complicated. It is very difficult to understand overall shape of the data. Therefore in the package we have implemented the possibility to change the density of displayed channels. Only channels coinciding with given nodes are displayed. In the next figure we introduce the example of the above presented spectrum with number of nodes set to 64x64.

Default values:

  • nodesx = Xmax-Xmin+1
  • nodesy = Ymax-Ymin+1

Simple modes group, display mode = grid, 256 x 256 channels. Number of nodes is 64x64.

Function: void TSpectrum2Painter::SetAngles (Int_t alpha,Int_t beta, Int_t view)

One can change the angles of the position of 3-d space and to rotate the space. Alpha parameter defines the angle between bottom horizontal screen line and the displayed space on the right side of the picture and beta on the left side, respectively. One can rotate the 3-d space around vertical axis going through the center of it employing the view parameter. Allowed values are 0, 90, 180 and 270 degrees respectively.

Default values:

  • alpha = 20
  • beta = 60
  • view = 0

Light modes group, display mode = surface, 256 x 256 channels. Angles are set as follows: alpha=40, beta=30, view=0.

Light modes group, display mode = surface, 256 x 256 channels. Angles are set as follows: alpha=30, beta=30, view=90.

Function: TSpectrum2Painter::SetZScale(Int_t scale)

One can change the scale of z-axis. Possible values are:

  • kZScaleLinear
  • kZScaleLog
  • kZScaleSqrt

Default value is:

  • scale = kZScaleLinear

Height modes group, display mode = surface, 64 x 64 channels, log scale.

Function: TSpectrum2Painter::SetColorIncrements(Double_t r,Double_t g,Double_t b);

For sophisticated shading (in kModeGroupLight, kModeGroupHeight and kModeGroupLightHeight display modes groups) the color palette starts from the basic pen color (see SetPenAttr function). There is a predefined number of color levels (256). Color in every level is calculated by adding the increments of the r, g, b components to the previous level. Using this function one can change the color increments between two neighbouring color levels. The function does not apply for kModeGroupSimple display modes group. Default values: r=1, g=1, b=1;

Light modes group, display mode = surface, 64 x 64 channels, color increments r=1, g=2, b=3.

Light modes group, display mode = surface, 64 x 64 channels, color increments r=4, g=2, b=1.

Function: TSpectrum2Painter::SetColorAlgorithm(Int_t colorAlgorithm)

To define the colors one can employ one of the following color algorithms (rgb, cmy, cie, yiq, hvs models [1], [2]). When the level of a component achieves the limit value one can choose either smooth transition (by decreasing the limit value) or sharp - modulo transition (continuing with 0 value). This makes possible to realize various visual effects. One can choose from the following set of the algorithms:

  • kColorAlgRgbSmooth
  • kColorAlgRgbModulo
  • kColorAlgCmySmooth
  • kColorAlgCmyModulo
  • kColorAlgCieSmooth
  • kColorAlgCieModulo
  • kColorAlgYiqSmooth
  • kColorAlgYiqModulo
  • kColorAlgHvsSmooth
  • kColorAlgHvsModulo

The function does not apply for kModeGroupSimple display modes group. Default value is:

  • colorAlgorithm = kColorAlgRgbSmooth

Light modes group, display mode = surface, 64 x 64 channels, color algorithm is cmy smooth.

Light modes group, display mode = surface, 64 x 64 channels, color algorithm is hvs smooth.

Light modes group, display mode = surface, 64 x 64 channels, color algorithm is yiq smooth.

Light modes group, display mode = surface, 64 x 64 channels, color algorithm is rgb modulo.

Height modes group, display mode = surface, 256 x 256 channels, color algorithm is rgb modulo, increments r=5, g=5, b=5, angles alpha=0, beta=90, view=0.

Function: TSpectrum2Painter::SetLightPosition(Int_t x, Int_t y, Int_t z)

In kModeGroupLight and kModeGroupLightHeight display modes groups the color palette is calculated according to the fictive light source position in 3-d space. Using this function one can change the position of the source and thus to achieve various graphical effects. The function does not apply for kModeGroupSimple and kModeGroupHeight display modes groups. Default values are: x=1000, y=1000, z=1000.

Light modes group, display mode = surface, 64 x 64 channels. Position of the light source was set to x=0, y=1000, z=1000.

Function: TSpectrum2Painter::SetShading(Int_t shading,Int_t shadow)

Surface of the picture is composed of triangles. If desired the edges of the neighbouring triangles can be smoothed (shaded). If desired the display of the shadow can be painted as well. The function does not apply for kModeGroupSimple display modes group.

Possible values for shading are:

  • kNotShaded
  • kShaded.

Possible values for shadow are:

  • kShadowsNotPainted
  • kShadowsPainted

Default values:

  • shading = kShaded
  • shadow = kShadowsNotPainted

Light modes group, display mode = surface, 64 x 64 channels, not shaded.

Light modes group, display mode = surface, 64 x 64 channels, shaded, with shadow.

Function: TSpectrum2Painter::SetBezier(Int_t bezier)

For kModeGroupSimple display modes group and for kDisplayModeGrid, kDisplayModeLinesX >and kDisplayModeLinesY display modes one can smooth data using Bezier smoothing algorithm. The function does not apply for other display modes groups and display modes. Possible values are:

  • kNoBezierInterpol
  • kBezierInterpol

Default value is:

  • bezier = kNoBezierInterpol.

Simple modes group, display mode = linesX, 64 x 64 channels with Bezier smoothing.

Function: TSpectrum2Painter::SetContourWidth(Int_t width)

This function applies only for kDisplayModeContours display mode. One can change the width between horizontal slices and thus their density. Default value: width=50.

Simple modes group, display mode = contours, 64 x 64 channels. Width between slices was set to 30.

Function: TSpectrum2Painter::SetLightHeightWeight(Double_t weight)

For kModeGroupLightHeight display modes group one can change the weight between both shading algorithm. The function does not apply for other display modes groups. Default value is: weight=0.5.

Light - height modes group, display mode = surface, 64 x 64 channels. The weight between both shading algorithms is set to 0.7.

Function: TSpectrum2Painter::SetChanMarks(Int_t enable,Int_t color,Int_t width,Int_t height,Int_t style)

In addition to the surface drawn using any above given algorithm one can display channel marks. One can control the color as well as the width, height (in pixels) and the style of the marks. The parameter enable can be set to:

  • kChannelMarksNotDrawn
  • kChannelMarksDrawn.

The possible styles can be chosen from the set:

  • kChannelMarksStyleDot
  • kChannelMarksStyleCross
  • kChannelMarksStyleStar
  • kChannelMarksStyleRectangle
  • kChannelMarksStyleX
  • kChannelMarksStyleDiamond
  • kChannelMarksStyleTriangle.

Light modes group, display mode = surface, 64 x 64 channels, with marks (red circles).

Function: TSpectrum2Painter::SetChanGrid(Int_t enable,Int_t color)

In addition to the surface drawn using any above given algorithm one can display grid using the color parameter. The parameter enable can be set to:

  • kChannelGridNotDrawn
  • kChannelGridDrawn.

Height modes group, display mode = surface, 64 x 64 channels, with blue grid.

Height modes group, display mode = surface, 64 x 64 channels, with marks (red circles) and blue grid.

References:

[1] Morhac M., Kliman J., Matouoek V., Turzo I., Sophisticated visualization algorithms for analysis of multidimensional experimental nuclear data, Acta Physica Slovaca 54 (2004) 385.

[2] D. Hearn, M. P. Baker: Computer Graphics, Prentice Hall International, Inc. 1994.

Script:

Example to draw source spectrum (class TSpectrum2Painter). To execute this example, do:

root > .x VisA.C
#include "TSpectrum2Painter.h"
void VisA() {
TFile *f = new TFile("TSpectrum2.root");
TH2F *graph=(TH2F*) f->Get("graph2;1");
TCanvas *Graph2 = new TCanvas("Graph2","Illustration of 2D graphics",10,10,1000,700);
graph->Draw("SPEC");
}
f
#define f(i)
Definition RSha256.hxx:104
TCanvas
The Canvas class.
Definition TCanvas.h:23
TFile
A file, usually with extension .root, that stores data and code in the form of serialized objects in ...
Definition TFile.h:130
TH1::Draw
void Draw(Option_t *option="") override
Draw this histogram with options.
Definition TH1.cxx:3097
TH2F
2-D histogram with a float per channel (see TH1 documentation)
Definition TH2.h:345

Reimplemented from TObject.

Definition at line 1581 of file TSpectrum2Painter.cxx.

◆ PaintSpectrum()

void TSpectrum2Painter::PaintSpectrum ( TH2 * h2,
Option_t * option = "",
Int_t bs = 1600 )
static

This function allows to set all the possible options available in TSpectrum2Painter and paint "h2".

TSpectrum2Painter offers a large set of options/attributes. In the "option" parameter each of them can be set to specific values via "operators" in the option itself. for instance on can do:

h2->Draw("SPEC a(30,30,0)");

to draw h2 with TSpectrum2Painter using all the default attributes except the viewing angles. The operators' names are case insensitive (one can use "a" or "A"). Operators parameters are separated by ",". The operators can be put is any order in the option. Operators must be separated by " ". No " " characters should be put in an operator. This help page describes all the available operators.

The way "h2" will be painted is controlled with 2 parameters the "Display modes groups" and the "Display Modes".

"Display modes groups" can take the following values:

  • 0 = Simple - it covers simple display modes using one color only
  • 1 = Light - in this group the shading is carried out according to the position of the fictive light source
  • 2 = Height - in this group the shading is carried out according to the channel contents
  • 3 = LightHeight - combination of two previous shading algorithms. One can control the weight between both algorithms.

"Display modes" can take the following values:

  • 1 = Points.
  • 2 = Grid.
  • 3 = Contours.
  • 4 = Bars.
  • 5 = LinesX.
  • 6 = LinesY.
  • 7 = BarsX.
  • 8 = BarsY.
  • 9 = Needles.
  • 10 = Surface.
  • 11 = Triangles.

Using this function these parameters can be set using the "dm" operator in the option. Example:

h2->Draw("SPEC dm(1,2)");

will paint the 2D histogram h2 using the "Light Display mode group" and the "Grid Display mode". The following table summarises all the possible combinations of the "Display modes groups" and the "Display modes".

Simple Light Height Light-Height
Points X X X X
Grid X X X X
Contours X - X -
Bars X - X -
LinesX X X X X
LinesY X X X X
BarsX X - X -
BarsY X - X -
Needles X - - -
Surface - X X X
Triangles X X X X

The Pen Attributes can be changed using pa(color, style, width). Example:

h2->Draw("SPEC dm(1,2) pa(2,1,2)");

sets the line color to 2, line type to 1 and line width to2. Note that if pa() is not specified, the histogram "h2" line attributes are used. Note also that operators for SPEC option can be cumulated and specified in any order.

The buffer size can be change with bf(size). Example:

h2->Draw("SPEC bf(8000)");

The spectrum painter needs a buffer to paint the spectrum. By default the buffer size is set to 1600. In most cases this buffer size is enough. But if the canvas size is very big, for instance 8000x5000 this buffer size is too small. An error message is issued telling to use the option bf().

The number of nodes can be change with n(nodesx, nodesy). Example:

h2->Draw("SPEC n(40,40)");

Sometimes the displayed region is rather large. When displaying all channels pictures become very dense and complicated. It is very difficult to understand the overall shape of data. "n(nx,ny)" allows to change the density of displayed channels. Only the channels coinciding with given nodes are displayed.

The visualization angles can be changed with a(alpha, beta, view). Example:

h2->Draw("SPEC n(40,40) dm(0,1) a(30,30,0)");

Alpha defines the angle between bottom horizontal screen line and the displayed space on the right side of the picture and beta on the left side, respectively. One can rotate the 3-d space around vertical axis going through the center of it employing the view parameter. Allowed values are 0, 90, 180 and 270 degrees.

zs(scale) changes the scale of the Z-axis Possible values are:

  • 0 = Linear (default)
  • 1 = Log
  • 2 = Sqrt

If gPad->SetLogz() has been set, log scale on Z-axis is set automatically. No need to use the zs() operator. Note that the X and Y axis are always linear.

ci(r,g,b), were r,g and b are floats defines the colors increments. For sophisticated shading (Light, Height and LightHeight Display Modes Groups) the color palette starts from the basic pen color (see pa() function). There is a predefined number of color levels (256). Color in every level is calculated by adding the increments of the r, g, b components to the previous level. Using this function one can change the color increments between two neighbouring color levels. The function does not apply dor the Simple Display Modes Group. The default values are: (1,1,1).

ca(color_algorithm) allows to choose the Color Algorithm. To define the colors one can employ one of the following color algorithms (RGB, CMY, CIE, YIQ, HVS models). When the level of a component reaches the limit value one can choose either smooth transition (by decreasing the limit value) or a sharp modulo transition (continuing with 0 value). This makes possible to realize various visual effects. One can choose from the following set of the algorithms:

  • 0 = RGB Smooth
  • 1 = RGB Modulo
  • 2 = CMY Smooth
  • 3 = CMY Modulo
  • 4 = CIE Smooth
  • 5 = CIE Modulo
  • 6 = YIQ Smooth
  • 7 = YIQ Modulo
  • 8 = HVS Smooth
  • 9 = HVS Modulo

This function does not apply on Simple display modes group. Default value is 0. Example:

h2->Draw("SPEC c1(4) dm(0,1) a(30,30,0)");

choose CMY Modulo to paint the "h2" histogram.

lp(x,y,z) set the light position. In Light and LightHeight display modes groups the color palette is calculated according to the fictive light source position in 3-d space. Using this function one can change the position of the source and thus to achieve various graphical effects. This function does not apply for Simple and Height display modes groups. Default is: lp(1000,1000,100).

s(shading,shadow) allows to set the shading. The picture's surface is composed of triangles. If desired the edges of the neighbouring triangles can be smoothed (shaded). If desired the display of the shadow can be painted as well. The function does not apply for Simple display modes group. The possible values for shading are:

  • 0 = Not Shaded
  • 1 = Shaded

The possible values for shadow are:

  • 0 = Shadows are not painted
  • 1 = Shadows are painted

Default values: s(1,0)

b(bezier) set the Bezier smoothing. For Simple display modes group and for Grid, LinesX and LinesY display modes one can smooth data using Bezier smoothing algorithm. The function does not apply for other display modes groups and display modes. Possible values are:

  • 0 = No bezier smoothing
  • 1 = Bezier smoothing

Default value is: b(0)

cw(width) set the contour width. This function applies only for the Contours display mode. One can change the width between horizontal slices and thus their density. Default value: cw(50)

lhw(weight) set the light height weight. For LightHeight display modes group one can change the weight between both shading algorithms. The function does not apply for other display modes groups. Default value is lhw(0.5).

cm(enable,color,width,height,style) allows to draw a marker on each node. In addition to the surface drawn using any above given algorithm one can display channel marks. One can control the color as well as the width, height (in pixels) and the style of the marks. The parameter enable can be set to

  • 0 = Channel marks are not drawn
  • 1 = Channel marks drawn

The possible styles can be chosen from the set:

  • 1 = Dot
  • 2 = Cross
  • 3 = Star
  • 4 = Rectangle
  • 5 = X
  • 6 = Diamond
  • 7 = Triangle.

cg(enable,color) channel grid. In addition to the surface drawn using any above given algorithm one can display grid using the color parameter. The parameter enable can be set to:

  • 0 = Grid not drawn
  • 1 = Grid drawn

See example spectrumpainter.C

Definition at line 7672 of file TSpectrum2Painter.cxx.

◆ Pop()

void TObject::Pop ( )
virtualinherited

Pop on object drawn in a pad to the top of the display list.

I.e. it will be drawn last and on top of all other primitives.

Reimplemented in TFrame, TPad, and TVirtualPad.

Definition at line 640 of file TObject.cxx.

◆ Print()

void TNamed::Print ( Option_t * option = "") const
overridevirtualinherited

Print TNamed name and title.

Reimplemented from TObject.

Reimplemented in ROOT::Experimental::XRooFit::xRooNLLVar::xRooHypoPoint, ROOT::Experimental::XRooFit::xRooNLLVar::xRooHypoSpace, ROOT::Experimental::XRooFit::xRooNode, TParallelCoordRange, TParallelCoordVar, TParticleClassPDG, TParticlePDG, TPrincipal, TScatter2D, TScatter, TSpectrum2, TSpectrum3, TSpectrum, TSQLColumnInfo, TSQLFile, TSQLTableInfo, TText, TTree, TTreeIndex, TXMLFile, and TXTRU.

Definition at line 127 of file TNamed.cxx.

◆ Read()

Int_t TObject::Read ( const char * name)
virtualinherited

Read contents of object with specified name from the current directory.

First the key with the given name is searched in the current directory, next the key buffer is deserialized into the object. The object must have been created before via the default constructor. See TObject::Write().

Reimplemented in TBuffer, TKey, TKeySQL, and TKeyXML.

Definition at line 673 of file TObject.cxx.

◆ RecursiveRemove()

void TObject::RecursiveRemove ( TObject * obj)
virtualinherited

Recursively remove this object from a list.

Typically implemented by classes that can contain multiple references to a same object.

Reimplemented in RooAbsCollection, RooAbsData, RooLinkedList, RooMCStudy, ROOT::Internal::TCheckHashRecursiveRemoveConsistency, ROOT::RBrowserDataCleanup, RooWorkspace, TBrowser, TChain, TCling, TCollection, TDialogCanvas, TDirectory, TEfficiency, TFileMerger, TFitEditor, TFolder, TFriendElement, TGedEditor, TGeometry, TGFileBrowser, TGraph2D, TGraph, TH1, TH1Editor, TH2Editor, THashList, THistPainter, THStack, TInspectCanvas, TLegend, TList, TListOfDataMembers, TListOfEnums, TListOfEnumsWithLock, TListOfFunctions, TListOfFunctionTemplates, TMultiGraph, TNode, TObjArray, TObjectRefSpy, TObjectSpy, TPad, TProcessID, TROOT, TRootBrowser, TRootBrowserHistory, TRootBrowserLite, TRootContextMenu, TTree, TTreePlayer, TViewPubDataMembers, TViewPubFunctions, and TVirtualPad.

Definition at line 684 of file TObject.cxx.

◆ ResetBit()

void TObject::ResetBit ( UInt_t f)
inlineinherited

Definition at line 203 of file TObject.h.

◆ SaveAs()

void TObject::SaveAs ( const char * filename = "",
Option_t * option = "" ) const
virtualinherited

Save this object in the file specified by filename.

  • if "filename" contains ".root" the object is saved in filename as root binary file.
  • if "filename" contains ".xml" the object is saved in filename as a xml ascii file.
  • if "filename" contains ".cc" the object is saved in filename as C code independent from ROOT. The code is generated via SavePrimitive(). Specific code should be implemented in each object to handle this option. Like in TF1::SavePrimitive().

  • otherwise the object is written to filename as a CINT/C++ script. The C++ code to rebuild this object is generated via SavePrimitive(). The "option" parameter is passed to SavePrimitive. By default it is an empty string. It can be used to specify the Draw option in the code generated by SavePrimitive.

    The function is available via the object context menu.

Reimplemented in ROOT::Experimental::XRooFit::xRooNode, TClassTree, TFolder, TGeoVolume, TGObject, TGraph, TH1, TPad, TPaveClass, TSpline3, TSpline5, TSpline, TTreePerfStats, and TVirtualPad.

Definition at line 708 of file TObject.cxx.

◆ SavePrimitive()

void TObject::SavePrimitive ( std::ostream & out,
Option_t * option = "" )
virtualinherited

Save a primitive as a C++ statement(s) on output stream "out".

Reimplemented in TAnnotation, TArc, TArrow, TASImage, TAxis3D, TBox, TButton, TCanvas, TChain, TCrown, TCurlyArc, TCurlyLine, TCutG, TDiamond, TEfficiency, TEllipse, TExec, TF12, TF1, TF2, TF3, TFrame, TGaxis, TGButton, TGButtonGroup, TGCanvas, TGCheckButton, TGColorSelect, TGColumnLayout, TGComboBox, TGCompositeFrame, TGContainer, TGDockableFrame, TGDoubleHSlider, TGDoubleVSlider, TGedMarkerSelect, TGedPatternSelect, TGeoArb8, TGeoBBox, TGeoBoolNode, TGeoCombiTrans, TGeoCompositeShape, TGeoCone, TGeoConeSeg, TGeoCtub, TGeoDecayChannel, TGeoElementRN, TGeoEltu, TGeoGtra, TGeoHalfSpace, TGeoHMatrix, TGeoHype, TGeoIdentity, TGeoIntersection, TGeoMaterial, TGeoMedium, TGeoMixture, TGeoPara, TGeoParaboloid, TGeoPatternCylPhi, TGeoPatternCylR, TGeoPatternParaX, TGeoPatternParaY, TGeoPatternParaZ, TGeoPatternSphPhi, TGeoPatternSphR, TGeoPatternSphTheta, TGeoPatternTrapZ, TGeoPatternX, TGeoPatternY, TGeoPatternZ, TGeoPcon, TGeoPgon, TGeoRotation, TGeoScaledShape, TGeoShapeAssembly, TGeoSphere, TGeoSubtraction, TGeoTessellated, TGeoTorus, TGeoTranslation, TGeoTrap, TGeoTrd1, TGeoTrd2, TGeoTube, TGeoTubeSeg, TGeoUnion, TGeoVolume, TGeoXtru, TGFileContainer, TGFont, TGFrame, TGFSComboBox, TGGC, TGGroupFrame, TGHButtonGroup, TGHorizontal3DLine, TGHorizontalFrame, TGHorizontalLayout, TGHProgressBar, TGHScrollBar, TGHSlider, TGHSplitter, TGHtml, TGIcon, TGLabel, TGLayoutHints, TGLineStyleComboBox, TGLineWidthComboBox, TGListBox, TGListDetailsLayout, TGListLayout, TGListTree, TGListView, TGLVContainer, TGMainFrame, TGMatrixLayout, TGMdiFrame, TGMdiMainFrame, TGMdiMenuBar, TGMenuBar, TGMenuTitle, TGNumberEntry, TGNumberEntryField, TGPictureButton, TGPopupMenu, TGProgressBar, TGRadioButton, TGraph2D, TGraph2DAsymmErrors, TGraph2DErrors, TGraph, TGraphAsymmErrors, TGraphBentErrors, TGraphEdge, TGraphErrors, TGraphMultiErrors, TGraphNode, TGraphPolar, TGraphPolargram, TGraphStruct, TGroupButton, TGRowLayout, TGShapedFrame, TGShutter, TGShutterItem, TGSplitFrame, TGStatusBar, TGTab, TGTabLayout, TGTableLayout, TGTableLayoutHints, TGTextButton, TGTextEdit, TGTextEntry, TGTextLBEntry, TGTextView, TGTileLayout, TGToolBar, TGTransientFrame, TGTripleHSlider, TGTripleVSlider, TGVButtonGroup, TGVertical3DLine, TGVerticalFrame, TGVerticalLayout, TGVFileSplitter, TGVProgressBar, TGVScrollBar, TGVSlider, TGVSplitter, TGXYLayout, TGXYLayoutHints, TH1, TH2Poly, THelix, THStack, TLatex, TLegend, TLine, TMacro, TMarker3DBox, TMarker, TMathText, TMultiGraph, TPad, TPaletteAxis, TParallelCoord, TParallelCoordVar, TPave, TPaveClass, TPaveLabel, TPaveStats, TPavesText, TPaveText, TPie, TPieSlice, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TProfile2D, TProfile3D, TProfile, TRootContainer, TRootEmbeddedCanvas, TScatter2D, TScatter, TSlider, TSliderBox, TSpline3, TSpline5, TStyle, TText, TTreePerfStats, and TWbox.

Definition at line 858 of file TObject.cxx.

◆ SavePrimitiveConstructor()

void TObject::SavePrimitiveConstructor ( std::ostream & out,
TClass * cl,
const char * variable_name,
const char * constructor_agrs = "",
Bool_t empty_line = kTRUE )
staticprotectedinherited

Save object constructor in the output stream "out".

Can be used as first statement when implementing SavePrimitive() method for the object

Definition at line 777 of file TObject.cxx.

◆ SavePrimitiveDraw()

void TObject::SavePrimitiveDraw ( std::ostream & out,
const char * variable_name,
Option_t * option = nullptr )
staticprotectedinherited

Save invocation of primitive Draw() method Skipped if option contains "nodraw" string.

Definition at line 845 of file TObject.cxx.

◆ SavePrimitiveNameTitle()

void TNamed::SavePrimitiveNameTitle ( std::ostream & out,
const char * variable_name )
protectedinherited

Save object name and title into the output stream "out".

Definition at line 135 of file TNamed.cxx.

◆ SavePrimitiveVector()

TString TObject::SavePrimitiveVector ( std::ostream & out,
const char * prefix,
Int_t len,
Double_t * arr,
Int_t flag = 0 )
staticprotectedinherited

Save array in the output stream "out" as vector.

Create unique variable name based on prefix value Returns name of vector which can be used in constructor or in other places of C++ code If flag === kTRUE, just add empty line If flag === 111, check if array is empty and return nullptr or <vectorname>.data()

Definition at line 796 of file TObject.cxx.

◆ SetAngles()

void TSpectrum2Painter::SetAngles ( Int_t alpha,
Int_t beta,
Int_t view )

Sets angles of the view:

  • alpha - angles of display,alpha+beta must be less or equal to 90, alpha- angle between base line of Canvas and right lower edge of picture base plane
  • beta - angle between base line of Canvas and left lower edge of picture base plane
  • view - rotation angle of the view, it can be 0, 90, 180, 270 degrees

Definition at line 7115 of file TSpectrum2Painter.cxx.

◆ SetBezier()

void TSpectrum2Painter::SetBezier ( Int_t bezier)

Sets on/off Bezier smoothing:

  • bezier - determines Bezier interpolation (applies only for simple display modes group for grid, x_lines, y_lines display modes)

Definition at line 7203 of file TSpectrum2Painter.cxx.

◆ SetBit() [1/2]

void TObject::SetBit ( UInt_t f)
inlineinherited

Definition at line 202 of file TObject.h.

◆ SetBit() [2/2]

void TObject::SetBit ( UInt_t f,
Bool_t set )
inherited

Set or unset the user status bits as specified in f.

Definition at line 888 of file TObject.cxx.

◆ SetChanGrid()

void TSpectrum2Painter::SetChanGrid ( Int_t enable,
Int_t color )

This function sets enables/disables drawing of channel grid and sets its color: -enable - decides whether the channel grid is shown or not -color - color of channel grid.

Definition at line 7269 of file TSpectrum2Painter.cxx.

◆ SetChanMarks()

void TSpectrum2Painter::SetChanMarks ( Int_t enable,
Int_t color,
Int_t width,
Int_t height,
Int_t style )

Sets enables/disables drawing of channel marks and sets their attributes:

  • enable - decides whether the channel marks are shown or not
  • color - color of channel marks
  • width - width of channel marks in pixels
  • height - height of channel marks in pixels
  • style - style of channel marks (dot, cross, star, rectangle, X, diamond, triangle)

Definition at line 7242 of file TSpectrum2Painter.cxx.

◆ SetColorAlgorithm()

void TSpectrum2Painter::SetColorAlgorithm ( Int_t colorAlgorithm)

Sets shading color algorithm:

  • olorAlgorithm - applies only for rainbowed display modes (rgb smooth algorithm, rgb modulo color component, cmy smooth algorithm,
  • cmy modulo color component, cie smooth algorithm,
  • cie modulo color component, yiq smooth algorithm,
  • yiq modulo color component, hsv smooth algorithm,
  • hsv modulo color component, it does not apply for simple display modes algorithm group

Definition at line 7148 of file TSpectrum2Painter.cxx.

◆ SetColorIncrements()

void TSpectrum2Painter::SetColorIncrements ( Double_t r,
Double_t g,
Double_t b )

Sets color increments between two color levels for r, g, b components:

  • r, g, b - color increments between two color levels

Definition at line 7160 of file TSpectrum2Painter.cxx.

◆ SetContourWidth()

void TSpectrum2Painter::SetContourWidth ( Int_t width)

Sets width between horizontal slices:

  • width - width between contours, applies only for contours display mode

Definition at line 7216 of file TSpectrum2Painter.cxx.

◆ SetDisplayMode()

void TSpectrum2Painter::SetDisplayMode ( Int_t modeGroup,
Int_t displayMode )

Sets display group mode and display mode:

  • modeGroup - the following group modes can be set: simple modes-kPicture2ModeGroupSimple, modes with shading according to light-kPicture2ModeGroupLight, modes with shading according to channels counts-kPicture2ModeGroupHeight, modes of combination of shading according to light and to channels counts-kPicture2ModeGroupLightHeight
  • displayMode - posible display modes are: points, grid, contours, bars, x_lines, y_lines, bars_x, bars_y, needles, surface, triangles

Definition at line 7069 of file TSpectrum2Painter.cxx.

◆ SetDrawOption()

void TObject::SetDrawOption ( Option_t * option = "")
virtualinherited

Set drawing option for object.

This option only affects the drawing style and is stored in the option field of the TObjOptLink supporting a TPad's primitive list (TList). Note that it does not make sense to call object.SetDrawOption(option) before having called object.Draw().

Reimplemented in RooPlot, TAxis, TBrowser, TGedFrame, TGFrame, TPad, TPaveStats, TRootBrowserLite, TSystemDirectory, and TSystemFile.

Definition at line 871 of file TObject.cxx.

◆ SetDtorOnly()

void TObject::SetDtorOnly ( void * obj)
staticinherited

Set destructor only flag.

Definition at line 1204 of file TObject.cxx.

◆ SetLightHeightWeight()

void TSpectrum2Painter::SetLightHeightWeight ( Double_t weight)

Sets weight between shading according to fictive light source and according to channels counts:

  • weight - weight between shading according to fictive light source and according to channels counts, applies only for kPicture2ModeGroupLightHeight modes group

Definition at line 7226 of file TSpectrum2Painter.cxx.

◆ SetLightPosition()

void TSpectrum2Painter::SetLightPosition ( Int_t x,
Int_t y,
Int_t z )

Sets position of fictive light source in 3D space:

  • x, y, z

Definition at line 7174 of file TSpectrum2Painter.cxx.

◆ SetName()

void TNamed::SetName ( const char * name)
virtualinherited

Set the name of the TNamed.

WARNING: if the object is a member of a THashTable or THashList container the container must be Rehash()'ed after SetName(). For example the list of objects in the current directory is a THashList.

Reimplemented in RooAbsArg, RooAbsData, RooDataHist, RooDataSet, RooFitResult, RooPlot, ROOT::Experimental::XRooFit::xRooNode, TChain, TColor, TDirectory, TEfficiency, TEventList, TEveScene, TFormula, TGraph2D, TGraph, TH1, TNode, TRotMatrix, TShape, TSystemDirectory, TSystemFile, and TTree.

Definition at line 149 of file TNamed.cxx.

◆ SetNameTitle()

void TNamed::SetNameTitle ( const char * name,
const char * title )
virtualinherited

Set all the TNamed parameters (name and title).

WARNING: if the name is changed and the object is a member of a THashTable or THashList container the container must be Rehash()'ed after SetName(). For example the list of objects in the current directory is a THashList.

Reimplemented in RooAbsArg, RooAbsData, RooDataHist, RooDataSet, RooFitResult, RooPlot, TContextMenu, TGraph2D, TGraph, TH1, and TNode.

Definition at line 163 of file TNamed.cxx.

◆ SetNodes()

void TSpectrum2Painter::SetNodes ( Int_t nodesx,
Int_t nodesy )

Sets nodes in both directions:

  • nodesx, nodesy, only the bins at the nodes points are displayed

Definition at line 7100 of file TSpectrum2Painter.cxx.

◆ SetObjectStat()

void TObject::SetObjectStat ( Bool_t stat)
staticinherited

Turn on/off tracking of objects in the TObjectTable.

Definition at line 1188 of file TObject.cxx.

◆ SetPenAttr()

void TSpectrum2Painter::SetPenAttr ( Int_t color,
Int_t style,
Int_t width )

Sets pen attributes:

  • color - color of spectrum
  • style - style of pen (solid, dash, dot, dash-dot)
  • width - width of pen in pixels

Definition at line 7086 of file TSpectrum2Painter.cxx.

◆ SetShading()

void TSpectrum2Painter::SetShading ( Int_t shading,
Int_t shadow )

Sets on/off shading and shadow switches:

  • shading - determines whether the picture will shaded, smoothed (no shading, shading), for rainbowed display modes only
  • shadow - determines whether shadow will be drawn, for rainbowed display modes with shading according to light

Definition at line 7189 of file TSpectrum2Painter.cxx.

◆ SetTitle()

void TNamed::SetTitle ( const char * title = "")
virtualinherited

Set the title of the TNamed.

Reimplemented in Axis2, RooPlot, ROOT::Experimental::XRooFit::xRooNode, ROOT::TSchemaRule::TSources, TASImage, TEfficiency, TF1, TGraph2D, TGraph, TH1, THnBase, TParallelCoordVar, TSystemDirectory, and TSystemFile.

Definition at line 173 of file TNamed.cxx.

◆ SetUniqueID()

void TObject::SetUniqueID ( UInt_t uid)
virtualinherited

Set the unique object id.

Definition at line 899 of file TObject.cxx.

◆ SetZScale()

void TSpectrum2Painter::SetZScale ( Int_t scale)

Sets z-axis scale:

  • scale - linear, sqrt or log

Definition at line 7130 of file TSpectrum2Painter.cxx.

◆ ShadowColorCalculation()

Double_t TSpectrum2Painter::ShadowColorCalculation ( Double_t xtaz,
Double_t ytaz,
Double_t ztaz,
Double_t shad_noise )
protected

Determines whether the center of the triangle in 3-d space given by function parameters:

  • xtaz,ytaz,ztaz is in shadow or not. If yes it return 1 otherwise it returns 0.

Definition at line 385 of file TSpectrum2Painter.cxx.

◆ Sizeof()

Int_t TNamed::Sizeof ( ) const
virtualinherited

Return size of the TNamed part of the TObject.

Reimplemented in TDirectory, TDirectoryFile, TFile, TKey, TSQLFile, and TXMLFile.

Definition at line 182 of file TNamed.cxx.

◆ Slice()

void TSpectrum2Painter::Slice ( Double_t xr,
Double_t yr,
Double_t xs,
Double_t ys,
TLine * line )
protected

Calculates screen coordinates of the line given by two nodes for contours display mode.

The line is given by two points xr, yr, xs, ys. Finally it draws the line.

Definition at line 1082 of file TSpectrum2Painter.cxx.

◆ Streamer()

void TSpectrum2Painter::Streamer ( TBuffer & R__b)
overridevirtual

Stream an object of class TObject.

Reimplemented from TNamed.

◆ StreamerNVirtual()

void TSpectrum2Painter::StreamerNVirtual ( TBuffer & ClassDef_StreamerNVirtual_b)
inline

Definition at line 205 of file TSpectrum2Painter.h.

◆ SysError()

void TObject::SysError ( const char * location,
const char * fmt,
... ) const
virtualinherited

Issue system error message.

Use "location" to specify the method where the system error occurred. Accepts standard printf formatting arguments.

Definition at line 1112 of file TObject.cxx.

◆ TestBit()

Bool_t TObject::TestBit ( UInt_t f) const
inlineinherited

Definition at line 204 of file TObject.h.

◆ TestBits()

Int_t TObject::TestBits ( UInt_t f) const
inlineinherited

Definition at line 205 of file TObject.h.

◆ Transform()

void TSpectrum2Painter::Transform ( Int_t it,
Int_t jt,
Int_t zmt )
protected

Reads out the value from histogram and calculates screen coordinates.

Parameters:

  • it - node in x- direction
  • jt - node in y- direction
  • zmt - control variable

Definition at line 196 of file TSpectrum2Painter.cxx.

◆ UseCurrentStyle()

void TObject::UseCurrentStyle ( )
virtualinherited

Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.

Reimplemented in TAxis3D, TCanvas, TFrame, TGraph, TH1, TPad, TPaveStats, TPaveText, and TTree.

Definition at line 909 of file TObject.cxx.

◆ Warning()

void TObject::Warning ( const char * location,
const char * fmt,
... ) const
virtualinherited

Issue warning message.

Use "location" to specify the method where the warning occurred. Accepts standard printf formatting arguments.

Definition at line 1084 of file TObject.cxx.

◆ Write() [1/2]

Int_t TObject::Write ( const char * name = nullptr,
Int_t option = 0,
Int_t bufsize = 0 )
virtualinherited

Write this object to the current directory.

For more see the const version of this method.

Reimplemented in ROOT::TBufferMergerFile, TBuffer, TCollection, TDirectory, TDirectoryFile, TFile, TMap, TParallelMergingFile, TSQLFile, TTree, and TXMLFile.

Definition at line 989 of file TObject.cxx.

◆ Write() [2/2]

Int_t TObject::Write ( const char * name = nullptr,
Int_t option = 0,
Int_t bufsize = 0 ) const
virtualinherited

Write this object to the current directory.

The data structure corresponding to this object is serialized. The corresponding buffer is written to the current directory with an associated key with name "name".

Writing an object to a file involves the following steps:

  • Creation of a support TKey object in the current directory. The TKey object creates a TBuffer object.
  • The TBuffer object is filled via the class::Streamer function.
  • If the file is compressed (default) a second buffer is created to hold the compressed buffer.
  • Reservation of the corresponding space in the file by looking in the TFree list of free blocks of the file.
  • The buffer is written to the file.

Bufsize can be given to force a given buffer size to write this object. By default, the buffersize will be taken from the average buffer size of all objects written to the current file so far.

If a name is specified, it will be the name of the key. If name is not given, the name of the key will be the name as returned by GetName().

The option can be a combination of: kSingleKey, kOverwrite or kWriteDelete Using the kOverwrite option a previous key with the same name is overwritten. The previous key is deleted before writing the new object. Using the kWriteDelete option a previous key with the same name is deleted only after the new object has been written. This option is safer than kOverwrite but it is slower. NOTE: Neither kOverwrite nor kWriteDelete reduces the size of a TFile– the space is simply freed up to be overwritten; in the case of a TTree, it is more complicated. If one opens a TTree, appends some entries, then writes it out, the behaviour is effectively the same. If, however, one creates a new TTree and writes it out in this way, only the metadata is replaced, effectively making the old data invisible without deleting it. TTree::Delete() can be used to mark all disk space occupied by a TTree as free before overwriting its metadata this way. The kSingleKey option is only used by TCollection::Write() to write a container with a single key instead of each object in the container with its own key.

An object is read from the file into memory via TKey::Read() or via TObject::Read().

The function returns the total number of bytes written to the file. It returns 0 if the object cannot be written.

Reimplemented in TBuffer, TCollection, TDirectory, TDirectoryFile, TFile, TMap, TParallelMergingFile, TSQLFile, TTree, and TXMLFile.

Definition at line 964 of file TObject.cxx.

Member Data Documentation

◆ fAlpha

Int_t TSpectrum2Painter::fAlpha
protected

Definition at line 141 of file TSpectrum2Painter.h.

◆ fBeta

Int_t TSpectrum2Painter::fBeta
protected

Definition at line 142 of file TSpectrum2Painter.h.

◆ fBezier

Int_t TSpectrum2Painter::fBezier
protected

Definition at line 155 of file TSpectrum2Painter.h.

◆ fBits

UInt_t TObject::fBits
privateinherited

bit field status word

Definition at line 47 of file TObject.h.

◆ fBx1

Int_t TSpectrum2Painter::fBx1
protected

Definition at line 128 of file TSpectrum2Painter.h.

◆ fBx2

Int_t TSpectrum2Painter::fBx2
protected

Definition at line 129 of file TSpectrum2Painter.h.

◆ fBy1

Int_t TSpectrum2Painter::fBy1
protected

Definition at line 130 of file TSpectrum2Painter.h.

◆ fBy2

Int_t TSpectrum2Painter::fBy2
protected

Definition at line 131 of file TSpectrum2Painter.h.

◆ fBzX

Int_t TSpectrum2Painter::fBzX[4]
protected

Definition at line 188 of file TSpectrum2Painter.h.

◆ fBzY

Int_t TSpectrum2Painter::fBzY[4]
protected

Definition at line 189 of file TSpectrum2Painter.h.

◆ fChanlineColor

Int_t TSpectrum2Painter::fChanlineColor
protected

Definition at line 162 of file TSpectrum2Painter.h.

◆ fChanlineEnDis

Int_t TSpectrum2Painter::fChanlineEnDis
protected

Definition at line 161 of file TSpectrum2Painter.h.

◆ fChanmarkColor

Int_t TSpectrum2Painter::fChanmarkColor
protected

Definition at line 160 of file TSpectrum2Painter.h.

◆ fChanmarkEnDis

Int_t TSpectrum2Painter::fChanmarkEnDis
protected

Definition at line 156 of file TSpectrum2Painter.h.

◆ fChanmarkHeight

Int_t TSpectrum2Painter::fChanmarkHeight
protected

Definition at line 159 of file TSpectrum2Painter.h.

◆ fChanmarkStyle

Int_t TSpectrum2Painter::fChanmarkStyle
protected

Definition at line 157 of file TSpectrum2Painter.h.

◆ fChanmarkWidth

Int_t TSpectrum2Painter::fChanmarkWidth
protected

Definition at line 158 of file TSpectrum2Painter.h.

◆ fColorAlg

Int_t TSpectrum2Painter::fColorAlg
protected

Definition at line 148 of file TSpectrum2Painter.h.

◆ fContWidth

Int_t TSpectrum2Painter::fContWidth
protected

Definition at line 140 of file TSpectrum2Painter.h.

◆ fDisplayMode

Int_t TSpectrum2Painter::fDisplayMode
protected

Definition at line 136 of file TSpectrum2Painter.h.

◆ fDxspline

Double_t TSpectrum2Painter::fDxspline
protected

Definition at line 181 of file TSpectrum2Painter.h.

◆ fDyspline

Double_t TSpectrum2Painter::fDyspline
protected

Definition at line 181 of file TSpectrum2Painter.h.

◆ fEnvelope

Short_t* TSpectrum2Painter::fEnvelope
protected

!

Definition at line 183 of file TSpectrum2Painter.h.

◆ fEnvelopeContour

Short_t* TSpectrum2Painter::fEnvelopeContour
protected

!

Definition at line 184 of file TSpectrum2Painter.h.

◆ fGbezx

Double_t TSpectrum2Painter::fGbezx
protected

Definition at line 181 of file TSpectrum2Painter.h.

◆ fGbezy

Double_t TSpectrum2Painter::fGbezy
protected

Definition at line 181 of file TSpectrum2Painter.h.

◆ fgDtorOnly

Longptr_t TObject::fgDtorOnly = 0
staticprivateinherited

object for which to call dtor only (i.e. no delete)

Definition at line 49 of file TObject.h.

◆ fgObjectStat

Bool_t TObject::fgObjectStat = kTRUE
staticprivateinherited

if true keep track of objects in TObjectTable

Definition at line 50 of file TObject.h.

◆ fH2

TH2* TSpectrum2Painter::fH2
protected

Definition at line 121 of file TSpectrum2Painter.h.

◆ fKx

Double_t TSpectrum2Painter::fKx
protected

Definition at line 165 of file TSpectrum2Painter.h.

◆ fKy

Double_t TSpectrum2Painter::fKy
protected

Definition at line 166 of file TSpectrum2Painter.h.

◆ fLevels

Int_t TSpectrum2Painter::fLevels
protected

Definition at line 144 of file TSpectrum2Painter.h.

◆ fLHweight

Double_t TSpectrum2Painter::fLHweight
protected

Definition at line 149 of file TSpectrum2Painter.h.

◆ fLine

Int_t TSpectrum2Painter::fLine
protected

Definition at line 182 of file TSpectrum2Painter.h.

◆ fMaximumXScreenResolution

Int_t TSpectrum2Painter::fMaximumXScreenResolution
protected

!buffers' size

Definition at line 186 of file TSpectrum2Painter.h.

◆ fModeGroup

Int_t TSpectrum2Painter::fModeGroup
protected

Definition at line 135 of file TSpectrum2Painter.h.

◆ fMxx

Double_t TSpectrum2Painter::fMxx
protected

Definition at line 167 of file TSpectrum2Painter.h.

◆ fMxy

Double_t TSpectrum2Painter::fMxy
protected

Definition at line 168 of file TSpectrum2Painter.h.

◆ fMyx

Double_t TSpectrum2Painter::fMyx
protected

Definition at line 169 of file TSpectrum2Painter.h.

◆ fMyy

Double_t TSpectrum2Painter::fMyy
protected

Definition at line 170 of file TSpectrum2Painter.h.

◆ fName

TString TNamed::fName
protectedinherited

Definition at line 32 of file TNamed.h.

◆ fNewColor

TColor* TSpectrum2Painter::fNewColor
protected

!

Definition at line 185 of file TSpectrum2Painter.h.

◆ fNewColorIndex

Int_t TSpectrum2Painter::fNewColorIndex
protected

Definition at line 187 of file TSpectrum2Painter.h.

◆ fNodesx

Int_t TSpectrum2Painter::fNodesx
protected

Definition at line 138 of file TSpectrum2Painter.h.

◆ fNodesy

Int_t TSpectrum2Painter::fNodesy
protected

Definition at line 139 of file TSpectrum2Painter.h.

◆ fNuSli

Double_t TSpectrum2Painter::fNuSli
protected

Definition at line 178 of file TSpectrum2Painter.h.

◆ fPenColor

Int_t TSpectrum2Painter::fPenColor
protected

Definition at line 132 of file TSpectrum2Painter.h.

◆ fPenDash

Int_t TSpectrum2Painter::fPenDash
protected

Definition at line 133 of file TSpectrum2Painter.h.

◆ fPenWidth

Int_t TSpectrum2Painter::fPenWidth
protected

Definition at line 134 of file TSpectrum2Painter.h.

◆ fRainbow1Step

Double_t TSpectrum2Painter::fRainbow1Step
protected

Definition at line 145 of file TSpectrum2Painter.h.

◆ fRainbow2Step

Double_t TSpectrum2Painter::fRainbow2Step
protected

Definition at line 146 of file TSpectrum2Painter.h.

◆ fRainbow3Step

Double_t TSpectrum2Painter::fRainbow3Step
protected

Definition at line 147 of file TSpectrum2Painter.h.

◆ fShading

Int_t TSpectrum2Painter::fShading
protected

Definition at line 154 of file TSpectrum2Painter.h.

◆ fShadow

Int_t TSpectrum2Painter::fShadow
protected

Definition at line 153 of file TSpectrum2Painter.h.

◆ fTitle

TString TNamed::fTitle
protectedinherited

Definition at line 33 of file TNamed.h.

◆ fTxx

Double_t TSpectrum2Painter::fTxx
protected

Definition at line 171 of file TSpectrum2Painter.h.

◆ fTxy

Double_t TSpectrum2Painter::fTxy
protected

Definition at line 172 of file TSpectrum2Painter.h.

◆ fTyx

Double_t TSpectrum2Painter::fTyx
protected

Definition at line 173 of file TSpectrum2Painter.h.

◆ fTyy

Double_t TSpectrum2Painter::fTyy
protected

Definition at line 174 of file TSpectrum2Painter.h.

◆ fTyz

Double_t TSpectrum2Painter::fTyz
protected

Definition at line 175 of file TSpectrum2Painter.h.

◆ fUniqueID

UInt_t TObject::fUniqueID
privateinherited

object unique identifier

Definition at line 46 of file TObject.h.

◆ fViewAngle

Int_t TSpectrum2Painter::fViewAngle
protected

Definition at line 143 of file TSpectrum2Painter.h.

◆ fVx

Double_t TSpectrum2Painter::fVx
protected

Definition at line 176 of file TSpectrum2Painter.h.

◆ fVy

Double_t TSpectrum2Painter::fVy
protected

Definition at line 177 of file TSpectrum2Painter.h.

◆ fXe

Int_t TSpectrum2Painter::fXe
protected

Definition at line 182 of file TSpectrum2Painter.h.

◆ fXlight

Int_t TSpectrum2Painter::fXlight
protected

Definition at line 150 of file TSpectrum2Painter.h.

◆ fXmax

Int_t TSpectrum2Painter::fXmax
protected

Definition at line 123 of file TSpectrum2Painter.h.

◆ fXmin

Int_t TSpectrum2Painter::fXmin
protected

Definition at line 122 of file TSpectrum2Painter.h.

◆ fXs

Int_t TSpectrum2Painter::fXs
protected

Definition at line 182 of file TSpectrum2Painter.h.

◆ fXt

Int_t TSpectrum2Painter::fXt
protected

Definition at line 182 of file TSpectrum2Painter.h.

◆ fYe

Int_t TSpectrum2Painter::fYe
protected

Definition at line 182 of file TSpectrum2Painter.h.

◆ fYlight

Int_t TSpectrum2Painter::fYlight
protected

Definition at line 151 of file TSpectrum2Painter.h.

◆ fYmax

Int_t TSpectrum2Painter::fYmax
protected

Definition at line 125 of file TSpectrum2Painter.h.

◆ fYmin

Int_t TSpectrum2Painter::fYmin
protected

Definition at line 124 of file TSpectrum2Painter.h.

◆ fYs

Int_t TSpectrum2Painter::fYs
protected

Definition at line 182 of file TSpectrum2Painter.h.

◆ fYt

Int_t TSpectrum2Painter::fYt
protected

Definition at line 182 of file TSpectrum2Painter.h.

◆ fZ

Double_t TSpectrum2Painter::fZ
protected

Definition at line 181 of file TSpectrum2Painter.h.

◆ fZeq

Double_t TSpectrum2Painter::fZeq
protected

Definition at line 181 of file TSpectrum2Painter.h.

◆ fZlight

Int_t TSpectrum2Painter::fZlight
protected

Definition at line 152 of file TSpectrum2Painter.h.

◆ fZmax

Double_t TSpectrum2Painter::fZmax
protected

Definition at line 127 of file TSpectrum2Painter.h.

◆ fZmin

Double_t TSpectrum2Painter::fZmin
protected

Definition at line 126 of file TSpectrum2Painter.h.

◆ fZPresetValue

Double_t TSpectrum2Painter::fZPresetValue
protected

Definition at line 181 of file TSpectrum2Painter.h.

◆ fZscale

Int_t TSpectrum2Painter::fZscale
protected

Definition at line 137 of file TSpectrum2Painter.h.

The documentation for this class was generated from the following files:
