Legacy Code

TFolder is a legacy interface: there will be no bug fixes nor new developments. Therefore it is not recommended to use it in new long-term production code. But, depending on the context, using TFolder might still be a valid solution.

A TFolder object is a collection of objects and folders. Folders have a name and a title and are identified in the folder hierarchy by a "Unix-like" naming mechanism. The root of all folders is //root. New folders can be dynamically added or removed to/from a folder. The folder hierarchy can be visualized via the TBrowser.

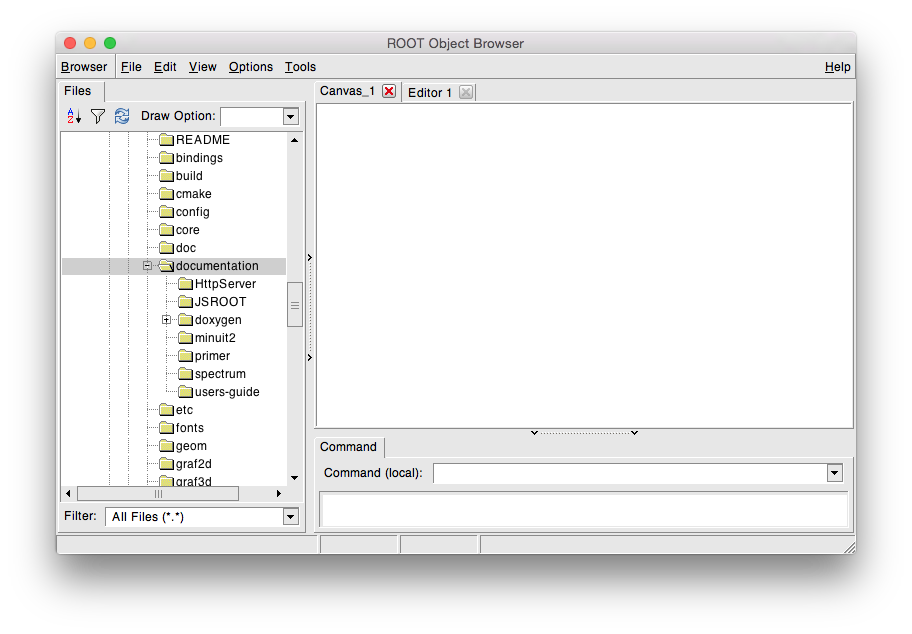

The Root folders hierarchy can be seen as a whiteboard where objects are posted. Other classes/tasks can access these objects by specifying only a string pathname. This whiteboard facility greatly improves the modularity of an application, minimizing the class relationship problem that penalizes large applications.

Pointers are efficient to communicate between classes. However, one has interest to minimize direct coupling between classes in the form of direct pointers. One better uses the naming and search service provided by the Root folders hierarchy. This makes the classes loosely coupled and also greatly facilitates I/O operations. In a client/server environment, this mechanism facilitates the access to any kind of object in //root stores running on different processes.

A TFolder is created by invoking the TFolder constructor. It is placed inside an existing folder via the TFolder::AddFolder method. One can search for a folder or an object in a folder using the FindObject method. FindObject analyses the string passed as its argument and searches in the hierarchy until it finds an object or folder matching the name.

When a folder is deleted, its reference from the parent folder and possible other folders is deleted.

If a folder has been declared the owner of its objects/folders via TFolder::SetOwner, then the contained objects are deleted when the folder is deleted. By default, a folder does not own its contained objects.

NOTE that folder ownership can be set

via TFolder::SetOwner
or via TCollection::SetOwner on the collection specified to TFolder::AddFolder

Standard Root objects are automatically added to the folder hierarchy. For example, the following folders exist: root/Files with the list of currently connected Root files root/Classes with the list of active classes root/Geometries with active geometries root/Canvases with the list of active canvases root/Styles with the list of graphics styles root/Colors with the list of active colors

For example, if a file "myFile.root" is added to the list of files, one can retrieve a pointer to the corresponding TFile object with a statement like:

TFile *myFile = (TFile*)gROOT->FindObject("//root/Files/myFile.root");

gROOT

#define gROOT

Definition TROOT.h:417

TFile

A file, usually with extension .root, that stores data and code in the form of serialized objects in ...

Definition TFile.h:130

The above statement can be abbreviated to:

TFile *myFile = (TFile*)gROOT->FindObject("/Files/myFile.root");

or even to:

TFile *myFile = (TFile*)gROOT->FindObjectAny("myFile.root");

In this last case, the TROOT::FindObjectAny function will scan the folder hierarchy starting at //root and will return the first object named "myFile.root".

Because a string-based search mechanism is expensive, it is recommended to save the pointer to the object as a class member or local variable if this pointer is used frequently or inside loops.

Definition at line 30 of file TFolder.h.

Public Types
enum	{ kSingleKey = (1ULL << (0)) , kOverwrite = (1ULL << (1)) , kWriteDelete = (1ULL << (2)) }
enum	{ kIsOnHeap = 0x01000000 , kNotDeleted = 0x02000000 , kZombie = 0x04000000 , kInconsistent = 0x08000000 , kBitMask = 0x00ffffff }
enum	EDeprecatedStatusBits { kObjInCanvas = (1ULL << (3)) }
enum	EStatusBits { kCanDelete = (1ULL << (0)) , kMustCleanup = (1ULL << (3)) , kIsReferenced = (1ULL << (4)) , kHasUUID = (1ULL << (5)) , kCannotPick = (1ULL << (6)) , kNoContextMenu = (1ULL << (8)) , kInvalidObject = (1ULL << (13)) }

Public Member Functions
	TFolder ()
	Default constructor used by the Input functions.
	TFolder (const char name, const char title)
	Create a normal folder.
virtual	~TFolder ()
	Folder destructor.
void	AbstractMethod (const char *method) const
	Call this function within a function that you don't want to define as purely virtual, in order not to force all users deriving from that class to implement that maybe (on their side) unused function; but at the same time, emit a run-time warning if they try to call it, telling that it is not implemented in the derived class: action must thus be taken on the user side to override it.
virtual void	Add (TObject *obj)
	Add object to this folder. obj must be a TObject or a TFolder.
TFolder *	AddFolder (const char name, const char title, TCollection *collection=nullptr)
	Create a new folder and add it to the list of folders of this folder, return a pointer to the created folder.
virtual void	AppendPad (Option_t *option="")
	Append graphics object to current pad.
void	Browse (TBrowser *b) override
	Browse this folder.
ULong_t	CheckedHash ()
	Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.
virtual const char *	ClassName () const
	Returns name of class to which the object belongs.
void	Clear (Option_t *option="") override
	Delete all objects from a folder list.
TObject *	Clone (const char *newname="") const override
	Make a clone of an object using the Streamer facility.
Int_t	Compare (const TObject *obj) const override
	Compare two TNamed objects.
void	Copy (TObject &) const override
	Copy this to obj.
virtual void	Delete (Option_t *option="")
	Delete this object.
virtual Int_t	DistancetoPrimitive (Int_t px, Int_t py)
	Computes distance from point (px,py) to the object.
virtual void	Draw (Option_t *option="")
	Default Draw method for all objects.
virtual void	DrawClass () const
	Draw class inheritance tree of the class to which this object belongs.
virtual TObject *	DrawClone (Option_t *option="") const
	Draw a clone of this object in the current selected pad with: gROOT->SetSelectedPad(c1).
virtual void	Dump () const
	Dump contents of object on stdout.
virtual void	Error (const char method, const char msgfmt,...) const
	Issue error message.
virtual void	Execute (const char method, const char params, Int_t *error=nullptr)
	Execute method on this object with the given parameter string, e.g.
virtual void	Execute (TMethod method, TObjArray params, Int_t *error=nullptr)
	Execute method on this object with parameters stored in the TObjArray.
virtual void	ExecuteEvent (Int_t event, Int_t px, Int_t py)
	Execute action corresponding to an event at (px,py).
virtual void	Fatal (const char method, const char msgfmt,...) const
	Issue fatal error message.
virtual void	FillBuffer (char *&buffer)
	Encode TNamed into output buffer.
virtual const char *	FindFullPathName (const char *name) const
	Return the full pathname corresponding to subpath name if the node is gROOT->GetRootFolder() and return a relative path otherwise.
virtual const char *	FindFullPathName (const TObject *obj) const
	Return the full pathname corresponding to subpath name.
TObject *	FindObject (const char *name) const override
	Search object identified by name in the tree of folders inside this folder.
TObject *	FindObject (const TObject *obj) const override
	Find object in an folder.
virtual TObject *	FindObjectAny (const char *name) const
	Return a pointer to the first object with name starting at this folder.
virtual Option_t *	GetDrawOption () const
	Get option used by the graphics system to draw this object.
virtual const char *	GetIconName () const
	Returns mime type name of object.
TCollection *	GetListOfFolders () const
const char *	GetName () const override
	Returns name of object.
virtual char *	GetObjectInfo (Int_t px, Int_t py) const
	Returns string containing info about the object at position (px,py).
virtual Option_t *	GetOption () const
const char *	GetTitle () const override
	Returns title of object.
virtual UInt_t	GetUniqueID () const
	Return the unique object id.
virtual Bool_t	HandleTimer (TTimer *timer)
	Execute action in response of a timer timing out.
ULong_t	Hash () const override
	Return hash value for this object.
Bool_t	HasInconsistentHash () const
	Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.
virtual void	Info (const char method, const char msgfmt,...) const
	Issue info message.
virtual Bool_t	InheritsFrom (const char *classname) const
	Returns kTRUE if object inherits from class "classname".
virtual Bool_t	InheritsFrom (const TClass *cl) const
	Returns kTRUE if object inherits from TClass cl.
virtual void	Inspect () const
	Dump contents of this object in a graphics canvas.
void	InvertBit (UInt_t f)
TClass *	IsA () const override
Bool_t	IsDestructed () const
	IsDestructed.
virtual Bool_t	IsEqual (const TObject *obj) const
	Default equal comparison (objects are equal if they have the same address in memory).
Bool_t	IsFolder () const override
	Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).
Bool_t	IsOnHeap () const
Bool_t	IsOwner () const
	Folder ownership has been set via.
Bool_t	IsSortable () const override
Bool_t	IsZombie () const
void	ls (Option_t *option="") const override
	List folder contents.
void	MayNotUse (const char *method) const
	Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).
virtual Bool_t	Notify ()
	This method must be overridden to handle object notification (the base implementation is no-op).
void	Obsolete (const char method, const char asOfVers, const char *removedFromVers) const
	Use this method to declare a method obsolete.
virtual Int_t	Occurence (const TObject *obj) const
	Return occurrence number of object in the list of objects of this folder.
void	operator delete (void *, size_t)
	Operator delete for sized deallocation.
void	operator delete (void *ptr)
	Operator delete.
void	operator delete (void ptr, void vp)
	Only called by placement new when throwing an exception.
void	operator delete[] (void *, size_t)
	Operator delete [] for sized deallocation.
void	operator delete[] (void *ptr)
	Operator delete [].
void	operator delete[] (void ptr, void vp)
	Only called by placement new[] when throwing an exception.
void *	operator new (size_t sz)
void *	operator new (size_t sz, void *vp)
void *	operator new[] (size_t sz)
void *	operator new[] (size_t sz, void *vp)
virtual void	Paint (Option_t *option="")
	This method must be overridden if a class wants to paint itself.
virtual void	Pop ()
	Pop on object drawn in a pad to the top of the display list.
void	Print (Option_t *option="") const override
	Print TNamed name and title.
virtual Int_t	Read (const char *name)
	Read contents of object with specified name from the current directory.
void	RecursiveRemove (TObject *obj) override
	Recursively remove object from a folder.
virtual void	Remove (TObject *obj)
	Remove object from this folder. obj must be a TObject or a TFolder.
void	ResetBit (UInt_t f)
void	SaveAs (const char filename="", Option_t option="") const override
	Save all objects in this folder in filename.
virtual void	SavePrimitive (std::ostream &out, Option_t *option="")
	Save a primitive as a C++ statement(s) on output stream "out".
void	SetBit (UInt_t f)
void	SetBit (UInt_t f, Bool_t set)
	Set or unset the user status bits as specified in f.
virtual void	SetDrawOption (Option_t *option="")
	Set drawing option for object.
virtual void	SetName (const char *name)
	Set the name of the TNamed.
virtual void	SetNameTitle (const char name, const char title)
	Set all the TNamed parameters (name and title).
virtual void	SetOwner (Bool_t owner=kTRUE)
	Set ownership.
virtual void	SetTitle (const char *title="")
	Set the title of the TNamed.
virtual void	SetUniqueID (UInt_t uid)
	Set the unique object id.
virtual Int_t	Sizeof () const
	Return size of the TNamed part of the TObject.
void	Streamer (TBuffer &) override
	Stream an object of class TObject.
void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)
virtual void	SysError (const char method, const char msgfmt,...) const
	Issue system error message.
Bool_t	TestBit (UInt_t f) const
Int_t	TestBits (UInt_t f) const
virtual void	UseCurrentStyle ()
	Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.
virtual void	Warning (const char method, const char msgfmt,...) const
	Issue warning message.
virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0)
	Write this object to the current directory.
virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) const
	Write this object to the current directory.

Static Public Member Functions
static TClass *	Class ()
static const char *	Class_Name ()
static constexpr Version_t	Class_Version ()
static const char *	DeclFileName ()
static Longptr_t	GetDtorOnly ()
	Return destructor only flag.
static Bool_t	GetObjectStat ()
	Get status of object stat flag.
static void	SetDtorOnly (void *obj)
	Set destructor only flag.
static void	SetObjectStat (Bool_t stat)
	Turn on/off tracking of objects in the TObjectTable.

Protected Types
enum	{ kOnlyPrepStep = (1ULL << (3)) }

Protected Member Functions
virtual void	DoError (int level, const char location, const char fmt, va_list va) const
	Interface to ErrorHandler (protected).
void	MakeZombie ()
void	SavePrimitiveNameTitle (std::ostream &out, const char *variable_name)
	Save object name and title into the output stream "out".

Static Protected Member Functions
static void	SavePrimitiveConstructor (std::ostream &out, TClass cl, const char variable_name, const char *constructor_agrs="", Bool_t empty_line=kTRUE)
	Save object constructor in the output stream "out".
static void	SavePrimitiveDraw (std::ostream &out, const char variable_name, Option_t option=nullptr)
	Save invocation of primitive Draw() method Skipped if option contains "nodraw" string.
static TString	SavePrimitiveVector (std::ostream &out, const char prefix, Int_t len, Double_t arr, Int_t flag=0)
	Save array in the output stream "out" as vector.

Protected Attributes
TCollection *	fFolders
Bool_t	fIsOwner
TString	fName
TString	fTitle

Private Member Functions
	TFolder (const TFolder &folder)=delete
void	operator= (const TFolder &)=delete

Static Private Member Functions
static void	AddToTObjectTable (TObject *)
	Private helper function which will dispatch to TObjectTable::AddObj.

Private Attributes
UInt_t	fBits
	bit field status word
UInt_t	fUniqueID
	object unique identifier

Static Private Attributes
static Longptr_t	fgDtorOnly = 0
	object for which to call dtor only (i.e. no delete)
static Bool_t	fgObjectStat = kTRUE
	if true keep track of objects in TObjectTable

#include <TFolder.h>

Inheritance diagram for TFolder:

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

protectedinherited

Enumerator

kOnlyPrepStep

Used to request that the class specific implementation of TObject::Write just prepare the objects to be ready to be written but do not actually write them into the TBuffer.

This is just for example by TBufferMerger to request that the TTree inside the file calls TTree::FlushBaskets (outside of the merging lock) and TBufferMerger will later ask for the write (inside the merging lock). To take advantage of this feature the class needs to overload TObject::Write and use this enum value accordingly. (See TTree::Write and TObject::Write) Do not use, this feature will be migrate to the Merge function (See TClass and TTree::Merge)

Definition at line 106 of file TObject.h.

◆ anonymous enum

anonymous enum

inherited

Enumerator
kSingleKey	write collection with single key
kOverwrite	overwrite existing object with same name
kWriteDelete	write object, then delete previous key with same name

Definition at line 99 of file TObject.h.

◆ anonymous enum

anonymous enum

inherited

Enumerator
kIsOnHeap	object is on heap
kNotDeleted	object has not been deleted
kZombie	object ctor failed
kInconsistent	class overload Hash but does call RecursiveRemove in destructor
kBitMask

Definition at line 89 of file TObject.h.

◆ EDeprecatedStatusBits

enum TObject::EDeprecatedStatusBits

inherited

Enumerator
kObjInCanvas	for backward compatibility only, use kMustCleanup

Definition at line 84 of file TObject.h.

◆ EStatusBits

enum TObject::EStatusBits

inherited

Enumerator
kCanDelete	if object in a list can be deleted
kMustCleanup	if object destructor must call RecursiveRemove()
kIsReferenced	if object is referenced by a TRef or TRefArray
kHasUUID	if object has a TUUID (its fUniqueID=UUIDNumber)
kCannotPick	if object in a pad cannot be picked
kNoContextMenu	if object does not want context menu
kInvalidObject	if object ctor succeeded but object should not be used

Definition at line 70 of file TObject.h.

Constructor & Destructor Documentation

◆ TFolder() [1/3]

TFolder::TFolder ( const TFolder & folder )

privatedelete

◆ TFolder() [2/3]

TFolder::TFolder ( )

Default constructor used by the Input functions.

This constructor should not be called by a user directly. The normal way to create a folder is by calling TFolder::AddFolder.

Definition at line 111 of file TFolder.cxx.

◆ TFolder() [3/3]

TFolder::TFolder	(	const char *	name,
		const char *	title )

Create a normal folder.

Use Add or AddFolder to add objects or folders to this folder.

Definition at line 121 of file TFolder.cxx.

◆ ~TFolder()

TFolder::~TFolder ( )

virtual

Folder destructor.

Remove all objects from its lists and delete all its sub folders.

Definition at line 132 of file TFolder.cxx.

Member Function Documentation

◆ AbstractMethod()

void TObject::AbstractMethod ( const char * method ) const

inherited

Call this function within a function that you don't want to define as purely virtual, in order not to force all users deriving from that class to implement that maybe (on their side) unused function; but at the same time, emit a run-time warning if they try to call it, telling that it is not implemented in the derived class: action must thus be taken on the user side to override it.

In other word, this method acts as a "runtime purely virtual" warning instead of a "compiler purely virtual" error.

Warning: This interface is a legacy function that is no longer recommended to be used by new development code.

Note: The name "AbstractMethod" does not imply that it's an abstract method in the strict C++ sense.

Definition at line 1149 of file TObject.cxx.

◆ Add()

void TFolder::Add ( TObject * obj )

virtual

Add object to this folder. obj must be a TObject or a TFolder.

Definition at line 165 of file TFolder.cxx.

◆ AddFolder()

TFolder * TFolder::AddFolder	(	const char *	name,
		const char *	title,
		TCollection *	collection = nullptr )

Create a new folder and add it to the list of folders of this folder, return a pointer to the created folder.

Note that a folder can be added to several folders.

If collection is non NULL, the pointer fFolders is set to the existing collection, otherwise a default collection (Tlist) is created. Note that the folder name cannot contain slashes.

Definition at line 181 of file TFolder.cxx.

◆ AddToTObjectTable()

void TObject::AddToTObjectTable ( TObject * op )

staticprivateinherited

Private helper function which will dispatch to TObjectTable::AddObj.

Included here to avoid circular dependency between header files.

Definition at line 195 of file TObject.cxx.

◆ AppendPad()

void TObject::AppendPad ( Option_t * option = "" )

virtualinherited

Append graphics object to current pad.

In case no current pad is set yet, create a default canvas with the name "c1".

Definition at line 204 of file TObject.cxx.

◆ Browse()

void TFolder::Browse ( TBrowser * b )

overridevirtual

Browse this folder.

Reimplemented from TObject.

Definition at line 212 of file TFolder.cxx.

◆ CheckedHash()

ULong_t TObject::CheckedHash ( )

inlineinherited

Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.

The intent is for this routine to be called instead of directly calling the function Hash during "insert" operations. See TObject::HasInconsistenTObjectHash();

(*) The setup is consistent when all classes in the class hierarchy that overload TObject::Hash do call ROOT::CallRecursiveRemoveIfNeeded in their destructor. i.e. it is safe to call the Hash virtual function during the RecursiveRemove operation.

Definition at line 332 of file TObject.h.

◆ Class()

TClass * TFolder::Class ( )

static

Returns: TClass describing this class

◆ Class_Name()

const char * TFolder::Class_Name ( )

static

Returns: Name of this class

◆ Class_Version()

constexpr Version_t TFolder::Class_Version ( )

inlinestaticconstexpr

Returns: Version of this class

Definition at line 65 of file TFolder.h.

◆ ClassName()

const char * TObject::ClassName ( ) const

virtualinherited

Returns name of class to which the object belongs.

Definition at line 227 of file TObject.cxx.

◆ Clear()

void TFolder::Clear ( Option_t * option = "" )

overridevirtual

Delete all objects from a folder list.

Reimplemented from TObject.

Definition at line 220 of file TFolder.cxx.

◆ Clone()

TObject * TNamed::Clone ( const char * newname = "" ) const

overridevirtualinherited

Make a clone of an object using the Streamer facility.

If newname is specified, this will be the name of the new object.

Reimplemented from TObject.

Reimplemented in TStreamerInfo, and TTreeIndex.

Definition at line 73 of file TNamed.cxx.

◆ Compare()

Int_t TNamed::Compare ( const TObject * obj ) const

overridevirtualinherited

Compare two TNamed objects.

Returns 0 when equal, -1 when this is smaller and +1 when bigger (like strcmp).

Reimplemented from TObject.

Reimplemented in TStructNodeProperty.

Definition at line 84 of file TNamed.cxx.

◆ Copy()

void TFolder::Copy ( TObject & object ) const

inlineoverridevirtual

Copy this to obj.

Reimplemented from TObject.

Definition at line 49 of file TFolder.h.

◆ DeclFileName()

const char * TFolder::DeclFileName ( )

inlinestatic

Returns: Name of the file containing the class declaration

Definition at line 65 of file TFolder.h.

◆ Delete()

void TObject::Delete ( Option_t * option = "" )

virtualinherited

Delete this object.

Typically called as a command via the interpreter. Normally use "delete" operator when object has been allocated on the heap.

Reimplemented in RooLinkedList, TAxis, TBtree, TCanvas, TClonesArray, TCollection, TDirectory, TDirectoryFile, TExMap, TFile, TGFrame, TGItemContext, TGTextEdit, THashList, THashTable, TKey, TKeySQL, TKeyXML, TList, TListOfDataMembers, TListOfEnums, TListOfEnumsWithLock, TListOfFunctions, TListOfFunctionTemplates, TMap, TMVA::Results, TObjArray, TObjectTable, TOrdCollection, TProtoClass, TQCommand, TRefArray, TSystemDirectory, TSystemFile, TThread, TTree, TTreeViewer, TViewPubDataMembers, and TViewPubFunctions.

Definition at line 268 of file TObject.cxx.

◆ DistancetoPrimitive()

Int_t TObject::DistancetoPrimitive	(	Int_t	px,
		Int_t	py )

virtualinherited

Computes distance from point (px,py) to the object.

This member function must be implemented for each graphics primitive. This default function returns a big number (999999).

Reimplemented in TASImage, TAxis3D, TAxis, TBox, TBRIK, TColorWheel, TCrown, TCurlyArc, TCurlyLine, TDiamond, TEfficiency, TEllipse, TF1, TF2, TF3, TFileDrawMap, TGenerator, TGeoBBox, TGeoCompositeShape, TGeoCone, TGeoConeSeg, TGeoEltu, TGeoHalfSpace, TGeoHype, TGeoNode, TGeoOverlap, TGeoParaboloid, TGeoPcon, TGeoPgon, TGeoScaledShape, TGeoShape, TGeoShapeAssembly, TGeoSphere, TGeoTessellated, TGeoTorus, TGeoTrack, TGeoTube, TGeoTubeSeg, TGeoVGShape, TGeoVolume, TGeoXtru, TGL5DDataSet, TGLHistPainter, TGLParametricEquation, TGLScenePad, TGLTH3Composition, TGLViewer, TGraph2D, TGraph, TGraphEdge, TGraphNode, TGraphPolargram, TH1, THistPainter, THStack, TLine, TMarker3DBox, TMarker, TMultiGraph, TNode, TPad, TPaletteAxis, TParallelCoord, TParallelCoordRange, TParallelCoordVar, TParticle, TPave, TPCON, TPie, TPieSlice, TPoints3DABC, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TPrimary, TScatter2D, TScatter, TSPHE, TSpider, TSpline, TStyle, TText, TTreePerfStats, TTUBE, TTUBS, TVirtualHistPainter, and TXTRU.

Definition at line 284 of file TObject.cxx.

◆ DoError()

void TObject::DoError	(	int	level,
		const char *	location,
		const char *	fmt,
		va_list	va ) const

protectedvirtualinherited

Interface to ErrorHandler (protected).

Reimplemented in TThread, and TTreeViewer.

Definition at line 1059 of file TObject.cxx.

◆ Draw()

void TObject::Draw ( Option_t * option = "" )

virtualinherited

Default Draw method for all objects.

Reimplemented in RooAbsData, RooPlot, RooStats::HypoTestInverterPlot, RooStats::SamplingDistPlot, ROOT::Experimental::XRooFit::xRooNLLVar::xRooHypoPoint, ROOT::Experimental::XRooFit::xRooNLLVar::xRooHypoSpace, ROOT::Experimental::XRooFit::xRooNode, ROOT::RGeoPainter, TArrow, TASImage, TBox, TBrowser, TButton, TCanvas, TChain, TClass, TClassTree, TCollection, TColorWheel, TDiamond, TDirectory, TEfficiency, TEllipse, TEveGeoNode, TEveGeoTopNode, TF1, TF2, TF3, TFile, TFITSHDU, TFrame, TGenerator, TGeoBatemanSol, TGeometry, TGeoNode, TGeoOverlap, TGeoPainter, TGeoParallelWorld, TGeoPhysicalNode, TGeoPolygon, TGeoShape, TGeoTrack, TGeoVGShape, TGeoVolume, TGItemContext, TGListTree, TGPicture, TGraph2D, TGraph, TGraphPolar, TGraphPolargram, TGraphStruct, TGraphTime, TH1, THelix, THStack, TLegend, TMarker, TMatrixTBase< Element >, TMatrixTBase< Double_t >, TMatrixTBase< Float_t >, TMultiDimFit, TMultiGraph, TMultiLayerPerceptron, TNode, TNodeDiv, TPad, TParallelCoord, TParallelCoordRange, TParallelCoordVar, TPave, TPaveLabel, TPavesText, TPaveText, TPie, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TRatioPlot, TSpider, TSpline, TStructViewer, TStructViewerGUI, TTree, TTreePerfStats, TVectorT< Element >, TVectorT< Double_t >, TVectorT< Float_t >, TVirtualPad, and TWbox.

Definition at line 293 of file TObject.cxx.

◆ DrawClass()

void TObject::DrawClass ( ) const

virtualinherited

Draw class inheritance tree of the class to which this object belongs.

If a class B inherits from a class A, description of B is drawn on the right side of description of A. Member functions overridden by B are shown in class A with a blue line crossing-out the corresponding member function. The following picture is the class inheritance tree of class TPaveLabel:

Reimplemented in TGFrame, TSystemDirectory, and TSystemFile.

Definition at line 308 of file TObject.cxx.

◆ DrawClone()

TObject * TObject::DrawClone ( Option_t * option = "" ) const

virtualinherited

Draw a clone of this object in the current selected pad with: gROOT->SetSelectedPad(c1).

If pad was not selected - gPad will be used.

Note: For histograms, use the more specialised TH1::DrawCopy().

Reimplemented in TAxis, TCanvas, TGFrame, TSystemDirectory, and TSystemFile.

Definition at line 319 of file TObject.cxx.

◆ Dump()

void TObject::Dump ( ) const

virtualinherited

Dump contents of object on stdout.

Using the information in the object dictionary (class TClass) each data member is interpreted. If a data member is a pointer, the pointer value is printed

The following output is the Dump of a TArrow object:

fAngle                   0           Arrow opening angle (degrees)
fArrowSize               0.2         Arrow Size
fOption.*fData
fX1                      0.1         X of 1st point
fY1                      0.15        Y of 1st point
fX2                      0.67        X of 2nd point
fY2                      0.83        Y of 2nd point
fUniqueID                0           object unique identifier
fBits                    50331648    bit field status word
fLineColor               1           line color
fLineStyle               1           line style
fLineWidth               1           line width
fFillColor               19          fill area color
fFillStyle               1001        fill area style

Reimplemented in TClass, TCollection, TGFrame, TGPack, and TSystemFile.

Definition at line 367 of file TObject.cxx.

◆ Error()

void TObject::Error	(	const char *	location,
		const char *	fmt,
			... ) const

virtualinherited

Issue error message.

Use "location" to specify the method where the error occurred. Accepts standard printf formatting arguments.

Reimplemented in TFitResult.

Definition at line 1098 of file TObject.cxx.

◆ Execute() [1/2]

void TObject::Execute	(	const char *	method,
		const char *	params,
		Int_t *	error = nullptr )

virtualinherited

Execute method on this object with the given parameter string, e.g.

"3.14,1,\"text\"".

Reimplemented in ROOT::R::TRInterface, TCling, TContextMenu, TInterpreter, and TMethodCall.

Definition at line 378 of file TObject.cxx.

◆ Execute() [2/2]

void TObject::Execute	(	TMethod *	method,
		TObjArray *	params,
		Int_t *	error = nullptr )

virtualinherited

Execute method on this object with parameters stored in the TObjArray.

The TObjArray should contain an argv vector like:

argv[0] ... argv[n] = the list of TObjString parameters

TObjString

Collectable string class.

Definition TObjString.h:28

n

const Int_t n

Definition legend1.C:16

Reimplemented in ROOT::R::TRInterface, TCling, TContextMenu, TInterpreter, and TMethodCall.

Definition at line 398 of file TObject.cxx.

◆ ExecuteEvent()

void TObject::ExecuteEvent	(	Int_t	event,
		Int_t	px,
		Int_t	py )

virtualinherited

Execute action corresponding to an event at (px,py).

This method must be overridden if an object can react to graphics events.

Reimplemented in TASImage, TASPaletteEditor::LimitLine, TAxis3D, TAxis, TBox, TButton, TCanvas, TCrown, TCurlyArc, TCurlyLine, TDiamond, TEfficiency, TEllipse, TF1, TF2, TF3, TFrame, TGenerator, TGeoManager, TGeoNode, TGeoOverlap, TGeoShape, TGeoTrack, TGeoVolume, TGL5DDataSet, TGLEventHandler, TGLHistPainter, TGLParametricEquation, TGLScenePad, TGLTH3Composition, TGLViewer, TGraph2D, TGraph, TGraphEdge, TGraphNode, TGraphPolargram, TGroupButton, TH1, THistPainter, TLine, TLink, TMarker3DBox, TMarker, TNode, TPad, TPaletteAxis, TParallelCoord, TParallelCoordRange, TParallelCoordVar, TParticle, TPave, TPie, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TPrimary, TScatter2D, TScatter, TSliderBox, TSpider, TSpline, TText, TTreePerfStats, TView3D, TView, TVirtualHistPainter, and TWbox.

Definition at line 415 of file TObject.cxx.

◆ Fatal()

void TObject::Fatal	(	const char *	location,
		const char *	fmt,
			... ) const

virtualinherited

Issue fatal error message.

Use "location" to specify the method where the fatal error occurred. Accepts standard printf formatting arguments.

Definition at line 1126 of file TObject.cxx.

◆ FillBuffer()

void TNamed::FillBuffer ( char *& buffer )

virtualinherited

Encode TNamed into output buffer.

Reimplemented in TDirectoryFile, TFile, TKey, TKeySQL, TKeyXML, TSQLFile, and TXMLFile.

Definition at line 103 of file TNamed.cxx.

◆ FindFullPathName() [1/2]

const char * TFolder::FindFullPathName ( const char * name ) const

virtual

Return the full pathname corresponding to subpath name if the node is gROOT->GetRootFolder() and return a relative path otherwise.

The returned path will be re-used by the next call to FindFullPathName().

Definition at line 230 of file TFolder.cxx.

◆ FindFullPathName() [2/2]

const char * TFolder::FindFullPathName ( const TObject * obj ) const

virtual

Return the full pathname corresponding to subpath name.

The returned path will be re-used by the next call to FindFullPathName().

Definition at line 275 of file TFolder.cxx.

◆ FindObject() [1/2]

TObject * TFolder::FindObject ( const char * name ) const

overridevirtual

Search object identified by name in the tree of folders inside this folder.

Name may be of the forms:

A. Specify a full pathname starting at the top ROOT folder //root/xxx/yyy/name

B. Specify a pathname starting with a single slash. //root is assumed /xxx/yyy/name

C. Specify a pathname relative to this folder xxx/yyy/name name

Reimplemented from TObject.

Definition at line 305 of file TFolder.cxx.

◆ FindObject() [2/2]

TObject * TFolder::FindObject ( const TObject * obj ) const

overridevirtual

Find object in an folder.

Reimplemented from TObject.

Definition at line 284 of file TFolder.cxx.

◆ FindObjectAny()

TObject * TFolder::FindObjectAny ( const char * name ) const

virtual

Return a pointer to the first object with name starting at this folder.

Definition at line 342 of file TFolder.cxx.

◆ GetDrawOption()

Option_t * TObject::GetDrawOption ( ) const

virtualinherited

Get option used by the graphics system to draw this object.

Note that before calling object.GetDrawOption(), you must have called object.Draw(..) before in the current pad.

Reimplemented in TBrowser, TFitEditor, TGedFrame, TGFileBrowser, TRootBrowser, and TRootBrowserLite.

Definition at line 445 of file TObject.cxx.

◆ GetDtorOnly()

Longptr_t TObject::GetDtorOnly ( )

staticinherited

Return destructor only flag.

Definition at line 1196 of file TObject.cxx.

◆ GetIconName()

const char * TObject::GetIconName ( ) const

virtualinherited

Returns mime type name of object.

Used by the TBrowser (via TGMimeTypes class). Override for class of which you would like to have different icons for objects of the same class.

Reimplemented in ROOT::Experimental::XRooFit::xRooNode, TASImage, TBranch, TBranchElement, TGeoVolume, TGMainFrame, TKey, TMethodBrowsable, TSystemFile, and TVirtualBranchBrowsable.

Definition at line 472 of file TObject.cxx.

◆ GetListOfFolders()

TCollection * TFolder::GetListOfFolders ( ) const

inline

Definition at line 55 of file TFolder.h.

◆ GetName()

const char * TNamed::GetName ( ) const

inlineoverridevirtualinherited

Returns name of object.

This default method returns the class name. Classes that give objects a name should override this method.

Reimplemented from TObject.

Definition at line 49 of file TNamed.h.

◆ GetObjectInfo()

char * TObject::GetObjectInfo	(	Int_t	px,
		Int_t	py ) const

virtualinherited

Returns string containing info about the object at position (px,py).

This method is typically overridden by classes of which the objects can report peculiarities for different positions. Returned string will be re-used (lock in MT environment).

Reimplemented in TASImage, TAxis3D, TColorWheel, TF1, TF2, TFileDrawMap, TGeoNode, TGeoTrack, TGeoVolume, TGL5DDataSet, TGLHistPainter, TGLParametricEquation, TGLTH3Composition, TGraph, TH1, THistPainter, TNode, TPaletteAxis, TParallelCoordVar, and TVirtualHistPainter.

Definition at line 491 of file TObject.cxx.

◆ GetObjectStat()

Bool_t TObject::GetObjectStat ( )

staticinherited

Get status of object stat flag.

Definition at line 1181 of file TObject.cxx.

◆ GetOption()

virtual Option_t * TObject::GetOption ( ) const

inlinevirtualinherited

Reimplemented in TArrow, TAxis3D, TFile, TGaxis, TGeoVolume, TH1, THelix, TLegendEntry, TMapFile, TNode, TPave, TPoints3DABC, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TPSocket, TSelector, TSocket, and TUDPSocket.

Definition at line 147 of file TObject.h.

◆ GetTitle()

const char * TNamed::GetTitle ( ) const

inlineoverridevirtualinherited

Returns title of object.

This default method returns the class title (i.e. description). Classes that give objects a title should override this method.

Reimplemented from TObject.

Definition at line 50 of file TNamed.h.

◆ GetUniqueID()

UInt_t TObject::GetUniqueID ( ) const

virtualinherited

Return the unique object id.

Definition at line 480 of file TObject.cxx.

◆ HandleTimer()

Bool_t TObject::HandleTimer ( TTimer * timer )

virtualinherited

Execute action in response of a timer timing out.

This method must be overridden if an object has to react to timers.

Reimplemented in TGCommandPlugin, TGDNDManager, TGFileContainer, TGHtml, TGLEventHandler, TGPopupMenu, TGraphTime, TGScrollBar, TGShutter, TGTextEdit, TGTextEditor, TGTextEntry, TGTextView, TGToolTip, TGuiBldDragManager, TGWindow, and TTreeViewer.

Definition at line 516 of file TObject.cxx.

◆ Hash()

ULong_t TNamed::Hash ( ) const

inlineoverridevirtualinherited

Return hash value for this object.

Note: If this routine is overloaded in a derived class, this derived class should also add

ROOT::CallRecursiveRemoveIfNeeded(*this)

ROOT::CallRecursiveRemoveIfNeeded

void CallRecursiveRemoveIfNeeded(TObject &obj)

call RecursiveRemove for obj if gROOT is valid and obj.TestBit(kMustCleanup) is true.

Definition TROOT.h:406

Otherwise, when RecursiveRemove is called (by ~TObject or example) for this type of object, the transversal of THashList and THashTable containers will will have to be done without call Hash (and hence be linear rather than logarithmic complexity). You will also see warnings like

Error in <ROOT::Internal::TCheckHashRecursiveRemoveConsistency::CheckRecursiveRemove>: The class SomeName overrides

TObject::Hash but does not call TROOT::RecursiveRemove in its destructor.

TNamed::Hash

ULong_t Hash() const override

Return hash value for this object.

Definition TNamed.h:51

TObject::Error

virtual void Error(const char *method, const char *msgfmt,...) const

Issue error message.

Definition TObject.cxx:1098

TObject::TObject

TObject()

TObject constructor.

Definition TObject.h:259

TROOT::RecursiveRemove

void RecursiveRemove(TObject *obj) override

Recursively remove this object from the list of Cleanups.

Definition TROOT.cxx:2651

Reimplemented from TObject.

Definition at line 51 of file TNamed.h.

◆ HasInconsistentHash()

Bool_t TObject::HasInconsistentHash ( ) const

inlineinherited

Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.

missing call to RecursiveRemove in destructor).

Note: Since the consistency is only tested for during inserts, this routine will return true for object that have never been inserted whether or not they have a consistent setup. This has no negative side-effect as searching for the object with the right or wrong Hash will always yield a not-found answer (Since anyway no hash can be guaranteed unique, there is always a check)

Definition at line 366 of file TObject.h.

◆ Info()

void TObject::Info	(	const char *	location,
		const char *	fmt,
			... ) const

virtualinherited

Issue info message.

Use "location" to specify the method where the warning occurred. Accepts standard printf formatting arguments.

Definition at line 1072 of file TObject.cxx.

◆ InheritsFrom() [1/2]

Bool_t TObject::InheritsFrom ( const char * classname ) const

virtualinherited

Returns kTRUE if object inherits from class "classname".

Reimplemented in TClass.

Definition at line 549 of file TObject.cxx.

◆ InheritsFrom() [2/2]

Bool_t TObject::InheritsFrom ( const TClass * cl ) const

virtualinherited

Returns kTRUE if object inherits from TClass cl.

Reimplemented in TClass.

Definition at line 557 of file TObject.cxx.

◆ Inspect()

void TObject::Inspect ( ) const

virtualinherited

Dump contents of this object in a graphics canvas.

Same action as Dump but in a graphical form. In addition pointers to other objects can be followed.

The following picture is the Inspect of a histogram object:

Reimplemented in ROOT::Experimental::XRooFit::xRooNode, TGFrame, TInspectorObject, and TSystemFile.

Definition at line 570 of file TObject.cxx.

◆ InvertBit()

void TObject::InvertBit ( UInt_t f )

inlineinherited

Definition at line 206 of file TObject.h.

◆ IsA()

TClass * TFolder::IsA ( ) const

inlineoverridevirtual

Returns: TClass describing current object

Reimplemented from TObject.

Definition at line 65 of file TFolder.h.

◆ IsDestructed()

Bool_t TObject::IsDestructed ( ) const

inlineinherited

IsDestructed.

Note: This function must be non-virtual as it can be used on destructed (but not yet modified) memory. This is used for example in TClonesArray to record the element that have been destructed but not deleted and thus are ready for re-use (by operator new with placement).

Returns: true if this object's destructor has been run.

Definition at line 186 of file TObject.h.

◆ IsEqual()

Bool_t TObject::IsEqual ( const TObject * obj ) const

virtualinherited

Default equal comparison (objects are equal if they have the same address in memory).

More complicated classes might want to override this function.

Reimplemented in TGObject, TObjString, TPair, and TQCommand.

Definition at line 589 of file TObject.cxx.

◆ IsFolder()

Bool_t TFolder::IsFolder ( ) const

inlineoverridevirtual

Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).

Reimplemented from TObject.

Definition at line 56 of file TFolder.h.

◆ IsOnHeap()

Bool_t TObject::IsOnHeap ( ) const

inlineinherited

Definition at line 160 of file TObject.h.

◆ IsOwner()

Bool_t TFolder::IsOwner ( ) const

Folder ownership has been set via.

TFolder::SetOwner
TCollection::SetOwner on the collection specified to TFolder::AddFolder

Definition at line 368 of file TFolder.cxx.

◆ IsSortable()

Bool_t TNamed::IsSortable ( ) const

inlineoverridevirtualinherited

Reimplemented from TObject.

Reimplemented in TStructNodeProperty.

Definition at line 52 of file TNamed.h.

◆ IsZombie()

Bool_t TObject::IsZombie ( ) const

inlineinherited

Definition at line 161 of file TObject.h.

◆ ls()

void TFolder::ls ( Option_t * option = "" ) const

overridevirtual

List folder contents.

If option contains "dump", the Dump function of contained objects is called.

If option contains "print", the Print function of contained objects is called.

By default the ls function of contained objects is called.

Indentation is used to identify the folder tree.

The if option contains a <regexp> it be used to match the name of the objects.

Reimplemented from TObject.

Definition at line 387 of file TFolder.cxx.

◆ MakeZombie()

void TObject::MakeZombie ( )

inlineprotectedinherited

Definition at line 55 of file TObject.h.

◆ MayNotUse()

void TObject::MayNotUse ( const char * method ) const

inherited

Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).

Definition at line 1160 of file TObject.cxx.

◆ Notify()

Bool_t TObject::Notify ( )

virtualinherited

This method must be overridden to handle object notification (the base implementation is no-op).

Different objects in ROOT use the Notify method for different purposes, in coordination with other objects that call this method at the appropriate time.

For example, TLeaf uses it to load class information; TBranchRef to load contents of referenced branches TBranchRef; most notably, based on Notify, TChain implements a callback mechanism to inform interested parties when it switches to a new sub-tree.

Reimplemented in h1analysis, h1analysisTreeReader, TARInterruptHandler, TASInputHandler, TASInterruptHandler, TASLogHandler, TASSigPipeHandler, TBlinkTimer, TBranchElement, TBranchRef, TBreakLineCom, TBrowserTimer, TCollection, TDelCharCom, TDelTextCom, TFileHandler, TGContainerKeyboardTimer, TGContainerScrollTimer, TGInputHandler, TGLRedrawTimer, TGTextEditHist, TGuiBldDragManagerRepeatTimer, TIdleTimer, TInsCharCom, TInsTextCom, TInterruptHandler, TLeafObject, TMessageHandler, TNotifyLink< Type >, TNotifyLink< RNoCleanupNotifierHelper >, TNotifyLink< ROOT::Detail::TBranchProxy >, TNotifyLink< TTreeReader >, TPopupDelayTimer, TProcessEventTimer, TRefTable, TRepeatTimer, TSBRepeatTimer, TSelector, TSelectorDraw, TSelectorEntries, TSignalHandler, TSingleShotCleaner, TSocketHandler, TStdExceptionHandler, TSysEvtHandler, TTermInputHandler, TThreadTimer, TTimeOutTimer, TTimer, TTipDelayTimer, TTree, TTreeFormula, TTreeFormulaManager, TTreeReader, TViewTimer, and TViewUpdateTimer.

Definition at line 618 of file TObject.cxx.

◆ Obsolete()

void TObject::Obsolete	(	const char *	method,
		const char *	asOfVers,
		const char *	removedFromVers ) const

inherited

Use this method to declare a method obsolete.

Specify as of which version the method is obsolete and as from which version it will be removed.

Definition at line 1169 of file TObject.cxx.

◆ Occurence()

Int_t TFolder::Occurence ( const TObject * object ) const

virtual

Return occurrence number of object in the list of objects of this folder.

The function returns the number of objects with the same name as object found in the list of objects in this folder before object itself. If only one object is found, return 0.

Definition at line 426 of file TFolder.cxx.

◆ operator delete() [1/3]

void TObject::operator delete	(	void *	ptr,
		size_t	size )

inherited

Operator delete for sized deallocation.

Definition at line 1234 of file TObject.cxx.

◆ operator delete() [2/3]

void TObject::operator delete ( void * ptr )

inherited

Operator delete.

Definition at line 1212 of file TObject.cxx.

◆ operator delete() [3/3]

void TObject::operator delete	(	void *	ptr,
		void *	vp )

inherited

Only called by placement new when throwing an exception.

Definition at line 1266 of file TObject.cxx.

◆ operator delete[]() [1/3]

void TObject::operator delete[]	(	void *	ptr,
		size_t	size )

inherited

Operator delete [] for sized deallocation.

Definition at line 1245 of file TObject.cxx.

◆ operator delete[]() [2/3]

void TObject::operator delete[] ( void * ptr )

inherited

Operator delete [].

Definition at line 1223 of file TObject.cxx.

◆ operator delete[]() [3/3]

void TObject::operator delete[]	(	void *	ptr,
		void *	vp )

inherited

Only called by placement new[] when throwing an exception.

Definition at line 1274 of file TObject.cxx.

◆ operator new() [1/2]

void * TObject::operator new ( size_t sz )

inlineinherited

Definition at line 189 of file TObject.h.

◆ operator new() [2/2]

void * TObject::operator new	(	size_t	sz,
		void *	vp )

inlineinherited

Definition at line 191 of file TObject.h.

◆ operator new[]() [1/2]

void * TObject::operator new[] ( size_t sz )

inlineinherited

Definition at line 190 of file TObject.h.

◆ operator new[]() [2/2]

void * TObject::operator new[]	(	size_t	sz,
		void *	vp )

inlineinherited

Definition at line 192 of file TObject.h.

◆ operator=()

void TFolder::operator= ( const TFolder & )

privatedelete

◆ Paint()

void TObject::Paint ( Option_t * option = "" )

virtualinherited

This method must be overridden if a class wants to paint itself.

The difference between Paint() and Draw() is that when a object draws itself it is added to the display list of the pad in which it is drawn (and automatically redrawn whenever the pad is redrawn). While paint just draws the object without adding it to the pad display list.

Reimplemented in ROOT::Experimental::RTreeMapPainter, ROOT::RGeoPainter, TAnnotation, TArrow, TASImage, TASPaletteEditor::LimitLine, TASPaletteEditor::PaintPalette, TAxis3D, TBits, TBox, TButton, TCanvas, TClassTree, TCollection, TColorWheel, TCrown, TDiamond, TDirectory, TEfficiency, TEllipse, TEveArrow, TEveCaloViz, TEveDigitSet, TEveGeoShape, TEveGeoTopNode, TEvePlot3D, TEvePointSet, TEveProjectionAxes, TEveScene, TEveShape, TEveStraightLineSet, TEveText, TEveTriangleSet, TExec, TF1, TF2, TF3, TFile, TFileDrawMap, TFrame, TGaxis, TGenerator, TGeoBoolNode, TGeoIntersection, TGeoNode, TGeoOverlap, TGeoPainter, TGeoPhysicalNode, TGeoShape, TGeoSubtraction, TGeoTrack, TGeoUnion, TGeoVGShape, TGeoVolume, TGL5DDataSet, TGLHistPainter, TGLParametricEquation, TGLTH3Composition, TGraph2D, TGraph2DPainter, TGraph, TGraphEdge, TGraphNode, TGraphPolargram, TGraphTime, TH1, THistPainter, THStack, TLatex, TLegend, TLine, TMacro, TMarker3DBox, TMarker, TMathText, TMultiGraph, TNode, TNodeDiv, TPad, TPaletteAxis, TParallelCoord, TParallelCoordRange, TParallelCoordVar, TParticle, TPave, TPaveLabel, TPaveStats, TPavesText, TPaveText, TPie, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TPrimary, TRatioPlot, TScatter2D, TScatter, TShape, TSpectrum2Painter, TSpider, TSpline, TSQLFile, TStyle, TText, TTreePerfStats, TVirtualGeoPainter, TVirtualGeoTrack, TVirtualHistPainter, TVirtualPad, TWbox, and TXMLFile.

Definition at line 631 of file TObject.cxx.

◆ Pop()

void TObject::Pop ( )

virtualinherited

Pop on object drawn in a pad to the top of the display list.

I.e. it will be drawn last and on top of all other primitives.

Reimplemented in TFrame, TPad, and TVirtualPad.

Definition at line 640 of file TObject.cxx.

◆ Print()

void TNamed::Print ( Option_t * option = "" ) const

overridevirtualinherited

Print TNamed name and title.

Reimplemented from TObject.

Reimplemented in ROOT::Experimental::XRooFit::xRooNLLVar::xRooHypoPoint, ROOT::Experimental::XRooFit::xRooNLLVar::xRooHypoSpace, ROOT::Experimental::XRooFit::xRooNode, TParallelCoordRange, TParallelCoordVar, TParticleClassPDG, TParticlePDG, TPrincipal, TScatter2D, TScatter, TSpectrum2, TSpectrum3, TSpectrum, TSQLColumnInfo, TSQLFile, TSQLTableInfo, TText, TTree, TTreeIndex, TXMLFile, and TXTRU.

Definition at line 127 of file TNamed.cxx.

◆ Read()

Int_t TObject::Read ( const char * name )

virtualinherited

Read contents of object with specified name from the current directory.

First the key with the given name is searched in the current directory, next the key buffer is deserialized into the object. The object must have been created before via the default constructor. See TObject::Write().

Reimplemented in TBuffer, TKey, TKeySQL, and TKeyXML.

Definition at line 673 of file TObject.cxx.

◆ RecursiveRemove()

void TFolder::RecursiveRemove ( TObject * obj )

overridevirtual

Recursively remove object from a folder.

Reimplemented from TObject.

Definition at line 448 of file TFolder.cxx.

◆ Remove()

void TFolder::Remove ( TObject * obj )

virtual

Remove object from this folder. obj must be a TObject or a TFolder.

Definition at line 456 of file TFolder.cxx.

◆ ResetBit()

void TObject::ResetBit ( UInt_t f )

inlineinherited

Definition at line 203 of file TObject.h.

◆ SaveAs()

void TFolder::SaveAs	(	const char *	filename = "",
		Option_t *	option = "" ) const

overridevirtual

Save all objects in this folder in filename.

Each object in this folder will have a key in the file where the name of the key will be the name of the object.

Reimplemented from TObject.

Definition at line 467 of file TFolder.cxx.

◆ SavePrimitive()

void TObject::SavePrimitive	(	std::ostream &	out,
		Option_t *	option = "" )

virtualinherited

Save a primitive as a C++ statement(s) on output stream "out".

Reimplemented in TAnnotation, TArc, TArrow, TASImage, TAxis3D, TBox, TButton, TCanvas, TChain, TCrown, TCurlyArc, TCurlyLine, TCutG, TDiamond, TEfficiency, TEllipse, TExec, TF12, TF1, TF2, TF3, TFrame, TGaxis, TGButton, TGButtonGroup, TGCanvas, TGCheckButton, TGColorSelect, TGColumnLayout, TGComboBox, TGCompositeFrame, TGContainer, TGDockableFrame, TGDoubleHSlider, TGDoubleVSlider, TGedMarkerSelect, TGedPatternSelect, TGeoArb8, TGeoBBox, TGeoBoolNode, TGeoCombiTrans, TGeoCompositeShape, TGeoCone, TGeoConeSeg, TGeoCtub, TGeoDecayChannel, TGeoElementRN, TGeoEltu, TGeoGtra, TGeoHalfSpace, TGeoHMatrix, TGeoHype, TGeoIdentity, TGeoIntersection, TGeoMaterial, TGeoMedium, TGeoMixture, TGeoPara, TGeoParaboloid, TGeoPatternCylPhi, TGeoPatternCylR, TGeoPatternParaX, TGeoPatternParaY, TGeoPatternParaZ, TGeoPatternSphPhi, TGeoPatternSphR, TGeoPatternSphTheta, TGeoPatternTrapZ, TGeoPatternX, TGeoPatternY, TGeoPatternZ, TGeoPcon, TGeoPgon, TGeoRotation, TGeoScaledShape, TGeoShapeAssembly, TGeoSphere, TGeoSubtraction, TGeoTessellated, TGeoTorus, TGeoTranslation, TGeoTrap, TGeoTrd1, TGeoTrd2, TGeoTube, TGeoTubeSeg, TGeoUnion, TGeoVolume, TGeoXtru, TGFileContainer, TGFont, TGFrame, TGFSComboBox, TGGC, TGGroupFrame, TGHButtonGroup, TGHorizontal3DLine, TGHorizontalFrame, TGHorizontalLayout, TGHProgressBar, TGHScrollBar, TGHSlider, TGHSplitter, TGHtml, TGIcon, TGLabel, TGLayoutHints, TGLineStyleComboBox, TGLineWidthComboBox, TGListBox, TGListDetailsLayout, TGListLayout, TGListTree, TGListView, TGLVContainer, TGMainFrame, TGMatrixLayout, TGMdiFrame, TGMdiMainFrame, TGMdiMenuBar, TGMenuBar, TGMenuTitle, TGNumberEntry, TGNumberEntryField, TGPictureButton, TGPopupMenu, TGProgressBar, TGRadioButton, TGraph2D, TGraph2DAsymmErrors, TGraph2DErrors, TGraph, TGraphAsymmErrors, TGraphBentErrors, TGraphEdge, TGraphErrors, TGraphMultiErrors, TGraphNode, TGraphPolar, TGraphPolargram, TGraphStruct, TGroupButton, TGRowLayout, TGShapedFrame, TGShutter, TGShutterItem, TGSplitFrame, TGStatusBar, TGTab, TGTabLayout, TGTableLayout, TGTableLayoutHints, TGTextButton, TGTextEdit, TGTextEntry, TGTextLBEntry, TGTextView, TGTileLayout, TGToolBar, TGTransientFrame, TGTripleHSlider, TGTripleVSlider, TGVButtonGroup, TGVertical3DLine, TGVerticalFrame, TGVerticalLayout, TGVFileSplitter, TGVProgressBar, TGVScrollBar, TGVSlider, TGVSplitter, TGXYLayout, TGXYLayoutHints, TH1, TH2Poly, THelix, THStack, TLatex, TLegend, TLine, TMacro, TMarker3DBox, TMarker, TMathText, TMultiGraph, TPad, TPaletteAxis, TParallelCoord, TParallelCoordVar, TPave, TPaveClass, TPaveLabel, TPaveStats, TPavesText, TPaveText, TPie, TPieSlice, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TProfile2D, TProfile3D, TProfile, TRootContainer, TRootEmbeddedCanvas, TScatter2D, TScatter, TSlider, TSliderBox, TSpline3, TSpline5, TStyle, TText, TTreePerfStats, and TWbox.

Definition at line 858 of file TObject.cxx.

◆ SavePrimitiveConstructor()

void TObject::SavePrimitiveConstructor	(	std::ostream &	out,
		TClass *	cl,
		const char *	variable_name,
		const char *	constructor_agrs = "",
		Bool_t	empty_line = kTRUE )

staticprotectedinherited

Save object constructor in the output stream "out".

Can be used as first statement when implementing SavePrimitive() method for the object

Definition at line 777 of file TObject.cxx.

◆ SavePrimitiveDraw()

void TObject::SavePrimitiveDraw	(	std::ostream &	out,
		const char *	variable_name,
		Option_t *	option = nullptr )

staticprotectedinherited

Save invocation of primitive Draw() method Skipped if option contains "nodraw" string.

Definition at line 845 of file TObject.cxx.

◆ SavePrimitiveNameTitle()

void TNamed::SavePrimitiveNameTitle	(	std::ostream &	out,
		const char *	variable_name )

protectedinherited

Save object name and title into the output stream "out".

Definition at line 135 of file TNamed.cxx.

◆ SavePrimitiveVector()

TString TObject::SavePrimitiveVector	(	std::ostream &	out,
		const char *	prefix,
		Int_t	len,
		Double_t *	arr,
		Int_t	flag = 0 )

staticprotectedinherited

Save array in the output stream "out" as vector.

Create unique variable name based on prefix value Returns name of vector which can be used in constructor or in other places of C++ code If flag === kTRUE, just add empty line If flag === 111, check if array is empty and return nullptr or <vectorname>.data()

Definition at line 796 of file TObject.cxx.

◆ SetBit() [1/2]

void TObject::SetBit ( UInt_t f )

inlineinherited

Definition at line 202 of file TObject.h.

◆ SetBit() [2/2]

void TObject::SetBit	(	UInt_t	f,
		Bool_t	set )

inherited

Set or unset the user status bits as specified in f.

Definition at line 888 of file TObject.cxx.

◆ SetDrawOption()

void TObject::SetDrawOption ( Option_t * option = "" )

virtualinherited

Set drawing option for object.

This option only affects the drawing style and is stored in the option field of the TObjOptLink supporting a TPad's primitive list (TList). Note that it does not make sense to call object.SetDrawOption(option) before having called object.Draw().

Reimplemented in RooPlot, TAxis, TBrowser, TGedFrame, TGFrame, TPad, TPaveStats, TRootBrowserLite, TSystemDirectory, and TSystemFile.

Definition at line 871 of file TObject.cxx.

◆ SetDtorOnly()

void TObject::SetDtorOnly ( void * obj )

staticinherited

Set destructor only flag.

Definition at line 1204 of file TObject.cxx.

◆ SetName()

void TNamed::SetName ( const char * name )

virtualinherited

Set the name of the TNamed.

WARNING: if the object is a member of a THashTable or THashList container the container must be Rehash()'ed after SetName(). For example the list of objects in the current directory is a THashList.

Reimplemented in RooAbsArg, RooAbsData, RooDataHist, RooDataSet, RooFitResult, RooPlot, ROOT::Experimental::XRooFit::xRooNode, TChain, TColor, TDirectory, TEfficiency, TEventList, TEveScene, TFormula, TGraph2D, TGraph, TH1, TNode, TRotMatrix, TShape, TSystemDirectory, TSystemFile, and TTree.

Definition at line 149 of file TNamed.cxx.

◆ SetNameTitle()

void TNamed::SetNameTitle	(	const char *	name,
		const char *	title )

virtualinherited

Set all the TNamed parameters (name and title).

WARNING: if the name is changed and the object is a member of a THashTable or THashList container the container must be Rehash()'ed after SetName(). For example the list of objects in the current directory is a THashList.

Reimplemented in RooAbsArg, RooAbsData, RooDataHist, RooDataSet, RooFitResult, RooPlot, TContextMenu, TGraph2D, TGraph, TH1, and TNode.

Definition at line 163 of file TNamed.cxx.

◆ SetObjectStat()

void TObject::SetObjectStat ( Bool_t stat )

staticinherited

Turn on/off tracking of objects in the TObjectTable.

Definition at line 1188 of file TObject.cxx.

◆ SetOwner()

void TFolder::SetOwner ( Bool_t owner = kTRUE )

virtual

Set ownership.

If the folder is declared owner, when the folder is deleted, all the objects added via TFolder::Add are deleted via TObject::Delete, otherwise TObject::Clear is called.

NOTE that folder ownership can be set:

via TFolder::SetOwner
or via TCollection::SetOwner on the collection specified to TFolder::AddFolder

Definition at line 482 of file TFolder.cxx.

◆ SetTitle()

void TNamed::SetTitle ( const char * title = "" )

virtualinherited

Set the title of the TNamed.

Reimplemented in Axis2, RooPlot, ROOT::Experimental::XRooFit::xRooNode, ROOT::TSchemaRule::TSources, TASImage, TEfficiency, TF1, TGraph2D, TGraph, TH1, THnBase, TParallelCoordVar, TSystemDirectory, and TSystemFile.

Definition at line 173 of file TNamed.cxx.

◆ SetUniqueID()

void TObject::SetUniqueID ( UInt_t uid )

virtualinherited

Set the unique object id.

Definition at line 899 of file TObject.cxx.

◆ Sizeof()

Int_t TNamed::Sizeof ( ) const

virtualinherited

Return size of the TNamed part of the TObject.

Reimplemented in TDirectory, TDirectoryFile, TFile, TKey, TSQLFile, and TXMLFile.

Definition at line 182 of file TNamed.cxx.

◆ Streamer()

void TFolder::Streamer ( TBuffer & R__b )

overridevirtual

Stream an object of class TObject.

Reimplemented from TObject.

◆ StreamerNVirtual()

void TFolder::StreamerNVirtual ( TBuffer & ClassDef_StreamerNVirtual_b )

inline

Definition at line 65 of file TFolder.h.

◆ SysError()

void TObject::SysError	(	const char *	location,
		const char *	fmt,
			... ) const

virtualinherited

Issue system error message.

Use "location" to specify the method where the system error occurred. Accepts standard printf formatting arguments.

Definition at line 1112 of file TObject.cxx.

◆ TestBit()

Bool_t TObject::TestBit ( UInt_t f ) const

inlineinherited

Definition at line 204 of file TObject.h.

◆ TestBits()

Int_t TObject::TestBits ( UInt_t f ) const

inlineinherited

Definition at line 205 of file TObject.h.

◆ UseCurrentStyle()

void TObject::UseCurrentStyle ( )

virtualinherited

Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.

Reimplemented in TAxis3D, TCanvas, TFrame, TGraph, TH1, TPad, TPaveStats, TPaveText, and TTree.

Definition at line 909 of file TObject.cxx.

◆ Warning()

void TObject::Warning	(	const char *	location,
		const char *	fmt,
			... ) const

virtualinherited

Issue warning message.

Use "location" to specify the method where the warning occurred. Accepts standard printf formatting arguments.

Definition at line 1084 of file TObject.cxx.

◆ Write() [1/2]

Int_t TObject::Write	(	const char *	name = nullptr,
		Int_t	option = 0,
		Int_t	bufsize = 0 )

virtualinherited

Write this object to the current directory.

For more see the const version of this method.

Reimplemented in ROOT::TBufferMergerFile, TBuffer, TCollection, TDirectory, TDirectoryFile, TFile, TMap, TParallelMergingFile, TSQLFile, TTree, and TXMLFile.

Definition at line 989 of file TObject.cxx.

◆ Write() [2/2]

Int_t TObject::Write	(	const char *	name = nullptr,
		Int_t	option = 0,
		Int_t	bufsize = 0 ) const

virtualinherited

Write this object to the current directory.

The data structure corresponding to this object is serialized. The corresponding buffer is written to the current directory with an associated key with name "name".

Writing an object to a file involves the following steps:

Creation of a support TKey object in the current directory. The TKey object creates a TBuffer object.
The TBuffer object is filled via the class::Streamer function.
If the file is compressed (default) a second buffer is created to hold the compressed buffer.
Reservation of the corresponding space in the file by looking in the TFree list of free blocks of the file.
The buffer is written to the file.

Bufsize can be given to force a given buffer size to write this object. By default, the buffersize will be taken from the average buffer size of all objects written to the current file so far.

If a name is specified, it will be the name of the key. If name is not given, the name of the key will be the name as returned by GetName().

The option can be a combination of: kSingleKey, kOverwrite or kWriteDelete Using the kOverwrite option a previous key with the same name is overwritten. The previous key is deleted before writing the new object. Using the kWriteDelete option a previous key with the same name is deleted only after the new object has been written. This option is safer than kOverwrite but it is slower. NOTE: Neither kOverwrite nor kWriteDelete reduces the size of a TFile– the space is simply freed up to be overwritten; in the case of a TTree, it is more complicated. If one opens a TTree, appends some entries, then writes it out, the behaviour is effectively the same. If, however, one creates a new TTree and writes it out in this way, only the metadata is replaced, effectively making the old data invisible without deleting it. TTree::Delete() can be used to mark all disk space occupied by a TTree as free before overwriting its metadata this way. The kSingleKey option is only used by TCollection::Write() to write a container with a single key instead of each object in the container with its own key.

An object is read from the file into memory via TKey::Read() or via TObject::Read().

The function returns the total number of bytes written to the file. It returns 0 if the object cannot be written.

Reimplemented in TBuffer, TCollection, TDirectory, TDirectoryFile, TFile, TMap, TParallelMergingFile, TSQLFile, TTree, and TXMLFile.

Definition at line 964 of file TObject.cxx.

Member Data Documentation

◆ fBits

UInt_t TObject::fBits

privateinherited

bit field status word

Definition at line 47 of file TObject.h.

◆ fFolders

TCollection* TFolder::fFolders

protected

Definition at line 33 of file TFolder.h.

◆ fgDtorOnly

Longptr_t TObject::fgDtorOnly = 0

staticprivateinherited

object for which to call dtor only (i.e. no delete)

Definition at line 49 of file TObject.h.

◆ fgObjectStat

Bool_t TObject::fgObjectStat = kTRUE

staticprivateinherited

if true keep track of objects in TObjectTable

Definition at line 50 of file TObject.h.

◆ fIsOwner

Bool_t TFolder::fIsOwner

protected

Definition at line 34 of file TFolder.h.

◆ fName

TString TNamed::fName

protectedinherited

Definition at line 32 of file TNamed.h.

◆ fTitle

TString TNamed::fTitle

protectedinherited

Definition at line 33 of file TNamed.h.

◆ fUniqueID

UInt_t TObject::fUniqueID

privateinherited

object unique identifier

Definition at line 46 of file TObject.h.

The documentation for this class was generated from the following files:

core/base/inc/TFolder.h
core/base/src/TFolder.cxx

Legacy Code

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Member Enumeration Documentation

◆ anonymous enum

◆ anonymous enum

◆ anonymous enum

◆ EDeprecatedStatusBits

◆ EStatusBits

Constructor & Destructor Documentation

◆ TFolder() [1/3]

◆ TFolder() [2/3]

◆ TFolder() [3/3]

◆ ~TFolder()

Member Function Documentation

◆ AbstractMethod()

◆ Add()

◆ AddFolder()

◆ AddToTObjectTable()

◆ AppendPad()

◆ Browse()

◆ CheckedHash()

◆ Class()

◆ Class_Name()

◆ Class_Version()

◆ ClassName()

◆ Clear()

◆ Clone()

◆ Compare()

◆ Copy()

◆ DeclFileName()

◆ Delete()

◆ DistancetoPrimitive()

◆ DoError()

◆ Draw()

◆ DrawClass()

◆ DrawClone()

◆ Dump()

◆ Error()

◆ Execute() [1/2]

◆ Execute() [2/2]

◆ ExecuteEvent()

◆ Fatal()

◆ FillBuffer()

◆ FindFullPathName() [1/2]

◆ FindFullPathName() [2/2]

◆ FindObject() [1/2]

◆ FindObject() [2/2]

◆ FindObjectAny()

◆ GetDrawOption()

◆ GetDtorOnly()

◆ GetIconName()

◆ GetListOfFolders()

◆ GetName()

◆ GetObjectInfo()

◆ GetObjectStat()

◆ GetOption()

◆ GetTitle()

◆ GetUniqueID()

◆ HandleTimer()

◆ Hash()

◆ HasInconsistentHash()

◆ Info()

◆ InheritsFrom() [1/2]

◆ InheritsFrom() [2/2]

◆ Inspect()

◆ InvertBit()

◆ IsA()

◆ IsDestructed()

◆ IsEqual()

◆ IsFolder()
