TDataMember Class Reference

All ROOT classes may have RTTI (run time type identification) support added.

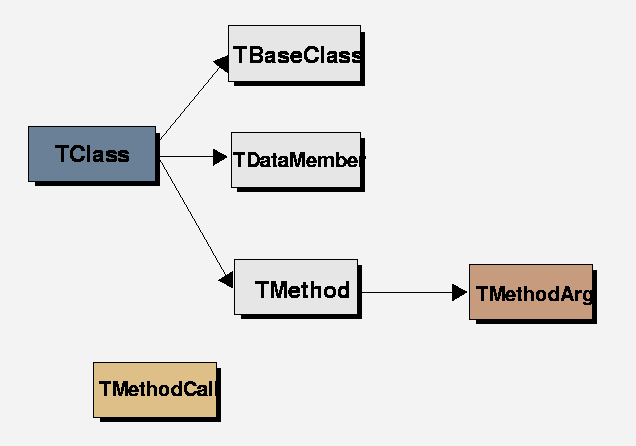

The data is stored in so called DICTIONARY (look at TDictionary). Information about a class is stored in TClass. This information may be obtained via the cling api - see class TCling. TClass has a list of TDataMember objects providing information about all data members of described class.

TDataMember provides information about name of data member, its type, and comment field string. It also tries to find the TMethodCall objects responsible for getting/setting a value of it, and gives you pointers to these methods. This gives you a unique possibility to access protected and private (!) data members if only methods for doing that are defined.

These methods could either be specified in a comment field, or found out automatically by ROOT: here's an example: suppose you have a class definition:

class MyClass{
    private:
        Float_t fX1;
            ...
    public:
        void    SetX1(Float_t x) {fX1 = x;};
        Float_t GetX1()          {return fX1;};
            ...
}

Look at the data member name and method names: a data member name has a prefix letter (f) and has a base name X1 . The methods for getting and setting this value have names which consist of string Get/Set and the same base name. This convention of naming data fields and methods which access them allows TDataMember find this methods by itself completely automatically. To make this description complete, one should know, that names that are automatically recognized may be also: for data fields: either fXXX or fIsXXX; and for getter function GetXXX() or IsXXX() [where XXX is base name].

As an example of using it let's analyse a few lines which get and set a fEditable field in TCanvas:

TCanvas     *c  = new TCanvas("c");   // create a canvas
TClass      *cl = c->IsA();            // get its class description object.

TDataMember *dm = cl->GetDataMember("fEditable"); //This is our data member

TMethodCall *getter = dm->GetterMethod(c); //find a method that gets value!
Long_t l;   // declare a storage for this value;

getter->Execute(c,"",l);  // Get this Value !!!! It will appear in l !!!


TMethodCall *setter = dm->SetterMethod(c);
setter->Execute(c,"0",);   // Set Value 0 !!!

This trick is widely used in ROOT TContextMenu and dialogs for obtaining current values and put them as initial values in dialog fields.

If you don't want to follow the convention of naming used by ROOT you still could benefit from Getter/Setter method support: the solution is to instruct ROOT what the names of these routines are. The way to do it is putting this information in a comment string to a data field in your class declaration:

class MyClass{
    Int_t mydata;  //  *OPTIONS={GetMethod="Get";SetMethod="Set"}
     ...
    Int_t Get() const { return mydata;};
    void  Set(Int_t i) {mydata=i;};
    }

However, this getting/setting functions are not the only feature of this class. The next point is providing lists of possible settings for the concerned data member. The idea is to have a list of possible options for this data member, with strings identifying them. This is used in dialogs with parameters to set - for details see TMethodArg, TRootContextMenu, TContextMenu. This list not only specifies the allowed value, but also provides strings naming the options. Options are managed via TList of TOptionListItem objects. This list is also created automatically: if a data type is an enum type, the list will have items describing every enum value, and named according to enum name. If type is Bool_t, two options "On" and "Off" with values 0 and 1 are created. For other types you need to instruct ROOT about possible options. The way to do it is the same as in case of specifying getter/setter method: a comment string to a data field in Your header file with class definition. The most general format of this string is:

*OPTIONS={GetMethod="getter";SetMethod="setter";Items=(it1="title1",it2="title2", ... ) }

While parsing this string ROOT firstly looks for command-tokens: GetMethod, SetMethod, Items; They must be preceded by string OPTIONS= , enclosed by {} and separated by semicolons ";". All command token should have a form TOKEN=VALUE. All tokens are optional. The names of getter and setter method must be enclosed by double-quote marks (") . Specifications of Items is slightly more complicated: you need to put token ITEMS= and then enclose all options in curly brackets "()". You separate options by comas ",". Each option item may have one of the following forms: @icode {.cpp} IntegerValue = "Text Label" EnumValue = "Text Label" "TextValue" = Text Label"

{.cpp}

One can specify values as Integers or Enums - when data field is an Integer, Float or Enum type; as texts - for char (more precisely: Option_t).

As mentioned above - this information are mainly used by contextmenu, but also in Dump() and Inspect() methods and by the THtml class.

Definition at line 31 of file TDataMember.h.

Public Types
enum	{ kSingleKey = (1ULL << (0)) , kOverwrite = (1ULL << (1)) , kWriteDelete = (1ULL << (2)) }
enum	{   kIsOnHeap = 0x01000000 , kNotDeleted = 0x02000000 , kZombie = 0x04000000 , kInconsistent = 0x08000000 ,   kBitMask = 0x00ffffff }
typedef const void *	DeclId_t
enum	EDeprecatedStatusBits { kObjInCanvas = (1ULL << (3)) }
enum class	EMemberSelection { kNoUsingDecls , kOnlyUsingDecls , kAlsoUsingDecls }
	Kinds of members to include in lists. More...
enum	ESTLType {   kNone = ROOT::kNotSTL , kVector = ROOT::kSTLvector , kList = ROOT::kSTLlist , kForwardlist = ROOT::kSTLforwardlist ,   kDeque = ROOT::kSTLdeque , kMap = ROOT::kSTLmap , kMultimap = ROOT::kSTLmultimap , kSet = ROOT::kSTLset ,   kMultiset = ROOT::kSTLmultiset , kUnorderedSet = ROOT::kSTLunorderedset , kUnorderedMultiset = ROOT::kSTLunorderedmultiset , kUnorderedMap = ROOT::kSTLunorderedmap ,   kUnorderedMultimap = ROOT::kSTLunorderedmultimap , kBitset = ROOT::kSTLbitset }

Public Member Functions
	TDataMember (DataMemberInfo_t *info=nullptr, TClass *cl=nullptr)
	Default TDataMember ctor.
virtual	~TDataMember ()
	TDataMember dtor deletes adopted CINT DataMemberInfo object.
void	AbstractMethod (const char *method) const
	Call this function within a function that you don't want to define as purely virtual, in order not to force all users deriving from that class to implement that maybe (on their side) unused function; but at the same time, emit a run-time warning if they try to call it, telling that it is not implemented in the derived class: action must thus be taken on the user side to override it.
virtual void	AppendPad (Option_t *option="")
	Append graphics object to current pad.
virtual void	Browse (TBrowser *b)
	Browse object. May be overridden for another default action.
ULong_t	CheckedHash ()
	Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.
virtual const char *	ClassName () const
	Returns name of class to which the object belongs.
void	Clear (Option_t *option="") override
	Set name and title to empty strings ("").
TObject *	Clone (const char *newname="") const override
	Make a clone of an object using the Streamer facility.
Int_t	Compare (const TObject *obj) const override
	Compare two TNamed objects.
void	Copy (TObject &named) const override
	Copy this to obj.
void	CreateAttributeMap ()
virtual void	Delete (Option_t *option="")
	Delete this object.
virtual Int_t	DistancetoPrimitive (Int_t px, Int_t py)
	Computes distance from point (px,py) to the object.
virtual void	Draw (Option_t *option="")
	Default Draw method for all objects.
virtual void	DrawClass () const
	Draw class inheritance tree of the class to which this object belongs.
virtual TObject *	DrawClone (Option_t *option="") const
	Draw a clone of this object in the current selected pad with: gROOT->SetSelectedPad(c1).
virtual void	Dump () const
	Dump contents of object on stdout.
virtual void	Error (const char *method, const char *msgfmt,...) const
	Issue error message.
virtual void	Execute (const char *method, const char *params, Int_t *error=nullptr)
	Execute method on this object with the given parameter string, e.g.
virtual void	Execute (TMethod *method, TObjArray *params, Int_t *error=nullptr)
	Execute method on this object with parameters stored in the TObjArray.
virtual void	ExecuteEvent (Int_t event, Int_t px, Int_t py)
	Execute action corresponding to an event at (px,py).
virtual void	Fatal (const char *method, const char *msgfmt,...) const
	Issue fatal error message.
virtual void	FillBuffer (char *&buffer)
	Encode TNamed into output buffer.
virtual TObject *	FindObject (const char *name) const
	Must be redefined in derived classes.
virtual TObject *	FindObject (const TObject *obj) const
	Must be redefined in derived classes.
Int_t	GetArrayDim () const
	Return number of array dimensions.
const char *	GetArrayIndex () const
	If the data member is pointer and has a valid array size in its comments GetArrayIndex returns a string pointing to it; otherwise it returns an empty string.
TDictAttributeMap *	GetAttributeMap () const
TClass *	GetClass () const
TDataType *	GetDataType () const
DeclId_t	GetDeclId () const
virtual Option_t *	GetDrawOption () const
	Get option used by the graphics system to draw this object.
const char *	GetFullTypeName () const
	Get the concrete type name of this data member, including const and volatile qualifiers.
virtual const char *	GetIconName () const
	Returns mime type name of object.
Int_t	GetMaxIndex (Int_t dim) const
	Return maximum index for array dimension "dim".
const char *	GetName () const override
	Returns name of object.
virtual char *	GetObjectInfo (Int_t px, Int_t py) const
	Returns string containing info about the object at position (px,py).
Longptr_t	GetOffset () const
	Get offset from "this".
Longptr_t	GetOffsetCint () const
	Get offset from "this" using the information in CINT only.
virtual Option_t *	GetOption () const
TList *	GetOptions ()
	Returns list of options - list of TOptionListItems.
TMethodCall *	GetterMethod (TClass *cl=nullptr)
	Return a TMethodCall method responsible for getting the value of data member.
const char *	GetTitle () const override
	Returns title of object.
const char *	GetTrueTypeName () const
	Get the desugared type name of this data member, including const and volatile qualifiers.
const char *	GetTypeName () const
	Get the decayed type name of this data member, removing const and volatile qualifiers, and pointers * and references &.
virtual UInt_t	GetUniqueID () const
	Return the unique object id.
Int_t	GetUnitSize () const
	Get the sizeof the underlying type of the data member (i.e.
virtual Bool_t	HandleTimer (TTimer *timer)
	Execute action in response of a timer timing out.
ULong_t	Hash () const override
	Return hash value for this object.
Bool_t	HasInconsistentHash () const
	Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.
virtual void	Info (const char *method, const char *msgfmt,...) const
	Issue info message.
virtual Bool_t	InheritsFrom (const char *classname) const
	Returns kTRUE if object inherits from class "classname".
virtual Bool_t	InheritsFrom (const TClass *cl) const
	Returns kTRUE if object inherits from TClass cl.
virtual void	Inspect () const
	Dump contents of this object in a graphics canvas.
void	InvertBit (UInt_t f)
TClass *	IsA () const override
Bool_t	IsaPointer () const
	Return true if data member is a pointer.
Bool_t	IsBasic () const
	Return true if data member is a basic type, e.g. char, int, long...
Bool_t	IsDestructed () const
	IsDestructed.
Bool_t	IsEnum () const
	Return true if data member is an enum.
virtual Bool_t	IsEqual (const TObject *obj) const
	Default equal comparison (objects are equal if they have the same address in memory).
virtual Bool_t	IsFolder () const
	Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).
Bool_t	IsOnHeap () const
Bool_t	IsPersistent () const
Bool_t	IsSortable () const override
Int_t	IsSTLContainer ()
	The return type is defined in TDictionary (kVector, kList, etc.).
Bool_t	IsValid ()
	Return true if this data member object is pointing to a currently loaded data member.
Bool_t	IsZombie () const
void	ls (Option_t *option="") const override
	List TNamed name and title.
void	MayNotUse (const char *method) const
	Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).
virtual Bool_t	Notify ()
	This method must be overridden to handle object notification (the base implementation is no-op).
void	Obsolete (const char *method, const char *asOfVers, const char *removedFromVers) const
	Use this method to declare a method obsolete.
void	operator delete (void *, size_t)
	Operator delete for sized deallocation.
void	operator delete (void *ptr)
	Operator delete.
void	operator delete (void *ptr, void *vp)
	Only called by placement new when throwing an exception.
void	operator delete[] (void *, size_t)
	Operator delete [] for sized deallocation.
void	operator delete[] (void *ptr)
	Operator delete [].
void	operator delete[] (void *ptr, void *vp)
	Only called by placement new[] when throwing an exception.
void *	operator new (size_t sz)
void *	operator new (size_t sz, void *vp)
void *	operator new[] (size_t sz)
void *	operator new[] (size_t sz, void *vp)
virtual void	Paint (Option_t *option="")
	This method must be overridden if a class wants to paint itself.
virtual void	Pop ()
	Pop on object drawn in a pad to the top of the display list.
void	Print (Option_t *option="") const override
	Print TNamed name and title.
Long_t	Property () const override
	Get property description word. For meaning of bits see EProperty.
virtual Int_t	Read (const char *name)
	Read contents of object with specified name from the current directory.
virtual void	RecursiveRemove (TObject *obj)
	Recursively remove this object from a list.
void	ResetBit (UInt_t f)
virtual void	SaveAs (const char *filename="", Option_t *option="") const
	Save this object in the file specified by filename.
virtual void	SavePrimitive (std::ostream &out, Option_t *option="")
	Save a primitive as a C++ statement(s) on output stream "out".
void	SetBit (UInt_t f)
void	SetBit (UInt_t f, Bool_t set)
	Set or unset the user status bits as specified in f.
void	SetClass (TClass *cl)
virtual void	SetDrawOption (Option_t *option="")
	Set drawing option for object.
virtual void	SetName (const char *name)
	Set the name of the TNamed.
virtual void	SetNameTitle (const char *name, const char *title)
	Set all the TNamed parameters (name and title).
TMethodCall *	SetterMethod (TClass *cl)
	Return a TMethodCall method responsible for setting the value of data member.
virtual void	SetTitle (const char *title="")
	Set the title of the TNamed.
virtual void	SetUniqueID (UInt_t uid)
	Set the unique object id.
virtual Int_t	Sizeof () const
	Return size of the TNamed part of the TObject.
void	Streamer (TBuffer &) override
	Stream an object of TDataMember.
void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)
virtual void	SysError (const char *method, const char *msgfmt,...) const
	Issue system error message.
Bool_t	TestBit (UInt_t f) const
Int_t	TestBits (UInt_t f) const
virtual bool	Update (DataMemberInfo_t *info)
	Update the TFunction to reflect the new info.
virtual void	UseCurrentStyle ()
	Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.
virtual void	Warning (const char *method, const char *msgfmt,...) const
	Issue warning message.
virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0)
	Write this object to the current directory.
virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) const
	Write this object to the current directory.

Static Public Member Functions
static TClass *	Class ()
static const char *	Class_Name ()
static constexpr Version_t	Class_Version ()
static const char *	DeclFileName ()
static TDictionary *	GetDictionary (const char *name)
	Retrieve the type (class, fundamental type, typedef etc) named "name".
static TDictionary *	GetDictionary (const std::type_info &typeinfo)
static Longptr_t	GetDtorOnly ()
	Return destructor only flag.
static Bool_t	GetObjectStat ()
	Get status of object stat flag.
static void	SetDtorOnly (void *obj)
	Set destructor only flag.
static void	SetObjectStat (Bool_t stat)
	Turn on/off tracking of objects in the TObjectTable.
static bool	WantsRegularMembers (EMemberSelection sel)
static bool	WantsUsingDecls (EMemberSelection sel)

Protected Types
enum	{ kOnlyPrepStep = (1ULL << (3)) }

Protected Member Functions
	TDataMember (const TDataMember &)
	copy constructor
virtual void	DoError (int level, const char *location, const char *fmt, va_list va) const
	Interface to ErrorHandler (protected).
void	MakeZombie ()
TDataMember &	operator= (const TDataMember &)
	assignment operator
void	SavePrimitiveNameTitle (std::ostream &out, const char *variable_name)
	Save object name and title into the output stream "out".
Bool_t	UpdateInterpreterStateMarker ()

Static Protected Member Functions
static void	SavePrimitiveConstructor (std::ostream &out, TClass *cl, const char *variable_name, const char *constructor_agrs="", Bool_t empty_line=kTRUE)
	Save object constructor in the output stream "out".
static void	SavePrimitiveDraw (std::ostream &out, const char *variable_name, Option_t *option=nullptr)
	Save invocation of primitive Draw() method Skipped if option contains "nodraw" string.
static TString	SavePrimitiveVector (std::ostream &out, const char *prefix, Int_t len, Double_t *arr, Int_t flag=0)
	Save array in the output stream "out" as vector.

Protected Attributes
TString	fName
TString	fTitle

Private Types
enum	EStatusBits { kObjIsPersistent = (1ULL << (2)) }

Private Member Functions
void	ExtractOptionsFromComment ()
	Build TOptionListItems from the member comment *OPTION={.
void	Init (bool afterReading)
	Routines called by the constructor and Update to reset the member's information.

Static Private Member Functions
static void	AddToTObjectTable (TObject *)
	Private helper function which will dispatch to TObjectTable::AddObj.

Private Attributes
Int_t	fArrayDim
TString	fArrayIndex
Int_t *	fArrayMaxIndex
TDictAttributeMap *	fAttributeMap {nullptr}
UInt_t	fBits
	bit field status word
TClass *	fClass
	!pointer to the class
TDataType *	fDataType
	!pointer to data basic type descriptor
TString	fFullTypeName
DataMemberInfo_t *	fInfo
	!pointer to CINT data member info
Longptr_t	fOffset
TList *	fOptions
Long_t	fProperty
Int_t	fSTLCont
TString	fTrueTypeName
TString	fTypeName
UInt_t	fUniqueID
	object unique identifier
ULong64_t	fUpdatingTransactionCount {0}
	!the Cling ID of the transaction that last updated the object
TMethodCall *	fValueGetter
	!method that returns a value;
TMethodCall *	fValueSetter
	!method which sets value;

Static Private Attributes
static Longptr_t	fgDtorOnly = 0
	object for which to call dtor only (i.e. no delete)
static Bool_t	fgObjectStat = kTRUE
	if true keep track of objects in TObjectTable

#include <TDataMember.h>

Inheritance diagram for TDataMember:

Member Typedef Documentation

DeclId_t

typedef const void* TDictionary::DeclId_t

inherited

Definition at line 224 of file TDictionary.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

protectedinherited

Enumerator

kOnlyPrepStep

Used to request that the class specific implementation of TObject::Write just prepare the objects to be ready to be written but do not actually write them into the TBuffer. This is just for example by TBufferMerger to request that the TTree inside the file calls TTree::FlushBaskets (outside of the merging lock) and TBufferMerger will later ask for the write (inside the merging lock). To take advantage of this feature the class needs to overload TObject::Write and use this enum value accordingly. (See TTree::Write and TObject::Write) Do not use, this feature will be migrate to the Merge function (See TClass and TTree::Merge)

Definition at line 106 of file TObject.h.

anonymous enum

anonymous enum

inherited

Enumerator
kSingleKey	write collection with single key
kOverwrite	overwrite existing object with same name
kWriteDelete	write object, then delete previous key with same name

Definition at line 99 of file TObject.h.

anonymous enum

anonymous enum

inherited

Enumerator
kIsOnHeap	object is on heap
kNotDeleted	object has not been deleted
kZombie	object ctor failed
kInconsistent	class overload Hash but does call RecursiveRemove in destructor
kBitMask

Definition at line 89 of file TObject.h.

EDeprecatedStatusBits

enum TObject::EDeprecatedStatusBits

inherited

Enumerator
kObjInCanvas	for backward compatibility only, use kMustCleanup

Definition at line 84 of file TObject.h.

EMemberSelection

enum class TDictionary::EMemberSelection

stronginherited

Kinds of members to include in lists.

Enumerator
kNoUsingDecls
kOnlyUsingDecls
kAlsoUsingDecls

Definition at line 216 of file TDictionary.h.

EStatusBits

enum TDataMember::EStatusBits

private

Enumerator
kObjIsPersistent

Definition at line 34 of file TDataMember.h.

ESTLType

enum TDictionary::ESTLType

inherited

Enumerator
kNone
kVector
kList
kForwardlist
kDeque
kMap
kMultimap
kSet
kMultiset
kUnorderedSet
kUnorderedMultiset
kUnorderedMap
kUnorderedMultimap
kBitset

Definition at line 198 of file TDictionary.h.

Constructor & Destructor Documentation

TDataMember() [1/2]

TDataMember::TDataMember ( const TDataMember & dm )

protected

copy constructor

Definition at line 277 of file TDataMember.cxx.

TDataMember() [2/2]

TDataMember::TDataMember	(	DataMemberInfo_t *	info = nullptr,
		TClass *	cl = nullptr )

Default TDataMember ctor.

TDataMembers are constructed in TClass via a call to TCling::CreateListOfDataMembers(). It parses the comment string, initializes optionlist and getter/setter methods.

Definition at line 171 of file TDataMember.cxx.

~TDataMember()

TDataMember::~TDataMember ( )

virtual

TDataMember dtor deletes adopted CINT DataMemberInfo object.

Definition at line 338 of file TDataMember.cxx.

Member Function Documentation

AbstractMethod()

void TObject::AbstractMethod ( const char * method ) const

inherited

Call this function within a function that you don't want to define as purely virtual, in order not to force all users deriving from that class to implement that maybe (on their side) unused function; but at the same time, emit a run-time warning if they try to call it, telling that it is not implemented in the derived class: action must thus be taken on the user side to override it.

In other word, this method acts as a "runtime purely virtual" warning instead of a "compiler purely virtual" error.

Warning

This interface is a legacy function that is no longer recommended to be used by new development code.

Note

The name "AbstractMethod" does not imply that it's an abstract method in the strict C++ sense.

Definition at line 1149 of file TObject.cxx.

AddToTObjectTable()

void TObject::AddToTObjectTable ( TObject * op )

staticprivateinherited

Private helper function which will dispatch to TObjectTable::AddObj.

Included here to avoid circular dependency between header files.

Definition at line 195 of file TObject.cxx.

AppendPad()

void TObject::AppendPad ( Option_t * option = "" )

virtualinherited

Append graphics object to current pad.

In case no current pad is set yet, create a default canvas with the name "c1".

Definition at line 204 of file TObject.cxx.

Browse()

void TObject::Browse ( TBrowser * b )

virtualinherited

Browse object. May be overridden for another default action.

Reimplemented in RooPlot, ROOT::Experimental::XRooFit::xRooNode, ROOT::Internal::THnBaseBrowsable, TApplicationRemote, TASImage, TAxis3D, TBaseClass, TBranch, TBranchClones, TBranchElement, TBranchObject, TBranchSTL, TBrowserObject, TCanvas, TChain, TClass, TCollection, TCollectionPropertyBrowsable, TDatabasePDG, TDirectory, TDirectoryFile, TEfficiency, TF1, TFolder, TGenerator, TGeoManager, TGeometry, TGeoNode, TGeoOverlap, TGeoTrack, TGeoVolume, TGraph2D, TGraph, TH1, THbookBranch, THbookFile, THbookKey, THnBase, THStack, TKey, TKeyMapFile, TLeaf, TMacro, TMapFile, TMultiDimFit, TMultiGraph, TNode, TNtuple, TNtupleD, TPad, TPair, TParticleClassPDG, TPrincipal, TRecorder, TRemoteObject, TROOT, TRootIconList, TSPlot, TStyle, TSystemDirectory, TSystemFile, TTask, TTree, TTreePerfStats, and TVirtualBranchBrowsable.

Definition at line 218 of file TObject.cxx.

CheckedHash()

ULong_t TObject::CheckedHash ( )

inlineinherited

Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.

The intent is for this routine to be called instead of directly calling the function Hash during "insert" operations. See TObject::HasInconsistenTObjectHash();

(*) The setup is consistent when all classes in the class hierarchy that overload TObject::Hash do call ROOT::CallRecursiveRemoveIfNeeded in their destructor. i.e. it is safe to call the Hash virtual function during the RecursiveRemove operation.

Definition at line 332 of file TObject.h.

Class()

TClass * TDataMember::Class ( )

static

Returns

TClass describing this class

Class_Name()

const char * TDataMember::Class_Name ( )

static

Returns

Name of this class

Class_Version()

constexpr Version_t TDataMember::Class_Version ( )

inlinestaticconstexpr

Returns

Version of this class

Definition at line 98 of file TDataMember.h.

ClassName()

const char * TObject::ClassName ( ) const

virtualinherited

Returns name of class to which the object belongs.

Definition at line 227 of file TObject.cxx.

Clear()

void TNamed::Clear ( Option_t * option = "" )

overridevirtualinherited

Set name and title to empty strings ("").

Reimplemented from TObject.

Reimplemented in TPrincipal, TProcessID, TStreamerInfo, TTask, TVirtualFitter, and TVirtualStreamerInfo.

Definition at line 63 of file TNamed.cxx.

Clone()

TObject * TNamed::Clone ( const char * newname = "" ) const

overridevirtualinherited

Make a clone of an object using the Streamer facility.

If newname is specified, this will be the name of the new object.

Reimplemented from TObject.

Reimplemented in TStreamerInfo, and TTreeIndex.

Definition at line 73 of file TNamed.cxx.

Compare()

Int_t TNamed::Compare ( const TObject * obj ) const

overridevirtualinherited

Compare two TNamed objects.

Returns 0 when equal, -1 when this is smaller and +1 when bigger (like strcmp).

Reimplemented from TObject.

Reimplemented in TStructNodeProperty.

Definition at line 84 of file TNamed.cxx.

Copy()

void TNamed::Copy ( TObject & named ) const

overridevirtualinherited

Copy this to obj.

Reimplemented from TObject.

Reimplemented in TPieSlice, TProfile2D, TProfile3D, TProfile, TStyle, TSystemDirectory, TSystemFile, TText, and TXTRU.

Definition at line 93 of file TNamed.cxx.

CreateAttributeMap()

void TDictionary::CreateAttributeMap ( )

inherited

Definition at line 75 of file TDictionary.cxx.

DeclFileName()

const char * TDataMember::DeclFileName ( )

inlinestatic

Returns

Name of the file containing the class declaration

Definition at line 98 of file TDataMember.h.

Delete()

void TObject::Delete ( Option_t * option = "" )

virtualinherited

Delete this object.

Typically called as a command via the interpreter. Normally use "delete" operator when object has been allocated on the heap.

Reimplemented in RooLinkedList, TAxis, TBtree, TCanvas, TClonesArray, TCollection, TDirectory, TDirectoryFile, TExMap, TFile, TGFrame, TGItemContext, TGTextEdit, THashList, THashTable, TKey, TKeySQL, TKeyXML, TList, TListOfDataMembers, TListOfEnums, TListOfEnumsWithLock, TListOfFunctions, TListOfFunctionTemplates, TMap, TMVA::Results, TObjArray, TObjectTable, TOrdCollection, TProtoClass, TQCommand, TRefArray, TSystemDirectory, TSystemFile, TThread, TTree, TTreeViewer, TViewPubDataMembers, and TViewPubFunctions.

Definition at line 268 of file TObject.cxx.

DistancetoPrimitive()

Int_t TObject::DistancetoPrimitive ( Int_t px, Int_t py )

virtualinherited

Computes distance from point (px,py) to the object.

This member function must be implemented for each graphics primitive. This default function returns a big number (999999).

Reimplemented in TASImage, TAxis3D, TAxis, TBox, TBRIK, TColorWheel, TCrown, TCurlyArc, TCurlyLine, TDiamond, TEfficiency, TEllipse, TF1, TF2, TF3, TFileDrawMap, TGenerator, TGeoBBox, TGeoCompositeShape, TGeoCone, TGeoConeSeg, TGeoEltu, TGeoHalfSpace, TGeoHype, TGeoNode, TGeoOverlap, TGeoParaboloid, TGeoPcon, TGeoPgon, TGeoScaledShape, TGeoShape, TGeoShapeAssembly, TGeoSphere, TGeoTessellated, TGeoTorus, TGeoTrack, TGeoTube, TGeoTubeSeg, TGeoVGShape, TGeoVolume, TGeoXtru, TGL5DDataSet, TGLHistPainter, TGLParametricEquation, TGLScenePad, TGLTH3Composition, TGLViewer, TGraph2D, TGraph, TGraphEdge, TGraphNode, TGraphPolargram, TH1, THistPainter, THStack, TLine, TMarker3DBox, TMarker, TMultiGraph, TNode, TPad, TPaletteAxis, TParallelCoord, TParallelCoordRange, TParallelCoordVar, TParticle, TPave, TPCON, TPie, TPieSlice, TPoints3DABC, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TPrimary, TScatter2D, TScatter, TSPHE, TSpider, TSpline, TStyle, TText, TTreePerfStats, TTUBE, TTUBS, TVirtualHistPainter, and TXTRU.

Definition at line 284 of file TObject.cxx.

DoError()

void TObject::DoError ( int level, const char * location, const char * fmt, va_list va ) const

protectedvirtualinherited

Interface to ErrorHandler (protected).

Reimplemented in TThread, and TTreeViewer.

Definition at line 1059 of file TObject.cxx.

Draw()

void TObject::Draw ( Option_t * option = "" )

virtualinherited

Default Draw method for all objects.

Reimplemented in RooAbsData, RooPlot, RooStats::HypoTestInverterPlot, RooStats::SamplingDistPlot, ROOT::Experimental::XRooFit::xRooNLLVar::xRooHypoPoint, ROOT::Experimental::XRooFit::xRooNLLVar::xRooHypoSpace, ROOT::Experimental::XRooFit::xRooNode, ROOT::RGeoPainter, TArrow, TASImage, TBox, TBrowser, TButton, TCanvas, TChain, TClass, TClassTree, TCollection, TColorWheel, TDiamond, TDirectory, TEfficiency, TEllipse, TEveGeoNode, TEveGeoTopNode, TF1, TF2, TF3, TFile, TFITSHDU, TFrame, TGenerator, TGeoBatemanSol, TGeometry, TGeoNode, TGeoOverlap, TGeoPainter, TGeoParallelWorld, TGeoPhysicalNode, TGeoPolygon, TGeoShape, TGeoTrack, TGeoVGShape, TGeoVolume, TGItemContext, TGListTree, TGPicture, TGraph2D, TGraph, TGraphPolar, TGraphPolargram, TGraphStruct, TGraphTime, TH1, THelix, THStack, TLegend, TMarker, TMatrixTBase< Element >, TMatrixTBase< Double_t >, TMatrixTBase< Float_t >, TMultiDimFit, TMultiGraph, TMultiLayerPerceptron, TNode, TNodeDiv, TPad, TParallelCoord, TParallelCoordRange, TParallelCoordVar, TPave, TPaveLabel, TPavesText, TPaveText, TPie, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TRatioPlot, TSpider, TSpline, TStructViewer, TStructViewerGUI, TTree, TTreePerfStats, TVectorT< Element >, TVectorT< Double_t >, TVectorT< Float_t >, TVirtualPad, and TWbox.

Definition at line 293 of file TObject.cxx.

DrawClass()

void TObject::DrawClass ( ) const

virtualinherited

Draw class inheritance tree of the class to which this object belongs.

If a class B inherits from a class A, description of B is drawn on the right side of description of A. Member functions overridden by B are shown in class A with a blue line crossing-out the corresponding member function. The following picture is the class inheritance tree of class TPaveLabel:

Reimplemented in TGFrame, TSystemDirectory, and TSystemFile.

Definition at line 308 of file TObject.cxx.

DrawClone()

TObject * TObject::DrawClone ( Option_t * option = "" ) const

virtualinherited

Draw a clone of this object in the current selected pad with: gROOT->SetSelectedPad(c1).

If pad was not selected - gPad will be used.

Note

For histograms, use the more specialised TH1::DrawCopy().

Reimplemented in TAxis, TCanvas, TGFrame, TSystemDirectory, and TSystemFile.

Definition at line 319 of file TObject.cxx.

Dump()

void TObject::Dump ( ) const

virtualinherited

Dump contents of object on stdout.

Using the information in the object dictionary (class TClass) each data member is interpreted. If a data member is a pointer, the pointer value is printed

The following output is the Dump of a TArrow object:

fAngle                   0           Arrow opening angle (degrees)
fArrowSize               0.2         Arrow Size
fOption.*fData
fX1                      0.1         X of 1st point
fY1                      0.15        Y of 1st point
fX2                      0.67        X of 2nd point
fY2                      0.83        Y of 2nd point
fUniqueID                0           object unique identifier
fBits                    50331648    bit field status word
fLineColor               1           line color
fLineStyle               1           line style
fLineWidth               1           line width
fFillColor               19          fill area color
fFillStyle               1001        fill area style

Reimplemented in TClass, TCollection, TGFrame, TGPack, and TSystemFile.

Definition at line 367 of file TObject.cxx.

Error()

void TObject::Error ( const char * location, const char * fmt, ... ) const

virtualinherited

Issue error message.

Use "location" to specify the method where the error occurred. Accepts standard printf formatting arguments.

Reimplemented in TFitResult.

Definition at line 1098 of file TObject.cxx.

Execute() [1/2]

void TObject::Execute ( const char * method, const char * params, Int_t * error = nullptr )

virtualinherited

Execute method on this object with the given parameter string, e.g.

"3.14,1,\"text\"".

Reimplemented in ROOT::R::TRInterface, TCling, TContextMenu, TInterpreter, and TMethodCall.

Definition at line 378 of file TObject.cxx.

Execute() [2/2]

void TObject::Execute ( TMethod * method, TObjArray * params, Int_t * error = nullptr )

virtualinherited

Execute method on this object with parameters stored in the TObjArray.

The TObjArray should contain an argv vector like:

argv[0] ... argv[n] = the list of TObjString parameters

Reimplemented in ROOT::R::TRInterface, TCling, TContextMenu, TInterpreter, and TMethodCall.

Definition at line 398 of file TObject.cxx.

ExecuteEvent()

void TObject::ExecuteEvent ( Int_t event, Int_t px, Int_t py )

virtualinherited

Execute action corresponding to an event at (px,py).

This method must be overridden if an object can react to graphics events.

Reimplemented in TASImage, TASPaletteEditor::LimitLine, TAxis3D, TAxis, TBox, TButton, TCanvas, TCrown, TCurlyArc, TCurlyLine, TDiamond, TEfficiency, TEllipse, TF1, TF2, TF3, TFrame, TGenerator, TGeoManager, TGeoNode, TGeoOverlap, TGeoShape, TGeoTrack, TGeoVolume, TGL5DDataSet, TGLEventHandler, TGLHistPainter, TGLParametricEquation, TGLScenePad, TGLTH3Composition, TGLViewer, TGraph2D, TGraph, TGraphEdge, TGraphNode, TGraphPolargram, TGroupButton, TH1, THistPainter, TLine, TLink, TMarker3DBox, TMarker, TNode, TPad, TPaletteAxis, TParallelCoord, TParallelCoordRange, TParallelCoordVar, TParticle, TPave, TPie, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TPrimary, TScatter2D, TScatter, TSliderBox, TSpider, TSpline, TText, TTreePerfStats, TView3D, TView, TVirtualHistPainter, and TWbox.

Definition at line 415 of file TObject.cxx.

ExtractOptionsFromComment()

void TDataMember::ExtractOptionsFromComment ( )

private

Build TOptionListItems from the member comment *OPTION={.

Definition at line 632 of file TDataMember.cxx.

Fatal()

void TObject::Fatal ( const char * location, const char * fmt, ... ) const

virtualinherited

Issue fatal error message.

Use "location" to specify the method where the fatal error occurred. Accepts standard printf formatting arguments.

Definition at line 1126 of file TObject.cxx.

FillBuffer()

void TNamed::FillBuffer ( char *& buffer )

virtualinherited

Encode TNamed into output buffer.

Reimplemented in TDirectoryFile, TFile, TKey, TKeySQL, TKeyXML, TSQLFile, and TXMLFile.

Definition at line 103 of file TNamed.cxx.

FindObject() [1/2]

TObject * TObject::FindObject ( const char * name ) const

virtualinherited

Must be redefined in derived classes.

This function is typically used with TCollections, but can also be used to find an object by name inside this object.

Reimplemented in RooAbsCollection, RooLinkedList, TBtree, TCollection, TDirectory, TFolder, TGeometry, TGraph2D, TGraph, TH1, THashList, THashTable, THbookFile, TList, TListOfDataMembers, TListOfEnums, TListOfEnumsWithLock, TListOfFunctions, TListOfFunctionTemplates, TListOfTypes, TMap, TObjArray, TPad, TROOT, TViewPubDataMembers, and TViewPubFunctions.

Definition at line 425 of file TObject.cxx.

FindObject() [2/2]

TObject * TObject::FindObject ( const TObject * obj ) const

virtualinherited

Must be redefined in derived classes.

This function is typically used with TCollections, but can also be used to find an object inside this object.

Reimplemented in RooAbsCollection, RooLinkedList, TBtree, TCollection, TDirectory, TFolder, TGeometry, TGraph2D, TGraph, TH1, THashList, THashTable, THbookFile, TList, TListOfDataMembers, TListOfEnums, TListOfEnumsWithLock, TListOfFunctions, TListOfFunctionTemplates, TListOfTypes, TMap, TObjArray, TPad, TROOT, TViewPubDataMembers, and TViewPubFunctions.

Definition at line 435 of file TObject.cxx.

GetArrayDim()

Int_t TDataMember::GetArrayDim

(

)

const

Return number of array dimensions.

Definition at line 353 of file TDataMember.cxx.

GetArrayIndex()

const char * TDataMember::GetArrayIndex

(

)

const

If the data member is pointer and has a valid array size in its comments GetArrayIndex returns a string pointing to it; otherwise it returns an empty string.

Definition at line 375 of file TDataMember.cxx.

GetAttributeMap()

TDictAttributeMap * TDictionary::GetAttributeMap ( ) const

inlineinherited

Definition at line 186 of file TDictionary.h.

GetClass()

TClass * TDataMember::GetClass ( ) const

inline

Definition at line 75 of file TDataMember.h.

GetDataType()

TDataType * TDataMember::GetDataType ( ) const

inline

Definition at line 76 of file TDataMember.h.

GetDeclId()

TDictionary::DeclId_t TDataMember::GetDeclId

(

)

const

Definition at line 390 of file TDataMember.cxx.

GetDictionary() [1/2]

TDictionary * TDictionary::GetDictionary ( const char * name )

staticinherited

Retrieve the type (class, fundamental type, typedef etc) named "name".

Returned object is either a TClass or TDataType. Returns nullptr if the type is unknown.

Definition at line 89 of file TDictionary.cxx.

GetDictionary() [2/2]

TDictionary * TDictionary::GetDictionary ( const std::type_info & typeinfo )

staticinherited

Definition at line 109 of file TDictionary.cxx.

GetDrawOption()

Option_t * TObject::GetDrawOption ( ) const

virtualinherited

Get option used by the graphics system to draw this object.

Note that before calling object.GetDrawOption(), you must have called object.Draw(..) before in the current pad.

Reimplemented in TBrowser, TFitEditor, TGedFrame, TGFileBrowser, TRootBrowser, and TRootBrowserLite.

Definition at line 445 of file TObject.cxx.

GetDtorOnly()

Longptr_t TObject::GetDtorOnly ( )

staticinherited

Return destructor only flag.

Definition at line 1196 of file TObject.cxx.

GetFullTypeName()

const char * TDataMember::GetFullTypeName

(

)

const

Get the concrete type name of this data member, including const and volatile qualifiers.

This function does not resolve any typedef in the type name. E.g., let Foo_t be a typedef to class TDirectory; assuming this is a member of type const Foo_t*, this function will return const Foo_t*.

For the desugared type name, see TDataMember::GetTrueTypeName().

Definition at line 427 of file TDataMember.cxx.

GetIconName()

const char * TObject::GetIconName ( ) const

virtualinherited

Returns mime type name of object.

Used by the TBrowser (via TGMimeTypes class). Override for class of which you would like to have different icons for objects of the same class.

Reimplemented in ROOT::Experimental::XRooFit::xRooNode, TASImage, TBranch, TBranchElement, TGeoVolume, TGMainFrame, TKey, TMethodBrowsable, TSystemFile, and TVirtualBranchBrowsable.

Definition at line 472 of file TObject.cxx.

GetMaxIndex()

Int_t TDataMember::GetMaxIndex

(

Int_t

dim

)

const

Return maximum index for array dimension "dim".

Definition at line 399 of file TDataMember.cxx.

GetName()

const char * TNamed::GetName ( ) const

inlineoverridevirtualinherited

Returns name of object.

This default method returns the class name. Classes that give objects a name should override this method.

Reimplemented from TObject.

Definition at line 49 of file TNamed.h.

GetObjectInfo()

char * TObject::GetObjectInfo ( Int_t px, Int_t py ) const

virtualinherited

Returns string containing info about the object at position (px,py).

This method is typically overridden by classes of which the objects can report peculiarities for different positions. Returned string will be re-used (lock in MT environment).

Reimplemented in TASImage, TAxis3D, TColorWheel, TF1, TF2, TFileDrawMap, TGeoNode, TGeoTrack, TGeoVolume, TGL5DDataSet, TGLHistPainter, TGLParametricEquation, TGLTH3Composition, TGraph, TH1, THistPainter, TNode, TPaletteAxis, TParallelCoordVar, and TVirtualHistPainter.

Definition at line 491 of file TObject.cxx.

GetObjectStat()

Bool_t TObject::GetObjectStat ( )

staticinherited

Get status of object stat flag.

Definition at line 1181 of file TObject.cxx.

GetOffset()

Longptr_t TDataMember::GetOffset

(

)

const

Get offset from "this".

Definition at line 447 of file TDataMember.cxx.

GetOffsetCint()

Longptr_t TDataMember::GetOffsetCint

(

)

const

Get offset from "this" using the information in CINT only.

Definition at line 496 of file TDataMember.cxx.

GetOption()

virtual Option_t * TObject::GetOption ( ) const

inlinevirtualinherited

Reimplemented in TArrow, TAxis3D, TFile, TGaxis, TGeoVolume, TH1, THelix, TLegendEntry, TMapFile, TNode, TPave, TPoints3DABC, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TPSocket, TSelector, TSocket, and TUDPSocket.

Definition at line 147 of file TObject.h.

GetOptions()

TList * TDataMember::GetOptions

(

)

Returns list of options - list of TOptionListItems.

Definition at line 831 of file TDataMember.cxx.

GetterMethod()

TMethodCall * TDataMember::GetterMethod

(

TClass *

cl = nullptr

)

Return a TMethodCall method responsible for getting the value of data member.

The cl argument specifies the class of the object which will be used to call this method (in case of multiple inheritance TMethodCall needs to know this to calculate the proper offset).

Definition at line 845 of file TDataMember.cxx.

GetTitle()

const char * TNamed::GetTitle ( ) const

inlineoverridevirtualinherited

Returns title of object.

This default method returns the class title (i.e. description). Classes that give objects a title should override this method.

Reimplemented from TObject.

Definition at line 50 of file TNamed.h.

GetTrueTypeName()

const char * TDataMember::GetTrueTypeName

(

)

const

Get the desugared type name of this data member, including const and volatile qualifiers.

This function resolves typedefs in the type name. E.g., let Foo_t be a typedef to class TDirectory; assuming this is a member of type const Foo_t*, this function will return const TDirectory*.

Definition at line 439 of file TDataMember.cxx.

GetTypeName()

const char * TDataMember::GetTypeName

(

)

const

Get the decayed type name of this data member, removing const and volatile qualifiers, and pointers * and references &.

This function resolves typedefs in the type name. E.g., let Foo_t be a typedef to class TDirectory; assuming this is a member of type const Foo_t*, this function will return TDirectory.

Definition at line 414 of file TDataMember.cxx.

GetUniqueID()

UInt_t TObject::GetUniqueID ( ) const

virtualinherited

Return the unique object id.

Definition at line 480 of file TObject.cxx.

GetUnitSize()

Int_t TDataMember::GetUnitSize

(

)

const

Get the sizeof the underlying type of the data member (i.e.

if the member is an array sizeof(member)/length)

Definition at line 511 of file TDataMember.cxx.

HandleTimer()

Bool_t TObject::HandleTimer ( TTimer * timer )

virtualinherited

Execute action in response of a timer timing out.

This method must be overridden if an object has to react to timers.

Reimplemented in TGCommandPlugin, TGDNDManager, TGFileContainer, TGHtml, TGLEventHandler, TGPopupMenu, TGraphTime, TGScrollBar, TGShutter, TGTextEdit, TGTextEditor, TGTextEntry, TGTextView, TGToolTip, TGuiBldDragManager, TGWindow, and TTreeViewer.

Definition at line 516 of file TObject.cxx.

Hash()

ULong_t TNamed::Hash ( ) const

inlineoverridevirtualinherited

Return hash value for this object.

Note: If this routine is overloaded in a derived class, this derived class should also add

ROOT::CallRecursiveRemoveIfNeeded(*this)

Otherwise, when RecursiveRemove is called (by ~TObject or example) for this type of object, the transversal of THashList and THashTable containers will will have to be done without call Hash (and hence be linear rather than logarithmic complexity). You will also see warnings like

Error in <ROOT::Internal::TCheckHashRecursiveRemoveConsistency::CheckRecursiveRemove>: The class SomeName overrides
TObject::Hash but does not call TROOT::RecursiveRemove in its destructor.

Reimplemented from TObject.

Definition at line 51 of file TNamed.h.

HasInconsistentHash()

Bool_t TObject::HasInconsistentHash ( ) const

inlineinherited

Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.

missing call to RecursiveRemove in destructor).

Note: Since the consistency is only tested for during inserts, this routine will return true for object that have never been inserted whether or not they have a consistent setup. This has no negative side-effect as searching for the object with the right or wrong Hash will always yield a not-found answer (Since anyway no hash can be guaranteed unique, there is always a check)

Definition at line 366 of file TObject.h.

Info()

void TObject::Info ( const char * location, const char * fmt, ... ) const

virtualinherited

Issue info message.

Use "location" to specify the method where the warning occurred. Accepts standard printf formatting arguments.

Definition at line 1072 of file TObject.cxx.

InheritsFrom() [1/2]

Bool_t TObject::InheritsFrom ( const char * classname ) const

virtualinherited

Returns kTRUE if object inherits from class "classname".

Reimplemented in TClass.

Definition at line 549 of file TObject.cxx.

InheritsFrom() [2/2]

Bool_t TObject::InheritsFrom ( const TClass * cl ) const

virtualinherited

Returns kTRUE if object inherits from TClass cl.

Reimplemented in TClass.

Definition at line 557 of file TObject.cxx.

Init()

void TDataMember::Init ( bool afterReading )

private

Routines called by the constructor and Update to reset the member's information.

afterReading is set when initializing after reading through Streamer().

Definition at line 194 of file TDataMember.cxx.

Inspect()

void TObject::Inspect ( ) const

virtualinherited

Dump contents of this object in a graphics canvas.

Same action as Dump but in a graphical form. In addition pointers to other objects can be followed.

The following picture is the Inspect of a histogram object:

Reimplemented in ROOT::Experimental::XRooFit::xRooNode, TGFrame, TInspectorObject, and TSystemFile.

Definition at line 570 of file TObject.cxx.

InvertBit()

void TObject::InvertBit ( UInt_t f )

inlineinherited

Definition at line 206 of file TObject.h.

IsA()

TClass * TDataMember::IsA ( ) const

inlineoverridevirtual

Returns

TClass describing current object

Reimplemented from TObject.

Definition at line 98 of file TDataMember.h.

IsaPointer()

Bool_t TDataMember::IsaPointer

(

)

const

Return true if data member is a pointer.

Definition at line 553 of file TDataMember.cxx.

IsBasic()

Bool_t TDataMember::IsBasic

(

)

const

Return true if data member is a basic type, e.g. char, int, long...

Definition at line 535 of file TDataMember.cxx.

IsDestructed()

Bool_t TObject::IsDestructed ( ) const

inlineinherited

IsDestructed.

Note

This function must be non-virtual as it can be used on destructed (but not yet modified) memory. This is used for example in TClonesArray to record the element that have been destructed but not deleted and thus are ready for re-use (by operator new with placement).

Returns

true if this object's destructor has been run.

Definition at line 186 of file TObject.h.

IsEnum()

Bool_t TDataMember::IsEnum

(

)

const

Return true if data member is an enum.

Definition at line 544 of file TDataMember.cxx.

IsEqual()

Bool_t TObject::IsEqual ( const TObject * obj ) const

virtualinherited

Default equal comparison (objects are equal if they have the same address in memory).

More complicated classes might want to override this function.

Reimplemented in TGObject, TObjString, TPair, and TQCommand.

Definition at line 589 of file TObject.cxx.

IsFolder()

Bool_t TObject::IsFolder ( ) const

virtualinherited

Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).

Reimplemented in ROOT::Experimental::XRooFit::xRooNode, ROOT::Internal::THnBaseBrowsable, TApplicationRemote, TAxis3D, TBaseClass, TBranch, TBranchClones, TBranchElement, TBranchObject, TBranchSTL, TBrowserObject, TCanvas, TClass, TCollection, TDatabasePDG, TDirectory, TFolder, TGeoManager, TGeometry, TGeoNode, TGeoNodeMatrix, TGeoOverlap, TGeoTrack, TGeoVolume, THbookFile, THbookKey, THnBase, TKey, TMapFile, TMultiDimFit, TNode, TPad, TPair, TParticleClassPDG, TPrincipal, TRemoteObject, TROOT, TRootIconList, TSPlot, TSystemDirectory, TTask, TTree, and TVirtualBranchBrowsable.

Definition at line 579 of file TObject.cxx.

IsOnHeap()

Bool_t TObject::IsOnHeap ( ) const

inlineinherited

Definition at line 160 of file TObject.h.

IsPersistent()

Bool_t TDataMember::IsPersistent ( ) const

inline

Definition at line 91 of file TDataMember.h.

IsSortable()

Bool_t TNamed::IsSortable ( ) const

inlineoverridevirtualinherited

Reimplemented from TObject.

Reimplemented in TStructNodeProperty.

Definition at line 52 of file TNamed.h.

IsSTLContainer()

int TDataMember::IsSTLContainer

(

)

The return type is defined in TDictionary (kVector, kList, etc.).

Definition at line 562 of file TDataMember.cxx.

IsValid()

Bool_t TDataMember::IsValid

(

)

Return true if this data member object is pointing to a currently loaded data member.

If a function is unloaded after the TDataMember is created, the TDataMember will be set to be invalid.

Definition at line 575 of file TDataMember.cxx.

IsZombie()

Bool_t TObject::IsZombie ( ) const

inlineinherited

Definition at line 161 of file TObject.h.

ls()

void TNamed::ls ( Option_t * option = "" ) const

overridevirtualinherited

List TNamed name and title.

Reimplemented from TObject.

Reimplemented in ROOT::Experimental::XRooFit::xRooBrowser, TNode, TROOT, TStreamerBase, TStreamerElement, TStreamerInfo, TStreamerSTL, TTask, TText, and TVirtualStreamerInfo.

Definition at line 112 of file TNamed.cxx.

MakeZombie()

void TObject::MakeZombie ( )

inlineprotectedinherited

Definition at line 55 of file TObject.h.

MayNotUse()

void TObject::MayNotUse ( const char * method ) const

inherited

Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).

Definition at line 1160 of file TObject.cxx.

Notify()

Bool_t TObject::Notify ( )

virtualinherited

This method must be overridden to handle object notification (the base implementation is no-op).

Different objects in ROOT use the Notify method for different purposes, in coordination with other objects that call this method at the appropriate time.

For example, TLeaf uses it to load class information; TBranchRef to load contents of referenced branches TBranchRef; most notably, based on Notify, TChain implements a callback mechanism to inform interested parties when it switches to a new sub-tree.

Reimplemented in h1analysis, h1analysisTreeReader, TARInterruptHandler, TASInputHandler, TASInterruptHandler, TASLogHandler, TASSigPipeHandler, TBlinkTimer, TBranchElement, TBranchRef, TBreakLineCom, TBrowserTimer, TCollection, TDelCharCom, TDelTextCom, TFileHandler, TGContainerKeyboardTimer, TGContainerScrollTimer, TGInputHandler, TGLRedrawTimer, TGTextEditHist, TGuiBldDragManagerRepeatTimer, TIdleTimer, TInsCharCom, TInsTextCom, TInterruptHandler, TLeafObject, TMessageHandler, TNotifyLink< Type >, TNotifyLink< RNoCleanupNotifierHelper >, TNotifyLink< ROOT::Detail::TBranchProxy >, TNotifyLink< TTreeReader >, TPopupDelayTimer, TProcessEventTimer, TRefTable, TRepeatTimer, TSBRepeatTimer, TSelector, TSelectorDraw, TSelectorEntries, TSignalHandler, TSingleShotCleaner, TSocketHandler, TStdExceptionHandler, TSysEvtHandler, TTermInputHandler, TThreadTimer, TTimeOutTimer, TTimer, TTipDelayTimer, TTree, TTreeFormula, TTreeFormulaManager, TTreeReader, TViewTimer, and TViewUpdateTimer.

Definition at line 618 of file TObject.cxx.

Obsolete()

void TObject::Obsolete ( const char * method, const char * asOfVers, const char * removedFromVers ) const

inherited

Use this method to declare a method obsolete.

Specify as of which version the method is obsolete and as from which version it will be removed.

Definition at line 1169 of file TObject.cxx.

operator delete() [1/3]

void TObject::operator delete ( void * ptr, size_t size )

inherited

Operator delete for sized deallocation.

Definition at line 1234 of file TObject.cxx.

operator delete() [2/3]

void TObject::operator delete ( void * ptr )

inherited

Operator delete.

Definition at line 1212 of file TObject.cxx.

operator delete() [3/3]

void TObject::operator delete ( void * ptr, void * vp )

inherited

Only called by placement new when throwing an exception.

Definition at line 1266 of file TObject.cxx.

operator delete[]() [1/3]

void TObject::operator delete[] ( void * ptr, size_t size )

inherited

Operator delete [] for sized deallocation.

Definition at line 1245 of file TObject.cxx.

operator delete[]() [2/3]

void TObject::operator delete[] ( void * ptr )

inherited

Operator delete [].

Definition at line 1223 of file TObject.cxx.

operator delete[]() [3/3]

void TObject::operator delete[] ( void * ptr, void * vp )

inherited

Only called by placement new[] when throwing an exception.

Definition at line 1274 of file TObject.cxx.

operator new() [1/2]

void * TObject::operator new ( size_t sz )

inlineinherited

Definition at line 189 of file TObject.h.

operator new() [2/2]

void * TObject::operator new ( size_t sz, void * vp )

inlineinherited

Definition at line 191 of file TObject.h.

operator new[]() [1/2]

void * TObject::operator new[] ( size_t sz )

inlineinherited

Definition at line 190 of file TObject.h.

operator new[]() [2/2]

void * TObject::operator new[] ( size_t sz, void * vp )

inlineinherited

Definition at line 192 of file TObject.h.

operator=()

TDataMember & TDataMember::operator= ( const TDataMember & dm )

protected

assignment operator

Definition at line 302 of file TDataMember.cxx.

Paint()

void TObject::Paint ( Option_t * option = "" )

virtualinherited

This method must be overridden if a class wants to paint itself.

The difference between Paint() and Draw() is that when a object draws itself it is added to the display list of the pad in which it is drawn (and automatically redrawn whenever the pad is redrawn). While paint just draws the object without adding it to the pad display list.

Reimplemented in ROOT::Experimental::RTreeMapPainter, ROOT::RGeoPainter, TAnnotation, TArrow, TASImage, TASPaletteEditor::LimitLine, TASPaletteEditor::PaintPalette, TAxis3D, TBits, TBox, TButton, TCanvas, TClassTree, TCollection, TColorWheel, TCrown, TDiamond, TDirectory, TEfficiency, TEllipse, TEveArrow, TEveCaloViz, TEveDigitSet, TEveGeoShape, TEveGeoTopNode, TEvePlot3D, TEvePointSet, TEveProjectionAxes, TEveScene, TEveShape, TEveStraightLineSet, TEveText, TEveTriangleSet, TExec, TF1, TF2, TF3, TFile, TFileDrawMap, TFrame, TGaxis, TGenerator, TGeoBoolNode, TGeoIntersection, TGeoNode, TGeoOverlap, TGeoPainter, TGeoPhysicalNode, TGeoShape, TGeoSubtraction, TGeoTrack, TGeoUnion, TGeoVGShape, TGeoVolume, TGL5DDataSet, TGLHistPainter, TGLParametricEquation, TGLTH3Composition, TGraph2D, TGraph2DPainter, TGraph, TGraphEdge, TGraphNode, TGraphPolargram, TGraphTime, TH1, THistPainter, THStack, TLatex, TLegend, TLine, TMacro, TMarker3DBox, TMarker, TMathText, TMultiGraph, TNode, TNodeDiv, TPad, TPaletteAxis, TParallelCoord, TParallelCoordRange, TParallelCoordVar, TParticle, TPave, TPaveLabel, TPaveStats, TPavesText, TPaveText, TPie, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TPrimary, TRatioPlot, TScatter2D, TScatter, TShape, TSpectrum2Painter, TSpider, TSpline, TSQLFile, TStyle, TText, TTreePerfStats, TVirtualGeoPainter, TVirtualGeoTrack, TVirtualHistPainter, TVirtualPad, TWbox, and TXMLFile.

Definition at line 631 of file TObject.cxx.

Pop()

void TObject::Pop ( )

virtualinherited

Pop on object drawn in a pad to the top of the display list.

I.e. it will be drawn last and on top of all other primitives.

Reimplemented in TFrame, TPad, and TVirtualPad.

Definition at line 640 of file TObject.cxx.

Print()

void TNamed::Print ( Option_t * option = "" ) const

overridevirtualinherited

Print TNamed name and title.

Reimplemented from TObject.

Reimplemented in ROOT::Experimental::XRooFit::xRooNLLVar::xRooHypoPoint, ROOT::Experimental::XRooFit::xRooNLLVar::xRooHypoSpace, ROOT::Experimental::XRooFit::xRooNode, TParallelCoordRange, TParallelCoordVar, TParticleClassPDG, TParticlePDG, TPrincipal, TScatter2D, TScatter, TSpectrum2, TSpectrum3, TSpectrum, TSQLColumnInfo, TSQLFile, TSQLTableInfo, TText, TTree, TTreeIndex, TXMLFile, and TXTRU.

Definition at line 127 of file TNamed.cxx.

Property()

Long_t TDataMember::Property ( ) const

overridevirtual

Get property description word. For meaning of bits see EProperty.

Implements TDictionary.

Definition at line 599 of file TDataMember.cxx.

Read()

Int_t TObject::Read ( const char * name )

virtualinherited

Read contents of object with specified name from the current directory.

First the key with the given name is searched in the current directory, next the key buffer is deserialized into the object. The object must have been created before via the default constructor. See TObject::Write().

Reimplemented in TBuffer, TKey, TKeySQL, and TKeyXML.

Definition at line 673 of file TObject.cxx.

RecursiveRemove()

void TObject::RecursiveRemove ( TObject * obj )

virtualinherited

Recursively remove this object from a list.

Typically implemented by classes that can contain multiple references to a same object.

Reimplemented in RooAbsCollection, RooAbsData, RooLinkedList, RooMCStudy, ROOT::Internal::TCheckHashRecursiveRemoveConsistency, ROOT::RBrowserDataCleanup, RooWorkspace, TBrowser, TChain, TCling, TCollection, TDialogCanvas, TDirectory, TEfficiency, TFileMerger, TFitEditor, TFolder, TFriendElement, TGedEditor, TGeometry, TGFileBrowser, TGraph2D, TGraph, TH1, TH1Editor, TH2Editor, THashList, THistPainter, THStack, TInspectCanvas, TLegend, TList, TListOfDataMembers, TListOfEnums, TListOfEnumsWithLock, TListOfFunctions, TListOfFunctionTemplates, TMultiGraph, TNode, TObjArray, TObjectRefSpy, TObjectSpy, TPad, TProcessID, TROOT, TRootBrowser, TRootBrowserHistory, TRootBrowserLite, TRootContextMenu, TTree, TTreePlayer, TViewPubDataMembers, TViewPubFunctions, and TVirtualPad.

Definition at line 684 of file TObject.cxx.

ResetBit()

void TObject::ResetBit ( UInt_t f )

inlineinherited

Definition at line 203 of file TObject.h.

SaveAs()

void TObject::SaveAs ( const char * filename = "", Option_t * option = "" ) const

virtualinherited

Save this object in the file specified by filename.

• if "filename" contains ".root" the object is saved in filename as root binary file.
• if "filename" contains ".xml" the object is saved in filename as a xml ascii file.
• if "filename" contains ".cc" the object is saved in filename as C code independent from ROOT. The code is generated via SavePrimitive(). Specific code should be implemented in each object to handle this option. Like in TF1::SavePrimitive().

• otherwise the object is written to filename as a CINT/C++ script. The C++ code to rebuild this object is generated via SavePrimitive(). The "option" parameter is passed to SavePrimitive. By default it is an empty string. It can be used to specify the Draw option in the code generated by SavePrimitive.

  The function is available via the object context menu.

Reimplemented in ROOT::Experimental::XRooFit::xRooNode, TClassTree, TFolder, TGeoVolume, TGObject, TGraph, TH1, TPad, TPaveClass, TSpline3, TSpline5, TSpline, TTreePerfStats, and TVirtualPad.

Definition at line 708 of file TObject.cxx.

SavePrimitive()

void TObject::SavePrimitive ( std::ostream & out, Option_t * option = "" )

virtualinherited

Save a primitive as a C++ statement(s) on output stream "out".

Reimplemented in TAnnotation, TArc, TArrow, TASImage, TAxis3D, TBox, TButton, TCanvas, TChain, TCrown, TCurlyArc, TCurlyLine, TCutG, TDiamond, TEfficiency, TEllipse, TExec, TF12, TF1, TF2, TF3, TFrame, TGaxis, TGButton, TGButtonGroup, TGCanvas, TGCheckButton, TGColorSelect, TGColumnLayout, TGComboBox, TGCompositeFrame, TGContainer, TGDockableFrame, TGDoubleHSlider, TGDoubleVSlider, TGedMarkerSelect, TGedPatternSelect, TGeoArb8, TGeoBBox, TGeoBoolNode, TGeoCombiTrans, TGeoCompositeShape, TGeoCone, TGeoConeSeg, TGeoCtub, TGeoDecayChannel, TGeoElementRN, TGeoEltu, TGeoGtra, TGeoHalfSpace, TGeoHMatrix, TGeoHype, TGeoIdentity, TGeoIntersection, TGeoMaterial, TGeoMedium, TGeoMixture, TGeoPara, TGeoParaboloid, TGeoPatternCylPhi, TGeoPatternCylR, TGeoPatternParaX, TGeoPatternParaY, TGeoPatternParaZ, TGeoPatternSphPhi, TGeoPatternSphR, TGeoPatternSphTheta, TGeoPatternTrapZ, TGeoPatternX, TGeoPatternY, TGeoPatternZ, TGeoPcon, TGeoPgon, TGeoRotation, TGeoScaledShape, TGeoShapeAssembly, TGeoSphere, TGeoSubtraction, TGeoTessellated, TGeoTorus, TGeoTranslation, TGeoTrap, TGeoTrd1, TGeoTrd2, TGeoTube, TGeoTubeSeg, TGeoUnion, TGeoVolume, TGeoXtru, TGFileContainer, TGFont, TGFrame, TGFSComboBox, TGGC, TGGroupFrame, TGHButtonGroup, TGHorizontal3DLine, TGHorizontalFrame, TGHorizontalLayout, TGHProgressBar, TGHScrollBar, TGHSlider, TGHSplitter, TGHtml, TGIcon, TGLabel, TGLayoutHints, TGLineStyleComboBox, TGLineWidthComboBox, TGListBox, TGListDetailsLayout, TGListLayout, TGListTree, TGListView, TGLVContainer, TGMainFrame, TGMatrixLayout, TGMdiFrame, TGMdiMainFrame, TGMdiMenuBar, TGMenuBar, TGMenuTitle, TGNumberEntry, TGNumberEntryField, TGPictureButton, TGPopupMenu, TGProgressBar, TGRadioButton, TGraph2D, TGraph2DAsymmErrors, TGraph2DErrors, TGraph, TGraphAsymmErrors, TGraphBentErrors, TGraphEdge, TGraphErrors, TGraphMultiErrors, TGraphNode, TGraphPolar, TGraphPolargram, TGraphStruct, TGroupButton, TGRowLayout, TGShapedFrame, TGShutter, TGShutterItem, TGSplitFrame, TGStatusBar, TGTab, TGTabLayout, TGTableLayout, TGTableLayoutHints, TGTextButton, TGTextEdit, TGTextEntry, TGTextLBEntry, TGTextView, TGTileLayout, TGToolBar, TGTransientFrame, TGTripleHSlider, TGTripleVSlider, TGVButtonGroup, TGVertical3DLine, TGVerticalFrame, TGVerticalLayout, TGVFileSplitter, TGVProgressBar, TGVScrollBar, TGVSlider, TGVSplitter, TGXYLayout, TGXYLayoutHints, TH1, TH2Poly, THelix, THStack, TLatex, TLegend, TLine, TMacro, TMarker3DBox, TMarker, TMathText, TMultiGraph, TPad, TPaletteAxis, TParallelCoord, TParallelCoordVar, TPave, TPaveClass, TPaveLabel, TPaveStats, TPavesText, TPaveText, TPie, TPieSlice, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TProfile2D, TProfile3D, TProfile, TRootContainer, TRootEmbeddedCanvas, TScatter2D, TScatter, TSlider, TSliderBox, TSpline3, TSpline5, TStyle, TText, TTreePerfStats, and TWbox.

Definition at line 858 of file TObject.cxx.

SavePrimitiveConstructor()

void TObject::SavePrimitiveConstructor ( std::ostream & out, TClass * cl, const char * variable_name, const char * constructor_agrs = "", Bool_t empty_line = kTRUE )

staticprotectedinherited

Save object constructor in the output stream "out".

Can be used as first statement when implementing SavePrimitive() method for the object

Definition at line 777 of file TObject.cxx.

SavePrimitiveDraw()

void TObject::SavePrimitiveDraw ( std::ostream & out, const char * variable_name, Option_t * option = nullptr )

staticprotectedinherited

Save invocation of primitive Draw() method Skipped if option contains "nodraw" string.

Definition at line 845 of file TObject.cxx.

SavePrimitiveNameTitle()

void TNamed::SavePrimitiveNameTitle ( std::ostream & out, const char * variable_name )

protectedinherited

Save object name and title into the output stream "out".

Definition at line 135 of file TNamed.cxx.

SavePrimitiveVector()

TString TObject::SavePrimitiveVector ( std::ostream & out, const char * prefix, Int_t len, Double_t * arr, Int_t flag = 0 )

staticprotectedinherited

Save array in the output stream "out" as vector.

Create unique variable name based on prefix value Returns name of vector which can be used in constructor or in other places of C++ code If flag === kTRUE, just add empty line If flag === 111, check if array is empty and return nullptr or <vectorname>.data()

Definition at line 796 of file TObject.cxx.

SetBit() [1/2]

void TObject::SetBit ( UInt_t f )

inlineinherited

Definition at line 202 of file TObject.h.

SetBit() [2/2]

void TObject::SetBit ( UInt_t f, Bool_t set )

inherited

Set or unset the user status bits as specified in f.

Definition at line 888 of file TObject.cxx.

SetClass()

void TDataMember::SetClass ( TClass * cl )

inline

Definition at line 95 of file TDataMember.h.

SetDrawOption()

void TObject::SetDrawOption ( Option_t * option = "" )

virtualinherited

Set drawing option for object.

This option only affects the drawing style and is stored in the option field of the TObjOptLink supporting a TPad's primitive list (TList). Note that it does not make sense to call object.SetDrawOption(option) before having called object.Draw().

Reimplemented in RooPlot, TAxis, TBrowser, TGedFrame, TGFrame, TPad, TPaveStats, TRootBrowserLite, TSystemDirectory, and TSystemFile.

Definition at line 871 of file TObject.cxx.

SetDtorOnly()

void TObject::SetDtorOnly ( void * obj )

staticinherited

Set destructor only flag.

Definition at line 1204 of file TObject.cxx.

SetName()

void TNamed::SetName ( const char * name )

virtualinherited

Set the name of the TNamed.

WARNING: if the object is a member of a THashTable or THashList container the container must be Rehash()'ed after SetName(). For example the list of objects in the current directory is a THashList.

Reimplemented in RooAbsArg, RooAbsData, RooDataHist, RooDataSet, RooFitResult, RooPlot, ROOT::Experimental::XRooFit::xRooNode, TChain, TColor, TDirectory, TEfficiency, TEventList, TEveScene, TFormula, TGraph2D, TGraph, TH1, TNode, TRotMatrix, TShape, TSystemDirectory, TSystemFile, and TTree.

Definition at line 149 of file TNamed.cxx.

SetNameTitle()

void TNamed::SetNameTitle ( const char * name, const char * title )

virtualinherited

Set all the TNamed parameters (name and title).

WARNING: if the name is changed and the object is a member of a THashTable or THashList container the container must be Rehash()'ed after SetName(). For example the list of objects in the current directory is a THashList.

Reimplemented in RooAbsArg, RooAbsData, RooDataHist, RooDataSet, RooFitResult, RooPlot, TContextMenu, TGraph2D, TGraph, TH1, and TNode.

Definition at line 163 of file TNamed.cxx.

SetObjectStat()

void TObject::SetObjectStat ( Bool_t stat )

staticinherited

Turn on/off tracking of objects in the TObjectTable.

Definition at line 1188 of file TObject.cxx.

SetterMethod()

TMethodCall * TDataMember::SetterMethod

(

TClass *

cl

)

Return a TMethodCall method responsible for setting the value of data member.

The cl argument specifies the class of the object which will be used to call this method (in case of multiple inheritance TMethodCall needs to know this to calculate the proper offset).

Definition at line 889 of file TDataMember.cxx.

SetTitle()

void TNamed::SetTitle ( const char * title = "" )

virtualinherited

Set the title of the TNamed.

Reimplemented in Axis2, RooPlot, ROOT::Experimental::XRooFit::xRooNode, ROOT::TSchemaRule::TSources, TASImage, TEfficiency, TF1, TGraph2D, TGraph, TH1, THnBase, TParallelCoordVar, TSystemDirectory, and TSystemFile.

Definition at line 173 of file TNamed.cxx.

SetUniqueID()

void TObject::SetUniqueID ( UInt_t uid )

virtualinherited

Set the unique object id.

Definition at line 899 of file TObject.cxx.

Sizeof()

Int_t TNamed::Sizeof ( ) const

virtualinherited

Return size of the TNamed part of the TObject.

Reimplemented in TDirectory, TDirectoryFile, TFile, TKey, TSQLFile, and TXMLFile.

Definition at line 182 of file TNamed.cxx.

Streamer()

void TDataMember::Streamer ( TBuffer & b )

overridevirtual

Stream an object of TDataMember.

Forces calculation of all cached (and persistent) values.

Reimplemented from TObject.

Definition at line 967 of file TDataMember.cxx.

StreamerNVirtual()

void TDataMember::StreamerNVirtual ( TBuffer & ClassDef_StreamerNVirtual_b )

inline

Definition at line 98 of file TDataMember.h.

SysError()

void TObject::SysError ( const char * location, const char * fmt, ... ) const

virtualinherited

Issue system error message.

Use "location" to specify the method where the system error occurred. Accepts standard printf formatting arguments.

Definition at line 1112 of file TObject.cxx.

TestBit()

Bool_t TObject::TestBit ( UInt_t f ) const

inlineinherited

Definition at line 204 of file TObject.h.

TestBits()

Int_t TObject::TestBits ( UInt_t f ) const

inlineinherited

Definition at line 205 of file TObject.h.

Update()

Bool_t TDataMember::Update ( DataMemberInfo_t * info )

virtual

Update the TFunction to reflect the new info.

This can be used to implement unloading (info == 0) and then reloading (info being the 'new' decl address).

Definition at line 932 of file TDataMember.cxx.

UpdateInterpreterStateMarker()

Bool_t TDictionary::UpdateInterpreterStateMarker ( )

protectedinherited

Definition at line 123 of file TDictionary.cxx.

UseCurrentStyle()

void TObject::UseCurrentStyle ( )

virtualinherited

Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.

Reimplemented in TAxis3D, TCanvas, TFrame, TGraph, TH1, TPad, TPaveStats, TPaveText, and TTree.

Definition at line 909 of file TObject.cxx.

WantsRegularMembers()

bool TDictionary::WantsRegularMembers ( EMemberSelection sel )

inlinestaticinherited

Definition at line 221 of file TDictionary.h.

WantsUsingDecls()

bool TDictionary::WantsUsingDecls ( EMemberSelection sel )

inlinestaticinherited

Definition at line 222 of file TDictionary.h.

Warning()

void TObject::Warning ( const char * location, const char * fmt, ... ) const

virtualinherited

Issue warning message.

Use "location" to specify the method where the warning occurred. Accepts standard printf formatting arguments.

Definition at line 1084 of file TObject.cxx.

Write() [1/2]

Int_t TObject::Write ( const char * name = nullptr, Int_t option = 0, Int_t bufsize = 0 )

virtualinherited

Write this object to the current directory.

For more see the const version of this method.

Reimplemented in ROOT::TBufferMergerFile, TBuffer, TCollection, TDirectory, TDirectoryFile, TFile, TMap, TParallelMergingFile, TSQLFile, TTree, and TXMLFile.

Definition at line 989 of file TObject.cxx.

Write() [2/2]

Int_t TObject::Write ( const char * name = nullptr, Int_t option = 0, Int_t bufsize = 0 ) const

virtualinherited

Write this object to the current directory.

The data structure corresponding to this object is serialized. The corresponding buffer is written to the current directory with an associated key with name "name".

Writing an object to a file involves the following steps:

• Creation of a support TKey object in the current directory. The TKey object creates a TBuffer object.
• The TBuffer object is filled via the class::Streamer function.
• If the file is compressed (default) a second buffer is created to hold the compressed buffer.
• Reservation of the corresponding space in the file by looking in the TFree list of free blocks of the file.
• The buffer is written to the file.

Bufsize can be given to force a given buffer size to write this object. By default, the buffersize will be taken from the average buffer size of all objects written to the current file so far.

If a name is specified, it will be the name of the key. If name is not given, the name of the key will be the name as returned by GetName().

The option can be a combination of: kSingleKey, kOverwrite or kWriteDelete Using the kOverwrite option a previous key with the same name is overwritten. The previous key is deleted before writing the new object. Using the kWriteDelete option a previous key with the same name is deleted only after the new object has been written. This option is safer than kOverwrite but it is slower. NOTE: Neither kOverwrite nor kWriteDelete reduces the size of a TFile– the space is simply freed up to be overwritten; in the case of a TTree, it is more complicated. If one opens a TTree, appends some entries, then writes it out, the behaviour is effectively the same. If, however, one creates a new TTree and writes it out in this way, only the metadata is replaced, effectively making the old data invisible without deleting it. TTree::Delete() can be used to mark all disk space occupied by a TTree as free before overwriting its metadata this way. The kSingleKey option is only used by TCollection::Write() to write a container with a single key instead of each object in the container with its own key.

An object is read from the file into memory via TKey::Read() or via TObject::Read().

The function returns the total number of bytes written to the file. It returns 0 if the object cannot be written.

Reimplemented in TBuffer, TCollection, TDirectory, TDirectoryFile, TFile, TMap, TParallelMergingFile, TSQLFile, TTree, and TXMLFile.

Definition at line 964 of file TObject.cxx.

Member Data Documentation

fArrayDim

Int_t TDataMember::fArrayDim

private

Definition at line 45 of file TDataMember.h.

fArrayIndex

TString TDataMember::fArrayIndex

private

Definition at line 47 of file TDataMember.h.

fArrayMaxIndex

Int_t* TDataMember::fArrayMaxIndex

private

Definition at line 46 of file TDataMember.h.

fAttributeMap

TDictAttributeMap* TDictionary::fAttributeMap {nullptr}

privateinherited

Definition at line 171 of file TDictionary.h.

fBits

UInt_t TObject::fBits

privateinherited

bit field status word

Definition at line 47 of file TObject.h.

fClass

TClass* TDataMember::fClass

private

!pointer to the class

Definition at line 39 of file TDataMember.h.

fDataType

TDataType* TDataMember::fDataType

private

!pointer to data basic type descriptor

Definition at line 40 of file TDataMember.h.

fFullTypeName

TString TDataMember::fFullTypeName

private

Definition at line 50 of file TDataMember.h.

fgDtorOnly

Longptr_t TObject::fgDtorOnly = 0

staticprivateinherited

object for which to call dtor only (i.e. no delete)

Definition at line 49 of file TObject.h.

fgObjectStat

Bool_t TObject::fgObjectStat = kTRUE

staticprivateinherited

if true keep track of objects in TObjectTable

Definition at line 50 of file TObject.h.

fInfo

DataMemberInfo_t* TDataMember::fInfo

private

!pointer to CINT data member info

Definition at line 38 of file TDataMember.h.

fName

TString TNamed::fName

protectedinherited

Definition at line 32 of file TNamed.h.

fOffset

Longptr_t TDataMember::fOffset

private

Definition at line 42 of file TDataMember.h.

fOptions

TList* TDataMember::fOptions

private

Definition at line 58 of file TDataMember.h.

fProperty

Long_t TDataMember::fProperty

private

Definition at line 44 of file TDataMember.h.

fSTLCont

Int_t TDataMember::fSTLCont

private

Definition at line 43 of file TDataMember.h.

fTitle

TString TNamed::fTitle

protectedinherited

Definition at line 33 of file TNamed.h.

fTrueTypeName

TString TDataMember::fTrueTypeName

private

Definition at line 51 of file TDataMember.h.

fTypeName

TString TDataMember::fTypeName

private

Definition at line 49 of file TDataMember.h.

fUniqueID

UInt_t TObject::fUniqueID

privateinherited

object unique identifier

Definition at line 46 of file TObject.h.

fUpdatingTransactionCount

ULong64_t TDictionary::fUpdatingTransactionCount {0}

privateinherited

!the Cling ID of the transaction that last updated the object

Definition at line 172 of file TDictionary.h.

fValueGetter

TMethodCall* TDataMember::fValueGetter

private

!method that returns a value;

Definition at line 56 of file TDataMember.h.

fValueSetter

TMethodCall* TDataMember::fValueSetter

private

!method which sets value;

Definition at line 57 of file TDataMember.h.

---

The documentation for this class was generated from the following files:

• core/meta/inc/TDataMember.h
• core/meta/src/TDataMember.cxx
