This class is the baseclass for all ROOT GUI widgets.

The ROOT GUI components emulate the Win95 look and feel and the code is based on the XClass'95 code (see Copyleft in source).

Definition at line 21 of file TGObject.h.

Public Member Functions
	TGObject ()

	TGObject (const TGObject &tgo)

	~TGObject () override
	TGObject destructor.

TGClient *	GetClient () const

Handle_t	GetId () const

ULong_t	Hash () const override
	Return hash value for this object.

TClass *	IsA () const override

Bool_t	IsEqual (const TObject *obj) const override
	Equal comparison (TGObjects are equal if they have the same window identifier).

void	SaveAs (const char filename="", Option_t option="") const override
	Write this TGObject to a file using TImage, if filename's extension signals a valid TImage::EImageFileType, as defined by TImage::GetImageFileTypeFromFilename().

void	Streamer (TBuffer &) override
	Stream an object of class TObject.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TObject
	TObject ()
	TObject constructor.

	TObject (const TObject &object)
	TObject copy ctor.

virtual	~TObject ()
	TObject destructor.

void	AbstractMethod (const char *method) const
	Use this method to implement an "abstract" method that you don't want to leave purely abstract.

virtual void	AppendPad (Option_t *option="")
	Append graphics object to current pad.

virtual void	Browse (TBrowser *b)
	Browse object. May be overridden for another default action.

ULong_t	CheckedHash ()
	Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.

virtual const char *	ClassName () const
	Returns name of class to which the object belongs.

virtual void	Clear (Option_t *="")

virtual TObject *	Clone (const char *newname="") const
	Make a clone of an object using the Streamer facility.

virtual Int_t	Compare (const TObject *obj) const
	Compare abstract method.

virtual void	Copy (TObject &object) const
	Copy this to obj.

virtual void	Delete (Option_t *option="")
	Delete this object.

virtual Int_t	DistancetoPrimitive (Int_t px, Int_t py)
	Computes distance from point (px,py) to the object.

virtual void	Draw (Option_t *option="")
	Default Draw method for all objects.

virtual void	DrawClass () const
	Draw class inheritance tree of the class to which this object belongs.

virtual TObject *	DrawClone (Option_t *option="") const
	Draw a clone of this object in the current selected pad with: `gROOT->SetSelectedPad(c1)`.

virtual void	Dump () const
	Dump contents of object on stdout.

virtual void	Error (const char method, const char msgfmt,...) const
	Issue error message.

virtual void	Execute (const char method, const char params, Int_t *error=nullptr)
	Execute method on this object with the given parameter string, e.g.

virtual void	Execute (TMethod method, TObjArray params, Int_t *error=nullptr)
	Execute method on this object with parameters stored in the TObjArray.

virtual void	ExecuteEvent (Int_t event, Int_t px, Int_t py)
	Execute action corresponding to an event at (px,py).

virtual void	Fatal (const char method, const char msgfmt,...) const
	Issue fatal error message.

virtual TObject *	FindObject (const char *name) const
	Must be redefined in derived classes.

virtual TObject *	FindObject (const TObject *obj) const
	Must be redefined in derived classes.

virtual Option_t *	GetDrawOption () const
	Get option used by the graphics system to draw this object.

virtual const char *	GetIconName () const
	Returns mime type name of object.

virtual const char *	GetName () const
	Returns name of object.

virtual char *	GetObjectInfo (Int_t px, Int_t py) const
	Returns string containing info about the object at position (px,py).

virtual Option_t *	GetOption () const

virtual const char *	GetTitle () const
	Returns title of object.

virtual UInt_t	GetUniqueID () const
	Return the unique object id.

virtual Bool_t	HandleTimer (TTimer *timer)
	Execute action in response of a timer timing out.

Bool_t	HasInconsistentHash () const
	Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.

virtual void	Info (const char method, const char msgfmt,...) const
	Issue info message.

virtual Bool_t	InheritsFrom (const char *classname) const
	Returns kTRUE if object inherits from class "classname".

virtual Bool_t	InheritsFrom (const TClass *cl) const
	Returns kTRUE if object inherits from TClass cl.

virtual void	Inspect () const
	Dump contents of this object in a graphics canvas.

void	InvertBit (UInt_t f)

Bool_t	IsDestructed () const
	IsDestructed.

virtual Bool_t	IsFolder () const
	Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).

R__ALWAYS_INLINE Bool_t	IsOnHeap () const

virtual Bool_t	IsSortable () const

R__ALWAYS_INLINE Bool_t	IsZombie () const

virtual void	ls (Option_t *option="") const
	The ls function lists the contents of a class on stdout.

void	MayNotUse (const char *method) const
	Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).

virtual Bool_t	Notify ()
	This method must be overridden to handle object notification (the base implementation is no-op).

void	Obsolete (const char method, const char asOfVers, const char *removedFromVers) const
	Use this method to declare a method obsolete.

void	operator delete (void *ptr)
	Operator delete.

void	operator delete (void ptr, void vp)
	Only called by placement new when throwing an exception.

void	operator delete[] (void *ptr)
	Operator delete [].

void	operator delete[] (void ptr, void vp)
	Only called by placement new[] when throwing an exception.

void *	operator new (size_t sz)

void *	operator new (size_t sz, void *vp)

void *	operator new[] (size_t sz)

void *	operator new[] (size_t sz, void *vp)

TObject &	operator= (const TObject &rhs)
	TObject assignment operator.

virtual void	Paint (Option_t *option="")
	This method must be overridden if a class wants to paint itself.

virtual void	Pop ()
	Pop on object drawn in a pad to the top of the display list.

virtual void	Print (Option_t *option="") const
	This method must be overridden when a class wants to print itself.

virtual Int_t	Read (const char *name)
	Read contents of object with specified name from the current directory.

virtual void	RecursiveRemove (TObject *obj)
	Recursively remove this object from a list.

void	ResetBit (UInt_t f)

virtual void	SavePrimitive (std::ostream &out, Option_t *option="")
	Save a primitive as a C++ statement(s) on output stream "out".

void	SetBit (UInt_t f)

void	SetBit (UInt_t f, Bool_t set)
	Set or unset the user status bits as specified in f.

virtual void	SetDrawOption (Option_t *option="")
	Set drawing option for object.

virtual void	SetUniqueID (UInt_t uid)
	Set the unique object id.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

virtual void	SysError (const char method, const char msgfmt,...) const
	Issue system error message.

R__ALWAYS_INLINE Bool_t	TestBit (UInt_t f) const

Int_t	TestBits (UInt_t f) const

virtual void	UseCurrentStyle ()
	Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.

virtual void	Warning (const char method, const char msgfmt,...) const
	Issue warning message.

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0)
	Write this object to the current directory.

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) const
	Write this object to the current directory.

Static Public Member Functions
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TObject
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

static Longptr_t	GetDtorOnly ()
	Return destructor only flag.

static Bool_t	GetObjectStat ()
	Get status of object stat flag.

static void	SetDtorOnly (void *obj)
	Set destructor only flag.

static void	SetObjectStat (Bool_t stat)
	Turn on/off tracking of objects in the TObjectTable.

Protected Member Functions
TGObject &	operator= (const TGObject &tgo)

Protected Member Functions inherited from TObject
virtual void	DoError (int level, const char location, const char fmt, va_list va) const
	Interface to ErrorHandler (protected).

void	MakeZombie ()

Protected Attributes
TGClient *	fClient
	Connection to display server.

Handle_t	fId
	X11/Win32 Window identifier.

Additional Inherited Members
Public Types inherited from TObject
enum	{ kIsOnHeap = 0x01000000 , kNotDeleted = 0x02000000 , kZombie = 0x04000000 , kInconsistent = 0x08000000 , kBitMask = 0x00ffffff }

enum	{ kSingleKey = (1ULL << ( 0 )) , kOverwrite = (1ULL << ( 1 )) , kWriteDelete = (1ULL << ( 2 )) }

enum	EDeprecatedStatusBits { kObjInCanvas = (1ULL << ( 3 )) }

enum	EStatusBits { kCanDelete = (1ULL << ( 0 )) , kMustCleanup = (1ULL << ( 3 )) , kIsReferenced = (1ULL << ( 4 )) , kHasUUID = (1ULL << ( 5 )) , kCannotPick = (1ULL << ( 6 )) , kNoContextMenu = (1ULL << ( 8 )) , kInvalidObject = (1ULL << ( 13 )) }

Protected Types inherited from TObject
enum	{ kOnlyPrepStep = (1ULL << ( 3 )) }

#include <TGObject.h>

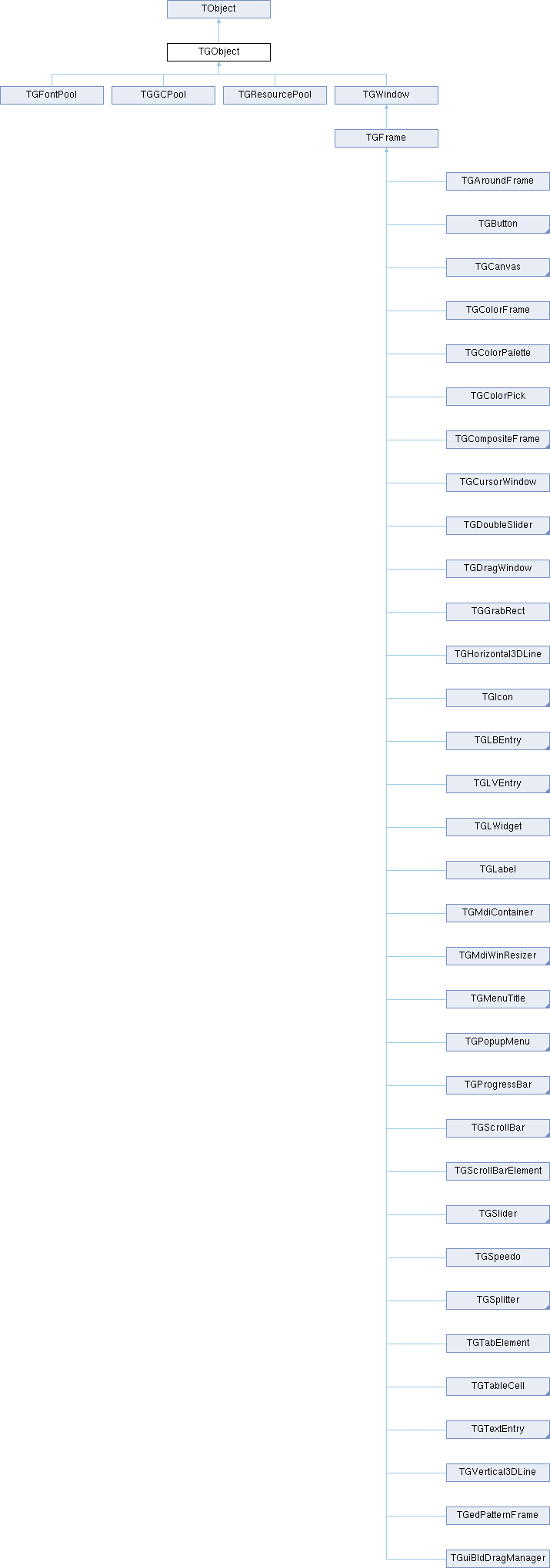

Inheritance diagram for TGObject:

[legend]

Constructor & Destructor Documentation

◆ TGObject() [1/2]

TGObject::TGObject ( )

inline

Definition at line 38 of file TGObject.h.

◆ TGObject() [2/2]

TGObject::TGObject ( const TGObject & tgo )

inline

Definition at line 39 of file TGObject.h.

◆ ~TGObject()

TGObject::~TGObject ( )

override

TGObject destructor.

Definition at line 44 of file TGObject.cxx.

Member Function Documentation

◆ Class()

static TClass * TGObject::Class ( )

static

Returns: TClass describing this class

◆ Class_Name()

static const char * TGObject::Class_Name ( )

static

Returns: Name of this class

◆ Class_Version()

static constexpr Version_t TGObject::Class_Version ( )

inlinestaticconstexpr

Returns: Version of this class

Definition at line 47 of file TGObject.h.

◆ DeclFileName()

static const char * TGObject::DeclFileName ( )

inlinestatic

Returns: Name of the file containing the class declaration

Definition at line 47 of file TGObject.h.

◆ GetClient()

TGClient * TGObject::GetClient ( ) const

inline

Definition at line 42 of file TGObject.h.

◆ GetId()

Handle_t TGObject::GetId ( ) const

inline

Definition at line 41 of file TGObject.h.

◆ Hash()

ULong_t TGObject::Hash ( ) const

inlineoverridevirtual

Return hash value for this object.

Note: If this routine is overloaded in a derived class, this derived class should also add

ROOT::CallRecursiveRemoveIfNeeded(*this)

ROOT::CallRecursiveRemoveIfNeeded

void CallRecursiveRemoveIfNeeded(TObject &obj)

call RecursiveRemove for obj if gROOT is valid and obj.TestBit(kMustCleanup) is true.

Definition TROOT.h:395

Otherwise, when RecursiveRemove is called (by ~TObject or example) for this type of object, the transversal of THashList and THashTable containers will will have to be done without call Hash (and hence be linear rather than logarithmic complexity). You will also see warnings like

Error in <ROOT::Internal::TCheckHashRecursiveRemoveConsistency::CheckRecursiveRemove>: The class SomeName overrides TObject::Hash but does not call TROOT::RecursiveRemove in its destructor.

TGObject::Hash

ULong_t Hash() const override

Return hash value for this object.

Definition TGObject.h:43

TObject

Mother of all ROOT objects.

Definition TObject.h:41

TObject::Error

virtual void Error(const char *method, const char *msgfmt,...) const

Issue error message.

Definition TObject.cxx:993

TROOT::RecursiveRemove

void RecursiveRemove(TObject *obj) override

Recursively remove this object from the list of Cleanups.

Definition TROOT.cxx:2498

Reimplemented from TObject.

Definition at line 43 of file TGObject.h.

◆ IsA()

TClass * TGObject::IsA ( ) const

inlineoverridevirtual

Returns: TClass describing current object

Reimplemented from TObject.

Reimplemented in TGVertical3DLine, TGTextButton, TGPictureButton, TGRadioButton, TGSplitButton, TGVButtonGroup, TGViewPort, TGUndockedFrame, TGVerticalFrame, TGTransientFrame, TGTreeLBEntry, TGTextLBEntry, TGPopupMenu, TGPack, TGProgressBar, TGVProgressBar, TGResourcePool, TGScrollBarElement, TGScrollBar, TGVScrollBar, TGShapedFrame, TGShutterItem, TGShutter, TGSimpleTable, TGSlider, TGVSlider, TGSpeedo, TGSplitTool, TGSplitFrame, TGSplitter, TGVSplitter, TGVFileSplitter, TGStatusBar, TGTab, TGTabElement, TGTable, TGTableCell, TGTableHeaderFrame, TGTableHeader, TGTextEdit, TGSearchDialog, TGPrintDialog, TGTextEditor, TGTextEntry, TGTextView, TGTextViewostream, TGToolBar, TGToolTip, TGTripleVSlider, TGTripleHSlider, TGView, TGViewFrame, TGWindow, TRootBrowser, TRootBrowserLite, TRootCanvas, TRootContextMenu, TRootControlBar, TRootDialog, TRootEmbeddedCanvas, TRootHelpDialog, TGRecorder, TProofProgressLog, TNewChainDlg, TNewQueryDlg, TUploadDataSetDlg, TSessionServerFrame, TSessionFrame, TSessionQueryFrame, TSessionOutputFrame, TSessionInputFrame, TSessionViewer, and TTreeViewer.

Definition at line 47 of file TGObject.h.

◆ IsEqual()

Bool_t TGObject::IsEqual ( const TObject * obj ) const

overridevirtual

Equal comparison (TGObjects are equal if they have the same window identifier).

If the TGObjects have not been created by the Window manager (e.g. a TGLVEntry), then fall back to the default TObject equal comparison

Reimplemented from TObject.

Definition at line 79 of file TGObject.cxx.

◆ operator=()

TGObject & TGObject::operator= ( const TGObject & tgo )

inlineprotected

Definition at line 27 of file TGObject.h.

◆ SaveAs()

void TGObject::SaveAs	(	const char *	filename = `""`,
		Option_t *	option = `""`
	)		const

overridevirtual

Write this TGObject to a file using TImage, if filename's extension signals a valid TImage::EImageFileType, as defined by TImage::GetImageFileTypeFromFilename().

Otherwise forward to TObject::SaveAs().

Reimplemented from TObject.

Definition at line 55 of file TGObject.cxx.

◆ Streamer()

void TGObject::Streamer ( TBuffer & R__b )

overridevirtual

Stream an object of class TObject.

Reimplemented from TObject.

Reimplemented in TGVertical3DLine, TGTextButton, TGPictureButton, TGRadioButton, TGSplitButton, TGVButtonGroup, TGViewPort, TGUndockedFrame, TGVerticalFrame, TGTransientFrame, TGTreeLBEntry, TGTextLBEntry, TGPopupMenu, TGPack, TGProgressBar, TGVProgressBar, TGResourcePool, TGScrollBarElement, TGScrollBar, TGVScrollBar, TGShapedFrame, TGShutterItem, TGShutter, TGSimpleTable, TGSlider, TGVSlider, TGSpeedo, TGSplitTool, TGSplitFrame, TGSplitter, TGVSplitter, TGVFileSplitter, TGStatusBar, TGTab, TGTabElement, TGTable, TGTableCell, TGTableHeaderFrame, TGTableHeader, TGTextEdit, TGSearchDialog, TGPrintDialog, TGTextEditor, TGTextEntry, TGTextView, TGTextViewostream, TGToolBar, TGToolTip, TGTripleVSlider, TGTripleHSlider, TGView, TGViewFrame, TGWindow, TRootBrowser, TRootBrowserLite, TRootCanvas, TRootContextMenu, TRootControlBar, TRootDialog, TRootEmbeddedCanvas, TRootHelpDialog, TGRecorder, TProofProgressLog, TNewChainDlg, TNewQueryDlg, TUploadDataSetDlg, TSessionServerFrame, TSessionFrame, TSessionQueryFrame, TSessionOutputFrame, TSessionInputFrame, TSessionViewer, and TTreeViewer.

◆ StreamerNVirtual()

void TGObject::StreamerNVirtual ( TBuffer & ClassDef_StreamerNVirtual_b )

inline

Definition at line 47 of file TGObject.h.

Member Data Documentation

◆ fClient

TGClient* TGObject::fClient

protected

Connection to display server.

Definition at line 25 of file TGObject.h.

◆ fId

Handle_t TGObject::fId

protected

X11/Win32 Window identifier.

Definition at line 24 of file TGObject.h.

Libraries for TGObject:

[legend]

The documentation for this class was generated from the following files:

gui/gui/inc/TGObject.h
gui/gui/src/TGObject.cxx

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ TGObject() [1/2]

◆ TGObject() [2/2]

◆ ~TGObject()

Member Function Documentation

◆ Class()

◆ Class_Name()

◆ Class_Version()

◆ DeclFileName()

◆ GetClient()

◆ GetId()

◆ Hash()

◆ IsA()

◆ IsEqual()

◆ operator=()

◆ SaveAs()

◆ Streamer()

◆ StreamerNVirtual()

Member Data Documentation

◆ fClient

◆ fId
