TPie Class Reference

Draw a Pie Chart,.

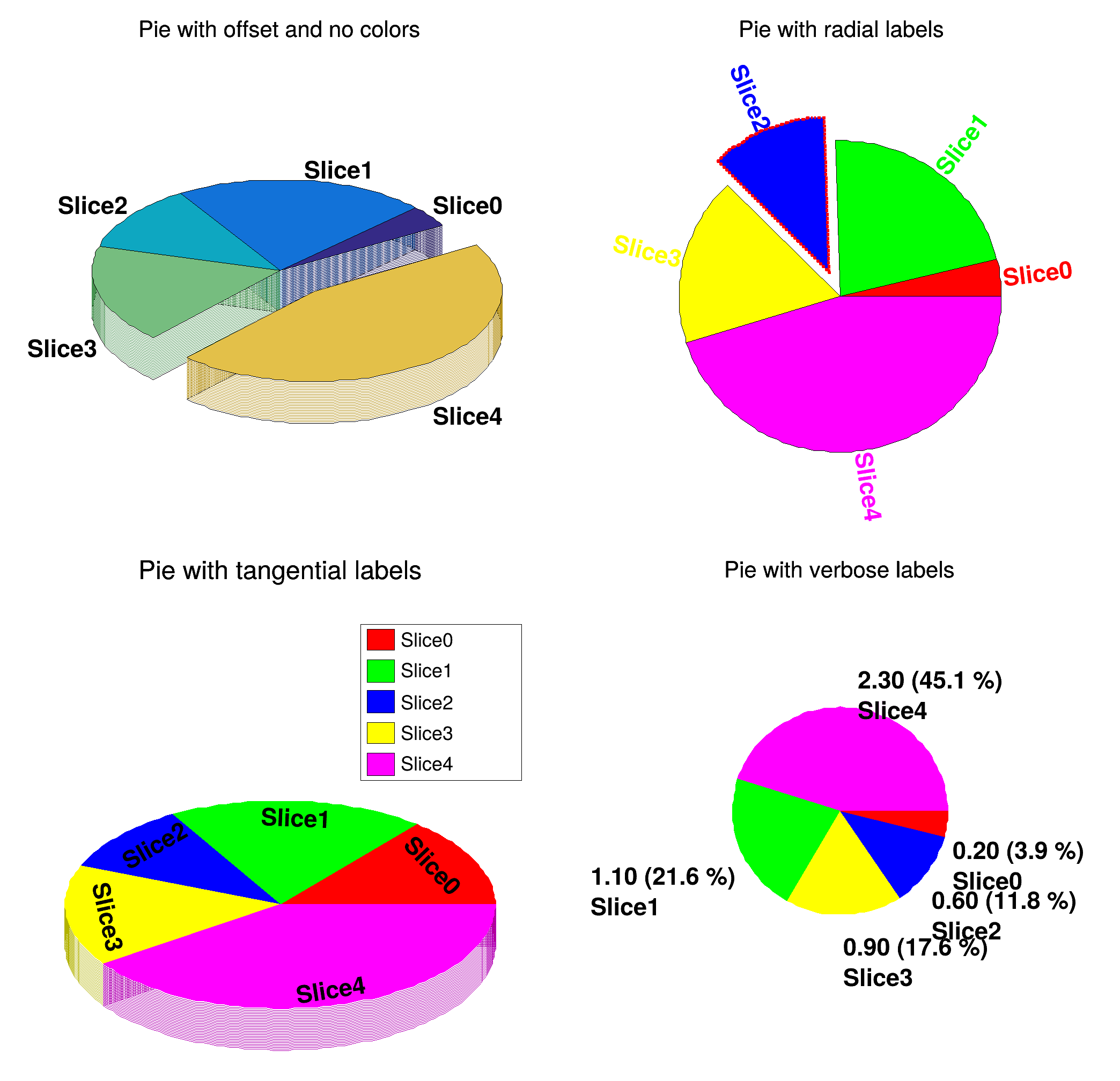

Example:

void piechart()
{
Float_t vals[] = {.2,1.1,.6,.9,2.3};
Int_t colors[] = {2,3,4,5,6};
Int_t nvals = sizeof(vals)/sizeof(vals[0]);
TCanvas *cpie = new TCanvas("cpie","TPie test",700,700);
cpie->Divide(2,2);
TPie *pie1 = new TPie("pie1",
"Pie with offset and no colors",nvals,vals);
TPie *pie2 = new TPie("pie2",
"Pie with radial labels",nvals,vals,colors);
TPie *pie3 = new TPie("pie3",
"Pie with tangential labels",nvals,vals,colors);
TPie *pie4 = new TPie("pie4",
"Pie with verbose labels",nvals,vals,colors);
cpie->cd(1);
pie1->SetAngularOffset(30.);
pie1->SetEntryRadiusOffset( 4, 0.1);
pie1->SetRadius(.35);
pie1->Draw("3d");
cpie->cd(2);
pie2->SetEntryRadiusOffset(2,.05);
pie2->SetEntryLineColor(2,2);
pie2->SetEntryLineWidth(2,5);
pie2->SetEntryLineStyle(2,2);
pie2->SetEntryFillStyle(1,3030);
pie2->SetCircle(.5,.45,.3);
pie2->Draw("rsc");
cpie->cd(3);
pie3->SetY(.32);
pie3->GetSlice(0)->SetValue(.8);
pie3->GetSlice(1)->SetFillStyle(3031);
pie3->SetLabelsOffset(-.1);
pie3->Draw("3d t nol");
TLegend *pieleg = pie3->MakeLegend();
pieleg->SetY1(.56); pieleg->SetY2(.86);
cpie->cd(4);
pie4->SetRadius(.2);
pie4->SetLabelsOffset(.01);
pie4->SetLabelFormat("#splitline{%val (%perc)}{%txt}");
pie4->Draw("nol <");
}
int Int_t
Definition RtypesCore.h:45
float Float_t
Definition RtypesCore.h:57
Color * colors
Definition X3DBuffer.c:21
virtual void SetFillStyle(Style_t fstyle)
Set the fill area style.
Definition TAttFill.h:39
The Canvas class.
Definition TCanvas.h:23
TVirtualPad * cd(Int_t subpadnumber=0) override
Set current canvas & pad.
Definition TCanvas.cxx:719
This class displays a legend box (TPaveText) containing several legend entries.
Definition TLegend.h:23
void Divide(Int_t nx=1, Int_t ny=1, Float_t xmargin=0.01, Float_t ymargin=0.01, Int_t color=0) override
Automatic pad generation by division.
Definition TPad.cxx:1249
void SetY1(Double_t y1) override
Set the Y1 value.
Definition TPave.cxx:679
void SetY2(Double_t y2) override
Set the Y2 value.
Definition TPave.cxx:692
void SetValue(Double_t)
Set the value for this slice.
Draw a Pie Chart,.
Definition TPie.h:23
TPieSlice * GetSlice(Int_t i)
Return the reference to the slice of index 'id'.
Definition TPie.cxx:714
void SetAngularOffset(Double_t)
Set the global angular offset for slices in degree [0,360].
Definition TPie.cxx:1165
void SetEntryFillStyle(Int_t, Int_t)
Set the fill style for the "i" slice.
Definition TPie.cxx:1234
TPie()
Default constructor.
Definition TPie.cxx:64
void SetY(Double_t)
Set Y value.
Definition TPie.cxx:1371
void SetLabelsOffset(Float_t)
Set the distance between the label end the external line of the TPie.
Definition TPie.cxx:1325
void SetEntryRadiusOffset(Int_t, Double_t)
Set the distance, in the direction of the radius of the slice.
Definition TPie.cxx:1242
void SetLabelFormat(const char *)
This method is used to customize the label format.
Definition TPie.cxx:1288
void SetEntryLineStyle(Int_t, Int_t)
Set the style for the slice's outline. "i" is the slice number.
Definition TPie.cxx:1210
void SetEntryLineWidth(Int_t, Int_t)
Set the width of the slice's outline. "i" is the slice number.
Definition TPie.cxx:1218
void SetCircle(Double_t x=.5, Double_t y=.5, Double_t rad=.4)
Set the coordinates of the circle that describe the pie:
Definition TPie.cxx:1182
void SetRadius(Double_t)
Set the pie chart's radius' value.
Definition TPie.cxx:1341
TLegend * MakeLegend(Double_t x1=.65, Double_t y1=.65, Double_t x2=.95, Double_t y2=.95, const char *leg_header="")
This method create a legend that explains the contents of the slice for this pie-chart.
Definition TPie.cxx:770
void Draw(Option_t *option="l") override
Draw the pie chart.
Definition TPie.cxx:277
void SetEntryLineColor(Int_t, Int_t)
Set the color for the slice's outline. "i" is the slice number.
Definition TPie.cxx:1202

Definition at line 23 of file TPie.h.

Public Member Functions

 TPie ()
 Default constructor.

 TPie (const char *, const char *, Int_t)
 This constructor creates a pie chart when only the number of the slices is known.

 TPie (const char *, const char *, Int_t, Double_t *, Int_t *cols=nullptr, const char *lbls[]=nullptr)
 Normal constructor.

 TPie (const char *, const char *, Int_t, Float_t *, Int_t *cols=nullptr, const char *lbls[]=nullptr)
 Normal constructor (Float_t).

 TPie (const TH1 *h)
 Constructor from a TH1.

 TPie (const TPie &)
 Copy constructor.

 ~TPie () override
 Destructor.

Int_t DistancetoPrimitive (Int_t px, Int_t py) override
 Evaluate the distance to the chart in gPad.

Int_t DistancetoSlice (Int_t, Int_t)
 Returns the slice number at the pixel position (px,py).

void Draw (Option_t *option="l") override
 Draw the pie chart.

void ExecuteEvent (Int_t, Int_t, Int_t) override
 Execute the mouse events.

Float_t GetAngle3D ()

Double_t GetAngularOffset ()

Int_t GetEntries ()

Int_t GetEntryFillColor (Int_t)
 Return the color of the slice number "i".

Int_t GetEntryFillStyle (Int_t)
 Return the style use to fill the slice number "i".

const char * GetEntryLabel (Int_t)
 Returns the label of the entry number "i".

Int_t GetEntryLineColor (Int_t)
 Return the line color used to outline thi "i" slice.

Int_t GetEntryLineStyle (Int_t)
 Return the style used to outline thi "i" slice.

Int_t GetEntryLineWidth (Int_t)
 Return the line width used to outline thi "i" slice.

Double_t GetEntryRadiusOffset (Int_t)
 Return the radial offset's value for the slice number "i".

Double_t GetEntryVal (Int_t)
 Return the value associated with the slice number "i".

const char * GetFractionFormat ()

Double_t GetHeight ()

const char * GetLabelFormat ()

Float_t GetLabelsOffset ()

TLegendGetLegend ()
 If created before by Paint option or by MakeLegend method return the pointer to the legend, otherwise return 0;.

const char * GetPercentFormat ()

Double_t GetRadius ()

TPieSliceGetSlice (Int_t i)
 Return the reference to the slice of index 'id'.

const char * GetValueFormat ()

Double_t GetX ()

Double_t GetY ()

TClassIsA () const override

TLegendMakeLegend (Double_t x1=.65, Double_t y1=.65, Double_t x2=.95, Double_t y2=.95, const char *leg_header="")
 This method create a legend that explains the contents of the slice for this pie-chart.

void MakeSlices (Bool_t force=kFALSE)
 Make the slices.

void Paint (Option_t *) override
 Paint a Pie chart in a canvas.

void SavePrimitive (std::ostream &out, Option_t *opts="") override
 Save primitive as a C++ statement(s) on output stream out.

void SetAngle3D (Float_t val=30.)
 Set the value of for the pseudo 3D view angle, in degree.

void SetAngularOffset (Double_t)
 Set the global angular offset for slices in degree [0,360].

void SetCircle (Double_t x=.5, Double_t y=.5, Double_t rad=.4)
 Set the coordinates of the circle that describe the pie:

void SetEntryFillColor (Int_t, Int_t)
 Set the color for the slice "i".

void SetEntryFillStyle (Int_t, Int_t)
 Set the fill style for the "i" slice.

void SetEntryLabel (Int_t, const char *text="Slice")
 Set slice number "i" label.

void SetEntryLineColor (Int_t, Int_t)
 Set the color for the slice's outline. "i" is the slice number.

void SetEntryLineStyle (Int_t, Int_t)
 Set the style for the slice's outline. "i" is the slice number.

void SetEntryLineWidth (Int_t, Int_t)
 Set the width of the slice's outline. "i" is the slice number.

void SetEntryRadiusOffset (Int_t, Double_t)
 Set the distance, in the direction of the radius of the slice.

void SetEntryVal (Int_t, Double_t)
 Set the value of a slice.

void SetFillColors (Int_t *)
 Set the fill colors for all the TPie's slices.

void SetFractionFormat (const char *)
 Set numeric format in the label, is used if the label format there is the modifier frac, in this case the value is printed using this format.

void SetHeight (Double_t val=.08)
 Set the height, in pixel, for the piechart if is drawn using the pseudo-3d mode.

void SetLabelFormat (const char *)
 This method is used to customize the label format.

void SetLabels (const char *[])
 Set the labels for all the slices.

void SetLabelsOffset (Float_t)
 Set the distance between the label end the external line of the TPie.

void SetPercentFormat (const char *)
 Set the numeric format for the percent value of a slice, default: %3.1f.

void SetRadius (Double_t)
 Set the pie chart's radius' value.

void SetValueFormat (const char *)
 Set the numeric format the slices' values.

void SetX (Double_t)
 Set X value.

void SetY (Double_t)
 Set Y value.

void SortSlices (Bool_t amode=kTRUE, Float_t merge_thresold=.0)
 This method, mainly intended for internal use, ordered the slices according their values.

void Streamer (TBuffer &) override
 Stream an object of class TObject.

void StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

- Public Member Functions inherited from TNamed
 TNamed ()

 TNamed (const char *name, const char *title)

 TNamed (const TNamed &named)
 TNamed copy ctor.

 TNamed (const TString &name, const TString &title)

virtual ~TNamed ()
 TNamed destructor.

void Clear (Option_t *option="") override
 Set name and title to empty strings ("").

TObjectClone (const char *newname="") const override
 Make a clone of an object using the Streamer facility.

Int_t Compare (const TObject *obj) const override
 Compare two TNamed objects.

void Copy (TObject &named) const override
 Copy this to obj.

virtual void FillBuffer (char *&buffer)
 Encode TNamed into output buffer.

const char * GetName () const override
 Returns name of object.

const char * GetTitle () const override
 Returns title of object.

ULong_t Hash () const override
 Return hash value for this object.

Bool_t IsSortable () const override

void ls (Option_t *option="") const override
 List TNamed name and title.

TNamedoperator= (const TNamed &rhs)
 TNamed assignment operator.

void Print (Option_t *option="") const override
 Print TNamed name and title.

virtual void SetName (const char *name)
 Set the name of the TNamed.

virtual void SetNameTitle (const char *name, const char *title)
 Set all the TNamed parameters (name and title).

virtual void SetTitle (const char *title="")
 Set the title of the TNamed.

virtual Int_t Sizeof () const
 Return size of the TNamed part of the TObject.

void StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

- Public Member Functions inherited from TObject
 TObject ()
 TObject constructor.

 TObject (const TObject &object)
 TObject copy ctor.

virtual ~TObject ()
 TObject destructor.

void AbstractMethod (const char *method) const
 Use this method to implement an "abstract" method that you don't want to leave purely abstract.

virtual void AppendPad (Option_t *option="")
 Append graphics object to current pad.

virtual void Browse (TBrowser *b)
 Browse object. May be overridden for another default action.

ULong_t CheckedHash ()
 Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.

virtual const char * ClassName () const
 Returns name of class to which the object belongs.

virtual void Delete (Option_t *option="")
 Delete this object.

virtual void DrawClass () const
 Draw class inheritance tree of the class to which this object belongs.

virtual TObjectDrawClone (Option_t *option="") const
 Draw a clone of this object in the current selected pad with: gROOT->SetSelectedPad(c1).

virtual void Dump () const
 Dump contents of object on stdout.

virtual void Error (const char *method, const char *msgfmt,...) const
 Issue error message.

virtual void Execute (const char *method, const char *params, Int_t *error=nullptr)
 Execute method on this object with the given parameter string, e.g.

virtual void Execute (TMethod *method, TObjArray *params, Int_t *error=nullptr)
 Execute method on this object with parameters stored in the TObjArray.

virtual void Fatal (const char *method, const char *msgfmt,...) const
 Issue fatal error message.

virtual TObjectFindObject (const char *name) const
 Must be redefined in derived classes.

virtual TObjectFindObject (const TObject *obj) const
 Must be redefined in derived classes.

virtual Option_tGetDrawOption () const
 Get option used by the graphics system to draw this object.

virtual const char * GetIconName () const
 Returns mime type name of object.

virtual char * GetObjectInfo (Int_t px, Int_t py) const
 Returns string containing info about the object at position (px,py).

virtual Option_tGetOption () const

virtual UInt_t GetUniqueID () const
 Return the unique object id.

virtual Bool_t HandleTimer (TTimer *timer)
 Execute action in response of a timer timing out.

Bool_t HasInconsistentHash () const
 Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.

virtual void Info (const char *method, const char *msgfmt,...) const
 Issue info message.

virtual Bool_t InheritsFrom (const char *classname) const
 Returns kTRUE if object inherits from class "classname".

virtual Bool_t InheritsFrom (const TClass *cl) const
 Returns kTRUE if object inherits from TClass cl.

virtual void Inspect () const
 Dump contents of this object in a graphics canvas.

void InvertBit (UInt_t f)

Bool_t IsDestructed () const
 IsDestructed.

virtual Bool_t IsEqual (const TObject *obj) const
 Default equal comparison (objects are equal if they have the same address in memory).

virtual Bool_t IsFolder () const
 Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).

R__ALWAYS_INLINE Bool_t IsOnHeap () const

R__ALWAYS_INLINE Bool_t IsZombie () const

void MayNotUse (const char *method) const
 Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).

virtual Bool_t Notify ()
 This method must be overridden to handle object notification (the base implementation is no-op).

void Obsolete (const char *method, const char *asOfVers, const char *removedFromVers) const
 Use this method to declare a method obsolete.

void operator delete (void *ptr)
 Operator delete.

void operator delete (void *ptr, void *vp)
 Only called by placement new when throwing an exception.

void operator delete[] (void *ptr)
 Operator delete [].

void operator delete[] (void *ptr, void *vp)
 Only called by placement new[] when throwing an exception.

void * operator new (size_t sz)

void * operator new (size_t sz, void *vp)

void * operator new[] (size_t sz)

void * operator new[] (size_t sz, void *vp)

TObjectoperator= (const TObject &rhs)
 TObject assignment operator.

virtual void Pop ()
 Pop on object drawn in a pad to the top of the display list.

virtual Int_t Read (const char *name)
 Read contents of object with specified name from the current directory.

virtual void RecursiveRemove (TObject *obj)
 Recursively remove this object from a list.

void ResetBit (UInt_t f)

virtual void SaveAs (const char *filename="", Option_t *option="") const
 Save this object in the file specified by filename.

void SetBit (UInt_t f)

void SetBit (UInt_t f, Bool_t set)
 Set or unset the user status bits as specified in f.

virtual void SetDrawOption (Option_t *option="")
 Set drawing option for object.

virtual void SetUniqueID (UInt_t uid)
 Set the unique object id.

void StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

virtual void SysError (const char *method, const char *msgfmt,...) const
 Issue system error message.

R__ALWAYS_INLINE Bool_t TestBit (UInt_t f) const

Int_t TestBits (UInt_t f) const

virtual void UseCurrentStyle ()
 Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.

virtual void Warning (const char *method, const char *msgfmt,...) const
 Issue warning message.

virtual Int_t Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0)
 Write this object to the current directory.

virtual Int_t Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) const
 Write this object to the current directory.

- Public Member Functions inherited from TAttText
 TAttText ()
 AttText default constructor.

 TAttText (Int_t align, Float_t angle, Color_t color, Style_t font, Float_t tsize)
 AttText normal constructor.

virtual ~TAttText ()
 AttText destructor.

void Copy (TAttText &atttext) const
 Copy this text attributes to a new TAttText.

virtual Short_t GetTextAlign () const
 Return the text alignment.

virtual Float_t GetTextAngle () const
 Return the text angle.

virtual Color_t GetTextColor () const
 Return the text color.

virtual Font_t GetTextFont () const
 Return the text font.

virtual Float_t GetTextSize () const
 Return the text size.

virtual Float_t GetTextSizePercent (Float_t size)
 Return the text in percent of the pad size.

virtual void Modify ()
 Change current text attributes if necessary.

virtual void ResetAttText (Option_t *toption="")
 Reset this text attributes to default values.

virtual void SaveTextAttributes (std::ostream &out, const char *name, Int_t alidef=12, Float_t angdef=0, Int_t coldef=1, Int_t fondef=61, Float_t sizdef=1)
 Save text attributes as C++ statement(s) on output stream out.

virtual void SetTextAlign (Short_t align=11)
 Set the text alignment.

virtual void SetTextAngle (Float_t tangle=0)
 Set the text angle.

virtual void SetTextAttributes ()
 Invoke the DialogCanvas Text attributes.

virtual void SetTextColor (Color_t tcolor=1)
 Set the text color.

virtual void SetTextColorAlpha (Color_t tcolor, Float_t talpha)
 Set a transparent text color.

virtual void SetTextFont (Font_t tfont=62)
 Set the text font.

virtual void SetTextSize (Float_t tsize=1)
 Set the text size.

virtual void SetTextSizePixels (Int_t npixels)
 Set the text size in pixel.

void StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)


Static Public Member Functions

static TClassClass ()

static const char * Class_Name ()

static constexpr Version_t Class_Version ()

static const char * DeclFileName ()

- Static Public Member Functions inherited from TNamed
static TClassClass ()

static const char * Class_Name ()

static constexpr Version_t Class_Version ()

static const char * DeclFileName ()

- Static Public Member Functions inherited from TObject
static TClassClass ()

static const char * Class_Name ()

static constexpr Version_t Class_Version ()

static const char * DeclFileName ()

static Longptr_t GetDtorOnly ()
 Return destructor only flag.

static Bool_t GetObjectStat ()
 Get status of object stat flag.

static void SetDtorOnly (void *obj)
 Set destructor only flag.

static void SetObjectStat (Bool_t stat)
 Turn on/off tracking of objects in the TObjectTable.

- Static Public Member Functions inherited from TAttText
static TClassClass ()

static const char * Class_Name ()

static constexpr Version_t Class_Version ()

static const char * DeclFileName ()


Protected Attributes

Float_t fAngle3D
 The angle of the pseudo-3d view.

Double_t fAngularOffset
 Offset angular offset for the first slice.

TString fFractionFormat
 Rform numeric format for the fraction of a slice.

Double_t fHeight
 Height of the slice in pixel.

Bool_t fIs3D
 ! true if the pseudo-3d is enabled

TString fLabelFormat
 Format format of the slices' label.

Float_t fLabelsOffset
 LabelsOffset offset of label.

Int_t fNvals
 Number of elements.

TString fPercentFormat
 Pfrom numeric format for the percent of a slice.

TPieSlice ** fPieSlices {nullptr}
 [fNvals] Slice array of this pie-chart

Double_t fRadius
 Radius Pie radius.

TString fValueFormat
 Vform numeric format for the value.

Double_t fX
 X coordinate of the pie centre.

Double_t fY
 Y coordinate of the pie centre.

- Protected Attributes inherited from TNamed
TString fName

TString fTitle

- Protected Attributes inherited from TAttText
Short_t fTextAlign
 Text alignment.

Float_t fTextAngle
 Text angle.

Color_t fTextColor
 Text color.

Font_t fTextFont
 Text font.

Float_t fTextSize
 Text size.


Private Member Functions

void DrawGhost ()
 This method is for internal use.

void Init (Int_t np, Double_t ao, Double_t x, Double_t y, Double_t r)
 Common initialization for all constructors.


Private Attributes

TLegendfLegend {nullptr}
 !Legend for this piechart

Float_tfSlices {nullptr}
 !Subdivisions of the slices

Float_t fSum
 !Sum for the slice values


Additional Inherited Members

- Public Types inherited from TObject
enum  {
  kIsOnHeap = 0x01000000 , kNotDeleted = 0x02000000 , kZombie = 0x04000000 , kInconsistent = 0x08000000 ,
  kBitMask = 0x00ffffff
}

enum  { kSingleKey = (1ULL << ( 0 )) , kOverwrite = (1ULL << ( 1 )) , kWriteDelete = (1ULL << ( 2 )) }

enum  EDeprecatedStatusBits { kObjInCanvas = (1ULL << ( 3 )) }

enum  EStatusBits {
  kCanDelete = (1ULL << ( 0 )) , kMustCleanup = (1ULL << ( 3 )) , kIsReferenced = (1ULL << ( 4 )) , kHasUUID = (1ULL << ( 5 )) ,
  kCannotPick = (1ULL << ( 6 )) , kNoContextMenu = (1ULL << ( 8 )) , kInvalidObject = (1ULL << ( 13 ))
}

- Protected Types inherited from TObject
enum  { kOnlyPrepStep = (1ULL << ( 3 )) }

- Protected Member Functions inherited from TObject
virtual void DoError (int level, const char *location, const char *fmt, va_list va) const
 Interface to ErrorHandler (protected).

void MakeZombie ()


#include <TPie.h>

Inheritance diagram for TPie:
[legend]

Constructor & Destructor Documentation

◆ TPie() [1/6]

TPie::TPie ( )

Default constructor.

Definition at line 64 of file TPie.cxx.

◆ TPie() [2/6]

TPie::TPie ( const char *  name,
const char *  title,
Int_t  npoints
)

This constructor creates a pie chart when only the number of the slices is known.

The number of slices is fixed.

Definition at line 73 of file TPie.cxx.

◆ TPie() [3/6]

TPie::TPie ( const char *  name,
const char *  title,
Int_t  npoints,
Double_t vals,
Int_t colors = nullptr,
const char *  lbls[] = nullptr
)

Normal constructor.

The 1st and 2nd parameters are the name of the object and its title.

The number of points passed at this point is used to allocate the memory.

Slices values are given as Double_t.

The 4th elements is an array containing, in double precision format, the value of each slice. It is also possible to specify the filled color of each slice. If the color array is not specified the slices are colored using a color sequence in the standard palette.

Definition at line 92 of file TPie.cxx.

◆ TPie() [4/6]

TPie::TPie ( const char *  name,
const char *  title,
Int_t  npoints,
Float_t vals,
Int_t cols = nullptr,
const char *  lbls[] = nullptr
)

Normal constructor (Float_t).

Definition at line 106 of file TPie.cxx.

◆ TPie() [5/6]

TPie::TPie ( const TH1 h)

Constructor from a TH1.

Definition at line 121 of file TPie.cxx.

◆ TPie() [6/6]

TPie::TPie ( const TPie cpy)

Copy constructor.

Definition at line 145 of file TPie.cxx.

◆ ~TPie()

TPie::~TPie ( )
override

Destructor.

Definition at line 156 of file TPie.cxx.

Member Function Documentation

◆ Class()

static TClass * TPie::Class ( )
static
Returns
TClass describing this class

◆ Class_Name()

static const char * TPie::Class_Name ( )
static
Returns
Name of this class

◆ Class_Version()

static constexpr Version_t TPie::Class_Version ( )
inlinestaticconstexpr
Returns
Version of this class

Definition at line 111 of file TPie.h.

◆ DeclFileName()

static const char * TPie::DeclFileName ( )
inlinestatic
Returns
Name of the file containing the class declaration

Definition at line 111 of file TPie.h.

◆ DistancetoPrimitive()

Int_t TPie::DistancetoPrimitive ( Int_t  px,
Int_t  py
)
overridevirtual

Evaluate the distance to the chart in gPad.

Reimplemented from TObject.

Definition at line 170 of file TPie.cxx.

◆ DistancetoSlice()

Int_t TPie::DistancetoSlice ( Int_t  px,
Int_t  py
)

Returns the slice number at the pixel position (px,py).

Returns -1 if no slice is picked.

Used by DistancetoPrimitive.

Definition at line 190 of file TPie.cxx.

◆ Draw()

void TPie::Draw ( Option_t option = "l")
overridevirtual

Draw the pie chart.

The possible options are listed in the TPie::Paint() method.

Reimplemented from TObject.

Definition at line 277 of file TPie.cxx.

◆ DrawGhost()

void TPie::DrawGhost ( )
private

This method is for internal use.

It is used by Execute event to draw the outline of "this" TPie. Used when the opaque movements are not permitted.

Definition at line 300 of file TPie.cxx.

◆ ExecuteEvent()

void TPie::ExecuteEvent ( Int_t  event,
Int_t  px,
Int_t  py
)
overridevirtual

Execute the mouse events.

Reimplemented from TObject.

Definition at line 396 of file TPie.cxx.

◆ GetAngle3D()

Float_t TPie::GetAngle3D ( )
inline

Definition at line 61 of file TPie.h.

◆ GetAngularOffset()

Double_t TPie::GetAngularOffset ( )
inline

Definition at line 62 of file TPie.h.

◆ GetEntries()

Int_t TPie::GetEntries ( )
inline

Definition at line 76 of file TPie.h.

◆ GetEntryFillColor()

Int_t TPie::GetEntryFillColor ( Int_t  i)

Return the color of the slice number "i".

Definition at line 648 of file TPie.cxx.

◆ GetEntryFillStyle()

Int_t TPie::GetEntryFillStyle ( Int_t  i)

Return the style use to fill the slice number "i".

Definition at line 656 of file TPie.cxx.

◆ GetEntryLabel()

const char * TPie::GetEntryLabel ( Int_t  i)

Returns the label of the entry number "i".

Definition at line 640 of file TPie.cxx.

◆ GetEntryLineColor()

Int_t TPie::GetEntryLineColor ( Int_t  i)

Return the line color used to outline thi "i" slice.

Definition at line 664 of file TPie.cxx.

◆ GetEntryLineStyle()

Int_t TPie::GetEntryLineStyle ( Int_t  i)

Return the style used to outline thi "i" slice.

Definition at line 672 of file TPie.cxx.

◆ GetEntryLineWidth()

Int_t TPie::GetEntryLineWidth ( Int_t  i)

Return the line width used to outline thi "i" slice.

Definition at line 680 of file TPie.cxx.

◆ GetEntryRadiusOffset()

Double_t TPie::GetEntryRadiusOffset ( Int_t  i)

Return the radial offset's value for the slice number "i".

Definition at line 688 of file TPie.cxx.

◆ GetEntryVal()

Double_t TPie::GetEntryVal ( Int_t  i)

Return the value associated with the slice number "i".

Definition at line 696 of file TPie.cxx.

◆ GetFractionFormat()

const char * TPie::GetFractionFormat ( )
inline

Definition at line 71 of file TPie.h.

◆ GetHeight()

Double_t TPie::GetHeight ( )
inline

Definition at line 72 of file TPie.h.

◆ GetLabelFormat()

const char * TPie::GetLabelFormat ( )
inline

Definition at line 73 of file TPie.h.

◆ GetLabelsOffset()

Float_t TPie::GetLabelsOffset ( )
inline

Definition at line 74 of file TPie.h.

◆ GetLegend()

TLegend * TPie::GetLegend ( )

If created before by Paint option or by MakeLegend method return the pointer to the legend, otherwise return 0;.

Definition at line 705 of file TPie.cxx.

◆ GetPercentFormat()

const char * TPie::GetPercentFormat ( )
inline

Definition at line 77 of file TPie.h.

◆ GetRadius()

Double_t TPie::GetRadius ( )
inline

Definition at line 78 of file TPie.h.

◆ GetSlice()

TPieSlice * TPie::GetSlice ( Int_t  id)

Return the reference to the slice of index 'id'.

There are no controls of memory corruption, be carefull.

Definition at line 714 of file TPie.cxx.

◆ GetValueFormat()

const char * TPie::GetValueFormat ( )
inline

Definition at line 80 of file TPie.h.

◆ GetX()

Double_t TPie::GetX ( )
inline

Definition at line 81 of file TPie.h.

◆ GetY()

Double_t TPie::GetY ( )
inline

Definition at line 82 of file TPie.h.

◆ Init()

void TPie::Init ( Int_t  np,
Double_t  ao,
Double_t  x,
Double_t  y,
Double_t  r
)
private

Common initialization for all constructors.

This is a private function called to allocate the memory.

Definition at line 723 of file TPie.cxx.

◆ IsA()

TClass * TPie::IsA ( ) const
inlineoverridevirtual
Returns
TClass describing current object

Reimplemented from TNamed.

Definition at line 111 of file TPie.h.

◆ MakeLegend()

TLegend * TPie::MakeLegend ( Double_t  x1 = .65,
Double_t  y1 = .65,
Double_t  x2 = .95,
Double_t  y2 = .95,
const char *  leg_header = ""
)

This method create a legend that explains the contents of the slice for this pie-chart.

The parameter passed reppresents the option passed to shown the slices, see TLegend::AddEntry() for further details.

The pointer of the TLegend is returned.

Definition at line 770 of file TPie.cxx.

◆ MakeSlices()

void TPie::MakeSlices ( Bool_t  force = kFALSE)

Make the slices.

If they already exist it does nothing unless force=kTRUE.

Definition at line 1380 of file TPie.cxx.

◆ Paint()

void TPie::Paint ( Option_t option)
overridevirtual

Paint a Pie chart in a canvas.

The possible option are:

  • "R" Print the labels along the central "R"adius of slices.
  • "T" Print the label in a direction "T"angent to circle that describes the TPie.
  • "SC" Paint the labels with the "S"ame "C"olor as the slices.
  • "3D" Draw the pie-chart with a pseudo 3D effect.
  • "NOL" No OutLine: Don't draw the slices' outlines, any property over the slices' line is ignored.
  • ">" Sort the slices in increasing order.
  • "<" Sort the slices in decreasing order.

After the use of > or < options the internal order of the TPieSlices is changed.

Other options changing the labels' format are described in TPie::SetLabelFormat().

Reimplemented from TObject.

Definition at line 804 of file TPie.cxx.

◆ SavePrimitive()

void TPie::SavePrimitive ( std::ostream &  out,
Option_t opts = ""
)
overridevirtual

Save primitive as a C++ statement(s) on output stream out.

Reimplemented from TObject.

Definition at line 1120 of file TPie.cxx.

◆ SetAngle3D()

void TPie::SetAngle3D ( Float_t  val = 30.)

Set the value of for the pseudo 3D view angle, in degree.

The range of the permitted values is: [0,90]

Definition at line 1152 of file TPie.cxx.

◆ SetAngularOffset()

void TPie::SetAngularOffset ( Double_t  offset)

Set the global angular offset for slices in degree [0,360].

Definition at line 1165 of file TPie.cxx.

◆ SetCircle()

void TPie::SetCircle ( Double_t  x = .5,
Double_t  y = .5,
Double_t  rad = .4
)

Set the coordinates of the circle that describe the pie:

  • the 1st and the 2nd arguments are the x and y center's coordinates.
  • the 3rd value is the pie-chart's radius.

All the coordinates are in NDC space.

Definition at line 1182 of file TPie.cxx.

◆ SetEntryFillColor()

void TPie::SetEntryFillColor ( Int_t  i,
Int_t  color
)

Set the color for the slice "i".

Definition at line 1226 of file TPie.cxx.

◆ SetEntryFillStyle()

void TPie::SetEntryFillStyle ( Int_t  i,
Int_t  style
)

Set the fill style for the "i" slice.

Definition at line 1234 of file TPie.cxx.

◆ SetEntryLabel()

void TPie::SetEntryLabel ( Int_t  i,
const char *  text = "Slice"
)

Set slice number "i" label.

The first parameter is the index of the slice, the other is the label text.

Definition at line 1193 of file TPie.cxx.

◆ SetEntryLineColor()

void TPie::SetEntryLineColor ( Int_t  i,
Int_t  color
)

Set the color for the slice's outline. "i" is the slice number.

Definition at line 1202 of file TPie.cxx.

◆ SetEntryLineStyle()

void TPie::SetEntryLineStyle ( Int_t  i,
Int_t  style
)

Set the style for the slice's outline. "i" is the slice number.

Definition at line 1210 of file TPie.cxx.

◆ SetEntryLineWidth()

void TPie::SetEntryLineWidth ( Int_t  i,
Int_t  width
)

Set the width of the slice's outline. "i" is the slice number.

Definition at line 1218 of file TPie.cxx.

◆ SetEntryRadiusOffset()

void TPie::SetEntryRadiusOffset ( Int_t  i,
Double_t  shift
)

Set the distance, in the direction of the radius of the slice.

Definition at line 1242 of file TPie.cxx.

◆ SetEntryVal()

void TPie::SetEntryVal ( Int_t  i,
Double_t  val
)

Set the value of a slice.

Definition at line 1250 of file TPie.cxx.

◆ SetFillColors()

void TPie::SetFillColors ( Int_t colors)

Set the fill colors for all the TPie's slices.

Definition at line 1260 of file TPie.cxx.

◆ SetFractionFormat()

void TPie::SetFractionFormat ( const char *  fmt)

Set numeric format in the label, is used if the label format there is the modifier frac, in this case the value is printed using this format.

The numeric format use the standard C modifier used in stdio library: f, %2.1$, e... for further documentation you can use the printf man page ("man 3 printf" on linux)

Example:

mypie->SetLabelFormat("%txt (%frac)");
mypie->SetFractionFormat("2.1f");

Definition at line 1308 of file TPie.cxx.

◆ SetHeight()

void TPie::SetHeight ( Double_t  val = .08)

Set the height, in pixel, for the piechart if is drawn using the pseudo-3d mode.

The default value is 20 pixel.

Definition at line 1272 of file TPie.cxx.

◆ SetLabelFormat()

void TPie::SetLabelFormat ( const char *  fmt)

This method is used to customize the label format.

The format string must contain one of these modifiers:

  • txt : to print the text label associated with the slice
  • val : to print the numeric value of the slice
  • frac : to print the relative fraction of this slice
  • perc : to print the % of this slice

ex. : mypie->SetLabelFormat("%txt (%frac)");

Definition at line 1288 of file TPie.cxx.

◆ SetLabels()

void TPie::SetLabels ( const char *  lbls[])

Set the labels for all the slices.

Definition at line 1316 of file TPie.cxx.

◆ SetLabelsOffset()

void TPie::SetLabelsOffset ( Float_t  labelsoffset)

Set the distance between the label end the external line of the TPie.

Definition at line 1325 of file TPie.cxx.

◆ SetPercentFormat()

void TPie::SetPercentFormat ( const char *  fmt)

Set the numeric format for the percent value of a slice, default: %3.1f.

Definition at line 1333 of file TPie.cxx.

◆ SetRadius()

void TPie::SetRadius ( Double_t  rad)

Set the pie chart's radius' value.

Definition at line 1341 of file TPie.cxx.

◆ SetValueFormat()

void TPie::SetValueFormat ( const char *  fmt)

Set the numeric format the slices' values.

Used by val (see SetLabelFormat()).

Definition at line 1355 of file TPie.cxx.

◆ SetX()

void TPie::SetX ( Double_t  x)

Set X value.

Definition at line 1363 of file TPie.cxx.

◆ SetY()

void TPie::SetY ( Double_t  y)

Set Y value.

Definition at line 1371 of file TPie.cxx.

◆ SortSlices()

void TPie::SortSlices ( Bool_t  amode = kTRUE,
Float_t  merge_threshold = .0
)

This method, mainly intended for internal use, ordered the slices according their values.

The default (amode=kTRUE) is increasing order, but is also possible in decreasing order (amode=kFALSE).

If the merge_threshold>0 the slice that contains a quantity smaller than merge_threshold are merged together

Definition at line 1415 of file TPie.cxx.

◆ Streamer()

void TPie::Streamer ( TBuffer R__b)
overridevirtual

Stream an object of class TObject.

Reimplemented from TNamed.

◆ StreamerNVirtual()

void TPie::StreamerNVirtual ( TBuffer ClassDef_StreamerNVirtual_b)
inline

Definition at line 111 of file TPie.h.

Member Data Documentation

◆ fAngle3D

Float_t TPie::fAngle3D
protected

The angle of the pseudo-3d view.

Definition at line 46 of file TPie.h.

◆ fAngularOffset

Double_t TPie::fAngularOffset
protected

Offset angular offset for the first slice.

Definition at line 36 of file TPie.h.

◆ fFractionFormat

TString TPie::fFractionFormat
protected

Rform numeric format for the fraction of a slice.

Definition at line 40 of file TPie.h.

◆ fHeight

Double_t TPie::fHeight
protected

Height of the slice in pixel.

Definition at line 45 of file TPie.h.

◆ fIs3D

Bool_t TPie::fIs3D
protected

! true if the pseudo-3d is enabled

Definition at line 44 of file TPie.h.

◆ fLabelFormat

TString TPie::fLabelFormat
protected

Format format of the slices' label.

Definition at line 38 of file TPie.h.

◆ fLabelsOffset

Float_t TPie::fLabelsOffset
protected

LabelsOffset offset of label.

Definition at line 37 of file TPie.h.

◆ fLegend

TLegend* TPie::fLegend {nullptr}
private

!Legend for this piechart

Definition at line 30 of file TPie.h.

◆ fNvals

Int_t TPie::fNvals
protected

Number of elements.

Definition at line 42 of file TPie.h.

◆ fPercentFormat

TString TPie::fPercentFormat
protected

Pfrom numeric format for the percent of a slice.

Definition at line 41 of file TPie.h.

◆ fPieSlices

TPieSlice** TPie::fPieSlices {nullptr}
protected

[fNvals] Slice array of this pie-chart

Definition at line 43 of file TPie.h.

◆ fRadius

Double_t TPie::fRadius
protected

Radius Pie radius.

Definition at line 35 of file TPie.h.

◆ fSlices

Float_t* TPie::fSlices {nullptr}
private

!Subdivisions of the slices

Definition at line 29 of file TPie.h.

◆ fSum

Float_t TPie::fSum
private

!Sum for the slice values

Definition at line 28 of file TPie.h.

◆ fValueFormat

TString TPie::fValueFormat
protected

Vform numeric format for the value.

Definition at line 39 of file TPie.h.

◆ fX

Double_t TPie::fX
protected

X coordinate of the pie centre.

Definition at line 33 of file TPie.h.

◆ fY

Double_t TPie::fY
protected

Y coordinate of the pie centre.

Definition at line 34 of file TPie.h.
