TGraphErrors Class Reference

A TGraphErrors is a TGraph with error bars.

The TGraphErrors painting is performed thanks to the TGraphPainter class. All details about the various painting options are given in this class.

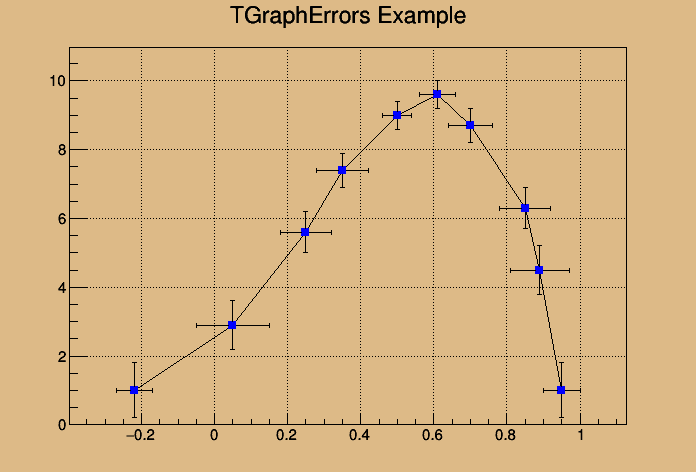

The picture below gives an example:

{
c1 = new TCanvas("c1","A Simple Graph with error bars",200,10,700,500);
c1->SetFillColor(42);
c1->SetGrid();
c1->GetFrame()->SetFillColor(21);
c1->GetFrame()->SetBorderSize(12);
const Int_t n = 10;
Double_t x[n] = {-0.22, 0.05, 0.25, 0.35, 0.5, 0.61,0.7,0.85,0.89,0.95};
Double_t y[n] = {1,2.9,5.6,7.4,9,9.6,8.7,6.3,4.5,1};
Double_t ex[n] = {.05,.1,.07,.07,.04,.05,.06,.07,.08,.05};
Double_t ey[n] = {.8,.7,.6,.5,.4,.4,.5,.6,.7,.8};
gr = new TGraphErrors(n,x,y,ex,ey);
gr->SetTitle("TGraphErrors Example");
gr->SetMarkerStyle(21);
gr->Draw("ALP");
return c1;
}

Definition at line 28 of file TGraphErrors.h.

Public Member Functions

 TGraphErrors ()

 TGraphErrors (Int_t n)
 TGraphErrors normal constructor. More...

 TGraphErrors (Int_t n, const Float_t *x, const Float_t *y, const Float_t *ex=0, const Float_t *ey=0)
 TGraphErrors normal constructor. More...

 TGraphErrors (Int_t n, const Double_t *x, const Double_t *y, const Double_t *ex=0, const Double_t *ey=0)
 TGraphErrors normal constructor. More...

 TGraphErrors (const TVectorF &vx, const TVectorF &vy, const TVectorF &vex, const TVectorF &vey)
 constructor with four vectors of floats in input A grapherrors is built with the X coordinates taken from vx and Y coord from vy and the errors from vectors vex and vey. More...

 TGraphErrors (const TVectorD &vx, const TVectorD &vy, const TVectorD &vex, const TVectorD &vey)
 constructor with four vectors of doubles in input A grapherrors is built with the X coordinates taken from vx and Y coord from vy and the errors from vectors vex and vey. More...

 TGraphErrors (const TGraphErrors &gr)
 TGraphErrors copy constructor. More...

TGraphErrorsoperator= (const TGraphErrors &gr)
 TGraphErrors assignment operator. More...

 TGraphErrors (const TH1 *h)
 TGraphErrors constructor importing its parameters from the TH1 object passed as argument. More...

 TGraphErrors (const char *filename, const char *format="%lg %lg %lg %lg", Option_t *option="")
 GraphErrors constructor reading input from filename filename is assumed to contain at least 3 columns of numbers convention for format (default="%lg %lg %lg %lg) format = "lg lg" read only 2 first columns into X,Y format = "lg lg lg" read only 3 first columns into X,Y and EY format = "lg lg lg lg" read only 4 first columns into X,Y,EX,EY. More...

virtual ~TGraphErrors ()
 TGraphErrors default destructor. More...

virtual void Apply (TF1 *f)
 apply function to all the data points y = f(x,y) More...

virtual void ComputeRange (Double_t &xmin, Double_t &ymin, Double_t &xmax, Double_t &ymax) const
 Compute range. More...

Double_t GetErrorX (Int_t bin) const
 This function is called by GraphFitChisquare. More...

Double_t GetErrorY (Int_t bin) const
 This function is called by GraphFitChisquare. More...

Double_t GetErrorXhigh (Int_t bin) const
 This function is called by GraphFitChisquare. More...

Double_t GetErrorXlow (Int_t bin) const
 This function is called by GraphFitChisquare. More...

Double_t GetErrorYhigh (Int_t bin) const
 This function is called by GraphFitChisquare. More...

Double_t GetErrorYlow (Int_t bin) const
 This function is called by GraphFitChisquare. More...

Double_tGetEX () const

Double_tGetEY () const

virtual Int_t Merge (TCollection *list)
 Adds all graphs with errors from the collection to this graph. More...

virtual void Print (Option_t *chopt="") const
 Print graph and errors values. More...

virtual void SavePrimitive (std::ostream &out, Option_t *option="")
 Save primitive as a C++ statement(s) on output stream out. More...

virtual void SetPointError (Double_t ex, Double_t ey)
 Set ex and ey values for point pointed by the mouse. More...

virtual void SetPointError (Int_t i, Double_t ex, Double_t ey)
 Set ex and ey values for point number i. More...

- Public Member Functions inherited from TGraph
 TGraph ()

 TGraph (Int_t n)
 Constructor with only the number of points set the arrays x and y will be set later. More...

 TGraph (Int_t n, const Int_t *x, const Int_t *y)
 Graph normal constructor with ints. More...

 TGraph (Int_t n, const Float_t *x, const Float_t *y)
 Graph normal constructor with floats. More...

 TGraph (Int_t n, const Double_t *x, const Double_t *y)
 Graph normal constructor with doubles. More...

 TGraph (const TGraph &gr)
 Copy constructor for this graph. More...

TGraphoperator= (const TGraph &)
 Equal operator for this graph. More...

 TGraph (const TVectorF &vx, const TVectorF &vy)
 Graph constructor with two vectors of floats in input A graph is build with the X coordinates taken from vx and Y coord from vy The number of points in the graph is the minimum of number of points in vx and vy. More...

 TGraph (const TVectorD &vx, const TVectorD &vy)
 Graph constructor with two vectors of doubles in input A graph is build with the X coordinates taken from vx and Y coord from vy The number of points in the graph is the minimum of number of points in vx and vy. More...

 TGraph (const TH1 *h)
 Graph constructor importing its parameters from the TH1 object passed as argument. More...

 TGraph (const TF1 *f, Option_t *option="")
 Graph constructor importing its parameters from the TF1 object passed as argument. More...

 TGraph (const char *filename, const char *format="%lg %lg", Option_t *option="")
 Graph constructor reading input from filename. More...

virtual ~TGraph ()
 Graph default destructor. More...

virtual void Browse (TBrowser *b)
 Browse. More...

virtual Double_t Chisquare (TF1 *f1, Option_t *option="") const
 Return the chisquare of this graph with respect to f1. More...

virtual Int_t DistancetoPrimitive (Int_t px, Int_t py)
 Compute distance from point px,py to a graph. More...

virtual void Draw (Option_t *chopt="")
 Draw this graph with its current attributes. More...

virtual void DrawGraph (Int_t n, const Int_t *x, const Int_t *y, Option_t *option="")
 Draw this graph with new attributes. More...

virtual void DrawGraph (Int_t n, const Float_t *x, const Float_t *y, Option_t *option="")
 Draw this graph with new attributes. More...

virtual void DrawGraph (Int_t n, const Double_t *x=0, const Double_t *y=0, Option_t *option="")
 Draw this graph with new attributes. More...

virtual void DrawPanel ()
 Display a panel with all graph drawing options. More...

virtual Double_t Eval (Double_t x, TSpline *spline=0, Option_t *option="") const
 Interpolate points in this graph at x using a TSpline -if spline==0 and option="" a linear interpolation between the two points close to x is computed. More...

virtual void ExecuteEvent (Int_t event, Int_t px, Int_t py)
 Execute action corresponding to one event. More...

virtual void Expand (Int_t newsize)
 If array sizes <= newsize, expand storage to 2*newsize. More...

virtual void Expand (Int_t newsize, Int_t step)
 If graph capacity is less than newsize points then make array sizes equal to least multiple of step to contain newsize points. More...

virtual TObjectFindObject (const char *name) const
 Search object named name in the list of functions. More...

virtual TObjectFindObject (const TObject *obj) const
 Search object obj in the list of functions. More...

virtual TFitResultPtr Fit (const char *formula, Option_t *option="", Option_t *goption="", Axis_t xmin=0, Axis_t xmax=0)
 Fit this graph with function with name fname. More...

virtual TFitResultPtr Fit (TF1 *f1, Option_t *option="", Option_t *goption="", Axis_t xmin=0, Axis_t xmax=0)
 Fit this graph with function f1. More...

virtual void FitPanel ()
 Display a GUI panel with all graph fit options. More...

Bool_t GetEditable () const
 Return kTRUE if kNotEditable bit is not set, kFALSE otherwise. More...

TF1GetFunction (const char *name) const
 Return pointer to function with name. More...

TH1FGetHistogram () const
 Returns a pointer to the histogram used to draw the axis Takes into account the two following cases. More...

TListGetListOfFunctions () const

virtual Double_t GetCorrelationFactor () const
 Return graph correlation factor. More...

virtual Double_t GetCovariance () const
 Return covariance of vectors x,y. More...

virtual Double_t GetMean (Int_t axis=1) const
 Return mean value of X (axis=1) or Y (axis=2) More...

virtual Double_t GetRMS (Int_t axis=1) const
 Return RMS of X (axis=1) or Y (axis=2) More...

Int_t GetMaxSize () const

Int_t GetN () const

Double_tGetX () const

Double_tGetY () const

virtual Double_tGetEXhigh () const

virtual Double_tGetEXlow () const

virtual Double_tGetEYhigh () const

virtual Double_tGetEYlow () const

virtual Double_tGetEXlowd () const

virtual Double_tGetEXhighd () const

virtual Double_tGetEYlowd () const

virtual Double_tGetEYhighd () const

Double_t GetMaximum () const

Double_t GetMinimum () const

TAxisGetXaxis () const
 Get x axis of the graph. More...

TAxisGetYaxis () const
 Get y axis of the graph. More...

virtual Int_t GetPoint (Int_t i, Double_t &x, Double_t &y) const
 Get x and y values for point number i. More...

virtual void InitExpo (Double_t xmin=0, Double_t xmax=0)
 Compute Initial values of parameters for an exponential. More...

virtual void InitGaus (Double_t xmin=0, Double_t xmax=0)
 Compute Initial values of parameters for a gaussian. More...

virtual void InitPolynom (Double_t xmin=0, Double_t xmax=0)
 Compute Initial values of parameters for a polynom. More...

virtual Int_t InsertPoint ()
 Insert a new point at the mouse position. More...

virtual Double_t Integral (Int_t first=0, Int_t last=-1) const
 Integrate the TGraph data within a given (index) range. More...

virtual Bool_t IsEditable () const

virtual Int_t IsInside (Double_t x, Double_t y) const
 Return 1 if the point (x,y) is inside the polygon defined by the graph vertices 0 otherwise. More...

virtual void LeastSquareFit (Int_t m, Double_t *a, Double_t xmin=0, Double_t xmax=0)
 Least squares polynomial fitting without weights. More...

virtual void LeastSquareLinearFit (Int_t n, Double_t &a0, Double_t &a1, Int_t &ifail, Double_t xmin=0, Double_t xmax=0)
 Least square linear fit without weights. More...

virtual void Paint (Option_t *chopt="")
 Draw this graph with its current attributes. More...

void PaintGraph (Int_t npoints, const Double_t *x, const Double_t *y, Option_t *chopt)
 Draw the (x,y) as a graph. More...

void PaintGrapHist (Int_t npoints, const Double_t *x, const Double_t *y, Option_t *chopt)
 Draw the (x,y) as a histogram. More...

virtual void PaintStats (TF1 *fit)
 Draw the stats. More...

virtual void RecursiveRemove (TObject *obj)
 Recursively remove object from the list of functions. More...

virtual Int_t RemovePoint ()
 Delete point close to the mouse position. More...

virtual Int_t RemovePoint (Int_t ipoint)
 Delete point number ipoint. More...

virtual void SetEditable (Bool_t editable=kTRUE)
 if editable=kFALSE, the graph cannot be modified with the mouse by default a TGraph is editable More...

virtual void SetHistogram (TH1F *h)

virtual void SetMaximum (Double_t maximum=-1111)
 Set the maximum of the graph. More...

virtual void SetMinimum (Double_t minimum=-1111)
 Set the minimum of the graph. More...

virtual void Set (Int_t n)
 Set number of points in the graph Existing coordinates are preserved New coordinates above fNpoints are preset to 0. More...

virtual void SetPoint (Int_t i, Double_t x, Double_t y)
 Set x and y values for point number i. More...

virtual void SetTitle (const char *title="")
 Set graph title. More...

virtual void Sort (Bool_t(*greater)(const TGraph *, Int_t, Int_t)=&TGraph::CompareX, Bool_t ascending=kTRUE, Int_t low=0, Int_t high=-1111)
 Sorts the points of this TGraph using in-place quicksort (see e.g. More...

virtual void UseCurrentStyle ()
 Set current style settings in this graph This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked. More...

void Zero (Int_t &k, Double_t AZ, Double_t BZ, Double_t E2, Double_t &X, Double_t &Y, Int_t maxiterations)
 Find zero of a continuous function. More...

- Public Member Functions inherited from TNamed
 TNamed ()

 TNamed (const char *name, const char *title)

 TNamed (const TString &name, const TString &title)

 TNamed (const TNamed &named)

TNamedoperator= (const TNamed &rhs)
 TNamed assignment operator. More...

virtual ~TNamed ()

virtual void Clear (Option_t *option="")
 Set name and title to empty strings (""). More...

virtual TObjectClone (const char *newname="") const
 Make a clone of an object using the Streamer facility. More...

virtual Int_t Compare (const TObject *obj) const
 Compare two TNamed objects. More...

virtual void Copy (TObject &named) const
 Copy this to obj. More...

virtual void FillBuffer (char *&buffer)
 Encode TNamed into output buffer. More...

virtual const char * GetName () const
 Returns name of object. More...

virtual const char * GetTitle () const
 Returns title of object. More...

virtual ULong_t Hash () const
 Return hash value for this object. More...

virtual Bool_t IsSortable () const

virtual void SetName (const char *name)
 Change (i.e. More...

virtual void SetNameTitle (const char *name, const char *title)
 Change (i.e. set) all the TNamed parameters (name and title). More...

virtual void ls (Option_t *option="") const
 List TNamed name and title. More...

virtual Int_t Sizeof () const
 Return size of the TNamed part of the TObject. More...

- Public Member Functions inherited from TObject
 TObject ()

 TObject (const TObject &object)
 TObject copy ctor. More...

TObjectoperator= (const TObject &rhs)
 TObject assignment operator. More...

virtual ~TObject ()
 TObject destructor. More...

virtual void AppendPad (Option_t *option="")
 Append graphics object to current pad. More...

virtual const char * ClassName () const
 Returns name of class to which the object belongs. More...

virtual void Delete (Option_t *option="")
 Delete this object. More...

virtual void DrawClass () const
 Draw class inheritance tree of the class to which this object belongs. More...

virtual TObjectDrawClone (Option_t *option="") const
 Draw a clone of this object in the current pad. More...

virtual void Dump () const
 Dump contents of object on stdout. More...

virtual void Execute (const char *method, const char *params, Int_t *error=0)
 Execute method on this object with the given parameter string, e.g. More...

virtual void Execute (TMethod *method, TObjArray *params, Int_t *error=0)
 Execute method on this object with parameters stored in the TObjArray. More...

virtual Option_tGetDrawOption () const
 Get option used by the graphics system to draw this object. More...

virtual UInt_t GetUniqueID () const
 Return the unique object id. More...

virtual const char * GetIconName () const
 Returns mime type name of object. More...

virtual Option_tGetOption () const

virtual char * GetObjectInfo (Int_t px, Int_t py) const
 Returns string containing info about the object at position (px,py). More...

virtual Bool_t HandleTimer (TTimer *timer)
 Execute action in response of a timer timing out. More...

virtual Bool_t InheritsFrom (const char *classname) const
 Returns kTRUE if object inherits from class "classname". More...

virtual Bool_t InheritsFrom (const TClass *cl) const
 Returns kTRUE if object inherits from TClass cl. More...

virtual void Inspect () const
 Dump contents of this object in a graphics canvas. More...

virtual Bool_t IsFolder () const
 Returns kTRUE in case object contains browsable objects (like containers or lists of other objects). More...

virtual Bool_t IsEqual (const TObject *obj) const
 Default equal comparison (objects are equal if they have the same address in memory). More...

Bool_t IsOnHeap () const

Bool_t IsZombie () const

virtual Bool_t Notify ()
 This method must be overridden to handle object notification. More...

virtual void Pop ()
 Pop on object drawn in a pad to the top of the display list. More...

virtual Int_t Read (const char *name)
 Read contents of object with specified name from the current directory. More...

virtual void SaveAs (const char *filename="", Option_t *option="") const
 Save this object in the file specified by filename. More...

virtual void SetDrawOption (Option_t *option="")
 Set drawing option for object. More...

virtual void SetUniqueID (UInt_t uid)
 Set the unique object id. More...

virtual Int_t Write (const char *name=0, Int_t option=0, Int_t bufsize=0)
 Write this object to the current directory. More...

virtual Int_t Write (const char *name=0, Int_t option=0, Int_t bufsize=0) const
 Write this object to the current directory. More...

voidoperator new (size_t sz)

voidoperator new[] (size_t sz)

voidoperator new (size_t sz, void *vp)

voidoperator new[] (size_t sz, void *vp)

void operator delete (void *ptr)
 Operator delete. More...

void operator delete[] (void *ptr)
 Operator delete []. More...

void SetBit (UInt_t f, Bool_t set)
 Set or unset the user status bits as specified in f. More...

void SetBit (UInt_t f)

void ResetBit (UInt_t f)

Bool_t TestBit (UInt_t f) const

Int_t TestBits (UInt_t f) const

void InvertBit (UInt_t f)

virtual void Info (const char *method, const char *msgfmt,...) const
 Issue info message. More...

virtual void Warning (const char *method, const char *msgfmt,...) const
 Issue warning message. More...

virtual void Error (const char *method, const char *msgfmt,...) const
 Issue error message. More...

virtual void SysError (const char *method, const char *msgfmt,...) const
 Issue system error message. More...

virtual void Fatal (const char *method, const char *msgfmt,...) const
 Issue fatal error message. More...

void AbstractMethod (const char *method) const
 Use this method to implement an "abstract" method that you don't want to leave purely abstract. More...

void MayNotUse (const char *method) const
 Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary). More...

void Obsolete (const char *method, const char *asOfVers, const char *removedFromVers) const
 Use this method to declare a method obsolete. More...

- Public Member Functions inherited from TAttLine
 TAttLine ()
 AttLine default constructor. More...

 TAttLine (Color_t lcolor, Style_t lstyle, Width_t lwidth)
 AttLine normal constructor. More...

virtual ~TAttLine ()
 AttLine destructor. More...

void Copy (TAttLine &attline) const
 Copy this line attributes to a new TAttLine. More...

Int_t DistancetoLine (Int_t px, Int_t py, Double_t xp1, Double_t yp1, Double_t xp2, Double_t yp2)
 Compute distance from point px,py to a line. More...

virtual Color_t GetLineColor () const

virtual Style_t GetLineStyle () const

virtual Width_t GetLineWidth () const

virtual void Modify ()
 Change current line attributes if necessary. More...

virtual void ResetAttLine (Option_t *option="")
 Reset this line attributes to default values. More...

virtual void SaveLineAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1, Int_t widdef=1)
 Save line attributes as C++ statement(s) on output stream out. More...

virtual void SetLineAttributes ()
 Invoke the DialogCanvas Line attributes. More...

virtual void SetLineColor (Color_t lcolor)

virtual void SetLineColorAlpha (Color_t lcolor, Float_t lalpha)
 Set a transparent line color. More...

virtual void SetLineStyle (Style_t lstyle)

virtual void SetLineWidth (Width_t lwidth)

 ClassDef (TAttLine, 2)

- Public Member Functions inherited from TAttFill
 TAttFill ()

 TAttFill (Color_t fcolor, Style_t fstyle)
 AttFill normal constructor. More...

virtual ~TAttFill ()
 AttFill destructor. More...

void Copy (TAttFill &attfill) const
 Copy this fill attributes to a new TAttFill. More...

virtual Color_t GetFillColor () const

virtual Style_t GetFillStyle () const

virtual Bool_t IsTransparent () const

virtual void Modify ()
 Change current fill area attributes if necessary. More...

virtual void ResetAttFill (Option_t *option="")
 Reset this fill attributes to default values. More...

virtual void SaveFillAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1001)
 Save fill attributes as C++ statement(s) on output stream out. More...

virtual void SetFillAttributes ()
 Invoke the DialogCanvas Fill attributes. More...

virtual void SetFillColor (Color_t fcolor)

virtual void SetFillColorAlpha (Color_t fcolor, Float_t falpha)
 Set a transparent fill color. More...

virtual void SetFillStyle (Style_t fstyle)

- Public Member Functions inherited from TAttMarker
 TAttMarker ()

 TAttMarker (Color_t color, Style_t style, Size_t msize)
 TAttMarker normal constructor. More...

virtual ~TAttMarker ()
 TAttMarker destructor. More...

void Copy (TAttMarker &attmarker) const
 Copy this marker attributes to a new TAttMarker. More...

virtual Color_t GetMarkerColor () const

virtual Style_t GetMarkerStyle () const

virtual Size_t GetMarkerSize () const

virtual void Modify ()
 Change current marker attributes if necessary. More...

virtual void ResetAttMarker (Option_t *toption="")
 Reset this marker attributes to the default values. More...

virtual void SaveMarkerAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1, Int_t sizdef=1)
 Save line attributes as C++ statement(s) on output stream out. More...

virtual void SetMarkerAttributes ()
 Invoke the DialogCanvas Marker attributes. More...

virtual void SetMarkerColor (Color_t mcolor=1)

virtual void SetMarkerColorAlpha (Color_t mcolor, Float_t malpha)
 Set a transparent marker color. More...

virtual void SetMarkerStyle (Style_t mstyle=1)

virtual void SetMarkerSize (Size_t msize=1)

 ClassDef (TAttMarker, 2)


Static Public Member Functions

static Int_t CalculateScanfFields (const char *fmt)
 Calculate scan fields. More...

- Static Public Member Functions inherited from TGraph
static Bool_t CompareArg (const TGraph *gr, Int_t left, Int_t right)
 Return kTRUE if point number "left"'s argument (angle with respect to positive x-axis) is bigger than that of point number "right". More...

static Bool_t CompareX (const TGraph *gr, Int_t left, Int_t right)
 Return kTRUE if fX[left] > fX[right]. Can be used by Sort. More...

static Bool_t CompareY (const TGraph *gr, Int_t left, Int_t right)
 Return kTRUE if fY[left] > fY[right]. Can be used by Sort. More...

static Bool_t CompareRadius (const TGraph *gr, Int_t left, Int_t right)
 Return kTRUE if point number "left"'s distance to origin is bigger than that of point number "right". More...

- Static Public Member Functions inherited from TObject
static Long_t GetDtorOnly ()
 Return destructor only flag. More...

static void SetDtorOnly (void *obj)
 Set destructor only flag. More...

static Bool_t GetObjectStat ()
 Get status of object stat flag. More...

static void SetObjectStat (Bool_t stat)
 Turn on/off tracking of objects in the TObjectTable. More...


Protected Member Functions

virtual void SwapPoints (Int_t pos1, Int_t pos2)
 Swap points. More...

virtual Double_t ** Allocate (Int_t size)

virtual void CopyAndRelease (Double_t **newarrays, Int_t ibegin, Int_t iend, Int_t obegin)
 Copy and release. More...

virtual Bool_t CopyPoints (Double_t **arrays, Int_t ibegin, Int_t iend, Int_t obegin)
 Copy errors from fEX and fEY to arrays[0] and arrays[1] or to fX and fY. More...

Bool_t CtorAllocate ()
 Constructor allocate. More...

virtual void FillZero (Int_t begin, Int_t end, Bool_t from_ctor=kTRUE)
 Set zero values for point arrays in the range [begin, end]. More...

virtual Bool_t DoMerge (const TGraph *g)
 protected function to perform the merge operation of a graph with errors More...

- Protected Member Functions inherited from TGraph
Double_t ** AllocateArrays (Int_t Narrays, Int_t arraySize)
 Allocate arrays. More...

Bool_t CtorAllocate ()
 In constructors set fNpoints than call this method. More...

Double_t ** ExpandAndCopy (Int_t size, Int_t iend)
 if size > fMaxSize allocate new arrays of 2*size points and copy iend first points. More...

Double_t ** ShrinkAndCopy (Int_t size, Int_t iend)
 if size*2 <= fMaxSize allocate new arrays of size points, copy points [0,oend). More...

- Protected Member Functions inherited from TObject
void MakeZombie ()

virtual void DoError (int level, const char *location, const char *fmt, va_list va) const
 Interface to ErrorHandler (protected). More...


Protected Attributes

Double_tfEX

Double_tfEY

- Protected Attributes inherited from TGraph
Int_t fMaxSize

Int_t fNpoints
 Current dimension of arrays fX and fY. More...

Double_tfX

Double_tfY

TListfFunctions

TH1FfHistogram

Double_t fMinimum

Double_t fMaximum

- Protected Attributes inherited from TNamed
TString fName

TString fTitle

- Protected Attributes inherited from TAttLine
Color_t fLineColor

Style_t fLineStyle

Width_t fLineWidth

- Protected Attributes inherited from TAttFill
Color_t fFillColor

Style_t fFillStyle

- Protected Attributes inherited from TAttMarker
Color_t fMarkerColor

Style_t fMarkerStyle

Size_t fMarkerSize


Additional Inherited Members

- Public Types inherited from TGraph
enum  { kClipFrame = BIT(10), kNotEditable = BIT(18) }

- Public Types inherited from TObject
enum  EStatusBits {
  kCanDelete = BIT(0), kMustCleanup = BIT(3), kObjInCanvas = BIT(3), kIsReferenced = BIT(4),
  kHasUUID = BIT(5), kCannotPick = BIT(6), kNoContextMenu = BIT(8), kInvalidObject = BIT(13)
}

enum  { kIsOnHeap = 0x01000000, kNotDeleted = 0x02000000, kZombie = 0x04000000, kBitMask = 0x00ffffff }

enum  { kSingleKey = BIT(0), kOverwrite = BIT(1), kWriteDelete = BIT(2) }

- Static Protected Member Functions inherited from TGraph
static void SwapValues (Double_t *arr, Int_t pos1, Int_t pos2)
 Swap values. More...


#include <TGraphErrors.h>

Inheritance diagram for TGraphErrors:
[legend]

Constructor & Destructor Documentation

TGraphErrors::TGraphErrors ( )
TGraphErrors::TGraphErrors ( Int_t  n)

TGraphErrors normal constructor.

the arrays are preset to zero

Definition at line 82 of file TGraphErrors.cxx.

TGraphErrors::TGraphErrors ( Int_t  n,
const Float_t x,
const Float_t y,
const Float_t ex = 0,
const Float_t ey = 0
)

TGraphErrors normal constructor.

if ex or ey are null, the corresponding arrays are preset to zero

Definition at line 95 of file TGraphErrors.cxx.

TGraphErrors::TGraphErrors ( Int_t  n,
const Double_t x,
const Double_t y,
const Double_t ex = 0,
const Double_t ey = 0
)

TGraphErrors normal constructor.

if ex or ey are null, the corresponding arrays are preset to zero

Definition at line 114 of file TGraphErrors.cxx.

TGraphErrors::TGraphErrors ( const TVectorF vx,
const TVectorF vy,
const TVectorF vex,
const TVectorF vey
)

constructor with four vectors of floats in input A grapherrors is built with the X coordinates taken from vx and Y coord from vy and the errors from vectors vex and vey.

The number of points in the graph is the minimum of number of points in vx and vy.

Definition at line 134 of file TGraphErrors.cxx.

TGraphErrors::TGraphErrors ( const TVectorD vx,
const TVectorD vy,
const TVectorD vex,
const TVectorD vey
)

constructor with four vectors of doubles in input A grapherrors is built with the X coordinates taken from vx and Y coord from vy and the errors from vectors vex and vey.

The number of points in the graph is the minimum of number of points in vx and vy.

Definition at line 154 of file TGraphErrors.cxx.

TGraphErrors::TGraphErrors ( const TGraphErrors gr)

TGraphErrors copy constructor.

Definition at line 170 of file TGraphErrors.cxx.

TGraphErrors::TGraphErrors ( const TH1 h)

TGraphErrors constructor importing its parameters from the TH1 object passed as argument.

Definition at line 204 of file TGraphErrors.cxx.

TGraphErrors::TGraphErrors ( const char *  filename,
const char *  format = "%lg %lg %lg %lg",
Option_t option = ""
)

GraphErrors constructor reading input from filename filename is assumed to contain at least 3 columns of numbers convention for format (default="%lg %lg %lg %lg) format = "lg lg" read only 2 first columns into X,Y format = "lg lg lg" read only 3 first columns into X,Y and EY format = "lg lg lg lg" read only 4 first columns into X,Y,EX,EY.

For files separated by a specific delimiter different from ' ' and '' (e.g. ';' in csv files) you can avoid using %*s to bypass this delimiter by explicitly specify the "option" argument, e.g. option=" \t,;" for columns of figures separated by any of these characters (' ', '', ',', ';') used once (e.g. "1;1") or in a combined way (" 1;,;; 1"). Note in that case, the instanciation is about 2 times slower. In case a delimiter is specified, the format "%lg %lg %lg" will read X,Y,EX.

Definition at line 231 of file TGraphErrors.cxx.

TGraphErrors::~TGraphErrors ( )
virtual

TGraphErrors default destructor.

Definition at line 365 of file TGraphErrors.cxx.

Member Function Documentation

Double_t ** TGraphErrors::Allocate ( Int_t  size)
inlineprotectedvirtual

Reimplemented from TGraph.

Definition at line 79 of file TGraphErrors.h.

void TGraphErrors::Apply ( TF1 f)
virtual

apply function to all the data points y = f(x,y)

The error is calculated as ey=(f(x,y+ey)-f(x,y-ey))/2 This is the same as error(fy) = df/dy * ey for small errors

For generic functions the symmetric errors might become non-symmetric and are averaged here. Use TGraphAsymmErrors if desired.

error on x doesn't change function suggested/implemented by Miroslav Helbich helbi.nosp@m.ch@m.nosp@m.ail.d.nosp@m.esy..nosp@m.de

Reimplemented from TGraph.

Definition at line 385 of file TGraphErrors.cxx.

Int_t TGraphErrors::CalculateScanfFields ( const char *  fmt)
static

Calculate scan fields.

Definition at line 408 of file TGraphErrors.cxx.

Referenced by TGraphErrors().

void TGraphErrors::ComputeRange ( Double_t xmin,
Double_t ymin,
Double_t xmax,
Double_t ymax
) const
virtual

Compute range.

Reimplemented from TGraph.

Definition at line 439 of file TGraphErrors.cxx.

void TGraphErrors::CopyAndRelease ( Double_t **  newarrays,
Int_t  ibegin,
Int_t  iend,
Int_t  obegin
)
protectedvirtual

Copy and release.

Reimplemented from TGraph.

Definition at line 469 of file TGraphErrors.cxx.

Bool_t TGraphErrors::CopyPoints ( Double_t **  arrays,
Int_t  ibegin,
Int_t  iend,
Int_t  obegin
)
protectedvirtual

Copy errors from fEX and fEY to arrays[0] and arrays[1] or to fX and fY.

Copy points.

Reimplemented from TGraph.

Definition at line 491 of file TGraphErrors.cxx.

Referenced by CopyAndRelease().

Bool_t TGraphErrors::CtorAllocate ( void  )
protected

Constructor allocate.

Note: This function should be called only from the constructor since it does not delete previously existing arrays

Definition at line 515 of file TGraphErrors.cxx.

Referenced by operator=(), and TGraphErrors().

Bool_t TGraphErrors::DoMerge ( const TGraph g)
protectedvirtual

protected function to perform the merge operation of a graph with errors

Reimplemented from TGraph.

Definition at line 531 of file TGraphErrors.cxx.

void TGraphErrors::FillZero ( Int_t  begin,
Int_t  end,
Bool_t  from_ctor = kTRUE
)
protectedvirtual

Set zero values for point arrays in the range [begin, end].

Reimplemented from TGraph.

Definition at line 556 of file TGraphErrors.cxx.

Referenced by TGraphErrors().

Double_t TGraphErrors::GetErrorX ( Int_t  i) const
virtual

This function is called by GraphFitChisquare.

It returns the error along X at point i.

Reimplemented from TGraph.

Definition at line 571 of file TGraphErrors.cxx.

Referenced by Apply(), and testHisto1DFit().

Double_t TGraphErrors::GetErrorXhigh ( Int_t  i) const
virtual

This function is called by GraphFitChisquare.

It returns the error along X at point i.

Reimplemented from TGraph.

Definition at line 595 of file TGraphErrors.cxx.

Double_t TGraphErrors::GetErrorXlow ( Int_t  i) const
virtual

This function is called by GraphFitChisquare.

It returns the error along X at point i.

Reimplemented from TGraph.

Definition at line 607 of file TGraphErrors.cxx.

Double_t TGraphErrors::GetErrorY ( Int_t  i) const
virtual

This function is called by GraphFitChisquare.

It returns the error along Y at point i.

Reimplemented from TGraph.

Definition at line 583 of file TGraphErrors.cxx.

Referenced by Apply(), and testHisto1DFit().

Double_t TGraphErrors::GetErrorYhigh ( Int_t  i) const
virtual

This function is called by GraphFitChisquare.

It returns the error along X at point i.

Reimplemented from TGraph.

Definition at line 619 of file TGraphErrors.cxx.

Double_t TGraphErrors::GetErrorYlow ( Int_t  i) const
virtual

This function is called by GraphFitChisquare.

It returns the error along X at point i.

Reimplemented from TGraph.

Definition at line 631 of file TGraphErrors.cxx.

Double_t* TGraphErrors::GetEX ( ) const
inlinevirtual

Reimplemented from TGraph.

Definition at line 68 of file TGraphErrors.h.

Referenced by TGraphPainter::PaintGraphPolar().

Double_t* TGraphErrors::GetEY ( ) const
inlinevirtual
Int_t TGraphErrors::Merge ( TCollection li)
virtual

Adds all graphs with errors from the collection to this graph.

Returns the total number of poins in the result or -1 in case of an error.

Reimplemented from TGraph.

Definition at line 642 of file TGraphErrors.cxx.

TGraphErrors & TGraphErrors::operator= ( const TGraphErrors gr)

TGraphErrors assignment operator.

Definition at line 184 of file TGraphErrors.cxx.

void TGraphErrors::Print ( Option_t chopt = "") const
virtual

Print graph and errors values.

Reimplemented from TGraph.

Definition at line 671 of file TGraphErrors.cxx.

Referenced by TProofBench::DrawCPU(), TProofBench::DrawDataSet(), and TProofBench::DrawEfficiency().

void TGraphErrors::SavePrimitive ( std::ostream &  out,
Option_t option = ""
)
virtual

Save primitive as a C++ statement(s) on output stream out.

Reimplemented from TGraph.

Definition at line 682 of file TGraphErrors.cxx.

void TGraphErrors::SetPointError ( Double_t  ex,
Double_t  ey
)
virtual
void TGraphErrors::SetPointError ( Int_t  i,
Double_t  ex,
Double_t  ey
)
virtual

Set ex and ey values for point number i.

Definition at line 784 of file TGraphErrors.cxx.

void TGraphErrors::SwapPoints ( Int_t  pos1,
Int_t  pos2
)
protectedvirtual

Swap points.

Reimplemented from TGraph.

Definition at line 839 of file TGraphErrors.cxx.

Member Data Documentation

Double_t* TGraphErrors::fEX
protected
Double_t* TGraphErrors::fEY
protected
Collaboration diagram for TGraphErrors:
[legend]

The documentation for this class was generated from the following files:
