TWbox Class Reference

A TBox with a bordersize and a bordermode.

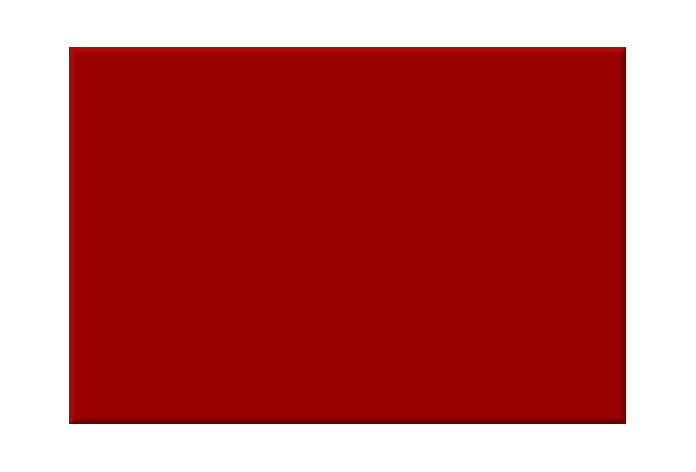

Example:

{
TWbox *twb = new TWbox(.1,.1,.9,.9,kRed+2,5,1);
twb->Draw();
}

Definition at line 33 of file TWbox.h.

Public Member Functions

 TWbox ()

 TWbox (Double_t x1, Double_t y1, Double_t x2, Double_t y2, Color_t color=18, Short_t bordersize=5, Short_t bordermode=1)
 wbox normal constructor. More...

 TWbox (const TWbox &wbox)
 wbox copy constructor. More...

virtual ~TWbox ()
 wbox default destructor. More...

void Copy (TObject &wbox) const
 Copy this wbox to wbox. More...

virtual void Draw (Option_t *option="")
 Draw this wbox with its current attributes. More...

virtual void DrawWbox (Double_t x1, Double_t y1, Double_t x2, Double_t y2, Color_t color=33, Short_t bordersize=5, Short_t bordermode=-1)
 Draw this wbox with new coordinates. More...

virtual void ExecuteEvent (Int_t event, Int_t px, Int_t py)
 Execute action corresponding to one event. More...

Short_t GetBorderMode () const

Short_t GetBorderSize () const

Int_t GetDarkColor () const

Int_t GetLightColor () const

virtual void Paint (Option_t *option="")
 Paint this wbox with its current attributes. More...

virtual void PaintFrame (Double_t x1, Double_t y1, Double_t x2, Double_t y2, Color_t color, Short_t bordersize, Short_t bordermode, Bool_t tops)
 Paint a 3D frame around a box. More...

virtual void PaintWbox (Double_t x1, Double_t y1, Double_t x2, Double_t y2, Color_t color=33, Short_t bordersize=5, Short_t bordermode=-1)
 Draw this wbox with new coordinates. More...

virtual void SavePrimitive (std::ostream &out, Option_t *option="")
 Save primitive as a C++ statement(s) on output stream out. More...

virtual void SetBorderMode (Short_t bordermode)

virtual void SetBorderSize (Short_t bordersize)

- Public Member Functions inherited from TBox
 TBox ()

 TBox (Double_t x1, Double_t y1, Double_t x2, Double_t y2)
 Box standard constructor. More...

 TBox (const TBox &box)
 Box copy constructor. More...

TBoxoperator= (const TBox &)
 Assignment operator. More...

virtual ~TBox ()
 Box destructor. More...

virtual Int_t DistancetoPrimitive (Int_t px, Int_t py)
 Compute distance from point px,py to a box. More...

virtual TBoxDrawBox (Double_t x1, Double_t y1, Double_t x2, Double_t y2)
 Draw this box with new coordinates. More...

Bool_t IsBeingResized () const

Double_t GetX1 () const

Double_t GetX2 () const

Double_t GetY1 () const

Double_t GetY2 () const

virtual void HideToolTip (Int_t event)
 Hide tool tip depending on the event type. More...

virtual Int_t IsInside (Double_t x, Double_t y) const
 Function which returns 1 if point x,y lies inside the box, 0 otherwise. More...

virtual void ls (Option_t *option="") const
 List this box with its attributes. More...

virtual void PaintBox (Double_t x1, Double_t y1, Double_t x2, Double_t y2, Option_t *option="")
 Draw this box with new coordinates. More...

virtual void Print (Option_t *option="") const
 Dump this box with its attributes. More...

virtual void SetX1 (Double_t x1)

virtual void SetX2 (Double_t x2)

virtual void SetY1 (Double_t y1)

virtual void SetY2 (Double_t y2)

virtual void SetToolTipText (const char *text, Long_t delayms=1000)
 Set tool tip text associated with this box. More...

virtual Rectangle_t GetBBox ()
 Return the "bounding Box" of the Box. More...

virtual TPoint GetBBoxCenter ()
 Return the center of the Box as TPoint in pixels. More...

virtual void SetBBoxCenter (const TPoint &p)
 Set center of the Box. More...

virtual void SetBBoxCenterX (const Int_t x)
 Set X coordinate of the center of the Box. More...

virtual void SetBBoxCenterY (const Int_t y)
 Set Y coordinate of the center of the Box. More...

virtual void SetBBoxX1 (const Int_t x)
 Set left hand side of BoundingBox to a value (resize in x direction on left) More...

virtual void SetBBoxX2 (const Int_t x)
 Set right hand side of BoundingBox to a value (resize in x direction on right) More...

virtual void SetBBoxY1 (const Int_t y)
 Set top of BoundingBox to a value (resize in y direction on top) More...

virtual void SetBBoxY2 (const Int_t y)
 Set bottom of BoundingBox to a value (resize in y direction on bottom) More...

- Public Member Functions inherited from TObject
 TObject ()

 TObject (const TObject &object)
 TObject copy ctor. More...

TObjectoperator= (const TObject &rhs)
 TObject assignment operator. More...

virtual ~TObject ()
 TObject destructor. More...

virtual void AppendPad (Option_t *option="")
 Append graphics object to current pad. More...

virtual void Browse (TBrowser *b)
 Browse object. May be overridden for another default action. More...

virtual const char * ClassName () const
 Returns name of class to which the object belongs. More...

virtual void Clear (Option_t *="")

virtual TObjectClone (const char *newname="") const
 Make a clone of an object using the Streamer facility. More...

virtual Int_t Compare (const TObject *obj) const
 Compare abstract method. More...

virtual void Delete (Option_t *option="")
 Delete this object. More...

virtual void DrawClass () const
 Draw class inheritance tree of the class to which this object belongs. More...

virtual TObjectDrawClone (Option_t *option="") const
 Draw a clone of this object in the current pad. More...

virtual void Dump () const
 Dump contents of object on stdout. More...

virtual void Execute (const char *method, const char *params, Int_t *error=0)
 Execute method on this object with the given parameter string, e.g. More...

virtual void Execute (TMethod *method, TObjArray *params, Int_t *error=0)
 Execute method on this object with parameters stored in the TObjArray. More...

virtual TObjectFindObject (const char *name) const
 Must be redefined in derived classes. More...

virtual TObjectFindObject (const TObject *obj) const
 Must be redefined in derived classes. More...

virtual Option_tGetDrawOption () const
 Get option used by the graphics system to draw this object. More...

virtual UInt_t GetUniqueID () const
 Return the unique object id. More...

virtual const char * GetName () const
 Returns name of object. More...

virtual const char * GetIconName () const
 Returns mime type name of object. More...

virtual Option_tGetOption () const

virtual char * GetObjectInfo (Int_t px, Int_t py) const
 Returns string containing info about the object at position (px,py). More...

virtual const char * GetTitle () const
 Returns title of object. More...

virtual Bool_t HandleTimer (TTimer *timer)
 Execute action in response of a timer timing out. More...

virtual ULong_t Hash () const
 Return hash value for this object. More...

virtual Bool_t InheritsFrom (const char *classname) const
 Returns kTRUE if object inherits from class "classname". More...

virtual Bool_t InheritsFrom (const TClass *cl) const
 Returns kTRUE if object inherits from TClass cl. More...

virtual void Inspect () const
 Dump contents of this object in a graphics canvas. More...

virtual Bool_t IsFolder () const
 Returns kTRUE in case object contains browsable objects (like containers or lists of other objects). More...

virtual Bool_t IsEqual (const TObject *obj) const
 Default equal comparison (objects are equal if they have the same address in memory). More...

virtual Bool_t IsSortable () const

Bool_t IsOnHeap () const

Bool_t IsZombie () const

virtual Bool_t Notify ()
 This method must be overridden to handle object notification. More...

virtual void Pop ()
 Pop on object drawn in a pad to the top of the display list. More...

virtual Int_t Read (const char *name)
 Read contents of object with specified name from the current directory. More...

virtual void RecursiveRemove (TObject *obj)
 Recursively remove this object from a list. More...

virtual void SaveAs (const char *filename="", Option_t *option="") const
 Save this object in the file specified by filename. More...

virtual void SetDrawOption (Option_t *option="")
 Set drawing option for object. More...

virtual void SetUniqueID (UInt_t uid)
 Set the unique object id. More...

virtual void UseCurrentStyle ()
 Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked. More...

virtual Int_t Write (const char *name=0, Int_t option=0, Int_t bufsize=0)
 Write this object to the current directory. More...

virtual Int_t Write (const char *name=0, Int_t option=0, Int_t bufsize=0) const
 Write this object to the current directory. More...

voidoperator new (size_t sz)

voidoperator new[] (size_t sz)

voidoperator new (size_t sz, void *vp)

voidoperator new[] (size_t sz, void *vp)

void operator delete (void *ptr)
 Operator delete. More...

void operator delete[] (void *ptr)
 Operator delete []. More...

void SetBit (UInt_t f, Bool_t set)
 Set or unset the user status bits as specified in f. More...

void SetBit (UInt_t f)

void ResetBit (UInt_t f)

Bool_t TestBit (UInt_t f) const

Int_t TestBits (UInt_t f) const

void InvertBit (UInt_t f)

virtual void Info (const char *method, const char *msgfmt,...) const
 Issue info message. More...

virtual void Warning (const char *method, const char *msgfmt,...) const
 Issue warning message. More...

virtual void Error (const char *method, const char *msgfmt,...) const
 Issue error message. More...

virtual void SysError (const char *method, const char *msgfmt,...) const
 Issue system error message. More...

virtual void Fatal (const char *method, const char *msgfmt,...) const
 Issue fatal error message. More...

void AbstractMethod (const char *method) const
 Use this method to implement an "abstract" method that you don't want to leave purely abstract. More...

void MayNotUse (const char *method) const
 Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary). More...

void Obsolete (const char *method, const char *asOfVers, const char *removedFromVers) const
 Use this method to declare a method obsolete. More...

- Public Member Functions inherited from TAttLine
 TAttLine ()
 AttLine default constructor. More...

 TAttLine (Color_t lcolor, Style_t lstyle, Width_t lwidth)
 AttLine normal constructor. More...

virtual ~TAttLine ()
 AttLine destructor. More...

void Copy (TAttLine &attline) const
 Copy this line attributes to a new TAttLine. More...

Int_t DistancetoLine (Int_t px, Int_t py, Double_t xp1, Double_t yp1, Double_t xp2, Double_t yp2)
 Compute distance from point px,py to a line. More...

virtual Color_t GetLineColor () const

virtual Style_t GetLineStyle () const

virtual Width_t GetLineWidth () const

virtual void Modify ()
 Change current line attributes if necessary. More...

virtual void ResetAttLine (Option_t *option="")
 Reset this line attributes to default values. More...

virtual void SaveLineAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1, Int_t widdef=1)
 Save line attributes as C++ statement(s) on output stream out. More...

virtual void SetLineAttributes ()
 Invoke the DialogCanvas Line attributes. More...

virtual void SetLineColor (Color_t lcolor)

virtual void SetLineColorAlpha (Color_t lcolor, Float_t lalpha)
 Set a transparent line color. More...

virtual void SetLineStyle (Style_t lstyle)

virtual void SetLineWidth (Width_t lwidth)

 ClassDef (TAttLine, 2)

- Public Member Functions inherited from TAttFill
 TAttFill ()

 TAttFill (Color_t fcolor, Style_t fstyle)
 AttFill normal constructor. More...

virtual ~TAttFill ()
 AttFill destructor. More...

void Copy (TAttFill &attfill) const
 Copy this fill attributes to a new TAttFill. More...

virtual Color_t GetFillColor () const

virtual Style_t GetFillStyle () const

virtual Bool_t IsTransparent () const

virtual void Modify ()
 Change current fill area attributes if necessary. More...

virtual void ResetAttFill (Option_t *option="")
 Reset this fill attributes to default values. More...

virtual void SaveFillAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1001)
 Save fill attributes as C++ statement(s) on output stream out. More...

virtual void SetFillAttributes ()
 Invoke the DialogCanvas Fill attributes. More...

virtual void SetFillColor (Color_t fcolor)

virtual void SetFillColorAlpha (Color_t fcolor, Float_t falpha)
 Set a transparent fill color. More...

virtual void SetFillStyle (Style_t fstyle)

- Public Member Functions inherited from TAttBBox2D
virtual ~TAttBBox2D ()

 ClassDef (TAttBBox2D, 0)


Protected Attributes

Short_t fBorderSize

Short_t fBorderMode

- Protected Attributes inherited from TBox
Double_t fX1
 tool tip associated with box More...

Double_t fY1

Double_t fX2

Double_t fY2

Bool_t fResizing

- Protected Attributes inherited from TAttLine
Color_t fLineColor

Style_t fLineStyle

Width_t fLineWidth

- Protected Attributes inherited from TAttFill
Color_t fFillColor

Style_t fFillStyle


Additional Inherited Members

- Public Types inherited from TBox
enum  { kCannotMove = BIT(12) }
 True if box is being resized. More...

- Public Types inherited from TObject
enum  EStatusBits {
  kCanDelete = BIT(0), kMustCleanup = BIT(3), kObjInCanvas = BIT(3), kIsReferenced = BIT(4),
  kHasUUID = BIT(5), kCannotPick = BIT(6), kNoContextMenu = BIT(8), kInvalidObject = BIT(13)
}

enum  { kIsOnHeap = 0x01000000, kNotDeleted = 0x02000000, kZombie = 0x04000000, kBitMask = 0x00ffffff }

enum  { kSingleKey = BIT(0), kOverwrite = BIT(1), kWriteDelete = BIT(2) }

- Static Public Member Functions inherited from TObject
static Long_t GetDtorOnly ()
 Return destructor only flag. More...

static void SetDtorOnly (void *obj)
 Set destructor only flag. More...

static Bool_t GetObjectStat ()
 Get status of object stat flag. More...

static void SetObjectStat (Bool_t stat)
 Turn on/off tracking of objects in the TObjectTable. More...

- Protected Member Functions inherited from TObject
void MakeZombie ()

virtual void DoError (int level, const char *location, const char *fmt, va_list va) const
 Interface to ErrorHandler (protected). More...


#include <TWbox.h>

Inheritance diagram for TWbox:
[legend]

Constructor & Destructor Documentation

TWbox::TWbox ( )

Referenced by DrawWbox().

TWbox::TWbox ( Double_t  x1,
Double_t  y1,
Double_t  x2,
Double_t  y2,
Color_t  color = 18,
Short_t  bordersize = 5,
Short_t  bordermode = 1
)

wbox normal constructor.

a WBOX is a box with a bordersize and a bordermode the bordersize is in pixels

  • bordermode = -1 box looks as it is behind the screen
  • bordermode = 0 no special effects
  • bordermode = 1 box looks as it is in front of the screen

Definition at line 54 of file TWbox.cxx.

TWbox::TWbox ( const TWbox wbox)

wbox copy constructor.

Definition at line 74 of file TWbox.cxx.

TWbox::~TWbox ( )
virtual

wbox default destructor.

Definition at line 67 of file TWbox.cxx.

Member Function Documentation

void TWbox::Copy ( TObject wbox) const
virtual

Copy this wbox to wbox.

Reimplemented from TBox.

Definition at line 84 of file TWbox.cxx.

Referenced by TFrame::Copy(), and TFrame::TFrame().

void TWbox::Draw ( Option_t option = "")
virtual

Draw this wbox with its current attributes.

Reimplemented from TBox.

Reimplemented in TFrame.

Definition at line 94 of file TWbox.cxx.

void TWbox::DrawWbox ( Double_t  x1,
Double_t  y1,
Double_t  x2,
Double_t  y2,
Color_t  color = 33,
Short_t  bordersize = 5,
Short_t  bordermode = -1
)
virtual

Draw this wbox with new coordinates.

Definition at line 102 of file TWbox.cxx.

void TWbox::ExecuteEvent ( Int_t  event,
Int_t  px,
Int_t  py
)
virtual

Execute action corresponding to one event.

This member function is called when a WBOX object is clicked.

Reimplemented from TBox.

Reimplemented in TSliderBox, and TFrame.

Definition at line 115 of file TWbox.cxx.

Referenced by TFrame::ExecuteEvent().

Short_t TWbox::GetBorderMode ( ) const
inline

Definition at line 51 of file TWbox.h.

Referenced by TPad::SavePrimitive(), TFrameEditor::SetModel(), and TFrame::UseCurrentStyle().

Short_t TWbox::GetBorderSize ( ) const
inline

Definition at line 52 of file TWbox.h.

Referenced by TPad::SavePrimitive(), TFrameEditor::SetModel(), and TFrame::UseCurrentStyle().

Int_t TWbox::GetDarkColor ( ) const
inline

Definition at line 53 of file TWbox.h.

Referenced by PaintFrame().

Int_t TWbox::GetLightColor ( ) const
inline

Definition at line 54 of file TWbox.h.

Referenced by PaintFrame().

void TWbox::Paint ( Option_t option = "")
virtual

Paint this wbox with its current attributes.

Reimplemented from TBox.

Reimplemented in TFrame.

Definition at line 123 of file TWbox.cxx.

Referenced by TFrame::Paint().

void TWbox::PaintFrame ( Double_t  x1,
Double_t  y1,
Double_t  x2,
Double_t  y2,
Color_t  color,
Short_t  bordersize,
Short_t  bordermode,
Bool_t  tops
)
virtual

Paint a 3D frame around a box.

Definition at line 145 of file TWbox.cxx.

Referenced by PaintWbox().

void TWbox::PaintWbox ( Double_t  x1,
Double_t  y1,
Double_t  x2,
Double_t  y2,
Color_t  color = 33,
Short_t  bordersize = 5,
Short_t  bordermode = -1
)
virtual

Draw this wbox with new coordinates.

Definition at line 131 of file TWbox.cxx.

Referenced by Paint().

void TWbox::SavePrimitive ( std::ostream &  out,
Option_t option = ""
)
virtual

Save primitive as a C++ statement(s) on output stream out.

Reimplemented from TBox.

Reimplemented in TSliderBox, and TFrame.

Definition at line 214 of file TWbox.cxx.

virtual void TWbox::SetBorderMode ( Short_t  bordermode)
inlinevirtual
virtual void TWbox::SetBorderSize ( Short_t  bordersize)
inlinevirtual

Member Data Documentation

Short_t TWbox::fBorderMode
protected

Definition at line 37 of file TWbox.h.

Referenced by Copy(), GetBorderMode(), Paint(), SetBorderMode(), and TWbox().

Short_t TWbox::fBorderSize
protected

Definition at line 36 of file TWbox.h.

Referenced by Copy(), GetBorderSize(), Paint(), SetBorderSize(), and TWbox().

Collaboration diagram for TWbox:
[legend]

The documentation for this class was generated from the following files:
