ntpl017_shared_reader.C File Reference

Detailed Description

Example of efficient multi-threaded reading when multiple threads share a single reader.

In this example, two threads share the work as follows: the first thread processes all the even entries numbers and the second thread all the odd entry numbers. The second thread works twice as slow as the first one.

As a result, the threads need the same clusters and pages but at different points in time. With the naive way of using the reader, this read pattern will result in cache thrashing.

Using the "active entry token" API, on the other hand, the reader will be informed about which entries need to be kept in the caches and cache thrashing is prevented.


#include <ROOT/RNTupleModel.hxx>
#include <ROOT/RNTupleReader.hxx>
#include <ROOT/RNTupleWriter.hxx>

#include <TAxis.h>
#include <TCanvas.h>
#include <TGraph.h>
#include <TLatex.h>
#include <TLegend.h>
#include <TRandom3.h>
#include <TROOT.h>
#include <TStyle.h>

#include <array>
#include <atomic>
#include <chrono>
#include <exception>
#include <functional>
#include <iostream>
#include <mutex>
#include <thread>
#include <vector>

using namespace std::chrono_literals;

// Where to store the ntuple of this example
constexpr char const *kNTupleFileName = "ntpl017_shared_reader.root";

/// The sample class that is stored in the RNTuple
struct Point2D {
   float fX;
   float fY;
};

/// Whether we read with setting active entry tokens (informed) or not (naive)
enum class EReadMode {
   kNaive,
   kInformed
};

/// Nicify output of EReadMode values
std::ostream &operator<<(std::ostream &os, const EReadMode &e)
{
   switch (e) {
   case EReadMode::kNaive: os << "naive"; break;
   case EReadMode::kInformed: os << "informed"; break;
   default: os << "???";
   }
   return os;
}

// To be reset between ProcessEntries calls to Read()
static std::atomic<int> gNEntriesDone;
static std::atomic<int> gThreadId;

/// The read thread's main function
void ProcessEntries(ROOT::RNTupleReader &reader, EReadMode readMode, const std::chrono::microseconds &usPerEvent,
                    std::vector<int> &sumLoadedClusters, std::vector<int> &sumUnsealedPages,
                    std::vector<int> &nClusters, std::vector<int> &nPages)
{
   static std::mutex gLock;

   const int threadId = gThreadId++;

   auto token = reader.CreateActiveEntryToken();
   for (unsigned int i = threadId; i < reader.GetNEntries(); i += 2) {
      {
         std::lock_guard<std::mutex> guard(gLock);

         // The only difference between naive and informed reading: in informed reading, we indicate which
         // entry we are going to use before loading it.
         switch (readMode) {
         case EReadMode::kInformed: token.SetEntryNumber(i); break;
         case EReadMode::kNaive: break;
         default: std::terminate(); // never here
         }

         reader.LoadEntry(i);
      }

      std::this_thread::sleep_for(usPerEvent);

      const int entriesDone = gNEntriesDone++;
      sumLoadedClusters.at(entriesDone) =
         reader.GetMetrics().GetCounter("RNTupleReader.RPageSourceFile.nClusterLoaded")->GetValueAsInt();
      sumUnsealedPages[entriesDone] =
         reader.GetMetrics().GetCounter("RNTupleReader.RPageSourceFile.nPageUnsealed")->GetValueAsInt();
      nClusters[entriesDone] =
         reader.GetMetrics().GetCounter("RNTupleReader.RPageSourceFile.RClusterPool.nCluster")->GetValueAsInt();
      nPages[entriesDone] =
         reader.GetMetrics().GetCounter("RNTupleReader.RPageSourceFile.RPagePool.nPage")->GetValueAsInt();
   }
}

void Read(EReadMode readMode, std::vector<int> &sumLoadedClusters, std::vector<int> &sumUnsealedPages,
          std::vector<int> &nClusters, std::vector<int> &nPages)
{
   auto reader = ROOT::RNTupleReader::Open("ntpl", kNTupleFileName);
   reader->EnableMetrics();

   gNEntriesDone = 0;
   gThreadId = 0;

   const auto N = reader->GetNEntries();
   sumLoadedClusters.resize(N);
   sumUnsealedPages.resize(N);
   nClusters.resize(N);
   nPages.resize(N);

   std::array<std::thread, 2> threads;
   threads[0] = std::thread(ProcessEntries, std::ref(*reader), readMode, 100us, std::ref(sumLoadedClusters),
                            std::ref(sumUnsealedPages), std::ref(nClusters), std::ref(nPages));
   threads[1] = std::thread(ProcessEntries, std::ref(*reader), readMode, 200us, std::ref(sumLoadedClusters),
                            std::ref(sumUnsealedPages), std::ref(nClusters), std::ref(nPages));
   for (auto &t : threads) {
      t.join();
   }

   std::cout << "Reading in mode '" << readMode << "':" << std::endl;
   std::cout << "===========================" << std::endl;
   reader->GetMetrics().Print(std::cout);
   std::cout << "===========================" << std::endl << std::endl;
}

void Write()
{
   auto model = ROOT::RNTupleModel::Create();
   auto ptrPoint = model->MakeField<Point2D>("point");

   auto writer = ROOT::RNTupleWriter::Recreate(std::move(model), "ntpl", kNTupleFileName);

   for (int i = 0; i < 1000; ++i) {
      if (i % 100 == 0)
         writer->CommitCluster();

      auto prng = std::make_unique<TRandom3>();
      prng->SetSeed();

      ptrPoint->fX = prng->Rndm(1);
      ptrPoint->fY = prng->Rndm(1);
      writer->Fill();
   }
}

TGraph *GetGraph(const std::vector<int> &counts)
{
   auto graph = new TGraph();
   for (unsigned int i = 0; i < counts.size(); ++i) {
      graph->SetPoint(i, i, counts[i]);
   }
   graph->GetXaxis()->SetTitle("Number of processed entries");
   return graph;
}

void ntpl017_shared_reader()
{
   ROOT::EnableImplicitMT();

   Write();
   ROOT::RNTupleReader::Open("ntpl", kNTupleFileName)->PrintInfo(ROOT::ENTupleInfo::kStorageDetails);

   std::vector<int> sumLoadedClusters;
   std::vector<int> sumUnsealedPages;
   std::vector<int> nClusters;
   std::vector<int> nPages;
   TLatex latex;

   gStyle->SetOptStat(0);
   gStyle->SetLineWidth(2);
   gStyle->SetMarkerStyle(8);

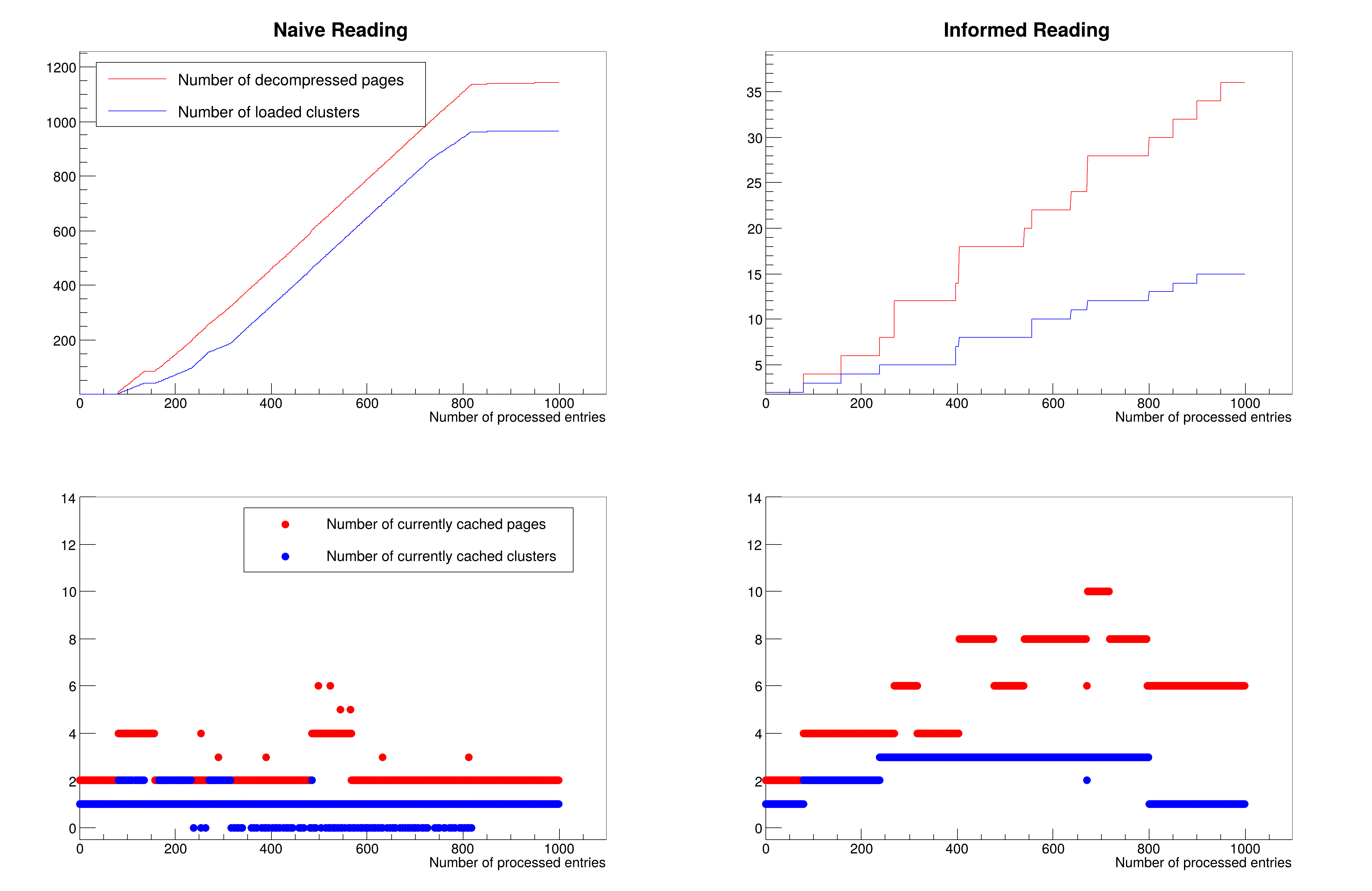

   TCanvas *canvas = new TCanvas("", "Shared Reader Example", 200, 10, 1500, 1000);

   canvas->Divide(2, 2);

   Read(EReadMode::kNaive, sumLoadedClusters, sumUnsealedPages, nClusters, nPages);

   canvas->cd(1);
   auto graph1 = GetGraph(sumUnsealedPages);
   graph1->SetLineColor(kRed);
   graph1->Draw("AL");
   auto graph2 = GetGraph(sumLoadedClusters);
   graph2->SetLineColor(kBlue);
   graph2->Draw("SAME L");

   auto legend = new TLegend(0.125, 0.725, 0.625, 0.875);
   legend->AddEntry(graph1, "Number of decompressed pages", "l");
   legend->AddEntry(graph2, "Number of loaded clusters", "l");
   legend->Draw();

   latex.SetTextAlign(22);
   latex.DrawLatexNDC(0.5, 0.95, "Naive Reading");

   canvas->cd(3);

   auto graph3 = GetGraph(nPages);
   graph3->SetMarkerColor(kRed);
   graph3->GetYaxis()->SetNdivisions(8);
   graph3->GetYaxis()->SetRangeUser(-0.5, 14);
   graph3->Draw("AP");

   auto graph4 = GetGraph(nClusters);
   graph4->SetMarkerColor(kBlue);
   graph4->Draw("SAME P");

   legend = new TLegend(0.35, 0.725, 0.85, 0.875);
   legend->AddEntry(graph3, "Number of currently cached pages", "p");
   legend->AddEntry(graph4, "Number of currently cached clusters", "p");
   legend->Draw();

   // ===============================

   Read(EReadMode::kInformed, sumLoadedClusters, sumUnsealedPages, nClusters, nPages);

   canvas->cd(2);
   auto graph5 = GetGraph(sumUnsealedPages);
   graph5->SetLineColor(kRed);
   graph5->Draw("AL");

   auto graph6 = GetGraph(sumLoadedClusters);
   graph6->SetLineColor(kBlue);
   graph6->Draw("SAME L");

   latex.SetTextAlign(22);
   latex.DrawLatexNDC(0.5, 0.95, "Informed Reading");

   canvas->cd(4);

   auto graph7 = GetGraph(nPages);
   graph7->SetMarkerColor(kRed);
   graph7->GetYaxis()->SetNdivisions(8);
   graph7->GetYaxis()->SetRangeUser(-0.5, 14);
   graph7->Draw("AP");

   auto graph8 = GetGraph(nClusters);
   graph8->SetMarkerColor(kBlue);
   graph8->Draw("SAME P");
}

Date

October 2025

Author

The ROOT Team

Definition in file ntpl017_shared_reader.C.
