Marker Attributes class.

This class is used (in general by secondary inheritance) by many other classes (graphics, histograms). It holds all the markers attributes.

Marker attributes

The marker attributes are:

Marker color

The marker color is a color index (integer) pointing in the ROOT color table. The marker color of any class inheriting from TAttMarker can be changed using the method SetMarkerColor and retrieved using the method GetMarkerColor. The following table shows the first 50 default colors.

Color transparency

SetMarkerColorAlpha(), allows to set a transparent color. In the following example the marker color of the histogram histo is set to blue with an opacity of 35% (i.e. a transparency of 65%). (The color kBlue itself is internally stored as fully opaque.)

histo->SetMarkerColorAlpha(kBlue, 0.35);

kBlue

@ kBlue

Definition Rtypes.h:66

The transparency is available on all platforms when the flag OpenGL.CanvasPreferGL is set to 1 in $ROOTSYS/etc/system.rootrc, or on Mac with the Cocoa backend. On the file output it is visible with PDF, PNG, Gif, JPEG, SVG, TeX ... but not PostScript.

Alternatively, you can call at the top of your script gSytle->SetCanvasPreferGL();. Or if you prefer to activate GL for a single canvas c, then use c->SetSupportGL(true);.

Marker style

The Marker style defines the markers' shape. The marker style of any class inheriting from TAttMarker can be changed using the method SetMarkerStyle and retrieved using the method GetMarkerStyle.

The following list gives the currently supported markers (screen and PostScript) style. Each marker style is identified by an integer number (first column) corresponding to a marker shape (second column) and can be also accessed via a global name (third column).

Marker number         Marker shape          Marker name
                  dot                  kDot
                  +                    kPlus
                  *                    kStar
                  o                    kCircle
                  x                    kMultiply
                  small dot            kFullDotSmall
                  medium dot           kFullDotMedium
                  large scalable dot   kFullDotLarge
-->19              large scalable dot
                  full circle          kFullCircle
                  full square          kFullSquare
                  full triangle up     kFullTriangleUp
                  full triangle down   kFullTriangleDown
                  open circle          kOpenCircle
                  open square          kOpenSquare
                  open triangle up     kOpenTriangleUp
                  open diamond         kOpenDiamond
                  open cross           kOpenCross
                  full star            kFullStar
                  open star            kOpenStar
                  *
                  open triangle down   kOpenTriangleDown
                  full diamond         kFullDiamond
                  full cross           kFullCross
                  open diamond cross   kOpenDiamondCross
                  open square diagonal kOpenSquareDiagonal
                  open three triangle  kOpenThreeTriangles
                  octagon with cross   kOctagonCross
                  full three triangles kFullThreeTriangles
                  open four triangleX  kOpenFourTrianglesX
                  full four triangleX  kFullFourTrianglesX
                  open double diamond  kOpenDoubleDiamond
                  full double diamond  kFullDoubleDiamond
                  open four triangle+  kOpenFourTrianglesPlus
                  full four triangle+  kFullFourTrianglesPlus
                  open cross X         kOpenCrossX
                  full cross X         kFullCrossX
                  four squares X       kFourSquaresX
                  four squares+        kFourSquaresPlus

Warning: Non-symmetric symbols should be used carefully. See markerwarning.C

Marker line width

The line width of a marker is not actually a marker attribute since it does only apply to open marker symbols and marker symbols consisting of lines. All of these marker symbols are redefined with thicker lines by style numbers starting from 50:

Marker numbers   Line width
   50 -  67         2
   68 -  85         3
   86 - 103         4
  104 - 121         5
...

Marker size

Various marker sizes are shown in the figure below. The default marker size=1 is shown in the top left corner. Marker sizes smaller than 1 can be specified. The marker size does not refer to any coordinate systems, it is an absolute value. Therefore the marker size is not affected by any change in TPad's scale. A marker size equal to 1 correspond to 8 pixels. That is, a square marker with size 1 will be drawn with a side equal to 8 pixels on the screen.

The marker size of any class inheriting from TAttMarker can be changed using the method SetMarkerSize and retrieved using the method GetMarkerSize.

Note that the marker styles number 1 6 and 7 (the dots), cannot be scaled. They are meant to be very fast to draw and are always drawn with the same number of pixels; therefore SetMarkerSize does not apply on them. To have a "scalable dot" a filled circle should be used instead, i.e. the marker style number 20. By default (if SetMarkerStyle is not specified), the marker style used is 1. That's the most common one to draw scatter plots.

Definition at line 19 of file TAttMarker.h.

Public Member Functions
	TAttMarker ()
	TAttMarker default constructor.

	TAttMarker (Color_t color, Style_t style, Size_t msize)
	TAttMarker normal constructor.

virtual	~TAttMarker ()
	TAttMarker destructor.

void	Copy (TAttMarker &attmarker) const
	Copy this marker attributes to a new TAttMarker.

virtual Color_t	GetMarkerColor () const
	Return the marker color.

virtual Size_t	GetMarkerSize () const
	Return the marker size.

virtual Style_t	GetMarkerStyle () const
	Return the marker style.

virtual TClass *	IsA () const

virtual void	Modify ()
	Change current marker attributes if necessary.

virtual void	ResetAttMarker (Option_t *toption="")
	Reset this marker attributes to the default values.

virtual void	SaveMarkerAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1, Int_t sizdef=1)
	Save line attributes as C++ statement(s) on output stream out.

virtual void	SetMarkerAttributes ()
	Invoke the DialogCanvas Marker attributes.

virtual void	SetMarkerColor (Color_t mcolor=1)
	Set the marker color.

virtual void	SetMarkerColorAlpha (Color_t mcolor, Float_t malpha)
	Set a transparent marker color.

virtual void	SetMarkerSize (Size_t msize=1)
	Set the marker size.

virtual void	SetMarkerStyle (Style_t mstyle=1)
	Set the marker style.

virtual void	Streamer (TBuffer &)

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Static Public Member Functions
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

static Width_t	GetMarkerLineWidth (Style_t style)
	Internal helper function that returns the line width of the given marker style (0 = filled marker)

static Style_t	GetMarkerStyleBase (Style_t style)
	Internal helper function that returns the corresponding marker style with line width 1 for the given style.

Protected Attributes
Color_t	fMarkerColor
	Marker color.

Size_t	fMarkerSize
	Marker size.

Style_t	fMarkerStyle
	Marker style.

#include <TAttMarker.h>

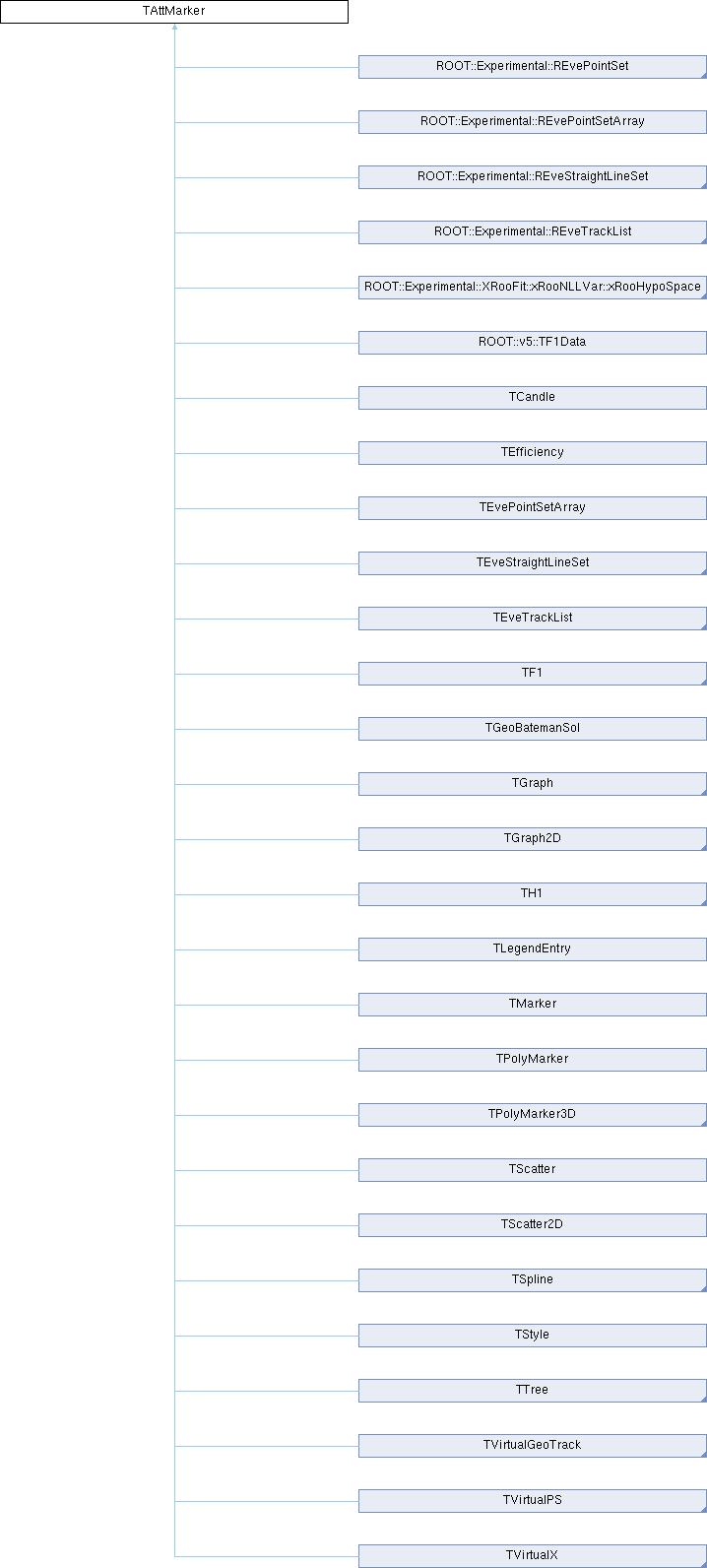

Inheritance diagram for TAttMarker:

[legend]

Constructor & Destructor Documentation

◆ TAttMarker() [1/2]

TAttMarker::TAttMarker ( )

TAttMarker default constructor.

Default text attributes are taking from the current style.

Definition at line 211 of file TAttMarker.cxx.

◆ TAttMarker() [2/2]

TAttMarker::TAttMarker	(	Color_t	color,
		Style_t	style,
		Size_t	msize
	)

TAttMarker normal constructor.

Text attributes are taking from the argument list

color : Marker Color Index
style : Marker style (from 1 to 30)
size : marker size (float)

Definition at line 227 of file TAttMarker.cxx.

◆ ~TAttMarker()

TAttMarker::~TAttMarker ( )

virtual

TAttMarker destructor.

Definition at line 237 of file TAttMarker.cxx.

Member Function Documentation

◆ Class()

static TClass * TAttMarker::Class ( )

static

Returns: TClass describing this class

◆ Class_Name()

static const char * TAttMarker::Class_Name ( )

static

Returns: Name of this class

◆ Class_Version()

static constexpr Version_t TAttMarker::Class_Version ( )

inlinestaticconstexpr

Returns: Version of this class

Definition at line 50 of file TAttMarker.h.

◆ Copy()

void TAttMarker::Copy ( TAttMarker & attmarker ) const

Copy this marker attributes to a new TAttMarker.

Definition at line 244 of file TAttMarker.cxx.

◆ DeclFileName()

static const char * TAttMarker::DeclFileName ( )

inlinestatic

Returns: Name of the file containing the class declaration

Definition at line 50 of file TAttMarker.h.

◆ GetMarkerColor()

virtual Color_t TAttMarker::GetMarkerColor ( ) const

inlinevirtual

Return the marker color.

Reimplemented in TGWin32VirtualXProxy.

Definition at line 31 of file TAttMarker.h.

◆ GetMarkerLineWidth()

Width_t TAttMarker::GetMarkerLineWidth ( Style_t style )

static

Internal helper function that returns the line width of the given marker style (0 = filled marker)

Definition at line 306 of file TAttMarker.cxx.

◆ GetMarkerSize()

virtual Size_t TAttMarker::GetMarkerSize ( ) const

inlinevirtual

Return the marker size.

Reimplemented in TGWin32VirtualXProxy.

Definition at line 33 of file TAttMarker.h.

◆ GetMarkerStyle()

virtual Style_t TAttMarker::GetMarkerStyle ( ) const

inlinevirtual

Return the marker style.

Reimplemented in TGWin32VirtualXProxy.

Definition at line 32 of file TAttMarker.h.

◆ GetMarkerStyleBase()

Style_t TAttMarker::GetMarkerStyleBase ( Style_t style )

static

Internal helper function that returns the corresponding marker style with line width 1 for the given style.

Definition at line 255 of file TAttMarker.cxx.

◆ IsA()

virtual TClass * TAttMarker::IsA ( ) const

inlinevirtual

Returns: TClass describing current object

Reimplemented in ROOT::Experimental::XRooFit::xRooHypoSpace, TMVA::TSpline1, TMVA::TSpline2, TStyle, TVirtualPS, TVirtualX, TGeoBatemanSol, TVirtualGeoTrack, TGCocoa, TGQuartz, TCandle, TCutG, TGraphPolar, TGraphQQ, TLegendEntry, TMarker, TImageDump, TPDF, TPostScript, TSVG, TTeXDump, TGWin32, TGX11, TGX11TTF, TEveLine, TEveLineProjected, TEvePointSet, TEvePointSetArray, TEvePointSetProjected, TEveScalableStraightLineSet, TEveStraightLineSet, TEveStraightLineSetProjected, TEveTrack, TEveTrackList, TEveTrackProjected, TEveTrackListProjected, TPointSet3D, TPolyMarker3D, TGLTH3Composition, TWebPadPainter, TWebPS, THbookTree, TEfficiency, TF1, TF12, TF2, TF3, TGraph, TGraph2D, TGraph2DAsymmErrors, TGraph2DErrors, TGraphAsymmErrors, TGraphBentErrors, TGraphErrors, TGraphMultiErrors, TH1, TH1C, TH1S, TH1I, TH1L, TH1F, TH1D, TH1K, TH2, TH2C, TH2S, TH2I, TH2L, TH2F, TH2D, TH2Poly, TH3, TH3C, TH3S, TH3I, TH3L, TH3F, TH3D, TPolyMarker, TProfile, TProfile2D, TProfile2Poly, TProfile3D, TScatter, TSpline, TSpline3, TSpline5, ROOT::v5::TF1Data, TProofChain, RooCurve, RooEllipse, RooHist, TChain, TNtuple, TNtupleD, TTree, and TTreeSQL.

Definition at line 50 of file TAttMarker.h.

◆ Modify()

void TAttMarker::Modify ( )

virtual

Change current marker attributes if necessary.

Definition at line 323 of file TAttMarker.cxx.

◆ ResetAttMarker()

void TAttMarker::ResetAttMarker ( Option_t * toption = "" )

virtual

Reset this marker attributes to the default values.

Reimplemented in TGWin32VirtualXProxy.

Definition at line 338 of file TAttMarker.cxx.

◆ SaveMarkerAttributes()

void TAttMarker::SaveMarkerAttributes	(	std::ostream &	out,
		const char *	name,
		Int_t	coldef = `1`,
		Int_t	stydef = `1`,
		Int_t	sizdef = `1`
	)

virtual

Save line attributes as C++ statement(s) on output stream out.

Definition at line 348 of file TAttMarker.cxx.

◆ SetMarkerAttributes()

void TAttMarker::SetMarkerAttributes ( )

virtual

Invoke the DialogCanvas Marker attributes.

Reimplemented in TGWin32VirtualXProxy.

Definition at line 367 of file TAttMarker.cxx.

◆ SetMarkerColor()

virtual void TAttMarker::SetMarkerColor ( Color_t mcolor = 1 )

inlinevirtual

Set the marker color.

Reimplemented in TEveTrackList, ROOT::Experimental::REveTrackList, TVirtualX, TGQuartz, TGWin32, TGWin32VirtualXProxy, TGX11, TPDF, TPostScript, TSVG, TTeXDump, TEveLine, TEvePointSet, ROOT::Experimental::REveLine, ROOT::Experimental::REvePointSet, TEvePointSetArray, and ROOT::Experimental::REvePointSetArray.

Definition at line 38 of file TAttMarker.h.

◆ SetMarkerColorAlpha()

void TAttMarker::SetMarkerColorAlpha	(	Color_t	mcolor,
		Float_t	malpha
	)

virtual

Set a transparent marker color.

Parameters

mcolor	defines the marker color
malpha	defines the percentage of opacity from 0. (fully transparent) to 1. (fully opaque).

Note: malpha is ignored (treated as 1) if the TCanvas has no GL support activated.

Definition at line 378 of file TAttMarker.cxx.

◆ SetMarkerSize()

virtual void TAttMarker::SetMarkerSize ( Size_t msize = 1 )

inlinevirtual

Set the marker size.

Note that the marker styles number 1 6 and 7 (the dots), cannot be scaled. They are meant to be very fast to draw and are always drawn with the same number of pixels; therefore this method does not apply on them.

Reimplemented in TVirtualX, TGQuartz, TGWin32, TGWin32VirtualXProxy, TGX11, TTeXDump, TEvePointSet, TEvePointSetArray, ROOT::Experimental::REvePointSet, ROOT::Experimental::REvePointSetArray, TEveTrackList, and ROOT::Experimental::REveTrackList.

Definition at line 45 of file TAttMarker.h.

◆ SetMarkerStyle()

virtual void TAttMarker::SetMarkerStyle ( Style_t mstyle = 1 )

inlinevirtual

Set the marker style.

Reimplemented in TVirtualX, TGQuartz, TGWin32, TGWin32VirtualXProxy, TGX11, TEvePointSet, TEvePointSetArray, ROOT::Experimental::REvePointSet, ROOT::Experimental::REvePointSetArray, TEveTrackList, and ROOT::Experimental::REveTrackList.

Definition at line 40 of file TAttMarker.h.

◆ Streamer()

virtual void TAttMarker::Streamer ( TBuffer & )

virtual

Reimplemented in ROOT::Experimental::XRooFit::xRooHypoSpace, TMVA::TSpline1, TMVA::TSpline2, TStyle, TVirtualPS, TVirtualX, TGeoBatemanSol, TVirtualGeoTrack, TGCocoa, TGQuartz, TCandle, TCutG, TGraphPolar, TGraphQQ, TLegendEntry, TMarker, TImageDump, TPDF, TPostScript, TSVG, TTeXDump, TGWin32, TGX11, TGX11TTF, TEveLine, TEveLineProjected, TEvePointSet, TEvePointSetArray, TEvePointSetProjected, TEveScalableStraightLineSet, TEveStraightLineSet, TEveStraightLineSetProjected, TEveTrack, TEveTrackList, TEveTrackProjected, TEveTrackListProjected, TPointSet3D, TPolyMarker3D, TGLTH3Composition, TWebPadPainter, TWebPS, THbookTree, TEfficiency, TF1, TF12, TF2, TF3, TGraph, TGraph2D, TGraph2DAsymmErrors, TGraph2DErrors, TGraphAsymmErrors, TGraphBentErrors, TGraphErrors, TGraphMultiErrors, TH1, TH1C, TH1S, TH1I, TH1L, TH1F, TH1D, TH1K, TH2, TH2C, TH2S, TH2I, TH2L, TH2F, TH2D, TH2Poly, TH3, TH3C, TH3S, TH3I, TH3L, TH3F, TH3D, TPolyMarker, TProfile, TProfile2D, TProfile2Poly, TProfile3D, TScatter, TSpline, TSpline3, TSpline5, ROOT::v5::TF1Data, TProofChain, RooCurve, RooEllipse, RooHist, TChain, TNtuple, TNtupleD, TTree, and TTreeSQL.

◆ StreamerNVirtual()

void TAttMarker::StreamerNVirtual ( TBuffer & ClassDef_StreamerNVirtual_b )

inline

Definition at line 50 of file TAttMarker.h.

Member Data Documentation

◆ fMarkerColor

Color_t TAttMarker::fMarkerColor

protected

Marker color.

Definition at line 22 of file TAttMarker.h.

◆ fMarkerSize

Size_t TAttMarker::fMarkerSize

protected

Marker size.

Definition at line 24 of file TAttMarker.h.

◆ fMarkerStyle

Style_t TAttMarker::fMarkerStyle

protected

Marker style.

Definition at line 23 of file TAttMarker.h.

Libraries for TAttMarker:

[legend]

The documentation for this class was generated from the following files:

core/base/inc/TAttMarker.h
core/base/src/TAttMarker.cxx
