The 3D view class.

This package was originally written by Evgueni Tcherniaev from IHEP/Protvino.

The original Fortran implementation was adapted to HIGZ/PAW by Olivier Couet and Evgueni Tcherniaev.

This View class is a subset of the original system. It has been converted to a C++ class by Rene Brun.

TView3D creates a 3-D view in the current pad. In this 3D view Lego and Surface plots can be drawn and also 3D polyline and markers. Most of the time a TView3D is created automatically when a 3D object needs to be painted in a pad (for instance a Lego or a Surface plot).

In some case a TView3D should be explicitly. For instance to paint a 3D simple scene composed of simple objects like polylines and polymarkers. The following macro gives an example:

{
   cV3D = new TCanvas("cV3D","PolyLine3D & PolyMarker3D Window",200,10,500,500);
   // Creating a view
   TView3D *view = (TView3D*) TView::CreateView(1);
   view->SetRange(5,5,5,25,25,25);
   // Create a first PolyLine3D
   TPolyLine3D *pl3d1 = new TPolyLine3D(6);
   pl3d1->SetPoint(0, 10, 20, 10);
   pl3d1->SetPoint(1, 15, 15, 15);
   pl3d1->SetPoint(2, 20, 20, 20);
   pl3d1->SetPoint(3, 20, 10, 20);
   pl3d1->SetPoint(4, 10, 10, 20);
   pl3d1->SetPoint(5, 10, 10, 10);
   // Create a first PolyMarker3D
   TPolyMarker3D *pm3d1 = new TPolyMarker3D(9);
   pm3d1->SetPoint( 0, 10, 10, 10);
   pm3d1->SetPoint( 1, 20, 20, 20);
   pm3d1->SetPoint( 2, 10, 20, 20);
   pm3d1->SetPoint( 3, 10, 10, 20);
   pm3d1->SetPoint( 4, 20, 20, 10);
   pm3d1->SetPoint( 5, 20, 10, 10);
   pm3d1->SetPoint( 6, 20, 10, 20);
   pm3d1->SetPoint( 7, 10, 20, 10);
   pm3d1->SetPoint( 8, 15, 15, 15);
   pm3d1->SetMarkerSize(2);
   pm3d1->SetMarkerColor(4);
   pm3d1->SetMarkerStyle(2);
   // Draw

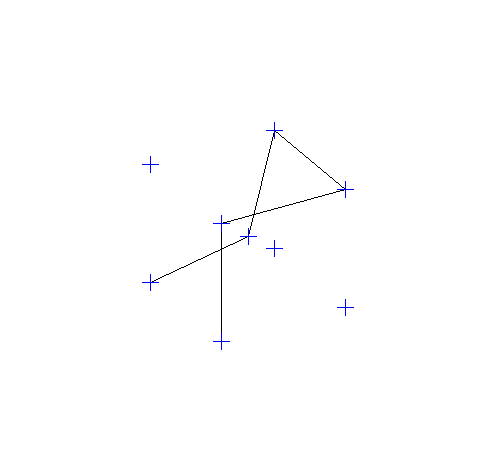

   pl3d1->Draw();
   pm3d1->Draw();
}

Several coordinate systems are available:

Cartesian
Polar
Cylindrical
Spherical
PseudoRapidity/Phi

Definition at line 31 of file TView3D.h.

Public Types
enum	{ kPerspective = BIT(6) }

Public Types inherited from TObject
enum	EStatusBits { kCanDelete = BIT(0), kMustCleanup = BIT(3), kObjInCanvas = BIT(3), kIsReferenced = BIT(4), kHasUUID = BIT(5), kCannotPick = BIT(6), kNoContextMenu = BIT(8), kInvalidObject = BIT(13) }

enum	{ kIsOnHeap = 0x01000000, kNotDeleted = 0x02000000, kZombie = 0x04000000, kBitMask = 0x00ffffff }

enum	{ kSingleKey = BIT(0), kOverwrite = BIT(1), kWriteDelete = BIT(2) }

Public Member Functions
	TView3D ()
	Default constructor. More...

	TView3D (Int_t system, const Double_t rmin, const Double_t rmax)
	TView3D constructor. More...

virtual	~TView3D ()
	TView3D default destructor. More...

virtual void	AxisVertex (Double_t ang, Double_t *av, Int_t &ix1, Int_t &ix2, Int_t &iy1, Int_t &iy2, Int_t &iz1, Int_t &iz2)
	Define axis vertices. More...

virtual void	DefinePerspectiveView ()
	Define perspective view. More...

virtual void	DefineViewDirection (const Double_t s, const Double_t c, Double_t cosphi, Double_t sinphi, Double_t costhe, Double_t sinthe, Double_t cospsi, Double_t sinpsi, Double_t tnorm, Double_t tback)
	Define view direction (in spherical coordinates) More...

virtual void	DrawOutlineCube (TList outline, Double_t rmin, Double_t *rmax)
	Draw the outline of a cube while rotating a 3-d object in the pad. More...

virtual void	ExecuteEvent (Int_t event, Int_t px, Int_t py)
	Execute action corresponding to one event. More...

virtual void	ExecuteRotateView (Int_t event, Int_t px, Int_t py)
	Execute action corresponding to one event. More...

virtual void	FindScope (Double_t scale, Double_t center, Int_t &irep)
	Find centre of a MIN-MAX scope and scale factors. More...

virtual Int_t	GetDistancetoAxis (Int_t axis, Int_t px, Int_t py, Double_t &ratio)
	Return distance to axis from point px,py. More...

virtual Double_t	GetDview () const

virtual Double_t	GetDproj () const

virtual Double_t	GetExtent () const
	Get maximum view extent. More...

virtual Bool_t	GetAutoRange ()

virtual Double_t	GetLatitude ()

virtual Double_t	GetLongitude ()

virtual Double_t	GetPsi ()

virtual void	GetRange (Float_t min, Float_t max)
	Get Range function. More...

virtual void	GetRange (Double_t min, Double_t max)
	Get Range function. More...

virtual Double_t *	GetRmax ()

virtual Double_t *	GetRmin ()

virtual TSeqCollection *	GetOutline ()

virtual Double_t *	GetTback ()

virtual Double_t *	GetTN ()

virtual Double_t *	GetTnorm ()

virtual Int_t	GetSystem ()

virtual void	GetWindow (Double_t &u0, Double_t &v0, Double_t &du, Double_t &dv) const
	Get current window extent. More...

virtual Double_t	GetWindowWidth () const

virtual Double_t	GetWindowHeight () const

virtual void	FindNormal (Double_t x, Double_t y, Double_t z, Double_t &zn)
	Find Z component of NORMAL in normalized coordinates. More...

virtual void	FindPhiSectors (Int_t iopt, Int_t &kphi, Double_t *aphi, Int_t &iphi1, Int_t &iphi2)
	Find critical PHI sectors. More...

virtual void	FindThetaSectors (Int_t iopt, Double_t phi, Int_t &kth, Double_t *ath, Int_t &ith1, Int_t &ith2)
	Find critical THETA sectors for given PHI sector. More...

virtual Bool_t	IsClippedNDC (Double_t *p) const
	Check if point is clipped in perspective view. More...

virtual Bool_t	IsPerspective () const

virtual Bool_t	IsViewChanged () const

virtual void	NDCtoWC (const Float_t pn, Float_t pw)
	Transfer point from normalized to world coordinates. More...

virtual void	NDCtoWC (const Double_t pn, Double_t pw)
	Transfer point from normalized to world coordinates. More...

virtual void	NormalWCtoNDC (const Float_t pw, Float_t pn)
	Transfer vector of NORMAL from word to normalized coordinates. More...

virtual void	NormalWCtoNDC (const Double_t pw, Double_t pn)
	Transfer vector of NORMAL from word to normalized coordinates. More...

virtual void	PadRange (Int_t rback)
	Set the correct window size for lego and surface plots. More...

virtual void	ResizePad ()
	Recompute window for perspective view. More...

virtual void	SetAutoRange (Bool_t autorange=kTRUE)

virtual void	SetAxisNDC (const Double_t x1, const Double_t x2, const Double_t y1, const Double_t y2, const Double_t z1, const Double_t z2)
	Store axis coordinates in the NDC system. More...

virtual void	SetDefaultWindow ()
	Set default viewing window. More...

virtual void	SetDview (Double_t dview)

virtual void	SetDproj (Double_t dproj)

virtual void	SetLatitude (Double_t latitude)

virtual void	SetLongitude (Double_t longitude)

virtual void	SetPsi (Double_t psi)

virtual void	SetOutlineToCube ()
	This is a function which creates default outline. More...

virtual void	SetParallel ()
	Set the parallel option (default). More...

virtual void	SetPerspective ()
	Set perspective option. More...

virtual void	SetRange (const Double_t min, const Double_t max)
	Set Range function. More...

virtual void	SetRange (Double_t x0, Double_t y0, Double_t z0, Double_t x1, Double_t y1, Double_t z1, Int_t flag=0)
	Set 3-D View range. More...

virtual void	SetSystem (Int_t system)

virtual void	SetView (Double_t longitude, Double_t latitude, Double_t psi, Int_t &irep)
	Set view parameters. More...

virtual void	SetViewChanged (Bool_t flag=kTRUE)

virtual void	SetWindow (Double_t u0, Double_t v0, Double_t du, Double_t dv)
	Set viewing window. More...

virtual void	WCtoNDC (const Float_t pw, Float_t pn)
	Transfer point from world to normalized coordinates. More...

virtual void	WCtoNDC (const Double_t pw, Double_t pn)
	Transfer point from world to normalized coordinates. More...

virtual void	MoveFocus (Double_t *center, Double_t dx, Double_t dy, Double_t dz, Int_t nsteps=10, Double_t dlong=0, Double_t dlat=0, Double_t dpsi=0)
	Move focus to a different box position and extent in nsteps. More...

virtual void	MoveViewCommand (Char_t chCode, Int_t count=1)

virtual void	MoveWindow (Char_t option)
	Move view window : More...

virtual void	AdjustScales (TVirtualPad *pad=0)
	Adjust all sides of view in respect of the biggest one. More...

virtual void	Centered3DImages (TVirtualPad *pad=0)
	Move view into the center of the scene. More...

virtual void	Centered ()

virtual void	FrontView (TVirtualPad *pad=0)
	Set to front view. More...

virtual void	Front ()

virtual void	ZoomIn ()
	Zoom in. More...

virtual void	ZoomOut ()
	Zoom out. More...

virtual void	ZoomView (TVirtualPad *pad=0, Double_t zoomFactor=1.25)
	ZOOM this view. More...

virtual void	UnzoomView (TVirtualPad *pad=0, Double_t unZoomFactor=1.25)
	unZOOM this view. More...

virtual void	RotateView (Double_t phi, Double_t theta, TVirtualPad *pad=0)
	API to rotate view and adjust the pad provided it the current one. More...

virtual void	SideView (TVirtualPad *pad=0)
	Set to side view. More...

virtual void	Side ()

virtual void	TopView (TVirtualPad *pad=0)
	Set to top view. More...

virtual void	Top ()

virtual void	ToggleRulers (TVirtualPad *pad=0)
	Turn on /off 3D axis. More...

virtual void	ShowAxis ()

virtual void	ToggleZoom (TVirtualPad *pad=0)
	Turn on /off the interactive option to Zoom / Move / Change attributes of 3D axis correspond this view. More...

virtual void	ZoomMove ()

virtual void	Zoom ()

virtual void	UnZoom ()

	ClassDef (TView3D, 3)

Public Member Functions inherited from TView
	TView ()

	TView (const TView &)

virtual	~TView ()

	ClassDef (TView, 3)

Public Member Functions inherited from TObject
	TObject ()

	TObject (const TObject &object)
	TObject copy ctor. More...

TObject &	operator= (const TObject &rhs)
	TObject assignment operator. More...

virtual	~TObject ()
	TObject destructor. More...

virtual void	AppendPad (Option_t *option="")
	Append graphics object to current pad. More...

virtual void	Browse (TBrowser *b)
	Browse object. May be overridden for another default action. More...

virtual const char *	ClassName () const
	Returns name of class to which the object belongs. More...

virtual void	Clear (Option_t *="")

virtual TObject *	Clone (const char *newname="") const
	Make a clone of an object using the Streamer facility. More...

virtual Int_t	Compare (const TObject *obj) const
	Compare abstract method. More...

virtual void	Copy (TObject &object) const
	Copy this to obj. More...

virtual void	Delete (Option_t *option="")
	Delete this object. More...

virtual Int_t	DistancetoPrimitive (Int_t px, Int_t py)
	Computes distance from point (px,py) to the object. More...

virtual void	Draw (Option_t *option="")
	Default Draw method for all objects. More...

virtual void	DrawClass () const
	Draw class inheritance tree of the class to which this object belongs. More...

virtual TObject *	DrawClone (Option_t *option="") const
	Draw a clone of this object in the current pad. More...

virtual void	Dump () const
	Dump contents of object on stdout. More...

virtual void	Execute (const char method, const char params, Int_t *error=0)
	Execute method on this object with the given parameter string, e.g. More...

virtual void	Execute (TMethod method, TObjArray params, Int_t *error=0)
	Execute method on this object with parameters stored in the TObjArray. More...

virtual TObject *	FindObject (const char *name) const
	Must be redefined in derived classes. More...

virtual TObject *	FindObject (const TObject *obj) const
	Must be redefined in derived classes. More...

virtual Option_t *	GetDrawOption () const
	Get option used by the graphics system to draw this object. More...

virtual UInt_t	GetUniqueID () const
	Return the unique object id. More...

virtual const char *	GetName () const
	Returns name of object. More...

virtual const char *	GetIconName () const
	Returns mime type name of object. More...

virtual Option_t *	GetOption () const

virtual char *	GetObjectInfo (Int_t px, Int_t py) const
	Returns string containing info about the object at position (px,py). More...

virtual const char *	GetTitle () const
	Returns title of object. More...

virtual Bool_t	HandleTimer (TTimer *timer)
	Execute action in response of a timer timing out. More...

virtual ULong_t	Hash () const
	Return hash value for this object. More...

virtual Bool_t	InheritsFrom (const char *classname) const
	Returns kTRUE if object inherits from class "classname". More...

virtual Bool_t	InheritsFrom (const TClass *cl) const
	Returns kTRUE if object inherits from TClass cl. More...

virtual void	Inspect () const
	Dump contents of this object in a graphics canvas. More...

virtual Bool_t	IsFolder () const
	Returns kTRUE in case object contains browsable objects (like containers or lists of other objects). More...

virtual Bool_t	IsEqual (const TObject *obj) const
	Default equal comparison (objects are equal if they have the same address in memory). More...

virtual Bool_t	IsSortable () const

Bool_t	IsOnHeap () const

Bool_t	IsZombie () const

virtual Bool_t	Notify ()
	This method must be overridden to handle object notification. More...

virtual void	ls (Option_t *option="") const
	The ls function lists the contents of a class on stdout. More...

virtual void	Paint (Option_t *option="")
	This method must be overridden if a class wants to paint itself. More...

virtual void	Pop ()
	Pop on object drawn in a pad to the top of the display list. More...

virtual void	Print (Option_t *option="") const
	This method must be overridden when a class wants to print itself. More...

virtual Int_t	Read (const char *name)
	Read contents of object with specified name from the current directory. More...

virtual void	RecursiveRemove (TObject *obj)
	Recursively remove this object from a list. More...

virtual void	SaveAs (const char filename="", Option_t option="") const
	Save this object in the file specified by filename. More...

virtual void	SavePrimitive (std::ostream &out, Option_t *option="")
	Save a primitive as a C++ statement(s) on output stream "out". More...

virtual void	SetDrawOption (Option_t *option="")
	Set drawing option for object. More...

virtual void	SetUniqueID (UInt_t uid)
	Set the unique object id. More...

virtual void	UseCurrentStyle ()
	Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked. More...

virtual Int_t	Write (const char *name=0, Int_t option=0, Int_t bufsize=0)
	Write this object to the current directory. More...

virtual Int_t	Write (const char *name=0, Int_t option=0, Int_t bufsize=0) const
	Write this object to the current directory. More...

void *	operator new (size_t sz)

void *	operator new[] (size_t sz)

void *	operator new (size_t sz, void *vp)

void *	operator new[] (size_t sz, void *vp)

void	operator delete (void *ptr)
	Operator delete. More...

void	operator delete[] (void *ptr)
	Operator delete []. More...

void	SetBit (UInt_t f, Bool_t set)
	Set or unset the user status bits as specified in f. More...

void	SetBit (UInt_t f)

void	ResetBit (UInt_t f)

Bool_t	TestBit (UInt_t f) const

Int_t	TestBits (UInt_t f) const

void	InvertBit (UInt_t f)

virtual void	Info (const char method, const char msgfmt,...) const
	Issue info message. More...

virtual void	Warning (const char method, const char msgfmt,...) const
	Issue warning message. More...

virtual void	Error (const char method, const char msgfmt,...) const
	Issue error message. More...

virtual void	SysError (const char method, const char msgfmt,...) const
	Issue system error message. More...

virtual void	Fatal (const char method, const char msgfmt,...) const
	Issue fatal error message. More...

void	AbstractMethod (const char *method) const
	Use this method to implement an "abstract" method that you don't want to leave purely abstract. More...

void	MayNotUse (const char *method) const
	Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary). More...

void	Obsolete (const char method, const char asOfVers, const char *removedFromVers) const
	Use this method to declare a method obsolete. More...

Public Member Functions inherited from TAttLine
	TAttLine ()
	AttLine default constructor. More...

	TAttLine (Color_t lcolor, Style_t lstyle, Width_t lwidth)
	AttLine normal constructor. More...

virtual	~TAttLine ()
	AttLine destructor. More...

void	Copy (TAttLine &attline) const
	Copy this line attributes to a new TAttLine. More...

Int_t	DistancetoLine (Int_t px, Int_t py, Double_t xp1, Double_t yp1, Double_t xp2, Double_t yp2)
	Compute distance from point px,py to a line. More...

virtual Color_t	GetLineColor () const

virtual Style_t	GetLineStyle () const

virtual Width_t	GetLineWidth () const

virtual void	Modify ()
	Change current line attributes if necessary. More...

virtual void	ResetAttLine (Option_t *option="")
	Reset this line attributes to default values. More...

virtual void	SaveLineAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1, Int_t widdef=1)
	Save line attributes as C++ statement(s) on output stream out. More...

virtual void	SetLineAttributes ()
	Invoke the DialogCanvas Line attributes. More...

virtual void	SetLineColor (Color_t lcolor)

virtual void	SetLineColorAlpha (Color_t lcolor, Float_t lalpha)
	Set a transparent line color. More...

virtual void	SetLineStyle (Style_t lstyle)

virtual void	SetLineWidth (Width_t lwidth)

	ClassDef (TAttLine, 2)

Static Public Member Functions
static void	AdjustPad (TVirtualPad *pad=0)
	Force the current pad to be updated. More...

Static Public Member Functions inherited from TView
static TView *	CreateView (Int_t system=1, const Double_t rmin=0, const Double_t rmax=0)
	Create a concrete default 3-d view via the plug-in manager. More...

Static Public Member Functions inherited from TObject
static Long_t	GetDtorOnly ()
	Return destructor only flag. More...

static void	SetDtorOnly (void *obj)
	Set destructor only flag. More...

static Bool_t	GetObjectStat ()
	Get status of object stat flag. More...

static void	SetObjectStat (Bool_t stat)
	Turn on/off tracking of objects in the TObjectTable. More...

Protected Member Functions
	TView3D (const TView3D &)
	Set to TRUE after ExecuteRotateView. More...

TView3D &	operator= (const TView3D &)
	Assignment operator. More...

void	ResetView (Double_t longitude, Double_t latitude, Double_t psi, Int_t &irep)
	Set view direction (in spherical coordinates). More...

Protected Member Functions inherited from TObject
void	MakeZombie ()

virtual void	DoError (int level, const char location, const char fmt, va_list va) const
	Interface to ErrorHandler (protected). More...

Protected Attributes
Double_t	fLatitude

Double_t	fLongitude

Double_t	fPsi

Double_t	fDview

Double_t	fDproj

Double_t	fUpix

Double_t	fVpix

Double_t	fTN [16]

Double_t	fTB [16]

Double_t	fRmax [3]

Double_t	fRmin [3]

Double_t	fUVcoord [4]

Double_t	fTnorm [16]

Double_t	fTback [16]

Double_t	fX1 [3]

Double_t	fX2 [3]

Double_t	fY1 [3]

Double_t	fY2 [3]

Double_t	fZ1 [3]

Double_t	fZ2 [3]

Int_t	fSystem

TSeqCollection *	fOutline

Bool_t	fDefaultOutline

Bool_t	fAutoRange

Bool_t	fChanged

Protected Attributes inherited from TAttLine
Color_t	fLineColor

Style_t	fLineStyle

Width_t	fLineWidth

#include <TView3D.h>

Inheritance diagram for TView3D:

[legend]

Member Enumeration Documentation

anonymous enum

Enumerator
kPerspective

Definition at line 68 of file TView3D.h.

Constructor & Destructor Documentation

TView3D::TView3D ( const TView3D & tv )

protected

Set to TRUE after ExecuteRotateView.

Copy constructor.

Definition at line 196 of file TView3D.cxx.

TView3D::TView3D ( )

Default constructor.

Definition at line 108 of file TView3D.cxx.

TView3D::TView3D	(	Int_t	system,
		const Double_t *	rmin,
		const Double_t *	rmax
	)

TView3D constructor.

Creates a 3-D view in the current pad rmin[3], rmax[3] are the limits of the object depending on the selected coordinate system

Before drawing a 3-D object in a pad, a 3-D view must be created. Note that a view is automatically created when drawing legos or surfaces.

The coordinate system is selected via system:

system = 1 Cartesian
system = 2 Polar
system = 3 Cylindrical
system = 4 Spherical
system = 5 PseudoRapidity/Phi

Definition at line 152 of file TView3D.cxx.

TView3D::~TView3D ( )

virtual

TView3D default destructor.

Definition at line 275 of file TView3D.cxx.

Member Function Documentation

void TView3D::AdjustPad ( TVirtualPad * pad = 0 )

static

Force the current pad to be updated.

Definition at line 1588 of file TView3D.cxx.

Referenced by AdjustScales(), Centered3DImages(), and ZoomView().

void TView3D::AdjustScales ( TVirtualPad * pad = 0 )

virtual

Adjust all sides of view in respect of the biggest one.

Implements TView.

Definition at line 1666 of file TView3D.cxx.

void TView3D::AxisVertex	(	Double_t	ang,
		Double_t *	av,
		Int_t &	ix1,
		Int_t &	ix2,
		Int_t &	iy1,
		Int_t &	iy2,
		Int_t &	iz1,
		Int_t &	iz2
	)

virtual

Define axis vertices.

Input:

ANG - angle between X and Y axis

Output:
AV(3,8) - axis vertices
IX1 - 1st point of X-axis
IX2 - 2nd point of X-axis
IY1 - 1st point of Y-axis
IY2 - 2nd point of Y-axis
IZ1 - 1st point of Z-axis
IZ2 - 2nd point of Z-axis

Implements TView.

Definition at line 310 of file TView3D.cxx.

void TView3D::Centered ( )

virtual

Implements TView.

Definition at line 1979 of file TView3D.cxx.

void TView3D::Centered3DImages ( TVirtualPad * pad = 0 )

virtual

Move view into the center of the scene.

Implements TView.

Definition at line 1684 of file TView3D.cxx.

Referenced by Centered().

TView3D::ClassDef	(	TView3D	,
		3
	)

void TView3D::DefinePerspectiveView ( )

virtual

Define perspective view.

Compute transformation matrix from world coordinates to normalized coordinates (-1 to +1)

Input :

theta, phi - spherical angles giving the direction of projection
psi - screen rotation angle
cov[3] - center of view
dview - distance from COV to COP (center of projection)
umin, umax, vmin, vmax - view window in projection plane
dproj - distance from COP to projection plane
bcut, fcut - backward/forward range w.r.t projection plane (fcut<=0)

Output :

nper[16] - normalizing transformation

compute tr+rot to get COV in origin, view vector parallel to -Z axis, up vector parallel to Y.

          ^Yv   UP ^  proj. plane
         |        |   /|
        |        |  /  |
       |   dproj  /  x--- center of window (COW)
  COV |----------|--x--|------------> Zv
               /           | VRP'z
        /   --->      |  /
 /     VPN       |/
Xv

translate COP to origin of MARS : Tper = T(-copx, -copy, -copz)
rotate VPN : R = Rz(-psi)*Rx(-theta)*Rz(-phi) (inverse Euler)
left-handed screen reference to right-handed one of MARS : Trl

T12 = Tper*R*Trl

Implements TView.

Definition at line 458 of file TView3D.cxx.

Referenced by DefineViewDirection(), MoveFocus(), MoveWindow(), ResetView(), ResizePad(), ZoomIn(), and ZoomOut().

void TView3D::DefineViewDirection	(	const Double_t *	s,
		const Double_t *	c,
		Double_t	cosphi,
		Double_t	sinphi,
		Double_t	costhe,
		Double_t	sinthe,
		Double_t	cospsi,
		Double_t	sinpsi,
		Double_t *	tnorm,
		Double_t *	tback
	)

virtual

Define view direction (in spherical coordinates)

Compute transformation matrix from world coordinates to normalized coordinates (-1 to +1)

Input:

S(3) - scale factors
C(3) - centre of scope
COSPHI - longitude COS
SINPHI - longitude SIN
COSTHE - latitude COS (angle between +Z and view direc.)
SINTHE - latitude SIN
COSPSI - screen plane rotation angle COS
SINPSI - screen plane rotation angle SIN

Implements TView.

Definition at line 572 of file TView3D.cxx.

Referenced by ResetView().

void TView3D::DrawOutlineCube	(	TList *	outline,
		Double_t *	rmin,
		Double_t *	rmax
	)

virtual

Draw the outline of a cube while rotating a 3-d object in the pad.

Implements TView.

Definition at line 678 of file TView3D.cxx.

Referenced by SetOutlineToCube().

void TView3D::ExecuteEvent	(	Int_t	event,
		Int_t	px,
		Int_t	py
	)

virtual

Execute action corresponding to one event.

Implements TView.

Definition at line 686 of file TView3D.cxx.

void TView3D::ExecuteRotateView	(	Int_t	event,
		Int_t	px,
		Int_t	py
	)

virtual

Execute action corresponding to one event.

This member function is called when a object is clicked with the locator

If Left button clicked in the object area, while the button is kept down the cube representing the surrounding frame for the corresponding new latitude and longitude position is drawn.

Implements TView.

Definition at line 700 of file TView3D.cxx.

Referenced by ExecuteEvent().

void TView3D::FindNormal	(	Double_t	x,
		Double_t	y,
		Double_t	z,
		Double_t &	zn
	)

virtual

Find Z component of NORMAL in normalized coordinates.

Input:

X - X-component of NORMAL
Y - Y-component of NORMAL
Z - Z-component of NORMAL

Output:

ZN - Z-component of NORMAL in normalized coordinates

Implements TView.

Definition at line 844 of file TView3D.cxx.

Referenced by FindThetaSectors().

void TView3D::FindPhiSectors	(	Int_t	iopt,
		Int_t &	kphi,
		Double_t *	aphi,
		Int_t &	iphi1,
		Int_t &	iphi2
	)

virtual

Find critical PHI sectors.

Input:

IOPT - options:
1. from BACK to FRONT 'BF'
2. from FRONT to BACK 'FB'
KPHI - number of phi sectors
APHI(*) - PHI separators (modified internally)

Output:

IPHI1 - initial sector
IPHI2 - final sector

Implements TView.

Definition at line 864 of file TView3D.cxx.

void TView3D::FindScope	(	Double_t *	scale,
		Double_t *	center,
		Int_t &	irep
	)

virtual

Find centre of a MIN-MAX scope and scale factors.

Output:

SCALE(3) - scale factors
CENTER(3) - centre
IREP - reply (-1 if error in min-max)

Implements TView.

Definition at line 991 of file TView3D.cxx.

Referenced by ResetView().

void TView3D::FindThetaSectors	(	Int_t	iopt,
		Double_t	phi,
		Int_t &	kth,
		Double_t *	ath,
		Int_t &	ith1,
		Int_t &	ith2
	)

virtual

Find critical THETA sectors for given PHI sector.

Input:

IOPT - options:
1. from BACK to FRONT 'BF'
2. from FRONT to BACK 'FB'
PHI - PHI sector
KTH - number of THETA sectors
ATH(*) - THETA separators (modified internally)

Output:

ITH1 - initial sector
ITH2 - final sector

Implements TView.

Definition at line 930 of file TView3D.cxx.

void TView3D::Front ( )

virtual

Implements TView.

Definition at line 1980 of file TView3D.cxx.

void TView3D::FrontView ( TVirtualPad * pad = 0 )

virtual

Set to front view.

Implements TView.

Definition at line 1633 of file TView3D.cxx.

Referenced by Front().

virtual Bool_t TView3D::GetAutoRange ( )

inlinevirtual

Implements TView.

Definition at line 91 of file TView3D.h.

Int_t TView3D::GetDistancetoAxis	(	Int_t	axis,
		Int_t	px,
		Int_t	py,
		Double_t &	ratio
	)

virtual

Return distance to axis from point px,py.

Algorithm:

     A(x1,y1)         P                             B(x2,y2)
     ------------------------------------------------
                      I
                      I
                      I
                      I
                     M(x,y)
Let us call  a = distance AM     A=a**2
             b = distance BM     B=b**2
             c = distance AB     C=c**2
             d = distance PM     D=d**2
             u = distance AP     U=u**2
             v = distance BP     V=v**2     c = u + v
D = A - U
D = B - V  = B -(c-u)**2
   ==> u = (A -B +C)/2c

Implements TView.

Definition at line 1029 of file TView3D.cxx.

virtual Double_t TView3D::GetDproj ( ) const

inlinevirtual

Implements TView.

Definition at line 89 of file TView3D.h.

virtual Double_t TView3D::GetDview ( ) const

inlinevirtual

Implements TView.

Definition at line 88 of file TView3D.h.

Double_t TView3D::GetExtent ( ) const

virtual

Get maximum view extent.

Implements TView.

Definition at line 1075 of file TView3D.cxx.

Referenced by SetDefaultWindow(), ZoomIn(), and ZoomOut().

virtual Double_t TView3D::GetLatitude ( )

inlinevirtual

Implements TView.

Definition at line 92 of file TView3D.h.

virtual Double_t TView3D::GetLongitude ( )

inlinevirtual

Implements TView.

Definition at line 93 of file TView3D.h.

virtual TSeqCollection* TView3D::GetOutline ( )

inlinevirtual

Implements TView.

Definition at line 99 of file TView3D.h.

virtual Double_t TView3D::GetPsi ( )

inlinevirtual

Implements TView.

Definition at line 94 of file TView3D.h.

Referenced by ExecuteRotateView().

void TView3D::GetRange	(	Float_t *	min,
		Float_t *	max
	)

virtual

Get Range function.

Implements TView.

Definition at line 1087 of file TView3D.cxx.

Referenced by AdjustScales(), Centered3DImages(), SetRange(), and ZoomView().

void TView3D::GetRange	(	Double_t *	min,
		Double_t *	max
	)

virtual

Get Range function.

Implements TView.

Definition at line 1095 of file TView3D.cxx.

virtual Double_t* TView3D::GetRmax ( )

inlinevirtual

Implements TView.

Definition at line 97 of file TView3D.h.

virtual Double_t* TView3D::GetRmin ( )

inlinevirtual

Implements TView.

Definition at line 98 of file TView3D.h.

virtual Int_t TView3D::GetSystem ( )

inlinevirtual

Implements TView.

Definition at line 103 of file TView3D.h.

Referenced by ExecuteRotateView().

virtual Double_t* TView3D::GetTback ( )

inlinevirtual

Implements TView.

Definition at line 100 of file TView3D.h.

virtual Double_t* TView3D::GetTN ( )

inlinevirtual

Implements TView.

Definition at line 101 of file TView3D.h.

virtual Double_t* TView3D::GetTnorm ( )

inlinevirtual

Implements TView.

Definition at line 102 of file TView3D.h.

void TView3D::GetWindow	(	Double_t &	u0,
		Double_t &	v0,
		Double_t &	du,
		Double_t &	dv
	)		const

virtual

Get current window extent.

Implements TView.

Definition at line 1103 of file TView3D.cxx.

virtual Double_t TView3D::GetWindowHeight ( ) const

inlinevirtual

Implements TView.

Definition at line 106 of file TView3D.h.

virtual Double_t TView3D::GetWindowWidth ( ) const

inlinevirtual

Implements TView.

Definition at line 105 of file TView3D.h.

Bool_t TView3D::IsClippedNDC ( Double_t * p ) const

virtual

Check if point is clipped in perspective view.

Implements TView.

Definition at line 1114 of file TView3D.cxx.

virtual Bool_t TView3D::IsPerspective ( ) const

inlinevirtual

Implements TView.

Definition at line 111 of file TView3D.h.

Referenced by DefineViewDirection(), ExecuteRotateView(), MoveFocus(), MoveWindow(), ResetView(), ResizePad(), SetParallel(), SetPerspective(), SetRange(), WCtoNDC(), ZoomIn(), and ZoomOut().

virtual Bool_t TView3D::IsViewChanged ( ) const

inlinevirtual

Implements TView.

Definition at line 112 of file TView3D.h.

void TView3D::MoveFocus	(	Double_t *	cov,
		Double_t	dx,
		Double_t	dy,
		Double_t	dz,
		Int_t	nsteps = `10`,
		Double_t	dlong = `0`,
		Double_t	dlat = `0`,
		Double_t	dpsi = `0`
	)

virtual

Move focus to a different box position and extent in nsteps.

Perform rotation with dlat,dlong,dpsi at each step.

Implements TView.

Definition at line 1732 of file TView3D.cxx.

void TView3D::MoveViewCommand	(	Char_t	option,
		Int_t	count = `1`
	)

virtual

'a' increase scale factor (clip cube borders)
's' decrease scale factor (clip cube borders)

Implements TView.

Definition at line 1788 of file TView3D.cxx.

Referenced by ExecuteRotateView().

void TView3D::MoveWindow ( Char_t option )

virtual

Move view window :

l,L - left
h,H - right
u,U - down
i,I - up

Implements TView.

Definition at line 1836 of file TView3D.cxx.

Referenced by MoveViewCommand().

void TView3D::NDCtoWC	(	const Float_t *	pn,
		Float_t *	pw
	)

virtual

Transfer point from normalized to world coordinates.

Input:

PN(3) - point in world coordinate system
PW(3) - point in normalized coordinate system

Implements TView.

Definition at line 1128 of file TView3D.cxx.

void TView3D::NDCtoWC	(	const Double_t *	pn,
		Double_t *	pw
	)

virtual

Transfer point from normalized to world coordinates.

Input:

PN(3) - point in world coordinate system
PW(3) - point in normalized coordinate system

Implements TView.

Definition at line 1142 of file TView3D.cxx.

void TView3D::NormalWCtoNDC	(	const Float_t *	pw,
		Float_t *	pn
	)

virtual

Transfer vector of NORMAL from word to normalized coordinates.

Input:

PW(3) - vector of NORMAL in word coordinate system
PN(3) - vector of NORMAL in normalized coordinate system

Implements TView.

Definition at line 1156 of file TView3D.cxx.

void TView3D::NormalWCtoNDC	(	const Double_t *	pw,
		Double_t *	pn
	)

virtual

Transfer vector of NORMAL from word to normalized coordinates.

Input:

PW(3) - vector of NORMAL in word coordinate system
PN(3) - vector of NORMAL in normalized coordinate system

Implements TView.

Definition at line 1184 of file TView3D.cxx.

TView3D & TView3D::operator= ( const TView3D & tv )

protected

Assignment operator.

Definition at line 234 of file TView3D.cxx.

void TView3D::PadRange ( Int_t rback )

virtual

Set the correct window size for lego and surface plots.

Set the correct window size for lego and surface plots. And draw the background if necessary.

Input parameters:

RBACK : Background colour

Implements TView.

Definition at line 1214 of file TView3D.cxx.

void TView3D::ResetView	(	Double_t	longitude,
		Double_t	latitude,
		Double_t	psi,
		Int_t &	irep
	)

protected

Set view direction (in spherical coordinates).

Input

PHI - longitude
THETA - latitude (angle between +Z and view direction)
PSI - rotation in screen plane

Output:

IREP - reply (-1 if error in min-max)

Errors: error in min-max scope

Definition at line 1493 of file TView3D.cxx.

Referenced by ExecuteRotateView(), SetParallel(), SetPerspective(), SetRange(), SetView(), and TView3D().

void TView3D::ResizePad ( )

virtual

Recompute window for perspective view.

Implements TView.

Definition at line 1461 of file TView3D.cxx.

void TView3D::RotateView	(	Double_t	phi,
		Double_t	theta,
		TVirtualPad *	pad = `0`
	)

virtual

API to rotate view and adjust the pad provided it the current one.

Implements TView.

Definition at line 1604 of file TView3D.cxx.

Referenced by FrontView(), SideView(), and TopView().

virtual void TView3D::SetAutoRange ( Bool_t autorange = kTRUE )

inlinevirtual

Implements TView.

Definition at line 119 of file TView3D.h.

void TView3D::SetAxisNDC	(	const Double_t *	x1,
		const Double_t *	x2,
		const Double_t *	y1,
		const Double_t *	y2,
		const Double_t *	z1,
		const Double_t *	z2
	)

virtual

Store axis coordinates in the NDC system.

Implements TView.

Definition at line 1293 of file TView3D.cxx.

void TView3D::SetDefaultWindow ( )

virtual

Set default viewing window.

Implements TView.

Definition at line 1308 of file TView3D.cxx.

Referenced by MoveFocus(), SetPerspective(), and SetRange().

virtual void TView3D::SetDproj ( Double_t dproj )

inlinevirtual

Implements TView.

Definition at line 123 of file TView3D.h.

virtual void TView3D::SetDview ( Double_t dview )

inlinevirtual

Implements TView.

Definition at line 122 of file TView3D.h.

virtual void TView3D::SetLatitude ( Double_t latitude )

inlinevirtual

Implements TView.

Definition at line 124 of file TView3D.h.

virtual void TView3D::SetLongitude ( Double_t longitude )

inlinevirtual

Implements TView.

Definition at line 125 of file TView3D.h.

void TView3D::SetOutlineToCube ( )

virtual

This is a function which creates default outline.

x = fRmin[0]        X = fRmax[0]
y = fRmin[1]        Y = fRmax[1]
z = fRmin[2]        Z = fRmax[2]
         (x,Y,Z) +---------+ (X,Y,Z)
                /         /|
               /         / |
              /         /  |
     (x,y,Z) +---------+   |
             |         |   + (X,Y,z)
             |         |  /
             |         | /
             |         |/
             +---------+
          (x,y,z)   (X,y,z)

Implements TView.

Definition at line 1348 of file TView3D.cxx.

Referenced by ExecuteRotateView(), and SetRange().

void TView3D::SetParallel ( )

virtual

Set the parallel option (default).

Implements TView.

Definition at line 1360 of file TView3D.cxx.

Referenced by parallel_world().

void TView3D::SetPerspective ( )

virtual

Set perspective option.

Implements TView.

Definition at line 1371 of file TView3D.cxx.

Referenced by TView3D().

virtual void TView3D::SetPsi ( Double_t psi )

inlinevirtual

Implements TView.

Definition at line 126 of file TView3D.h.

void TView3D::SetRange	(	const Double_t *	min,
		const Double_t *	max
	)

virtual

Set Range function.

Implements TView.

Definition at line 1383 of file TView3D.cxx.

Referenced by AdjustScales(), Centered3DImages(), SetRange(), and ZoomView().

void TView3D::SetRange	(	Double_t	x0,
		Double_t	y0,
		Double_t	z0,
		Double_t	x1,
		Double_t	y1,
		Double_t	z1,
		Int_t	flag = `0`
	)

virtual

Set 3-D View range.

Input:

x0, y0, z0 are minimum coordinates
x1, y1, z1 are maximum coordinates
flag values are:
- 0 (set always) <- default
- 1 (shrink view)
- 2 (expand view)

Implements TView.

Definition at line 1406 of file TView3D.cxx.

virtual void TView3D::SetSystem ( Int_t system )

inlinevirtual

Implements TView.

Definition at line 132 of file TView3D.h.

void TView3D::SetView	(	Double_t	longitude,
		Double_t	latitude,
		Double_t	psi,
		Int_t &	irep
	)

virtual

Set view parameters.

Implements TView.

Definition at line 1453 of file TView3D.cxx.

Referenced by ExecuteRotateView(), and RotateView().

virtual void TView3D::SetViewChanged ( Bool_t flag = kTRUE )

inlinevirtual

Implements TView.

Definition at line 134 of file TView3D.h.

void TView3D::SetWindow	(	Double_t	u0,
		Double_t	v0,
		Double_t	du,
		Double_t	dv
	)

virtual

Set viewing window.

Implements TView.

Definition at line 1442 of file TView3D.cxx.

Referenced by ResizePad(), and SetDefaultWindow().

void TView3D::ShowAxis ( )

virtual

Implements TView.

Definition at line 1981 of file TView3D.cxx.

void TView3D::Side ( )

virtual

Implements TView.

Definition at line 1982 of file TView3D.cxx.

Referenced by parallel_world().

void TView3D::SideView ( TVirtualPad * pad = 0 )

virtual

Set to side view.

Implements TView.

Definition at line 1625 of file TView3D.cxx.

Referenced by Side().

void TView3D::ToggleRulers ( TVirtualPad * pad = 0 )

virtual

Turn on /off 3D axis.

Implements TView.

Definition at line 1649 of file TView3D.cxx.

Referenced by ShowAxis().

void TView3D::ToggleZoom ( TVirtualPad * pad = 0 )

virtual

Turn on /off the interactive option to Zoom / Move / Change attributes of 3D axis correspond this view.

Implements TView.

Definition at line 1658 of file TView3D.cxx.

Referenced by ZoomMove().

void TView3D::Top ( )

virtual

Implements TView.

Definition at line 1983 of file TView3D.cxx.

void TView3D::TopView ( TVirtualPad * pad = 0 )

virtual

Set to top view.

Implements TView.

Definition at line 1641 of file TView3D.cxx.

Referenced by Top().

void TView3D::UnZoom ( )

virtual

Implements TView.

Definition at line 1986 of file TView3D.cxx.

void TView3D::UnzoomView	(	TVirtualPad *	pad = `0`,
		Double_t	unZoomFactor = `1.25`
	)

virtual

unZOOM this view.

Implements TView.

Definition at line 1700 of file TView3D.cxx.

Referenced by MoveViewCommand(), and UnZoom().

void TView3D::WCtoNDC	(	const Float_t *	pw,
		Float_t *	pn
	)

virtual

Transfer point from world to normalized coordinates.

Input:

PW(3) - point in world coordinate system
PN(3) - point in normalized coordinate system

Implements TView.

Definition at line 1535 of file TView3D.cxx.

void TView3D::WCtoNDC	(	const Double_t *	pw,
		Double_t *	pn
	)

virtual

Transfer point from world to normalized coordinates.

Input:

PW(3) - point in world coordinate system
PN(3) - point in normalized coordinate system

Implements TView.

Definition at line 1563 of file TView3D.cxx.

void TView3D::Zoom ( )

virtual

Implements TView.

Definition at line 1985 of file TView3D.cxx.

void TView3D::ZoomIn ( )

virtual

Zoom in.

Implements TView.

Definition at line 1871 of file TView3D.cxx.

Referenced by MoveViewCommand().

void TView3D::ZoomMove ( )

virtual

Implements TView.

Definition at line 1984 of file TView3D.cxx.

void TView3D::ZoomOut ( )

virtual

Zoom out.

Implements TView.

Definition at line 1891 of file TView3D.cxx.

Referenced by MoveViewCommand().

void TView3D::ZoomView	(	TVirtualPad *	pad = `0`,
		Double_t	zoomFactor = `1.25`
	)

virtual

ZOOM this view.

Implements TView.

Definition at line 1709 of file TView3D.cxx.

Referenced by MoveViewCommand(), UnzoomView(), and Zoom().

Member Data Documentation

Bool_t TView3D::fAutoRange

protected

Definition at line 57 of file TView3D.h.

Referenced by GetAutoRange(), operator=(), SetAutoRange(), and TView3D().

Bool_t TView3D::fChanged

protected

Definition at line 58 of file TView3D.h.

Referenced by ExecuteRotateView(), IsViewChanged(), operator=(), SetViewChanged(), and TView3D().

Bool_t TView3D::fDefaultOutline

protected

Definition at line 56 of file TView3D.h.

Referenced by operator=(), SetOutlineToCube(), SetRange(), and TView3D().

Double_t TView3D::fDproj

protected

Definition at line 38 of file TView3D.h.

Referenced by DefinePerspectiveView(), GetDproj(), operator=(), SetDefaultWindow(), and SetDproj().

Double_t TView3D::fDview

protected

Definition at line 37 of file TView3D.h.

Referenced by DefinePerspectiveView(), GetDview(), operator=(), SetDefaultWindow(), SetDview(), ZoomIn(), and ZoomOut().

Double_t TView3D::fLatitude

protected

Definition at line 34 of file TView3D.h.

Referenced by DefinePerspectiveView(), GetLatitude(), MoveFocus(), operator=(), ResetView(), SetLatitude(), SetParallel(), SetPerspective(), SetRange(), and TView3D().

Double_t TView3D::fLongitude

protected

Definition at line 35 of file TView3D.h.

Referenced by DefinePerspectiveView(), GetLongitude(), MoveFocus(), operator=(), ResetView(), SetLongitude(), SetParallel(), SetPerspective(), SetRange(), and TView3D().

TSeqCollection* TView3D::fOutline

protected

Definition at line 55 of file TView3D.h.

Referenced by ExecuteRotateView(), GetOutline(), operator=(), SetOutlineToCube(), TView3D(), and ~TView3D().

Double_t TView3D::fPsi

protected

Definition at line 36 of file TView3D.h.

Referenced by DefinePerspectiveView(), GetPsi(), MoveFocus(), operator=(), ResetView(), SetParallel(), SetPerspective(), SetPsi(), SetRange(), and TView3D().

Double_t TView3D::fRmax[3]

protected

Definition at line 43 of file TView3D.h.

Referenced by AxisVertex(), DefinePerspectiveView(), FindScope(), GetExtent(), GetRange(), GetRmax(), MoveFocus(), operator=(), PadRange(), SetOutlineToCube(), SetRange(), and TView3D().

Double_t TView3D::fRmin[3]

protected

Definition at line 44 of file TView3D.h.

Referenced by AxisVertex(), DefinePerspectiveView(), FindScope(), GetExtent(), GetRange(), GetRmin(), MoveFocus(), operator=(), PadRange(), SetOutlineToCube(), SetRange(), and TView3D().

Int_t TView3D::fSystem

protected

Definition at line 54 of file TView3D.h.

Referenced by GetDistancetoAxis(), GetSystem(), operator=(), SetSystem(), and TView3D().

Double_t TView3D::fTB[16]

protected

Definition at line 42 of file TView3D.h.

Referenced by operator=(), ResetView(), and TView3D().

Double_t TView3D::fTback[16]

protected

Definition at line 47 of file TView3D.h.

Referenced by GetTback(), NDCtoWC(), operator=(), ResetView(), and TView3D().

Double_t TView3D::fTN[16]

protected

Definition at line 41 of file TView3D.h.

Referenced by AxisVertex(), FindNormal(), FindPhiSectors(), FindThetaSectors(), GetTN(), operator=(), ResetView(), and TView3D().

Double_t TView3D::fTnorm[16]

protected

Definition at line 46 of file TView3D.h.

Referenced by DefinePerspectiveView(), GetTnorm(), NormalWCtoNDC(), operator=(), PadRange(), ResetView(), TView3D(), and WCtoNDC().

Double_t TView3D::fUpix

protected

Definition at line 39 of file TView3D.h.

Referenced by operator=(), ResizePad(), and SetDefaultWindow().

Double_t TView3D::fUVcoord[4]

protected

Definition at line 45 of file TView3D.h.

Referenced by DefinePerspectiveView(), GetWindow(), GetWindowHeight(), GetWindowWidth(), MoveWindow(), operator=(), ResizePad(), SetWindow(), and TView3D().

Double_t TView3D::fVpix

protected

Definition at line 40 of file TView3D.h.

Referenced by operator=(), ResizePad(), and SetDefaultWindow().

Double_t TView3D::fX1[3]

protected

Definition at line 48 of file TView3D.h.

Referenced by GetDistancetoAxis(), operator=(), SetAxisNDC(), and TView3D().

Double_t TView3D::fX2[3]

protected

Definition at line 49 of file TView3D.h.

Referenced by GetDistancetoAxis(), operator=(), SetAxisNDC(), and TView3D().

Double_t TView3D::fY1[3]

protected

Definition at line 50 of file TView3D.h.

Referenced by GetDistancetoAxis(), operator=(), SetAxisNDC(), and TView3D().

Double_t TView3D::fY2[3]

protected

Definition at line 51 of file TView3D.h.

Referenced by GetDistancetoAxis(), operator=(), SetAxisNDC(), and TView3D().

Double_t TView3D::fZ1[3]

protected

Definition at line 52 of file TView3D.h.

Referenced by GetDistancetoAxis(), operator=(), SetAxisNDC(), and TView3D().

Double_t TView3D::fZ2[3]

protected

Definition at line 53 of file TView3D.h.

Referenced by GetDistancetoAxis(), operator=(), SetAxisNDC(), and TView3D().
