TInspectCanvas Class Reference

pointer to class of the foreign object

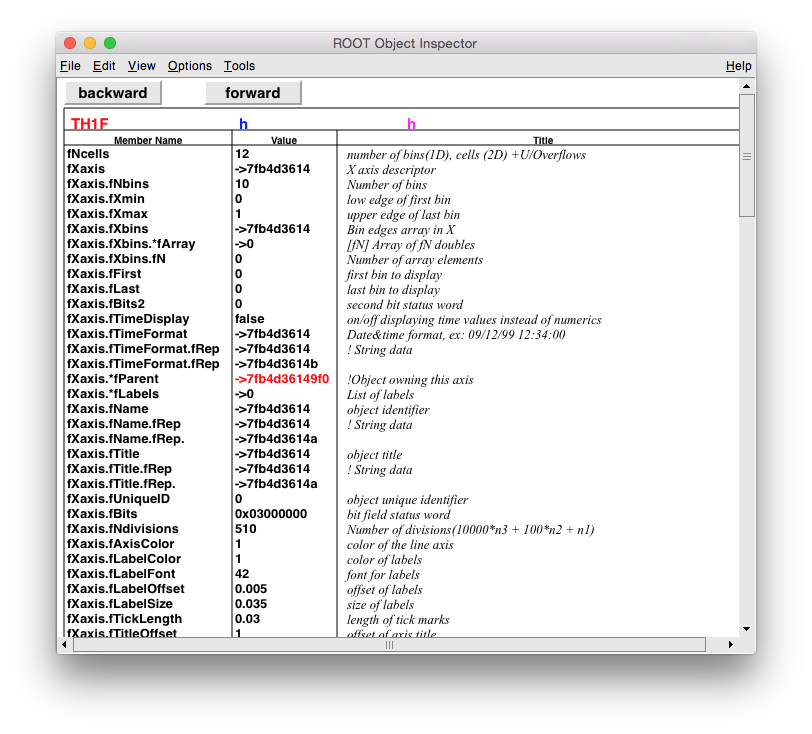

A TInspectCanvas is a canvas specialized to inspect Root objects.

Definition at line 33 of file TInspectCanvas.h.

Public Member Functions

 TInspectCanvas ()
 InspectCanvas default constructor. More...

 TInspectCanvas (UInt_t ww, UInt_t wh)
 InspectCanvas constructor. More...

virtual ~TInspectCanvas ()
 InspectCanvas default destructor. More...

TButtonGetBackward () const

TButtonGetForward () const

TObjectGetCurObject () const

TListGetObjects () const

virtual void InspectObject (TObject *obj)
 Dump contents of obj in a graphics canvas. More...

virtual void RecursiveRemove (TObject *obj)
 Recursively remove object from the list of objects. More...

virtual void Divide (Int_t nx=1, Int_t ny=1, Float_t xmargin=0.01, Float_t ymargin=0.01, Int_t color=0)
 Automatic pad generation by division. More...

virtual void SetGrid (Int_t valuex=1, Int_t valuey=1)

virtual void SetGridx (Int_t value=1)

virtual void SetGridy (Int_t value=1)

virtual void SetLogx (Int_t value=1)
 Set Lin/Log scale for X. More...

virtual void SetLogy (Int_t value=1)
 Set Lin/Log scale for Y. More...

virtual void SetLogz (Int_t value=1)
 Set Lin/Log scale for Z. More...

virtual void SetTickx (Int_t value=1)

virtual void SetTicky (Int_t value=1)

virtual void x3d (Option_t *option="")
 Deprecated: use TPad::GetViewer3D() instead. More...

- Public Member Functions inherited from TCanvas
 TCanvas (Bool_t build=kTRUE)

 TCanvas (const char *name, const char *title="", Int_t form=1)
 Create a new canvas with a predefined size form. More...

 TCanvas (const char *name, const char *title, Int_t ww, Int_t wh)
 Create a new canvas at a random position. More...

 TCanvas (const char *name, const char *title, Int_t wtopx, Int_t wtopy, Int_t ww, Int_t wh)
 Create a new canvas. More...

 TCanvas (const char *name, Int_t ww, Int_t wh, Int_t winid)
 Create an embedded canvas, i.e. More...

virtual ~TCanvas ()
 Canvas destructor. More...

void Constructor ()
 Canvas default constructor. More...

void Constructor (const char *name, const char *title, Int_t form)
 Create a new canvas with a predefined size form. More...

void Constructor (const char *name, const char *title, Int_t ww, Int_t wh)
 Create a new canvas at a random position. More...

void Constructor (const char *name, const char *title, Int_t wtopx, Int_t wtopy, Int_t ww, Int_t wh)
 Create a new canvas. More...

void Destructor ()
 Actual canvas destructor. More...

TVirtualPadcd (Int_t subpadnumber=0)
 Set current canvas & pad. More...

virtual void Browse (TBrowser *b)
 Browse. More...

void Clear (Option_t *option="")
 Remove all primitives from the canvas. More...

void Close (Option_t *option="")
 Close canvas. More...

virtual void Delete (Option_t *="")
 Delete this object. More...

void DisconnectWidget ()
 Used by friend class TCanvasImp. More...

virtual void Draw (Option_t *option="")
 Draw a canvas. More...

virtual TObjectDrawClone (Option_t *option="") const
 Draw a clone of this canvas A new canvas is created that is a clone of this canvas. More...

virtual TObjectDrawClonePad ()
 Draw a clone of this canvas into the current pad In an interactive session, select the destination/current pad with the middle mouse button, then point to the canvas area to select the canvas context menu item DrawClonePad. More...

virtual void EditorBar ()
 Get editor bar. More...

void EmbedInto (Int_t winid, Int_t ww, Int_t wh)
 Embedded a canvas into a TRootEmbeddedCanvas. More...

void EnterLeave (TPad *prevSelPad, TObject *prevSelObj)
 Generate kMouseEnter and kMouseLeave events depending on the previously selected object and the currently selected object. More...

void FeedbackMode (Bool_t set)
 Turn rubberband feedback mode on or off. More...

void Flush ()
 Flush canvas buffers. More...

void UseCurrentStyle ()
 Force a copy of current style for all objects in canvas. More...

void ForceUpdate ()

const char * GetDISPLAY () const

TContextMenuGetContextMenu () const

Int_t GetDoubleBuffer () const

Int_t GetEvent () const
 Get Event. More...

Int_t GetEventX () const
 Get X event. More...

Int_t GetEventY () const
 Get Y event. More...

Color_t GetHighLightColor () const
 Get highlight color. More...

TVirtualPadGetPadSave () const

void ClearPadSave ()

TObjectGetSelected () const
 Get selected. More...

TObjectGetClickSelected () const

Int_t GetSelectedX () const

Int_t GetSelectedY () const

Option_tGetSelectedOpt () const

TVirtualPadGetSelectedPad () const

TVirtualPadGetClickSelectedPad () const

Bool_t GetShowEventStatus () const

Bool_t GetShowToolBar () const

Bool_t GetShowEditor () const

Bool_t GetShowToolTips () const

Bool_t GetAutoExec () const

Size_t GetXsizeUser () const

Size_t GetYsizeUser () const

Size_t GetXsizeReal () const

Size_t GetYsizeReal () const

Int_t GetCanvasID () const
 Get canvas identifier. More...

TCanvasImpGetCanvasImp () const
 Get canvas implementation pointer if any. More...

Int_t GetWindowTopX ()
 Returns current top x position of window on screen. More...

Int_t GetWindowTopY ()
 Returns current top y position of window on screen. More...

UInt_t GetWindowWidth () const

UInt_t GetWindowHeight () const

UInt_t GetWw () const
 Get Ww. More...

UInt_t GetWh () const
 Get Wh. More...

virtual void GetCanvasPar (Int_t &wtopx, Int_t &wtopy, UInt_t &ww, UInt_t &wh)

virtual void HandleInput (EEventType button, Int_t x, Int_t y)
 Handle Input Events. More...

Bool_t HasMenuBar () const

void Iconify ()

Bool_t IsBatch () const
 Is pad in batch mode ? More...

Bool_t IsDrawn ()

Bool_t IsFolder () const
 Is folder ? More...

Bool_t IsGrayscale ()
 Check whether this canvas is to be drawn in grayscale mode. More...

Bool_t IsRetained () const
 Is pad retained ? More...

virtual void ls (Option_t *option="") const
 List all pads. More...

void MoveOpaque (Int_t set=1)
 Set option to move objects/pads in a canvas. More...

Bool_t OpaqueMoving () const
 Is pad moving in opaque mode ? More...

Bool_t OpaqueResizing () const
 Is pad resizing in opaque mode ? More...

virtual void Paint (Option_t *option="")
 Paint canvas. More...

virtual TPadPick (Int_t px, Int_t py, TObjLink *&pickobj)
 Search for an object at pixel position px,py. More...

virtual TPadPick (Int_t px, Int_t py, TObject *prevSelObj)
 Prepare for pick, call TPad::Pick() and when selected object is different from previous then emit Picked() signal. More...

virtual void Picked (TPad *selpad, TObject *selected, Int_t event)
 Emit Picked() signal. More...

virtual void ProcessedEvent (Int_t event, Int_t x, Int_t y, TObject *selected)
 Emit ProcessedEvent() signal. More...

virtual void Selected (TVirtualPad *pad, TObject *obj, Int_t event)
 Emit Selected() signal. More...

virtual void Cleared (TVirtualPad *pad)
 Emit pad Cleared signal. More...

virtual void Closed ()
 Emit Closed signal. More...

void RaiseWindow ()

void ResetDrawn ()

virtual void Resize (Option_t *option="")
 Recompute canvas parameters following a X11 Resize. More...

void ResizeOpaque (Int_t set=1)
 Set option to resize objects/pads in a canvas. More...

void SaveSource (const char *filename="", Option_t *option="")
 Save primitives in this canvas as a C++ macro file. More...

void SavePrimitive (std::ostream &out, Option_t *option="")
 Save primitives in this canvas in C++ macro file with GUI. More...

virtual void SetCursor (ECursor cursor)
 Set cursor. More...

virtual void SetDoubleBuffer (Int_t mode=1)
 Set Double Buffer On/Off. More...

virtual void SetFixedAspectRatio (Bool_t fixed=kTRUE)
 Fix canvas aspect ratio to current value if fixed is true. More...

void SetGrayscale (Bool_t set=kTRUE)
 Set whether this canvas should be painted in grayscale, and re-paint it if necessary. More...

void SetWindowPosition (Int_t x, Int_t y)

void SetWindowSize (UInt_t ww, UInt_t wh)

void SetCanvasSize (UInt_t ww, UInt_t wh)
 Set Width and Height of canvas to ww and wh respectively. More...

void SetHighLightColor (Color_t col)

void SetSelected (TObject *obj)
 Set selected canvas. More...

void SetClickSelected (TObject *obj)

void SetSelectedPad (TPad *pad)

void SetClickSelectedPad (TPad *pad)

void Show ()

virtual void Size (Float_t xsizeuser=0, Float_t ysizeuser=0)
 Set the canvas scale in centimeters. More...

void SetBatch (Bool_t batch=kTRUE)
 Toggle batch mode. More...

void SetPadSave (TPad *pad)

void SetRetained (Bool_t retained=kTRUE)

void SetTitle (const char *title="")
 Set canvas title. More...

virtual void ToggleEventStatus ()
 Toggle event statusbar. More...

virtual void ToggleAutoExec ()
 Toggle pad auto execution of list of TExecs. More...

virtual void ToggleToolBar ()
 Toggle toolbar. More...

virtual void ToggleEditor ()
 Toggle editor. More...

virtual void ToggleToolTips ()
 Toggle tooltip display. More...

virtual void Update ()
 Update canvas pad buffers. More...

Bool_t UseGL () const

void SetSupportGL (Bool_t support)

TVirtualPadPainterGetCanvasPainter ()
 Access and (probably) creation of pad painter. More...

void DeleteCanvasPainter ()
 assert on IsBatch() == false? More...

- Public Member Functions inherited from TPad
 TPad ()

 TPad (const char *name, const char *title, Double_t xlow, Double_t ylow, Double_t xup, Double_t yup, Color_t color=-1, Short_t bordersize=-1, Short_t bordermode=-2)
 Pad constructor. More...

virtual ~TPad ()
 Pad destructor. More...

void AbsCoordinates (Bool_t set)

Double_t AbsPixeltoX (Int_t px)

Double_t AbsPixeltoY (Int_t py)

virtual void AbsPixeltoXY (Int_t xpixel, Int_t ypixel, Double_t &x, Double_t &y)

virtual void AddExec (const char *name, const char *command)
 Add a new TExec object to the list of Execs. More...

virtual void AutoExec ()
 Execute the list of Execs when a pad event occurs. More...

virtual TLegendBuildLegend (Double_t x1=0.5, Double_t y1=0.67, Double_t x2=0.88, Double_t y2=0.88, const char *title="")
 Build a legend from the graphical objects in the pad. More...

TVirtualPadcd (Int_t subpadnumber=0)
 Set Current pad. More...

void Clear (Option_t *option="")
 Delete all pad primitives. More...

virtual Int_t Clip (Float_t *x, Float_t *y, Float_t xclipl, Float_t yclipb, Float_t xclipr, Float_t yclipt)
 Clipping routine: Cohen Sutherland algorithm. More...

virtual Int_t Clip (Double_t *x, Double_t *y, Double_t xclipl, Double_t yclipb, Double_t xclipr, Double_t yclipt)
 Clipping routine: Cohen Sutherland algorithm. More...

virtual Int_t ClippingCode (Double_t x, Double_t y, Double_t xcl1, Double_t ycl1, Double_t xcl2, Double_t ycl2)
 Compute the endpoint codes for TPad::Clip. More...

virtual Int_t ClipPolygon (Int_t n, Double_t *x, Double_t *y, Int_t nn, Double_t *xc, Double_t *yc, Double_t xclipl, Double_t yclipb, Double_t xclipr, Double_t yclipt)
 Clip polygon using the Sutherland-Hodgman algorithm. More...

virtual void CopyPixmap ()
 Copy the pixmap of the pad to the canvas. More...

virtual void DeleteExec (const char *name)
 Remove TExec name from the list of Execs. More...

virtual void DivideSquare (Int_t n, Float_t xmargin=0.01, Float_t ymargin=0.01, Int_t color=0)
 "n" is the total number of sub-pads. More...

virtual void DrawClassObject (const TObject *obj, Option_t *option="")
 Draw class inheritance tree of the class to which obj belongs. More...

virtual void DrawCrosshair ()
 Function called to draw a crosshair in the canvas. More...

TH1FDrawFrame (Double_t xmin, Double_t ymin, Double_t xmax, Double_t ymax, const char *title="")
 Draw an empty pad frame with X and Y axis. More...

virtual void ExecuteEventAxis (Int_t event, Int_t px, Int_t py, TAxis *axis)
 Execute action corresponding to one event for a TAxis object (called by TAxis::ExecuteEvent.) This member function is called when an axis is clicked with the locator. More...

virtual TObjectFindObject (const char *name) const
 Search if object named name is inside this pad or in pads inside this pad. More...

virtual TObjectFindObject (const TObject *obj) const
 Search if obj is in pad or in pads inside this pad. More...

virtual Short_t GetBorderMode () const

virtual Short_t GetBorderSize () const

Int_t GetCrosshair () const
 Return the crosshair type (from the mother canvas) crosshair type = 0 means no crosshair. More...

TFrameGetFrame ()
 Get frame. More...

virtual void GetRange (Double_t &x1, Double_t &y1, Double_t &x2, Double_t &y2)
 Return pad world coordinates range. More...

virtual void GetRangeAxis (Double_t &xmin, Double_t &ymin, Double_t &xmax, Double_t &ymax)
 Return pad axis coordinates range. More...

virtual void GetPadPar (Double_t &xlow, Double_t &ylow, Double_t &xup, Double_t &yup)
 Return lower and upper bounds of the pad in NDC coordinates. More...

Double_t GetXlowNDC () const

Double_t GetYlowNDC () const

Double_t GetWNDC () const

Double_t GetHNDC () const

Double_t GetAbsXlowNDC () const

Double_t GetAbsYlowNDC () const

Double_t GetAbsWNDC () const

Double_t GetAbsHNDC () const

Double_t GetAspectRatio () const

Double_t GetPhi () const

Double_t GetTheta () const

Double_t GetUxmin () const

Double_t GetUymin () const

Double_t GetUxmax () const

Double_t GetUymax () const

Bool_t GetGridx () const

Bool_t GetGridy () const

Int_t GetNumber () const

Int_t GetTickx () const

Int_t GetTicky () const

Double_t GetX1 () const

Double_t GetX2 () const

Double_t GetY1 () const

Double_t GetY2 () const

TListGetListOfPrimitives () const

TListGetListOfExecs () const

virtual TObjectGetPrimitive (const char *name) const
 Get primitive. More...

virtual TVirtualPadGetPad (Int_t subpadnumber) const
 Get a pointer to subpadnumber of this pad. More...

virtual TObjectGetPadPointer () const

TVirtualPadGetPadSave () const
 Get save pad. More...

TVirtualPadGetSelectedPad () const
 Get selected pad. More...

Int_t GetGLDevice ()
 Get GL device. More...

TViewGetView () const

TObjectGetView3D () const

Int_t GetLogx () const

Int_t GetLogy () const

Int_t GetLogz () const

virtual TVirtualPadGetMother () const

const char * GetName () const
 Returns name of object. More...

const char * GetTitle () const
 Returns title of object. More...

virtual TCanvasGetCanvas () const

virtual TVirtualPadGetVirtCanvas () const
 Get virtual canvas. More...

virtual TVirtualPadPainterGetPainter ()
 Get pad painter from TCanvas. More...

Int_t GetPadPaint () const

Int_t GetPixmapID () const

ULong_t Hash () const
 Return hash value for this object. More...

virtual Bool_t HasCrosshair () const
 Return kTRUE if the crosshair has been activated (via SetCrosshair). More...

void HighLight (Color_t col=kRed, Bool_t set=kTRUE)
 Highlight pad. More...

Bool_t HasFixedAspectRatio () const

virtual Bool_t IsEditable () const

Bool_t IsFolder () const
 Returns kTRUE in case object contains browsable objects (like containers or lists of other objects). More...

Bool_t IsModified () const

virtual Bool_t IsVertical () const

void Modified (Bool_t flag=1)

Double_t PadtoX (Double_t x) const
 Convert x from pad to X. More...

Double_t PadtoY (Double_t y) const
 Convert y from pad to Y. More...

void PaintBox (Double_t x1, Double_t y1, Double_t x2, Double_t y2, Option_t *option="")
 Paint box in CurrentPad World coordinates. More...

void PaintFillArea (Int_t n, Float_t *x, Float_t *y, Option_t *option="")

void PaintFillArea (Int_t n, Double_t *x, Double_t *y, Option_t *option="")
 Paint fill area in CurrentPad World coordinates. More...

void PaintFillAreaHatches (Int_t n, Double_t *x, Double_t *y, Int_t FillStyle)
 This function paints hatched fill area according to the FillStyle value The convention for the Hatch is the following: More...

void PaintHatches (Double_t dy, Double_t angle, Int_t nn, Double_t *xx, Double_t *yy)
 This routine draw hatches inclined with the angle "angle" and spaced of "dy" in normalized device coordinates in the surface defined by n,xx,yy. More...

void PaintPadFrame (Double_t xmin, Double_t ymin, Double_t xmax, Double_t ymax)
 Paint histogram/graph frame. More...

void PaintLine (Double_t x1, Double_t y1, Double_t x2, Double_t y2)
 Paint line in CurrentPad World coordinates. More...

void PaintLineNDC (Double_t u1, Double_t v1, Double_t u2, Double_t v2)
 Paint line in normalized coordinates. More...

void PaintLine3D (Float_t *p1, Float_t *p2)
 Paint 3-D line in the CurrentPad. More...

void PaintLine3D (Double_t *p1, Double_t *p2)
 Paint 3-D line in the CurrentPad. More...

void PaintPolyLine (Int_t n, Float_t *x, Float_t *y, Option_t *option="")
 Paint polyline in CurrentPad World coordinates. More...

void PaintPolyLine (Int_t n, Double_t *x, Double_t *y, Option_t *option="")
 Paint polyline in CurrentPad World coordinates. More...

void PaintPolyLine3D (Int_t n, Double_t *p)
 Paint 3-D polyline in the CurrentPad. More...

void PaintPolyLineNDC (Int_t n, Double_t *x, Double_t *y, Option_t *option="")
 Paint polyline in CurrentPad NDC coordinates. More...

void PaintPolyMarker (Int_t n, Float_t *x, Float_t *y, Option_t *option="")
 Paint polymarker in CurrentPad World coordinates. More...

void PaintPolyMarker (Int_t n, Double_t *x, Double_t *y, Option_t *option="")
 Paint polymarker in CurrentPad World coordinates. More...

virtual void PaintModified ()
 Traverse pad hierarchy and (re)paint only modified pads. More...

void PaintText (Double_t x, Double_t y, const char *text)
 Paint text in CurrentPad World coordinates. More...

void PaintText (Double_t x, Double_t y, const wchar_t *text)
 Paint text in CurrentPad World coordinates. More...

void PaintTextNDC (Double_t u, Double_t v, const char *text)
 Paint text in CurrentPad NDC coordinates. More...

void PaintTextNDC (Double_t u, Double_t v, const wchar_t *text)
 Paint text in CurrentPad NDC coordinates. More...

Double_t PixeltoX (Int_t px)

Double_t PixeltoY (Int_t py)

virtual void PixeltoXY (Int_t xpixel, Int_t ypixel, Double_t &x, Double_t &y)

virtual void Pop ()
 Pop pad to the top of the stack. More...

virtual void Print (const char *filename="") const
 Save Pad contents in a file in one of various formats. More...

virtual void Print (const char *filename, Option_t *option)
 Save Canvas contents in a file in one of various formats. More...

virtual void Range (Double_t x1, Double_t y1, Double_t x2, Double_t y2)
 Set world coordinate system for the pad. More...

virtual void RangeChanged ()

virtual void RangeAxis (Double_t xmin, Double_t ymin, Double_t xmax, Double_t ymax)
 Set axis coordinate system for the pad. More...

virtual void RangeAxisChanged ()

virtual void RedrawAxis (Option_t *option="")
 Redraw the frame axis Redrawing axis may be necessary in case of superimposed histograms when one or more histograms have a fill color Instead of calling this function, it may be more convenient to call directly h1->Draw("sameaxis") where h1 is the pointer to the first histogram drawn in the pad. More...

virtual void ResetView3D (TObject *view=0)

virtual void ResizePad (Option_t *option="")
 Compute pad conversion coefficients. More...

virtual void SaveAs (const char *filename="", Option_t *option="") const
 Save Pad contents in a file in one of various formats. More...

virtual void SetBorderMode (Short_t bordermode)

virtual void SetBorderSize (Short_t bordersize)

void SetCanvas (TCanvas *c)

virtual void SetCrosshair (Int_t crhair=1)
 Set crosshair active/inactive. More...

virtual void SetDrawOption (Option_t *option="")
 Set drawing option for object. More...

virtual void SetEditable (Bool_t mode=kTRUE)
 Set pad editable yes/no If a pad is not editable: More...

virtual void SetFillStyle (Style_t fstyle)
 Override TAttFill::FillStyle for TPad because we want to handle style=0 as style 4000. More...

virtual void SetNumber (Int_t number)

virtual void SetPad (const char *name, const char *title, Double_t xlow, Double_t ylow, Double_t xup, Double_t yup, Color_t color=35, Short_t bordersize=5, Short_t bordermode=-1)
 Set all pad parameters. More...

virtual void SetPad (Double_t xlow, Double_t ylow, Double_t xup, Double_t yup)
 Set canvas range for pad and resize the pad. More...

virtual void SetAttFillPS (Color_t color, Style_t style)
 Set postscript fill area attributes. More...

virtual void SetAttLinePS (Color_t color, Style_t style, Width_t lwidth)
 Set postscript line attributes. More...

virtual void SetAttMarkerPS (Color_t color, Style_t style, Size_t msize)
 Set postscript marker attributes. More...

virtual void SetAttTextPS (Int_t align, Float_t angle, Color_t color, Style_t font, Float_t tsize)
 Set postscript text attributes. More...

virtual void SetName (const char *name)

virtual void SetTicks (Int_t valuex=1, Int_t valuey=1)

virtual void SetTheta (Double_t theta=30)

virtual void SetPhi (Double_t phi=30)

virtual void SetToolTipText (const char *text, Long_t delayms=1000)
 Set tool tip text associated with this pad. More...

virtual void SetVertical (Bool_t vert=kTRUE)
 Set pad vertical (default) or horizontal. More...

virtual void SetView (TView *view=0)
 Set the current TView. Delete previous view if view=0. More...

virtual void SetViewer3D (TVirtualViewer3D *viewer3d)

virtual void SetGLDevice (Int_t dev)

virtual void SetCopyGLDevice (Bool_t copy)

virtual void ShowGuidelines (TObject *object, const Int_t event, const char mode= 'i', const bool cling=true)
 Shows lines to indicate if a TAttBBox2D object is aligned to the center or to another object, shows distance arrows if two objects on screen have the same distance to another object Call from primitive in Execute Event, in ButtonMotion after the new coordinates have been set, to 'stick' once when button is up to delete lines. More...

Int_t UtoAbsPixel (Double_t u) const

Int_t VtoAbsPixel (Double_t v) const

Int_t UtoPixel (Double_t u) const

Int_t VtoPixel (Double_t v) const

virtual TObjectWaitPrimitive (const char *pname="", const char *emode="")
 Loop and sleep until a primitive with name=pname is found in the pad. More...

Int_t XtoAbsPixel (Double_t x) const

Int_t YtoAbsPixel (Double_t y) const

Double_t XtoPad (Double_t x) const
 Convert x from X to pad. More...

Double_t YtoPad (Double_t y) const
 Convert y from Y to pad. More...

Int_t XtoPixel (Double_t x) const

Int_t YtoPixel (Double_t y) const

virtual void XYtoAbsPixel (Double_t x, Double_t y, Int_t &xpixel, Int_t &ypixel) const

virtual void XYtoPixel (Double_t x, Double_t y, Int_t &xpixel, Int_t &ypixel) const

virtual TObjectCreateToolTip (const TBox *b, const char *text, Long_t delayms)
 Create a tool tip and return its pointer. More...

virtual void DeleteToolTip (TObject *tip)
 Delete tool tip object. More...

virtual void ResetToolTip (TObject *tip)
 Reset tool tip, i.e. More...

virtual void CloseToolTip (TObject *tip)
 Hide tool tip. More...

virtual TVirtualViewer3DGetViewer3D (Option_t *type="")
 Create/obtain handle to 3D viewer. More...

virtual Bool_t HasViewer3D () const

virtual void ReleaseViewer3D (Option_t *type="")
 Release current (external) viewer. More...

virtual Rectangle_t GetBBox ()
 Return the bounding Box of the Pad. More...

virtual TPoint GetBBoxCenter ()
 Return the center of the Pad as TPoint in pixels. More...

virtual void SetBBoxCenter (const TPoint &p)
 Set center of the Pad. More...

virtual void SetBBoxCenterX (const Int_t x)
 Set X coordinate of the center of the Pad. More...

virtual void SetBBoxCenterY (const Int_t y)
 Set Y coordinate of the center of the Pad. More...

virtual void SetBBoxX1 (const Int_t x)
 Set lefthandside of BoundingBox to a value (resize in x direction on left) More...

virtual void SetBBoxX2 (const Int_t x)
 Set right hand side of BoundingBox to a value (resize in x direction on right) More...

virtual void SetBBoxY1 (const Int_t y)
 Set top of BoundingBox to a value (resize in y direction on top) More...

virtual void SetBBoxY2 (const Int_t y)
 Set bottom of BoundingBox to a value (resize in y direction on bottom) More...

virtual void RecordPave (const TObject *obj)
 Emit RecordPave() signal. More...

virtual void RecordLatex (const TObject *obj)
 Emit RecordLatex() signal. More...

virtual void EventPave ()

virtual void StartEditing ()

- Public Member Functions inherited from TVirtualPad
 TVirtualPad ()

 TVirtualPad (const char *name, const char *title, Double_t xlow, Double_t ylow, Double_t xup, Double_t yup, Color_t color=19, Short_t bordersize=4, Short_t bordermode=1)
 VirtualPad constructor. More...

virtual ~TVirtualPad ()
 VirtualPad destructor. More...

Bool_t IsBeingResized () const

virtual Bool_t PadInSelectionMode () const
 Should always return false unless you have non-standard picking. More...

virtual Bool_t PadInHighlightMode () const
 Should always return false, unless you can highlight selected object in pad. More...

virtual void PushTopLevelSelectable (TObject *top)
 Does nothing, unless you implement your own picking. More...

virtual void PushSelectableObject (TObject *obj)
 Does nothing, unless you implement your own picking. More...

virtual void PopTopLevelSelectable ()
 Does nothing, unless you implement your own picking. More...

- Public Member Functions inherited from TObject
 TObject ()

 TObject (const TObject &object)
 TObject copy ctor. More...

TObjectoperator= (const TObject &rhs)
 TObject assignment operator. More...

virtual ~TObject ()
 TObject destructor. More...

virtual void AppendPad (Option_t *option="")
 Append graphics object to current pad. More...

virtual const char * ClassName () const
 Returns name of class to which the object belongs. More...

virtual TObjectClone (const char *newname="") const
 Make a clone of an object using the Streamer facility. More...

virtual Int_t Compare (const TObject *obj) const
 Compare abstract method. More...

virtual void Copy (TObject &object) const
 Copy this to obj. More...

virtual void DrawClass () const
 Draw class inheritance tree of the class to which this object belongs. More...

virtual void Dump () const
 Dump contents of object on stdout. More...

virtual void Execute (const char *method, const char *params, Int_t *error=0)
 Execute method on this object with the given parameter string, e.g. More...

virtual void Execute (TMethod *method, TObjArray *params, Int_t *error=0)
 Execute method on this object with parameters stored in the TObjArray. More...

virtual Option_tGetDrawOption () const
 Get option used by the graphics system to draw this object. More...

virtual UInt_t GetUniqueID () const
 Return the unique object id. More...

virtual const char * GetIconName () const
 Returns mime type name of object. More...

virtual Option_tGetOption () const

virtual char * GetObjectInfo (Int_t px, Int_t py) const
 Returns string containing info about the object at position (px,py). More...

virtual Bool_t HandleTimer (TTimer *timer)
 Execute action in response of a timer timing out. More...

virtual Bool_t InheritsFrom (const char *classname) const
 Returns kTRUE if object inherits from class "classname". More...

virtual Bool_t InheritsFrom (const TClass *cl) const
 Returns kTRUE if object inherits from TClass cl. More...

virtual void Inspect () const
 Dump contents of this object in a graphics canvas. More...

virtual Bool_t IsEqual (const TObject *obj) const
 Default equal comparison (objects are equal if they have the same address in memory). More...

virtual Bool_t IsSortable () const

Bool_t IsOnHeap () const

Bool_t IsZombie () const

virtual Bool_t Notify ()
 This method must be overridden to handle object notification. More...

virtual Int_t Read (const char *name)
 Read contents of object with specified name from the current directory. More...

virtual void SetUniqueID (UInt_t uid)
 Set the unique object id. More...

virtual Int_t Write (const char *name=0, Int_t option=0, Int_t bufsize=0)
 Write this object to the current directory. More...

virtual Int_t Write (const char *name=0, Int_t option=0, Int_t bufsize=0) const
 Write this object to the current directory. More...

voidoperator new (size_t sz)

voidoperator new[] (size_t sz)

voidoperator new (size_t sz, void *vp)

voidoperator new[] (size_t sz, void *vp)

void operator delete (void *ptr)
 Operator delete. More...

void operator delete[] (void *ptr)
 Operator delete []. More...

void SetBit (UInt_t f, Bool_t set)
 Set or unset the user status bits as specified in f. More...

void SetBit (UInt_t f)

void ResetBit (UInt_t f)

Bool_t TestBit (UInt_t f) const

Int_t TestBits (UInt_t f) const

void InvertBit (UInt_t f)

virtual void Info (const char *method, const char *msgfmt,...) const
 Issue info message. More...

virtual void Warning (const char *method, const char *msgfmt,...) const
 Issue warning message. More...

virtual void Error (const char *method, const char *msgfmt,...) const
 Issue error message. More...

virtual void SysError (const char *method, const char *msgfmt,...) const
 Issue system error message. More...

virtual void Fatal (const char *method, const char *msgfmt,...) const
 Issue fatal error message. More...

void AbstractMethod (const char *method) const
 Use this method to implement an "abstract" method that you don't want to leave purely abstract. More...

void MayNotUse (const char *method) const
 Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary). More...

void Obsolete (const char *method, const char *asOfVers, const char *removedFromVers) const
 Use this method to declare a method obsolete. More...

- Public Member Functions inherited from TAttLine
 TAttLine ()
 AttLine default constructor. More...

 TAttLine (Color_t lcolor, Style_t lstyle, Width_t lwidth)
 AttLine normal constructor. More...

virtual ~TAttLine ()
 AttLine destructor. More...

void Copy (TAttLine &attline) const
 Copy this line attributes to a new TAttLine. More...

Int_t DistancetoLine (Int_t px, Int_t py, Double_t xp1, Double_t yp1, Double_t xp2, Double_t yp2)
 Compute distance from point px,py to a line. More...

virtual Color_t GetLineColor () const

virtual Style_t GetLineStyle () const

virtual Width_t GetLineWidth () const

virtual void Modify ()
 Change current line attributes if necessary. More...

virtual void ResetAttLine (Option_t *option="")
 Reset this line attributes to default values. More...

virtual void SaveLineAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1, Int_t widdef=1)
 Save line attributes as C++ statement(s) on output stream out. More...

virtual void SetLineAttributes ()
 Invoke the DialogCanvas Line attributes. More...

virtual void SetLineColor (Color_t lcolor)

virtual void SetLineColorAlpha (Color_t lcolor, Float_t lalpha)
 Set a transparent line color. More...

virtual void SetLineStyle (Style_t lstyle)

virtual void SetLineWidth (Width_t lwidth)

 ClassDef (TAttLine, 2)

- Public Member Functions inherited from TAttFill
 TAttFill ()

 TAttFill (Color_t fcolor, Style_t fstyle)
 AttFill normal constructor. More...

virtual ~TAttFill ()
 AttFill destructor. More...

void Copy (TAttFill &attfill) const
 Copy this fill attributes to a new TAttFill. More...

virtual Color_t GetFillColor () const

virtual Style_t GetFillStyle () const

virtual Bool_t IsTransparent () const

virtual void Modify ()
 Change current fill area attributes if necessary. More...

virtual void ResetAttFill (Option_t *option="")
 Reset this fill attributes to default values. More...

virtual void SaveFillAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1001)
 Save fill attributes as C++ statement(s) on output stream out. More...

virtual void SetFillAttributes ()
 Invoke the DialogCanvas Fill attributes. More...

virtual void SetFillColor (Color_t fcolor)

virtual void SetFillColorAlpha (Color_t fcolor, Float_t falpha)
 Set a transparent fill color. More...

- Public Member Functions inherited from TAttPad
 TAttPad ()

virtual ~TAttPad ()
 Destructor. More...

virtual void Copy (TAttPad &attpad) const
 copy function More...

Float_t GetBottomMargin () const

Float_t GetLeftMargin () const

Float_t GetRightMargin () const

Float_t GetTopMargin () const

Float_t GetAfile () const

Float_t GetXfile () const

Float_t GetYfile () const

Float_t GetAstat () const

Float_t GetXstat () const

Float_t GetYstat () const

Color_t GetFrameFillColor () const

Color_t GetFrameLineColor () const

Style_t GetFrameFillStyle () const

Style_t GetFrameLineStyle () const

Width_t GetFrameLineWidth () const

Width_t GetFrameBorderSize () const

Int_t GetFrameBorderMode () const

virtual void ResetAttPad (Option_t *option="")
 Reset pad attributes. More...

virtual void SetBottomMargin (Float_t bottommargin)
 Set Pad bottom margin in fraction of the pad height. More...

virtual void SetLeftMargin (Float_t leftmargin)
 Set Pad left margin in fraction of the pad width. More...

virtual void SetRightMargin (Float_t rightmargin)
 Set Pad right margin in fraction of the pad width. More...

virtual void SetTopMargin (Float_t topmargin)
 Set Pad top margin in fraction of the pad height. More...

virtual void SetMargin (Float_t left, Float_t right, Float_t bottom, Float_t top)
 Set all margins. More...

virtual void SetAfile (Float_t afile)

virtual void SetXfile (Float_t xfile)

virtual void SetYfile (Float_t yfile)

virtual void SetAstat (Float_t astat)

virtual void SetXstat (Float_t xstat)

virtual void SetYstat (Float_t ystat)

void SetFrameFillColor (Color_t color=1)

void SetFrameLineColor (Color_t color=1)

void SetFrameFillStyle (Style_t styl=0)

void SetFrameLineStyle (Style_t styl=0)

void SetFrameLineWidth (Width_t width=1)

void SetFrameBorderSize (Width_t size=1)

void SetFrameBorderMode (Int_t mode=1)

 ClassDef (TAttPad, 4)

- Public Member Functions inherited from TQObject
 TQObject ()
 TQObject Constructor. More...

virtual ~TQObject ()
 TQObject Destructor. More...

TListGetListOfClassSignals () const
 Returns pointer to list of signals of this class. More...

TListGetListOfSignals () const

TListGetListOfConnections () const

Bool_t AreSignalsBlocked () const

Bool_t BlockSignals (Bool_t b)

void CollectClassSignalLists (TList &list, TClass *cls)
 Collect class signal lists from class cls and all its base-classes. More...

template<typename... T>
void EmitVA (const char *signal_name, Int_t, const T &...params)

void EmitVA (const char *signal, Int_t nargs, va_list va)=delete

void Emit (const char *signal)
 Acitvate signal without args. More...

void Emit (const char *signal, Long_t *paramArr)
 Emit a signal with a varying number of arguments, paramArr is an array of the parameters. More...

void Emit (const char *signal, const char *params)
 Activate signal with parameter text string. More...

void Emit (const char *signal, Double_t param)
 Activate signal with single parameter. More...

void Emit (const char *signal, Long_t param)
 Activate signal with single parameter. More...

void Emit (const char *signal, Long64_t param)
 Activate signal with single parameter. More...

void Emit (const char *signal, Bool_t param)

void Emit (const char *signal, Char_t param)

void Emit (const char *signal, UChar_t param)

void Emit (const char *signal, Short_t param)

void Emit (const char *signal, UShort_t param)

void Emit (const char *signal, Int_t param)

void Emit (const char *signal, UInt_t param)

void Emit (const char *signal, ULong_t param)

void Emit (const char *signal, ULong64_t param)

void Emit (const char *signal, Float_t param)

Bool_t Connect (const char *signal, const char *receiver_class, void *receiver, const char *slot)
 Non-static method is used to connect from the signal of this object to the receiver slot. More...

Bool_t Disconnect (const char *signal=0, void *receiver=0, const char *slot=0)
 Disconnects signal of this object from slot of receiver. More...

virtual void HighPriority (const char *signal_name, const char *slot_name=0)

virtual void LowPriority (const char *signal_name, const char *slot_name=0)

virtual Bool_t HasConnection (const char *signal_name) const
 Return true if there is any object connected to this signal. More...

virtual Int_t NumberOfSignals () const
 Return number of signals for this object. More...

virtual Int_t NumberOfConnections () const
 Return number of connections for this object. More...

virtual void Connected (const char *)

virtual void Disconnected (const char *)

virtual void Destroyed ()

virtual void ChangedBy (const char *method)

virtual void Message (const char *msg)

- Public Member Functions inherited from TAttBBox2D
virtual ~TAttBBox2D ()

 ClassDef (TAttBBox2D, 0)

- Public Member Functions inherited from TAttText
 TAttText ()

 TAttText (Int_t align, Float_t angle, Color_t color, Style_t font, Float_t tsize)
 AttText normal constructor. More...

virtual ~TAttText ()
 AttText destructor. More...

void Copy (TAttText &atttext) const
 Copy this text attributes to a new TAttText. More...

virtual Short_t GetTextAlign () const

virtual Float_t GetTextAngle () const

virtual Color_t GetTextColor () const

virtual Font_t GetTextFont () const

virtual Float_t GetTextSize () const

virtual void Modify ()
 Change current text attributes if necessary. More...

virtual void ResetAttText (Option_t *toption="")
 Reset this text attributes to default values. More...

virtual void SaveTextAttributes (std::ostream &out, const char *name, Int_t alidef=12, Float_t angdef=0, Int_t coldef=1, Int_t fondef=61, Float_t sizdef=1)
 Save text attributes as C++ statement(s) on output stream out. More...

virtual void SetTextAttributes ()
 Invoke the DialogCanvas Text attributes. More...

virtual void SetTextAlign (Short_t align=11)

virtual void SetTextAngle (Float_t tangle=0)

virtual void SetTextColor (Color_t tcolor=1)

virtual void SetTextColorAlpha (Color_t tcolor, Float_t talpha)
 Set a transparent marker color. More...

virtual void SetTextFont (Font_t tfont=62)

virtual void SetTextSize (Float_t tsize=1)

virtual void SetTextSizePixels (Int_t npixels)
 Set the text size in pixels. More...


Static Public Member Functions

static void GoBackward ()
 static function , inspect previous object More...

static void GoForward ()
 static function , inspect next object More...

static void Inspector (TObject *obj)
 static function , interface to InspectObject. More...

- Static Public Member Functions inherited from TCanvas
static void SetFolder (Bool_t isfolder=kTRUE)
 If isfolder=kTRUE, the canvas can be browsed like a folder by default a canvas is not browsable. More...

static TCanvasMakeDefCanvas ()
 Static function to build a default canvas. More...

static Bool_t SupportAlpha ()
 Static function returning "true" if transparency is supported. More...

- Static Public Member Functions inherited from TPad
static void DrawColorTable ()
 Static function to Display Color Table in a pad. More...

static Int_t GetMaxPickDistance ()
 Static function (see also TPad::SetMaxPickDistance) More...

static void SetMaxPickDistance (Int_t maxPick=5)
 static function to set the maximum Pick Distance fgMaxPickDistance This parameter is used in TPad::Pick to select an object if its DistancetoPrimitive returns a value < fgMaxPickDistance The default value is 5 pixels. More...

- Static Public Member Functions inherited from TVirtualPad
static TVirtualPad *& Pad ()
 Return the current pad for the current thread. More...

- Static Public Member Functions inherited from TObject
static Long_t GetDtorOnly ()
 Return destructor only flag. More...

static void SetDtorOnly (void *obj)
 Set destructor only flag. More...

static Bool_t GetObjectStat ()
 Get status of object stat flag. More...

static void SetObjectStat (Bool_t stat)
 Turn on/off tracking of objects in the TObjectTable. More...

- Static Public Member Functions inherited from TQObject
static Bool_t Connect (TQObject *sender, const char *signal, const char *receiver_class, void *receiver, const char *slot)
 Create connection between sender and receiver. More...

static Bool_t Connect (const char *sender_class, const char *signal, const char *receiver_class, void *receiver, const char *slot)
 This method allows to make a connection from any object of the same class to a single slot. More...

static Bool_t Disconnect (TQObject *sender, const char *signal=0, void *receiver=0, const char *slot=0)
 Disconnects signal in object sender from slot_method in object receiver. More...

static Bool_t Disconnect (const char *class_name, const char *signal, void *receiver=0, const char *slot=0)
 Disconnects "class signal". More...

static Bool_t AreAllSignalsBlocked ()
 Returns true if all signals are blocked. More...

static Bool_t BlockAllSignals (Bool_t b)
 Block or unblock all signals. Returns the previous block status. More...


Protected Attributes

TButtonfBackward

TButtonfForward

TListfObjects

TObjectfCurObject

- Protected Attributes inherited from TCanvas
TAttCanvas fCatt

TString fDISPLAY

Size_t fXsizeUser

Size_t fYsizeUser

Size_t fXsizeReal

Size_t fYsizeReal

Color_t fHighLightColor

Int_t fDoubleBuffer

Int_t fWindowTopX

Int_t fWindowTopY

UInt_t fWindowWidth

UInt_t fWindowHeight

UInt_t fCw

UInt_t fCh

Int_t fEvent

Int_t fEventX
 Type of current or last handled event. More...

Int_t fEventY
 Last X mouse position in canvas. More...

Int_t fCanvasID
 Last Y mouse position in canvas. More...

TObjectfSelected
 Canvas identifier. More...

TObjectfClickSelected
 Currently selected object. More...

Int_t fSelectedX
 Currently click-selected object. More...

Int_t fSelectedY
 X of selected object. More...

TString fSelectedOpt
 Y of selected object. More...

TPadfSelectedPad
 Drawing option of selected object. More...

TPadfClickSelectedPad
 Pad containing currently selected object. More...

TPadfPadSave
 Pad containing currently click-selected object. More...

TCanvasImpfCanvasImp
 Pointer to saved pad in HandleInput. More...

TContextMenufContextMenu
 Window system specific canvas implementation. More...

Bool_t fBatch
 Context menu pointer. More...

Bool_t fUpdating
 True when in batchmode. More...

Bool_t fRetained
 True when Updating the canvas. More...

Bool_t fUseGL

Bool_t fDrawn
 True when rendering is with GL. More...

TVirtualPadPainterfPainter
 Set to True when the Draw method is called. More...

- Protected Attributes inherited from TPad
Double_t fX1
 tool tip associated with box More...

Double_t fY1

Double_t fX2

Double_t fY2

Double_t fXtoAbsPixelk

Double_t fXtoPixelk

Double_t fXtoPixel

Double_t fYtoAbsPixelk

Double_t fYtoPixelk

Double_t fYtoPixel

Double_t fUtoAbsPixelk

Double_t fUtoPixelk

Double_t fUtoPixel

Double_t fVtoAbsPixelk

Double_t fVtoPixelk

Double_t fVtoPixel

Double_t fAbsPixeltoXk

Double_t fPixeltoXk

Double_t fPixeltoX

Double_t fAbsPixeltoYk

Double_t fPixeltoYk

Double_t fPixeltoY

Double_t fXlowNDC

Double_t fYlowNDC

Double_t fXUpNDC

Double_t fYUpNDC

Double_t fWNDC

Double_t fHNDC

Double_t fAbsXlowNDC

Double_t fAbsYlowNDC

Double_t fAbsWNDC

Double_t fAbsHNDC

Double_t fUxmin

Double_t fUymin

Double_t fUxmax

Double_t fUymax

Double_t fTheta

Double_t fPhi

Double_t fAspectRatio

Int_t fPixmapID

Int_t fGLDevice
 Off-screen pixmap identifier. More...

Bool_t fCopyGLDevice
 OpenGL off-screen pixmap identifier. More...

Bool_t fEmbeddedGL

Int_t fNumber

Int_t fTickx

Int_t fTicky

Int_t fLogx

Int_t fLogy

Int_t fLogz

Int_t fPadPaint

Int_t fCrosshair

Int_t fCrosshairPos

Short_t fBorderSize

Short_t fBorderMode

Bool_t fModified

Bool_t fGridx

Bool_t fGridy

Bool_t fAbsCoord

Bool_t fEditable

Bool_t fFixedAspectRatio

TPadfMother

TCanvasfCanvas
 pointer to mother of the list More...

TListfPrimitives
 Pointer to mother canvas. More...

TListfExecs

TString fName

TString fTitle

TFramefFrame

TViewfView
 Pointer to 2-D frame (if one exists) More...

TObjectfPadPointer
 Pointer to 3-D view (if one exists) More...

TObjectfPadView3D
 free pointer More...

TVirtualViewer3DfViewer3D

- Protected Attributes inherited from TVirtualPad
Bool_t fResizing

- Protected Attributes inherited from TAttLine
Color_t fLineColor

Style_t fLineStyle

Width_t fLineWidth

- Protected Attributes inherited from TAttFill
Color_t fFillColor

Style_t fFillStyle

- Protected Attributes inherited from TAttPad
Float_t fLeftMargin

Float_t fRightMargin

Float_t fBottomMargin

Float_t fTopMargin

Float_t fXfile

Float_t fYfile

Float_t fAfile

Float_t fXstat

Float_t fYstat

Float_t fAstat

Color_t fFrameFillColor

Color_t fFrameLineColor

Style_t fFrameFillStyle

Style_t fFrameLineStyle

Width_t fFrameLineWidth

Width_t fFrameBorderSize

Int_t fFrameBorderMode

- Protected Attributes inherited from TQObject
TListfListOfSignals

TListfListOfConnections
 list of signals from this object More...

Bool_t fSignalsBlocked
 list of connections to this object More...

- Protected Attributes inherited from TAttText
Float_t fTextAngle

Float_t fTextSize

Short_t fTextAlign

Color_t fTextColor

Font_t fTextFont


Additional Inherited Members

- Public Types inherited from TCanvas
enum  {
  kShowEventStatus = BIT(15), kAutoExec = BIT(16), kMenuBar = BIT(17), kShowToolBar = BIT(18),
  kShowEditor = BIT(19), kMoveOpaque = BIT(20), kResizeOpaque = BIT(21), kIsGrayscale = BIT(22),
  kShowToolTips = BIT(23)
}

- Public Types inherited from TPad
enum  {
  kFraming = BIT(6), kHori = BIT(9), kClipFrame = BIT(10), kPrintingPS = BIT(11),
  kCannotMove = BIT(12), kClearAfterCR = BIT(14)
}

- Public Types inherited from TObject
enum  EStatusBits {
  kCanDelete = BIT(0), kMustCleanup = BIT(3), kObjInCanvas = BIT(3), kIsReferenced = BIT(4),
  kHasUUID = BIT(5), kCannotPick = BIT(6), kNoContextMenu = BIT(8), kInvalidObject = BIT(13)
}

enum  { kIsOnHeap = 0x01000000, kNotDeleted = 0x02000000, kZombie = 0x04000000, kBitMask = 0x00ffffff }

enum  { kSingleKey = BIT(0), kOverwrite = BIT(1), kWriteDelete = BIT(2) }

- Protected Member Functions inherited from TCanvas
virtual void ExecuteEvent (Int_t event, Int_t px, Int_t py)
 Execute action corresponding to one event. More...

void Init ()
 Initialize the TCanvas members. Called by all constructors. More...

- Protected Member Functions inherited from TPad
void DestroyExternalViewer3D ()
 Current 3D viewer. More...

virtual Int_t DistancetoPrimitive (Int_t px, Int_t py)
 Compute distance from point px,py to a box. More...

virtual void HideToolTip (Int_t event)
 Hide tool tip depending on the event type. More...

void PaintBorder (Color_t color, Bool_t tops)
 Paint the pad border. More...

virtual void PaintBorderPS (Double_t xl, Double_t yl, Double_t xt, Double_t yt, Int_t bmode, Int_t bsize, Int_t dark, Int_t light)
 Paint a frame border with Postscript. More...

void PaintDate ()
 Paint the current date and time if the option date is on. More...

- Protected Member Functions inherited from TVirtualPad
virtual voidGetSender ()
 true when resizing the pad More...

- Protected Member Functions inherited from TObject
void MakeZombie ()

virtual void DoError (int level, const char *location, const char *fmt, va_list va) const
 Interface to ErrorHandler (protected). More...

- Protected Member Functions inherited from TQObject
virtual const char * GetSenderClassName () const

- Static Protected Member Functions inherited from TQObject
static Bool_t ConnectToClass (TQObject *sender, const char *signal, TClass *receiver_class, void *receiver, const char *slot)
 Create connection between sender and receiver. More...

static Bool_t ConnectToClass (const char *sender_class, const char *signal, TClass *receiver_class, void *receiver, const char *slot)
 This method allows to make connection from any object of the same class to the receiver object. More...

static Int_t CheckConnectArgs (TQObject *sender, TClass *sender_class, const char *signal, TClass *receiver_class, const char *slot)
 Checking of consitency of sender/receiver methods/arguments. More...

static TString CompressName (const char *method_name)

- Static Protected Attributes inherited from TCanvas
static Bool_t fgIsFolder = kFALSE
 Canvas (pad) painter. More...

- Static Protected Attributes inherited from TPad
static Int_t fgMaxPickDistance = 5
 3D View of this TPad More...

- Static Protected Attributes inherited from TQObject
static Bool_t fgAllSignalsBlocked = kFALSE
 flag used for suppression of signals More...


#include <TInspectCanvas.h>

Inheritance diagram for TInspectCanvas:
[legend]

Constructor & Destructor Documentation

TInspectCanvas::TInspectCanvas ( )

InspectCanvas default constructor.

Definition at line 63 of file TInspectCanvas.cxx.

Referenced by Inspector().

TInspectCanvas::TInspectCanvas ( UInt_t  ww,
UInt_t  wh
)

InspectCanvas constructor.

Definition at line 77 of file TInspectCanvas.cxx.

TInspectCanvas::~TInspectCanvas ( )
virtual

InspectCanvas default destructor.

Definition at line 92 of file TInspectCanvas.cxx.

Member Function Documentation

void TInspectCanvas::Divide ( Int_t  nx = 1,
Int_t  ny = 1,
Float_t  xmargin = 0.01,
Float_t  ymargin = 0.01,
Int_t  color = 0
)
inlinevirtual

Automatic pad generation by division.

  • The current canvas is divided in nx by ny equal divisions (pads).
  • xmargin is the space along x between pads in percent of canvas.
  • ymargin is the space along y between pads in percent of canvas.
  • color is the color of the new pads. If 0, color is the canvas color.

Pads are automatically named canvasname_n where n is the division number starting from top left pad.

Example if canvasname=c1 , nx=2, ny=3:


Once a pad is divided into sub-pads, one can set the current pad to a subpad with a given division number as illustrated above with TPad::cd(subpad_number).

For example, to set the current pad to c1_4, one can do:

c1->cd(4)

Note1: c1.cd() is equivalent to c1.cd(0) and sets the current pad to c1 itself.

Note2: after a statement like c1.cd(6), the global variable gPad points to the current pad. One can use gPad to set attributes of the current pad.

Note3: in case xmargin <=0 and ymargin <= 0, there is no space between pads. The current pad margins are recomputed to optimize the layout.

Reimplemented from TPad.

Definition at line 71 of file TInspectCanvas.h.

TButton* TInspectCanvas::GetBackward ( ) const
inline

Definition at line 46 of file TInspectCanvas.h.

TObject* TInspectCanvas::GetCurObject ( ) const
inline

Definition at line 48 of file TInspectCanvas.h.

Referenced by GoBackward(), and GoForward().

TButton* TInspectCanvas::GetForward ( ) const
inline

Definition at line 47 of file TInspectCanvas.h.

TList* TInspectCanvas::GetObjects ( ) const
inline

Definition at line 49 of file TInspectCanvas.h.

Referenced by GoBackward(), GoForward(), and Inspector().

void TInspectCanvas::GoBackward ( )
static

static function , inspect previous object

Definition at line 349 of file TInspectCanvas.cxx.

void TInspectCanvas::GoForward ( )
static

static function , inspect next object

Definition at line 361 of file TInspectCanvas.cxx.

void TInspectCanvas::InspectObject ( TObject obj)
virtual

Dump contents of obj in a graphics canvas.

Same action as TObject::Dump but in a graphical form. In addition pointers to other objects can be followed.

The following picture is the Inspect of a histogram object:


Definition at line 108 of file TInspectCanvas.cxx.

Referenced by GoBackward(), GoForward(), and Inspector().

void TInspectCanvas::Inspector ( TObject obj)
static

static function , interface to InspectObject.

Create the InspectCanvas if it does not exist yet.

Definition at line 374 of file TInspectCanvas.cxx.

void TInspectCanvas::RecursiveRemove ( TObject obj)
virtual

Recursively remove object from the list of objects.

Reimplemented from TPad.

Definition at line 391 of file TInspectCanvas.cxx.

void TInspectCanvas::SetGrid ( Int_t  valuex = 1,
Int_t  valuey = 1
)
inlinevirtual

Reimplemented from TPad.

Definition at line 72 of file TInspectCanvas.h.

void TInspectCanvas::SetGridx ( Int_t  value = 1)
inlinevirtual

Reimplemented from TPad.

Definition at line 73 of file TInspectCanvas.h.

void TInspectCanvas::SetGridy ( Int_t  value = 1)
inlinevirtual

Reimplemented from TPad.

Definition at line 74 of file TInspectCanvas.h.

void TInspectCanvas::SetLogx ( Int_t  value = 1)
inlinevirtual

Set Lin/Log scale for X.

  • value = 0 X scale will be linear
  • value = 1 X scale will be logarithmic (base 10)
  • value > 1 reserved for possible support of base e or other

Reimplemented from TPad.

Definition at line 75 of file TInspectCanvas.h.

void TInspectCanvas::SetLogy ( Int_t  value = 1)
inlinevirtual

Set Lin/Log scale for Y.

  • value = 0 Y scale will be linear
  • value = 1 Y scale will be logarithmic (base 10)
  • value > 1 reserved for possible support of base e or other

Reimplemented from TPad.

Definition at line 76 of file TInspectCanvas.h.

void TInspectCanvas::SetLogz ( Int_t  value = 1)
inlinevirtual

Set Lin/Log scale for Z.

Reimplemented from TPad.

Definition at line 77 of file TInspectCanvas.h.

void TInspectCanvas::SetTickx ( Int_t  value = 1)
inlinevirtual

Reimplemented from TPad.

Definition at line 78 of file TInspectCanvas.h.

void TInspectCanvas::SetTicky ( Int_t  value = 1)
inlinevirtual

Reimplemented from TPad.

Definition at line 79 of file TInspectCanvas.h.

void TInspectCanvas::x3d ( Option_t type = "")
inlinevirtual

Deprecated: use TPad::GetViewer3D() instead.

Reimplemented from TPad.

Definition at line 80 of file TInspectCanvas.h.

Member Data Documentation

TButton* TInspectCanvas::fBackward
protected

Definition at line 37 of file TInspectCanvas.h.

Referenced by GetBackward(), InspectObject(), and TInspectCanvas().

TObject* TInspectCanvas::fCurObject
protected

Definition at line 40 of file TInspectCanvas.h.

Referenced by GetCurObject(), InspectObject(), and TInspectCanvas().

TButton* TInspectCanvas::fForward
protected

Definition at line 38 of file TInspectCanvas.h.

Referenced by GetForward(), InspectObject(), and TInspectCanvas().

TList* TInspectCanvas::fObjects
protected

Definition at line 39 of file TInspectCanvas.h.

Referenced by GetObjects(), RecursiveRemove(), TInspectCanvas(), and ~TInspectCanvas().

Collaboration diagram for TInspectCanvas:
[legend]

The documentation for this class was generated from the following files:
