TCurlyArc Class Reference

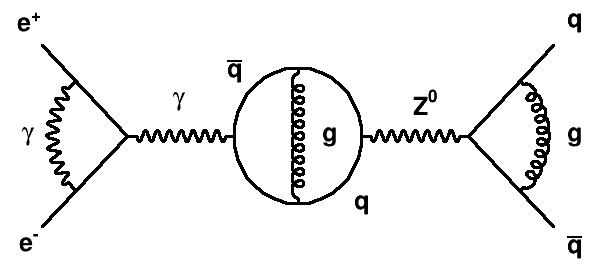

Implements curly or wavy arcs used to draw Feynman diagrams.

Amplitudes and wavelengths may be specified in the constructors, via commands or interactively from popup menus. The class make use of TCurlyLine by inheritance, ExecuteEvent methods are highly inspired from the methods used in TPolyLine and TArc. The picture below has been generated by the tutorial feynman.

void feynman()
{
TCanvas *c1 = new TCanvas("c1", "A canvas", 10,10, 600, 300);
c1->Range(0, 0, 140, 60);
Int_t linsav = gStyle->GetLineWidth();
t.SetTextAlign(22);
t.SetTextSize(0.1);
TLine * l;
l = new TLine(10, 10, 30, 30); l->Draw();
l = new TLine(10, 50, 30, 30); l->Draw();
TCurlyArc *ginit = new TCurlyArc(30, 30, 12.5*sqrt(2), 135, 225);
ginit->SetWavy();
ginit->Draw();
t.DrawLatex(7,6,"e^{-}");
t.DrawLatex(7,55,"e^{+}");
t.DrawLatex(7,30,"#gamma");
TCurlyLine *gamma = new TCurlyLine(30, 30, 55, 30);
gamma->SetWavy();
gamma->Draw();
t.DrawLatex(42.5,37.7,"#gamma");
TArc *a = new TArc(70, 30, 15);
a->Draw();
t.DrawLatex(55, 45,"#bar{q}");
t.DrawLatex(85, 15,"q");
TCurlyLine *gluon = new TCurlyLine(70, 45, 70, 15);
gluon->Draw();
t.DrawLatex(77.5,30,"g");
TCurlyLine *z0 = new TCurlyLine(85, 30, 110, 30);
z0->SetWavy();
z0->Draw();
t.DrawLatex(100, 37.5,"Z^{0}");
l = new TLine(110, 30, 130, 10); l->Draw();
l = new TLine(110, 30, 130, 50); l->Draw();
TCurlyArc *gluon1 = new TCurlyArc(110, 30, 12.5*sqrt(2), 315, 45);
gluon1->Draw();
t.DrawLatex(135,6,"#bar{q}");
t.DrawLatex(135,55,"q");
t.DrawLatex(135,30,"g");
c1->Update();
gStyle->SetLineWidth(linsav);
}

Definition at line 25 of file TCurlyArc.h.

Public Member Functions

 TCurlyArc ()

 TCurlyArc (Double_t x1, Double_t y1, Double_t rad, Double_t phimin, Double_t phimax, Double_t wl=.02, Double_t amp=.01)
 Create a new TCurlyArc with center (x1, y1) and radius rad. More...

virtual ~TCurlyArc ()

virtual void Build ()
 Create a curly (Gluon) or wavy (Gamma) arc. More...

Int_t DistancetoPrimitive (Int_t px, Int_t py)
 Compute distance from point px,py to an arc. More...

void ExecuteEvent (Int_t event, Int_t px, Int_t py)
 Execute action corresponding to one event. More...

Double_t GetRadius () const

Double_t GetPhimin () const

Double_t GetPhimax () const

virtual void SetCenter (Double_t x1, Double_t y1)
 Set Curly Arc center. More...

virtual void SetRadius (Double_t radius)
 Set Curly Arc radius. More...

virtual void SetPhimin (Double_t phimin)
 Set Curly Arc minimum Phi. More...

virtual void SetPhimax (Double_t phimax)
 Set Curly Arc maximum Phi. More...

virtual void SavePrimitive (std::ostream &out, Option_t *="")
 Save primitive as a C++ statement(s) on output stream out. More...

virtual Rectangle_t GetBBox ()
 Return the bounding Box of the Line. More...

virtual TPoint GetBBoxCenter ()
 Return the center of the BoundingBox as TPoint in pixels. More...

virtual void SetBBoxCenter (const TPoint &p)
 Set center of the BoundingBox. More...

virtual void SetBBoxCenterX (const Int_t x)
 Set X coordinate of the center of the BoundingBox. More...

virtual void SetBBoxCenterY (const Int_t y)
 Set Y coordinate of the center of the BoundingBox. More...

virtual void SetBBoxX1 (const Int_t x)
 Set left hand side of BoundingBox to a value (resize in x direction on left) More...

virtual void SetBBoxX2 (const Int_t x)
 Set right hand side of BoundingBox to a value (resize in x direction on right) More...

virtual void SetBBoxY1 (const Int_t y)
 Set top of BoundingBox to a value (resize in y direction on top) More...

virtual void SetBBoxY2 (const Int_t y)
 Set bottom of BoundingBox to a value (resize in y direction on bottom) More...

- Public Member Functions inherited from TCurlyLine
 TCurlyLine ()

 TCurlyLine (Double_t x1, Double_t y1, Double_t x2, Double_t y2, Double_t wl=.02, Double_t amp=.01)
 Create a new TCurlyLine with starting point (x1, y1), end point (x2,y2). More...

virtual ~TCurlyLine ()

Int_t DistancetoPrimitive (Int_t px, Int_t py)
 Compute distance from point px,py to a line. More...

void ExecuteEvent (Int_t event, Int_t px, Int_t py)
 Execute action corresponding to one event. More...

Bool_t GetCurly () const

Double_t GetWaveLength () const

Double_t GetAmplitude () const

Double_t GetStartX () const

Double_t GetEndX () const

Double_t GetStartY () const

Double_t GetEndY () const

virtual void SetCurly ()
 Set curly. More...

virtual void SetWavy ()
 Set wavy. More...

virtual void SetWaveLength (Double_t WaveLength)
 Set wave length. More...

virtual void SetAmplitude (Double_t x)
 Set amplitude. More...

virtual void SetStartPoint (Double_t x1, Double_t y1)
 Set start point. More...

virtual void SetEndPoint (Double_t x2, Double_t y2)
 Set end point. More...

- Public Member Functions inherited from TPolyLine
 TPolyLine ()

 TPolyLine (Int_t n, Option_t *option="")
 PolyLine normal constructor without initialisation. More...

 TPolyLine (Int_t n, Float_t *x, Float_t *y, Option_t *option="")
 PolyLine normal constructor (single precision). More...

 TPolyLine (Int_t n, Double_t *x, Double_t *y, Option_t *option="")
 PolyLine normal constructor (double precision). More...

 TPolyLine (const TPolyLine &polyline)
 PolyLine copy constructor. More...

virtual ~TPolyLine ()
 PolyLine default destructor. More...

virtual void Copy (TObject &polyline) const
 Copy this polyline to polyline. More...

virtual void Draw (Option_t *option="")
 Draw this polyline with its current attributes. More...

virtual void DrawPolyLine (Int_t n, Double_t *x, Double_t *y, Option_t *option="")
 Draw this polyline with new coordinates. More...

virtual Int_t GetLastPoint () const

Int_t GetN () const

Double_tGetX () const

Double_tGetY () const

Option_tGetOption () const

virtual void ls (Option_t *option="") const
 List this polyline with its attributes. More...

virtual Int_t Merge (TCollection *list)
 Merge polylines in the collection in this polyline. More...

virtual void Paint (Option_t *option="")
 Paint this polyline with its current attributes. More...

virtual void PaintPolyLine (Int_t n, Double_t *x, Double_t *y, Option_t *option="")
 Draw this polyline with new coordinates. More...

virtual void PaintPolyLineNDC (Int_t n, Double_t *x, Double_t *y, Option_t *option="")
 Draw this polyline with new coordinates in NDC. More...

virtual void Print (Option_t *option="") const
 Dump this polyline with its attributes. More...

virtual void SetNDC (Bool_t isNDC=kTRUE)
 Set NDC mode on if isNDC = kTRUE, off otherwise. More...

virtual Int_t SetNextPoint (Double_t x, Double_t y)
 Set point following LastPoint to x, y. More...

virtual void SetOption (Option_t *option="")

virtual void SetPoint (Int_t point, Double_t x, Double_t y)
 Set point number n to (x, y) If n is greater than the current size, the arrays are automatically extended. More...

virtual void SetPolyLine (Int_t n)
 Resize this polyline to size n. More...

virtual void SetPolyLine (Int_t n, Float_t *x, Float_t *y, Option_t *option="")
 Set new values for this polyline (single precision). More...

virtual void SetPolyLine (Int_t n, Double_t *x, Double_t *y3, Option_t *option="")
 Set new values for this polyline (double precision). More...

virtual Int_t Size () const

- Public Member Functions inherited from TObject
 TObject ()

 TObject (const TObject &object)
 TObject copy ctor. More...

TObjectoperator= (const TObject &rhs)
 TObject assignment operator. More...

virtual ~TObject ()
 TObject destructor. More...

virtual void AppendPad (Option_t *option="")
 Append graphics object to current pad. More...

virtual void Browse (TBrowser *b)
 Browse object. May be overridden for another default action. More...

virtual const char * ClassName () const
 Returns name of class to which the object belongs. More...

virtual void Clear (Option_t *="")

virtual TObjectClone (const char *newname="") const
 Make a clone of an object using the Streamer facility. More...

virtual Int_t Compare (const TObject *obj) const
 Compare abstract method. More...

virtual void Delete (Option_t *option="")
 Delete this object. More...

virtual void DrawClass () const
 Draw class inheritance tree of the class to which this object belongs. More...

virtual TObjectDrawClone (Option_t *option="") const
 Draw a clone of this object in the current pad. More...

virtual void Dump () const
 Dump contents of object on stdout. More...

virtual void Execute (const char *method, const char *params, Int_t *error=0)
 Execute method on this object with the given parameter string, e.g. More...

virtual void Execute (TMethod *method, TObjArray *params, Int_t *error=0)
 Execute method on this object with parameters stored in the TObjArray. More...

virtual TObjectFindObject (const char *name) const
 Must be redefined in derived classes. More...

virtual TObjectFindObject (const TObject *obj) const
 Must be redefined in derived classes. More...

virtual Option_tGetDrawOption () const
 Get option used by the graphics system to draw this object. More...

virtual UInt_t GetUniqueID () const
 Return the unique object id. More...

virtual const char * GetName () const
 Returns name of object. More...

virtual const char * GetIconName () const
 Returns mime type name of object. More...

virtual char * GetObjectInfo (Int_t px, Int_t py) const
 Returns string containing info about the object at position (px,py). More...

virtual const char * GetTitle () const
 Returns title of object. More...

virtual Bool_t HandleTimer (TTimer *timer)
 Execute action in response of a timer timing out. More...

virtual ULong_t Hash () const
 Return hash value for this object. More...

virtual Bool_t InheritsFrom (const char *classname) const
 Returns kTRUE if object inherits from class "classname". More...

virtual Bool_t InheritsFrom (const TClass *cl) const
 Returns kTRUE if object inherits from TClass cl. More...

virtual void Inspect () const
 Dump contents of this object in a graphics canvas. More...

virtual Bool_t IsFolder () const
 Returns kTRUE in case object contains browsable objects (like containers or lists of other objects). More...

virtual Bool_t IsEqual (const TObject *obj) const
 Default equal comparison (objects are equal if they have the same address in memory). More...

virtual Bool_t IsSortable () const

Bool_t IsOnHeap () const

Bool_t IsZombie () const

virtual Bool_t Notify ()
 This method must be overridden to handle object notification. More...

virtual void Pop ()
 Pop on object drawn in a pad to the top of the display list. More...

virtual Int_t Read (const char *name)
 Read contents of object with specified name from the current directory. More...

virtual void RecursiveRemove (TObject *obj)
 Recursively remove this object from a list. More...

virtual void SaveAs (const char *filename="", Option_t *option="") const
 Save this object in the file specified by filename. More...

virtual void SetDrawOption (Option_t *option="")
 Set drawing option for object. More...

virtual void SetUniqueID (UInt_t uid)
 Set the unique object id. More...

virtual void UseCurrentStyle ()
 Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked. More...

virtual Int_t Write (const char *name=0, Int_t option=0, Int_t bufsize=0)
 Write this object to the current directory. More...

virtual Int_t Write (const char *name=0, Int_t option=0, Int_t bufsize=0) const
 Write this object to the current directory. More...

voidoperator new (size_t sz)

voidoperator new[] (size_t sz)

voidoperator new (size_t sz, void *vp)

voidoperator new[] (size_t sz, void *vp)

void operator delete (void *ptr)
 Operator delete. More...

void operator delete[] (void *ptr)
 Operator delete []. More...

void SetBit (UInt_t f, Bool_t set)
 Set or unset the user status bits as specified in f. More...

void SetBit (UInt_t f)

void ResetBit (UInt_t f)

Bool_t TestBit (UInt_t f) const

Int_t TestBits (UInt_t f) const

void InvertBit (UInt_t f)

virtual void Info (const char *method, const char *msgfmt,...) const
 Issue info message. More...

virtual void Warning (const char *method, const char *msgfmt,...) const
 Issue warning message. More...

virtual void Error (const char *method, const char *msgfmt,...) const
 Issue error message. More...

virtual void SysError (const char *method, const char *msgfmt,...) const
 Issue system error message. More...

virtual void Fatal (const char *method, const char *msgfmt,...) const
 Issue fatal error message. More...

void AbstractMethod (const char *method) const
 Use this method to implement an "abstract" method that you don't want to leave purely abstract. More...

void MayNotUse (const char *method) const
 Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary). More...

void Obsolete (const char *method, const char *asOfVers, const char *removedFromVers) const
 Use this method to declare a method obsolete. More...

- Public Member Functions inherited from TAttLine
 TAttLine ()
 AttLine default constructor. More...

 TAttLine (Color_t lcolor, Style_t lstyle, Width_t lwidth)
 AttLine normal constructor. More...

virtual ~TAttLine ()
 AttLine destructor. More...

void Copy (TAttLine &attline) const
 Copy this line attributes to a new TAttLine. More...

Int_t DistancetoLine (Int_t px, Int_t py, Double_t xp1, Double_t yp1, Double_t xp2, Double_t yp2)
 Compute distance from point px,py to a line. More...

virtual Color_t GetLineColor () const

virtual Style_t GetLineStyle () const

virtual Width_t GetLineWidth () const

virtual void Modify ()
 Change current line attributes if necessary. More...

virtual void ResetAttLine (Option_t *option="")
 Reset this line attributes to default values. More...

virtual void SaveLineAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1, Int_t widdef=1)
 Save line attributes as C++ statement(s) on output stream out. More...

virtual void SetLineAttributes ()
 Invoke the DialogCanvas Line attributes. More...

virtual void SetLineColor (Color_t lcolor)

virtual void SetLineColorAlpha (Color_t lcolor, Float_t lalpha)
 Set a transparent line color. More...

virtual void SetLineStyle (Style_t lstyle)

virtual void SetLineWidth (Width_t lwidth)

 ClassDef (TAttLine, 2)

- Public Member Functions inherited from TAttFill
 TAttFill ()

 TAttFill (Color_t fcolor, Style_t fstyle)
 AttFill normal constructor. More...

virtual ~TAttFill ()
 AttFill destructor. More...

void Copy (TAttFill &attfill) const
 Copy this fill attributes to a new TAttFill. More...

virtual Color_t GetFillColor () const

virtual Style_t GetFillStyle () const

virtual Bool_t IsTransparent () const

virtual void Modify ()
 Change current fill area attributes if necessary. More...

virtual void ResetAttFill (Option_t *option="")
 Reset this fill attributes to default values. More...

virtual void SaveFillAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1001)
 Save fill attributes as C++ statement(s) on output stream out. More...

virtual void SetFillAttributes ()
 Invoke the DialogCanvas Fill attributes. More...

virtual void SetFillColor (Color_t fcolor)

virtual void SetFillColorAlpha (Color_t fcolor, Float_t falpha)
 Set a transparent fill color. More...

virtual void SetFillStyle (Style_t fstyle)

- Public Member Functions inherited from TAttBBox2D
virtual ~TAttBBox2D ()

 ClassDef (TAttBBox2D, 0)


Static Public Member Functions

static void SetDefaultWaveLength (Double_t WaveLength)
 Set default wave length. More...

static void SetDefaultAmplitude (Double_t Amplitude)
 Set default wave amplitude. More...

static void SetDefaultIsCurly (Bool_t IsCurly)
 Set default "IsCurly". More...

static Double_t GetDefaultWaveLength ()
 Get default wave length. More...

static Double_t GetDefaultAmplitude ()
 Get default wave amplitude. More...

static Bool_t GetDefaultIsCurly ()
 Get default "IsCurly". More...

- Static Public Member Functions inherited from TCurlyLine
static void SetDefaultWaveLength (Double_t WaveLength)
 Set default wave length. More...

static void SetDefaultAmplitude (Double_t Amplitude)
 Set default amplitude. More...

static void SetDefaultIsCurly (Bool_t IsCurly)
 Set default "IsCurly". More...

static Double_t GetDefaultWaveLength ()
 Get default wave length. More...

static Double_t GetDefaultAmplitude ()
 Get default amplitude. More...

static Bool_t GetDefaultIsCurly ()
 Get default "IsCurly". More...

- Static Public Member Functions inherited from TObject
static Long_t GetDtorOnly ()
 Return destructor only flag. More...

static void SetDtorOnly (void *obj)
 Set destructor only flag. More...

static Bool_t GetObjectStat ()
 Get status of object stat flag. More...

static void SetObjectStat (Bool_t stat)
 Turn on/off tracking of objects in the TObjectTable. More...


Private Attributes

Double_t fR1

Double_t fPhimin

Double_t fPhimax

Double_t fTheta


Static Private Attributes

static Double_t fgDefaultWaveLength = 0.02

static Double_t fgDefaultAmplitude = 0.01

static Bool_t fgDefaultIsCurly = kTRUE


Additional Inherited Members

- Public Types inherited from TPolyLine
enum  { kPolyLineNDC = BIT(14) }

- Public Types inherited from TObject
enum  EStatusBits {
  kCanDelete = BIT(0), kMustCleanup = BIT(3), kObjInCanvas = BIT(3), kIsReferenced = BIT(4),
  kHasUUID = BIT(5), kCannotPick = BIT(6), kNoContextMenu = BIT(8), kInvalidObject = BIT(13)
}

enum  { kIsOnHeap = 0x01000000, kNotDeleted = 0x02000000, kZombie = 0x04000000, kBitMask = 0x00ffffff }

enum  { kSingleKey = BIT(0), kOverwrite = BIT(1), kWriteDelete = BIT(2) }

- Protected Member Functions inherited from TPolyLine
TPolyLineoperator= (const TPolyLine &)
 assignment operator More...

- Protected Member Functions inherited from TObject
void MakeZombie ()

virtual void DoError (int level, const char *location, const char *fmt, va_list va) const
 Interface to ErrorHandler (protected). More...

- Protected Attributes inherited from TCurlyLine
Double_t fX1

Double_t fY1

Double_t fX2

Double_t fY2

Double_t fWaveLength

Double_t fAmplitude

Int_t fNsteps

Bool_t fIsCurly

- Protected Attributes inherited from TPolyLine
Int_t fN

Int_t fLastPoint

Double_tfX

Double_tfY

TString fOption

- Protected Attributes inherited from TAttLine
Color_t fLineColor

Style_t fLineStyle

Width_t fLineWidth

- Protected Attributes inherited from TAttFill
Color_t fFillColor

Style_t fFillStyle

- Static Protected Attributes inherited from TCurlyLine
static Double_t fgDefaultWaveLength = 0.02

static Double_t fgDefaultAmplitude = 0.01

static Bool_t fgDefaultIsCurly = kTRUE


#include <TCurlyArc.h>

Inheritance diagram for TCurlyArc:
[legend]

Constructor & Destructor Documentation

TCurlyArc::TCurlyArc ( )
TCurlyArc::TCurlyArc ( Double_t  x1,
Double_t  y1,
Double_t  rad,
Double_t  phimin,
Double_t  phimax,
Double_t  wl = .02,
Double_t  amp = .01
)

Create a new TCurlyArc with center (x1, y1) and radius rad.

The wavelength and amplitude are given in percent of the line length phimin and phimax are given in degrees.

Definition at line 59 of file TCurlyArc.cxx.

virtual TCurlyArc::~TCurlyArc ( )
inlinevirtual

Definition at line 42 of file TCurlyArc.h.

Member Function Documentation

void TCurlyArc::Build ( )
virtual

Create a curly (Gluon) or wavy (Gamma) arc.

Reimplemented from TCurlyLine.

Definition at line 76 of file TCurlyArc.cxx.

Referenced by ExecuteEvent(), SetBBoxCenter(), SetBBoxCenterX(), SetBBoxCenterY(), SetCenter(), SetPhimax(), SetPhimin(), SetRadius(), and TCurlyArc().

Int_t TCurlyArc::DistancetoPrimitive ( Int_t  px,
Int_t  py
)
virtual

Compute distance from point px,py to an arc.

Compute the closest distance of approach from point px,py to this arc. The distance is computed in pixels units.

Reimplemented from TPolyLine.

Definition at line 124 of file TCurlyArc.cxx.

void TCurlyArc::ExecuteEvent ( Int_t  event,
Int_t  px,
Int_t  py
)
virtual

Execute action corresponding to one event.

This member function is called when a TCurlyArc is clicked with the locator

If Left button clicked on one of the line end points, this point follows the cursor until button is released.

if Middle button clicked, the line is moved parallel to itself until the button is released.

Reimplemented from TPolyLine.

Definition at line 156 of file TCurlyArc.cxx.

Rectangle_t TCurlyArc::GetBBox ( )
virtual

Return the bounding Box of the Line.

Reimplemented from TCurlyLine.

Definition at line 518 of file TCurlyArc.cxx.

TPoint TCurlyArc::GetBBoxCenter ( )
virtual

Return the center of the BoundingBox as TPoint in pixels.

Reimplemented from TCurlyLine.

Definition at line 533 of file TCurlyArc.cxx.

Double_t TCurlyArc::GetDefaultAmplitude ( )
static

Get default wave amplitude.

Definition at line 502 of file TCurlyArc.cxx.

Referenced by TCreatePrimitives::Line().

Bool_t TCurlyArc::GetDefaultIsCurly ( )
static

Get default "IsCurly".

Definition at line 510 of file TCurlyArc.cxx.

Double_t TCurlyArc::GetDefaultWaveLength ( )
static

Get default wave length.

Definition at line 494 of file TCurlyArc.cxx.

Referenced by TCreatePrimitives::Line().

Double_t TCurlyArc::GetPhimax ( ) const
inline

Definition at line 48 of file TCurlyArc.h.

Referenced by TCurlyArcEditor::SetModel().

Double_t TCurlyArc::GetPhimin ( ) const
inline

Definition at line 47 of file TCurlyArc.h.

Referenced by TCurlyArcEditor::SetModel().

Double_t TCurlyArc::GetRadius ( ) const
inline

Definition at line 46 of file TCurlyArc.h.

Referenced by TCurlyArcEditor::SetModel().

void TCurlyArc::SavePrimitive ( std::ostream &  out,
Option_t = ""
)
virtual

Save primitive as a C++ statement(s) on output stream out.

Reimplemented from TCurlyLine.

Definition at line 413 of file TCurlyArc.cxx.

void TCurlyArc::SetBBoxCenter ( const TPoint p)
virtual

Set center of the BoundingBox.

Reimplemented from TCurlyLine.

Definition at line 544 of file TCurlyArc.cxx.

void TCurlyArc::SetBBoxCenterX ( const Int_t  x)
virtual

Set X coordinate of the center of the BoundingBox.

Reimplemented from TCurlyLine.

Definition at line 554 of file TCurlyArc.cxx.

void TCurlyArc::SetBBoxCenterY ( const Int_t  y)
virtual

Set Y coordinate of the center of the BoundingBox.

Reimplemented from TCurlyLine.

Definition at line 563 of file TCurlyArc.cxx.

void TCurlyArc::SetBBoxX1 ( const Int_t  x)
virtual

Set left hand side of BoundingBox to a value (resize in x direction on left)

Reimplemented from TCurlyLine.

Definition at line 573 of file TCurlyArc.cxx.

void TCurlyArc::SetBBoxX2 ( const Int_t  x)
virtual

Set right hand side of BoundingBox to a value (resize in x direction on right)

Reimplemented from TCurlyLine.

Definition at line 586 of file TCurlyArc.cxx.

void TCurlyArc::SetBBoxY1 ( const Int_t  y)
virtual

Set top of BoundingBox to a value (resize in y direction on top)

Reimplemented from TCurlyLine.

Definition at line 598 of file TCurlyArc.cxx.

void TCurlyArc::SetBBoxY2 ( const Int_t  y)
virtual

Set bottom of BoundingBox to a value (resize in y direction on bottom)

Reimplemented from TCurlyLine.

Definition at line 613 of file TCurlyArc.cxx.

void TCurlyArc::SetCenter ( Double_t  x1,
Double_t  y1
)
virtual

Set Curly Arc center.

Definition at line 433 of file TCurlyArc.cxx.

Referenced by TCurlyArcEditor::DoCenterXY().

void TCurlyArc::SetDefaultAmplitude ( Double_t  Amplitude)
static

Set default wave amplitude.

Definition at line 478 of file TCurlyArc.cxx.

void TCurlyArc::SetDefaultIsCurly ( Bool_t  IsCurly)
static

Set default "IsCurly".

Definition at line 486 of file TCurlyArc.cxx.

void TCurlyArc::SetDefaultWaveLength ( Double_t  WaveLength)
static

Set default wave length.

Definition at line 470 of file TCurlyArc.cxx.

void TCurlyArc::SetPhimax ( Double_t  phimax)
virtual

Set Curly Arc maximum Phi.

Definition at line 461 of file TCurlyArc.cxx.

Referenced by TCurlyArcEditor::DoPhimax().

void TCurlyArc::SetPhimin ( Double_t  phimin)
virtual

Set Curly Arc minimum Phi.

Definition at line 452 of file TCurlyArc.cxx.

Referenced by TCurlyArcEditor::DoPhimin().

void TCurlyArc::SetRadius ( Double_t  radius)
virtual

Set Curly Arc radius.

Definition at line 443 of file TCurlyArc.cxx.

Referenced by TCurlyArcEditor::DoRadius(), ExecuteEvent(), and TCreatePrimitives::Line().

Member Data Documentation

Double_t TCurlyArc::fgDefaultAmplitude = 0.01
staticprivate

Definition at line 34 of file TCurlyArc.h.

Referenced by GetDefaultAmplitude(), and SetDefaultAmplitude().

Bool_t TCurlyArc::fgDefaultIsCurly = kTRUE
staticprivate

Definition at line 35 of file TCurlyArc.h.

Referenced by GetDefaultIsCurly(), SetDefaultIsCurly(), and TCurlyArc().

Double_t TCurlyArc::fgDefaultWaveLength = 0.02
staticprivate

Definition at line 33 of file TCurlyArc.h.

Referenced by GetDefaultWaveLength(), and SetDefaultWaveLength().

Double_t TCurlyArc::fPhimax
private
Double_t TCurlyArc::fPhimin
private
Double_t TCurlyArc::fR1
private
Double_t TCurlyArc::fTheta
private

Definition at line 31 of file TCurlyArc.h.

Referenced by TCurlyArc().

Collaboration diagram for TCurlyArc:
[legend]

The documentation for this class was generated from the following files:
