testUnfold7c.C File Reference

Detailed Description

View in nbviewer Open in SWAN
Test program for the classes TUnfoldDensity and TUnfoldBinning.

A toy test of the TUnfold package

This example is documented in conference proceedings:

arXiv:1611.01927 12th Conference on Quark Confinement and the Hadron Spectrum (Confinement XII)

This is an example of unfolding a one-dimensional distribution. It compares various unfolding methods:

      matrix inversion, template fit, L-curve scan,
      iterative unfolding, etc

Further details can be found in talk by S.Schmitt at:

XII Quark Confinement and the Hadron Spectrum 29.8. - 3.9.2016 Thessaloniki, Greece statictics session (+proceedings)

The example comprises several macros

  • testUnfold7a.C create root files with TTree objects for signal, background and data
    • write files testUnfold7_signal.root testUnfold7_background.root testUnfold7_data.root
  • testUnfold7b.C loop over trees and fill histograms based on the TUnfoldBinning objects
    • read testUnfold7binning.xml testUnfold7_signal.root testUnfold7_background.root testUnfold7_data.root
    • write testUnfold7_histograms.root
  • testUnfold7c.C run the unfolding
    • read testUnfold7_histograms.root
    • write testUnfold7_result.root
    • write many histograms, to compare various unfolding methods
#include <iostream>
#include <cmath>
#include <map>
#include <TMath.h>
#include <TCanvas.h>
#include <TStyle.h>
#include <TGraph.h>
#include <TGraphErrors.h>
#include <TFile.h>
#include <TROOT.h>
#include <TText.h>
#include <TLine.h>
#include <TLegend.h>
#include <TH1.h>
#include <TF1.h>
#include <TFitter.h>
#include <TMatrixD.h>
#include <TMatrixDSym.h>
#include <TVectorD.h>
#include <TFitResult.h>
#include <TRandom3.h>
#include "TUnfoldDensity.h"
using std::vector, std::pair, std::cout;
// #define PRINT_MATRIX_L
#define TEST_INPUT_COVARIANCE
void CreateHistogramCopies(TH1 *h[3],TUnfoldBinning const *binning);
void CreateHistogramCopies(TH2 *h[3],TUnfoldBinning const *binningX);
TH2 *AddOverflowXY(TH2 *h,double widthX,double widthY);
TH1 *AddOverflowX(TH1 *h,double width);
void DrawOverflowX(TH1 *h,double posy);
void DrawOverflowY(TH1 *h,double posx);
double const kLegendFontSize=0.05;
int kNbinC=0;
void DrawPadProbability(TH2 *h);
void DrawPadEfficiency(TH1 *h);
void DrawPadReco(TH1 *histMcRec,TH1 *histMcbgrRec,TH1 *histDataRec,
TH1 *histDataUnfold,TH2 *histProbability,TH2 *histRhoij);
void DrawPadTruth(TH1 *histMcsigGen,TH1 *histDataGen,TH1 *histDataUnfold,
char const *text=nullptr,double tau=0.0,vector<double> const *r=nullptr,
TF1 *f=nullptr);
void DrawPadCorrelations(TH2 *h,
vector<pair<TF1*,vector<double> > > const *table);
TFitResultPtr DoFit(TH1 *h,TH2 *rho,TH1 *truth,char const *text,
vector<pair<TF1*,vector<double> > > &table,int niter=0);
void GetNiterGraphs(int iFirst,int iLast,vector<pair<TF1*,
vector<double> > > const &table,int color,
TGraph *graph[4],int style);
void GetNiterHist(int ifit,vector<pair<TF1*,vector<double> > > const &table,
TH1 *hist[4],int color,int style,int fillStyle);
#ifdef WITH_IDS
void IDSfirst(TVectorD *data, TVectorD *dataErr, TMatrixD *A_, Double_t lambdaL_, TVectorD* &unfres1IDS_,TVectorD *&soustr);
void IDSiterate(TVectorD *data, TVectorD *dataErr, TMatrixD *A_,TMatrixD *Am_,
Double_t lambdaU_, Double_t lambdaM_, Double_t lambdaS_,
TVectorD* &unfres2IDS_ ,TVectorD *&soustr);
#endif
TRandom3 *g_rnd;
void testUnfold7c()
{
// switch on histogram errors
g_rnd=new TRandom3(4711);
//==============================================
// step 1 : open output file
TFile *outputFile=new TFile("testUnfold7_results.root","recreate");
//==============================================
// step 2 : read binning schemes and input histograms
TFile *inputFile=new TFile("testUnfold7_histograms.root");
outputFile->cd();
TUnfoldBinning *fineBinning,*coarseBinning;
inputFile->GetObject("fine",fineBinning);
inputFile->GetObject("coarse",coarseBinning);
if((!fineBinning)||(!coarseBinning)) {
cout<<"problem to read binning schemes\n";
}
// save binning schemes to output file
fineBinning->Write();
coarseBinning->Write();
// read histograms
#define READ(TYPE,binning,name) \
TYPE *name[3]; inputFile->GetObject(#name,name[0]); \
name[0]->Write(); \
if(!name[0]) cout<<"Error reading " #name "\n"; \
CreateHistogramCopies(name,binning);
outputFile->cd();
READ(TH1,fineBinning,histDataRecF);
READ(TH1,coarseBinning,histDataRecC);
READ(TH1,fineBinning,histDataBgrF);
READ(TH1,coarseBinning,histDataBgrC);
READ(TH1,coarseBinning,histDataGen);
READ(TH2,fineBinning,histMcsigGenRecF);
READ(TH2,coarseBinning,histMcsigGenRecC);
READ(TH1,fineBinning,histMcsigRecF);
READ(TH1,coarseBinning,histMcsigRecC);
READ(TH1,coarseBinning,histMcsigGen);
READ(TH1,fineBinning,histMcbgrRecF);
READ(TH1,coarseBinning,histMcbgrRecC);
TH1 *histOutputCtau0[3];
TH2 *histRhoCtau0;
TH1 *histOutputCLCurve[3];
//TH2 *histRhoCLCurve;
TH2 *histProbC;
double tauMin=1.e-4;
double tauMax=1.e-1;
double fBgr=1.0; // 0.2/0.25;
double biasScale=1.0;
//double tauC;
{
TUnfoldDensity *tunfoldC=
new TUnfoldDensity(histMcsigGenRecC[0],
coarseBinning,
coarseBinning);
tunfoldC->SetInput(histDataRecC[0],biasScale);
tunfoldC->SubtractBackground(histMcbgrRecC[0],"BGR",fBgr,0.0);
tunfoldC->DoUnfold(0.);
histOutputCtau0[0]=tunfoldC->GetOutput("histOutputCtau0");
histRhoCtau0=tunfoldC->GetRhoIJtotal("histRhoCtau0");
CreateHistogramCopies(histOutputCtau0,coarseBinning);
tunfoldC->ScanLcurve(50,tauMin,tauMax,nullptr);
/* tauC= */tunfoldC->GetTau();
//tunfoldC->ScanTau(50,1.E-7,1.E-1,0,TUnfoldDensity::kEScanTauRhoAvg);
histOutputCLCurve[0]=tunfoldC->GetOutput("histOutputCLCurve");
/* histRhoCLCurve= */tunfoldC->GetRhoIJtotal("histRhoCLCurve");
CreateHistogramCopies(histOutputCLCurve,coarseBinning);
histProbC=tunfoldC->GetProbabilityMatrix("histProbC",";P_T(gen);P_T(rec)");
}
TH1 *histOutputFtau0[3];
TH2 *histRhoFtau0;
TH1 *histOutputFLCurve[3];
//TH2 *histRhoFLCurve;
TH2 *histProbF;
TGraph *lCurve;
TSpline *logTauX,*logTauY;
tauMin=3.E-4;
tauMax=3.E-2;
//double tauF;
{
TUnfoldDensity *tunfoldF=
new TUnfoldDensity(histMcsigGenRecF[0],
coarseBinning,
fineBinning);
tunfoldF->SetInput(histDataRecF[0],biasScale);
tunfoldF->SubtractBackground(histMcbgrRecF[0],"BGR",fBgr,0.0);
tunfoldF->DoUnfold(0.);
histOutputFtau0[0]=tunfoldF->GetOutput("histOutputFtau0");
histRhoFtau0=tunfoldF->GetRhoIJtotal("histRhoFtau0");
CreateHistogramCopies(histOutputFtau0,coarseBinning);
tunfoldF->ScanLcurve(50,tauMin,tauMax,nullptr);
//tunfoldF->DoUnfold(tauC);
/* tauF= */tunfoldF->GetTau();
//tunfoldF->ScanTau(50,1.E-7,1.E-1,0,TUnfoldDensity::kEScanTauRhoAvg);
histOutputFLCurve[0]=tunfoldF->GetOutput("histOutputFLCurve");
/* histRhoFLCurve= */tunfoldF->GetRhoIJtotal("histRhoFLCurve");
CreateHistogramCopies(histOutputFLCurve,coarseBinning);
histProbF=tunfoldF->GetProbabilityMatrix("histProbF",";P_T(gen);P_T(rec)");
}
TH1 *histOutputFAtau0[3];
TH2 *histRhoFAtau0;
TH1 *histOutputFALCurve[3];
TH2 *histRhoFALCurve;
TH1 *histOutputFArho[3];
TH2 *histRhoFArho;
TSpline *rhoScan=nullptr;
TSpline *logTauCurvature=nullptr;
double tauFA,tauFArho;
{
TUnfoldDensity *tunfoldFA=
new TUnfoldDensity(histMcsigGenRecF[0],
coarseBinning,
fineBinning);
tunfoldFA->SetInput(histDataRecF[0],biasScale);
tunfoldFA->SubtractBackground(histMcbgrRecF[0],"BGR",fBgr,0.0);
tunfoldFA->DoUnfold(0.);
histOutputFAtau0[0]=tunfoldFA->GetOutput("histOutputFAtau0");
histRhoFAtau0=tunfoldFA->GetRhoIJtotal("histRhoFAtau0");
CreateHistogramCopies(histOutputFAtau0,coarseBinning);
tunfoldFA->ScanTau(50,tauMin,tauMax,&rhoScan,TUnfoldDensity::kEScanTauRhoAvg);
tauFArho=tunfoldFA->GetTau();
histOutputFArho[0]=tunfoldFA->GetOutput("histOutputFArho");
histRhoFArho=tunfoldFA->GetRhoIJtotal("histRhoFArho");
CreateHistogramCopies(histOutputFArho,coarseBinning);
tunfoldFA->ScanLcurve(50,tauMin,tauMax,&lCurve,&logTauX,&logTauY,&logTauCurvature);
tauFA=tunfoldFA->GetTau();
histOutputFALCurve[0]=tunfoldFA->GetOutput("histOutputFALCurve");
histRhoFALCurve=tunfoldFA->GetRhoIJtotal("histRhoFALCurve");
CreateHistogramCopies(histOutputFALCurve,coarseBinning);
}
lCurve->Write();
logTauX->Write();
logTauY->Write();
double widthC=coarseBinning->GetBinSize(histProbC->GetNbinsY()+1);
double widthF=fineBinning->GetBinSize(histProbF->GetNbinsY()+1);
TH2 *histProbCO=AddOverflowXY(histProbC,widthC,widthC);
TH2 *histProbFO=AddOverflowXY(histProbF,widthC,widthF);
// efficiency
TH1 *histEfficiencyC=histProbCO->ProjectionX("histEfficiencyC");
kNbinC=histProbCO->GetNbinsX();
// reconstructed quantities with overflow (coarse binning)
// MC: add signal and bgr
TH1 *histMcsigRecCO=AddOverflowX(histMcsigRecC[2],widthC);
TH1 *histMcbgrRecCO=AddOverflowX(histMcbgrRecC[2],widthC);
histMcbgrRecCO->Scale(fBgr);
TH1 *histMcRecCO=(TH1 *)histMcsigRecCO->Clone("histMcRecC0");
histMcRecCO->Add(histMcsigRecCO,histMcbgrRecCO);
TH1 *histDataRecCO=AddOverflowX(histDataRecC[2],widthC);
//TH1 *histDataRecCNO=AddOverflowX(histDataRecC[1],widthC);
TH1 *histMcsigRecFO=AddOverflowX(histMcsigRecF[2],widthF);
TH1 *histMcbgrRecFO=AddOverflowX(histMcbgrRecF[2],widthF);
histMcbgrRecFO->Scale(fBgr);
TH1 *histMcRecFO=(TH1 *)histMcsigRecFO->Clone("histMcRecF0");
histMcRecFO->Add(histMcsigRecFO,histMcbgrRecFO);
TH1 *histDataRecFO=AddOverflowX(histDataRecF[2],widthF);
// truth level with overflow
TH1 *histMcsigGenO=AddOverflowX(histMcsigGen[2],widthC);
TH1 *histDataGenO=AddOverflowX(histDataGen[2],widthC);
// unfolding result with overflow
TH1 *histOutputCtau0O=AddOverflowX(histOutputCtau0[2],widthC);
TH2 *histRhoCtau0O=AddOverflowXY(histRhoCtau0,widthC,widthC);
//TH1 *histOutputCLCurveO=AddOverflowX(histOutputCLCurve[2],widthC);
//TH2 *histRhoCLCurveO=AddOverflowXY(histRhoCLCurve,widthC,widthC);
TH1 *histOutputFtau0O=AddOverflowX(histOutputFtau0[2],widthC);
TH2 *histRhoFtau0O=AddOverflowXY(histRhoFtau0,widthC,widthC);
TH1 *histOutputFAtau0O=AddOverflowX(histOutputFAtau0[2],widthC);
TH2 *histRhoFAtau0O=AddOverflowXY(histRhoFAtau0,widthC,widthC);
//TH1 *histOutputFLCurveO=AddOverflowX(histOutputFLCurve[2],widthC);
//TH2 *histRhoFLCurveO=AddOverflowXY(histRhoFLCurve,widthC,widthC);
TH1 *histOutputFALCurveO=AddOverflowX(histOutputFALCurve[2],widthC);
TH2 *histRhoFALCurveO=AddOverflowXY(histRhoFALCurve,widthC,widthC);
TH1 *histOutputFArhoO=AddOverflowX(histOutputFArho[2],widthC);
TH2 *histRhoFArhoO=AddOverflowXY(histRhoFArho,widthC,widthC);
// bin-by-bin
TH2 *histRhoBBBO=(TH2 *)histRhoCtau0O->Clone("histRhoBBBO");
for(int i=1;i<=histRhoBBBO->GetNbinsX();i++) {
for(int j=1;j<=histRhoBBBO->GetNbinsX();j++) {
histRhoBBBO->SetBinContent(i,j,(i==j)?1.:0.);
}
}
TH1 *histDataBgrsub=(TH1 *)histDataRecCO->Clone("histDataBgrsub");
histDataBgrsub->Add(histMcbgrRecCO,-fBgr);
TH1 *histOutputBBBO=(TH1 *)histDataBgrsub->Clone("histOutputBBBO");
histOutputBBBO->Divide(histMcsigRecCO);
histOutputBBBO->Multiply(histMcsigGenO);
// iterative
int niter=1000;
cout<<"maximum number of iterations: "<<niter<<"\n";
vector <TH1 *>histOutputAgo,histOutputAgorep;
vector <TH2 *>histRhoAgo,histRhoAgorep;
vector<int> nIter;
histOutputAgo.push_back((TH1*)histMcsigGenO->Clone("histOutputAgo-1"));
histOutputAgorep.push_back((TH1*)histMcsigGenO->Clone("histOutputAgorep-1"));
histRhoAgo.push_back((TH2*)histRhoBBBO->Clone("histRhoAgo-1"));
histRhoAgorep.push_back((TH2*)histRhoBBBO->Clone("histRhoAgorep-1"));
nIter.push_back(-1);
int nx=histProbCO->GetNbinsX();
int ny=histProbCO->GetNbinsY();
TMatrixD covAgo(nx+ny,nx+ny);
TMatrixD A(ny,nx);
TMatrixD AToverEps(nx,ny);
for(int i=0;i<nx;i++) {
double epsilonI=0.;
for(int j=0;j<ny;j++) {
epsilonI+= histProbCO->GetBinContent(i+1,j+1);
}
for(int j=0;j<ny;j++) {
double aji=histProbCO->GetBinContent(i+1,j+1);
A(j,i)=aji;
AToverEps(i,j)=aji/epsilonI;
}
}
for(int i=0;i<nx;i++) {
covAgo(i,i)=TMath::Power
(histOutputAgo[0]->GetBinError(i+1)
*histOutputAgo[0]->GetXaxis()->GetBinWidth(i+1),2.);
}
for(int i=0;i<ny;i++) {
covAgo(i+nx,i+nx)=TMath::Power
(histDataRecCO->GetBinError(i+1)
*histDataRecCO->GetXaxis()->GetBinWidth(i+1),2.);
}
#define NREPLICA 300
vector<TVectorD *> y(NREPLICA);
vector<TVectorD *> yMb(NREPLICA);
vector<TVectorD *> yErr(NREPLICA);
vector<TVectorD *> x(NREPLICA);
TVectorD b(nx);
for(int nr=0;nr<NREPLICA;nr++) {
x[nr]=new TVectorD(nx);
y[nr]=new TVectorD(ny);
yMb[nr]=new TVectorD(ny);
yErr[nr]=new TVectorD(ny);
}
for(int i=0;i<nx;i++) {
(*x[0])(i)=histOutputAgo[0]->GetBinContent(i+1)
*histOutputAgo[0]->GetXaxis()->GetBinWidth(i+1);
for(int nr=1;nr<NREPLICA;nr++) {
(*x[nr])(i)=(*x[0])(i);
}
}
for(int i=0;i<ny;i++) {
(*y[0])(i)=histDataRecCO->GetBinContent(i+1)
*histDataRecCO->GetXaxis()->GetBinWidth(i+1);
for(int nr=1;nr<NREPLICA;nr++) {
(*y[nr])(i)=g_rnd->Poisson((*y[0])(i));
(*yErr[nr])(i)=TMath::Sqrt((*y[nr])(i));
}
b(i)=histMcbgrRecCO->GetBinContent(i+1)*
histMcbgrRecCO->GetXaxis()->GetBinWidth(i+1);
for(int nr=0;nr<NREPLICA;nr++) {
(*yMb[nr])(i)=(*y[nr])(i)-b(i);
}
}
for(int iter=0;iter<=niter;iter++) {
if(!(iter %100)) cout<<iter<<"\n";
for(int nr=0;nr<NREPLICA;nr++) {
TVectorD yrec=A*(*x[nr])+b;
TVectorD yOverYrec(ny);
for(int j=0;j<ny;j++) {
yOverYrec(j)=(*y[nr])(j)/yrec(j);
}
TVectorD f=AToverEps * yOverYrec;
TVectorD xx(nx);
for(int i=0;i<nx;i++) {
xx(i) = (*x[nr])(i) * f(i);
}
if(nr==0) {
TMatrixD xdf_dr=AToverEps;
for(int i=0;i<nx;i++) {
for(int j=0;j<ny;j++) {
xdf_dr(i,j) *= (*x[nr])(i);
}
}
TMatrixD dr_dxdy(ny,nx+ny);
for(int j=0;j<ny;j++) {
dr_dxdy(j,nx+j)=1.0/yrec(j);
for(int i=0;i<nx;i++) {
dr_dxdy(j,i)= -yOverYrec(j)/yrec(j)*A(j,i);
}
}
TMatrixD dxy_dxy(nx+ny,nx+ny);
dxy_dxy.SetSub(0,0,xdf_dr*dr_dxdy);
for(int i=0;i<nx;i++) {
dxy_dxy(i,i) +=f(i);
}
for(int i=0;i<ny;i++) {
dxy_dxy(nx+i,nx+i) +=1.0;
}
TMatrixD VDT(covAgo,TMatrixD::kMultTranspose,dxy_dxy);
covAgo= dxy_dxy*VDT;
}
(*x[nr])=xx;
}
if((iter<=25)||
((iter<=100)&&(iter %5==0))||
((iter<=1000)&&(iter %50==0))||
(iter %1000==0)) {
nIter.push_back(iter);
TH1 * h=(TH1*)histOutputAgo[0]->Clone
(TString::Format("histOutputAgo%d",iter));
histOutputAgo.push_back(h);
for(int i=0;i<nx;i++) {
double bw=h->GetXaxis()->GetBinWidth(i+1);
h->SetBinContent(i+1,(*x[0])(i)/bw);
h->SetBinError(i+1,TMath::Sqrt(covAgo(i,i))/bw);
}
TH2 *h2=(TH2*)histRhoAgo[0]->Clone
(TString::Format("histRhoAgo%d",iter));
histRhoAgo.push_back(h2);
for(int i=0;i<nx;i++) {
for(int j=0;j<nx;j++) {
double rho= covAgo(i,j)/TMath::Sqrt(covAgo(i,i)*covAgo(j,j));
if((i!=j)&&(TMath::Abs(rho)>=1.0)) {
cout<<"bad error matrix: iter="<<iter<<"\n";
exit(0);
}
h2->SetBinContent(i+1,j+1,rho);
}
}
// error and correlations from replica analysis
h=(TH1*)histOutputAgo[0]->Clone
(TString::Format("histOutputAgorep%d",iter));
h2=(TH2*)histRhoAgo[0]->Clone
(TString::Format("histRhoAgorep%d",iter));
histOutputAgorep.push_back(h);
histRhoAgorep.push_back(h2);
TVectorD mean(nx);
double w=1./(NREPLICA-1.);
for(int nr=1;nr<NREPLICA;nr++) {
mean += w* *x[nr];
}
TMatrixD covAgorep(nx,nx);
for(int nr=1;nr<NREPLICA;nr++) {
//TMatrixD dx= (*x)-mean;
TMatrixD dx(nx,1);
for(int i=0;i<nx;i++) {
dx(i,0)= (*x[nr])(i)-(*x[0])(i);
}
covAgorep += w*TMatrixD(dx,TMatrixD::kMultTranspose,dx);
}
for(int i=0;i<nx;i++) {
double bw=h->GetXaxis()->GetBinWidth(i+1);
h->SetBinContent(i+1,(*x[0])(i)/bw);
h->SetBinError(i+1,TMath::Sqrt(covAgorep(i,i))/bw);
// cout<<i<<" "<<(*x[0])(i)/bw<<" +/-"<<TMath::Sqrt(covAgorep(i,i))/bw<<" "<<TMath::Sqrt(covAgo(i,i))/bw<<"\n";
}
for(int i=0;i<nx;i++) {
for(int j=0;j<nx;j++) {
double rho= covAgorep(i,j)/
TMath::Sqrt(covAgorep(i,i)*covAgorep(j,j));
if((i!=j)&&(TMath::Abs(rho)>=1.0)) {
cout<<"bad error matrix: iter="<<iter<<"\n";
exit(0);
}
h2->SetBinContent(i+1,j+1,rho);
}
}
}
}
#ifdef WITH_IDS
// IDS Malaescu
int niterIDS=100;
vector<TVectorD*> unfresIDS(NREPLICA),soustr(NREPLICA);
cout<<"IDS number of iterations: "<<niterIDS<<"\n";
TMatrixD *Am_IDS[NREPLICA];
TMatrixD A_IDS(ny,nx);
for(int nr=0;nr<NREPLICA;nr++) {
Am_IDS[nr]=new TMatrixD(ny,nx);
}
for(int iy=0;iy<ny;iy++) {
for(int ix=0;ix<nx;ix++) {
A_IDS(iy,ix)=histMcsigGenRecC[0]->GetBinContent(ix+1,iy+1);
}
}
double lambdaL=0.;
Double_t lambdaUmin = 1.0000002;
Double_t lambdaMmin = 0.0000001;
Double_t lambdaS = 0.000001;
double lambdaU=lambdaUmin;
double lambdaM=lambdaMmin;
vector<TH1 *> histOutputIDS;
vector<TH2 *> histRhoIDS;
histOutputIDS.push_back((TH1*)histOutputAgo[0]->Clone("histOutputIDS-1"));
histRhoIDS.push_back((TH2*)histRhoAgo[0]->Clone("histRhoIDS-1"));
histOutputIDS.push_back((TH1*)histOutputAgo[0]->Clone("histOutputIDS0"));
histRhoIDS.push_back((TH2*)histRhoAgo[0]->Clone("histRhoIDS0"));
for(int iter=1;iter<=niterIDS;iter++) {
if(!(iter %10)) cout<<iter<<"\n";
for(int nr=0;nr<NREPLICA;nr++) {
if(iter==1) {
IDSfirst(yMb[nr],yErr[nr],&A_IDS,lambdaL,unfresIDS[nr],soustr[nr]);
} else {
IDSiterate(yMb[nr],yErr[nr],&A_IDS,Am_IDS[nr],
lambdaU,lambdaM,lambdaS,
unfresIDS[nr],soustr[nr]);
}
}
unsigned ix;
for(ix=0;ix<nIter.size();ix++) {
if(nIter[ix]==iter) break;
}
if(ix<nIter.size()) {
TH1 * h=(TH1*)histOutputIDS[0]->Clone
(TString::Format("histOutputIDS%d",iter));
TH2 *h2=(TH2*)histRhoIDS[0]->Clone
(TString::Format("histRhoIDS%d",iter));
histOutputIDS.push_back(h);
histRhoIDS.push_back(h2);
TVectorD mean(nx);
double w=1./(NREPLICA-1.);
for(int nr=1;nr<NREPLICA;nr++) {
mean += w* (*unfresIDS[nr]);
}
TMatrixD covIDSrep(nx,nx);
for(int nr=1;nr<NREPLICA;nr++) {
//TMatrixD dx= (*x)-mean;
TMatrixD dx(nx,1);
for(int i=0;i<nx;i++) {
dx(i,0)= (*unfresIDS[nr])(i)-(*unfresIDS[0])(i);
}
covIDSrep += w*TMatrixD(dx,TMatrixD::kMultTranspose,dx);
}
for(int i=0;i<nx;i++) {
double bw=h->GetXaxis()->GetBinWidth(i+1);
h->SetBinContent(i+1,(*unfresIDS[0])(i)/bw/
histEfficiencyC->GetBinContent(i+1));
h->SetBinError(i+1,TMath::Sqrt(covIDSrep(i,i))/bw/
histEfficiencyC->GetBinContent(i+1));
// cout<<i<<" "<<(*x[0])(i)/bw<<" +/-"<<TMath::Sqrt(covAgorep(i,i))/bw<<" "<<TMath::Sqrt(covAgo(i,i))/bw<<"\n";
}
for(int i=0;i<nx;i++) {
for(int j=0;j<nx;j++) {
double rho= covIDSrep(i,j)/
TMath::Sqrt(covIDSrep(i,i)*covIDSrep(j,j));
if((i!=j)&&(TMath::Abs(rho)>=1.0)) {
cout<<"bad error matrix: iter="<<iter<<"\n";
exit(0);
}
h2->SetBinContent(i+1,j+1,rho);
}
}
}
}
#endif
//double NEdSmc=histDataBgrsub->GetSumOfWeights();
vector<pair<TF1 *,vector<double> > > table;
TCanvas *c1=new TCanvas("c1","",600,600);
TCanvas *c2sq=new TCanvas("c2sq","",600,600);
c2sq->Divide(1,2);
TCanvas *c2w=new TCanvas("c2w","",600,300);
c2w->Divide(2,1);
TCanvas *c4=new TCanvas("c4","",600,600);
c4->Divide(2,2);
//TCanvas *c3n=new TCanvas("c3n","",600,600);
TPad *subn[3];
//gROOT->SetStyle("xTimes2");
subn[0]= new TPad("subn0","",0.,0.5,1.,1.);
//gROOT->SetStyle("square");
subn[1]= new TPad("subn1","",0.,0.,0.5,0.5);
subn[2]= new TPad("subn2","",0.5,0.0,1.,0.5);
for(int i=0;i<3;i++) {
subn[i]->SetFillStyle(0);
subn[i]->Draw();
}
TCanvas *c3c=new TCanvas("c3c","",600,600);
TPad *subc[3];
//gROOT->SetStyle("xTimes2");
subc[0]= new TPad("sub0","",0.,0.5,1.,1.);
//gROOT->SetStyle("squareCOLZ");
subc[1]= new TPad("sub1","",0.,0.,0.5,0.5);
//gROOT->SetStyle("square");
subc[2]= new TPad("sub2","",0.5,0.0,1.,0.5);
for(int i=0;i<3;i++) {
subc[i]->SetFillStyle(0);
subc[i]->Draw();
}
//=========================== example ==================================
c2w->cd(1);
DrawPadTruth(histMcsigGenO,histDataGenO,nullptr);
c2w->cd(2);
DrawPadReco(histMcRecCO,histMcbgrRecCO,histDataRecCO,nullptr,nullptr,nullptr);
c2w->SaveAs("exampleTR.eps");
//=========================== example ==================================
c2w->cd(1);
DrawPadProbability(histProbCO);
c2w->cd(2);
DrawPadEfficiency(histEfficiencyC);
c2w->SaveAs("exampleAE.eps");
int iFitInversion=table.size();
DoFit(histOutputCtau0O,histRhoCtau0O,histDataGenO,"inversion",table);
//=========================== inversion ==================================
subc[0]->cd();
DrawPadTruth(histMcsigGenO,histDataGenO,histOutputCtau0O,"inversion",0.,
&table[table.size()-1].second);
subc[1]->cd();
DrawPadCorrelations(histRhoCtau0O,&table);
subc[2]->cd();
DrawPadReco(histMcRecCO,histMcbgrRecCO,histDataRecCO,
histOutputCtau0O,histProbCO,histRhoCtau0O);
c3c->SaveAs("inversion.eps");
DoFit(histOutputFtau0O,histRhoFtau0O,histDataGenO,"template",table);
//=========================== template ==================================
subc[0]->cd();
DrawPadTruth(histMcsigGenO,histDataGenO,histOutputFtau0O,"fit",0.,
&table[table.size()-1].second);
subc[1]->cd();
DrawPadCorrelations(histRhoFtau0O,&table);
subc[2]->cd();
DrawPadReco(histMcRecFO,histMcbgrRecFO,histDataRecFO,
histOutputFtau0O,histProbFO,histRhoFtau0O);
c3c->SaveAs("template.eps");
DoFit(histOutputFAtau0O,histRhoFAtau0O,histDataGenO,"template+area",table);
//=========================== template+area ==================================
subc[0]->cd();
DrawPadTruth(histMcsigGenO,histDataGenO,histOutputFAtau0O,"fit",0.,
&table[table.size()-1].second);
subc[1]->cd();
DrawPadCorrelations(histRhoFAtau0O,&table);
subc[2]->cd();
DrawPadReco(histMcRecFO,histMcbgrRecFO,histDataRecFO,
histOutputFAtau0O,histProbFO,histRhoFAtau0O);
c3c->SaveAs("templateA.eps");
int iFitFALCurve=table.size();

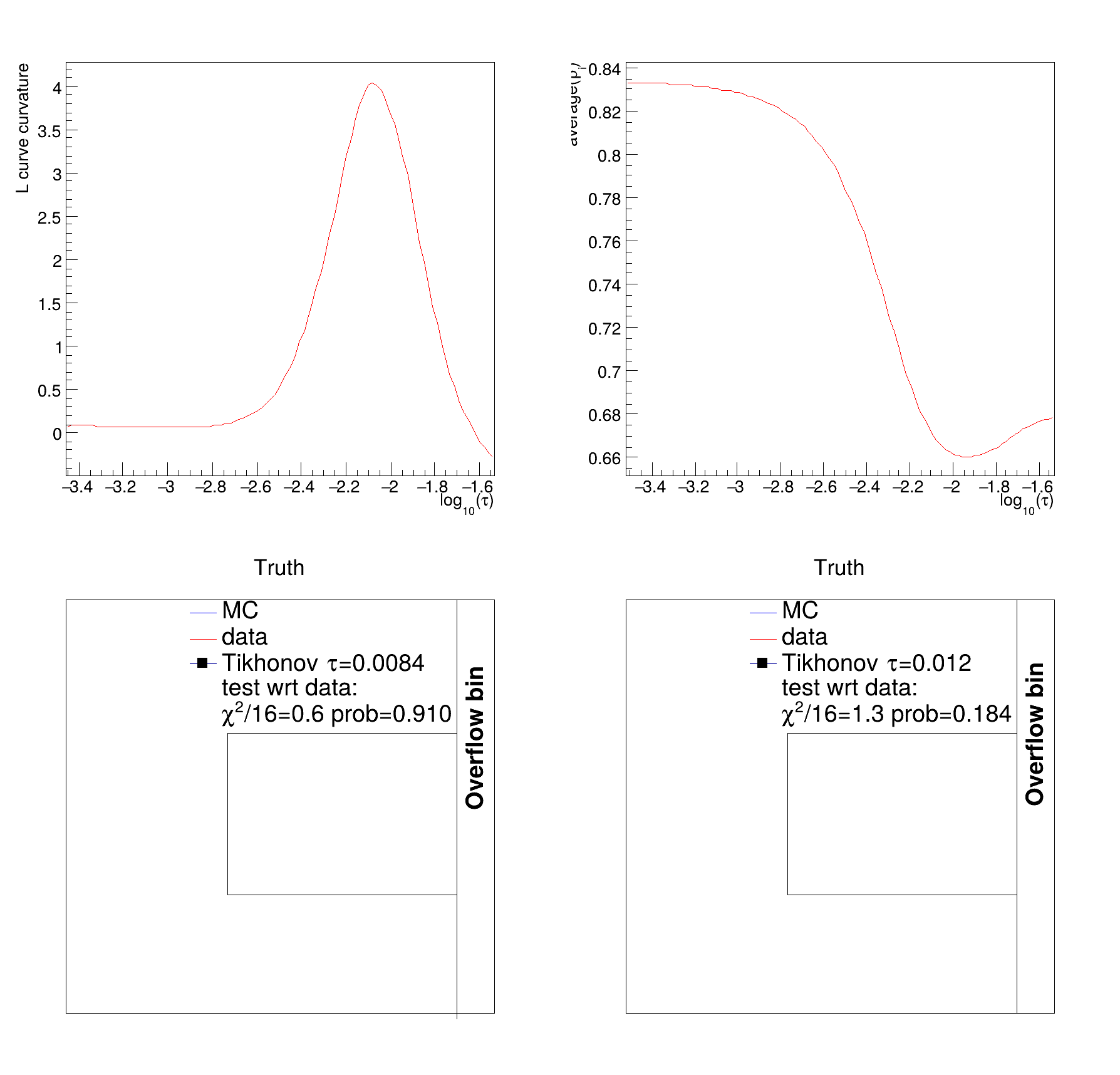

DoFit(histOutputFALCurveO,histRhoFALCurveO,histDataGenO,"Tikhonov+area",table);
//=========================== template+area+tikhonov =====================
subc[0]->cd();
DrawPadTruth(histMcsigGenO,histDataGenO,histOutputFALCurveO,"Tikhonov",tauFA,
&table[table.size()-1].second);
subc[1]->cd();
DrawPadCorrelations(histRhoFALCurveO,&table);
subc[2]->cd();
DrawPadReco(histMcRecFO,histMcbgrRecFO,histDataRecFO,
histOutputFALCurveO,histProbFO,histRhoFALCurveO);
c3c->SaveAs("lcurveFA.eps");
int iFitFArho=table.size();
DoFit(histOutputFArhoO,histRhoFArhoO,histDataGenO,"min(rhomax)",table);
//=========================== template+area+tikhonov =====================
subc[0]->cd();
DrawPadTruth(histMcsigGenO,histDataGenO,histOutputFArhoO,"Tikhonov",tauFArho,
&table[table.size()-1].second);
subc[1]->cd();
DrawPadCorrelations(histRhoFArho,&table);
subc[2]->cd();
DrawPadReco(histMcRecFO,histMcbgrRecFO,histDataRecFO,
histOutputFArhoO,histProbFO,histRhoFArhoO);
c3c->SaveAs("rhoscanFA.eps");
int iFitBinByBin=table.size();
DoFit(histOutputBBBO,histRhoBBBO,histDataGenO,"bin-by-bin",table);
//=========================== bin-by-bin =================================
//c->cd(1);
//DrawPadProbability(histProbCO);
//c->cd(2);
//DrawPadCorrelations(histRhoBBBO,&table);
c2sq->cd(1);
DrawPadReco(histMcRecCO,histMcbgrRecCO,histDataRecCO,
histOutputBBBO,histProbCO,histRhoBBBO);
c2sq->cd(2);
DrawPadTruth(histMcsigGenO,histDataGenO,histOutputBBBO,"bin-by-bin",0.,
&table[table.size()-1].second);
c2sq->SaveAs("binbybin.eps");
//=========================== iterative ===================================
int iAgoFirstFit=table.size();
for(size_t i=1;i<histRhoAgorep.size();i++) {
int n=nIter[i];
bool isFitted=false;
DoFit(histOutputAgorep[i],histRhoAgorep[i],histDataGenO,
TString::Format("iterative, N=%d",n),table,n);
isFitted=true;
subc[0]->cd();
DrawPadTruth(histMcsigGenO,histDataGenO,histOutputAgorep[i],
TString::Format("iterative N=%d",nIter[i]),0.,
isFitted ? &table[table.size()-1].second : nullptr);
subc[1]->cd();
DrawPadCorrelations(histRhoAgorep[i],&table);
subc[2]->cd();
DrawPadReco(histMcRecCO,histMcbgrRecCO,histDataRecCO,
histOutputAgorep[i],histProbCO,histRhoAgorep[i]);
c3c->SaveAs(TString::Format("iterative%d.eps",nIter[i]));
}
int iAgoLastFit=table.size();
#ifdef WITH_IDS
int iIDSFirstFit=table.size();
//=========================== IDS ===================================
for(size_t i=2;i<histRhoIDS.size();i++) {
int n=nIter[i];
bool isFitted=false;
DoFit(histOutputIDS[i],histRhoIDS[i],histDataGenO,
TString::Format("IDS, N=%d",n),table,n);
isFitted=true;
subc[0]->cd();
DrawPadTruth(histMcsigGenO,histDataGenO,histOutputIDS[i],
TString::Format("IDS N=%d",nIter[i]),0.,
isFitted ? &table[table.size()-1].second : 0);
subc[1]->cd();
DrawPadCorrelations(histRhoIDS[i],&table);
subc[2]->cd();
DrawPadReco(histMcRecCO,histMcbgrRecCO,histDataRecCO,
histOutputIDS[i],histProbCO,histRhoIDS[i]);
c3c->SaveAs(TString::Format("ids%d.eps",nIter[i]));
}
int iIDSLastFit=table.size();
#endif
int nfit=table.size();
TH1D *fitChindf=new TH1D("fitChindf",";algorithm;#chi^{2}/NDF",nfit,0,nfit);
TH1D *fitNorm=new TH1D("fitNorm",";algorithm;Landau amplitude [1/GeV]",nfit,0,nfit);
TH1D *fitMu=new TH1D("fitMu",";algorithm;Landau #mu [GeV]",nfit,0,nfit);
TH1D *fitSigma=new TH1D("fitSigma",";algorithm;Landau #sigma [GeV]",nfit,0,nfit);
for(int fit=0;fit<nfit;fit++) {
TF1 *f=table[fit].first;
vector<double> const &r=table[fit].second;
fitChindf->GetXaxis()->SetBinLabel(fit+1,f->GetName());
fitNorm->GetXaxis()->SetBinLabel(fit+1,f->GetName());
fitMu->GetXaxis()->SetBinLabel(fit+1,f->GetName());
fitSigma->GetXaxis()->SetBinLabel(fit+1,f->GetName());
double chi2=r[0];
double ndf=r[1];
fitChindf->SetBinContent(fit+1,chi2/ndf);
fitChindf->SetBinError(fit+1,TMath::Sqrt(2./ndf));
fitNorm->SetBinContent(fit+1,f->GetParameter(0));
fitNorm->SetBinError(fit+1,f->GetParError(0));
fitMu->SetBinContent(fit+1,f->GetParameter(1));
fitMu->SetBinError(fit+1,f->GetParError(1));
fitSigma->SetBinContent(fit+1,f->GetParameter(2));
fitSigma->SetBinError(fit+1,f->GetParError(2));
cout<<"\""<<f->GetName()<<"\","<<r[2]/r[3]<<","<<r[3]
<<","<<TMath::Prob(r[2],r[3])
<<","<<chi2/ndf
<<","<<ndf
<<","<<TMath::Prob(r[0],r[1])
<<","<<r[5];
for(int i=1;i<3;i++) {
cout<<","<<f->GetParameter(i)<<",\"\302\261\","<<f->GetParError(i);
}
cout<<"\n";
}
//=========================== L-curve ==========================
c4->cd(1);
lCurve->SetTitle("L curve;log_{10} L_{x};log_{10} L_{y}");
lCurve->SetLineColor(kRed);
lCurve->Draw("AL");
c4->cd(2);
gPad->Clear();
c4->cd(3);
logTauX->SetTitle(";log_{10} #tau;log_{10} L_{x}");
logTauX->SetLineColor(kBlue);
logTauX->Draw();
c4->cd(4);
logTauY->SetTitle(";log_{10} #tau;log_{10} L_{y}");
logTauY->SetLineColor(kBlue);
logTauY->Draw();
c4->SaveAs("lcurveL.eps");
//========================= rho and L-curve scan ===============
c4->cd(1);
logTauCurvature->SetTitle(";log_{10}(#tau);L curve curvature");
logTauCurvature->SetLineColor(kRed);
logTauCurvature->Draw();
c4->cd(2);
rhoScan->SetTitle(";log_{10}(#tau);average(#rho_{i})");
rhoScan->SetLineColor(kRed);
rhoScan->Draw();
c4->cd(3);
DrawPadTruth(histMcsigGenO,histDataGenO,histOutputFALCurveO,"Tikhonov",tauFA,
&table[iFitFALCurve].second);
c4->cd(4);
DrawPadTruth(histMcsigGenO,histDataGenO,histOutputFArhoO,"Tikhonov",tauFArho,
&table[iFitFArho].second);
c4->SaveAs("scanTau.eps");
TGraph *graphNiterAgoBay[4];
GetNiterGraphs(iAgoFirstFit,iAgoFirstFit+1,table,kRed-2,graphNiterAgoBay,20);
TGraph *graphNiterAgo[4];
GetNiterGraphs(iAgoFirstFit,iAgoLastFit,table,kRed,graphNiterAgo,24);
#ifdef WITH_IDS
TGraph *graphNiterIDS[4];
GetNiterGraphs(iIDSFirstFit,iIDSLastFit,table,kMagenta,graphNiterIDS,21);
#endif
TH1 *histNiterInversion[4];
GetNiterHist(iFitInversion,table,histNiterInversion,kCyan,1,1001);
TH1 *histNiterFALCurve[4];
GetNiterHist(iFitFALCurve,table,histNiterFALCurve,kBlue,2,3353);
TH1 *histNiterFArho[4];
GetNiterHist(iFitFArho,table,histNiterFArho,kAzure-4,3,3353);
TH1 *histNiterBinByBin[4];
GetNiterHist(iFitBinByBin,table,histNiterBinByBin,kOrange+1,3,3335);
histNiterInversion[0]->GetYaxis()->SetRangeUser(0.3,500.);
histNiterInversion[1]->GetYaxis()->SetRangeUser(-0.1,0.9);
histNiterInversion[2]->GetYaxis()->SetRangeUser(5.6,6.3);
histNiterInversion[3]->GetYaxis()->SetRangeUser(1.6,2.4);

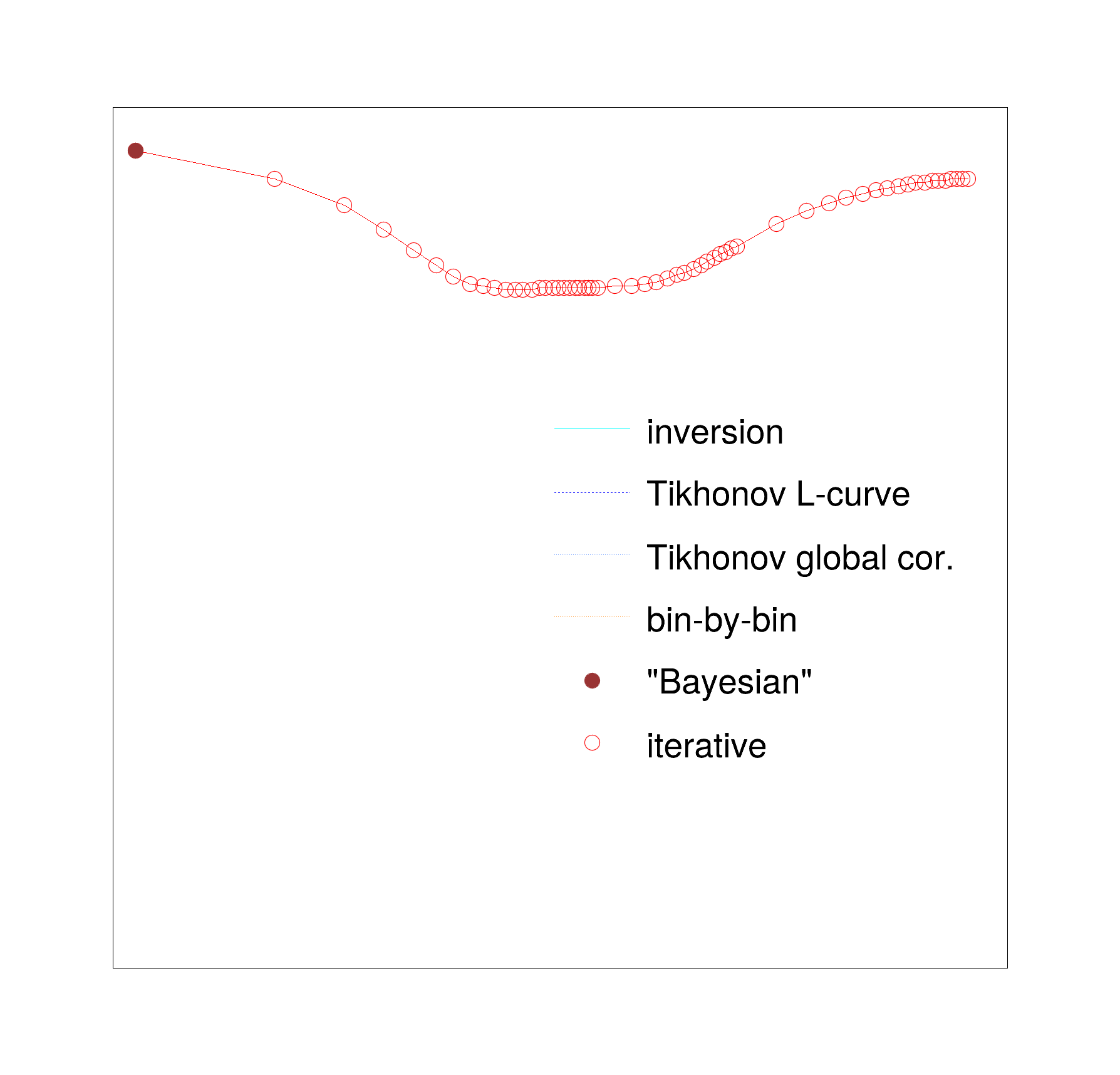

TLine *line=nullptr;
c1->cd();
for(int i=0;i<2;i++) {
gPad->Clear();
gPad->SetLogx();
gPad->SetLogy((i<1));
if(! histNiterInversion[i]) continue;
histNiterInversion[i]->Draw("][");
histNiterFALCurve[i]->Draw("SAME ][");
histNiterFArho[i]->Draw("SAME ][");
histNiterBinByBin[i]->Draw("SAME ][");
graphNiterAgo[i]->Draw("LP");
graphNiterAgoBay[i]->SetMarkerStyle(20);
graphNiterAgoBay[i]->Draw("P");
#ifdef WITH_IDS
graphNiterIDS[i]->Draw("LP");
#endif
TLegend *legend;
if(i==1) {
legend=new TLegend(0.48,0.28,0.87,0.63);
} else {
legend=new TLegend(0.45,0.5,0.88,0.88);
}
legend->SetBorderSize(0);
legend->SetFillStyle(1001);
legend->SetFillColor(kWhite);
legend->SetTextSize(kLegendFontSize*0.7);
legend->AddEntry( histNiterInversion[0],"inversion","l");
legend->AddEntry( histNiterFALCurve[0],"Tikhonov L-curve","l");
legend->AddEntry( histNiterFArho[0],"Tikhonov global cor.","l");
legend->AddEntry( histNiterBinByBin[0],"bin-by-bin","l");
legend->AddEntry( graphNiterAgoBay[0],"\"Bayesian\"","p");
legend->AddEntry( graphNiterAgo[0],"iterative","p");
#ifdef WITH_IDS
legend->AddEntry( graphNiterIDS[0],"IDS","p");
#endif
legend->Draw();
c1->SaveAs(TString::Format("niter%d.eps",i));
}
//c4->cd(1);
//DrawPadCorrelations(histRhoFALCurveO,&table);

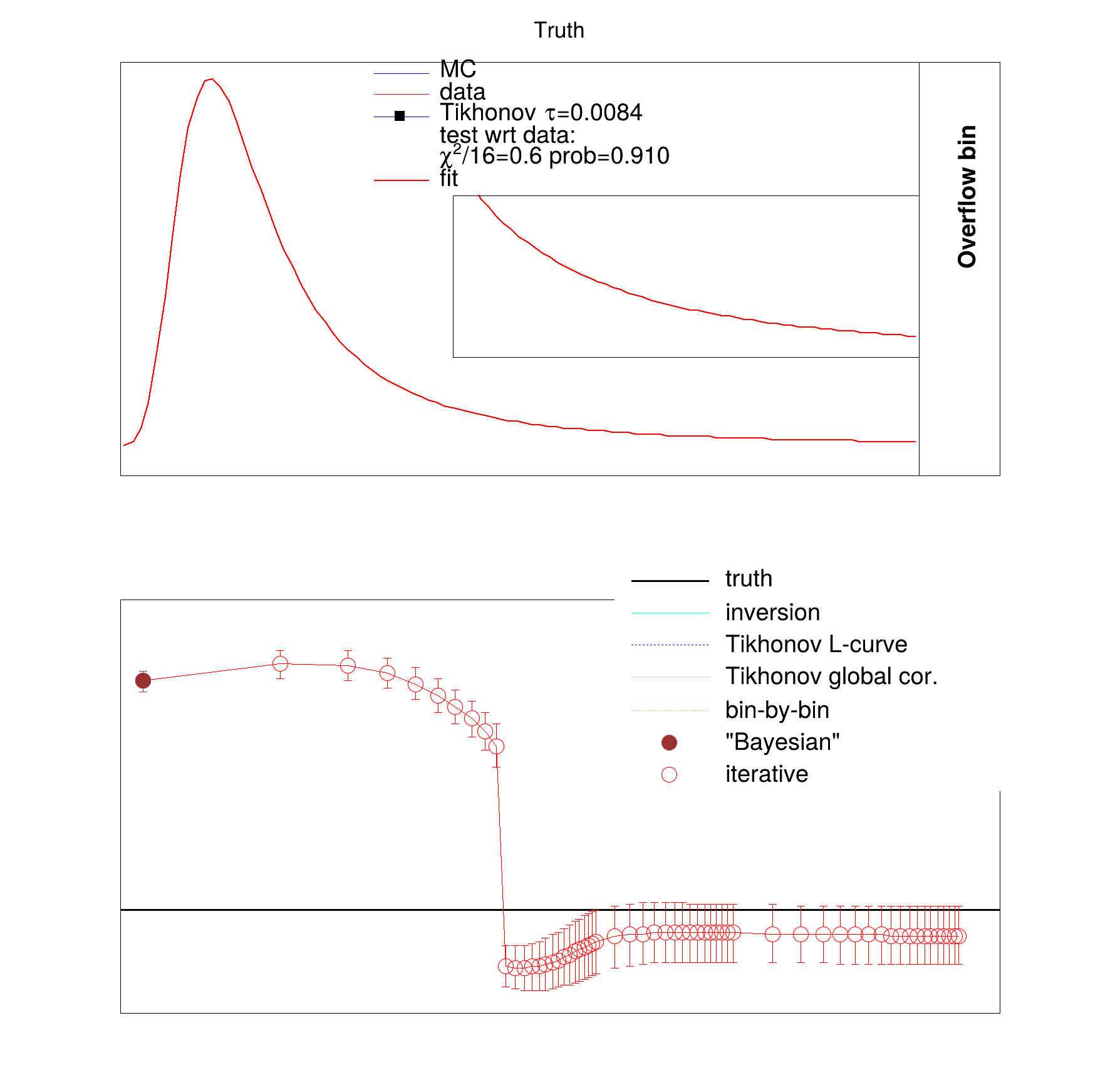

c2sq->cd(1);
DrawPadTruth(histMcsigGenO,histDataGenO,histOutputFALCurveO,"Tikhonov",tauFA,
&table[iFitFALCurve].second,table[iFitFALCurve].first);
c2sq->cd(2);
gPad->SetLogy(false);
histNiterInversion[3]->DrawClone("E2");
histNiterInversion[3]->SetFillStyle(0);
histNiterInversion[3]->Draw("SAME HIST ][");
histNiterFALCurve[3]->DrawClone("SAME E2");
histNiterFALCurve[3]->SetFillStyle(0);
histNiterFALCurve[3]->Draw("SAME HIST ][");
histNiterFArho[3]->DrawClone("SAME E2");
histNiterFArho[3]->SetFillStyle(0);
histNiterFArho[3]->Draw("SAME HIST ][");
histNiterBinByBin[3]->DrawClone("SAME E2");
histNiterBinByBin[3]->SetFillStyle(0);
histNiterBinByBin[3]->Draw("SAME HIST ][");
double yTrue=1.8;
line=new TLine(histNiterInversion[3]->GetXaxis()->GetXmin(),
yTrue,
histNiterInversion[3]->GetXaxis()->GetXmax(),
yTrue);
line->Draw();
graphNiterAgo[3]->Draw("LP");
graphNiterAgoBay[3]->SetMarkerStyle(20);
graphNiterAgoBay[3]->Draw("P");
#ifdef WITH_IDS
graphNiterIDS[3]->Draw("LP");
#endif
TLegend *legend;
legend=new TLegend(0.55,0.53,0.95,0.97);
legend->SetBorderSize(0);
legend->SetFillStyle(1001);
legend->SetFillColor(kWhite);
legend->SetTextSize(kLegendFontSize);
legend->AddEntry( line,"truth","l");
legend->AddEntry( histNiterInversion[3],"inversion","l");
legend->AddEntry( histNiterFALCurve[3],"Tikhonov L-curve","l");
legend->AddEntry( histNiterFArho[3],"Tikhonov global cor.","l");
legend->AddEntry( histNiterBinByBin[3],"bin-by-bin","l");
legend->AddEntry( graphNiterAgoBay[3],"\"Bayesian\"","p");
legend->AddEntry( graphNiterAgo[3],"iterative","p");
#ifdef WITH_IDS
legend->AddEntry( graphNiterIDS[3],"IDS","p");
#endif
legend->Draw();
c2sq->SaveAs("fitSigma.eps");
outputFile->Write();
delete outputFile;
}
void GetNiterGraphs(int iFirst,int iLast,vector<pair<TF1*,
vector<double> > > const &table,int color,
TGraph *graph[4],int style) {
TVectorD niter(iLast-iFirst);
TVectorD eniter(iLast-iFirst);
TVectorD chi2(iLast-iFirst);
TVectorD gcor(iLast-iFirst);
TVectorD mean(iLast-iFirst);
TVectorD emean(iLast-iFirst);
TVectorD sigma(iLast-iFirst);
TVectorD esigma(iLast-iFirst);
for(int ifit=iFirst;ifit<iLast;ifit++) {
vector<double> const &r=table[ifit].second;
niter(ifit-iFirst)=r[4];
chi2(ifit-iFirst)=r[2]/r[3];
gcor(ifit-iFirst)=r[5];
TF1 const *f=table[ifit].first;
mean(ifit-iFirst)=f->GetParameter(1);
emean(ifit-iFirst)=f->GetParError(1);
sigma(ifit-iFirst)=f->GetParameter(2);
esigma(ifit-iFirst)=f->GetParError(2);
}
graph[0]=new TGraph(niter,chi2);
graph[1]=new TGraph(niter,gcor);
graph[2]=new TGraphErrors(niter,mean,eniter,emean);
graph[3]=new TGraphErrors(niter,sigma,eniter,esigma);
for(int g=0;g<4;g++) {
if(graph[g]) {
graph[g]->SetLineColor(color);
graph[g]->SetMarkerColor(color);
graph[g]->SetMarkerStyle(style);
}
}
}
void GetNiterHist(int ifit,vector<pair<TF1*,vector<double> > > const &table,
TH1 *hist[4],int color,int style,int fillStyle) {
vector<double> const &r=table[ifit].second;
TF1 const *f=table[ifit].first;
hist[0]=new TH1D(table[ifit].first->GetName()+TString("_chi2"),
";iteration;unfold-truth #chi^{2}/N_{D.F.}",1,0.2,1500.);
hist[0]->SetBinContent(1,r[2]/r[3]);
hist[1]=new TH1D(table[ifit].first->GetName()+TString("_gcor"),
";iteration;avg(#rho_{i})",1,0.2,1500.);
hist[1]->SetBinContent(1,r[5]);
hist[2]=new TH1D(table[ifit].first->GetName()+TString("_mu"),
";iteration;parameter #mu",1,0.2,1500.);
hist[2]->SetBinContent(1,f->GetParameter(1));
hist[2]->SetBinError(1,f->GetParError(1));
hist[3]=new TH1D(table[ifit].first->GetName()+TString("_sigma"),
";iteration;parameter #sigma",1,0.2,1500.);
hist[3]->SetBinContent(1,f->GetParameter(2));
hist[3]->SetBinError(1,f->GetParError(2));
for(int h=0;h<4;h++) {
if(hist[h]) {
hist[h]->SetLineColor(color);
hist[h]->SetLineStyle(style);
if( hist[h]->GetBinError(1)>0.0) {
hist[h]->SetFillColor(color-10);
hist[h]->SetFillStyle(fillStyle);
}
hist[h]->SetMarkerStyle(0);
}
}
}
void CreateHistogramCopies(TH1 *h[3],TUnfoldBinning const *binning) {
TString baseName(h[0]->GetName());
Int_t *binMap;
h[1]=binning->CreateHistogram(baseName+"_axis",kTRUE,&binMap);
h[2]=(TH1 *)h[1]->Clone(baseName+"_binw");
Int_t nMax=binning->GetEndBin()+1;
for(Int_t iSrc=0;iSrc<nMax;iSrc++) {
Int_t iDest=binMap[iSrc];
double c=h[0]->GetBinContent(iSrc)+h[1]->GetBinContent(iDest);
double e=TMath::Hypot(h[0]->GetBinError(iSrc),h[1]->GetBinError(iDest));
h[1]->SetBinContent(iDest,c);
h[1]->SetBinError(iDest,e);
h[2]->SetBinContent(iDest,c);
h[2]->SetBinError(iDest,e);
}
for(int iDest=0;iDest<=h[2]->GetNbinsX()+1;iDest++) {
double c=h[2]->GetBinContent(iDest);
double e=h[2]->GetBinError(iDest);
double bw=binning->GetBinSize(iDest);
/* if(bw!=h[2]->GetBinWidth(iDest)) {
cout<<"bin "<<iDest<<" width="<<bw<<" "<<h[2]->GetBinWidth(iDest)
<<"\n";
} */
if(bw>0.0) {
h[2]->SetBinContent(iDest,c/bw);
h[2]->SetBinError(iDest,e/bw);
} else {
}
}
}
void CreateHistogramCopies(TH2 *h[3],TUnfoldBinning const *binningX) {
h[1]=nullptr;
h[2]=nullptr;
}
TH2 *AddOverflowXY(TH2 *h,double widthX,double widthY) {
// add overflow bin to X-axis
int nx=h->GetNbinsX();
int ny=h->GetNbinsY();
double *xBins=new double[nx+2];
double *yBins=new double[ny+2];
for(int i=1;i<=nx;i++) {
xBins[i-1]=h->GetXaxis()->GetBinLowEdge(i);
}
xBins[nx]=h->GetXaxis()->GetBinUpEdge(nx);
xBins[nx+1]=xBins[nx]+widthX;
for(int i=1;i<=ny;i++) {
yBins[i-1]=h->GetYaxis()->GetBinLowEdge(i);
}
yBins[ny]=h->GetYaxis()->GetBinUpEdge(ny);
yBins[ny+1]=yBins[ny]+widthY;
TString name(h->GetName());
name+="U";
TH2 *r=new TH2D(name,h->GetTitle(),nx+1,xBins,ny+1,yBins);
for(int ix=0;ix<=nx+1;ix++) {
for(int iy=0;iy<=ny+1;iy++) {
r->SetBinContent(ix,iy,h->GetBinContent(ix,iy));
r->SetBinError(ix,iy,h->GetBinError(ix,iy));
}
}
delete [] yBins;
delete [] xBins;
return r;
}
TH1 *AddOverflowX(TH1 *h,double widthX) {
// add overflow bin to X-axis
int nx=h->GetNbinsX();
double *xBins=new double[nx+2];
for(int i=1;i<=nx;i++) {
xBins[i-1]=h->GetXaxis()->GetBinLowEdge(i);
}
xBins[nx]=h->GetXaxis()->GetBinUpEdge(nx);
xBins[nx+1]=xBins[nx]+widthX;
TString name(h->GetName());
name+="U";
TH1 *r=new TH1D(name,h->GetTitle(),nx+1,xBins);
for(int ix=0;ix<=nx+1;ix++) {
r->SetBinContent(ix,h->GetBinContent(ix));
r->SetBinError(ix,h->GetBinError(ix));
}
delete [] xBins;
return r;
}
void DrawOverflowX(TH1 *h,double posy) {
double x1=h->GetXaxis()->GetBinLowEdge(h->GetNbinsX());
double x2=h->GetXaxis()->GetBinUpEdge(h->GetNbinsX());
double y0=h->GetYaxis()->GetBinLowEdge(1);
double y2=h->GetYaxis()->GetBinUpEdge(h->GetNbinsY());;
if(h->GetDimension()==1) {
y0=h->GetMinimum();
y2=h->GetMaximum();
}
double w1=-0.3;
TText *textX=new TText((1.+w1)*x2-w1*x1,(1.-posy)*y0+posy*y2,"Overflow bin");
textX->SetNDC(kFALSE);
textX->SetTextSize(0.05);
textX->SetTextAngle(90.);
textX->Draw();
TLine *lineX=new TLine(x1,y0,x1,y2);
lineX->Draw();
}
void DrawOverflowY(TH1 *h,double posx) {
double x0=h->GetXaxis()->GetBinLowEdge(1);
double x2=h->GetXaxis()->GetBinUpEdge(h->GetNbinsX());
double y1=h->GetYaxis()->GetBinLowEdge(h->GetNbinsY());;
double y2=h->GetYaxis()->GetBinUpEdge(h->GetNbinsY());;
double w1=-0.3;
TText *textY=new TText((1.-posx)*x0+posx*x2,(1.+w1)*y1-w1*y2,"Overflow bin");
textY->SetNDC(kFALSE);
textY->SetTextSize(0.05);
textY->Draw();
TLine *lineY=new TLine(x0,y1,x2,y1);
lineY->Draw();
}
void DrawPadProbability(TH2 *h) {
h->Draw("COLZ");
h->SetTitle("migration probabilities;P_{T}(gen) [GeV];P_{T}(rec) [GeV]");
DrawOverflowX(h,0.05);
DrawOverflowY(h,0.35);
}
void DrawPadEfficiency(TH1 *h) {
h->SetTitle("efficiency;P_{T}(gen) [GeV];#epsilon");
h->SetLineColor(kBlue);
h->SetMinimum(0.75);
h->SetMaximum(1.0);
h->Draw();
DrawOverflowX(h,0.05);
TLegend *legEfficiency=new TLegend(0.3,0.58,0.6,0.75);
legEfficiency->SetBorderSize(0);
legEfficiency->SetFillStyle(0);
legEfficiency->SetTextSize(kLegendFontSize);
legEfficiency->AddEntry(h,"reconstruction","l");
legEfficiency->AddEntry((TObject*)nullptr," efficiency","");
legEfficiency->Draw();
}
void DrawPadReco(TH1 *histMcRec,TH1 *histMcbgrRec,TH1 *histDataRec,
TH1 *histDataUnfold,TH2 *histProbability,TH2 *histRhoij) {
//gPad->SetLogy(kTRUE);
double amax=0.0;
for(int i=1;i<=histMcRec->GetNbinsX();i++) {
amax=TMath::Max(amax,histMcRec->GetBinContent(i)
+5.0*histMcRec->GetBinError(i));
amax=TMath::Max(amax,histDataRec->GetBinContent(i)
+2.0*histDataRec->GetBinError(i));
}
histMcRec->SetTitle("Reconstructed;P_{T}(rec);Nevent / GeV");
histMcRec->Draw("HIST");
histMcRec->SetLineColor(kBlue);
histMcRec->SetMinimum(1.0);
histMcRec->SetMaximum(amax);
//histMcbgrRec->SetFillMode(1);
histMcbgrRec->SetLineColor(kBlue-6);
histMcbgrRec->SetFillColor(kBlue-10);
histMcbgrRec->Draw("SAME HIST");
TH1 * histFoldBack=nullptr;
if(histDataUnfold && histProbability && histRhoij) {
histFoldBack=(TH1 *)
histMcRec->Clone(histDataUnfold->GetName()+TString("_folded"));
int nrec=histFoldBack->GetNbinsX();
if((nrec==histProbability->GetNbinsY())&&
(nrec==histMcbgrRec->GetNbinsX())&&
(nrec==histDataRec->GetNbinsX())
) {
for(int ix=1;ix<=nrec;ix++) {
double sum=0.0;
double sume2=0.0;
for(int iy=0;iy<=histProbability->GetNbinsX()+1;iy++) {
sum += histDataUnfold->GetBinContent(iy)*
histDataUnfold->GetBinWidth(iy)*
histProbability->GetBinContent(iy,ix);
for(int iy2=0;iy2<=histProbability->GetNbinsX()+1;iy2++) {
sume2 += histDataUnfold->GetBinError(iy)*
histDataUnfold->GetBinWidth(iy)*
histProbability->GetBinContent(iy,ix)*
histDataUnfold->GetBinError(iy2)*
histDataUnfold->GetBinWidth(iy2)*
histProbability->GetBinContent(iy2,ix)*
histRhoij->GetBinContent(iy,iy2);
}
}
sum /= histFoldBack->GetBinWidth(ix);
sum += histMcbgrRec->GetBinContent(ix);
histFoldBack->SetBinContent(ix,sum);
histFoldBack->SetBinError(ix,TMath::Sqrt(sume2)
/histFoldBack->GetBinWidth(ix));
}
} else {
cout<<"can not fold back: "<<nrec
<<" "<<histProbability->GetNbinsY()
<<" "<<histMcbgrRec->GetNbinsX()
<<" "<<histDataRec->GetNbinsX()
<<"\n";
exit(0);
}
histFoldBack->SetLineColor(kBlack);
histFoldBack->SetMarkerStyle(0);
histFoldBack->Draw("SAME HIST");
}
histDataRec->SetLineColor(kRed);
histDataRec->SetMarkerColor(kRed);
histDataRec->Draw("SAME");
DrawOverflowX(histMcRec,0.5);
TLegend *legRec=new TLegend(0.4,0.5,0.68,0.85);
legRec->SetBorderSize(0);
legRec->SetFillStyle(0);
legRec->SetTextSize(kLegendFontSize);
legRec->AddEntry(histMcRec,"MC total","l");
legRec->AddEntry(histMcbgrRec,"background","f");
if(histFoldBack) {
int ndf=-kNbinC;
double sumD=0.,sumF=0.,chi2=0.;
for(int i=1;i<=histDataRec->GetNbinsX();i++) {
//cout<<histDataRec->GetBinContent(i)<<" "<<histFoldBack->GetBinContent(i)<<" "<<" w="<<histFoldBack->GetBinWidth(i)<<"\n";
sumD+=histDataRec->GetBinContent(i)*histDataRec->GetBinWidth(i);
sumF+=histFoldBack->GetBinContent(i)*histFoldBack->GetBinWidth(i);
double pull=(histFoldBack->GetBinContent(i)-histDataRec->GetBinContent(i))/histDataRec->GetBinError(i);
chi2+= pull*pull;
ndf+=1;
}
legRec->AddEntry(histDataRec,TString::Format("data N_{evt}=%.0f",sumD),"lp");
legRec->AddEntry(histFoldBack,TString::Format("folded N_{evt}=%.0f",sumF),"l");
legRec->AddEntry((TObject*)nullptr,TString::Format("#chi^{2}=%.1f ndf=%d",chi2,ndf),"");
//exit(0);
} else {
legRec->AddEntry(histDataRec,"data","lp");
}
legRec->Draw();
}
void DrawPadTruth(TH1 *histMcsigGen,TH1 *histDataGen,TH1 *histDataUnfold,
char const *text,double tau,vector<double> const *r,
TF1 *f) {
//gPad->SetLogy(kTRUE);
double amin=0.;
double amax=0.;
for(int i=1;i<=histMcsigGen->GetNbinsX();i++) {
if(histDataUnfold) {
amin=TMath::Min(amin,histDataUnfold->GetBinContent(i)
-1.1*histDataUnfold->GetBinError(i));
amax=TMath::Max(amax,histDataUnfold->GetBinContent(i)
+1.1*histDataUnfold->GetBinError(i));
}
amin=TMath::Min(amin,histMcsigGen->GetBinContent(i)
-histMcsigGen->GetBinError(i));
amin=TMath::Min(amin,histDataGen->GetBinContent(i)
-histDataGen->GetBinError(i));
amax=TMath::Max(amax,histMcsigGen->GetBinContent(i)
+10.*histMcsigGen->GetBinError(i));
amax=TMath::Max(amax,histDataGen->GetBinContent(i)
+2.*histDataGen->GetBinError(i));
}
histMcsigGen->SetMinimum(amin);
histMcsigGen->SetMaximum(amax);
histMcsigGen->SetTitle("Truth;P_{T};Nevent / GeV");
histMcsigGen->SetLineColor(kBlue);
histMcsigGen->Draw("HIST");
histDataGen->SetLineColor(kRed);
histDataGen->SetMarkerColor(kRed);
histDataGen->SetMarkerSize(1.0);
histDataGen->Draw("SAME HIST");
if(histDataUnfold) {
histDataUnfold->SetMarkerStyle(21);
histDataUnfold->SetMarkerSize(0.7);
histDataUnfold->Draw("SAME");
}
DrawOverflowX(histMcsigGen,0.5);
if(f) {
f->SetLineStyle(1);
f->Draw("SAME");
}
TLegend *legTruth=new TLegend(0.32,0.65,0.6,0.9);
legTruth->SetBorderSize(0);
legTruth->SetFillStyle(0);
legTruth->SetTextSize(kLegendFontSize);
legTruth->AddEntry(histMcsigGen,"MC","l");
if(!histDataUnfold) legTruth->AddEntry((TObject *)nullptr," Landau(5,2)","");
legTruth->AddEntry(histDataGen,"data","l");
if(!histDataUnfold) legTruth->AddEntry((TObject *)nullptr," Landau(6,1.8)","");
if(histDataUnfold) {
if(text) t=text;
else t=histDataUnfold->GetName();
if(tau>0) {
t+=TString::Format(" #tau=%.2g",tau);
}
legTruth->AddEntry(histDataUnfold,t,"lp");
if(r) {
legTruth->AddEntry((TObject *)nullptr,"test wrt data:","");
legTruth->AddEntry((TObject *)nullptr,TString::Format
("#chi^{2}/%d=%.1f prob=%.3f",
(int)(*r)[3],(*r)[2]/(*r)[3],
TMath::Prob((*r)[2],(*r)[3])),"");
}
}
if(f) {
legTruth->AddEntry(f,"fit","l");
}
legTruth->Draw();
if(histDataUnfold ) {
TPad *subpad = new TPad("subpad","",0.35,0.29,0.88,0.68);
subpad->SetFillStyle(0);
subpad->Draw();
subpad->cd();
amin=0.;
amax=0.;
int istart=11;
for(int i=istart;i<=histMcsigGen->GetNbinsX();i++) {
amin=TMath::Min(amin,histMcsigGen->GetBinContent(i)
-histMcsigGen->GetBinError(i));
amin=TMath::Min(amin,histDataGen->GetBinContent(i)
-histDataGen->GetBinError(i));
amin=TMath::Min(amin,histDataUnfold->GetBinContent(i)
-histDataUnfold->GetBinError(i));
amax=TMath::Max(amax,histMcsigGen->GetBinContent(i)
+histMcsigGen->GetBinError(i));
amax=TMath::Max(amax,histDataGen->GetBinContent(i)
+histDataGen->GetBinError(i));
amax=TMath::Max(amax,histDataUnfold->GetBinContent(i)
+histDataUnfold->GetBinError(i));
}
TH1 *copyMcsigGen=(TH1*)histMcsigGen->Clone();
TH1 *copyDataGen=(TH1*)histDataGen->Clone();
TH1 *copyDataUnfold=(TH1*)histDataUnfold->Clone();
copyMcsigGen->GetXaxis()->SetRangeUser
(copyMcsigGen->GetXaxis()->GetBinLowEdge(istart),
copyMcsigGen->GetXaxis()->GetBinUpEdge(copyMcsigGen->GetNbinsX()-1));
copyMcsigGen->SetTitle(";;");
copyMcsigGen->GetYaxis()->SetRangeUser(amin,amax);
copyMcsigGen->Draw("HIST");
copyDataGen->Draw("SAME HIST");
copyDataUnfold->Draw("SAME");
if(f) {
((TF1 *)f->Clone())->Draw("SAME");
}
}
}
void DrawPadCorrelations(TH2 *h,
vector<pair<TF1*,vector<double> > > const *table) {
h->SetMinimum(-1.);
h->SetMaximum(1.);
h->SetTitle("correlation coefficients;P_{T}(gen) [GeV];P_{T}(gen) [GeV]");
h->Draw("COLZ");
DrawOverflowX(h,0.05);
DrawOverflowY(h,0.05);
if(table) {
TLegend *legGCor=new TLegend(0.13,0.6,0.5,0.8);
legGCor->SetBorderSize(0);
legGCor->SetFillStyle(0);
legGCor->SetTextSize(kLegendFontSize);
vector<double> const &r=(*table)[table->size()-1].second;
legGCor->AddEntry((TObject *)nullptr,TString::Format("min(#rho_{ij})=%5.2f",r[6]),"");
legGCor->AddEntry((TObject *)nullptr,TString::Format("max(#rho_{ij})=%5.2f",r[7]),"");
legGCor->AddEntry((TObject *)nullptr,TString::Format("avg(#rho_i)=%5.2f",r[5]),"");
legGCor->Draw();
}
}
TH1 *g_fcnHist=nullptr;
TMatrixD *g_fcnMatrix=nullptr;
void fcn(Int_t &npar, Double_t *gin, Double_t &f, Double_t *u, Int_t flag) {
if(flag==0) {
cout<<"fcn flag=0: npar="<<npar<<" gin="<<gin<<" par=[";
for(int i=0;i<npar;i++) {
cout<<" "<<u[i];
}
cout<<"]\n";
}
int n=g_fcnMatrix->GetNrows();
TVectorD dy(n);
double x0=0,y0=0.;
for(int i=0;i<=n;i++) {
double x1;
if(i<1) x1=g_fcnHist->GetXaxis()->GetBinLowEdge(i+1);
else x1=g_fcnHist->GetXaxis()->GetBinUpEdge(i);
double y1=TMath::LandauI((x1-u[1])/u[2]);
if(i>0) {
double iy=u[0]*u[2]*(y1-y0)/(x1-x0);
dy(i-1)=iy-g_fcnHist->GetBinContent(i);
//cout<<"i="<<i<<" iy="<<iy<<" delta="<< dy(i-1)<<"\n";
}
x0=x1;
y0=y1;
//cout<<"i="<<i<<" y1="<<y1<<" x1="<<x1<<"\n";
}
TVectorD Hdy=(*g_fcnMatrix) * dy;
//Hdy.Print();
f=Hdy*dy;
//exit(0);
}
TFitResultPtr DoFit(TH1 *h,TH2 *rho,TH1 *truth,const char *text,
vector<pair<TF1 *,vector<double> > > &table,int niter) {
TString option="IESN";
cout<<h->GetName()<<"\n";
double gcorAvg=0.;
double rhoMin=0.;
double rhoMax=0.;
if(rho) {
g_fcnHist=h;
int n=h->GetNbinsX()-1; // overflow is included as extra bin, exclude in fit
//g_fcnMatrix=new TMatrixD(n,n);
for(int i=0;i<n;i++) {
for(int j=0;j<n;j++) {
v(i,j)=rho->GetBinContent(i+1,j+1)*
(h->GetBinError(i+1)*h->GetBinError(j+1));
}
}
TVectorD di(ev.GetEigenValues());
for(int i=0;i<n;i++) {
if(di(i)>0.0) {
d(i,i)=1./di(i);
} else {
cout<<"bad eigenvalue i="<<i<<" di="<<di(i)<<"\n";
exit(0);
}
}
TMatrixD O(ev.GetEigenVectors());
g_fcnMatrix=new TMatrixD(O,TMatrixD::kMult,DOT);
TMatrixD test(*g_fcnMatrix,TMatrixD::kMult,v);
int error=0;
for(int i=0;i<n;i++) {
if(TMath::Abs(test(i,i)-1.0)>1.E-7) {
error++;
}
for(int j=0;j<n;j++) {
if(i==j) continue;
if(TMath::Abs(test(i,j)>1.E-7)) error++;
}
}
// calculate global correlation coefficient (all bins)
rhoMin=1.;
rhoMax=-1.;
for(int i=0;i<=n;i++) {
for(int j=0;j<=n;j++) {
double rho_ij=rho->GetBinContent(i+1,j+1);
v1(i,j)=rho_ij*
(h->GetBinError(i+1)*h->GetBinError(j+1));
if(i!=j) {
if(rho_ij<rhoMin) rhoMin=rho_ij;
if(rho_ij>rhoMax) rhoMax=rho_ij;
}
}
}
TMatrixD d1(n+1,n+1);
TVectorD di1(ev1.GetEigenValues());
for(int i=0;i<=n;i++) {
if(di1(i)>0.0) {
d1(i,i)=1./di1(i);
} else {
cout<<"bad eigenvalue i="<<i<<" di1="<<di1(i)<<"\n";
exit(0);
}
}
TMatrixD O1(ev1.GetEigenVectors());
TMatrixD vinv1(O1,TMatrixD::kMult,DOT1);
for(int i=0;i<=n;i++) {
double gcor2=1.-1./(vinv1(i,i)*v1(i,i));
if(gcor2>=0.0) {
double gcor=TMath::Sqrt(gcor2);
gcorAvg += gcor;
} else {
cout<<"bad global correlation "<<i<<" "<<gcor2<<"\n";
}
}
gcorAvg /=(n+1);
/* if(error) {
v.Print();
g_fcnMatrix->Print();
exit(0);
} */
//g_fcnMatrix->Invert();
//from: HFitImpl.cxx
// TVirtualFitter::FCNFunc_t userFcn = 0;
// typedef void (* FCNFunc_t )(Int_t &npar, Double_t *gin, Double_t &f, Double_t *u, Int_t flag);
// userFcn = (TVirtualFitter::GetFitter())->GetFCN();
// (TVirtualFitter::GetFitter())->SetUserFunc(f1);
//...
//fitok = fitter->FitFCN( userFcn );
option += "U";
}
double xmax=h->GetXaxis()->GetBinUpEdge(h->GetNbinsX()-1);
TF1 *landau=new TF1(text,"[0]*TMath::Landau(x,[1],[2],0)",
0.,xmax);
landau->SetParameter(0,6000.);
landau->SetParameter(1,5.);
landau->SetParameter(2,2.);
landau->SetParError(0,10.);
landau->SetParError(1,0.5);
landau->SetParError(2,0.1);
TFitResultPtr s=h->Fit(landau,option,nullptr,0.,xmax);
vector<double> r(8);
int np=landau->GetNpar();
fcn(np,nullptr,r[0],landau->GetParameters(),0);
r[1]=h->GetNbinsX()-1-landau->GetNpar();
for(int i=0;i<h->GetNbinsX()-1;i++) {
double di=h->GetBinContent(i+1)-truth->GetBinContent(i+1);
if(g_fcnMatrix) {
for(int j=0;j<h->GetNbinsX()-1;j++) {
double dj=h->GetBinContent(j+1)-truth->GetBinContent(j+1);
r[2]+=di*dj*(*g_fcnMatrix)(i,j);
}
} else {
double pull=di/h->GetBinError(i+1);
r[2]+=pull*pull;
}
r[3]+=1.0;
}
r[4]=niter;
if(!niter) r[4]=0.25;
r[5]=gcorAvg;
r[6]=rhoMin;
r[7]=rhoMax;
if(rho) {
g_fcnHist=nullptr;
delete g_fcnMatrix;
g_fcnMatrix=nullptr;
}
table.push_back(make_pair(landau,r));
return s;
}
#ifdef WITH_IDS
//===================== interface to IDS unfolding code follows here
// contact Bogdan Malescu to find it
#include "ids_code.cc"
void IDSfirst(TVectorD *data, TVectorD *dataErr, TMatrixD *A_, Double_t lambdaL_, TVectorD* &unfres1IDS_,TVectorD *&soustr){
int N_=data->GetNrows();
soustr = new TVectorD(N_);
for( Int_t i=0; i<N_; i++ ){ (*soustr)[i] = 0.; }
unfres1IDS_ = Unfold( data, dataErr, A_, N_, lambdaL_, soustr );
}
void IDSiterate(TVectorD *data, TVectorD *dataErr, TMatrixD *A_, TMatrixD *Am_, Double_t lambdaU_, Double_t lambdaM_, Double_t lambdaS_,TVectorD* &unfres2IDS_ ,TVectorD *&soustr) {
int N_=data->GetNrows();
ModifyMatrix( Am_, A_, unfres2IDS_, dataErr, N_, lambdaM_, soustr, lambdaS_ );
delete unfres2IDS_;
unfres2IDS_ = Unfold( data, dataErr, Am_, N_, lambdaU_, soustr );
}
#endif
#define d(i)
Definition RSha256.hxx:102
#define b(i)
Definition RSha256.hxx:100
#define f(i)
Definition RSha256.hxx:104
#define c(i)
Definition RSha256.hxx:101
#define g(i)
Definition RSha256.hxx:105
#define h(i)
Definition RSha256.hxx:106
#define e(i)
Definition RSha256.hxx:103
int Int_t
Definition RtypesCore.h:45
constexpr Bool_t kFALSE
Definition RtypesCore.h:101
double Double_t
Definition RtypesCore.h:59
constexpr Bool_t kTRUE
Definition RtypesCore.h:100
@ kRed
Definition Rtypes.h:66
@ kOrange
Definition Rtypes.h:67
@ kBlack
Definition Rtypes.h:65
@ kMagenta
Definition Rtypes.h:66
@ kWhite
Definition Rtypes.h:65
@ kCyan
Definition Rtypes.h:66
@ kBlue
Definition Rtypes.h:66
@ kAzure
Definition Rtypes.h:67
constexpr Int_t kInfo
Definition TError.h:44
Int_t gErrorIgnoreLevel
Error handling routines.
Definition TError.cxx:31
Option_t Option_t option
Option_t Option_t TPoint TPoint const char GetTextMagnitude GetFillStyle GetLineColor GetLineWidth GetMarkerStyle GetTextAlign GetTextColor GetTextSize void char Point_t Rectangle_t WindowAttributes_t Float_t Float_t Float_t Int_t Int_t UInt_t UInt_t Rectangle_t Int_t Int_t Window_t TString Int_t GCValues_t GetPrimarySelectionOwner GetDisplay GetScreen GetColormap GetNativeEvent const char const char dpyName wid window const char font_name cursor keysym reg const char only_if_exist regb h Point_t np
Option_t Option_t TPoint TPoint const char GetTextMagnitude GetFillStyle GetLineColor GetLineWidth GetMarkerStyle GetTextAlign GetTextColor GetTextSize void data
Option_t Option_t TPoint TPoint const char GetTextMagnitude GetFillStyle GetLineColor GetLineWidth GetMarkerStyle GetTextAlign GetTextColor GetTextSize void char Point_t Rectangle_t WindowAttributes_t Float_t r
Option_t Option_t TPoint TPoint const char x2
Option_t Option_t TPoint TPoint const char x1
Option_t Option_t TPoint TPoint const char mode
Option_t Option_t TPoint TPoint const char y2
Option_t Option_t width
Option_t Option_t style
Option_t Option_t TPoint TPoint const char text
Option_t Option_t TPoint TPoint const char y1
char name[80]
Definition TGX11.cxx:110
float xmax
TMatrixT< Double_t > TMatrixD
Definition TMatrixDfwd.h:23
R__EXTERN TStyle * gStyle
Definition TStyle.h:433
TVectorT< Double_t > TVectorD
Definition TVectorDfwd.h:23
#define gPad
virtual void SetFillColor(Color_t fcolor)
Set the fill area color.
Definition TAttFill.h:37
virtual void SetFillStyle(Style_t fstyle)
Set the fill area style.
Definition TAttFill.h:39
virtual void SetLineStyle(Style_t lstyle)
Set the line style.
Definition TAttLine.h:42
virtual void SetLineWidth(Width_t lwidth)
Set the line width.
Definition TAttLine.h:43
virtual void SetLineColor(Color_t lcolor)
Set the line color.
Definition TAttLine.h:40
virtual void SetMarkerColor(Color_t mcolor=1)
Set the marker color.
Definition TAttMarker.h:38
virtual void SetMarkerStyle(Style_t mstyle=1)
Set the marker style.
Definition TAttMarker.h:40
virtual void SetMarkerSize(Size_t msize=1)
Set the marker size.
Definition TAttMarker.h:45
virtual void SetTextAngle(Float_t tangle=0)
Set the text angle.
Definition TAttText.h:43
virtual void SetTextSize(Float_t tsize=1)
Set the text size.
Definition TAttText.h:47
virtual void SetBinLabel(Int_t bin, const char *label)
Set label for bin.
Definition TAxis.cxx:886
virtual Double_t GetBinLowEdge(Int_t bin) const
Return low edge of bin.
Definition TAxis.cxx:518
virtual void SetRangeUser(Double_t ufirst, Double_t ulast)
Set the viewing range for the axis from ufirst to ulast (in user coordinates, that is,...
Definition TAxis.cxx:1080
virtual Double_t GetBinWidth(Int_t bin) const
Return bin width.
Definition TAxis.cxx:540
virtual Double_t GetBinUpEdge(Int_t bin) const
Return up edge of bin.
Definition TAxis.cxx:528
The Canvas class.
Definition TCanvas.h:23
TVirtualPad * cd(Int_t subpadnumber=0) override
Set current canvas & pad.
Definition TCanvas.cxx:716
Bool_t cd() override
Change current directory to "this" directory.
void GetObject(const char *namecycle, T *&ptr)
Get an object with proper type checking.
Definition TDirectory.h:212
1-Dim function class
Definition TF1.h:233
virtual void SetParError(Int_t ipar, Double_t error)
Set error for parameter number ipar.
Definition TF1.cxx:3479
virtual Int_t GetNpar() const
Definition TF1.h:507
virtual Double_t * GetParameters() const
Definition TF1.h:546
virtual void SetParameter(Int_t param, Double_t value)
Definition TF1.h:660
virtual Double_t GetParameter(Int_t ipar) const
Definition TF1.h:538
A ROOT file is composed of a header, followed by consecutive data records (TKey instances) with a wel...
Definition TFile.h:53
Int_t Write(const char *name=nullptr, Int_t opt=0, Int_t bufsiz=0) override
Write memory objects to this file.
Definition TFile.cxx:2414
Provides an indirection to the TFitResult class and with a semantics identical to a TFitResult pointe...
A TGraphErrors is a TGraph with error bars.
A TGraph is an object made of two arrays X and Y with npoints each.
Definition TGraph.h:41
void Draw(Option_t *chopt="") override
Draw this graph with its current attributes.
Definition TGraph.cxx:809
void SetTitle(const char *title="") override
Change (i.e.
Definition TGraph.cxx:2374
1-D histogram with a double per channel (see TH1 documentation)
Definition TH1.h:664
TH1 is the base class of all histogram classes in ROOT.
Definition TH1.h:59
virtual Bool_t Multiply(TF1 *f1, Double_t c1=1)
Performs the operation:
Definition TH1.cxx:6013
void SetTitle(const char *title) override
Change/set the title.
Definition TH1.cxx:6682
virtual Int_t GetNbinsY() const
Definition TH1.h:298
virtual Double_t GetBinError(Int_t bin) const
Return value of error associated to bin number bin.
Definition TH1.cxx:9027
TAxis * GetXaxis()
Definition TH1.h:324
virtual Int_t GetNbinsX() const
Definition TH1.h:297
virtual void SetMaximum(Double_t maximum=-1111)
Definition TH1.h:403
virtual Bool_t Add(TF1 *h1, Double_t c1=1, Option_t *option="")
Performs the operation: this = this + c1*f1 if errors are defined (see TH1::Sumw2),...
Definition TH1.cxx:824
virtual void SetBinError(Int_t bin, Double_t error)
Set the bin Error Note that this resets the bin eror option to be of Normal Type and for the non-empt...
Definition TH1.cxx:9170
TAxis * GetYaxis()
Definition TH1.h:325
void Draw(Option_t *option="") override
Draw this histogram with options.
Definition TH1.cxx:3062
virtual void SetMinimum(Double_t minimum=-1111)
Definition TH1.h:404
static void SetDefaultSumw2(Bool_t sumw2=kTRUE)
When this static function is called with sumw2=kTRUE, all new histograms will automatically activate ...
Definition TH1.cxx:6667
virtual void SetBinContent(Int_t bin, Double_t content)
Set bin content see convention for numbering bins in TH1::GetBin In case the bin number is greater th...
Definition TH1.cxx:9186
virtual Double_t GetBinContent(Int_t bin) const
Return content of bin number bin.
Definition TH1.cxx:5025
virtual Double_t GetBinWidth(Int_t bin) const
Return bin width for 1D histogram.
Definition TH1.cxx:9127
virtual void Scale(Double_t c1=1, Option_t *option="")
Multiply this histogram by a constant c1.
Definition TH1.cxx:6568
TObject * Clone(const char *newname="") const override
Make a complete copy of the underlying object.
Definition TH1.cxx:2748
virtual Bool_t Divide(TF1 *f1, Double_t c1=1)
Performs the operation: this = this/(c1*f1) if errors are defined (see TH1::Sumw2),...
Definition TH1.cxx:2836
2-D histogram with a double per channel (see TH1 documentation)
Definition TH2.h:338
Service class for 2-D histogram classes.
Definition TH2.h:30
void SetBinContent(Int_t bin, Double_t content) override
Set bin content.
Definition TH2.cxx:2573
TH1D * ProjectionX(const char *name="_px", Int_t firstybin=0, Int_t lastybin=-1, Option_t *option="") const
Project a 2-D histogram into a 1-D histogram along X.
Definition TH2.cxx:2393
Double_t GetBinContent(Int_t binx, Int_t biny) const override
Definition TH2.h:89
This class displays a legend box (TPaveText) containing several legend entries.
Definition TLegend.h:23
TLegendEntry * AddEntry(const TObject *obj, const char *label="", Option_t *option="lpf")
Add a new entry to this legend.
Definition TLegend.cxx:317
void Draw(Option_t *option="") override
Draw this legend with its current attributes.
Definition TLegend.cxx:422
Use the TLine constructor to create a simple line.
Definition TLine.h:22
TMatrixDSymEigen.
Int_t GetNrows() const
virtual void SetTitle(const char *title="")
Set the title of the TNamed.
Definition TNamed.cxx:164
const char * GetName() const override
Returns name of object.
Definition TNamed.h:47
Mother of all ROOT objects.
Definition TObject.h:41
virtual void Clear(Option_t *="")
Definition TObject.h:119
virtual TObject * DrawClone(Option_t *option="") const
Draw a clone of this object in the current selected pad with: gROOT->SetSelectedPad(c1).
Definition TObject.cxx:299
virtual Int_t Write(const char *name=nullptr, Int_t option=0, Int_t bufsize=0)
Write this object to the current directory.
Definition TObject.cxx:880
virtual void Draw(Option_t *option="")
Default Draw method for all objects.
Definition TObject.cxx:274
The most important graphics class in the ROOT system.
Definition TPad.h:28
void Divide(Int_t nx=1, Int_t ny=1, Float_t xmargin=0.01, Float_t ymargin=0.01, Int_t color=0) override
Automatic pad generation by division.
Definition TPad.cxx:1153
void SetFillStyle(Style_t fstyle) override
Override TAttFill::FillStyle for TPad because we want to handle style=0 as style 4000.
Definition TPad.cxx:5961
void SaveAs(const char *filename="", Option_t *option="") const override
Save the pad content in a file.
Definition TPad.cxx:5671
TVirtualPad * cd(Int_t subpadnumber=0) override
Set Current pad.
Definition TPad.cxx:597
void Draw(Option_t *option="") override
Draw Pad in Current pad (re-parent pad if necessary).
Definition TPad.cxx:1268
virtual void SetBorderSize(Int_t bordersize=4)
Sets the border size of the TPave box and shadow.
Definition TPave.h:77
Random number generator class based on M.
Definition TRandom3.h:27
virtual ULong64_t Poisson(Double_t mean)
Generates a random integer N according to a Poisson law.
Definition TRandom.cxx:404
Base class for spline implementation containing the Draw/Paint methods.
Definition TSpline.h:31
void Draw(Option_t *option="") override
Draw this function with its current attributes.
Definition TSpline.cxx:101
Basic string class.
Definition TString.h:139
static TString Format(const char *fmt,...)
Static method which formats a string using a printf style format descriptor and return a TString.
Definition TString.cxx:2378
void SetOptStat(Int_t stat=1)
The type of information printed in the histogram statistics box can be selected via the parameter mod...
Definition TStyle.cxx:1636
Base class for several text objects.
Definition TText.h:22
virtual void SetNDC(Bool_t isNDC=kTRUE)
Set NDC mode on if isNDC = kTRUE, off otherwise.
Definition TText.cxx:823
Binning schemes for use with the unfolding algorithm TUnfoldDensity.
TH1 * CreateHistogram(const char *histogramName, Bool_t originalAxisBinning=kFALSE, Int_t **binMap=nullptr, const char *histogramTitle=nullptr, const char *axisSteering=nullptr) const
Create a THxx histogram capable to hold the bins of this binning node and its children.
Double_t GetBinSize(Int_t iBin) const
Get N-dimensional bin size.
Int_t GetEndBin(void) const
last+1 bin of this node (includes children)
An algorithm to unfold distributions from detector to truth level.
@ kEScanTauRhoAvg
average global correlation coefficient (from TUnfold::GetRhoI())
TH2 * GetRhoIJtotal(const char *histogramName, const char *histogramTitle=nullptr, const char *distributionName=nullptr, const char *projectionMode=nullptr, Bool_t useAxisBinning=kTRUE)
Retrieve correlation coefficients, including all uncertainties.
TH2 * GetProbabilityMatrix(const char *histogramName, const char *histogramTitle=nullptr, Bool_t useAxisBinning=kTRUE) const
Get matrix of probabilities in a new histogram.
TH1 * GetOutput(const char *histogramName, const char *histogramTitle=nullptr, const char *distributionName=nullptr, const char *projectionMode=nullptr, Bool_t useAxisBinning=kTRUE) const
retrieve unfolding result as a new histogram
virtual Int_t ScanTau(Int_t nPoint, Double_t tauMin, Double_t tauMax, TSpline **scanResult, Int_t mode=kEScanTauRhoAvg, const char *distribution=nullptr, const char *projectionMode=nullptr, TGraph **lCurvePlot=nullptr, TSpline **logTauXPlot=nullptr, TSpline **logTauYPlot=nullptr)
Scan a function wrt tau and determine the minimum.
@ kDensityModeNone
no scale factors, matrix L is similar to unity matrix
void SubtractBackground(const TH1 *hist_bgr, const char *name, Double_t scale=1.0, Double_t scale_error=0.0)
Specify a source of background.
Int_t SetInput(const TH1 *hist_y, Double_t scaleBias=0.0, Double_t oneOverZeroError=0.0, const TH2 *hist_vyy=nullptr, const TH2 *hist_vyy_inv=nullptr) override
Define the input data for subsequent calls to DoUnfold(Double_t).
virtual Double_t DoUnfold(void)
Core unfolding algorithm.
Definition TUnfold.cxx:291
virtual Int_t ScanLcurve(Int_t nPoint, Double_t tauMin, Double_t tauMax, TGraph **lCurve, TSpline **logTauX=nullptr, TSpline **logTauY=nullptr, TSpline **logTauCurvature=nullptr)
Scan the L curve, determine tau and unfold at the final value of tau.
Definition TUnfold.cxx:2549
@ kEConstraintArea
enforce preservation of the area
Definition TUnfold.h:115
@ kEConstraintNone
use no extra constraint
Definition TUnfold.h:112
ERegMode
choice of regularisation scheme
Definition TUnfold.h:119
@ kRegModeSize
regularise the amplitude of the output distribution
Definition TUnfold.h:125
@ kHistMapOutputHoriz
truth level on x-axis of the response matrix
Definition TUnfold.h:142
Double_t GetTau(void) const
Return regularisation parameter.
Definition TUnfold.cxx:3186
virtual void SetFCN(void(*fcn)(Int_t &, Double_t *, Double_t &f, Double_t *, Int_t))
To set the address of the minimization objective function called by the native compiler (see function...
static TVirtualFitter * Fitter(TObject *obj, Int_t maxpar=25)
Static function returning a pointer to the current fitter.
virtual void SetLogx(Int_t value=1)=0
void Clear(Option_t *option="") override=0
TLine * line
const Double_t sigma
Double_t y[n]
Definition legend1.C:17
return c1
Definition legend1.C:41
Double_t x[n]
Definition legend1.C:17
const Int_t n
Definition legend1.C:16
fit(model, train_loader, val_loader, num_epochs, batch_size, optimizer, criterion, save_best, scheduler)
Short_t Max(Short_t a, Short_t b)
Returns the largest of a and b.
Definition TMathBase.h:250
Double_t Prob(Double_t chi2, Int_t ndf)
Computation of the probability for a certain Chi-squared (chi2) and number of degrees of freedom (ndf...
Definition TMath.cxx:637
Double_t Sqrt(Double_t x)
Returns the square root of x.
Definition TMath.h:662
LongDouble_t Power(LongDouble_t x, LongDouble_t y)
Returns x raised to the power y.
Definition TMath.h:721
Short_t Min(Short_t a, Short_t b)
Returns the smallest of a and b.
Definition TMathBase.h:198
Double_t Hypot(Double_t x, Double_t y)
Returns sqrt(x*x + y*y)
Definition TMath.cxx:59
Double_t LandauI(Double_t x)
Returns the cumulative (lower tail integral) of the Landau distribution function at point x.
Definition TMath.cxx:2845
Short_t Abs(Short_t d)
Returns the absolute value of parameter Short_t d.
Definition TMathBase.h:123
Definition graph.py:1
th1 Draw()
static uint64_t sum(uint64_t i)
Definition Factory.cxx:2345

Version 17.6, in parallel to changes in TUnfold

This file is part of TUnfold.

TUnfold is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

TUnfold is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with TUnfold. If not, see http://www.gnu.org/licenses/.

Author
Stefan Schmitt DESY, 14.10.2008

Definition in file testUnfold7c.C.
