df017_vecOpsHEP.C File Reference

Detailed Description

Use RVecs to plot the transverse momentum of selected particles.

This tutorial shows how VecOps can be used to slim down the programming model typically adopted in HEP for analysis. In this case we have a dataset containing the kinematic properties of particles stored in individual arrays. We want to plot the transverse momentum of these particles if the energy is greater than 100 MeV.


auto filename = gROOT->GetTutorialDir() + "/analysis/dataframe/df017_vecOpsHEP.root";
auto treename = "myDataset";

using namespace ROOT;


void WithTTreeReader()
{
   TFile f(filename);
   TTreeReader tr(treename, &f);
   TTreeReaderArray<double> px(tr, "px");
   TTreeReaderArray<double> py(tr, "py");
   TTreeReaderArray<double> E(tr, "E");

   TH1F h("pt", "pt", 16, 0, 4);

   while (tr.Next()) {
      for (auto i=0U;i < px.GetSize(); ++i) {
         if (E[i] > 100) h.Fill(sqrt(px[i]*px[i] + py[i]*py[i]));
      }
   }
   h.DrawCopy();
}

void WithRDataFrame()
{
  RDataFrame f(treename, filename.Data());
   auto CalcPt = [](RVecD &px, RVecD &py, RVecD &E) {
      RVecD v;
      for (auto i=0U;i < px.size(); ++i) {
         if (E[i] > 100) {
            v.emplace_back(sqrt(px[i]*px[i] + py[i]*py[i]));
         }
      }
      return v;
   };
   f.Define("pt", CalcPt, {"px", "py", "E"})
    .Histo1D<RVecD>({"pt", "pt", 16, 0, 4}, "pt")->DrawCopy();
}

void WithRDataFrameVecOps()
{
   RDataFrame f(treename, filename.Data());
   auto CalcPt = [](RVecD &px, RVecD &py, RVecD &E) {
      auto pt = sqrt(px*px + py*py);
      return pt[E>100];
   };
   f.Define("good_pt", CalcPt, {"px", "py", "E"})
    .Histo1D<RVecD>({"pt", "pt", 16, 0, 4}, "good_pt")->DrawCopy();
}

void WithRDataFrameVecOpsJit()
{
   RDataFrame f(treename, filename.Data());
   f.Define("good_pt", "sqrt(px*px + py*py)[E>100]")
    .Histo1D({"pt", "pt", 16, 0, 4}, "good_pt")->DrawCopy();
}

void df017_vecOpsHEP()
{

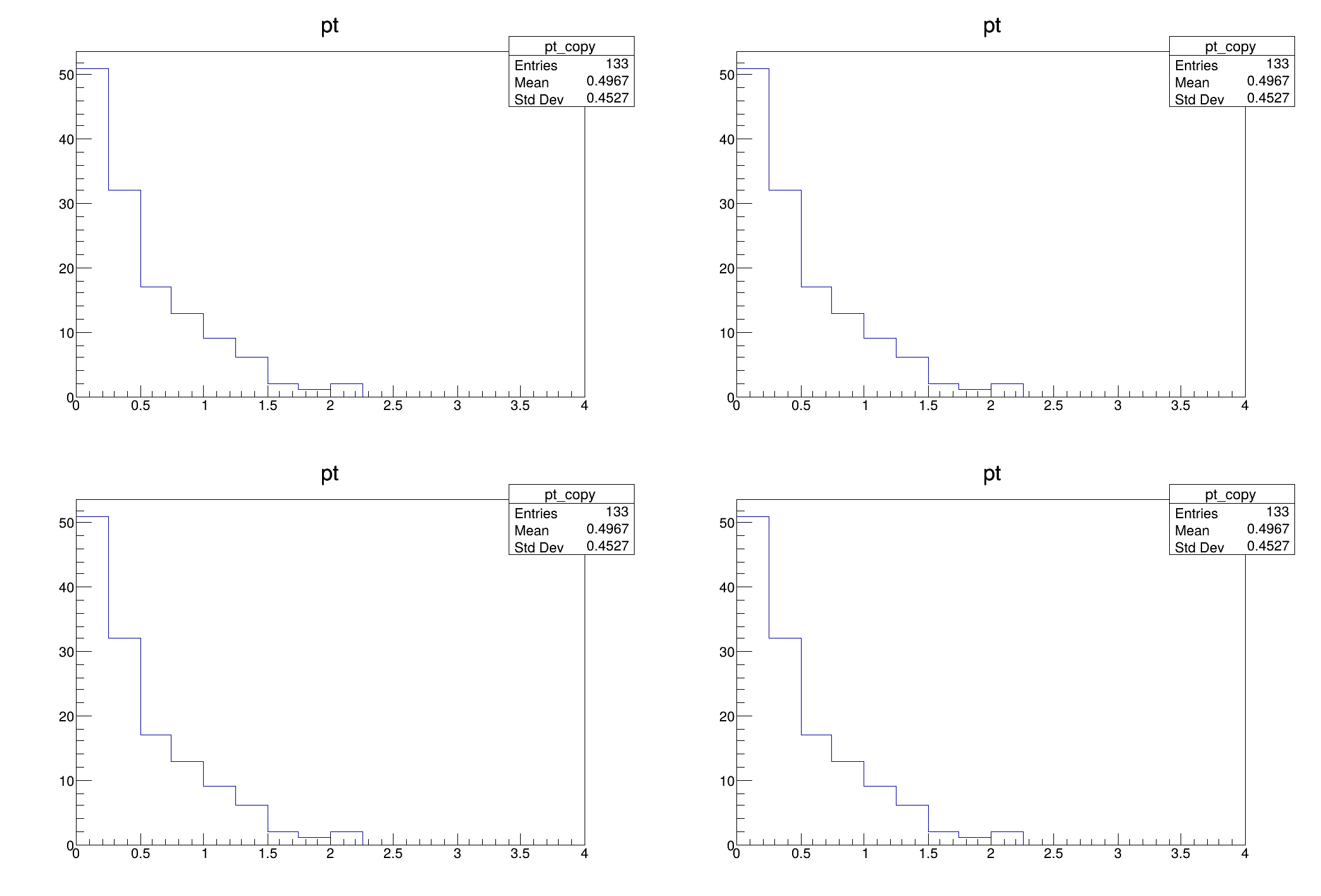

   // We plot four times the same quantity, the key is to look into the implementation
   // of the functions above.
   auto c = new TCanvas();
   c->Divide(2,2);
   c->cd(1);
   WithTTreeReader();
   c->cd(2);
   WithRDataFrame();
   c->cd(3);
   WithRDataFrameVecOps();
   c->cd(4);
   WithRDataFrameVecOpsJit();
}

Date

March 2018

Authors

Danilo Piparo (CERN), Andre Vieira Silva

Definition in file df017_vecOpsHEP.C.
