seism.C File Reference

Detailed Description

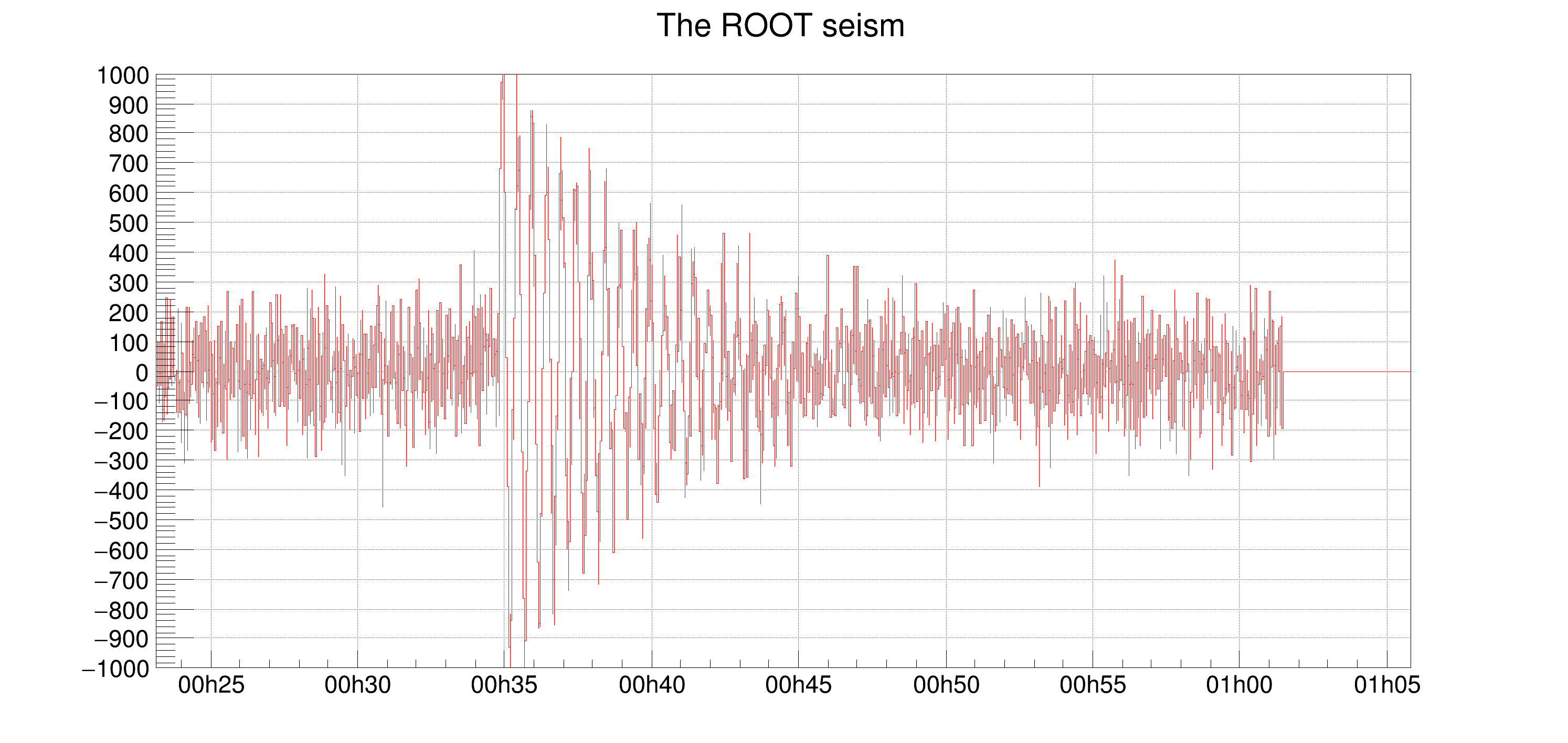

View in nbviewer Open in SWAN Strip chart example.

#include "TStopwatch.h"
#include "TDatime.h"
#include "TStyle.h"
#include "TH1F.h"
#include "TCanvas.h"
#include "TSystem.h"
#include "TRandom.h"
#include <stdio.h>
void seism() {
TStopwatch sw; sw.Start();
//set time offset
TDatime dtime;
TCanvas *c1 = new TCanvas("c1","Time on axis",10,10,1000,500);
c1->SetGrid();
Float_t bintime = 1; //one bin = 1 second. change it to set the time scale
TH1F *ht = new TH1F("ht","The ROOT seism",10,0,10*bintime);
Float_t signalval = 1000;
ht->SetMaximum( signalval);
ht->SetMinimum(-signalval);
ht->SetStats(0);
ht->SetLineColor(2);
ht->GetYaxis()->SetNdivisions(520);
ht->Draw();
for (Int_t i=1;i<2300;i++) {
//======= Build a signal : noisy damped sine ======
Float_t noise = gRandom->Gaus(0,120);
if (i > 700) noise += signalval*sin((i-700.)*6.28/30)*exp((700.-i)/300.);
ht->SetBinContent(i,noise);
c1->Modified();
c1->Update();
gSystem->ProcessEvents(); //canvas can be edited during the loop
}
printf("Real Time = %8.3fs, Cpu Time = %8.3fs\n",sw.RealTime(),sw.CpuTime());
}
int Int_t
Definition RtypesCore.h:45
float Float_t
Definition RtypesCore.h:57
double sin(double)
double exp(double)
R__EXTERN TRandom * gRandom
Definition TRandom.h:62
R__EXTERN TStyle * gStyle
Definition TStyle.h:412
R__EXTERN TSystem * gSystem
Definition TSystem.h:559
virtual void SetNdivisions(Int_t n=510, Bool_t optim=kTRUE)
Set the number of divisions for this axis.
Definition TAttAxis.cxx:228
virtual void SetLineColor(Color_t lcolor)
Set the line color.
Definition TAttLine.h:40
virtual void SetTimeDisplay(Int_t value)
Definition TAxis.h:161
The Canvas class.
Definition TCanvas.h:23
This class stores the date and time with a precision of one second in an unsigned 32 bit word (950130...
Definition TDatime.h:37
UInt_t Convert(Bool_t toGMT=kFALSE) const
Convert fDatime from TDatime format to the standard time_t format.
Definition TDatime.cxx:182
1-D histogram with a float per channel (see TH1 documentation)}
Definition TH1.h:575
TAxis * GetXaxis()
Get the behaviour adopted by the object about the statoverflows. See EStatOverflows for more informat...
Definition TH1.h:320
virtual void SetMaximum(Double_t maximum=-1111)
Definition TH1.h:398
TAxis * GetYaxis()
Definition TH1.h:321
virtual void SetMinimum(Double_t minimum=-1111)
Definition TH1.h:399
virtual void SetBinContent(Int_t bin, Double_t content)
Set bin content see convention for numbering bins in TH1::GetBin In case the bin number is greater th...
Definition TH1.cxx:9062
virtual void Draw(Option_t *option="")
Draw this histogram with options.
Definition TH1.cxx:3073
virtual void SetStats(Bool_t stats=kTRUE)
Set statistics option on/off.
Definition TH1.cxx:8830
virtual Double_t Gaus(Double_t mean=0, Double_t sigma=1)
Samples a random number from the standard Normal (Gaussian) Distribution with the given mean and sigm...
Definition TRandom.cxx:274
Stopwatch class.
Definition TStopwatch.h:28
Double_t RealTime()
Stop the stopwatch (if it is running) and return the realtime (in seconds) passed between the start a...
void Start(Bool_t reset=kTRUE)
Start the stopwatch.
Double_t CpuTime()
Stop the stopwatch (if it is running) and return the cputime (in seconds) passed between the start an...
void SetTimeOffset(Double_t toffset)
Change the time offset for time plotting.
Definition TStyle.cxx:1800
virtual Bool_t ProcessEvents()
Process pending events (GUI, timers, sockets).
Definition TSystem.cxx:417
return c1
Definition legend1.C:41
Author
Rene Brun

Definition in file seism.C.
