fitcont.C File Reference

Detailed Description

Example illustrating how to draw the n-sigma contour of a Minuit fit.

To get the n-sigma contour the ERRDEF parameter in Minuit has to set to n^2. The fcn function has to be set before the routine is called.

WARNING!!! This test works only with TMinuit

The TGraph object is created via the interpreter. The user must cast it to a TGraph*

 FCN=96.6163 FROM MIGRAD    STATUS=CONVERGED      62 CALLS          63 TOTAL
                     EDM=2.07594e-08    STRATEGY= 1      ERROR MATRIX ACCURATE
  EXT PARAMETER                                   STEP         FIRST
  NO.   NAME      VALUE            ERROR          SIZE      DERIVATIVE
   1  Constant     1.43454e+02   2.29666e+00   9.00732e-03  -6.49594e-05
   2  Mean         1.60911e-02   1.30402e-02   6.28520e-05   3.57224e-03
   3  Sigma        9.87683e-01   9.45637e-03   1.24479e-05   2.14428e-02


#include <TCanvas.h>
#include <TGraph.h>
#include <TH1F.h>
#include <TVirtualFitter.h>

void fitcont()
{
   //be sure default is Minuit since we will use gMinuit
   TVirtualFitter::SetDefaultFitter("Minuit");

   TCanvas *c1 = new TCanvas("c1");

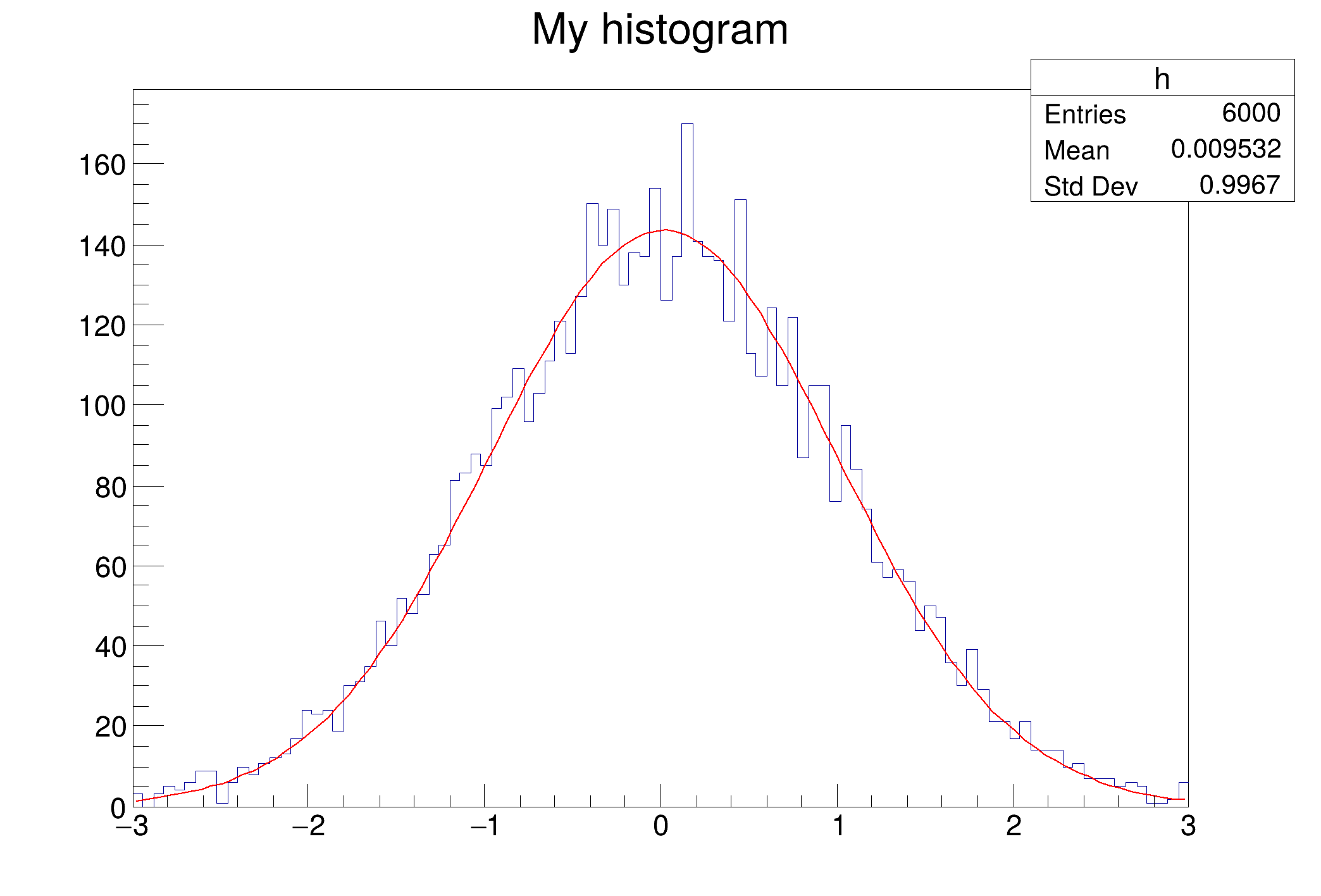

   TH1F *h = new TH1F("h","My histogram",100,-3,3);
   h->FillRandom("gaus",6000);
   h->Fit("gaus");
   c1->Update();

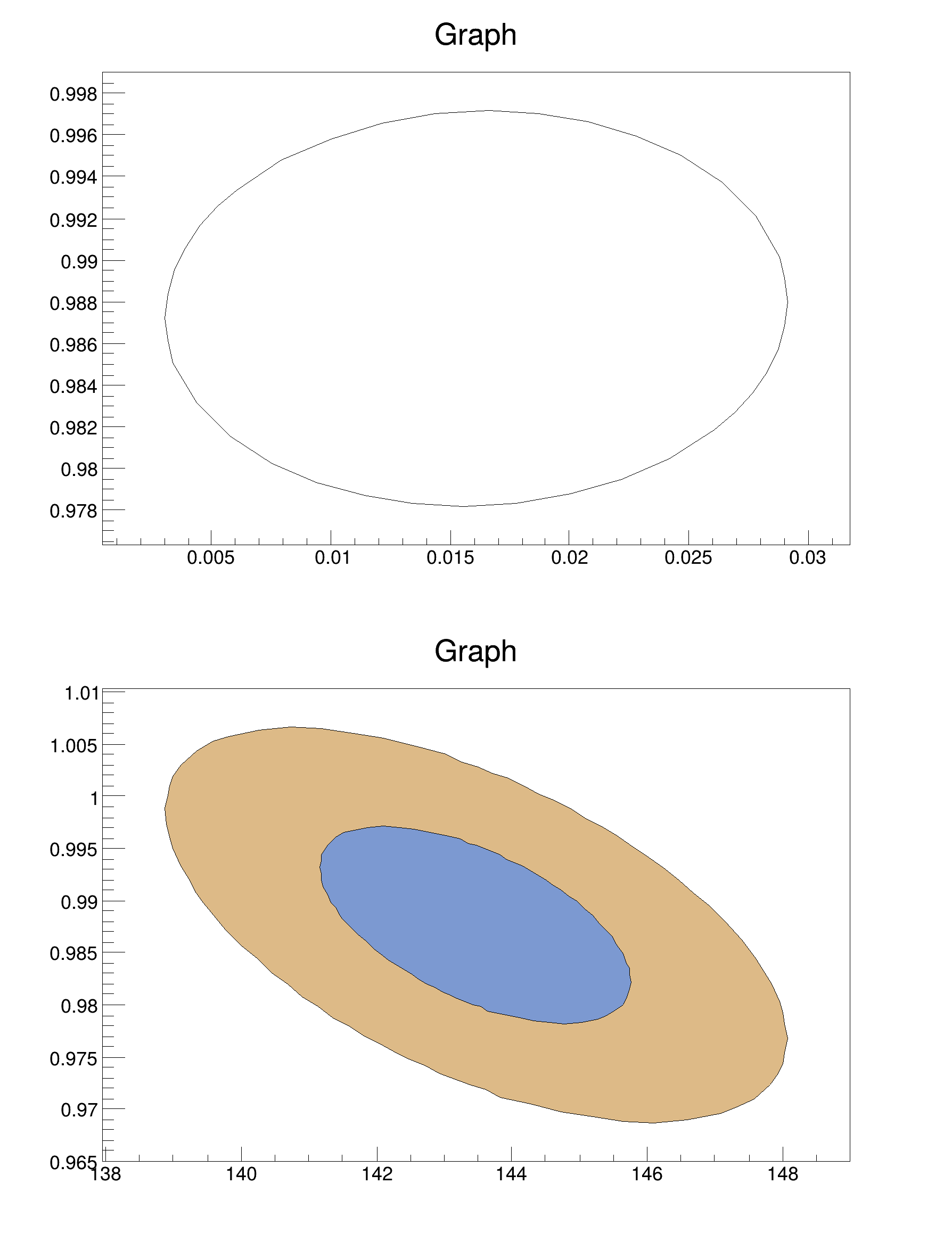

   TCanvas *c2 = new TCanvas("c2","contours",10,10,600,800);
   c2->Divide(1,2);
   c2->cd(1);
   /*get first contour for parameter 1 versus parameter 2*/
   TGraph *gr12 = (TGraph*)gMinuit->Contour(40,1,2);
   gr12->Draw("alp");
   c2->cd(2);
   /*Get contour for parameter 0 versus parameter 2  for ERRDEF=2*/
   gMinuit->SetErrorDef(4); //note 4 and not 2!
   TGraph *gr2 = (TGraph*)gMinuit->Contour(80,0,2);
   gr2->SetFillColor(42);
   gr2->Draw("alf");
   /*Get contour for parameter 0 versus parameter 2 for ERRDEF=1*/
   gMinuit->SetErrorDef(1);
   TGraph *gr1 = (TGraph*)gMinuit->Contour(80,0,2);
   gr1->SetFillColor(38);
   gr1->Draw("lf");
}

Author

Rene Brun

Definition in file fitcont.C.
