TAttFill Class Reference

Definition at line 21 of file TAttFill.h.

Public Member Functions
	TAttFill ()
	TAttFill (Color_t fcolor, Style_t fstyle)
virtual	~TAttFill ()
void	Copy (TAttFill &attfill) const
virtual Color_t	GetFillColor () const
	Return the fill area color.
virtual Style_t	GetFillStyle () const
	Return the fill area style.
virtual TClass *	IsA () const
virtual Bool_t	IsTransparent () const
virtual void	Modify ()
virtual void	ModifyOn (TVirtualPad &pad)
virtual void	ResetAttFill (Option_t *option="")
virtual void	SaveFillAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1001)
virtual void	SetFillAttributes ()
virtual void	SetFillColor (Color_t fcolor)
	Set the fill area color.
void	SetFillColor (TColorNumber)
virtual void	SetFillColorAlpha (Color_t fcolor, Float_t falpha)
virtual void	SetFillStyle (Style_t fstyle)
	Set the fill area style.
virtual void	Streamer (TBuffer &)
void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Static Public Member Functions
static TClass *	Class ()
static const char *	Class_Name ()
static constexpr Version_t	Class_Version ()
static const char *	DeclFileName ()

Protected Attributes
Color_t	fFillColor
	Fill area color.
Style_t	fFillStyle
	Fill area style.

#include <TAttFill.h>

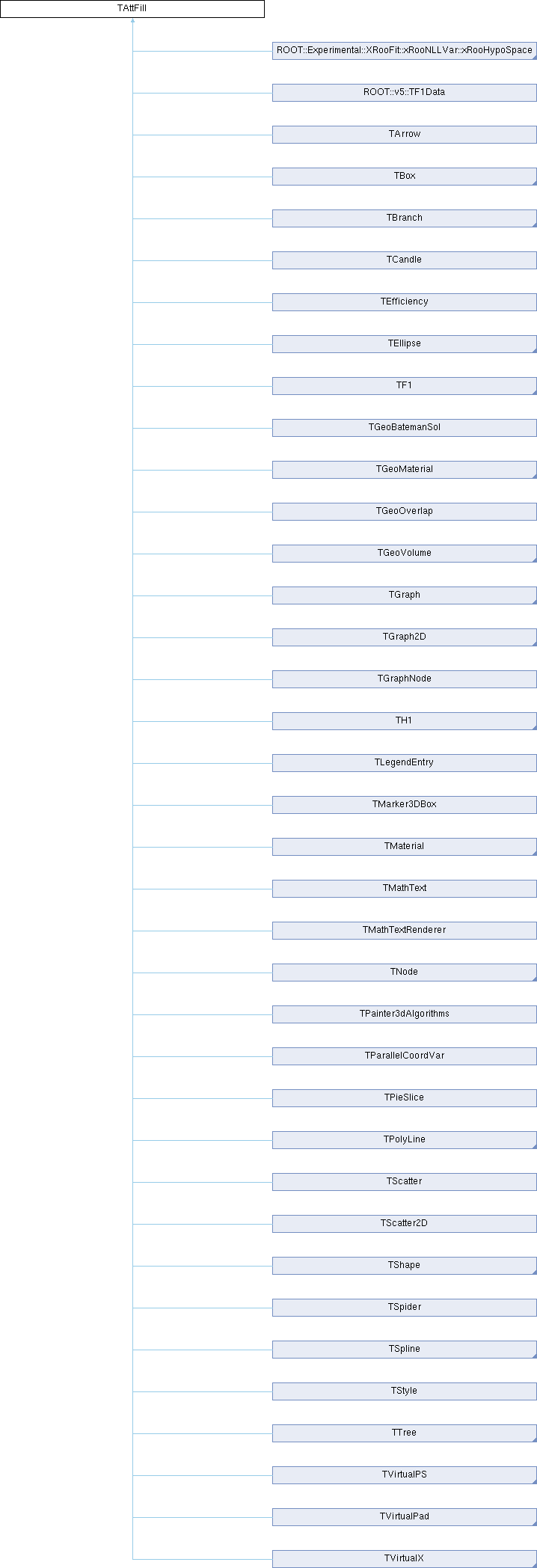

Inheritance diagram for TAttFill:

Constructor & Destructor Documentation

TAttFill() [1/2]

TAttFill::TAttFill

(

)

TAttFill() [2/2]

TAttFill::TAttFill	(	Color_t	fcolor,
		Style_t	fstyle )

~TAttFill()

virtual TAttFill::~TAttFill ( )

virtual

Member Function Documentation

Class()

TClass * TAttFill::Class ( )

static

Returns

TClass describing this class

Class_Name()

const char * TAttFill::Class_Name ( )

static

Returns

Name of this class

Class_Version()

constexpr Version_t TAttFill::Class_Version ( )

inlinestaticconstexpr

Returns

Version of this class

Definition at line 46 of file TAttFill.h.

Copy()

void TAttFill::Copy

(

TAttFill &

attfill

)

const

DeclFileName()

const char * TAttFill::DeclFileName ( )

inlinestatic

Returns

Name of the file containing the class declaration

Definition at line 46 of file TAttFill.h.

GetFillColor()

virtual Color_t TAttFill::GetFillColor ( ) const

inlinevirtual

Return the fill area color.

Reimplemented in TGraphMultiErrors, TGWin32, TGWin32VirtualXProxy, and TGX11.

Definition at line 32 of file TAttFill.h.

GetFillStyle()

virtual Style_t TAttFill::GetFillStyle ( ) const

inlinevirtual

Return the fill area style.

Reimplemented in TGraphMultiErrors, TGWin32, TGWin32VirtualXProxy, and TGX11.

Definition at line 33 of file TAttFill.h.

IsA()

virtual TClass * TAttFill::IsA ( ) const

inlinevirtual

Returns

TClass describing current object

Reimplemented in RooCurve, RooEllipse, RooHist, ROOT::Experimental::XRooFit::xRooHypoSpace, ROOT::v5::TF1Data, TArc, TArrow, TBox, TBranch, TBranchClones, TBranchElement, TBranchObject, TBranchRef, TBranchSTL, TBRIK, TButton, TCandle, TCanvas, TChain, TCONE, TCONS, TCrown, TCTUB, TCurlyArc, TCurlyLine, TCutG, TDialogCanvas, TDiamond, TEfficiency, TEllipse, TELTU, TF12, TF1, TF2, TF3, TFrame, TGCocoa, TGeoBatemanSol, TGeoMaterial, TGeoMixture, TGeoOverlap, TGeoVolume, TGeoVolumeAssembly, TGeoVolumeMulti, TGLTH3Composition, TGQuartz, TGraph2D, TGraph2DAsymmErrors, TGraph2DErrors, TGraph, TGraphAsymmErrors, TGraphBentErrors, TGraphErrors, TGraphMultiErrors, TGraphNode, TGraphPolar, TGraphQQ, TGroupButton, TGTRA, TGWin32, TGX11, TGX11TTF, TH1, TH1C, TH1D, TH1F, TH1I, TH1L, TH1S, TH2, TH2C, TH2D, TH2F, TH2I, TH2L, TH2Poly, TH2S, TH3, TH3C, TH3D, TH3F, TH3I, TH3L, TH3S, THbookBranch, THbookTree, THYPE, TImageDump, TInspectCanvas, TLegend, TLegendEntry, TMarker3DBox, TMaterial, TMathText, TMixture, TMVA::TSpline1, TMVA::TSpline2, TNode, TNodeDiv, TNtuple, TNtupleD, TPad, TPaletteAxis, TPARA, TParallelCoordVar, TPave, TPaveClass, TPaveLabel, TPaveStats, TPavesText, TPaveText, TPCON, TPDF, TPGON, TPieSlice, TPolyLine, TPostScript, TProfile2D, TProfile2Poly, TProfile3D, TProfile, TScatter2D, TScatter, TShape, TSlider, TSliderBox, TSPHE, TSpider, TSpline3, TSpline5, TSpline, TStyle, TSVG, TTeXDump, TTRAP, TTRD1, TTRD2, TTree, TTreeSQL, TTUBE, TTUBS, TVirtualPad, TVirtualPS, TVirtualX, TWbox, and TXTRU.

Definition at line 46 of file TAttFill.h.

IsTransparent()

Bool_t TAttFill::IsTransparent ( ) const

inlinevirtual

Reimplemented in TGWin32VirtualXProxy.

Definition at line 49 of file TAttFill.h.

Modify()

virtual void TAttFill::Modify ( )

virtual

ModifyOn()

virtual void TAttFill::ModifyOn ( TVirtualPad & pad )

virtual

ResetAttFill()

virtual void TAttFill::ResetAttFill ( Option_t * option = "" )

virtual

Reimplemented in TGWin32VirtualXProxy.

SaveFillAttributes()

virtual void TAttFill::SaveFillAttributes ( std::ostream & out, const char * name, Int_t coldef = 1, Int_t stydef = 1001 )

virtual

SetFillAttributes()

virtual void TAttFill::SetFillAttributes ( )

virtual

Reimplemented in TGWin32VirtualXProxy.

SetFillColor() [1/2]

virtual void TAttFill::SetFillColor ( Color_t fcolor )

inlinevirtual

Set the fill area color.

Reimplemented in TGQuartz, TGraphMultiErrors, TGWin32, TGWin32VirtualXProxy, TGX11, TPDF, TPostScript, TSpider, TSVG, TTeXDump, and TVirtualX.

Definition at line 40 of file TAttFill.h.

SetFillColor() [2/2]

void TAttFill::SetFillColor

(

TColorNumber

)

SetFillColorAlpha()

virtual void TAttFill::SetFillColorAlpha ( Color_t fcolor, Float_t falpha )

virtual

Reimplemented in TGraphMultiErrors.

SetFillStyle()

virtual void TAttFill::SetFillStyle ( Style_t fstyle )

inlinevirtual

Set the fill area style.

Reimplemented in TGQuartz, TGraphMultiErrors, TGWin32, TGWin32VirtualXProxy, TGX11, TPad, TSpider, and TVirtualX.

Definition at line 42 of file TAttFill.h.

Streamer()

virtual void TAttFill::Streamer ( TBuffer & )

virtual

Reimplemented in RooCurve, RooEllipse, RooHist, ROOT::Experimental::XRooFit::xRooHypoSpace, ROOT::v5::TF1Data, TArc, TArrow, TBox, TBranch, TBranchClones, TBranchElement, TBranchObject, TBranchRef, TBranchSTL, TBRIK, TButton, TCandle, TCanvas, TChain, TCONE, TCONS, TCrown, TCTUB, TCurlyArc, TCurlyLine, TCutG, TDialogCanvas, TDiamond, TEfficiency, TEllipse, TELTU, TF12, TF1, TF2, TF3, TFrame, TGCocoa, TGeoBatemanSol, TGeoMaterial, TGeoMixture, TGeoOverlap, TGeoVolume, TGeoVolumeAssembly, TGeoVolumeMulti, TGLTH3Composition, TGQuartz, TGraph2D, TGraph2DAsymmErrors, TGraph2DErrors, TGraph, TGraphAsymmErrors, TGraphBentErrors, TGraphErrors, TGraphMultiErrors, TGraphNode, TGraphPolar, TGraphQQ, TGroupButton, TGTRA, TGWin32, TGX11, TGX11TTF, TH1, TH1C, TH1D, TH1F, TH1I, TH1L, TH1S, TH2, TH2C, TH2D, TH2F, TH2I, TH2L, TH2Poly, TH2S, TH3, TH3C, TH3D, TH3F, TH3I, TH3L, TH3S, THbookBranch, THbookTree, THYPE, TImageDump, TInspectCanvas, TLegend, TLegendEntry, TMarker3DBox, TMaterial, TMathText, TMixture, TMVA::TSpline1, TMVA::TSpline2, TNode, TNodeDiv, TNtuple, TNtupleD, TPad, TPaletteAxis, TPARA, TParallelCoordVar, TPave, TPaveClass, TPaveLabel, TPaveStats, TPavesText, TPaveText, TPCON, TPDF, TPGON, TPieSlice, TPolyLine, TPostScript, TProfile2D, TProfile2Poly, TProfile3D, TProfile, TScatter2D, TScatter, TShape, TSlider, TSliderBox, TSPHE, TSpider, TSpline3, TSpline5, TSpline, TStyle, TSVG, TTeXDump, TTRAP, TTRD1, TTRD2, TTree, TTreeSQL, TTUBE, TTUBS, TVirtualPad, TVirtualPS, TVirtualX, TWbox, and TXTRU.

StreamerNVirtual()

void TAttFill::StreamerNVirtual ( TBuffer & ClassDef_StreamerNVirtual_b )

inline

Definition at line 46 of file TAttFill.h.

Member Data Documentation

fFillColor

Color_t TAttFill::fFillColor

protected

Fill area color.

Definition at line 24 of file TAttFill.h.

fFillStyle

Style_t TAttFill::fFillStyle

protected

Fill area style.

Definition at line 25 of file TAttFill.h.

---

The documentation for this class was generated from the following file:

• core/base/inc/TAttFill.h
