df102_NanoAODDimuonAnalysis.C File Reference

Detailed Description

Show how NanoAOD files can be processed with RDataFrame.

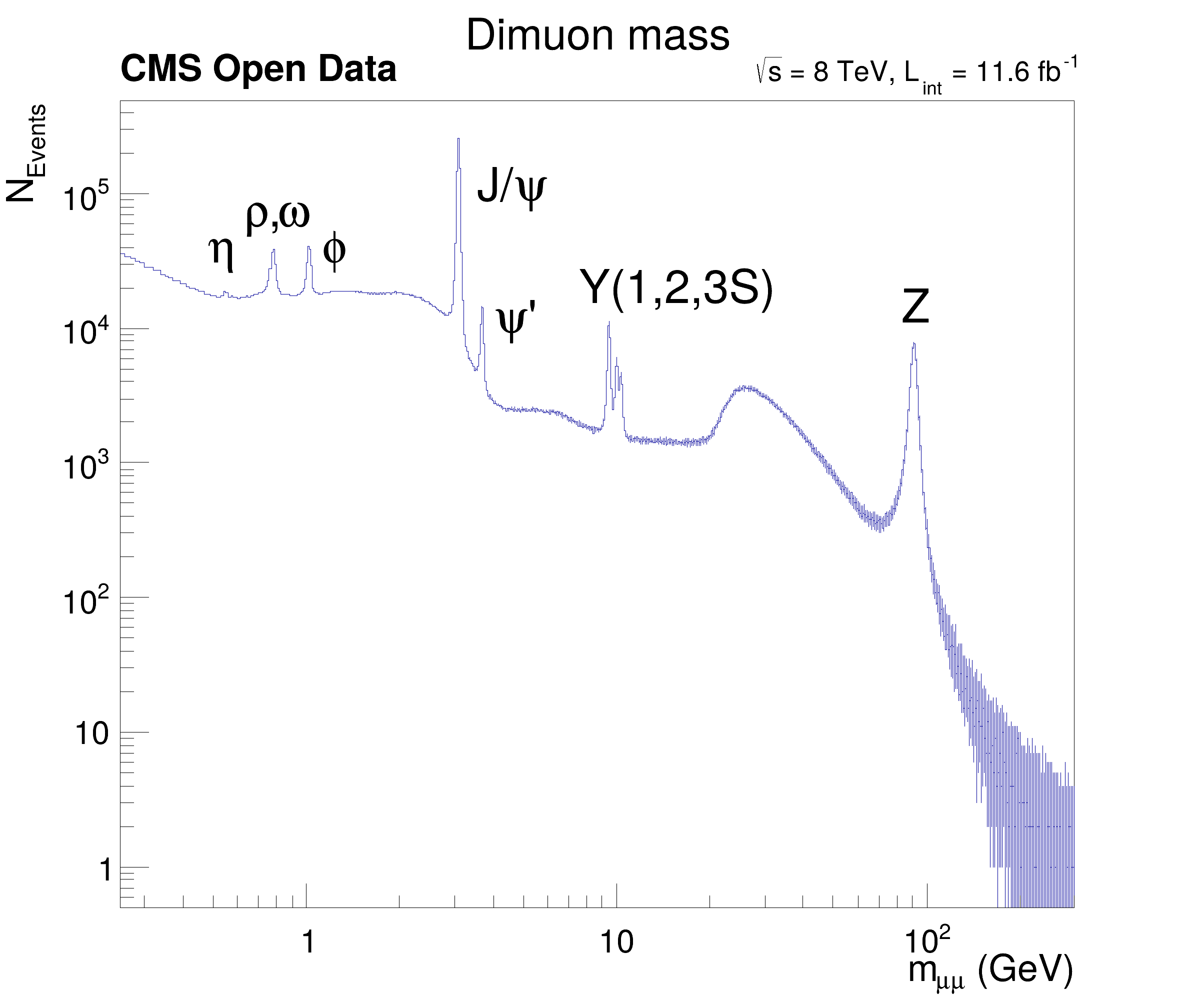

This tutorial illustrates how NanoAOD files can be processed with ROOT dataframes. The NanoAOD-like input files are filled with 66 mio. events from CMS OpenData containing muon candidates part of 2012 dataset (DOI: 10.7483/OPENDATA.CMS.YLIC.86ZZ and DOI: 10.7483/OPENDATA.CMS.M5AD.Y3V3). The macro matches muon pairs and produces an histogram of the dimuon mass spectrum showing resonances up to the Z mass. Note that the bump at 30 GeV is not a resonance but a trigger effect.

More details about the dataset can be found on the CERN Open Data portal.


#include "ROOT/RDataFrame.hxx"
#include "ROOT/RDFHelpers.hxx"
#include "ROOT/RVec.hxx"
#include "TCanvas.h"
#include "TH1D.h"
#include "TLatex.h"
#include "TStyle.h"

using namespace ROOT::VecOps;

void df102_NanoAODDimuonAnalysis()
{
   // Enable multi-threading
   ROOT::EnableImplicitMT();

   // Create dataframe from NanoAOD files
   ROOT::RDataFrame df("Events", "root://eospublic.cern.ch//eos/opendata/cms/derived-data/AOD2NanoAODOutreachTool/"
                                 "Run2012BC_DoubleMuParked_Muons.root");

   // Add ProgressBar
   ROOT::RDF::Experimental::AddProgressBar(df);

   // For simplicity, select only events with exactly two muons and require opposite charge
   auto df_2mu = df.Filter("nMuon == 2", "Events with exactly two muons");
   auto df_os = df_2mu.Filter("Muon_charge[0] != Muon_charge[1]", "Muons with opposite charge");

   // Compute invariant mass of the dimuon system
   auto df_mass = df_os.Define("Dimuon_mass", InvariantMass<float>, {"Muon_pt", "Muon_eta", "Muon_phi", "Muon_mass"});

   // Make histogram of dimuon mass spectrum. Note how we can set title and axis labels in one go
   auto h = df_mass.Histo1D({"Dimuon_mass", "Dimuon mass;m_{#mu#mu} (GeV);N_{Events}", 30000, 0.25, 300}, "Dimuon_mass");

   // Request cut-flow report
   auto report = df.Report();

   // Produce plot
   gStyle->SetOptStat(0); gStyle->SetTextFont(42);
   auto c = new TCanvas("c", "", 800, 700);
   c->SetLogx(); c->SetLogy();

   h->GetXaxis()->SetTitleSize(0.04);
   h->GetYaxis()->SetTitleSize(0.04);
   h->DrawClone();

   TLatex label; label.SetNDC(true);
   label.DrawLatex(0.175, 0.740, "#eta");
   label.DrawLatex(0.205, 0.775, "#rho,#omega");
   label.DrawLatex(0.270, 0.740, "#phi");
   label.DrawLatex(0.400, 0.800, "J/#psi");
   label.DrawLatex(0.415, 0.670, "#psi'");
   label.DrawLatex(0.485, 0.700, "Y(1,2,3S)");
   label.DrawLatex(0.755, 0.680, "Z");
   label.SetTextSize(0.040); label.DrawLatex(0.100, 0.920, "#bf{CMS Open Data}");
   label.SetTextSize(0.030); label.DrawLatex(0.630, 0.920, "#sqrt{s} = 8 TeV, L_{int} = 11.6 fb^{-1}");

   c->SaveAs("dimuon_spectrum.pdf");

   // Print cut-flow report
   report->Print();
}

int main()
{
   df102_NanoAODDimuonAnalysis();
}

|=>          |   [Elapsed: 0:10m  files: 1 / 1  events: 13195000 / 61540413  1.32e+06 evt/s  remaining ca.: 0:36m]
|=======>    |   [Elapsed: 0:20m  files: 1 / 1  events: 43979000 / 61540413  2.20e+06 evt/s  remaining ca.: 0:07m]
[Total elapsed time: 0:26m  processed files: 1  processed events: 61540413  2.37e+06 evt/s]
Events with exactly two muons: pass=31104343   all=61540413   -- eff=50.54 % cumulative eff=50.54 %
Muons with opposite charge: pass=24067843   all=31104343   -- eff=77.38 % cumulative eff=39.11 %

Date

August 2018

Author

Stefan Wunsch (KIT, CERN)

Definition in file df102_NanoAODDimuonAnalysis.C.
