StandardBayesianMCMCDemo.C File Reference

Detailed Description

Standard demo of the Bayesian MCMC calculator

This is a standard demo that can be used with any ROOT file prepared in the standard way. You specify:

• name for input ROOT file
• name of workspace inside ROOT file that holds model and data
• name of ModelConfig that specifies details for calculator tools
• name of dataset

With default parameters the macro will attempt to run the standard hist2workspace example and read the ROOT file that it produces.

The actual heart of the demo is only about 10 lines long.

The MCMCCalculator is a Bayesian tool that uses the Metropolis-Hastings algorithm to efficiently integrate in many dimensions. It is not as accurate as the BayesianCalculator for simple problems, but it scales to much more complicated cases.

[#1] INFO:Minimization -- p.d.f. provides expected number of events, including extended term in likelihood.
[#1] INFO:Minimization --  Including the following constraint terms in minimization: (lumiConstraint,alpha_syst1Constraint,alpha_syst2Constraint,alpha_syst3Constraint,gamma_stat_channel1_bin_0_constraint,gamma_stat_channel1_bin_1_constraint)
[#1] INFO:Minimization -- The following global observables have been defined and their values are taken from the model: (nominalLumi,nom_alpha_syst1,nom_alpha_syst2,nom_alpha_syst3,nom_gamma_stat_channel1_bin_0,nom_gamma_stat_channel1_bin_1)
[#1] INFO:Fitting -- RooAbsPdf::fitTo(simPdf) fixing normalization set for coefficient determination to observables in data
[#1] INFO:Fitting -- using generic CPU library compiled with no vectorizations
[#1] INFO:Fitting -- Creation of NLL object took 9.40621 ms
Metropolis-Hastings progress: ....................................................................................................
[#1] INFO:Eval -- Proposal acceptance rate: 27.202%
[#1] INFO:Eval -- Number of steps in chain: 27202

>>>> RESULT : 95% interval on SigXsecOverSM is : [0, 2.16421]


#include "TFile.h"
#include "TROOT.h"
#include "TCanvas.h"
#include "TMath.h"
#include "TSystem.h"
#include "RooWorkspace.h"
#include "RooAbsData.h"

#include "RooStats/ModelConfig.h"
#include "RooStats/MCMCCalculator.h"
#include "RooStats/MCMCInterval.h"
#include "RooStats/MCMCIntervalPlot.h"
#include "RooStats/SequentialProposal.h"
#include "RooStats/ProposalHelper.h"
#include "RooStats/ProposalHelper.h"
#include "RooFitResult.h"

using namespace RooFit;
using namespace RooStats;

struct BayesianMCMCOptions {

   double confLevel = 0.95;
   int intervalType = 2; // type of interval (0 is shortest, 1 central, 2 upper limit)
   double maxPOI = -999; // force different values of POI for doing the scan (default is given value)
   double minPOI = -999;
   int numIters = 100000;    // number of iterations
   int numBurnInSteps = 100; // number of burn in steps to be ignored
};

BayesianMCMCOptions optMCMC;

void StandardBayesianMCMCDemo(const char *infile = "", const char *workspaceName = "combined",
                              const char *modelConfigName = "ModelConfig", const char *dataName = "obsData")
{

   // -------------------------------------------------------
   // First part is just to access a user-defined file
   // or create the standard example file if it doesn't exist

   const char *filename = "";
   if (!strcmp(infile, "")) {
      filename = "results/example_combined_GaussExample_model.root";
      bool fileExist = !gSystem->AccessPathName(filename); // note opposite return code
      // if file does not exists generate with histfactory
      if (!fileExist) {
         // Normally this would be run on the command line
         cout << "will run standard hist2workspace example" << endl;
         gROOT->ProcessLine(".! prepareHistFactory .");
         gROOT->ProcessLine(".! hist2workspace config/example.xml");
         cout << "\n\n---------------------" << endl;
         cout << "Done creating example input" << endl;
         cout << "---------------------\n\n" << endl;
      }

   } else
      filename = infile;

   // Try to open the file
   TFile *file = TFile::Open(filename);

   // if input file was specified but not found, quit
   if (!file) {
      cout << "StandardRooStatsDemoMacro: Input file " << filename << " is not found" << endl;
      return;
   }

   // -------------------------------------------------------
   // Tutorial starts here
   // -------------------------------------------------------

   // get the workspace out of the file
   RooWorkspace *w = (RooWorkspace *)file->Get(workspaceName);
   if (!w) {
      cout << "workspace not found" << endl;
      return;
   }

   // get the modelConfig out of the file
   ModelConfig *mc = (ModelConfig *)w->obj(modelConfigName);

   // get the modelConfig out of the file
   RooAbsData *data = w->data(dataName);

   // make sure ingredients are found
   if (!data || !mc) {
      w->Print();
      cout << "data or ModelConfig was not found" << endl;
      return;
   }

   // Want an efficient proposal function
   // default is uniform.

   /*
   // this one is based on the covariance matrix of fit
   RooFitResult* fit = mc->GetPdf()->fitTo(*data,Save());
   ProposalHelper ph;
   ph.SetVariables((RooArgSet&)fit->floatParsFinal());
   ph.SetCovMatrix(fit->covarianceMatrix());
   ph.SetUpdateProposalParameters(True); // auto-create mean vars and add mappings
   ph.SetCacheSize(100);
   ProposalFunction* pf = ph.GetProposalFunction();
   */

   // this proposal function seems fairly robust
   SequentialProposal sp(0.1);
   // -------------------------------------------------------
   // create and use the MCMCCalculator
   // to find and plot the 95% credible interval
   // on the parameter of interest as specified
   // in the model config
   MCMCCalculator mcmc(*data, *mc);
   mcmc.SetConfidenceLevel(optMCMC.confLevel); // 95% interval
   //  mcmc.SetProposalFunction(*pf);
   mcmc.SetProposalFunction(sp);
   mcmc.SetNumIters(optMCMC.numIters);             // Metropolis-Hastings algorithm iterations
   mcmc.SetNumBurnInSteps(optMCMC.numBurnInSteps); // first N steps to be ignored as burn-in

   // default is the shortest interval.
   if (optMCMC.intervalType == 0)
      mcmc.SetIntervalType(MCMCInterval::kShortest); // for shortest interval (not really needed)
   if (optMCMC.intervalType == 1)
      mcmc.SetLeftSideTailFraction(0.5); // for central interval
   if (optMCMC.intervalType == 2)
      mcmc.SetLeftSideTailFraction(0.); // for upper limit

   RooRealVar *firstPOI = (RooRealVar *)mc->GetParametersOfInterest()->first();
   if (optMCMC.minPOI != -999)
      firstPOI->setMin(optMCMC.minPOI);
   if (optMCMC.maxPOI != -999)
      firstPOI->setMax(optMCMC.maxPOI);

   MCMCInterval *interval = mcmc.GetInterval();

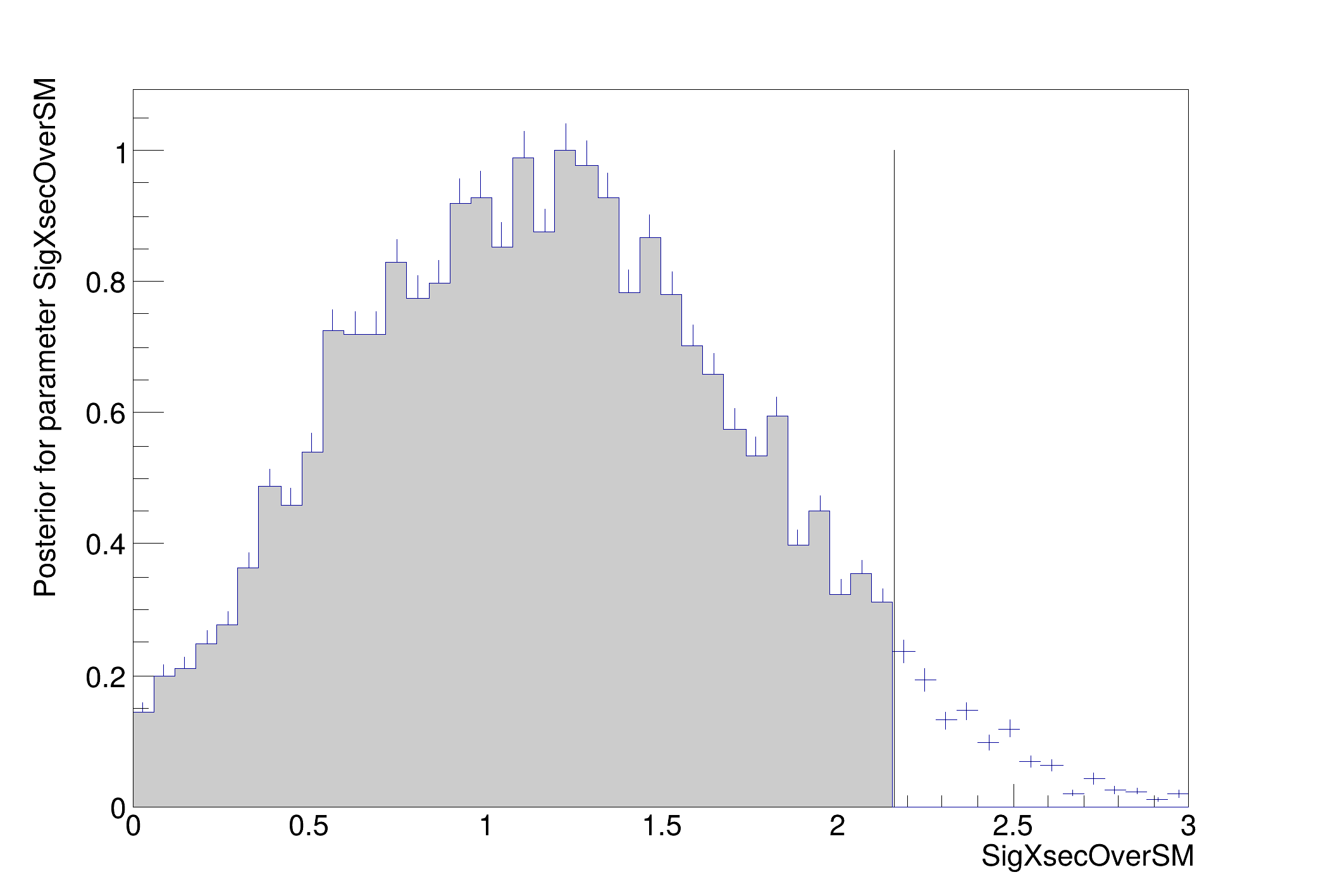

   // make a plot
   // TCanvas* c1 =
   auto c1 = new TCanvas("IntervalPlot");
   MCMCIntervalPlot plot(*interval);
   plot.Draw();

   TCanvas *c2 = new TCanvas("extraPlots");
   const RooArgSet *list = mc->GetNuisanceParameters();
   if (list->getSize() > 1) {
      double n = list->getSize();
      int ny = TMath::CeilNint(sqrt(n));
      int nx = TMath::CeilNint(double(n) / ny);
      c2->Divide(nx, ny);
   }

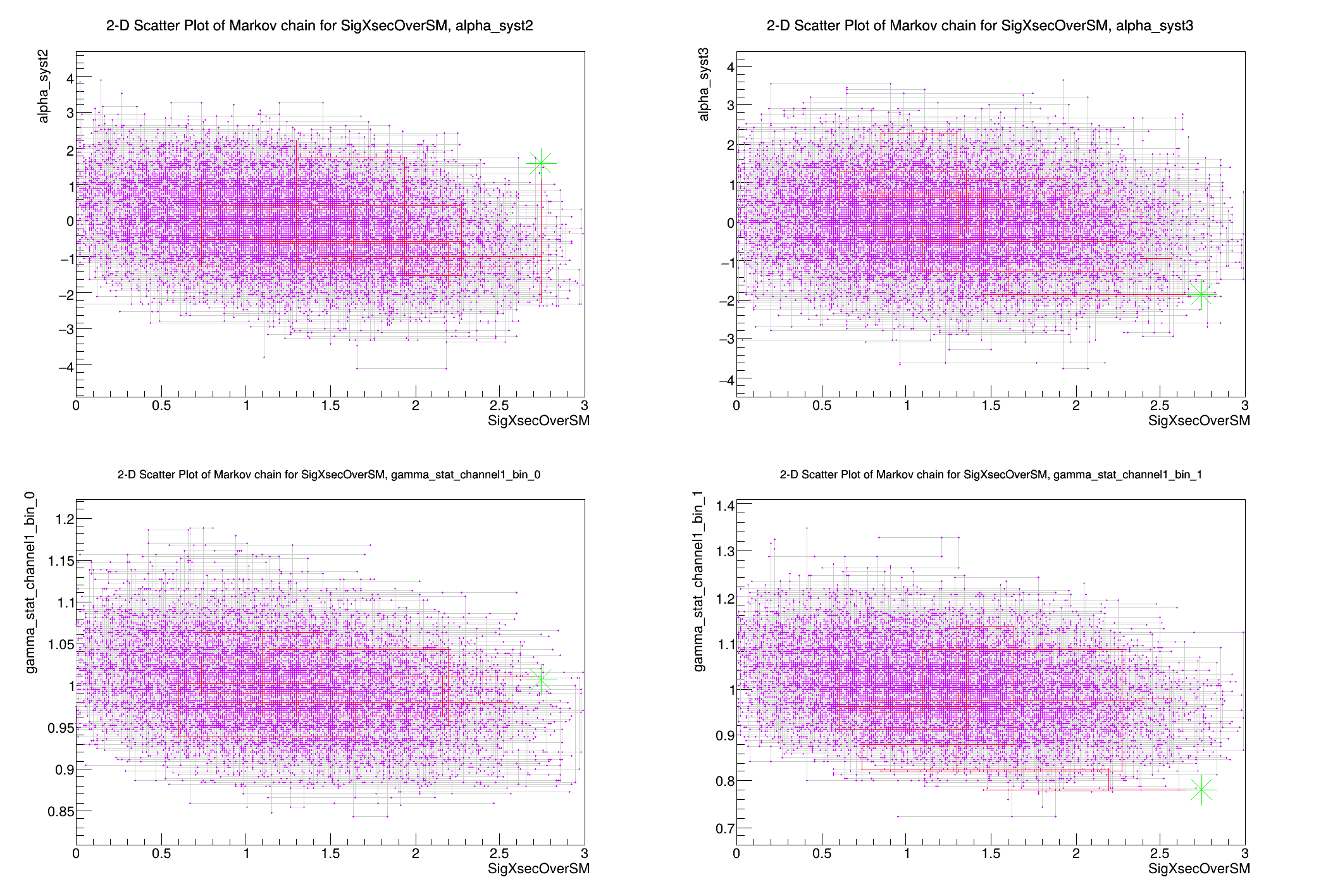

   // draw a scatter plot of chain results for poi vs each nuisance parameters
   int iPad = 1; // iPad, that's funny
   for (auto *nuis : static_range_cast<RooRealVar *>(*mc->GetNuisanceParameters())) {
      c2->cd(iPad++);
      plot.DrawChainScatter(*firstPOI, *nuis);
   }

   // print out the interval on the first Parameter of Interest
   cout << "\n>>>> RESULT : " << optMCMC.confLevel * 100 << "% interval on " << firstPOI->GetName() << " is : ["
        << interval->LowerLimit(*firstPOI) << ", " << interval->UpperLimit(*firstPOI) << "] " << endl;

   gPad = c1;
}

Author

Kyle Cranmer

Definition in file StandardBayesianMCMCDemo.C.
