ROOT » ROOFIT » ROOSTATS » RooStats::LikelihoodIntervalPlot

class RooStats::LikelihoodIntervalPlot: public TNamed, public RooPrintable


LikelihoodIntervalPlot :

This class provides simple and straightforward utilities to plot a LikelihoodInterval
object.

Function Members (Methods)

public:
virtual~LikelihoodIntervalPlot()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTNamed::Clear(Option_t* option = "")
virtual TObject*TNamed::Clone(const char* newname = "") const
virtual Int_tTNamed::Compare(const TObject* obj) const
virtual voidTNamed::Copy(TObject& named) const
virtual Int_tRooPrintable::defaultPrintContents(Option_t* opt) const
static ostream&RooPrintable::defaultPrintStream(ostream* os = 0)
virtual RooPrintable::StyleOptionRooPrintable::defaultPrintStyle(Option_t* opt) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidDraw(const Option_t* options = 0)
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual voidTNamed::FillBuffer(char*& buffer)
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual const char*TObject::GetIconName() const
virtual const char*TNamed::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
TObject*GetPlottedObject() const
virtual const char*TNamed::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTNamed::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTNamed::IsSortable() const
Bool_tTObject::IsZombie() const
RooStats::LikelihoodIntervalPlotLikelihoodIntervalPlot()
RooStats::LikelihoodIntervalPlotLikelihoodIntervalPlot(RooStats::LikelihoodInterval* theInterval)
RooStats::LikelihoodIntervalPlotLikelihoodIntervalPlot(const RooStats::LikelihoodIntervalPlot&)
virtual voidTNamed::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
static voidRooPrintable::nameFieldLength(Int_t newLen)
virtual Bool_tTObject::Notify()
voidTObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
voidTObject::operator delete(void* ptr)
voidTObject::operator delete(void* ptr, void* vp)
voidTObject::operator delete[](void* ptr)
voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
RooStats::LikelihoodIntervalPlot&operator=(const RooStats::LikelihoodIntervalPlot&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTNamed::Print(Option_t* option = "") const
virtual voidRooPrintable::printAddress(ostream& os) const
virtual voidRooPrintable::printArgs(ostream& os) const
virtual voidRooPrintable::printClassName(ostream& os) const
virtual voidRooPrintable::printExtras(ostream& os) const
virtual voidRooPrintable::printMultiline(ostream& os, Int_t contents, Bool_t verbose = kFALSE, TString indent = "") const
virtual voidRooPrintable::printName(ostream& os) const
virtual voidRooPrintable::printStream(ostream& os, Int_t contents, RooPrintable::StyleOption style, TString indent = "") const
virtual voidRooPrintable::printTitle(ostream& os) const
virtual voidRooPrintable::printTree(ostream& os, TString indent = "") const
virtual voidRooPrintable::printValue(ostream& os) const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(ostream& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidSetContourColor(const Color_t color)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidSetFillStyle(const Style_t style)
voidSetLikelihoodInterval(RooStats::LikelihoodInterval* theInterval)
voidSetLineColor(const Color_t color)
voidSetMaximum(const Double_t theMaximum)
virtual voidTNamed::SetName(const char* name)MENU
virtual voidTNamed::SetNameTitle(const char* name, const char* title)
voidSetNPoints(Int_t np)
static voidTObject::SetObjectStat(Bool_t stat)
voidSetPlotParameters(const RooArgSet* params)
voidSetPrecision(double eps)
voidSetRange(double x1, double x2)
voidSetRange(double x1, double y1, double x2, double y2)
virtual voidTNamed::SetTitle(const char* title = "")MENU
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp) const
virtual Int_tTNamed::Sizeof() const
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()

Data Members

public:
static RooPrintable::ContentsOptionRooPrintable::kAddress
static RooPrintable::ContentsOptionRooPrintable::kArgs
static TObject::(anonymous)TObject::kBitMask
static TObject::EStatusBitsTObject::kCanDelete
static TObject::EStatusBitsTObject::kCannotPick
static RooPrintable::ContentsOptionRooPrintable::kClassName
static RooPrintable::ContentsOptionRooPrintable::kCollectionHeader
static RooPrintable::ContentsOptionRooPrintable::kExtras
static TObject::EStatusBitsTObject::kHasUUID
static RooPrintable::StyleOptionRooPrintable::kInline
static TObject::EStatusBitsTObject::kInvalidObject
static TObject::(anonymous)TObject::kIsOnHeap
static TObject::EStatusBitsTObject::kIsReferenced
static TObject::EStatusBitsTObject::kMustCleanup
static RooPrintable::ContentsOptionRooPrintable::kName
static TObject::EStatusBitsTObject::kNoContextMenu
static TObject::(anonymous)TObject::kNotDeleted
static TObject::EStatusBitsTObject::kObjInCanvas
static TObject::(anonymous)TObject::kOverwrite
static TObject::(anonymous)TObject::kSingleKey
static RooPrintable::StyleOptionRooPrintable::kSingleLine
static RooPrintable::StyleOptionRooPrintable::kStandard
static RooPrintable::ContentsOptionRooPrintable::kTitle
static RooPrintable::StyleOptionRooPrintable::kTreeStructure
static RooPrintable::ContentsOptionRooPrintable::kValue
static RooPrintable::StyleOptionRooPrintable::kVerbose
static TObject::(anonymous)TObject::kWriteDelete
static TObject::(anonymous)TObject::kZombie
protected:
static Int_tRooPrintable::_nameLength
TStringTNamed::fNameobject identifier
TStringTNamed::fTitleobject title
private:
Color_tfColorcolor for the contour (for 2D) or function (in 1D)
Style_tfFillStylefill style for contours
RooStats::LikelihoodInterval*fInterval
Color_tfLineColorline color for the interval (1D) or for other contours (2D)
Double_tfMaximumfunction maximum
Int_tfNPointsnumber of points used to scan the PL
Int_tfNdimPlot
RooArgSet*fParamsPlot
TObject*fPlotObjectplotted object
Double_tfPrecisionRooCurve precision
Double_tfXmax
Double_tfXmin
Double_tfYmax
Double_tfYmin

Class Charts

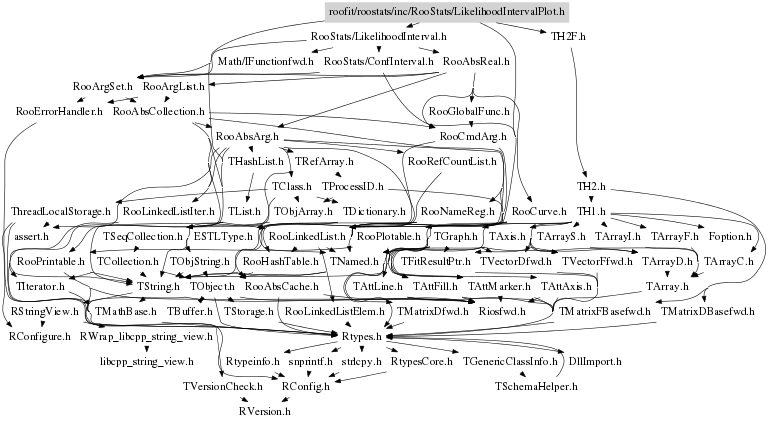

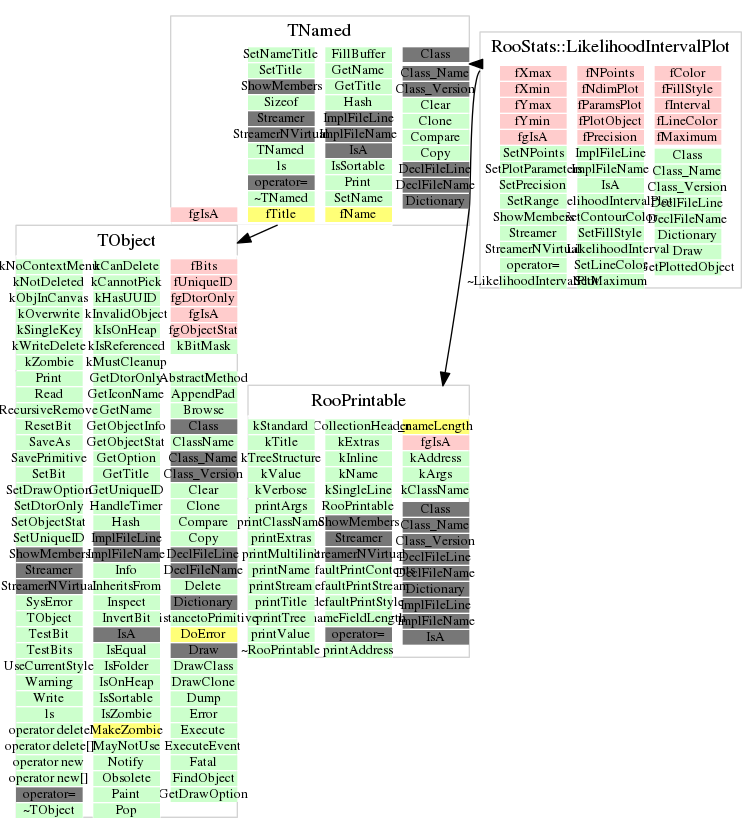

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

LikelihoodIntervalPlot()
 LikelihoodIntervalPlot default constructor
 with default parameters
LikelihoodIntervalPlot(LikelihoodInterval* theInterval)
 LikelihoodIntervalPlot copy constructor
~LikelihoodIntervalPlot()
void SetLikelihoodInterval(RooStats::LikelihoodInterval* theInterval)
void SetPlotParameters(const RooArgSet* params)
void Draw(const Option_t* options = 0)
 draw the log of the profiled likelihood function in 1D with the interval or
 as a 2D plot with the contours.
 Higher dimensionals intervals cannot be drawn. One needs to call
 SetPlotParameters to project interval in 1 or 2dim

 Options for drawing 1D interals

 For 1D problem the log of the profiled likelihood function is drawn bby default in a RooPlot as a
 RooCurve
 The plotting range (default is the full parameter range) and the precision of the RooCurve
 can be specified by using SetRange(x1,x2) and SetPrecision(eps).
 SetNPoints(npoints) can also be used  (default is npoints=100)
 Optionally the function can be drawn as a TF1 (option="tf1") obtained by sampling the given npoints
 in the given range

 Options for drawing 2D intervals

 For 2D case, a contour and optionally the profiled likelihood function is drawn by sampling npoints in
 the given range. A 2d histogram of nbinsX=nbinsY = sqrt(npoints) is used for sampling the profiled likelihood.
 The contour can be obtained by using Minuit or by the sampled histogram,
 If using Minuit, the number of points specifies the number of contour points. If using an histogram the number of
 points is approximatly the total number of bins of the histogram.
 Possible options:
  minuit/nominuit:     use minuit for computing the contour
   hist/nohist   :     sample in an histogram the profiled likelihood

 Note that one can have both a drawing of the sampled likelihood and of the contour using minuit.
 The default options is "minuit nohist"
 The sampled histogram is drawn first by default using the option "colz" and then 8 probability contours at
 these CL are drawn:  { 0.1,0.3,0.5,0.683,0.95,0.9973,0.9999366575,0.9999994267} re-drawing the histogram with the
 option "cont3"

 The drawn object (RooPlot or sampled histogram) is saved in teh class and can be retrieved using GetPlottedObject()
 In this way the user can eventually customize further the plot.
 Note that the class does not delete the plotted object. It needs, if needed, to be deleted by the user
LikelihoodIntervalPlot()
TObject * GetPlottedObject() const
 returned plotted object (RooPlot or histograms)
{ return fPlotObject; }
void SetRange(double x1, double x2)
 set plot range (for 1D plot)
{ fXmin = x1; fXmax = x2; }
void SetRange(double x1, double y1, double x2, double y2)
 set plot range (for 2D plot)
void SetPrecision(double eps)
set plot precision (when drawing a RooPlot)
{ fPrecision = eps; }
void SetLineColor(const Color_t color)
 set the line color for the 1D interval lines or contours (2D)
{fLineColor = color;}
void SetFillStyle(const Style_t style)
 set the fill contour color
{fFillStyle = style;}
void SetContourColor(const Color_t color)
 set the fill contour color
{fColor = color;}
void SetMaximum(const Double_t theMaximum)
{fMaximum = theMaximum;}
void SetNPoints(Int_t np)
{ fNPoints = np; }
