class TMatrixTSub<double>: public TMatrixTSub_const<double>


Matrix utility classes.

Templates of utility classes in the Linear Algebra Package.
The following classes are defined here:

Different matrix views without copying data elements :
TMatrixTRow_const        TMatrixTRow
TMatrixTColumn_const     TMatrixTColumn
TMatrixTDiag_const       TMatrixTDiag
TMatrixTFlat_const       TMatrixTFlat
TMatrixTSub_const        TMatrixTSub
TMatrixTSparseRow_const  TMatrixTSparseRow
TMatrixTSparseDiag_const TMatrixTSparseDiag

TElementActionT
TElementPosActionT

Function Members (Methods)

public:

virtual	~TMatrixTSub<double>()
static TClass*	Class()
Int_t	TMatrixTSub_const<double>::GetColOff() const
const TMatrixTBase<double>*	TMatrixTSub_const<double>::GetMatrix() const
Int_t	TMatrixTSub_const<double>::GetNcols() const
Int_t	TMatrixTSub_const<double>::GetNrows() const
Int_t	TMatrixTSub_const<double>::GetRowOff() const
virtual TClass*	IsA() const
double&	operator()(Int_t rown, Int_t coln)
void	operator*=(double val)
void	operator*=(const TMatrixTSub_const<double>& s)
void	operator*=(const TMatrixT<double>& m)
void	operator*=(const TMatrixTSym<double>& m)
void	operator+=(double val)
void	operator+=(const TMatrixTSub_const<double>& s)
void	operator+=(const TMatrixTBase<double>& m)
void	operator=(double val)
void	operator=(const TMatrixTSub_const<double>& s)
TMatrixTSub<double>&	operator=(const TMatrixTSub<double>& s)
void	operator=(const TMatrixTBase<double>& m)
void	Rank1Update(const TVectorT<double>& vec, double alpha = 1.)
virtual void	ShowMembers(TMemberInspector& insp) const
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
	TMatrixTSub<double>()
	TMatrixTSub<double>(const TMatrixTSub<double>& ms)
	TMatrixTSub<double>(TMatrixT<double>& matrix, Int_t row_lwb, Int_t row_upb, Int_t col_lwb, Int_t col_upb)
	TMatrixTSub<double>(TMatrixTSym<double>& matrix, Int_t row_lwb, Int_t row_upb, Int_t col_lwb, Int_t col_upb)

Data Members

public:

static TMatrixTSub<double>::(anonymous)	kWorkMax

protected:

Int_t	TMatrixTSub_const<double>::fColOff
TMatrixTBase<double>*	TMatrixTSub_const<double>::fMatrix	the matrix I am a submatrix of
Int_t	TMatrixTSub_const<double>::fNcolsSub
Int_t	TMatrixTSub_const<double>::fNrowsSub
Int_t	TMatrixTSub_const<double>::fRowOff

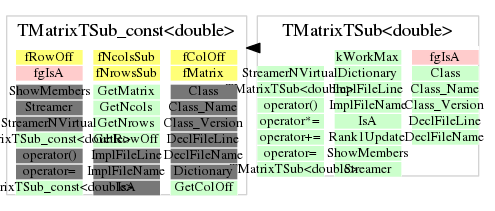

Class Charts

Inheritance Inherited Members Includes Libraries

Function documentation

void TMatrixTSub<Element> Rank1Update(const TVectorT<double>& vec, double alpha = 1.)

 Perform a rank 1 operation on the matrix:
     A += alpha * v * v^T

void TMatrixTSub<Element> operator=(Element val)

 Assign val to every element of the sub matrix.

void TMatrixTSub<Element> operator+=(Element val)

 Add val to every element of the sub matrix.

void TMatrixTSub<Element> operator*=(Element val)

 Multiply every element of the sub matrix by val .

void TMatrixTSub<Element> operator=(const TMatrixTSub_const<Element> &ms)

 Assignment operator

void TMatrixTSub<Element> operator=(const TMatrixTBase<Element> &m)

 Assignment operator

void TMatrixTSub<Element> operator+=(const TMatrixTSub_const<Element> &ms)

 Add to every element of the submatrix the corresponding element of submatrix ms.

void TMatrixTSub<Element> operator*=(const TMatrixTSub_const<Element> &ms)

 Multiply submatrix with submatrix ms.

void TMatrixTSub<Element> operator+=(const TMatrixTBase<Element> &mt)

 Add to every element of the submatrix the corresponding element of matrix mt.

void TMatrixTSub<Element> operator*=(const TMatrixT<Element> &source)

 Multiply submatrix with matrix source.

void TMatrixTSub<Element> operator*=(const TMatrixTSym<Element> &source)

 Multiply submatrix with matrix source.

TElementActionT& operator=(const TElementActionT<Element> &)

{return *this;}

const Element & operator()(Int_t i)
