ROOT » TREE » TREE » TCollectionMethodBrowsable

class TCollectionMethodBrowsable: public TMethodBrowsable

 TVirtualBranchBrowsable is a base class (not really abstract, but useless
 by itself) for helper objects that extend TBranch's browsing support.
 Each registered derived class's generator method is called, which fills
 all created helper objects into a list which can then be browsed.
 For details of what these browser helper objects can do, see e.g.
 TMethodBrowsable, which allows methods to show up in the TBrowser.

 Only registered helper objects are created. By default, only
 TMethodBrowsable, TNonSplitBrowsable, and TCollectionPropertyBrowsable
 are registered (see RegisterDefaultGenerators). You can prevent any of
 their objects to show up in the browser by unregistering the generator:
 will stop creating browsable method helper objects from that call on.
 Note that these helper objects are cached (in TBranch::fBrowsables);
 already created (and thus cached) browsables will still appear in the
 browser even after unregistering the corresponding generator.

 You can implement your own browsable objects and thier generator; see
 e.g. the simple TCollectionPropertyBrowsable. Note that you will have
 to register your generator just like any other, and that you should
 implement the following methods for your own class, mainly for
 consistency reasons:
   static void Register() {
     TVirtualBranchBrowsable::RegisterGenerator(GetBrowsables); }
   static void Unregister() {
     TVirtualBranchBrowsable::UnregisterGenerator(GetBrowsables); }
 where GetBrowsables is a static member function of your class, that
 creates the browsable helper objects, and has the signature
   static Int_t GetBrowsables(TList& list, const TBranch* branch,
                              const TVirtualBranchBrowsable* parent=0);
 It has to return the number of browsable helper objects for parent
 (or, if NULL, for branch) which are added to the list.

Function Members (Methods)

voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTVirtualBranchBrowsable::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTNamed::Clear(Option_t* option = "")
virtual TObject*TNamed::Clone(const char* newname = "") const
virtual Int_tTNamed::Compare(const TObject* obj) const
virtual voidTNamed::Copy(TObject& named) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual voidTNamed::FillBuffer(char*& buffer)
static Int_tTVirtualBranchBrowsable::FillListOfBrowsables(TList& list, const TBranch* branch, const TVirtualBranchBrowsable* parent = 0)
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
const TBranch*TVirtualBranchBrowsable::GetBranch() const
static Int_tGetBrowsables(TList& list, const TBranch* branch, const TVirtualBranchBrowsable* parent = 0)
TClass*TVirtualBranchBrowsable::GetClassType() const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual const char*TMethodBrowsable::GetIconName() const
TList*TVirtualBranchBrowsable::GetLeaves() const
virtual const char*TNamed::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
const TVirtualBranchBrowsable*TVirtualBranchBrowsable::GetParent() const
voidTVirtualBranchBrowsable::GetScope(TString& scope) const
virtual const char*TNamed::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTNamed::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTVirtualBranchBrowsable::IsFolder() const
static Bool_tTMethodBrowsable::IsMethodBrowsable(const TMethod* m)
Bool_tTObject::IsOnHeap() const
virtual Bool_tTNamed::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTNamed::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
voidTObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
voidTObject::operator delete(void* ptr)
voidTObject::operator delete(void* ptr, void* vp)
voidTObject::operator delete[](void* ptr)
voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
TCollectionMethodBrowsable&operator=(const TCollectionMethodBrowsable&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTNamed::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
static voidRegister()
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(ostream& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
virtual voidTNamed::SetName(const char* name)MENU
virtual voidTNamed::SetNameTitle(const char* name, const char* title)
static voidTObject::SetObjectStat(Bool_t stat)
virtual voidTNamed::SetTitle(const char* title = "")MENU
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp) const
virtual Int_tTNamed::Sizeof() const
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
TCollectionMethodBrowsable(const TCollectionMethodBrowsable&)
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
Bool_tTVirtualBranchBrowsable::TypeIsPointer() const
static voidUnregister()
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const

Data Members

static TObject::(anonymous)TObject::kBitMask
static TObject::EStatusBitsTObject::kCanDelete
static TObject::EStatusBitsTObject::kCannotPick
static TObject::EStatusBitsTObject::kHasUUID
static TObject::EStatusBitsTObject::kInvalidObject
static TObject::(anonymous)TObject::kIsOnHeap
static TObject::EStatusBitsTObject::kIsReferenced
static TObject::EStatusBitsTObject::kMustCleanup
static TObject::EStatusBitsTObject::kNoContextMenu
static TObject::(anonymous)TObject::kNotDeleted
static TObject::EStatusBitsTObject::kObjInCanvas
static TObject::(anonymous)TObject::kOverwrite
static TObject::(anonymous)TObject::kSingleKey
static TObject::(anonymous)TObject::kWriteDelete
static TObject::(anonymous)TObject::kZombie
TStringTNamed::fNameobject identifier
TStringTNamed::fTitleobject title

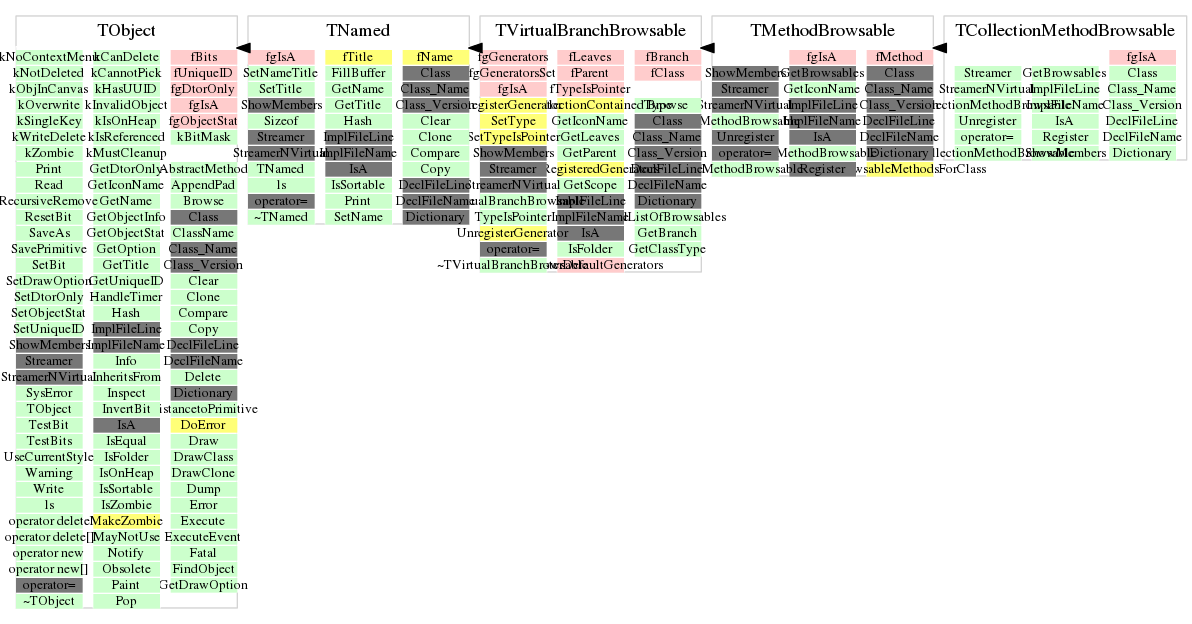

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

TCollectionMethodBrowsable(const TBranch* branch, TMethod* m, const TVirtualBranchBrowsable* parent = 0)
 Contructor, see TMethodBrowsable's constructor.
 Prepends "@" to the name to make this method work on the container.
Int_t GetBrowsables(TList& list, const TBranch* branch, const TVirtualBranchBrowsable* parent = 0)
 This methods fills list with TMethodBrowsables
 for the branch's or parent's collection class and its base classes,
 and returns the number of added elements. If called from a TBranch::Browse
 overload, "branch" should be set to the calling TBranch, otherwise
 "parent" should be set to the TVirtualBranchBrowsable being browsed.
void Register()
 Wrapper for the registration method. Needed against MSVC, which
 assigned different addr to the same method, depending on what
 translation unit you're in...
void Unregister()
 Wrapper for the registration method. Needed against MSVC, which
 assigned different addr to the same method, depending on what
 translation unit you're in...
TCollectionMethodBrowsable(const TBranch* branch, TMethod* m, const TVirtualBranchBrowsable* parent = 0)
