class ROOT::TTreeReaderArrayBase: public ROOT::TTreeReaderValueBase


TTreeReaderArray

Extracts array data from a TTree.

Function Members (Methods)

This is an abstract class, constructors will not be documented.
Look at the header to check for available constructors.

public:

virtual	~TTreeReaderArrayBase()
void*	ROOT::TTreeReaderValueBase::GetAddress()
const char*	ROOT::TTreeReaderValueBase::GetBranchName() const
TLeaf*	ROOT::TTreeReaderValueBase::GetLeaf()
virtual ROOT::TTreeReaderValueBase::EReadStatus	GetReadStatus() const
ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::GetSetupStatus() const
size_t	GetSize() const
Bool_t	IsEmpty() const
Bool_t	ROOT::TTreeReaderValueBase::IsValid() const
ROOT::TTreeReaderArrayBase&	operator=(const ROOT::TTreeReaderArrayBase&)
ROOT::TTreeReaderArrayBase&	operator=(ROOT::TTreeReaderArrayBase&&)
ROOT::TTreeReaderValueBase::EReadStatus	ROOT::TTreeReaderValueBase::ProxyRead()
ROOT::TTreeReaderArrayBase	TTreeReaderArrayBase(ROOT::TTreeReaderArrayBase&&)
ROOT::TTreeReaderArrayBase	TTreeReaderArrayBase(const ROOT::TTreeReaderArrayBase&)
ROOT::TTreeReaderArrayBase	TTreeReaderArrayBase(TTreeReader* reader, const char* branchname, TDictionary* dict)
ROOT::TTreeReaderValueBase	ROOT::TTreeReaderValueBase::TTreeReaderValueBase(const ROOT::TTreeReaderValueBase&)

protected:

virtual void	CreateProxy()
const char*	GetBranchContentDataType(TBranch* branch, TString& contentTypeName, TDictionary*& dict) const
const char*	ROOT::TTreeReaderValueBase::GetBranchDataType(TBranch* branch, TDictionary*& dict) const
virtual const char*	ROOT::TTreeReaderValueBase::GetDerivedTypeName() const
ROOT::TBranchProxy*	ROOT::TTreeReaderValueBase::GetProxy() const
void	ROOT::TTreeReaderValueBase::MarkTreeReaderUnavailable()
ROOT::TTreeReaderValueBase	ROOT::TTreeReaderValueBase::TTreeReaderValueBase(TTreeReader* reader = 0, const char* branchname = 0, TDictionary* dict = 0)
void*	UntypedAt(size_t idx) const

Data Members

public:

static ROOT::TTreeReaderValueBase::EReadStatus	ROOT::TTreeReaderValueBase::kReadError
static ROOT::TTreeReaderValueBase::EReadStatus	ROOT::TTreeReaderValueBase::kReadNothingYet
static ROOT::TTreeReaderValueBase::EReadStatus	ROOT::TTreeReaderValueBase::kReadSuccess
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupClassMismatch
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupInternalError
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupMakeClass
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupMakeClassModeMismatch
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupMatch
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupMatchBranch
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupMatchConversion
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupMatchConversionCollection
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupMatchLeaf
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupMismatch
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupMissingBranch
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupMissingCompiledCollectionProxy
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupMissingCounterBranch
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupNoCheck
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupNotSetup
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupTreeDestructed
static ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::kSetupVoidPtr

protected:

TString	ROOT::TTreeReaderValueBase::fBranchName	name of the branch to read data from.
TDictionary*	ROOT::TTreeReaderValueBase::fDict	type that the branch should contain
ROOT::TVirtualCollectionReader*	fImpl	Common interface to collections
TLeaf*	ROOT::TTreeReaderValueBase::fLeaf
TString	ROOT::TTreeReaderValueBase::fLeafName
ROOT::TBranchProxy*	ROOT::TTreeReaderValueBase::fProxy	proxy for this branch, owned by TTreeReader
ROOT::TTreeReaderValueBase::EReadStatus	ROOT::TTreeReaderValueBase::fReadStatus	read status of this data access
ROOT::TTreeReaderValueBase::ESetupStatus	ROOT::TTreeReaderValueBase::fSetupStatus	setup status of this data access
vector<Long64_t>	ROOT::TTreeReaderValueBase::fStaticClassOffsets
Long64_t	ROOT::TTreeReaderValueBase::fTreeLastOffset
TTreeReader*	ROOT::TTreeReaderValueBase::fTreeReader	tree reader we belong to

Class Charts

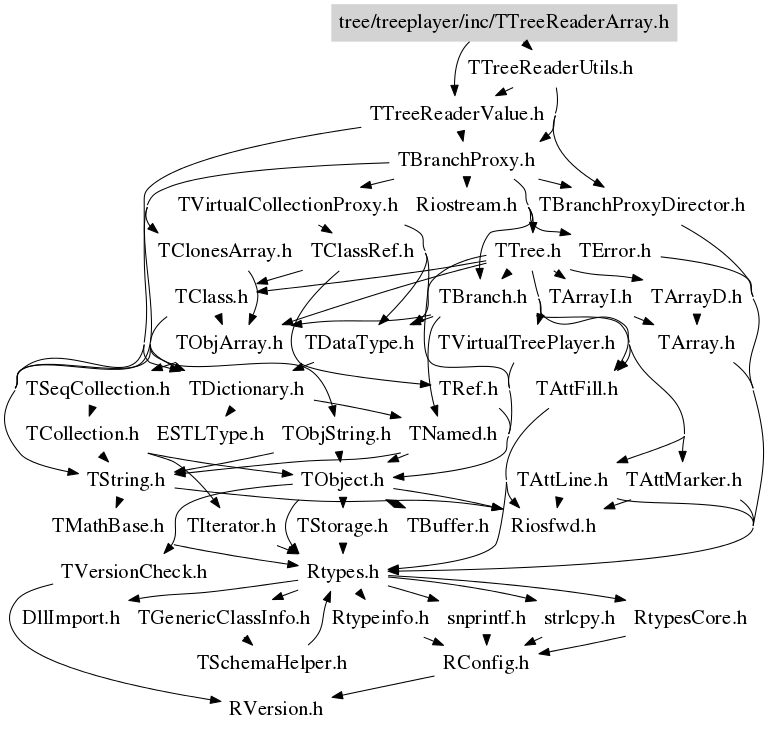

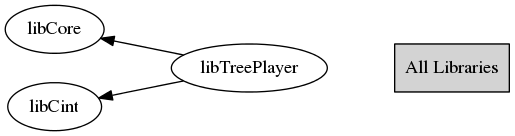

Inheritance Inherited Members Includes Libraries

Function documentation

void CreateProxy()

 Create the proxy object for our branch.

const char* GetBranchContentDataType(TBranch* branch, TString& contentTypeName, TDictionary*& dict) const

 Access a branch's collection content (not the collection itself)
 through a proxy.
 Retrieve the type of data contained in the collection stored by branch;
 put its dictionary into dict, If there is no dictionary, put its type
 name into contentTypeName.
 The contentTypeName is set to NULL if the branch does not
 contain a collection; in that case, the type of the branch is returned.
 In all other cases, NULL is returned.

TTreeReaderArrayBase(TTreeReader* reader, const char* branchname, TDictionary* dict)

{}

size_t GetSize() const

{ return fImpl->GetSize(GetProxy()); }

Bool_t IsEmpty() const

{ return !GetSize(); }

EReadStatus GetReadStatus() const

{ return fImpl ? fImpl->fReadStatus : kReadError; }

void* UntypedAt(size_t idx) const

{ return fImpl->At(GetProxy(), idx); }

TTreeReaderArrayBase(TTreeReader* reader, const char* branchname, TDictionary* dict)

 Create an array reader of branch "branchname" for TTreeReader "tr".
