class ROOT::Math::WrappedTF1: public ROOT::Math::IParametricGradFunctionOneDim, public ROOT::Math::IGradientOneDim

Function Members (Methods)

public:

virtual	~WrappedTF1()
virtual ROOT::Math::IGenFunction*	Clone() const
double	ROOT::Math::IGradientOneDim::Derivative(double x) const
double	ROOT::Math::IGradientOneDim::Derivative(const double* x) const
virtual void	FdF(double x, double& f, double& deriv) const
static double	GetDerivPrecision()
void	ROOT::Math::IGradientOneDim::Gradient(const double* x, double* g) const
ROOT::Math::IBaseFunctionOneDim	ROOT::Math::IBaseFunctionOneDim::IBaseFunctionOneDim()
ROOT::Math::IBaseFunctionOneDim	ROOT::Math::IBaseFunctionOneDim::IBaseFunctionOneDim(const ROOT::Math::IBaseFunctionOneDim&)
ROOT::Math::IBaseParam	ROOT::Math::IBaseParam::IBaseParam()
ROOT::Math::IBaseParam	ROOT::Math::IBaseParam::IBaseParam(const ROOT::Math::IBaseParam&)
ROOT::Math::IGradientOneDim	ROOT::Math::IGradientOneDim::IGradientOneDim()
ROOT::Math::IGradientOneDim	ROOT::Math::IGradientOneDim::IGradientOneDim(const ROOT::Math::IGradientOneDim&)
ROOT::Math::IParametricFunctionOneDim	ROOT::Math::IParametricFunctionOneDim::IParametricFunctionOneDim()
ROOT::Math::IParametricFunctionOneDim	ROOT::Math::IParametricFunctionOneDim::IParametricFunctionOneDim(ROOT::Math::IParametricFunctionOneDim&&)
ROOT::Math::IParametricFunctionOneDim	ROOT::Math::IParametricFunctionOneDim::IParametricFunctionOneDim(const ROOT::Math::IParametricFunctionOneDim&)
ROOT::Math::IParametricGradFunctionOneDim	ROOT::Math::IParametricGradFunctionOneDim::IParametricGradFunctionOneDim()
ROOT::Math::IParametricGradFunctionOneDim	ROOT::Math::IParametricGradFunctionOneDim::IParametricGradFunctionOneDim(const ROOT::Math::IParametricGradFunctionOneDim&)
virtual unsigned int	NPar() const
double	ROOT::Math::IParametricFunctionOneDim::operator()(double x, const double* p) const
double	ROOT::Math::IParametricFunctionOneDim::operator()(const double* x, const double* p) const
ROOT::Math::WrappedTF1&	operator=(const ROOT::Math::WrappedTF1& rhs)
double	ROOT::Math::IParametricGradFunctionOneDim::ParameterDerivative(double x, unsigned int ipar = 0) const
double	ROOT::Math::IParametricGradFunctionOneDim::ParameterDerivative(const double* x, unsigned int ipar = 0) const
double	ROOT::Math::IParametricGradFunctionOneDim::ParameterDerivative(double x, const double* p, unsigned int ipar = 0) const
double	ROOT::Math::IParametricGradFunctionOneDim::ParameterDerivative(const double* x, const double* p, unsigned int ipar = 0) const
virtual void	ParameterGradient(double x, const double* par, double* grad) const
virtual string	ParameterName(unsigned int i) const
virtual const double*	Parameters() const
static void	SetDerivPrecision(double eps)
virtual void	SetParameters(const double* p)
ROOT::Math::WrappedTF1	WrappedTF1(TF1& f)
ROOT::Math::WrappedTF1	WrappedTF1(const ROOT::Math::WrappedTF1& rhs)

private:

virtual double	DoDerivative(double x) const
virtual double	DoEval(double x) const
virtual double	DoEvalPar(double x, const double* p) const
virtual double	DoParameterDerivative(double x, const double* p, unsigned int ipar) const

Data Members

private:

TF1*	fFunc	pointer to ROOT function
bool	fLinear	flag for linear functions
vector<double>	fParams	cached vector with parameter values
bool	fPolynomial	flag for polynomial functions
double	fX[1]	! cached vector for x value (needed for TF1::EvalPar signature)
static double	fgEps	epsilon used in derivative calculation h ~ eps \|x\|

Class Charts

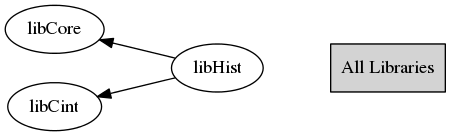

Inheritance Inherited Members Includes Libraries

Function documentation

WrappedTF1(TF1& f)

 constructor from a TF1 function pointer.

WrappedTF1(TF1& f)

 copy constructor

void ParameterGradient(double x, const double* par, double* grad) const

 evaluate the derivative of the function with respect to the parameters

double DoDerivative(double x) const

 return the function derivatives w.r.t. x

double DoParameterDerivative(double x, const double* p, unsigned int ipar) const

 evaluate the derivative of the function with respect to the parameters
IMPORTANT NOTE: TF1::GradientPar returns 0 for fixed parameters to avoid computing useless derivatives
  BUT the TLinearFitter wants to have the derivatives also for fixed parameters.
  so in case of fLinear (or fPolynomial) a non-zero value will be returned for fixed parameters

void SetDerivPrecision(double eps)

{ fgEps = eps; }

double GetDerivPrecision()

{ return fgEps; }

virtual ~WrappedTF1()

      Destructor (no operations). TF1 Function pointer is not owned

{}

ROOT::Math::IGenFunction * Clone() const

 @name interface inherited from IFunction

       Clone the wrapper but not the original function

const double * Parameters() const

 @name interface inherited from IParamFunction
 get the parameter values (return values cachen inside, those inside TF1 might be different)

void SetParameters(const double* p)

 set parameter values (only the cached one in this class,leave unchanges those of TF1)

unsigned int NPar() const

 return number of parameters

std::string ParameterName(unsigned int i) const

 return parameter name (this is stored in TF1)

void FdF(double x, double& f, double& deriv) const

 calculate function and derivative at same time (required by IGradient interface)

double DoEvalPar(double x, const double* p) const

 evaluate function passing coordinates x and vector of parameters

double DoEval(double x) const

 evaluate function using the cached parameter values of this class (not of TF1)
 re-implement for better efficiency
