class RooDataProjBinding: public RooRealBinding

Class RooDataProjBinding is a lightweight interface adaptor that projects a real function via summation of states provided in a dataset. The real function must be attached to the dataset before creating this binding object. If the dataset only contains category variables, the summation is optimized performing a weighted sum over the states of a RooSuperCategory that is constructed from all the categories in the dataset

Function Members (Methods)

public:

	RooDataProjBinding(const RooDataProjBinding&)
	RooDataProjBinding(const RooAbsReal& real, const RooAbsData& data, const RooArgSet& vars, const RooArgSet* normSet = 0)
virtual	~RooDataProjBinding()
virtual list<Double_t>*	RooRealBinding::binBoundaries(Int_t) const
static TClass*	Class()
UInt_t	RooAbsFunc::getDimension() const
virtual Double_t	RooRealBinding::getMaxLimit(UInt_t dimension) const
virtual Double_t	RooRealBinding::getMinLimit(UInt_t dimension) const
virtual const char*	RooRealBinding::getName() const
virtual TClass*	IsA() const
Bool_t	RooAbsFunc::isValid() const
Int_t	RooAbsFunc::numCall() const
virtual Double_t	operator()(const Double_t* xvector) const
RooAbsFunc&	RooAbsFunc::operator=(const RooAbsFunc&)
virtual list<Double_t>*	RooRealBinding::plotSamplingHint(RooAbsRealLValue&, Double_t, Double_t) const
void	RooAbsFunc::resetNumCall() const
virtual void	RooRealBinding::restoreXVec() const
virtual void	RooRealBinding::saveXVec() const
virtual void	ShowMembers(TMemberInspector&)
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)

protected:

void	RooRealBinding::loadValues(const Double_t* xvector) const

Data Members

protected:

Roo1DTable*	_catTable	Supercategory table generated from _data
Bool_t	RooRealBinding::_clipInvalid
list<RooAbsReal*>	RooRealBinding::_compList	!
list<Double_t>	RooRealBinding::_compSave	!
const RooAbsData*	_data	Dataset used for projection
UInt_t	RooAbsFunc::_dimension	Number of observables
Bool_t	_first	Bit indicating if operator() has been called yet
const RooAbsReal*	RooRealBinding::_func
Double_t	RooRealBinding::_funcSave	!
Int_t	RooAbsFunc::_ncall	Function call counter
const RooArgSet*	_nset	Normalization set for real function
const RooArgSet*	RooRealBinding::_nset
const TNamed*	RooRealBinding::_rangeName	!
const RooAbsReal*	_real	Real function to be projected
RooSuperCategory*	_superCat	Supercategory constructed from _data's category variables
Bool_t	RooAbsFunc::_valid	Is binding in valid state?
RooAbsRealLValue**	RooRealBinding::_vars
Double_t*	RooRealBinding::_xsave
Bool_t	RooRealBinding::_xvecValid

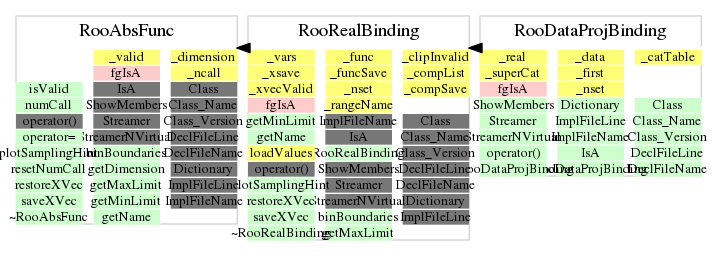

Class Charts

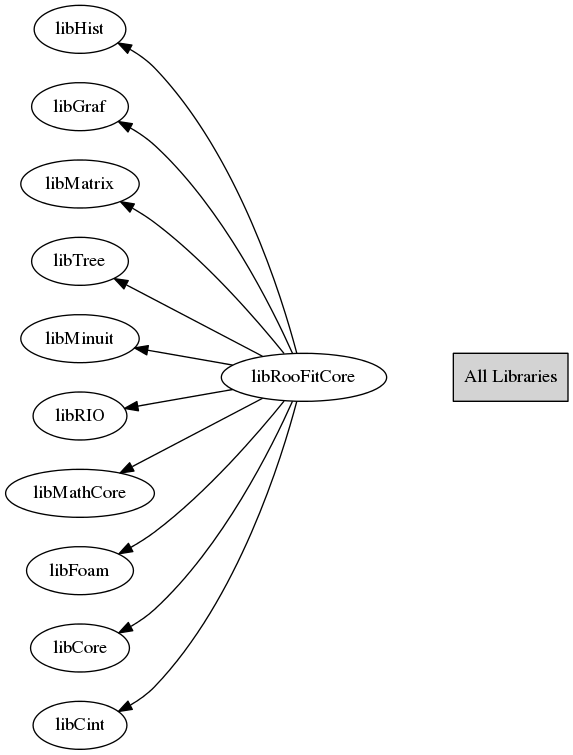

Inheritance Inherited Members Includes Libraries

Function documentation

RooDataProjBinding(const RooAbsReal& real, const RooAbsData& data, const RooArgSet& vars, const RooArgSet* normSet = 0)

 Constructor of a data weighted average function binding with
 variables 'vars' for function 'real' and dataset 'data' with
 weights.

~RooDataProjBinding()

 Destructor, delete owned objects

Double_t operator()(const Double_t* xvector) const

 Evaluate data-projected values of the bound real function.

RooDataProjBinding(const RooAbsReal& real, const RooAbsData& data, const RooArgSet& vars, const RooArgSet* normSet = 0)
