class TEveUtil

 TEveUtil

 Standard utility functions for Reve.

Function Members (Methods)

public:

	TEveUtil()
	TEveUtil(const TEveUtil&)
virtual	~TEveUtil()
static void	AssertMacro(const Text_t* mac)
static Bool_t	CheckMacro(const Text_t* mac)
static TClass*	Class()
static void	ColorFromIdx(Color_t ci, UChar_t* col, Bool_t alpha = kTRUE)
static void	ColorFromIdx(Float_t f1, Color_t c1, Float_t f2, Color_t c2, UChar_t* col, Bool_t alpha = kTRUE)
static Color_t*	FindColorVar(TObject* obj, const Text_t* varname)
static const char*	FormAxisValue(Float_t x)
virtual TClass*	IsA() const
static void	LoadMacro(const Text_t* mac)
static void	Macro(const Text_t* mac)
TEveUtil&	operator=(const TEveUtil&)
static void	SetupEnvironment()
static void	SetupGUI()
virtual void	ShowMembers(TMemberInspector& insp, char* parent)
virtual void	Streamer(TBuffer& b)
void	StreamerNVirtual(TBuffer& b)

Class Charts

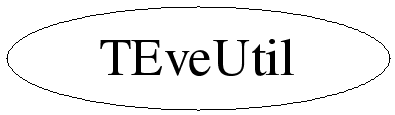

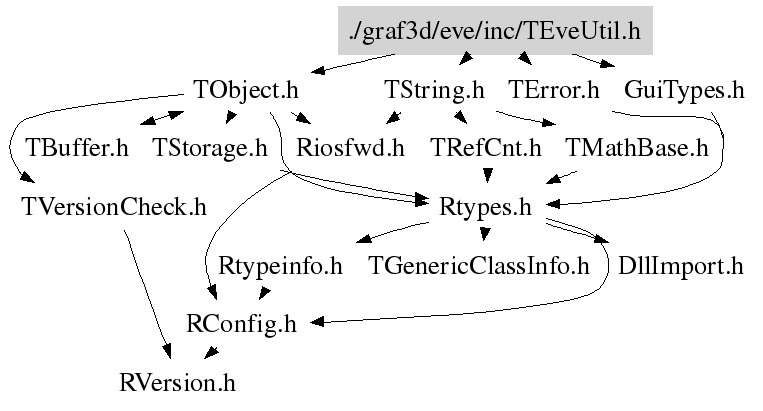

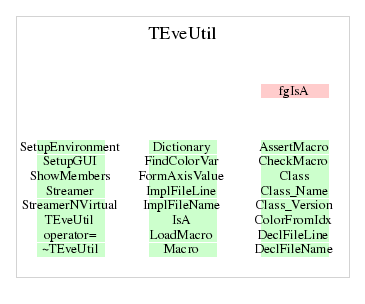

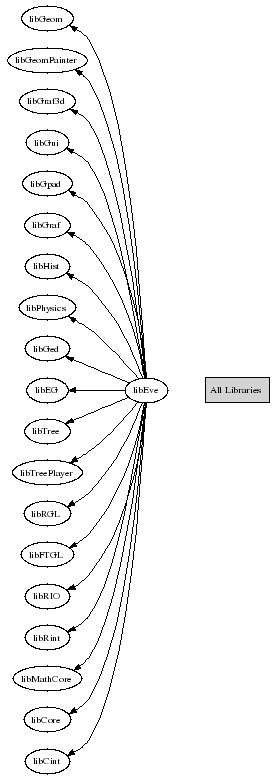

Inheritance Inherited Members Includes Libraries

Function documentation

void SetupEnvironment()

 Setup Include and Macro paths.
 Since inclusion into ROOT this does nothing but could
 potentially be reactivated if some common macros are established
 and shipped with binary ROOT (in macros/eve). For example, these
 might be used to spawn specific GUI / GL configurations.

void SetupGUI()

 Setup icon pictures and mime-types.

Bool_t CheckMacro(const Text_t* mac)

 Checks if macro 'mac' is loaded.

void AssertMacro(const Text_t* mac)

 Load and execute macro 'mac' if it has not been loaded yet.

void Macro(const Text_t* mac)

 Execute macro 'mac'. Do not reload the macro.

void LoadMacro(const Text_t* mac)

 Makes sure that macro 'mac' is loaded, but do not reload it.

void ColorFromIdx(Color_t ci, UChar_t* col, Bool_t alpha = kTRUE)

 Fill col with RGBA values corresponding to index ci. If alpha
 is true, set alpha component of col to 255.
 ROOT's indexed color palette does not support transparency.

void ColorFromIdx(Float_t f1, Color_t c1, Float_t f2, Color_t c2, UChar_t* col, Bool_t alpha = kTRUE)

 Fill col with weighted RGBA values corresponding to
 color-indices c1 and c2. If alpha is true, set alpha component
 of col to 255.

Color_t* FindColorVar(TObject* obj, const Text_t* varname)

 Find address of Color_t data-member with name varname in object
 obj.

 This is used to access color information for TGListTreeItem
 coloration from visualization macros that wrap TObjects into
 TEveElementObjectPtr instances.

const char* FormAxisValue(Float_t x)

 Returns formatted text suitable for display of value 'x' on an
 axis tick-mark.

virtual ~TEveUtil()

{}

TEvePadHolder& operator=(const TEveUtil& )

Last change: root/eve:$Id: TEveUtil.h 23087 2008-04-09 14:10:56Z rdm $
Last generated: 2008-05-13 17:10
