class ROOT::Math::IParametricGradFunctionOneDim: public ROOT::Math::IParametricFunctionOneDim, public ROOT::Math::IGradientFunctionOneDim


    Documentation for the abstract class IBaseParam.
    It defines the interface for dealing with the function parameters
    This is used only for internal convinience, to avoid redefining the Parameter API
    for the one and the multi-dim functions.
    Concrete class should derive from ROOT::Math::IParamFunction and not from this class.

    @ingroup  CppFunctions

Function Members (Methods)

This is an abstract class, constructors will not be documented.
Look at the header to check for available constructors.

public:

virtual	~IParametricGradFunctionOneDim()
virtual ROOT::Math::IBaseFunctionOneDim*	ROOT::Math::IBaseFunctionOneDim::Clone() const
virtual ROOT::Math::IBaseFunctionOneDim*	ROOT::Math::IBaseFunctionOneDim::Clone() const
double	ROOT::Math::IGradientOneDim::Derivative(double x) const
double	ROOT::Math::IGradientOneDim::Derivative(const double* x) const
virtual void	ROOT::Math::IGradientFunctionOneDim::FdF(double x, double& f, double& df) const
void	ROOT::Math::IGradientOneDim::Gradient(const double* x, double* g) const
virtual unsigned int	ROOT::Math::IBaseParam::NPar() const
virtual double	ROOT::Math::IParametricFunctionOneDim::operator()(double x, const double* p)
virtual double	ROOT::Math::IParametricFunctionOneDim::operator()(const double* x, const double* p)
ROOT::Math::IParametricGradFunctionOneDim&	operator=(const ROOT::Math::IParametricGradFunctionOneDim&)
double	ParameterDerivative(double x, unsigned int ipar = 0) const
double	ParameterDerivative(const double* x, unsigned int ipar = 0) const
virtual void	ParameterGradient(double x, double* grad) const
void	ParameterGradient(const double* x, double* grad) const
virtual string	ROOT::Math::IBaseParam::ParameterName(unsigned int i) const
virtual const double*	ROOT::Math::IBaseParam::Parameters() const
virtual void	ROOT::Math::IBaseParam::SetParameters(const double* p)

private:

virtual double

DoParameterDerivative(double x, unsigned int ipar) const

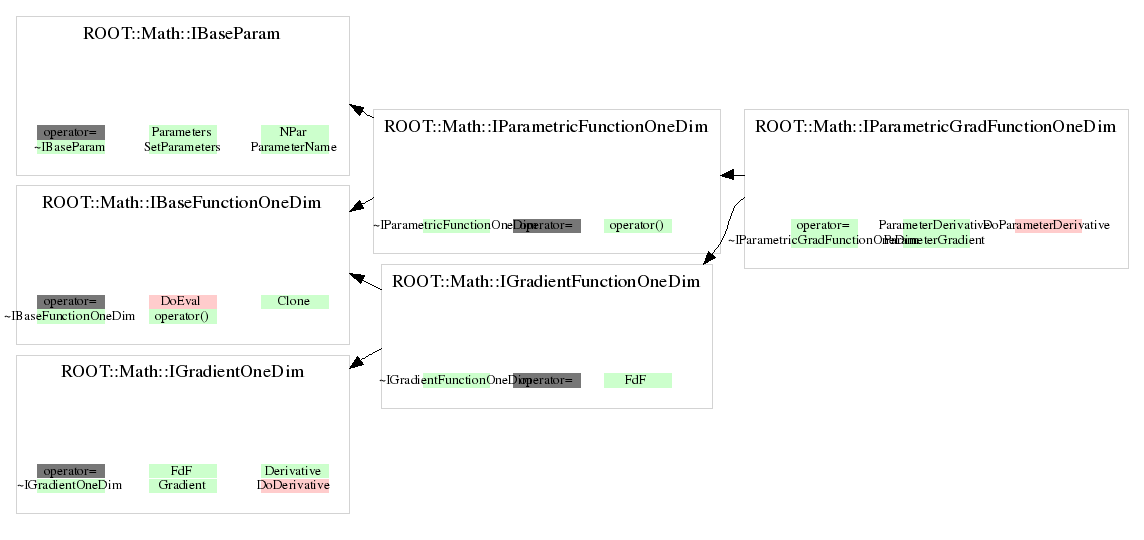

Class Charts

Function documentation

void ParameterGradient(const double * x , double * grad )

      Evaluate the all the derivatives (gradient vector) of the function with respect to the parameters at a point x.
      It is optional to be implemented by the derived classes for better efficiency

void ParameterGradient(double x , double * grad )

      Evaluate the derivatives of the function with respect to the parameters at a point x.
      It is optional to be implemented by the derived classes for better efficiency if needed
