#include "RooRealVar.h"

#include "RooDataHist.h"

#include "RooGaussian.h"

#include "RooAddPdf.h"

#include "RooPlot.h"

#include "TCanvas.h"

#include "TAxis.h"

#include "TAxis.h"

using namespace RooFit;


void rf610_visualerror()

{

   // S e t u p   e x a m p l e   f i t

   // ---------------------------------------


   // Create sum of two Gaussians pdf with factory

   RooRealVar x("x", "x", -10, 10);


   RooRealVar m("m", "m", 0, -10, 10);

   RooRealVar s("s", "s", 2, 1, 50);

   RooGaussian sig("sig", "sig", x, m, s);


   RooRealVar m2("m2", "m2", -1, -10, 10);

   RooRealVar s2("s2", "s2", 6, 1, 50);

   RooGaussian bkg("bkg", "bkg", x, m2, s2);


   RooRealVar fsig("fsig", "fsig", 0.33, 0, 1);

   RooAddPdf model("model", "model", RooArgList(sig, bkg), fsig);


   // Create binned dataset

   x.setBins(25);

   std::unique_ptr<RooAbsData> d{model.generateBinned(x, 1000)};


   // Perform fit and save fit result

   std::unique_ptr<RooFitResult> r{model.fitTo(*d, Save(), PrintLevel(-1))};


   // V i s u a l i z e   f i t   e r r o r

   // -------------------------------------


   // Make plot frame

   RooPlot *frame = x.frame(Bins(40), Title("P.d.f with visualized 1-sigma error band"));

   d->plotOn(frame);


   // Visualize 1-sigma error encoded in fit result 'r' as orange band using linear error propagation

   // This results in an error band that is by construction symmetric

   //

   // The linear error is calculated as

   // error(x) = Z* F_a(x) * Corr(a,a') F_a'(x)

   //

   // where     F_a(x) = [ f(x,a+da) - f(x,a-da) ] / 2,

   //

   //         with f(x) = the plotted curve

   //              'da' = error taken from the fit result

   //        Corr(a,a') = the correlation matrix from the fit result

   //                Z = requested significance 'Z sigma band'

   //

   // The linear method is fast (required 2*N evaluations of the curve, where N is the number of parameters),

   // but may not be accurate in the presence of strong correlations (~>0.9) and at Z>2 due to linear and

   // Gaussian approximations made

   //

   model.plotOn(frame, VisualizeError(*r, 1), FillColor(kOrange));


   // Calculate error using sampling method and visualize as dashed red line.

   //

   // In this method a number of curves is calculated with variations of the parameter values, as sampled

   // from a multi-variate Gaussian pdf that is constructed from the fit results covariance matrix.

   // The error(x) is determined by calculating a central interval that capture N% of the variations

   // for each value of x, where N% is controlled by Z (i.e. Z=1 gives N=68%). The number of sampling curves

   // is chosen to be such that at least 100 curves are expected to be outside the N% interval, and is minimally

   // 100 (e.g. Z=1->Ncurve=356, Z=2->Ncurve=2156)) Intervals from the sampling method can be asymmetric,

   // and may perform better in the presence of strong correlations, but may take (much) longer to calculate

   model.plotOn(frame, VisualizeError(*r, 1, false), DrawOption("L"), LineWidth(2), LineColor(kRed));


   // Perform the same type of error visualization on the background component only.

   // The VisualizeError() option can generally applied to _any_ kind of plot (components, asymmetries, efficiencies

   // etc..)

   model.plotOn(frame, VisualizeError(*r, 1), FillColor(kOrange), Components("bkg"));

   model.plotOn(frame, VisualizeError(*r, 1, false), DrawOption("L"), LineWidth(2), LineColor(kRed), Components("bkg"),

                LineStyle(kDashed));


   // Overlay central value

   model.plotOn(frame);

   model.plotOn(frame, Components("bkg"), LineStyle(kDashed));

   d->plotOn(frame);

   frame->SetMinimum(0);


   // V i s u a l i z e   p a r t i a l   f i t   e r r o r

   // ------------------------------------------------------


   // Make plot frame

   RooPlot *frame2 = x.frame(Bins(40), Title("Visualization of 2-sigma partial error from (m,m2)"));


   // Visualize partial error. For partial error visualization the covariance matrix is first reduced as follows

   //        ___                   -1

   // Vred = V22  = V11 - V12 * V22   * V21

   //

   // Where V11,V12,V21,V22 represent a block decomposition of the covariance matrix into observables that

   // are propagated (labeled by index '1') and that are not propagated (labeled by index '2'), and V22bar

   // is the Shur complement of V22, calculated as shown above

   //

   // (Note that Vred is _not_ a simple sub-matrix of V)


   // Propagate partial error due to shape parameters (m,m2) using linear and sampling method

   model.plotOn(frame2, VisualizeError(*r, RooArgSet(m, m2), 2), FillColor(kCyan));

   model.plotOn(frame2, Components("bkg"), VisualizeError(*r, RooArgSet(m, m2), 2), FillColor(kCyan));


   model.plotOn(frame2);

   model.plotOn(frame2, Components("bkg"), LineStyle(kDashed));

   frame2->SetMinimum(0);


   // Make plot frame

   RooPlot *frame3 = x.frame(Bins(40), Title("Visualization of 2-sigma partial error from (s,s2)"));


   // Propagate partial error due to yield parameter using linear and sampling method

   model.plotOn(frame3, VisualizeError(*r, RooArgSet(s, s2), 2), FillColor(kGreen));

   model.plotOn(frame3, Components("bkg"), VisualizeError(*r, RooArgSet(s, s2), 2), FillColor(kGreen));


   model.plotOn(frame3);

   model.plotOn(frame3, Components("bkg"), LineStyle(kDashed));

   frame3->SetMinimum(0);


   // Make plot frame

   RooPlot *frame4 = x.frame(Bins(40), Title("Visualization of 2-sigma partial error from fsig"));


   // Propagate partial error due to yield parameter using linear and sampling method

   model.plotOn(frame4, VisualizeError(*r, RooArgSet(fsig), 2), FillColor(kMagenta));

   model.plotOn(frame4, Components("bkg"), VisualizeError(*r, RooArgSet(fsig), 2), FillColor(kMagenta));


   model.plotOn(frame4);

   model.plotOn(frame4, Components("bkg"), LineStyle(kDashed));

   frame4->SetMinimum(0);

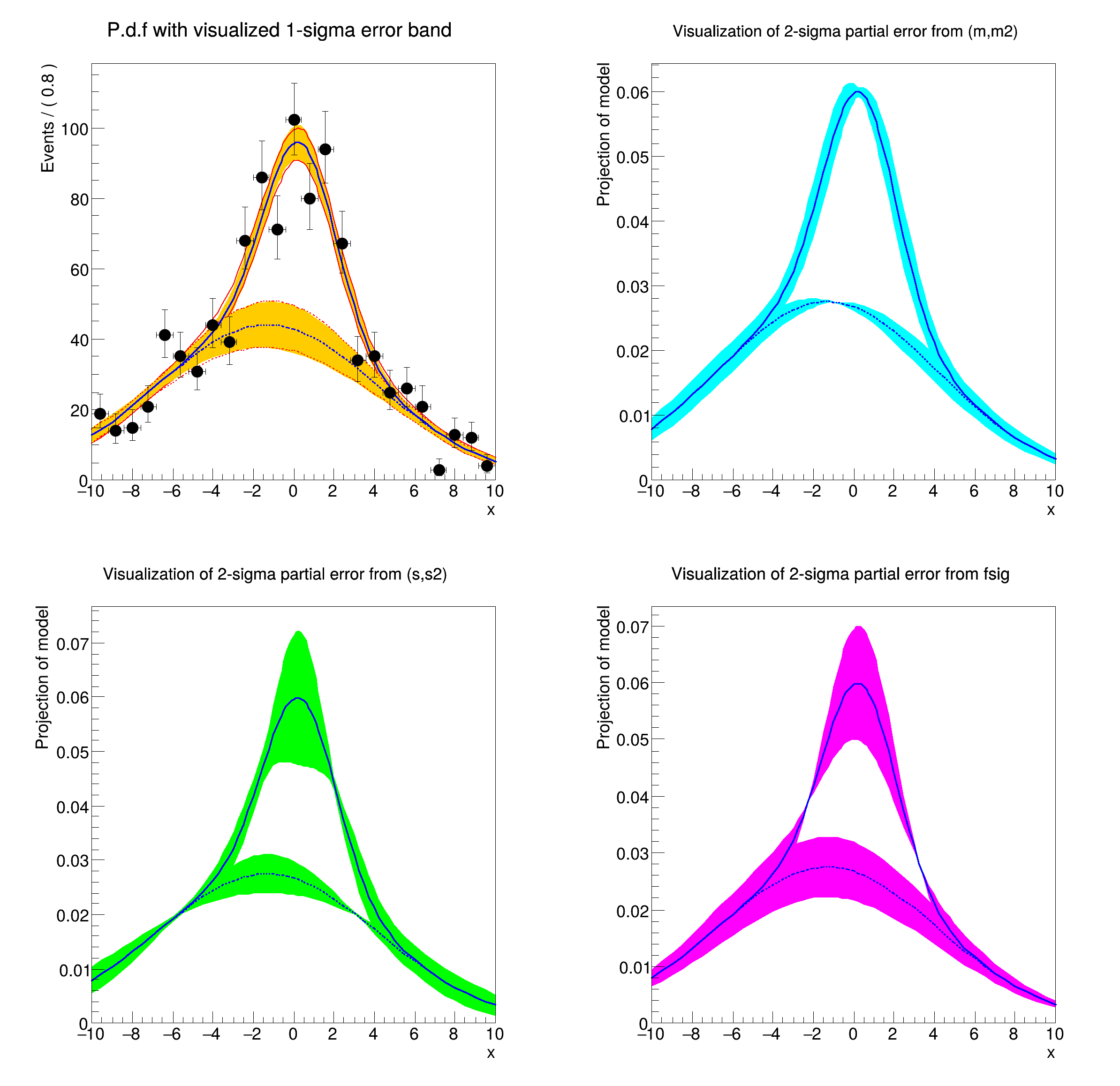

   TCanvas *c = new TCanvas("rf610_visualerror", "rf610_visualerror", 800, 800);

   c->Divide(2, 2);

   c->cd(1);

   gPad->SetLeftMargin(0.15);

   frame->GetYaxis()->SetTitleOffset(1.4);

   frame->Draw();

   c->cd(2);

   gPad->SetLeftMargin(0.15);

   frame2->GetYaxis()->SetTitleOffset(1.6);

   frame2->Draw();

   c->cd(3);

   gPad->SetLeftMargin(0.15);

   frame3->GetYaxis()->SetTitleOffset(1.6);

   frame3->Draw();

   c->cd(4);

   gPad->SetLeftMargin(0.15);

   frame4->GetYaxis()->SetTitleOffset(1.6);

   frame4->Draw();

}
