rf609_xychi2fit.C File Reference

Detailed Description

Likelihood and minimization: setting up a chi^2 fit to an unbinned dataset with X,Y,err(Y) values (and optionally err(X) values)


#include "RooRealVar.h"
#include "RooDataSet.h"
#include "RooPolyVar.h"
#include "TCanvas.h"
#include "TAxis.h"
#include "RooPlot.h"
#include "TRandom.h"

using namespace RooFit;

void rf609_xychi2fit()
{
   // C r e a t e   d a t a s e t   w i t h   X   a n d   Y   v a l u e s
   // -------------------------------------------------------------------

   // Make weighted XY dataset with asymmetric errors stored
   // The StoreError() argument is essential as it makes
   // the dataset store the error in addition to the values
   // of the observables. If errors on one or more observables
   // are asymmetric, one can store the asymmetric error
   // using the StoreAsymError() argument

   RooRealVar x("x", "x", -11, 11);
   RooRealVar y("y", "y", -10, 200);
   RooDataSet dxy("dxy", "dxy", {x, y}, StoreError({x, y}));

   TRandom3 trnd{};

   // Fill an example dataset with X,err(X),Y,err(Y) values
   RooArgSet vars{x, y};
   for (int i = 0; i <= 10; i++) {

      // Set X value and error
      x = -10 + 2 * i;
      x.setError(i < 5 ? 0.5 / 1. : 1.0 / 1.);

      // Set Y value and error
      y = x.getVal() * x.getVal() + 4 * std::abs(trnd.Gaus());
      y.setError(sqrt(y.getVal()));

      dxy.add(vars);
   }

   // P e r f o r m   c h i 2   f i t   t o   X + / - d x   a n d   Y + / - d Y   v a l u e s
   // ---------------------------------------------------------------------------------------

   // Make fit function
   RooRealVar a("a", "a", 0.0, -10, 10);
   RooRealVar b("b", "b", 0.0, -100, 100);
   RooRealVar c("c", "c", 0.0, -100, 100);
   RooPolyVar f("f", "f", x, RooArgList(b, a, c));

   // Plot dataset in X-Y interpretation

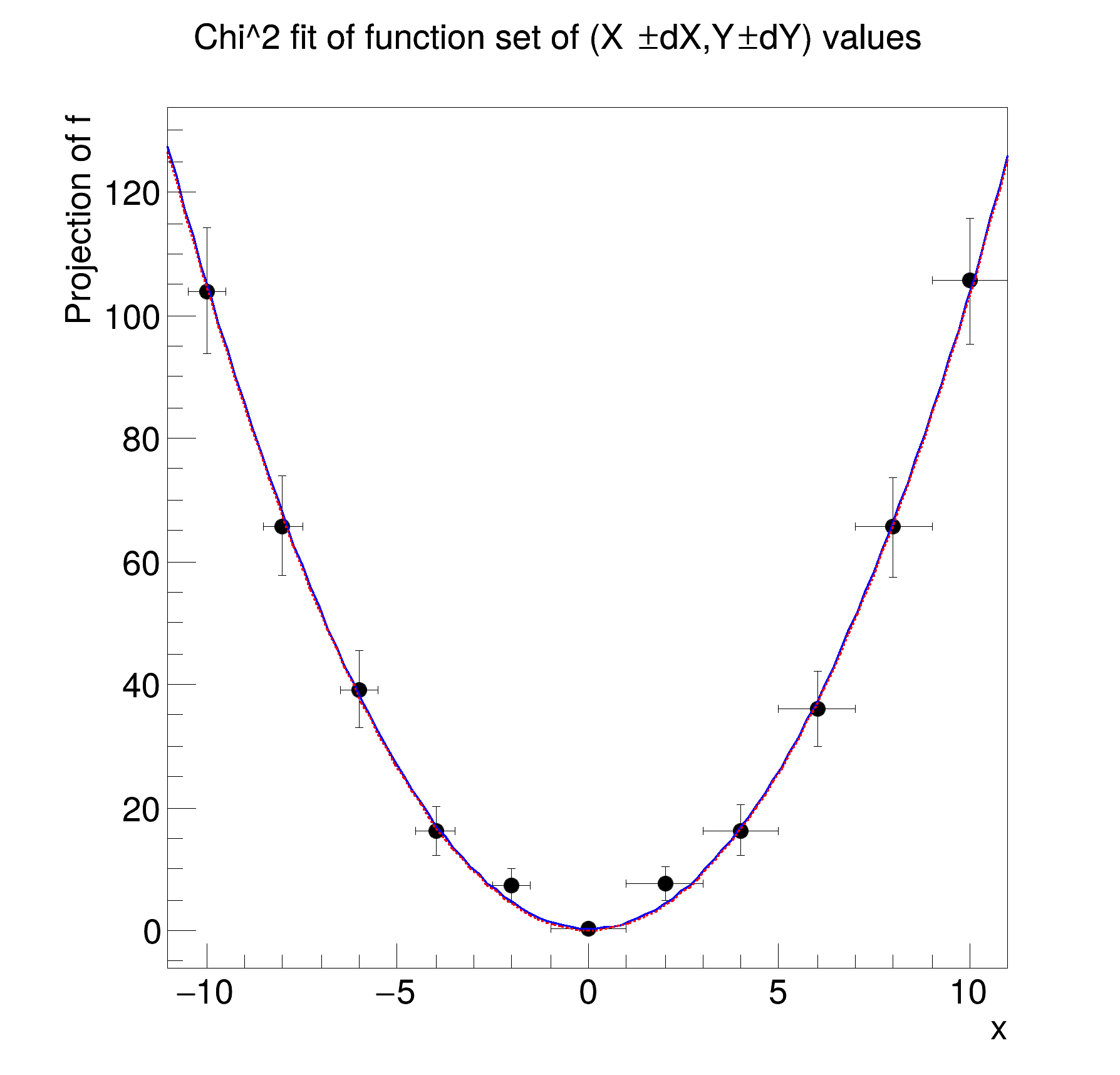

   RooPlot *frame = x.frame(Title("Chi^2 fit of function set of (X#pmdX,Y#pmdY) values"));
   dxy.plotOnXY(frame, YVar(y));

   // Fit chi^2 using X and Y errors
   std::unique_ptr<RooFitResult> PrintLevel(-1))};
   fit1->Print();

   // Overlay fitted function
   f.plotOn(frame);

   // Alternative: fit chi^2 integrating f(x) over ranges defined by X errors, rather
   // than taking point at center of bin
   std::unique_ptr<RooFitResult> fit2{f.chi2FitTo(dxy, YVar(y), Save(), PrintLevel(-1), Integrate(true))};
   fit2->Print();

   // Overlay alternate fit result
   f.plotOn(frame, LineStyle(kDashed), LineColor(kRed));

   // Draw the plot on a canvas
   new TCanvas("rf609_xychi2fit", "rf609_xychi2fit", 600, 600);
   gPad->SetLeftMargin(0.15);
   frame->GetYaxis()->SetTitleOffset(1.4);
   frame->Draw();
}


[#1] INFO:Minimization -- RooAbsMinimizerFcn::setOptimizeConst: activating const optimization
[#1] INFO:Minimization -- RooAbsMinimizerFcn::setOptimizeConst: deactivating const optimization

  RooFitResult: minimized FCN value: 1.17354, estimated distance to minimum: 3.83787e-05
                covariance matrix quality: Full, accurate covariance matrix
                Status : MINIMIZE=0 HESSE=0

    Floating Parameter    FinalValue +/-  Error
  --------------------  --------------------------
                     a   -6.4539e-02 +/-  5.85e-01
                     b    2.9760e-01 +/-  4.74e-01
                     c    1.0442e+00 +/-  9.06e-02

[#1] INFO:Minimization -- RooAbsMinimizerFcn::setOptimizeConst: activating const optimization
[#1] INFO:Minimization -- RooAbsMinimizerFcn::setOptimizeConst: deactivating const optimization

  RooFitResult: minimized FCN value: 2.81819, estimated distance to minimum: 5.77434e-06
                covariance matrix quality: Full, accurate covariance matrix
                Status : MINIMIZE=0 HESSE=0

    Floating Parameter    FinalValue +/-  Error
  --------------------  --------------------------
                     a   -5.5529e-02 +/-  3.37e-01
                     b    3.6741e-02 +/-  4.64e-01
                     c    1.0407e+00 +/-  4.98e-02


Date

July 2008

Author

Wouter Verkerke

Definition in file rf609_xychi2fit.C.
