#include "RooRealVar.h"

#include "RooDataSet.h"

#include "RooGaussian.h"

#include "RooAddPdf.h"

#include "RooMinimizer.h"

#include "TCanvas.h"

#include "TAxis.h"

#include "RooPlot.h"

using namespace RooFit;


void rf605_profilell()

{

   // C r e a t e   m o d e l   a n d   d a t a s e t

   // -----------------------------------------------


   // Observable

   RooRealVar x("x", "x", -20, 20);


   // Model (intentional strong correlations)

   RooRealVar mean("mean", "mean of g1 and g2", 0, -10, 10);

   RooRealVar sigma_g1("sigma_g1", "width of g1", 3);

   RooGaussian g1("g1", "g1", x, mean, sigma_g1);


   RooRealVar sigma_g2("sigma_g2", "width of g2", 4, 3.0, 6.0);

   RooGaussian g2("g2", "g2", x, mean, sigma_g2);


   RooRealVar frac("frac", "frac", 0.5, 0.0, 1.0);

   RooAddPdf model("model", "model", RooArgList(g1, g2), frac);


   // Generate 1000 events

   std::unique_ptr<RooDataSet> data{model.generate(x, 1000)};


   // C o n s t r u c t   p l a i n   l i k e l i h o o d

   // ---------------------------------------------------


   // Construct unbinned likelihood

   std::unique_ptr<RooAbsReal> nll{model.createNLL(*data, NumCPU(2))};


   // Minimize likelihood w.r.t all parameters before making plots

   RooMinimizer(*nll).migrad();


   // Plot likelihood scan frac

   RooPlot *frame1 = frac.frame(Bins(10), Range(0.01, 0.95), Title("LL and profileLL in frac"));

   nll->plotOn(frame1, ShiftToZero());


   // Plot likelihood scan in sigma_g2

   RooPlot *frame2 = sigma_g2.frame(Bins(10), Range(3.3, 5.0), Title("LL and profileLL in sigma_g2"));

   nll->plotOn(frame2, ShiftToZero());


   // C o n s t r u c t   p r o f i l e   l i k e l i h o o d   i n   f r a c

   // -----------------------------------------------------------------------


   // The profile likelihood estimator on nll for frac will minimize nll w.r.t

   // all floating parameters except frac for each evaluation


   std::unique_ptr<RooAbsReal> pll_frac{nll->createProfile(frac)};


   // Plot the profile likelihood in frac

   pll_frac->plotOn(frame1, LineColor(kRed));


   // Adjust frame maximum for visual clarity

   frame1->SetMinimum(0);

   frame1->SetMaximum(3);


   // C o n s t r u c t   p r o f i l e   l i k e l i h o o d   i n   s i g m a _ g 2

   // -------------------------------------------------------------------------------


   // The profile likelihood estimator on nll for sigma_g2 will minimize nll

   // w.r.t all floating parameters except sigma_g2 for each evaluation

   std::unique_ptr<RooAbsReal> pll_sigmag2{nll->createProfile(sigma_g2)};


   // Plot the profile likelihood in sigma_g2

   pll_sigmag2->plotOn(frame2, LineColor(kRed));


   // Adjust frame maximum for visual clarity

   frame2->SetMinimum(0);

   frame2->SetMaximum(3);

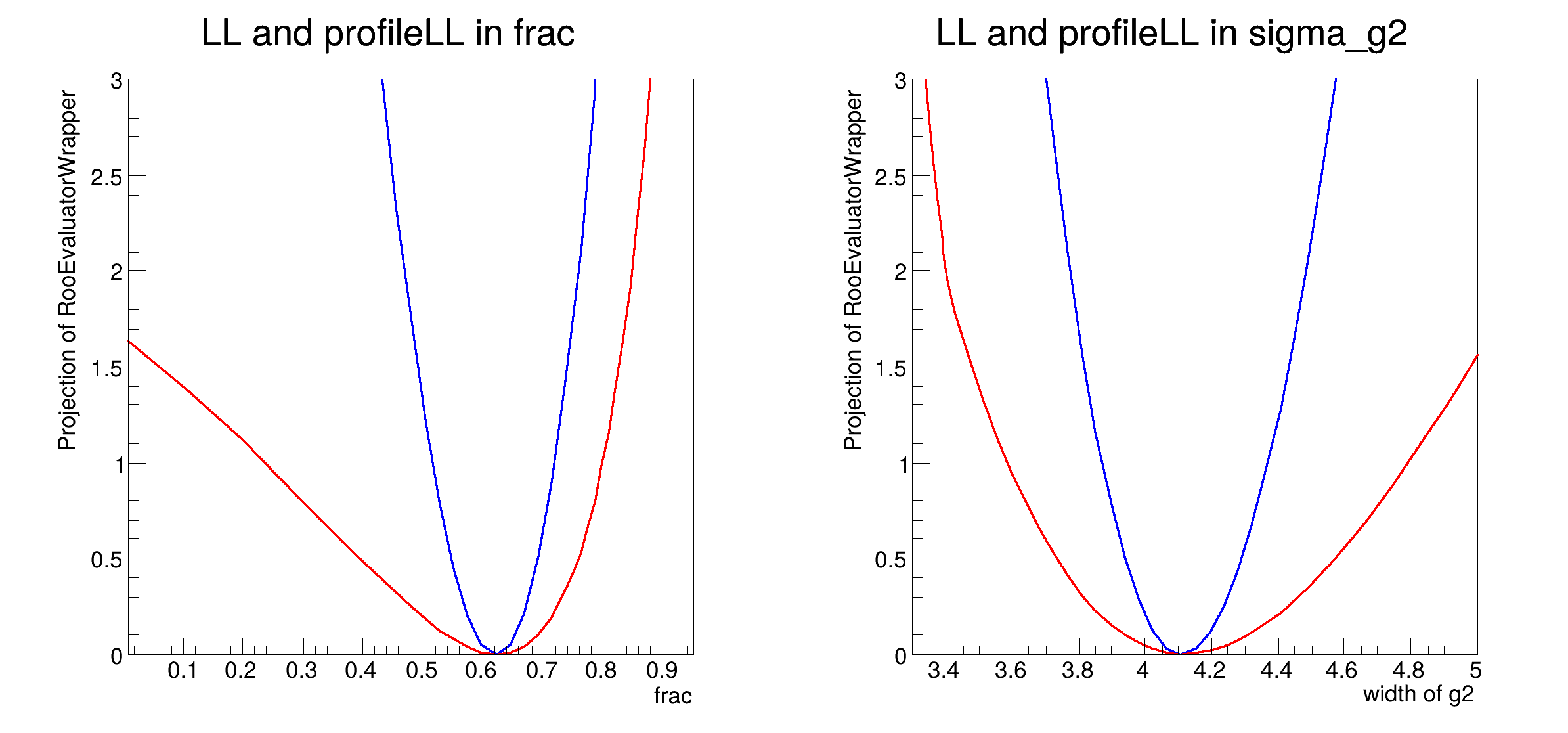

   // Make canvas and draw RooPlots

   TCanvas *c = new TCanvas("rf605_profilell", "rf605_profilell", 800, 400);

   c->Divide(2);

   c->cd(1);

   gPad->SetLeftMargin(0.15);

   frame1->GetYaxis()->SetTitleOffset(1.4);

   frame1->Draw();

   c->cd(2);

   gPad->SetLeftMargin(0.15);

   frame2->GetYaxis()->SetTitleOffset(1.4);

   frame2->Draw();

}

c
