#include "RooRealVar.h"

#include "RooDataHist.h"

#include "RooGaussian.h"

#include "RooProdPdf.h"

#include "RooPolyVar.h"

#include "TH1.h"

#include "TCanvas.h"

#include "TAxis.h"

#include "RooPlot.h"

#include "RooNumIntConfig.h"

using namespace RooFit;


void rf315_projectpdf()

{

   // C r e a t e   p d f   m ( x , y )  =  g x ( x | y ) * g ( y )

   // --------------------------------------------------------------


   // Increase default precision of numeric integration

   // as this exercise has high sensitivity to numeric integration precision

   RooAbsPdf::defaultIntegratorConfig()->setEpsRel(1e-8);

   RooAbsPdf::defaultIntegratorConfig()->setEpsAbs(1e-8);


   // Create observables

   RooRealVar x("x", "x", -5, 5);

   RooRealVar y("y", "y", -2, 2);


   // Create function f(y) = a0 + a1*y

   RooRealVar a0("a0", "a0", 0);

   RooRealVar a1("a1", "a1", -1.5, -3, 1);

   RooPolyVar fy("fy", "fy", y, RooArgSet(a0, a1));


   // Create gaussx(x,f(y),sx)

   RooRealVar sigmax("sigmax", "width of gaussian", 0.5);

   RooGaussian gaussx("gaussx", "Gaussian in x with shifting mean in y", x, fy, sigmax);


   // Create gaussy(y,0,2)

   RooGaussian gaussy("gaussy", "Gaussian in y", y, 0.0, 2.0);


   // Create gaussx(x,sx|y) * gaussy(y)

   RooProdPdf model("model", "gaussx(x|y)*gaussy(y)", gaussy, Conditional(gaussx, x));


   // M a r g i n a l i z e   m ( x , y )   t o   m ( x )

   // ----------------------------------------------------


   // modelx(x) = Int model(x,y) dy

   RooAbsPdf *modelx = model.createProjection(y);


   // U s e   m a r g i n a l i z e d   p . d . f .   a s   r e g u l a r   1 - D   p . d . f .

   // ------------------------------------------------------------------------------------------


   // Sample 1000 events from modelx

   std::unique_ptr<RooAbsData> data{modelx->generateBinned(x, 1000)};


   // Fit modelx to toy data

   modelx->fitTo(*data, Verbose(), PrintLevel(-1));

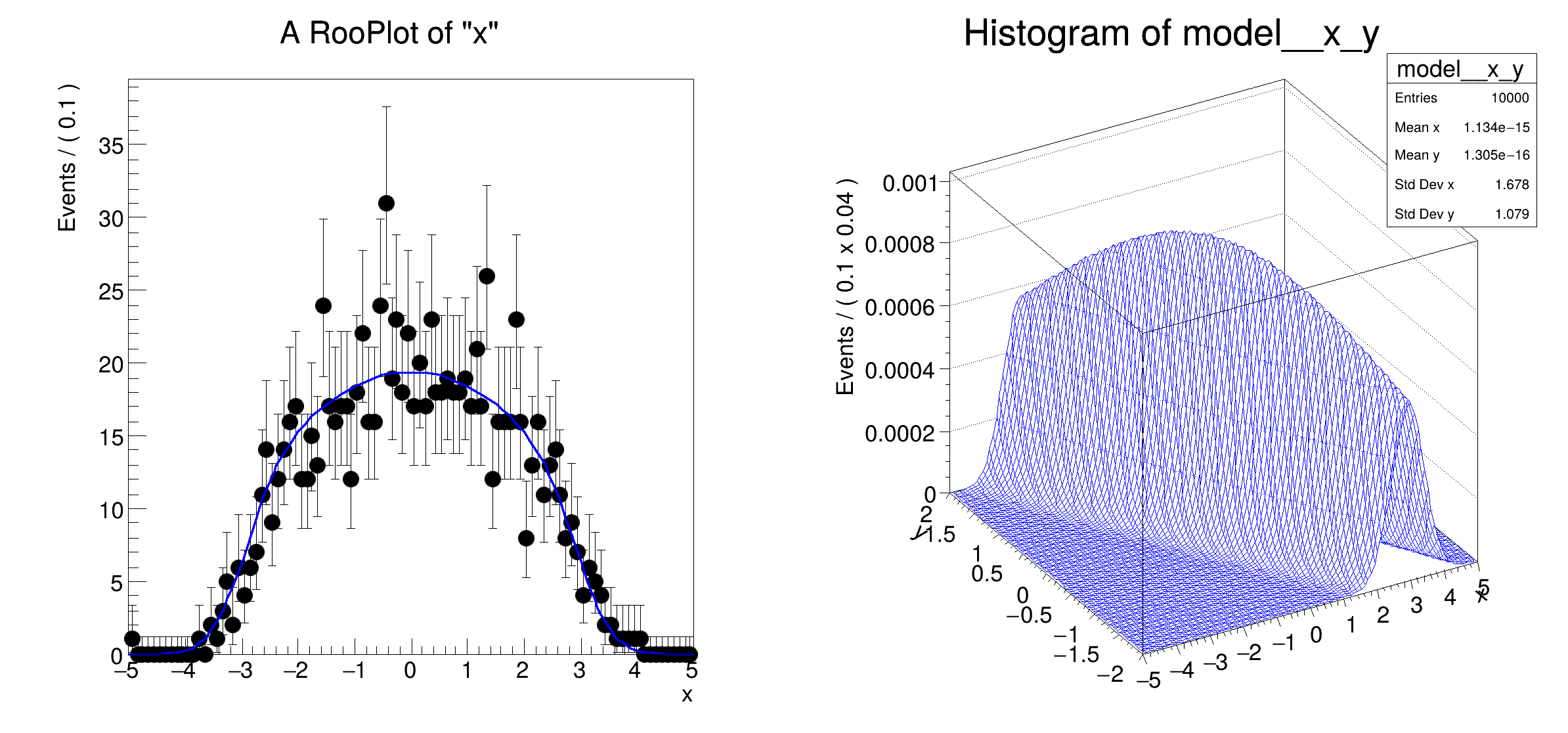

   // Plot modelx over data

   RooPlot *frame = x.frame(40);

   data->plotOn(frame);

   modelx->plotOn(frame);


   // Make 2D histogram of model(x,y)

   TH1 *hh = model.createHistogram("x,y");

   hh->SetLineColor(kBlue);


   TCanvas *c = new TCanvas("rf315_projectpdf", "rf315_projectpdf", 800, 400);

   c->Divide(2);

   c->cd(1);

   gPad->SetLeftMargin(0.15);

   frame->GetYaxis()->SetTitleOffset(1.4);

   frame->Draw();

   c->cd(2);

   gPad->SetLeftMargin(0.20);

   hh->GetZaxis()->SetTitleOffset(2.5);

   hh->Draw("surf");

}

c
