#include "RooRealVar.h"

#include "RooDataSet.h"

#include "RooGaussian.h"

#include "RooPolyVar.h"

#include "RooPlot.h"

#include "TCanvas.h"

#include "TAxis.h"

#include "TH1.h"

using namespace RooFit;


void rf301_composition()

{

   // S e t u p   c o m p o s e d   m o d e l   g a u s s ( x , m ( y ) , s )

   // -----------------------------------------------------------------------


   // Create observables

   RooRealVar x("x", "x", -5, 5);

   RooRealVar y("y", "y", -5, 5);


   // Create function f(y) = a0 + a1*y

   RooRealVar a0("a0", "a0", -0.5, -5, 5);

   RooRealVar a1("a1", "a1", -0.5, -1, 1);

   RooPolyVar fy("fy", "fy", y, RooArgSet(a0, a1));


   // Create gauss(x,f(y),s)

   RooRealVar sigma("sigma", "width of gaussian", 0.5);

   RooGaussian model("model", "Gaussian with shifting mean", x, fy, sigma);


   // S a m p l e   d a t a ,   p l o t   d a t a   a n d   p d f   o n   x   a n d   y

   // ---------------------------------------------------------------------------------


   // Generate 10000 events in x and y from model

   std::unique_ptr<RooDataSet> data{model.generate({x, y}, 10000)};


   // Plot x distribution of data and projection of model on x = Int(dy) model(x,y)

   RooPlot *xframe = x.frame();

   data->plotOn(xframe);

   model.plotOn(xframe);


   // Plot x distribution of data and projection of model on y = Int(dx) model(x,y)

   RooPlot *yframe = y.frame();

   data->plotOn(yframe);

   model.plotOn(yframe);


   // Make two-dimensional plot in x vs y

   TH1 *hh_model = model.createHistogram("hh_model", x, Binning(50), YVar(y, Binning(50)));

   hh_model->SetLineColor(kBlue);

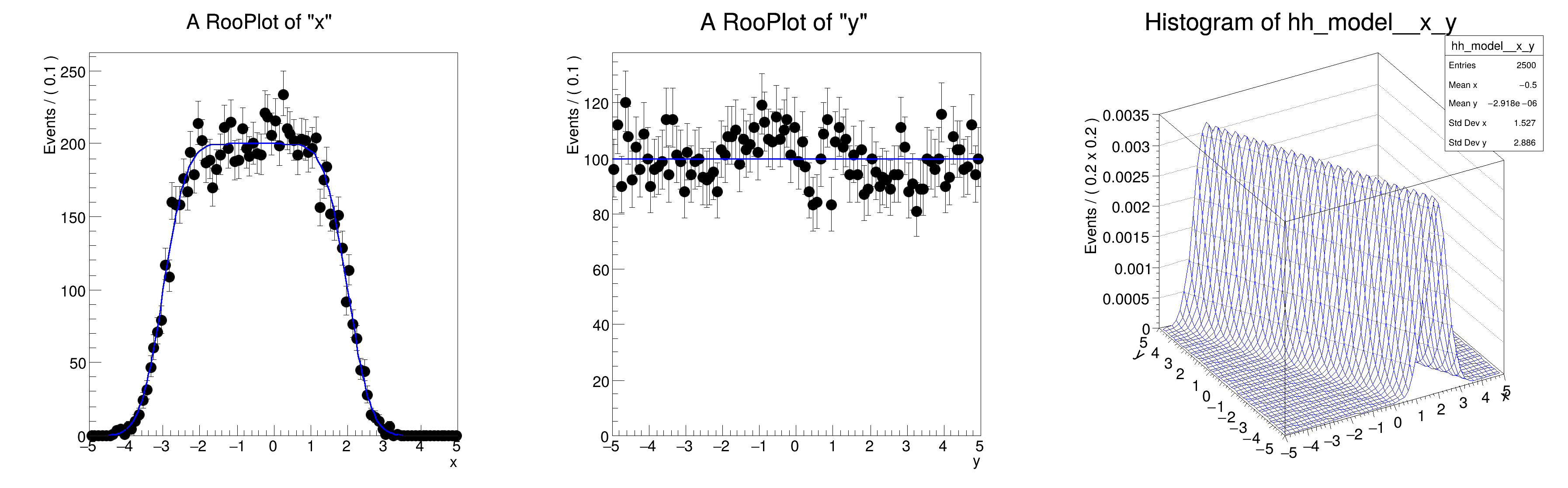

   // Make canvas and draw RooPlots

   TCanvas *c = new TCanvas("rf301_composition", "rf301_composition", 1200, 400);

   c->Divide(3);

   c->cd(1);

   gPad->SetLeftMargin(0.15);

   xframe->GetYaxis()->SetTitleOffset(1.4);

   xframe->Draw();

   c->cd(2);

   gPad->SetLeftMargin(0.15);

   yframe->GetYaxis()->SetTitleOffset(1.4);

   yframe->Draw();

   c->cd(3);

   gPad->SetLeftMargin(0.20);

   hh_model->GetZaxis()->SetTitleOffset(2.5);

   hh_model->Draw("surf");

}

c
