import ROOT

from array import array

import numpy as np


def makeTH1(trnd):


    # Create ROOT ROOT.TH1 filled with a Gaussian distribution


    hh = ROOT.TH1D("hh", "hh", 25, -10, 10)

    hh.Fill(np.array([trnd.Gaus(0, 3) for _ in range(100)]))

    return hh


def makeTTree(trnd):

    # Create ROOT ROOT.TTree filled with a Gaussian distribution in x and a

    # uniform distribution in y


    tree = ROOT.TTree("tree", "tree")

    px = array("d", [0])

    py = array("d", [0])

    tree.Branch("x", px, "x/D")

    tree.Branch("y", py, "y/D")

    for i in range(100):

        px[0] = trnd.Gaus(0, 3)

        py[0] = trnd.Uniform() * 30 - 15

        tree.Fill()

    return tree


trnd = ROOT.TRandom3()


############################

# Importing ROOT histograms

############################

# Import ROOT TH1 into a RooDataHist

# ---------------------------------------------------------

# Create a ROOT TH1 histogram

hh = makeTH1(trnd)


# Declare observable x

x = ROOT.RooRealVar("x", "x", -10, 10)


# Create a binned dataset that imports contents of ROOT.TH1 and associates

# its contents to observable 'x'

dh = ROOT.RooDataHist("dh", "dh", [x], Import=hh)


# Plot and fit a RooDataHist

# ---------------------------------------------------

# Make plot of binned dataset showing Poisson error bars (RooFit default)

frame = x.frame(Title="Imported ROOT.TH1 with Poisson error bars")

dh.plotOn(frame)


# Fit a Gaussian p.d.f to the data

mean = ROOT.RooRealVar("mean", "mean", 0, -10, 10)

sigma = ROOT.RooRealVar("sigma", "sigma", 3, 0.1, 10)

gauss = ROOT.RooGaussian("gauss", "gauss", x, mean, sigma)

gauss.fitTo(dh, PrintLevel=-1)

gauss.plotOn(frame)


# Plot and fit a RooDataHist with internal errors

# ---------------------------------------------------------------------------------------------


# If histogram has custom error (i.e. its contents is does not originate from a Poisson process

# but e.g. is a sum of weighted events) you can data with symmetric 'sum-of-weights' error instead

# (same error bars as shown by ROOT)

frame2 = x.frame(Title="Imported ROOT.TH1 with internal errors")

dh.plotOn(frame2, DataError="SumW2")

gauss.plotOn(frame2)


# Please note that error bars shown (Poisson or SumW2) are for visualization only, the are NOT used

# in a maximum likelihood fit

#

# A (binned) ML fit will ALWAYS assume the Poisson error interpretation of data (the mathematical definition

# of likelihood does not take any external definition of errors). Data with non-unit weights can only be correctly

# fitted with a chi^2 fit (see rf602_chi2fit.py)

#

# Importing ROOT TTrees

# -----------------------------------------------------------

# Import ROOT TTree into a RooDataSet


tree = makeTTree(trnd)


# Define 2nd observable y

y = ROOT.RooRealVar("y", "y", -10, 10)


# Construct unbinned dataset importing tree branches x and y matching between branches and ROOT.RooRealVars

# is done by name of the branch/RRV

#

# Note that ONLY entries for which x,y have values within their allowed ranges as defined in

# ROOT.RooRealVar x and y are imported. Since the y values in the import tree are in the range [-15,15]

# and RRV y defines a range [-10,10] this means that the ROOT.RooDataSet

# below will have less entries than the ROOT.TTree 'tree'


ds = ROOT.RooDataSet("ds", "ds", {x, y}, Import=tree)


# Use ascii import/export for datasets

# ------------------------------------------------------------------------------------


def write_dataset(ds, filename):

    # Write data to output stream

    outstream = ROOT.std.ofstream(filename)

    # Optionally, adjust the stream here (e.g. std::setprecision)

    ds.write(outstream)

    outstream.close()


write_dataset(ds, "rf102_testData.txt")


# Read data from input stream. The variables of the dataset need to be supplied

# to the RooDataSet::read() function.

print("\n-----------------------\nReading data from ASCII")

dataReadBack = ROOT.RooDataSet.read(

    "rf102_testData.txt",

    [x, y],  # variables to be read. If the file has more fields, these are ignored.

    "D",  # Prints if a RooFit message stream listens for debug messages. Use Q for quiet.

)


dataReadBack.Print("V")


print("\nOriginal data, line 20:")

ds.get(20).Print("V")


print("\nRead-back data, line 20:")

dataReadBack.get(20).Print("V")


# Plot data set with multiple binning choices

# ------------------------------------------------------------------------------------

# Print number of events in dataset

ds.Print()


# Print unbinned dataset with default frame binning (100 bins)

frame3 = y.frame(Title="Unbinned data shown in default frame binning")

ds.plotOn(frame3)


# Print unbinned dataset with custom binning choice (20 bins)

frame4 = y.frame(Title="Unbinned data shown with custom binning")

ds.plotOn(frame4, Binning=20)


frame5 = y.frame(Title="Unbinned data read back from ASCII file")

ds.plotOn(frame5, Binning=20)

dataReadBack.plotOn(frame5, Binning=20, MarkerColor="r", MarkerStyle=5)

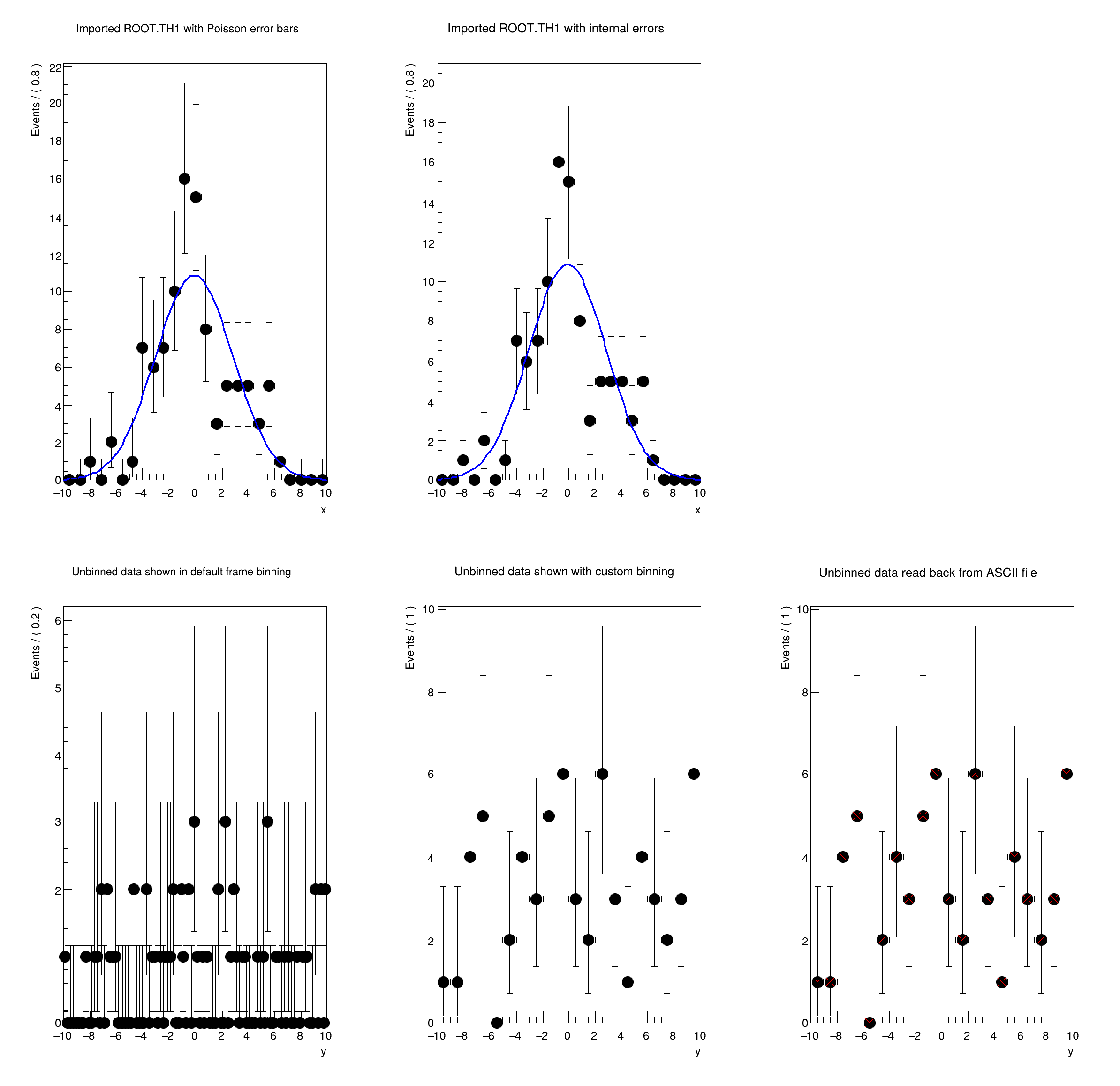

# Draw all frames on a canvas

c = ROOT.TCanvas("rf102_dataimport", "rf102_dataimport", 800, 800)

c.Divide(3, 2)

c.cd(1)

ROOT.gPad.SetLeftMargin(0.15)

frame.GetYaxis().SetTitleOffset(1.4)

frame.Draw()

c.cd(2)

ROOT.gPad.SetLeftMargin(0.15)

frame2.GetYaxis().SetTitleOffset(1.4)

frame2.Draw()

c.cd(4)

ROOT.gPad.SetLeftMargin(0.15)

frame3.GetYaxis().SetTitleOffset(1.4)

frame3.Draw()

c.cd(5)

ROOT.gPad.SetLeftMargin(0.15)

frame4.GetYaxis().SetTitleOffset(1.4)

frame4.Draw()

c.cd(6)

ROOT.gPad.SetLeftMargin(0.15)

frame4.GetYaxis().SetTitleOffset(1.4)

frame5.Draw()


c.SaveAs("rf102_dataimport.png")
