ntpl001_staff.C File Reference

Detailed Description

View in nbviewer Open in SWAN
Write and read tabular data with RNTuple.

Adapted from the cernbuild and cernstaff tree tutorials. Illustrates the type-safe ntuple model interface, which is used to define a data model that is in a second step taken by an ntuple reader or writer.

#include <TCanvas.h>
#include <TH1I.h>
#include <TROOT.h>
#include <TString.h>
#include <cassert>
#include <cstdio>
#include <fstream>
#include <iostream>
#include <memory>
#include <string>
#include <sstream>
#include <utility>
constexpr char const* kNTupleFileName = "ntpl001_staff.root";
void Ingest() {
// The input file cernstaff.dat is a copy of the CERN staff data base from 1988
ifstream fin(gROOT->GetTutorialDir() + "/io/tree/cernstaff.dat");
assert(fin.is_open());
// We create a unique pointer to an empty data model
// To define the data model, we create fields with a given C++ type and name. Fields are roughly TTree branches.
// MakeField returns a shared pointer to a memory location that we can populate to fill the ntuple with data
auto fldCategory = model->MakeField<int>("Category");
auto fldFlag = model->MakeField<unsigned int>("Flag");
auto fldAge = model->MakeField<int>("Age");
auto fldService = model->MakeField<int>("Service");
auto fldChildren = model->MakeField<int>("Children");
auto fldGrade = model->MakeField<int>("Grade");
auto fldStep = model->MakeField<int>("Step");
auto fldHrweek = model->MakeField<int>("Hrweek");
auto fldCost = model->MakeField<int>("Cost");
auto fldDivision = model->MakeField<std::string>("Division");
auto fldNation = model->MakeField<std::string>("Nation");
// We hand-over the data model to a newly created ntuple of name "Staff", stored in kNTupleFileName
// In return, we get a unique pointer to an ntuple that we can fill
auto writer = ROOT::RNTupleWriter::Recreate(std::move(model), "Staff", kNTupleFileName);
std::string record;
while (std::getline(fin, record)) {
std::istringstream iss(record);
writer->Fill();
}
// The ntuple unique pointer goes out of scope here. On destruction, the ntuple flushes unwritten data to disk
// and closes the attached ROOT file.
}
void Analyze() {
// Get a unique pointer to an empty RNTuple model
// We only define the fields that are needed for reading
std::shared_ptr<int> fldAge = model->MakeField<int>("Age");
// Create an ntuple and attach the read model to it
auto reader = ROOT::RNTupleReader::Open(std::move(model), "Staff", kNTupleFileName);
// Quick overview of the ntuple and list of fields.
reader->PrintInfo();
std::cout << "The first entry in JSON format:" << std::endl;
reader->Show(0);
auto c = new TCanvas("c", "", 200, 10, 700, 500);

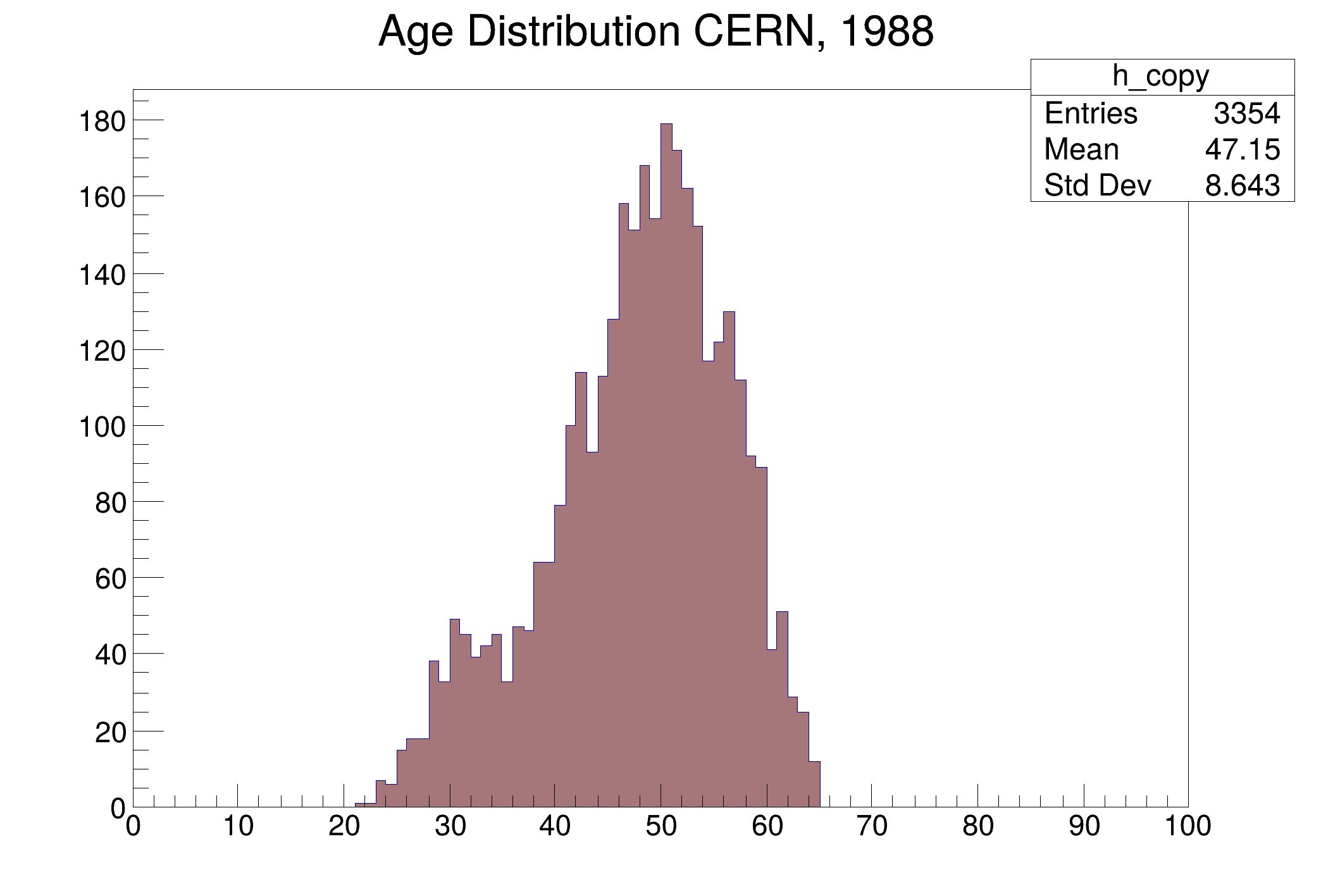

TH1I h("h", "Age Distribution CERN, 1988", 100, 0, 100);
h.SetFillColor(48);
for (auto entryId : *reader) {
// Populate fldAge
reader->LoadEntry(entryId);
h.Fill(*fldAge);
}
h.DrawCopy();
}
void ntpl001_staff() {
Ingest();
Analyze();
}
#define c(i)
Definition RSha256.hxx:101
#define h(i)
Definition RSha256.hxx:106
ROOT::Detail::TRangeCast< T, true > TRangeDynCast
TRangeDynCast is an adapter class that allows the typed iteration through a TCollection.
#define gROOT
Definition TROOT.h:414
static std::unique_ptr< RNTupleModel > Create()
static std::unique_ptr< RNTupleReader > Open(std::string_view ntupleName, std::string_view storage, const ROOT::RNTupleReadOptions &options=ROOT::RNTupleReadOptions())
Open an RNTuple for reading.
static std::unique_ptr< RNTupleWriter > Recreate(std::unique_ptr< ROOT::RNTupleModel > model, std::string_view ntupleName, std::string_view storage, const ROOT::RNTupleWriteOptions &options=ROOT::RNTupleWriteOptions())
Throws an exception if the model is null.
The Canvas class.
Definition TCanvas.h:23
1-D histogram with an int per channel (see TH1 documentation)
Definition TH1.h:795
Date
April 2019
Author
The ROOT Team

Definition in file ntpl001_staff.C.
