df104_HiggsToTwoPhotons.py File Reference

Detailed Description

The Higgs to two photons analysis from the ATLAS Open Data 2020 release, with RDataFrame.

This tutorial is the Higgs to two photons analysis from the ATLAS Open Data release in 2020 (http://opendata.atlas.cern/release/2020/documentation/). The data was taken with the ATLAS detector during 2016 at a center-of-mass energy of 13 TeV. Although the Higgs to two photons decay is very rare, the contribution of the Higgs can be seen as a narrow peak around 125 GeV because of the excellent reconstruction and identification efficiency of photons at the ATLAS experiment.

The analysis is translated to a RDataFrame workflow processing 1.7 GB of simulated events and data.


import ROOT
import os

# Enable multi-threading
ROOT.ROOT.EnableImplicitMT()

# Create a ROOT dataframe for each dataset
path = "root://eospublic.cern.ch//eos/opendata/atlas/OutreachDatasets/2020-01-22"
df = {}
df["data"] = ROOT.RDataFrame("mini", (os.path.join(path, "GamGam/Data/data_{}.GamGam.root".format(x)) for x in ("A", "B", "C", "D")))
df["ggH"] = ROOT.RDataFrame("mini", os.path.join(path, "GamGam/MC/mc_343981.ggH125_gamgam.GamGam.root"))
df["VBF"] = ROOT.RDataFrame("mini", os.path.join(path, "GamGam/MC/mc_345041.VBFH125_gamgam.GamGam.root"))
processes = list(df.keys())

# Apply scale factors and MC weight for simulated events and a weight of 1 for the data
for p in ["ggH", "VBF"]:
    df[p] = df[p].Define("weight",
            "scaleFactor_PHOTON * scaleFactor_PhotonTRIGGER * scaleFactor_PILEUP * mcWeight");
df["data"] = df["data"].Define("weight", "1.0")

# Select the events for the analysis
for p in processes:
    # Apply preselection cut on photon trigger
    df[p] = df[p].Filter("trigP")

    # Find two good muons with tight ID, pt > 25 GeV and not in the transition region between barrel and encap
    df[p] = df[p].Define("goodphotons", "photon_isTightID && (photon_pt > 25000) && (abs(photon_eta) < 2.37) && ((abs(photon_eta) < 1.37) || (abs(photon_eta) > 1.52))")\
                 .Filter("Sum(goodphotons) == 2")

    # Take only isolated photons
    df[p] = df[p].Filter("Sum(photon_ptcone30[goodphotons] / photon_pt[goodphotons] < 0.065) == 2")\
                 .Filter("Sum(photon_etcone20[goodphotons] / photon_pt[goodphotons] < 0.065) == 2")

# Compile a function to compute the invariant mass of the diphoton system
ROOT.gInterpreter.Declare(
"""
using namespace ROOT;
float ComputeInvariantMass(RVecF pt, RVecF eta, RVecF phi, RVecF e) {
    ROOT::Math::PtEtaPhiEVector p1(pt[0], eta[0], phi[0], e[0]);
    ROOT::Math::PtEtaPhiEVector p2(pt[1], eta[1], phi[1], e[1]);
    return (p1 + p2).mass() / 1000.0;
}
""")

# Define a new column with the invariant mass and perform final event selection
hists = {}
for p in processes:
    # Make four vectors and compute invariant mass
    df[p] = df[p].Define("m_yy", "ComputeInvariantMass(photon_pt[goodphotons], photon_eta[goodphotons], photon_phi[goodphotons], photon_E[goodphotons])")

    # Make additional kinematic cuts and select mass window
    df[p] = df[p].Filter("photon_pt[goodphotons][0] / 1000.0 / m_yy > 0.35")\
                 .Filter("photon_pt[goodphotons][1] / 1000.0 / m_yy > 0.25")\
                 .Filter("m_yy > 105 && m_yy < 160")

    # Book histogram of the invariant mass with this selection
    hists[p] = df[p].Histo1D(
            ROOT.RDF.TH1DModel(p, "Diphoton invariant mass; m_{#gamma#gamma} [GeV];Events", 30, 105, 160),
            "m_yy", "weight")

# Run the event loop

# RunGraphs allows to run the event loops of the separate RDataFrame graphs
# concurrently. This results in an improved usage of the available resources
# if each separate RDataFrame can not utilize all available resources, e.g.,
# because not enough data is available.
ROOT.RDF.RunGraphs([hists[s] for s in ["ggH", "VBF", "data"]])

ggh = hists["ggH"].GetValue()
vbf = hists["VBF"].GetValue()
data = hists["data"].GetValue()

# Create the plot

# Set styles
ROOT.gROOT.SetStyle("ATLAS")

# Create canvas with pads for main plot and data/MC ratio
c = ROOT.TCanvas("c", "", 700, 750)

upper_pad = ROOT.TPad("upper_pad", "", 0, 0.35, 1, 1)
lower_pad = ROOT.TPad("lower_pad", "", 0, 0, 1, 0.35)
for p in [upper_pad, lower_pad]:
    p.SetLeftMargin(0.14)
    p.SetRightMargin(0.05)
    p.SetTickx(False)
    p.SetTicky(False)
upper_pad.SetBottomMargin(0)
lower_pad.SetTopMargin(0)
lower_pad.SetBottomMargin(0.3)

upper_pad.Draw()
lower_pad.Draw()

# Fit signal + background model to data
fit = ROOT.TF1("fit", "([0]+[1]*x+[2]*x^2+[3]*x^3)+[4]*exp(-0.5*((x-[5])/[6])^2)", 105, 160)
fit.FixParameter(5, 125.0)
fit.FixParameter(4, 119.1)
fit.FixParameter(6, 2.39)
fit.SetLineColor(2)
fit.SetLineStyle(ROOT.kSolid)
fit.SetLineWidth(2)
data.Fit("fit", "0", "", 105, 160)

# Draw data
upper_pad.cd()
data.SetMarkerStyle(20)
data.SetMarkerSize(1.2)
data.SetLineWidth(2)
data.SetLineColor("black")
data.SetMinimum(1e-3)
data.SetMaximum(8e3)
data.GetYaxis().SetLabelSize(0.045)
data.GetYaxis().SetTitleSize(0.05)
data.SetStats(0)
data.SetTitle("")
data.Draw("E")

# Draw fit
fit.Draw("SAME")

# Draw background
bkg = ROOT.TF1("bkg", "([0]+[1]*x+[2]*x^2+[3]*x^3)", 105, 160)
for i in range(4):
    bkg.SetParameter(i, fit.GetParameter(i))
bkg.SetLineColor(4)
bkg.SetLineStyle(ROOT.kDashed)
bkg.SetLineWidth(2)
bkg.Draw("SAME")

# Scale simulated events with luminosity * cross-section / sum of weights
# and merge to single Higgs signal
lumi = 10064.0
ggh.Scale(lumi * 0.102 / 55922617.6297)
vbf.Scale(lumi * 0.008518764 / 3441426.13711)
higgs = ggh.Clone()
higgs.Add(vbf)
higgs.Draw("HIST SAME")

# Draw ratio
lower_pad.cd()

ratiobkg = ROOT.TH1I("zero", "", 100, 105, 160)
ratiobkg.SetLineColor(4)
ratiobkg.SetLineStyle(ROOT.kDashed)
ratiobkg.SetLineWidth(2)
ratiobkg.SetMinimum(-125)
ratiobkg.SetMaximum(250)
ratiobkg.GetXaxis().SetLabelSize(0.08)
ratiobkg.GetXaxis().SetTitleSize(0.12)
ratiobkg.GetXaxis().SetTitleOffset(1.0)
ratiobkg.GetYaxis().SetLabelSize(0.08)
ratiobkg.GetYaxis().SetTitleSize(0.09)
ratiobkg.GetYaxis().SetTitle("Data - Bkg.")
ratiobkg.GetYaxis().CenterTitle()
ratiobkg.GetYaxis().SetTitleOffset(0.7)
ratiobkg.GetYaxis().SetNdivisions(503, False)
ratiobkg.GetYaxis().ChangeLabel(-1, -1, 0)
ratiobkg.GetXaxis().SetTitle("m_{#gamma#gamma} [GeV]")
ratiobkg.Draw("AXIS")

ratiosig = ROOT.TH1F("ratiosig", "ratiosig", 5500, 105, 160)
ratiosig.Eval(fit)
ratiosig.SetLineColor(2)
ratiosig.SetLineStyle(ROOT.kSolid)
ratiosig.SetLineWidth(2)
ratiosig.Add(bkg, -1)
ratiosig.Draw("SAME")

ratiodata = data.Clone()
ratiodata.Add(bkg, -1)
for i in range(1, data.GetNbinsX()):
    ratiodata.SetBinError(i, data.GetBinError(i))
ratiodata.Draw("E SAME")

# Add legend
upper_pad.cd()
legend = ROOT.TLegend(0.55, 0.55, 0.89, 0.85)
legend.SetTextFont(42)
legend.SetFillStyle(0)
legend.SetBorderSize(0)
legend.SetTextSize(0.05)
legend.SetTextAlign(32)
legend.AddEntry(data, "Data" ,"lep")
legend.AddEntry(bkg, "Background", "l")
legend.AddEntry(fit, "Signal + Bkg.", "l")
legend.AddEntry(higgs, "Signal", "l")
legend.Draw()

# Add ATLAS label
text = ROOT.TLatex()
text.SetNDC()
text.SetTextFont(72)
text.SetTextSize(0.05)
text.DrawLatex(0.18, 0.84, "ATLAS")
text.SetTextFont(42)
text.DrawLatex(0.18 + 0.13, 0.84, "Open Data")
text.SetTextSize(0.04)
text.DrawLatex(0.18, 0.78, "#sqrt{s} = 13 TeV, 10 fb^{-1}")

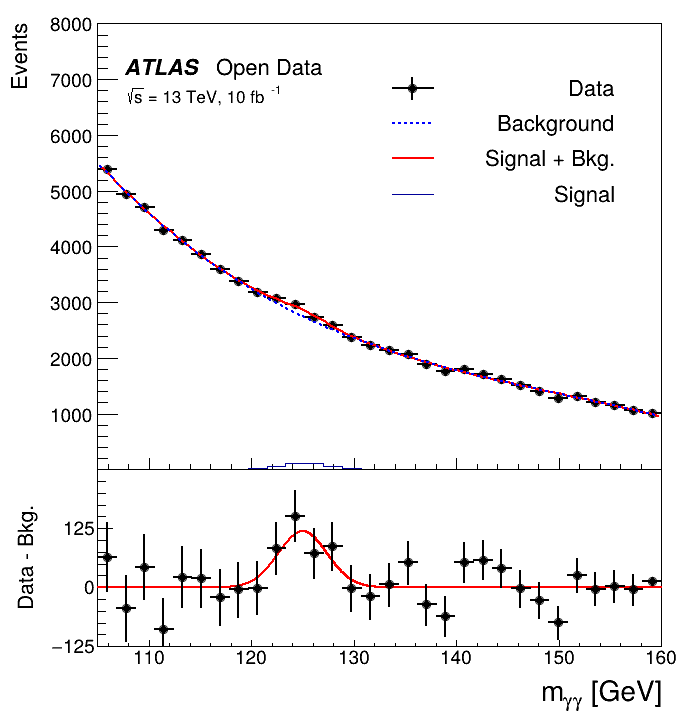

# Save the plot
c.SaveAs("df104_HiggsToTwoPhotons.png")
print("Saved figure to df104_HiggsToTwoPhotons.png")

****************************************
Minimizer is Minuit2 / Migrad
Chi2                      =      19.9699
NDf                       =           26
Edm                       =  1.42782e-10
NCalls                    =          161
p0                        =        94325   +/-   72.0526
p1                        =     -1777.22   +/-   0.778155
p2                        =      11.5606   +/-   0.00536059
p3                        =   -0.0256281   +/-   2.66824e-05
p4                        =        119.1                        (fixed)
p5                        =          125                        (fixed)
p6                        =         2.39                        (fixed)
Saved figure to df104_HiggsToTwoPhotons.png

Date

February 2020

Author

Stefan Wunsch (KIT, CERN)

Definition in file df104_HiggsToTwoPhotons.py.
