combinedFit.C File Reference

Detailed Description

Combined (simultaneous) fit of two histogram with separate functions and some common parameters

See http://root.cern/phpBB3//viewtopic.php?f=3&t=11740#p50908 for a modified version working with Fumili or GSLMultiFit

N.B. this macro must be compiled with ACliC


****************************************
Minimizer is Minuit2 / Migrad
Chi2                      =      131.104
NDf                       =          115
Edm                       =  2.11602e-08
NCalls                    =          225
Par_0                     =       5.5396   +/-   0.0354094
Par_1                     =      4.66089   +/-   0.050106
Par_2                     =   -0.0514037   +/-   0.00108539     (limited)
Par_3                     =      77.2733   +/-   3.93105        (limited)
Par_4                     =           30                        (fixed)
Par_5                     =        4.864   +/-   0.243005
Combined fit Chi2 = 131.104


#include <Fit/Fitter.h>
#include <Fit/BinData.h>
#include <Fit/Chi2FCN.h>
#include <TH1.h>
#include <Math/WrappedMultiTF1.h>
#include <HFitInterface.h>
#include <TCanvas.h>
#include <TStyle.h>

// definition of shared parameter
// background function
int iparB[2] = {
   0, // exp amplitude in B histo
   2  // exp common parameter
};

// signal + background function
int iparSB[5] = {
   1, // exp amplitude in S+B histo
   2, // exp common parameter
   3, // Gaussian amplitude
   4, // Gaussian mean
   5  // Gaussian sigma
};

// Create the GlobalCHi2 structure

struct GlobalChi2 {
   GlobalChi2(ROOT::Math::IMultiGenFunction &f1, ROOT::Math::IMultiGenFunction &f2) : fChi2_1(&f1), fChi2_2(&f2) {}

   // parameter vector is first background (in common 1 and 2)
   // and then is signal (only in 2)
   double operator()(const double *par) const
   {
      double p1[2];
      for (int i = 0; i < 2; ++i)
         p1[i] = par[iparB[i]];

      double p2[5];
      for (int i = 0; i < 5; ++i)
         p2[i] = par[iparSB[i]];

      return (*fChi2_1)(p1) + (*fChi2_2)(p2);
   }

   const ROOT::Math::IMultiGenFunction *fChi2_1;
   const ROOT::Math::IMultiGenFunction *fChi2_2;
};

void combinedFit()
{

   TH1D *hB = new TH1D("hB", "histo B", 100, 0, 100);
   TH1D *hSB = new TH1D("hSB", "histo S+B", 100, 0, 100);

   TF1 *fB = new TF1("fB", "expo", 0, 100);
   fB->SetParameters(1, -0.05);
   hB->FillRandom("fB");

   TF1 *fS = new TF1("fS", "gaus", 0, 100);
   fS->SetParameters(1, 30, 5);

   hSB->FillRandom("fB", 2000);
   hSB->FillRandom("fS", 1000);

   // perform now global fit

   TF1 *fSB = new TF1("fSB", "expo + gaus(2)", 0, 100);

   ROOT::Math::WrappedMultiTF1 wfB(*fB, 1);
   ROOT::Math::WrappedMultiTF1 wfSB(*fSB, 1);

   ROOT::Fit::DataOptions opt;
   ROOT::Fit::DataRange rangeB;
   // set the data range
   rangeB.SetRange(10, 90);
   ROOT::Fit::BinData dataB(opt, rangeB);
   ROOT::Fit::FillData(dataB, hB);

   ROOT::Fit::DataRange rangeSB;
   rangeSB.SetRange(10, 50);
   ROOT::Fit::BinData dataSB(opt, rangeSB);
   ROOT::Fit::FillData(dataSB, hSB);

   ROOT::Fit::Chi2Function chi2_B(dataB, wfB);
   ROOT::Fit::Chi2Function chi2_SB(dataSB, wfSB);

   GlobalChi2 globalChi2(chi2_B, chi2_SB);

   ROOT::Fit::Fitter fitter;

   const int Npar = 6;
   double par0[Npar] = {5, 5, -0.1, 100, 30, 10};

   // create before the parameter settings in order to fix or set range on them
   fitter.Config().SetParamsSettings(6, par0);
   // fix 5-th parameter
   fitter.Config().ParSettings(4).Fix();
   // set limits on the third and 4-th parameter
   fitter.Config().ParSettings(2).SetLimits(-10, -1.E-4);
   fitter.Config().ParSettings(3).SetLimits(0, 10000);
   fitter.Config().ParSettings(3).SetStepSize(5);

   fitter.Config().MinimizerOptions().SetPrintLevel(0);
   fitter.Config().SetMinimizer("Minuit2", "Migrad");

   // fit FCN function directly
   // (specify optionally data size and flag to indicate that is a chi2 fit)
   fitter.FitFCN(6, globalChi2, nullptr, dataB.Size() + dataSB.Size(), true);
   ROOT::Fit::FitResult result = fitter.Result();
   result.Print(std::cout);

   std::cout << "Combined fit Chi2 = " << result.Chi2() << std::endl;

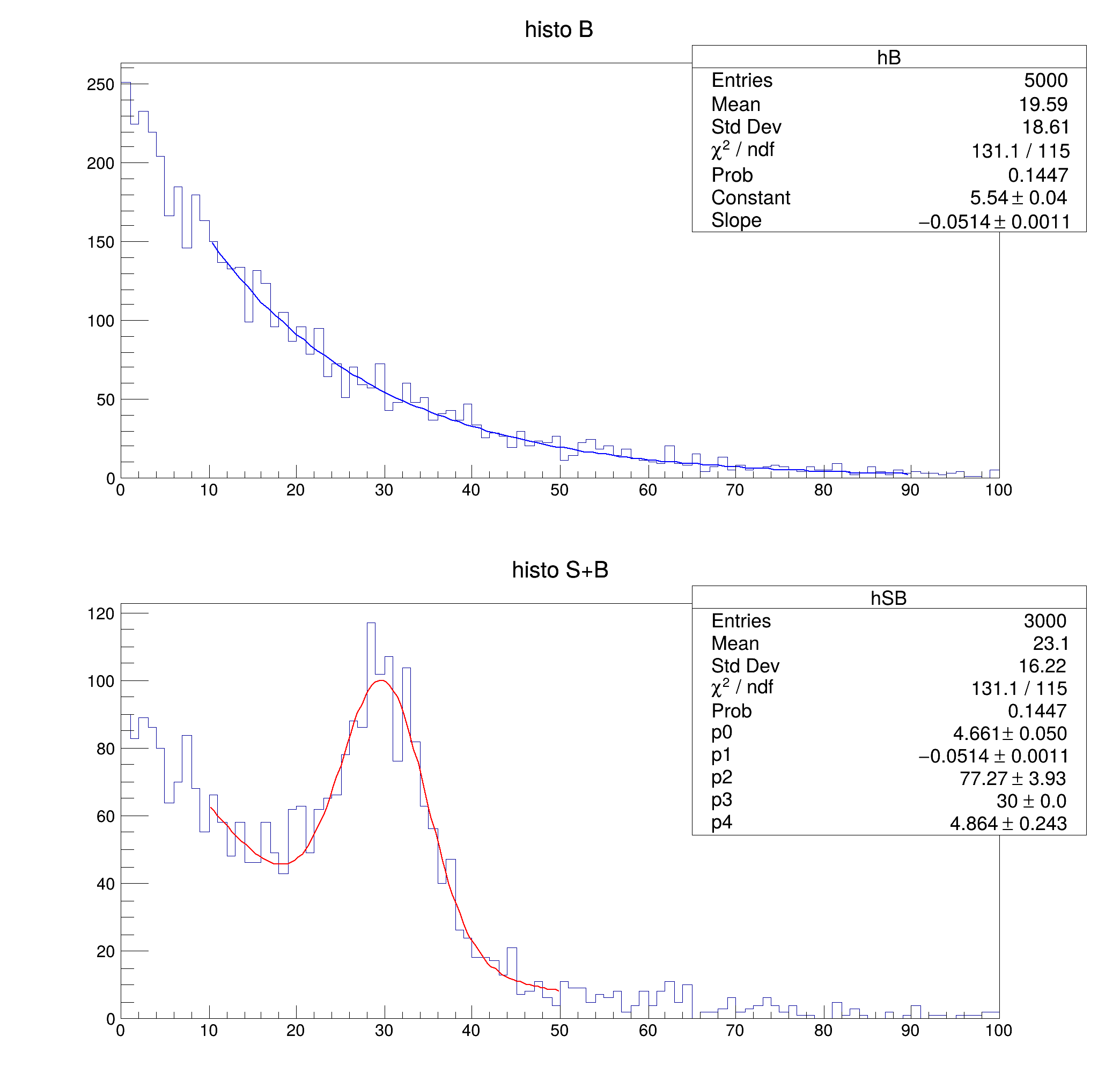

   TCanvas *c1 = new TCanvas("Simfit", "Simultaneous fit of two histograms", 10, 10, 700, 700);
   c1->Divide(1, 2);
   c1->cd(1);
   gStyle->SetOptFit(1111);

   fB->SetFitResult(result, iparB);
   fB->SetRange(rangeB().first, rangeB().second);
   fB->SetLineColor(kBlue);
   hB->GetListOfFunctions()->Add(fB);
   hB->Draw();

   c1->cd(2);
   fSB->SetFitResult(result, iparSB);
   fSB->SetRange(rangeSB().first, rangeSB().second);
   fSB->SetLineColor(kRed);
   hSB->GetListOfFunctions()->Add(fSB);
   hSB->Draw();
}

Author

Lorenzo Moneta

Definition in file combinedFit.C.
