benchmarks.C File Reference
Tutorials » Legacy tutorials

Detailed Description

This macro run several tests and produces an benchmark report.

hsimple : Real Time = 0.05 seconds Cpu Time = 0.05 seconds
(TFile *) 0x39cbc20
hsum : Real Time = 0.01 seconds Cpu Time = 0.02 seconds
Object statistics
class cnt on heap size total size heap size
================================================================================
TList 133 132 104 13832 13728
TObjectTable 1 1 32 32 32
TROOT 1 0 728 728 0
TPluginManager 1 1 40 40 40
THashTable 2 2 72 144 144
TClassTable 1 1 16 16 16
THashList 1 1 112 112 112
TEnv 1 1 56 56 56
TEnvRec 146 146 96 14016 14016
TNamed 1 1 64 64 64
TUnixSystem 1 1 672 672 672
TOrdCollection 4 4 72 288 288
--------------------------------------------------------------------------------
Total: 293 291 2064 30000 29168
================================================================================
fillrandom: Real Time = 0.08 seconds Cpu Time = 0.07 seconds
TFile** fillrandom.root
TFile* fillrandom.root
KEY: TFormula form1;1 abs(sin(x)/x)
KEY: TF1 sqroot;1 x*gaus(0) + [3]*form1
KEY: TH1F h1f;1 Test random numbers
Formula based function: sqroot
sqroot : x*gaus(0) + [3]*form1 Ndim= 1, Npar= 4, Number= 0
Formula expression:
x*[p0]*exp(-0.5*((x-[p1])/[p2])*((x-[p1])/[p2]))+[p3]*(abs(sin(x)/x))
****************************************
Minimizer is Minuit2 / Migrad
Chi2 = 180.439
NDf = 190
Edm = 3.97419e-08
NCalls = 149
p0 = 32.4913 +/- 0.535527
p1 = 3.97933 +/- 0.0173179
p2 = 1.00427 +/- 0.0132713
p3 = 64.795 +/- 1.35621
fit1 : Real Time = 0.07 seconds Cpu Time = 0.07 seconds
TFile** /github/home/ROOT-CI/build/tutorials/hsimple.root Demo ROOT file with histograms
TFile* /github/home/ROOT-CI/build/tutorials/hsimple.root Demo ROOT file with histograms
KEY: TH1F hpx;1 This is the px distribution
KEY: TH2F hpxpy;1 py vs px
KEY: TProfile hprof;1 Profile of pz versus px
KEY: TNtuple ntuple;1 Demo ntuple
i 0 0.000000 1.986693
i 1 0.100000 2.955202
i 2 0.200000 3.894183
i 3 0.300000 4.794255
i 4 0.400000 5.646425
i 5 0.500000 6.442177
i 6 0.600000 7.173561
i 7 0.700000 7.833269
i 8 0.800000 8.414710
i 9 0.900000 8.912074
i 10 1.000000 9.320391
i 11 1.100000 9.635582
i 12 1.200000 9.854497
i 13 1.300000 9.974950
i 14 1.400000 9.995736
i 15 1.500000 9.916648
i 16 1.600000 9.738476
i 17 1.700000 9.463001
i 18 1.800000 9.092974
i 19 1.900000 8.632094

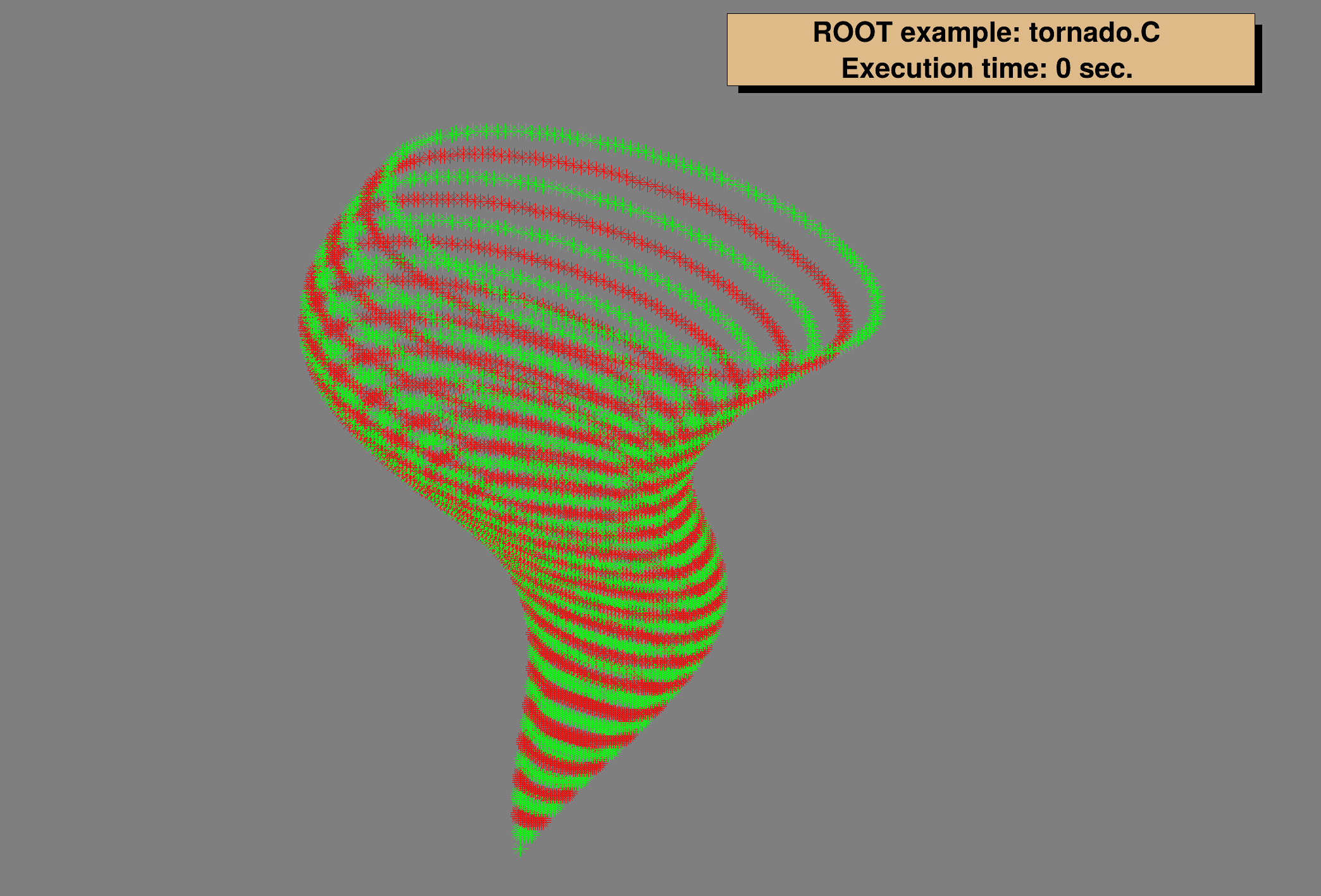

tornado : Real Time = 0.00 seconds Cpu Time = 0.00 seconds
na49 : Real Time = 0.00 seconds Cpu Time = 0.01 seconds
geometry : Real Time = 0.02 seconds Cpu Time = 0.03 seconds
na49view : Real Time = 0.00 seconds Cpu Time = 0.00 seconds
****************************************
Minimizer is Linear / Migrad
Chi2 = 16.5378
NDf = 68
p0 = 1.04821 +/- 0.226552
p1 = 0.0133784 +/- 0.0420448
p2 = 0.956034 +/- 0.0245116

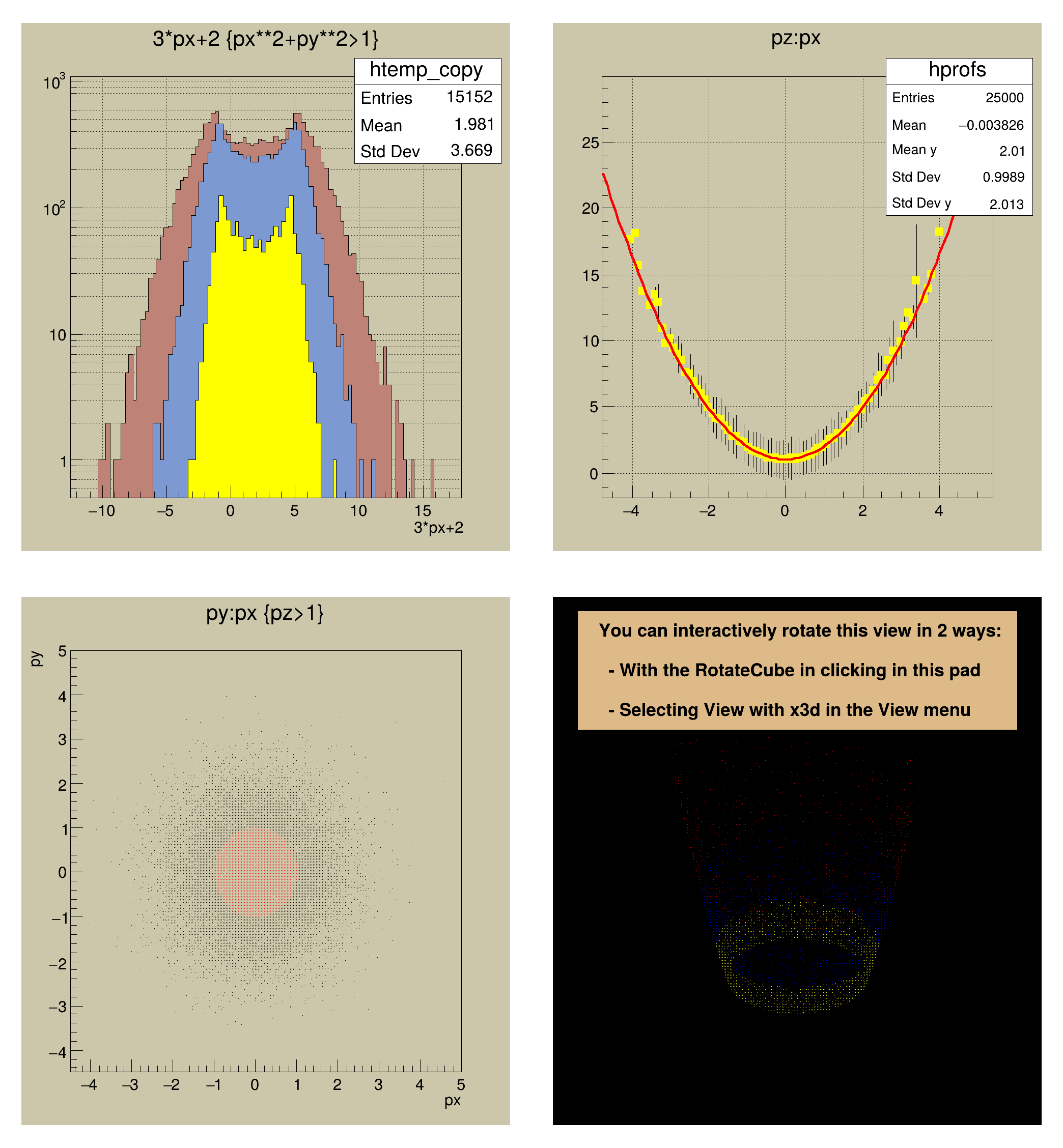

ntuple1 : Real Time = 0.13 seconds Cpu Time = 0.12 seconds
---------------ROOT 6.34.09 benchmarks summary--------------------
hsimple : Real Time = 0.05 seconds Cpu Time = 0.05 seconds
hsum : Real Time = 0.01 seconds Cpu Time = 0.02 seconds
fillrandom: Real Time = 0.08 seconds Cpu Time = 0.07 seconds
fit1 : Real Time = 0.07 seconds Cpu Time = 0.07 seconds
tornado : Real Time = 0.00 seconds Cpu Time = 0.00 seconds
na49 : Real Time = 0.00 seconds Cpu Time = 0.01 seconds
geometry : Real Time = 0.02 seconds Cpu Time = 0.03 seconds
na49view : Real Time = 0.00 seconds Cpu Time = 0.00 seconds
ntuple1 : Real Time = 0.13 seconds Cpu Time = 0.12 seconds
TOTAL : Real Time = 0.37 seconds Cpu Time = 0.37 seconds
---------------ROOT 6.34.09 benchmarks summary (in ROOTMARKS)-----
For comparison, a Pentium IV 2.4Ghz is benchmarked at 600 ROOTMARKS
hsimple = 3326.07 RealMARKS, = 3360.00 CpuMARKS
hsum = 6445.03 RealMARKS, = 4500.00 CpuMARKS
fillrandom = 157.92 RealMARKS, = 85.71 CpuMARKS
fit1 = 325.34 RealMARKS, = 257.14 CpuMARKS
tornado = 78741.62 RealMARKS, = inf CpuMARKS
na49 = 208602.16 RealMARKS, = 83400.00 CpuMARKS
geometry = 6590.73 RealMARKS, = 3600.00 CpuMARKS
na49view = 7341.26 RealMARKS, = inf CpuMARKS
ntuple1 = 1359.02 RealMARKS, = 1350.00 CpuMARKS
****************************************************
* Your machine is estimated at 5430.72 ROOTMARKS *
****************************************************
TCanvas* bench1 = 0;
void bexec(TString &dir,const char *macro)
{
if (gROOT->IsBatch()) printf("Processing benchmark: %s%s\n",dir.Data(),macro);
TPaveText *summary = (TPaveText*)bench1->GetPrimitive("TPave");
TText *tmacro = summary->GetLineWith(macro);
if (tmacro) tmacro->SetTextColor(4);
bench1->Modified(); bench1->Update();
gROOT->Macro(Form("%s%s",dir.Data(),macro));
TPaveText *summary2 = (TPaveText*)bench1->GetPrimitive("TPave");
TText *tmacro2 = summary2->GetLineWith(macro);
if (tmacro2) tmacro2->SetTextColor(2);
bench1->Modified(); bench1->Update(); gSystem->ProcessEvents();
}
void benchmarks() {
TString dir = gSystem->UnixPathName(__FILE__);
dir.ReplaceAll("benchmarks.C","");
dir.ReplaceAll("/./","/");
dir.ReplaceAll("legacy","");
bench1 = new TCanvas("bench1","Benchmarks Summary",-1000,50,200,500);

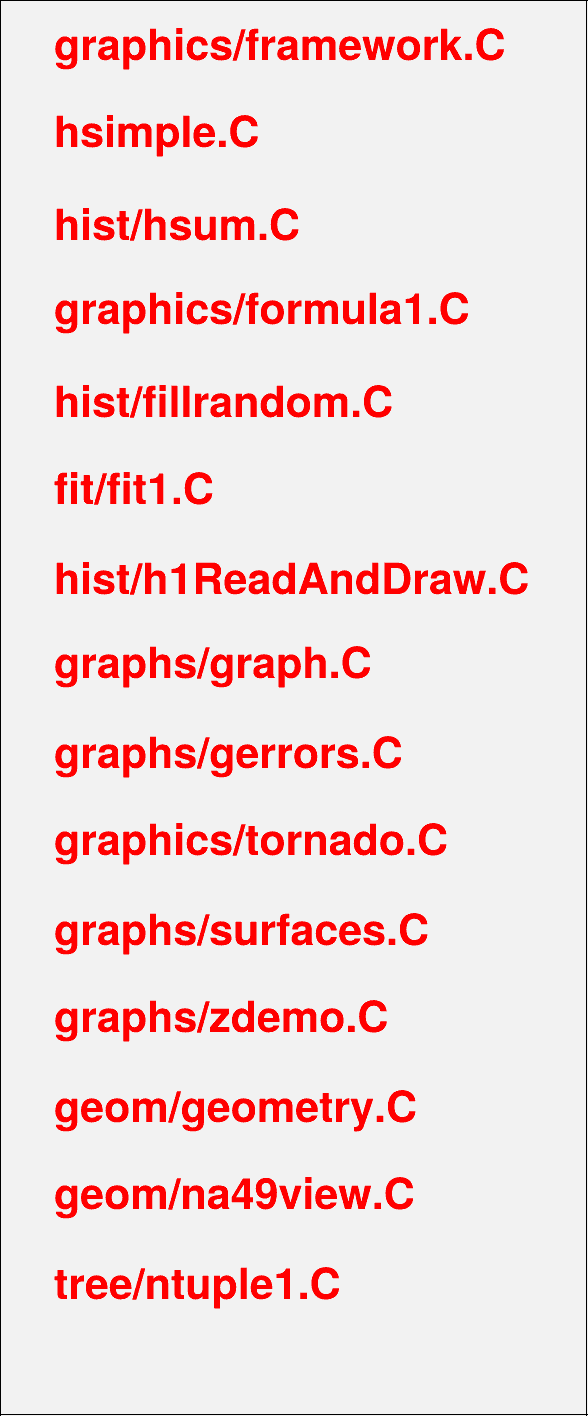

TPaveText *summary = new TPaveText(0,0,1,1);
summary->SetTextAlign(12);
summary->SetTextSize(0.08);
summary->Draw();
summary->AddText(" graphics/framework.C");
summary->AddText(" hsimple.C");
summary->AddText(" hist/hsum.C");
summary->AddText(" graphics/formula1.C");
summary->AddText(" hist/fillrandom.C");
summary->AddText(" fit/fit1.C");
summary->AddText(" hist/h1ReadAndDraw.C");
summary->AddText(" graphs/graph.C");
summary->AddText(" graphs/gerrors.C");
summary->AddText(" graphics/tornado.C");
summary->AddText(" graphs/surfaces.C");
summary->AddText(" graphs/zdemo.C");
summary->AddText(" geom/geometry.C");
summary->AddText(" geom/na49view.C");
summary->AddText(" tree/ntuple1.C");
summary->AddText(" ");
bexec(dir,"graphics/framework.C");
bexec(dir,"hsimple.C");
bexec(dir,"hist/hsum.C");
bexec(dir,"graphics/formula1.C");
bexec(dir,"hist/fillrandom.C");
bexec(dir,"fit/fit1.C");
bexec(dir,"hist/h1ReadAndDraw.C");
bexec(dir,"graphs/graph.C");
bexec(dir,"graphs/gerrors.C");
bexec(dir,"graphics/tornado.C");
bexec(dir,"graphs/surfaces.C");
bexec(dir,"graphs/zdemo.C");
bexec(dir,"geom/geometry.C");
bexec(dir,"geom/na49view.C");
bexec(dir,"tree/ntuple1.C");
bexec(dir,"legacy/rootmarks.C");
}
TRangeDynCast
ROOT::Detail::TRangeCast< T, true > TRangeDynCast
TRangeDynCast is an adapter class that allows the typed iteration through a TCollection.
Definition TCollection.h:358
gROOT
#define gROOT
Definition TROOT.h:406
Form
char * Form(const char *fmt,...)
Formats a string in a circular formatting buffer.
Definition TString.cxx:2489
gSystem
R__EXTERN TSystem * gSystem
Definition TSystem.h:572
TCanvas
The Canvas class.
Definition TCanvas.h:23
TPaveText
A Pave (see TPave) with text, lines or/and boxes inside.
Definition TPaveText.h:21
TString
Basic string class.
Definition TString.h:139
TString::Data
const char * Data() const
Definition TString.h:376
TString::ReplaceAll
TString & ReplaceAll(const TString &s1, const TString &s2)
Definition TString.h:704
TSystem::UnixPathName
virtual const char * UnixPathName(const char *unixpathname)
Convert from a local pathname to a Unix pathname.
Definition TSystem.cxx:1063
TSystem::ProcessEvents
virtual Bool_t ProcessEvents()
Process pending events (GUI, timers, sockets).
Definition TSystem.cxx:416
TText
Base class for several text objects.
Definition TText.h:22
Author
Rene Brun

Definition in file benchmarks.C.
