calorimeters.C File Reference

Detailed Description

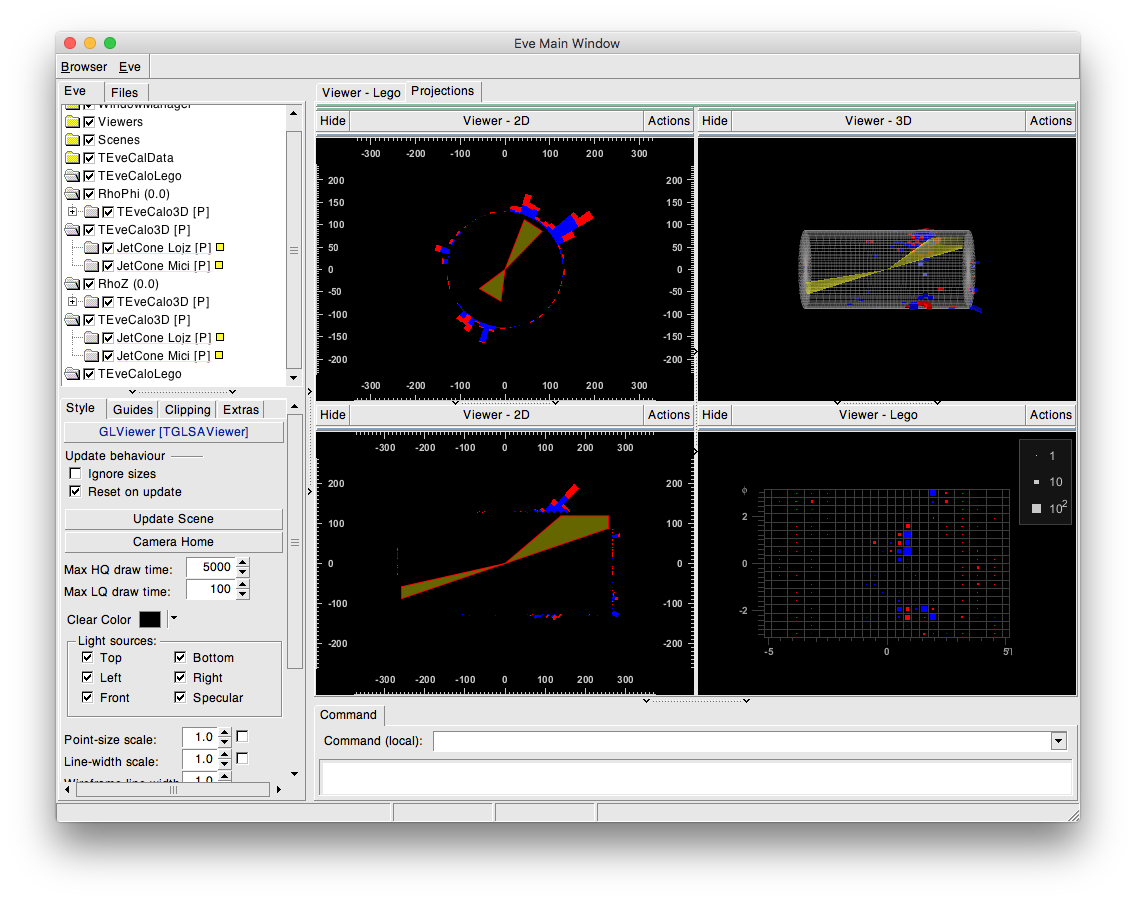

Demonstrates usage of EVE calorimetry classes.

#include "TSystem.h"
#include "TEveCalo.h"
#include "TEveWindow.h"
#include "TEveManager.h"
#include "TEveBrowser.h"
#include "TEveScene.h"
#include "TEveViewer.h"
#include "TEveTrans.h"
#include "TEveGedEditor.h"
#include "TEveJetCone.h"
#include "TGLWidget.h"
#include "TGLViewer.h"
#include "TGTab.h"
#include "TFile.h"
#include "TAxis.h"
const char* histFile =
"http://amraktad.web.cern.ch/amraktad/cms_calo_hist.root";
void MakeViewerScene(TEveWindowSlot* slot, TEveViewer*& v, TEveScene*& s);
{
// gSystem->IgnoreSignal(kSigSegmentationViolation, true);
// event data
auto hf = TFile::Open(histFile, "CACHEREAD");
auto ecalHist = (TH2F*)hf->Get("ecalLego");
auto hcalHist = (TH2F*)hf->Get("hcalLego");
auto data = new TEveCaloDataHist();
data->AddHistogram(ecalHist);
data->RefSliceInfo(0).Setup("ECAL", 0.3, kBlue);
data->AddHistogram(hcalHist);
data->RefSliceInfo(1).Setup("HCAL", 0.1, kRed);
data->GetEtaBins()->SetTitleFont(120);
data->GetEtaBins()->SetTitle("h");
data->GetPhiBins()->SetTitleFont(120);
data->GetPhiBins()->SetTitle("f");
data->IncDenyDestroy();
// first tab
auto lego = MakeCaloLego(data, nullptr);
//
// second tab
//
// frames
auto packH = slot->MakePack();
packH->SetElementName("Projections");
packH->SetHorizontal();
packH->SetShowTitleBar(kFALSE);
slot = packH->NewSlot();
auto pack0 = slot->MakePack();
pack0->SetShowTitleBar(kFALSE);
auto slotLeftTop = pack0->NewSlot();
auto slotLeftBottom = pack0->NewSlot();
slot = packH->NewSlot();
auto pack1 = slot->MakePack();
pack1->SetShowTitleBar(kFALSE);
auto slotRightTop = pack1->NewSlot();
auto slotRightBottom = pack1->NewSlot();
// viewers ans scenes in second tab
auto calo3d = MakeCalo3D(data, slotRightTop);
MakeCalo2D(calo3d, slotLeftTop, TEveProjection::kPT_RPhi);
MakeCalo2D(calo3d, slotLeftBottom, TEveProjection::kPT_RhoZ);
lego = MakeCaloLego(data, slotRightBottom);
}
//______________________________________________________________________________
{
// Eta-phi lego view.
if (slot) {
MakeViewerScene(slot, v, s);
} else {
}
v->SetElementName("Viewer - Lego");
s->SetElementName("Scene - Lego");
auto lego = new TEveCaloLego(data);
// By the default lego extends is (1x1x1). Resize it to put in 'natural'
// coordinates, so that y extend in 2*Pi and set height of lego two times
// smaller than y extend to have better view in 3D perspective.
lego->InitMainTrans();
lego->RefMainTrans().SetScale(TMath::TwoPi(), TMath::TwoPi(), TMath::Pi());
// draws scales and axis on borders of window
auto glv = v->GetGLViewer();
glv->AddOverlayElement(overlay);
overlay->SetCaloLego(lego);
// set event handler to move from perspective to orthographic view.
glv->SetCurrentCamera(TGLViewer::kCameraOrthoXOY);
glv->SetEventHandler
(new TEveLegoEventHandler(glv->GetGLWidget(), glv, lego));
return lego;
}
//______________________________________________________________________________
{
// 3D cartesian view.
MakeViewerScene(slot, v, s);
v->SetElementName("Viewer - 3D");
s->SetElementName("Scene - 3D");
auto calo3d = new TEveCalo3D(data);
calo3d->SetBarrelRadius(129.00);
calo3d->SetEndCapPos(268.36);
s->AddElement(calo3d);
add_jet(calo3d, "JetCone Lojz", 1.4, 1.0, 0.4, 0.2);
add_jet(calo3d, "JetCone Mici", -2.0, -2.1, 0.2, 0.4);
return calo3d;
}
//______________________________________________________________________________
TEveCalo2D* MakeCalo2D(TEveCalo3D* calo3d, TEveWindowSlot* slot,
{
// Projected calorimeter.
MakeViewerScene(slot, v, s);
v->SetElementName("Viewer - 2D");
s->SetElementName("Scene - 2D");
auto mng = new TEveProjectionManager();
mng->SetProjection(t);
auto axes = new TEveProjectionAxes(mng);
s->AddElement(axes);
TEveCalo2D* calo2d = (TEveCalo2D*) mng->ImportElements(calo3d);
s->AddElement(calo2d);
v->GetGLViewer()->SetCurrentCamera(TGLViewer::kCameraOrthoXOY);
return calo2d;
}
//______________________________________________________________________________
void MakeViewerScene(TEveWindowSlot* slot, TEveViewer*& v, TEveScene*& s)
{
// Create a scene and a viewer in the given slot.
v = new TEveViewer("Viewer");
v->SpawnGLViewer(gEve->GetEditor());
slot->ReplaceWindow(v);
s = gEve->SpawnNewScene("Scene");
v->AddScene(s);
}
//______________________________________________________________________________
void add_jet(TEveElement* parent, const char* name,
Float_t eta, Float_t phi,
Float_t deta, Float_t dphi)
{
auto jet = new TEveJetCone(name, name);
jet->SetMainTransparency(60);
jet->SetLineColor(kRed);
jet->SetCylinder(129 - 10, 268.36 - 10);
jet->AddEllipticCone(eta, phi, deta, dphi);
jet->SetPickable(kTRUE);
jet->SetHighlightFrame(kFALSE);
parent->AddElement(jet);
}
