StandardFrequentistDiscovery.C File Reference

Detailed Description

View in nbviewer Open in SWAN
StandardFrequentistDiscovery

This is a standard demo that can be used with any ROOT file prepared in the standard way. You specify:

  • name for input ROOT file
  • name of workspace inside ROOT file that holds model and data
  • name of ModelConfig that specifies details for calculator tools
  • name of dataset

With default parameters the macro will attempt to run the standard hist2workspace example and read the ROOT file that it produces.

=== Using the following for ModelConfigNull ===
Observables: RooArgSet:: = (obs_x_channel1)
Parameters of Interest: RooArgSet:: = (SigXsecOverSM)
Nuisance Parameters: RooArgSet:: = (alpha_syst3,beta_syst2,gamma_stat_channel1_bin_0,gamma_stat_channel1_bin_1)
Global Observables: RooArgSet:: = (nominalLumi,nom_alpha_syst1,nom_beta_syst2,nom_alpha_syst3,nom_gamma_stat_channel1_bin_0,nom_gamma_stat_channel1_bin_1)
PDF: RooProdPdf::model_channel1[ lumiConstraint * alpha_syst1Constraint * beta_syst2Constraint * alpha_syst3Constraint * gamma_stat_channel1_bin_0_constraint * gamma_stat_channel1_bin_1_constraint * channel1_model(obs_x_channel1) ] = 0.208662
Snapshot:
1) 0x5586bd27db40 RooRealVar:: SigXsecOverSM = 0 L(0 - 3) "SigXsecOverSM"
=== Using the following for ModelConfig ===
Observables: RooArgSet:: = (obs_x_channel1)
Parameters of Interest: RooArgSet:: = (SigXsecOverSM)
Nuisance Parameters: RooArgSet:: = (alpha_syst3,beta_syst2,gamma_stat_channel1_bin_0,gamma_stat_channel1_bin_1)
Global Observables: RooArgSet:: = (nominalLumi,nom_alpha_syst1,nom_beta_syst2,nom_alpha_syst3,nom_gamma_stat_channel1_bin_0,nom_gamma_stat_channel1_bin_1)
PDF: RooProdPdf::model_channel1[ lumiConstraint * alpha_syst1Constraint * beta_syst2Constraint * alpha_syst3Constraint * gamma_stat_channel1_bin_0_constraint * gamma_stat_channel1_bin_1_constraint * channel1_model(obs_x_channel1) ] = 0.208662
Snapshot:
1) 0x5586bd27d6e0 RooRealVar:: SigXsecOverSM = 1 L(0 - 3) "SigXsecOverSM"
[#0] PROGRESS:Generation -- Test Statistic on data: 2.00306
[#1] INFO:InputArguments -- Profiling conditional MLEs for Null.
[#1] INFO:InputArguments -- Using a ToyMCSampler. Now configuring for Null.
[#0] PROGRESS:Generation -- generated toys: 500 / 1000
[#1] INFO:InputArguments -- Profiling conditional MLEs for Alt.
[#1] INFO:InputArguments -- Using a ToyMCSampler. Now configuring for Alt.
[#0] PROGRESS:Generation -- generated toys: 500 / 1000
Results HypoTestCalculator_result:
- Null p-value = 0.514 +/- 0.0158052
- Significance = -0.0351 +/- 0.0396421 sigma
- Number of Alt toys: 1000
- Number of Null toys: 1000
- Test statistic evaluated on data: 2.00306
- CL_b: 0.514 +/- 0.0158052
- CL_s+b: 0.746 +/- 0.0137653
- CL_s: 1.45136 +/- 0.0520472
total CPU time: 10.92
total real time: 10.9172
(double) 0.51400000
#include "TFile.h"
#include "TROOT.h"
#include "TH1F.h"
#include "TF1.h"
#include "TCanvas.h"
#include "TStopwatch.h"
#include "RooWorkspace.h"
#include "RooAbsData.h"
#include "RooRandom.h"
#include "RooRealSumPdf.h"
#include "TSystem.h"
#include <vector>
using namespace RooFit;
using namespace RooStats;
double StandardFrequentistDiscovery(const char *infile = "", const char *workspaceName = "channel1",
const char *modelConfigNameSB = "ModelConfig", const char *dataName = "obsData",
int toys = 1000, double poiValueForBackground = 0.0, double poiValueForSignal = 1.0)
{
// The workspace contains the model for s+b. The b model is "autogenerated"
// by copying s+b and setting the one parameter of interest to zero.
// To keep the script simple, multiple parameters of interest or different
// functional forms of the b model are not supported.
// for now, assume there is only one parameter of interest, and these are
// its values:
// -------------------------------------------------------
// First part is just to access a user-defined file
// or create the standard example file if it doesn't exist
const char *filename = "";
if (!strcmp(infile, "")) {
filename = "results/example_channel1_GammaExample_model.root";
bool fileExist = !gSystem->AccessPathName(filename); // note opposite return code
// if file does not exists generate with histfactory
if (!fileExist) {
// Normally this would be run on the command line
cout << "will run standard hist2workspace example" << endl;
gROOT->ProcessLine(".! prepareHistFactory .");
gROOT->ProcessLine(".! hist2workspace config/example.xml");
cout << "\n\n---------------------" << endl;
cout << "Done creating example input" << endl;
cout << "---------------------\n\n" << endl;
}
} else
filename = infile;
// Try to open the file
// if input file was specified byt not found, quit
if (!file) {
cout << "StandardRooStatsDemoMacro: Input file " << filename << " is not found" << endl;
return -1;
}
// -------------------------------------------------------
// Tutorial starts here
// -------------------------------------------------------
TStopwatch *mn_t = new TStopwatch;
mn_t->Start();
// get the workspace out of the file
RooWorkspace *w = (RooWorkspace *)file->Get(workspaceName);
if (!w) {
cout << "workspace not found" << endl;
return -1.0;
}
// get the modelConfig out of the file
ModelConfig *mc = (ModelConfig *)w->obj(modelConfigNameSB);
// get the data out of the file
RooAbsData *data = w->data(dataName);
// make sure ingredients are found
if (!data || !mc) {
w->Print();
cout << "data or ModelConfig was not found" << endl;
return -1.0;
}
firstPOI->setVal(poiValueForSignal);
// create null model
ModelConfig *mcNull = mc->Clone("ModelConfigNull");
firstPOI->setVal(poiValueForBackground);
// ----------------------------------------------------
// Configure a ProfileLikelihoodTestStat and a SimpleLikelihoodRatioTestStat
// to use simultaneously with ToyMCSampler
plts->SetOneSidedDiscovery(true);
plts->SetVarName("q_{0}/2");
// ----------------------------------------------------
// configure the ToyMCImportanceSampler with two test statistics
ToyMCSampler toymcs(*plts, 50);
// Since this tool needs to throw toy MC the PDF needs to be
// extended or the tool needs to know how many entries in a dataset
// per pseudo experiment.
// In the 'number counting form' where the entries in the dataset
// are counts, and not values of discriminating variables, the
// datasets typically only have one entry and the PDF is not
// extended.
if (!mc->GetPdf()->canBeExtended()) {
if (data->numEntries() == 1) {
toymcs.SetNEventsPerToy(1);
} else
cout << "Not sure what to do about this model" << endl;
}
// We can use PROOF to speed things along in parallel
// ProofConfig pc(*w, 2, "user@yourfavoriteproofcluster", false);
ProofConfig pc(*w, 2, "", false);
// toymcs.SetProofConfig(&pc); // enable proof
// instantiate the calculator
FrequentistCalculator freqCalc(*data, *mc, *mcNull, &toymcs);
freqCalc.SetToys(toys, toys); // null toys, alt toys
// Run the calculator and print result
HypoTestResult *freqCalcResult = freqCalc.GetHypoTest();
freqCalcResult->GetNullDistribution()->SetTitle("b only");
freqCalcResult->GetAltDistribution()->SetTitle("s+b");
freqCalcResult->Print();
double pvalue = freqCalcResult->NullPValue();
// stop timing
mn_t->Stop();
cout << "total CPU time: " << mn_t->CpuTime() << endl;
cout << "total real time: " << mn_t->RealTime() << endl;

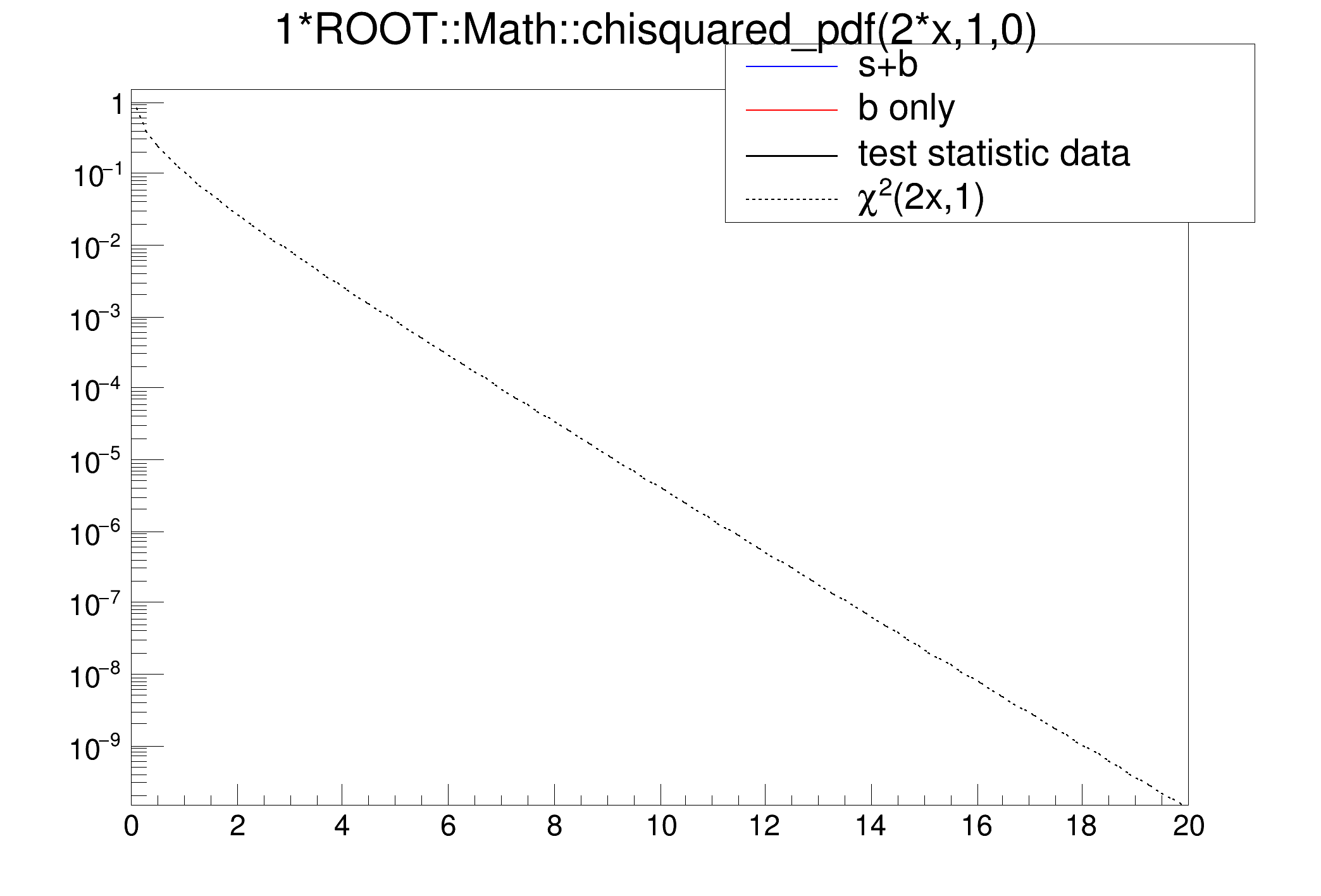

// plot
TCanvas *c1 = new TCanvas();
HypoTestPlot *plot = new HypoTestPlot(*freqCalcResult, 100, -0.49, 9.51);
plot->SetLogYaxis(true);
// add chi2 to plot
int nPOI = 1;
TF1 *f = new TF1("f", TString::Format("1*ROOT::Math::chisquared_pdf(2*x,%d,0)", nPOI), 0, 20);
f->SetLineColor(kBlack);
f->SetLineStyle(7);
plot->AddTF1(f, TString::Format("#chi^{2}(2x,%d)", nPOI));
plot->Draw();
c1->SaveAs("standard_discovery_output.pdf");
return pvalue;
}
#define f(i)
Definition RSha256.hxx:104
@ kBlack
Definition Rtypes.h:65
winID h TVirtualViewer3D TVirtualGLPainter char TVirtualGLPainter plot
Option_t Option_t TPoint TPoint const char GetTextMagnitude GetFillStyle GetLineColor GetLineWidth GetMarkerStyle GetTextAlign GetTextColor GetTextSize void data
Option_t Option_t TPoint TPoint const char GetTextMagnitude GetFillStyle GetLineColor GetLineWidth GetMarkerStyle GetTextAlign GetTextColor GetTextSize void char Point_t Rectangle_t WindowAttributes_t Float_t Float_t Float_t Int_t Int_t UInt_t UInt_t Rectangle_t Int_t Int_t Window_t TString Int_t GCValues_t GetPrimarySelectionOwner GetDisplay GetScreen GetColormap GetNativeEvent const char const char dpyName wid window const char font_name cursor keysym reg const char only_if_exist regb h Point_t winding char text const char depth char const char Int_t count const char ColorStruct_t color const char filename
#define gROOT
Definition TROOT.h:407
R__EXTERN TSystem * gSystem
Definition TSystem.h:560
RooAbsArg * first() const
Abstract base class for binned and unbinned datasets.
Definition RooAbsData.h:57
bool canBeExtended() const
If true, PDF can provide extended likelihood term.
Definition RooAbsPdf.h:218
RooArgSet is a container object that can hold multiple RooAbsArg objects.
Definition RooArgSet.h:55
RooArgSet * snapshot(bool deepCopy=true) const
Use RooAbsCollection::snapshot(), but return as RooArgSet.
Definition RooArgSet.h:178
RooRealVar represents a variable that can be changed from the outside.
Definition RooRealVar.h:37
void setVal(double value) override
Set value of variable to 'value'.
Does a frequentist hypothesis test.
This class provides the plots for the result of a study performed with any of the HypoTestCalculatorG...
HypoTestResult is a base class for results from hypothesis tests.
void Print(const Option_t *="") const override
Print out some information about the results Note: use Alt/Null labels for the hypotheses here as the...
virtual double NullPValue() const
Return p-value for null hypothesis.
SamplingDistribution * GetNullDistribution(void) const
SamplingDistribution * GetAltDistribution(void) const
ModelConfig is a simple class that holds configuration information specifying how a model should be u...
Definition ModelConfig.h:35
virtual void SetSnapshot(const RooArgSet &set)
Set parameter values for a particular hypothesis if using a common PDF by saving a snapshot in the wo...
ModelConfig * Clone(const char *name="") const override
clone
Definition ModelConfig.h:57
const RooArgSet * GetParametersOfInterest() const
get RooArgSet containing the parameter of interest (return nullptr if not existing)
RooAbsPdf * GetPdf() const
get model PDF (return nullptr if pdf has not been specified or does not exist)
ProfileLikelihoodTestStat is an implementation of the TestStatistic interface that calculates the pro...
virtual void SetVarName(const char *name)
Holds configuration options for proof and proof-lite.
Definition ProofConfig.h:46
ToyMCSampler is an implementation of the TestStatSampler interface.
Persistable container for RooFit projects.
The Canvas class.
Definition TCanvas.h:23
1-Dim function class
Definition TF1.h:214
A ROOT file is composed of a header, followed by consecutive data records (TKey instances) with a wel...
Definition TFile.h:53
static TFile * Open(const char *name, Option_t *option="", const char *ftitle="", Int_t compress=ROOT::RCompressionSetting::EDefaults::kUseCompiledDefault, Int_t netopt=0)
Create / open a file.
Definition TFile.cxx:4075
virtual void SetTitle(const char *title="")
Set the title of the TNamed.
Definition TNamed.cxx:164
virtual void Draw(Option_t *option="")
Default Draw method for all objects.
Definition TObject.cxx:274
Stopwatch class.
Definition TStopwatch.h:28
Double_t RealTime()
Stop the stopwatch (if it is running) and return the realtime (in seconds) passed between the start a...
void Start(Bool_t reset=kTRUE)
Start the stopwatch.
Double_t CpuTime()
Stop the stopwatch (if it is running) and return the cputime (in seconds) passed between the start an...
void Stop()
Stop the stopwatch.
static TString Format(const char *fmt,...)
Static method which formats a string using a printf style format descriptor and return a TString.
Definition TString.cxx:2356
virtual Bool_t AccessPathName(const char *path, EAccessMode mode=kFileExists)
Returns FALSE if one can access a file using the specified access mode.
Definition TSystem.cxx:1283
return c1
Definition legend1.C:41
The namespace RooFit contains mostly switches that change the behaviour of functions of PDFs (or othe...
Definition JSONIO.h:26
Namespace for the RooStats classes.
Definition Asimov.h:19
Definition file.py:1
Authors
Sven Kreiss, Kyle Cranmer

Definition in file StandardFrequentistDiscovery.C.
