Background_compton.C File Reference

Detailed Description

View in nbviewer Open in SWAN
Example to illustrate the background estimator (class TSpectrum) including Compton edges.

void Background_compton() {
Int_t i;
const Int_t nbins = 256;
Double_t xmax = nbins;
Double_t source[nbins];
gROOT->ForceStyle();
TH1F *d1 = new TH1F("d1","",nbins,xmin,xmax);
TString dir = gROOT->GetTutorialDir();
TString file = dir+"/spectrum/TSpectrum.root";
TFile *f = new TFile(file.Data());
TH1F *back = (TH1F*) f->Get("back3");

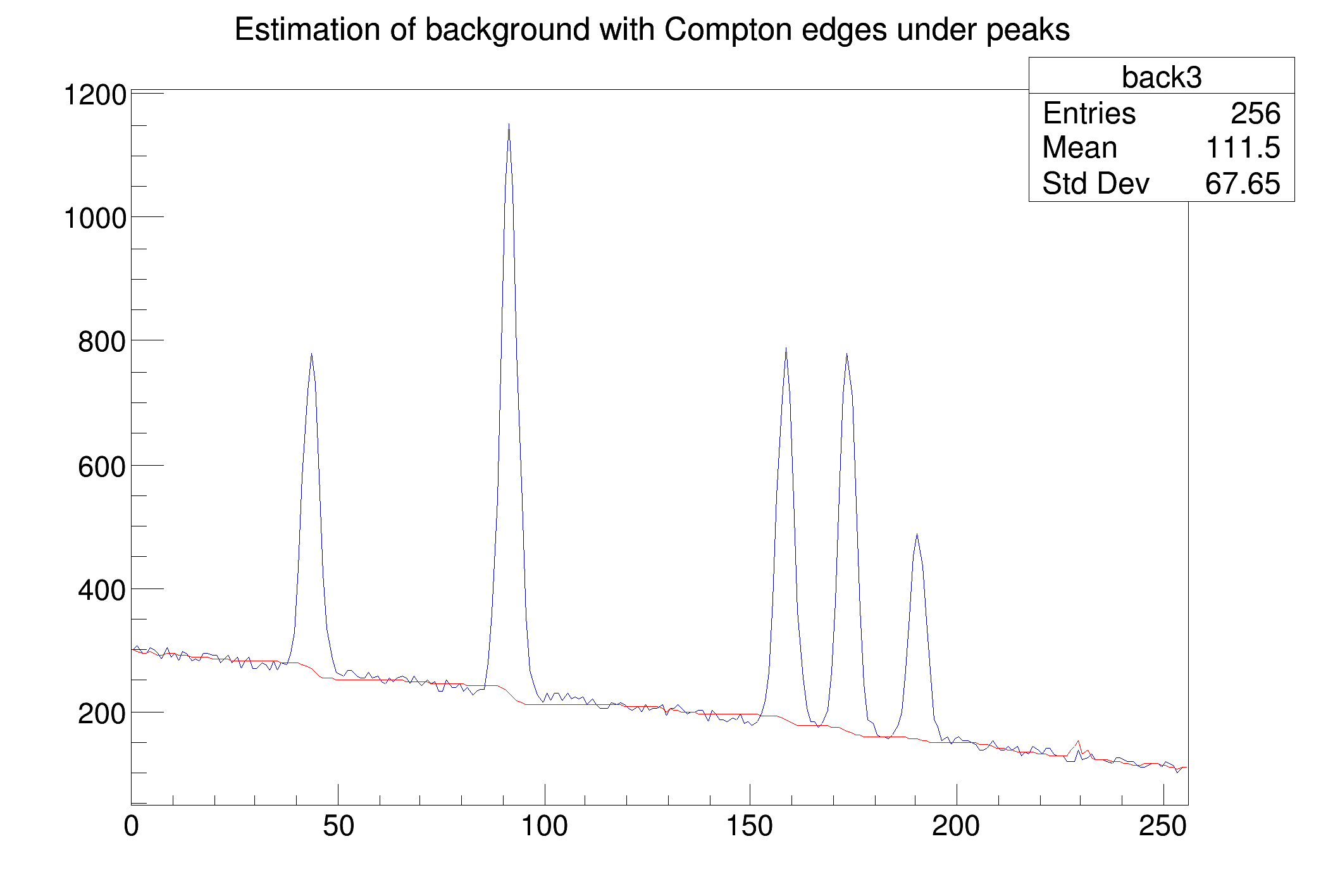

back->SetTitle("Estimation of background with Compton edges under peaks");
back->GetXaxis()->SetRange(1,nbins);
back->Draw("L");
TSpectrum *s = new TSpectrum();
for (i = 0; i < nbins; i++) source[i]=back->GetBinContent(i + 1);
for (i = 0; i < nbins; i++) d1->SetBinContent(i + 1,source[i]);
d1->Draw("SAME L");
}
#define f(i)
Definition RSha256.hxx:104
int Int_t
Definition RtypesCore.h:45
double Double_t
Definition RtypesCore.h:59
constexpr Bool_t kTRUE
Definition RtypesCore.h:100
@ kRed
Definition Rtypes.h:66
float xmin
float xmax
#define gROOT
Definition TROOT.h:407
virtual void SetLineColor(Color_t lcolor)
Set the line color.
Definition TAttLine.h:40
virtual void SetRange(Int_t first=0, Int_t last=0)
Set the viewing range for the axis using bin numbers.
Definition TAxis.cxx:1052
A ROOT file is composed of a header, followed by consecutive data records (TKey instances) with a wel...
Definition TFile.h:53
1-D histogram with a float per channel (see TH1 documentation)}
Definition TH1.h:577
void SetTitle(const char *title) override
Change/set the title.
Definition TH1.cxx:6707
TAxis * GetXaxis()
Definition TH1.h:322
void Draw(Option_t *option="") override
Draw this histogram with options.
Definition TH1.cxx:3067
virtual void SetBinContent(Int_t bin, Double_t content)
Set bin content see convention for numbering bins in TH1::GetBin In case the bin number is greater th...
Definition TH1.cxx:9139
virtual Double_t GetBinContent(Int_t bin) const
Return content of bin number bin.
Definition TH1.cxx:5032
Advanced Spectra Processing.
Definition TSpectrum.h:18
virtual TH1 * Background(const TH1 *hist, Int_t niter=20, Option_t *option="")
One-dimensional background estimation function.
@ kBackOrder8
Definition TSpectrum.h:40
@ kBackDecreasingWindow
Definition TSpectrum.h:42
@ kBackSmoothing5
Definition TSpectrum.h:44
Basic string class.
Definition TString.h:139
Definition file.py:1
Authors
Miroslav Morhac, Olivier Couet

Definition in file Background_compton.C.
