import ROOT


x = ROOT.RooRealVar("x", "Observable", 0, 50)


lambda1 = ROOT.RooRealVar("lambda1", "slope1", -0.025, -0.1, -0.02)

expo1 = ROOT.RooExponential("expo1", "Exponential 1", x, lambda1)


c0 = ROOT.RooRealVar("c0", "Cheby coeff 0", -1.0, -1.0, 1.0)

c1 = ROOT.RooRealVar("c1", "Cheby coeff 1", 0.4, 0.05, 0.5)

chebCoeffs = ROOT.RooArgList(c0, c1)

cheb = ROOT.RooChebychev("cheb", "Chebyshev PDF", x, chebCoeffs)


pdfIndex0 = ROOT.RooCategory("pdfIndex0", "pdf index 0")

multiPdf0 = ROOT.RooMultiPdf("multiPdf0", "multiPdf0", pdfIndex0, ROOT.RooArgList(expo1, cheb))


lambdaExtra = ROOT.RooRealVar("lambdaExtra", "extra slope", -0.05, -1.0, -0.01)

expoExtra = ROOT.RooExponential("expoExtra", "extra exponential", x, lambdaExtra)


mean = ROOT.RooRealVar("mean", "shared mean", 25, 0, 50)

sigmaG = ROOT.RooRealVar("sigmaG", "Gaussian width", 2.0, 0.0, 5.0)

sigmaL = ROOT.RooRealVar("sigmaL", "Landau width", 3.0, 1.0, 8.0)


gauss1 = ROOT.RooGaussian("gauss1", "Gaussian", x, mean, sigmaG)

landau1 = ROOT.RooLandau("landau1", "Landau", x, mean, sigmaL)


pdfIndex1 = ROOT.RooCategory("pdfIndex1", "pdf index 1")

multiPdf1 = ROOT.RooMultiPdf("multiPdf1", "multiPdf1", pdfIndex1, ROOT.RooArgList(gauss1, landau1))


sigmaExtra = ROOT.RooRealVar("sigmaExtra", "extra Gaussian width", 3.0, 1.0, 6.0)

gaussExtra = ROOT.RooGaussian("gaussExtra", "extra Gaussian", x, mean, sigmaExtra)


frac0 = ROOT.RooRealVar("frac0", "fraction for cat0", 0.7, 0.0, 1.0)

addPdf0 = ROOT.RooAddPdf("addPdf0", "multiPdf0 + extra expo", ROOT.RooArgList(multiPdf0, gaussExtra), frac0)


frac1 = ROOT.RooRealVar("frac1", "fraction for cat1", 0.5, 0.0, 1.0)

addPdf1 = ROOT.RooAddPdf("addPdf1", "multiPdf1 + extra gauss", ROOT.RooArgList(multiPdf1, expoExtra), frac1)

catIndex = ROOT.RooCategory("catIndex", "Category")

catIndex.defineType("cat0", 0)

catIndex.defineType("cat1", 1)


simPdf = ROOT.RooSimultaneous("simPdf", "simultaneous model", catIndex)

simPdf.addPdf(addPdf0, "cat0")

simPdf.addPdf(addPdf1, "cat1")


data0 = addPdf0.generate(ROOT.RooArgSet(x), 800)

data1 = addPdf1.generate(ROOT.RooArgSet(x), 1000)


frame0 = x.frame()

data0.plotOn(frame0)

addPdf0.plotOn(frame0)

pdfIndex0.setIndex(1)

addPdf0.plotOn(frame0, ROOT.RooFit.LineColor(ROOT.kRed))


frame0.SetTitle("")

frame0.GetXaxis().SetTitle("Observable")

frame0.GetYaxis().SetTitle("Events")


leg0 = ROOT.TLegend(0.6, 0.7, 0.9, 0.9)

leg0.AddEntry(frame0.getObject(0), "Data", "lep")

leg0.AddEntry(frame0.getObject(1), "Expo", "l")

leg0.AddEntry(frame0.getObject(2), "Poly", "l")


frame1 = x.frame()

data1.plotOn(frame1)

addPdf1.plotOn(frame1)

pdfIndex1.setIndex(1)

addPdf1.plotOn(frame1, ROOT.RooFit.LineColor(ROOT.kRed))


frame1.SetTitle("")

frame1.GetXaxis().SetTitle("Observable")

frame1.GetYaxis().SetTitle("Events")


leg1 = ROOT.TLegend(0.6, 0.7, 0.9, 0.9)

leg1.AddEntry(frame1.getObject(0), "Data", "lep")

leg1.AddEntry(frame1.getObject(1), "Gauss", "l")

leg1.AddEntry(frame1.getObject(2), "Landau", "l")


combined_data = ROOT.RooDataSet("data", "combined", ROOT.RooArgSet(x, catIndex))


combined_vars = ROOT.RooArgSet(x, catIndex)


for i in range(data0.numEntries()):

    x.setVal(data0.get(i).getRealValue("x"))

    catIndex.setLabel("cat0")

    combined_data.add(combined_vars)


for i in range(data1.numEntries()):

    x.setVal(data1.get(i).getRealValue("x"))

    catIndex.setLabel("cat1")

    combined_data.add(combined_vars)


nll = simPdf.createNLL(combined_data)

minim = ROOT.RooMinimizer(nll)

minim.setStrategy(1)

minim.setEps(1e-7)

minim.setPrintLevel(-1)


nMeanPoints = 40

meanMin = 17

meanMax = 33


combosToPlot = [[i, j] for i in range(pdfIndex0.numTypes()) for j in range(pdfIndex1.numTypes())]


colors = [ROOT.kRed, ROOT.kBlue, ROOT.kGreen + 2, ROOT.kMagenta, ROOT.kOrange + 7]

markers = [20, 21, 22, 23, 33]


graphs = []

for idx in range(len(combosToPlot)):

    g = ROOT.TGraph(nMeanPoints)

    g.SetLineColor(colors[idx % 5])

    g.SetMarkerColor(colors[idx % 5])

    g.SetMarkerStyle(markers[idx % 5])

    g.SetTitle(f"Combo [{combosToPlot[idx][0]},{combosToPlot[idx][1]}]")

    graphs.append(g)


profileGraph = ROOT.TGraph(nMeanPoints)

profileGraph.SetLineColor(ROOT.kBlack)

profileGraph.SetLineWidth(4)

profileGraph.SetMarkerColor(ROOT.kBlack)

profileGraph.SetMarkerStyle(22)

profileGraph.SetTitle("Profile")

graphs.append(profileGraph)


for i in range(nMeanPoints):

    meanVal = meanMin + i * (meanMax - meanMin) / (nMeanPoints - 1)

    mean.setVal(meanVal)


    for comboIdx, combo in enumerate(combosToPlot):

        pdfIndex0.setIndex(combo[0])

        pdfIndex1.setIndex(combo[1])

        pdfIndex0.setConstant(True)

        pdfIndex1.setConstant(True)

        mean.setConstant(True)

        minim.minimize("Minuit2", "Migrad")

        graphs[comboIdx].SetPoint(i, meanVal, nll.getVal())

        pdfIndex0.setConstant(False)

        pdfIndex1.setConstant(False)

        mean.setConstant(False)


    mean.setConstant(True)

    minim.minimize("Minuit2", "Migrad")

    profileGraph.SetPoint(i, meanVal, nll.getVal())

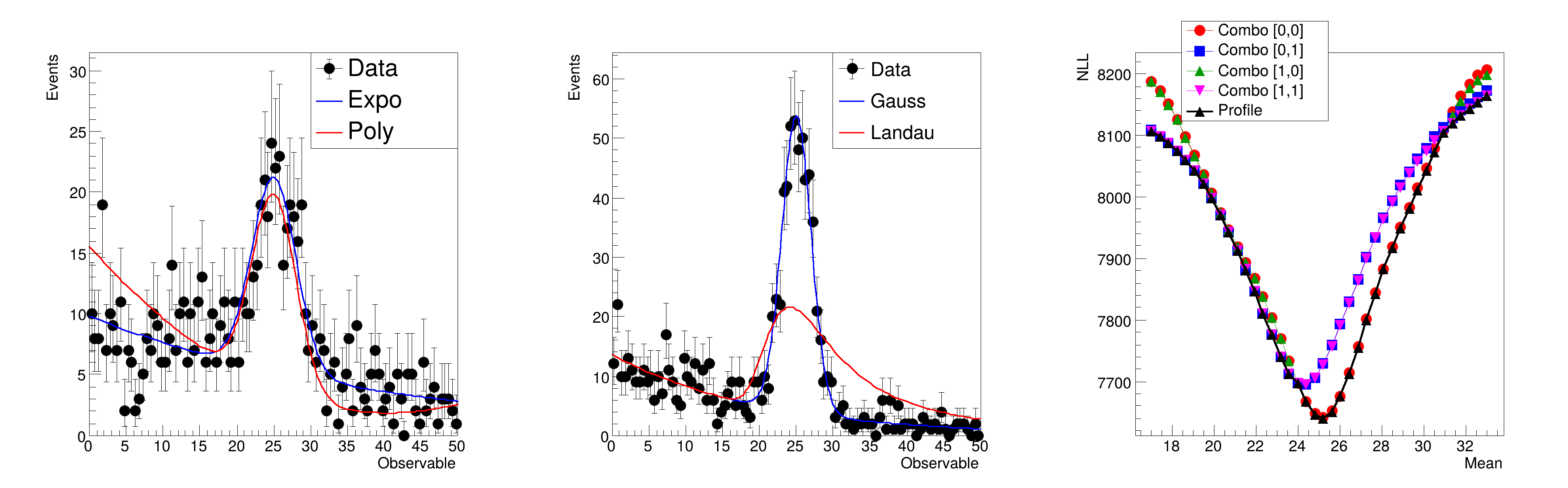

c = ROOT.TCanvas("c_rf619", "NLL vs Mean for Different Discrete Combinations", 1200, 400)

c.Divide(3, 1)


c.cd(1)

ROOT.gPad.SetLeftMargin(0.15)

frame0.GetYaxis().SetTitleOffset(1.4)

frame0.Draw()

leg0.Draw()


c.cd(2)

ROOT.gPad.SetLeftMargin(0.15)

frame1.GetYaxis().SetTitleOffset(1.4)

frame1.Draw()

leg1.Draw()


c.cd(3)

ROOT.gPad.SetLeftMargin(0.15)

mg = ROOT.TMultiGraph()

for g in graphs:

    mg.Add(g, "PL")

mg.Draw("APL")

mg.GetXaxis().SetTitle("Mean")

mg.GetYaxis().SetTitle("NLL")

ROOT.gPad.BuildLegend()
