doc/master/rf619__discrete__profiling_8C.html

using namespace RooFit;


void rf619_discrete_profiling()

{

   RooRealVar x("x", "Observable", 0, 50);


   //  Category 0 Pdf-s: Exponential + Chebyshev.

   RooRealVar lambda1("lambda1", "slope1", -0.025, -0.1, -0.02);

   RooExponential expo1("expo1", "Exponential 1", x, lambda1);


   RooRealVar c0("c0", "Cheby coeff 0", -1.0, -1.0, 1.0);

   RooRealVar c1("c1", "Cheby coeff 1", 0.4, 0.05, 0.5);

   RooArgList chebCoeffs(c0, c1);

   RooChebychev cheb("cheb", "Chebyshev PDF", x, chebCoeffs);


   RooCategory pdfIndex0("pdfIndex0", "pdf index 0");

   RooMultiPdf multiPdf0("multiPdf0", "multiPdf0", pdfIndex0, RooArgList(expo1, cheb));


   // Adding complexity to the model via introdcing exponential pdf.

   RooRealVar lambdaExtra("lambdaExtra", "extra slope", -0.05, -1.0, -0.01);

   RooExponential expoExtra("expoExtra", "extra exponential", x, lambdaExtra);


   // Category 1 Pdf-s: Gaussian + Landau.

   RooRealVar mean("mean", "shared mean", 25, 0, 50);

   RooRealVar sigmaG("sigmaG", "Gaussian width", 2.0, 0.0, 5.0);

   RooRealVar sigmaL("sigmaL", "Landau width", 3.0, 1.0, 8.0);


   RooGaussian gauss1("gauss1", "Gaussian", x, mean, sigmaG);

   RooLandau landau1("landau1", "Landau", x, mean, sigmaL);


   RooCategory pdfIndex1("pdfIndex1", "pdf index 1");

   RooMultiPdf multiPdf1("multiPdf1", "multiPdf1", pdfIndex1, RooArgList(gauss1, landau1));


   // Adding complexity to the model via introdcing gaussExtra pdf. Profile scan in this model

   //   will also be done over a shared parameter from both models (mean).

   RooRealVar sigmaExtra("sigmaExtra", "extra Gaussian width", 3.0, 1.0, 6.0);

   RooGaussian gaussExtra("gaussExtra", "extra Gaussian", x, mean, sigmaExtra);


   // Creation of AddPdf objects.Add multiple PDFs into a single model for each category.

   RooRealVar frac0("frac0", "fraction for cat0", 0.7, 0.0, 1.0);

   RooAddPdf addPdf0("addPdf0", "multiPdf0 + extra expo", RooArgList(multiPdf0, gaussExtra), frac0);


   RooRealVar frac1("frac1", "fraction for cat1", 0.5, 0.0, 1.0);

   RooAddPdf addPdf1("addPdf1", "multiPdf1 + extra gauss", RooArgList(multiPdf1, expoExtra), frac1);


   // Simultaneous Pdf across categories.

   RooCategory catIndex("catIndex", "Category");

   catIndex.defineType("cat0", 0);

   catIndex.defineType("cat1", 1);


   RooSimultaneous simPdf("simPdf", "simultaneous model", catIndex);

   simPdf.addPdf(addPdf0, "cat0");

   simPdf.addPdf(addPdf1, "cat1");


   //  Generate toy data for each AddPdf.

   RooDataSet *data0 = addPdf0.generate(x, 800);

   RooDataSet *data1 = addPdf1.generate(x, 1000);


   // Ploting individual Pdf-s


   RooPlot *frame0 = x.frame();

   data0->plotOn(frame0);

   addPdf0.plotOn(frame0);

   pdfIndex0.setIndex(1);

   addPdf0.plotOn(frame0, LineColor(kRed));

   frame0->SetTitle("");

   frame0->GetXaxis()->SetTitle("Observable");

   frame0->GetYaxis()->SetTitle("Events");


   TLegend *leg0 = new TLegend(0.6, 0.7, 0.9, 0.9);

   leg0->AddEntry(frame0->getObject(0), "Data", "lep"); // Data points

   leg0->AddEntry(frame0->getObject(1), "Expo ", "l");

   leg0->AddEntry(frame0->getObject(2), "Poly", "l");


   // Ploting individual Pdf-s - Category 1


   RooPlot *frame1 = x.frame();

   data1->plotOn(frame1);

   addPdf1.plotOn(frame1);

   pdfIndex1.setIndex(1);

   addPdf1.plotOn(frame1, LineColor(kRed));

   frame1->SetTitle("");

   frame1->GetXaxis()->SetTitle("Observable");

   frame1->GetYaxis()->SetTitle("Events");


   // Create legend for Category 1

   TLegend *leg1 = new TLegend(0.6, 0.7, 0.9, 0.9);

   leg1->AddEntry(frame1->getObject(0), "Data", "lep"); // Data points

   leg1->AddEntry(frame1->getObject(1), "Gauss", "l");

   leg1->AddEntry(frame1->getObject(2), "Landau", "l");


   // Combine datasets for simultaneous fit.

   RooDataSet *data = new RooDataSet("data", "combined", RooArgSet(x, catIndex));


   RooArgSet vars(x, catIndex);


   for (int i = 0; i < data0->numEntries(); ++i) {

      x.setVal(data0->get(i)->getRealValue("x"));

      catIndex.setLabel("cat0");

      data->add(vars);

   }

   for (int i = 0; i < data1->numEntries(); ++i) {

      x.setVal(data1->get(i)->getRealValue("x"));

      catIndex.setLabel("cat1");

      data->add(vars);

   }


   // Create NLL with codegen and minimize it via the discrete profiling method.

   std::unique_ptr<RooAbsReal> nll1(simPdf.createNLL(*data, EvalBackend("codegen")));

   RooMinimizer minim(*nll1);


   minim.setStrategy(1);

   minim.setEps(1e-7);

   minim.setPrintLevel(-1);


   // Setup profiling of 'mean' over discrete combinations.

   const int nMeanPoints = 40;

   const double meanMin = 17;

   const double meanMax = 33;


   // Generate all discrete combinations of PDF indices for profiling.

   std::vector<std::vector<int>> combosToPlot;

   for (int i = 0; i < pdfIndex0.size(); ++i) {

      for (int j = 0; j < pdfIndex1.size(); ++j) {

         combosToPlot.push_back({i, j});

      }

   }


   // Creates a canvas  where all NLL vs mean  will be drawn.

   TCanvas *c = new TCanvas("c_rf619", "NLL vs Mean for Different Discrete Combinations", 1200, 400);

   c->Divide(3, 1);


   // Define arrays of ROOT colors and marker styles.

   int colors[] = {kRed, kBlue, kGreen + 2, kMagenta, kOrange + 7};

   int markers[] = {20, 21, 22, 23, 33};


   // Container to store all TGraph objects:

   std::vector<TGraph *> graphs;


   // Create one TGraph for each discrete combination of indices.

   // Each graph will hold the NLL vs mean curve for that combination.

   // Colors and marker styles are cycled through the predefined arrays.

   for (size_t idx = 0; idx < combosToPlot.size(); ++idx) {

      TGraph *g = new TGraph(nMeanPoints);

      g->SetLineColor(colors[idx % 5]);

      g->SetMarkerColor(colors[idx % 5]);

      g->SetMarkerStyle(markers[idx % 5]);

      g->SetTitle(Form("Combo [%d,%d]", combosToPlot[idx][0], combosToPlot[idx][1]));

      graphs.push_back(g);

   }


   // Create a special TGraph for the profiled NLL curve across all combinations.

   // Drawn in bold black to stand out.

   TGraph *profileGraph = new TGraph(nMeanPoints);

   profileGraph->SetLineColor(kBlack);

   profileGraph->SetLineWidth(4);

   profileGraph->SetMarkerColor(kBlack);

   profileGraph->SetMarkerStyle(22);

   profileGraph->SetTitle("Profile");

   graphs.push_back(profileGraph);


   // Loop over mean values, compute NLL and profile likelihood.

   for (int i = 0; i < nMeanPoints; ++i) {


      // Fix the "mean" parameter at this scan point

      double meanVal = meanMin + i * (meanMax - meanMin) / (nMeanPoints - 1);

      mean.setVal(meanVal);


      // Loop over all discrete PDF index combinations

      for (size_t comboIdx = 0; comboIdx < combosToPlot.size(); ++comboIdx) {

         const auto &combo = combosToPlot[comboIdx];


         // Fix both category indices to this combination

         pdfIndex0.setIndex(combo[0]);

         pdfIndex1.setIndex(combo[1]);


         // Freeze discrete indices and the mean parameter

         // so the minimizer only optimizes continuous parameters

         pdfIndex0.setConstant(true);

         pdfIndex1.setConstant(true);

         mean.setConstant(true);


         // Minimize over the continuous parameters

         // Evaluate NLL at this configuration

         minim.minimize("Minuit2", "Migrad");

         double nllVal = nll1->getVal();


         // Store NLL vs. mean value in the corresponding graph

         graphs[comboIdx]->SetPoint(i, meanVal, nllVal);


         // Unfreeze categories and mean so the next loop iteration can change thems

         pdfIndex0.setConstant(false);

         pdfIndex1.setConstant(false);

         mean.setConstant(false);

      }


      // Freeze mean (profiling at this value)

      mean.setConstant(true);


      // Scan all discrete combinations internally

      minim.minimize("Minuit2", "Migrad");


      // Store profiled NLL and plot it

      double profNLL = nll1->getVal();

      graphs.back()->SetPoint(i, meanVal, profNLL);

   }

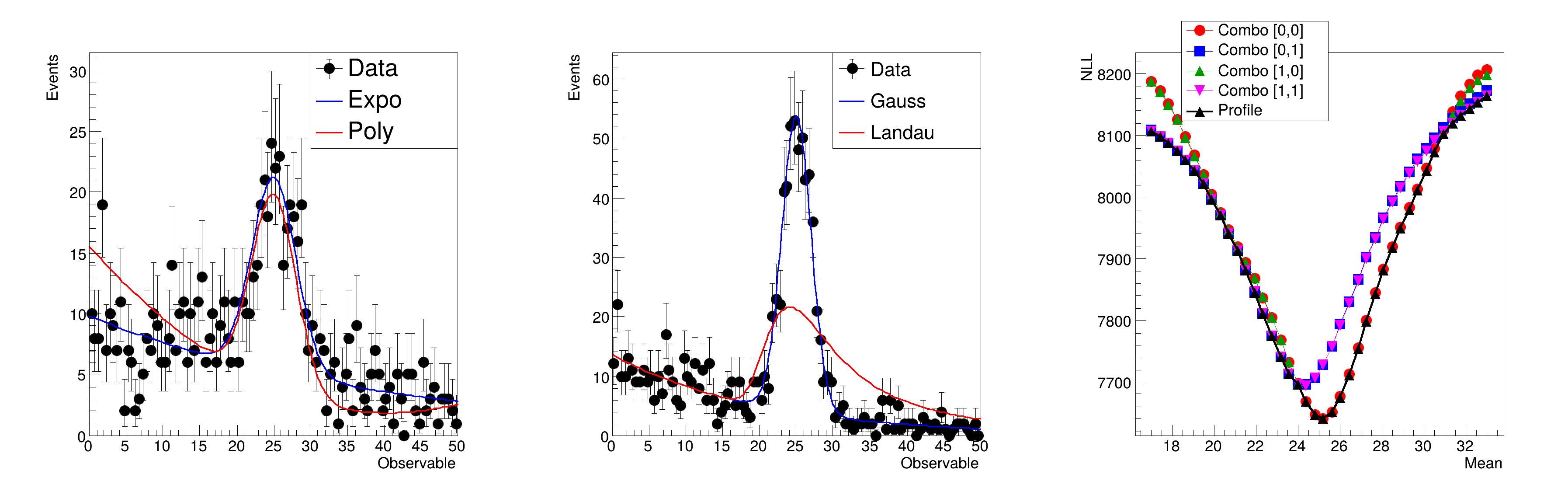

   // Panel 1: Category 0

   c->cd(1);

   gPad->SetLeftMargin(0.15);

   frame0->GetYaxis()->SetTitleOffset(1.4);

   frame0->Draw();

   if (leg0)

      leg0->Draw();


   // Panel 2: Category 1

   c->cd(2);

   gPad->SetLeftMargin(0.15);

   frame1->GetYaxis()->SetTitleOffset(1.4);

   frame1->Draw();

   if (leg1)

      leg1->Draw();


   c->cd(3);

   gPad->SetLeftMargin(0.15);


   TMultiGraph *mg = new TMultiGraph();

   for (auto &g : graphs) {

      mg->Add(g, "PL");

      mg->GetYaxis()->SetTitleOffset(1.8);

   }


   mg->Draw("APL");

   mg->GetXaxis()->SetTitle("Mean");

   mg->GetYaxis()->SetTitle("NLL");


   gPad->BuildLegend();

}
