#include "RooRealVar.h"

#include "RooDataSet.h"

#include "RooGaussian.h"

#include "RooConstVar.h"

#include "RooCategory.h"

#include "RooBMixDecay.h"

#include "RooBCPEffDecay.h"

#include "RooBDecay.h"

#include "RooFormulaVar.h"

#include "RooTruthModel.h"

#include "TCanvas.h"

#include "TAxis.h"

#include "RooPlot.h"

using namespace RooFit;


void rf708_bphysics()

{

   // -------------------------------------

   // B - D e c a y   w i t h   m i x i n g

   // =====================================


   // C o n s t r u c t   p d f

   // -------------------------


   // Observable

   RooRealVar dt("dt", "dt", -10, 10);

   dt.setBins(40);


   // Parameters

   RooRealVar dm("dm", "delta m(B0)", 0.472);

   RooRealVar tau("tau", "tau (B0)", 1.547);

   RooRealVar w("w", "flavour mistag rate", 0.1);

   RooRealVar dw("dw", "delta mistag rate for B0/B0bar", 0.1);


   RooCategory mixState("mixState", "B0/B0bar mixing state");

   mixState.defineType("mixed", -1);

   mixState.defineType("unmixed", 1);


   RooCategory tagFlav("tagFlav", "Flavour of the tagged B0");

   tagFlav.defineType("B0", 1);

   tagFlav.defineType("B0bar", -1);


   // Use delta function resolution model

   RooTruthModel truthModel("tm", "truth model", dt);


   // Construct Bdecay with mixing

   RooBMixDecay bmix("bmix", "decay", dt, mixState, tagFlav, tau, dm, w, dw, truthModel, RooBMixDecay::DoubleSided);


   // P l o t   p d f   i n   v a r i o u s   s l i c e s

   // ---------------------------------------------------


   // Generate some data

   std::unique_ptr<RooDataSet> data{bmix.generate({dt, mixState, tagFlav}, 10000)};


   // Plot B0 and B0bar tagged data separately

   // For all plots below B0 and B0 tagged data will look somewhat differently

   // if the flavor tagging mistag rate for B0 and B0 is different (i.e. dw!=0)

   RooPlot *frame1 = dt.frame(Title("B decay distribution with mixing (B0/B0bar)"));


   data->plotOn(frame1, Cut("tagFlav==tagFlav::B0"));

   bmix.plotOn(frame1, Slice(tagFlav, "B0"));


   data->plotOn(frame1, Cut("tagFlav==tagFlav::B0bar"), MarkerColor(kCyan));

   bmix.plotOn(frame1, Slice(tagFlav, "B0bar"), LineColor(kCyan));


   // Plot mixed slice for B0 and B0bar tagged data separately

   RooPlot *frame2 = dt.frame(Title("B decay distribution of mixed events (B0/B0bar)"));


   data->plotOn(frame2, Cut("mixState==mixState::mixed&&tagFlav==tagFlav::B0"));

   bmix.plotOn(frame2, Slice({{&tagFlav, "B0"}, {&mixState, "mixed"}}));


   data->plotOn(frame2, Cut("mixState==mixState::mixed&&tagFlav==tagFlav::B0bar"), MarkerColor(kCyan));

   bmix.plotOn(frame2, Slice({{&tagFlav, "B0bar"}, {&mixState, "mixed"}}), LineColor(kCyan));


   // Plot unmixed slice for B0 and B0bar tagged data separately

   RooPlot *frame3 = dt.frame(Title("B decay distribution of unmixed events (B0/B0bar)"));


   data->plotOn(frame3, Cut("mixState==mixState::unmixed&&tagFlav==tagFlav::B0"));

   bmix.plotOn(frame3, Slice({{&tagFlav, "B0"}, {&mixState, "unmixed"}}));


   data->plotOn(frame3, Cut("mixState==mixState::unmixed&&tagFlav==tagFlav::B0bar"), MarkerColor(kCyan));

   bmix.plotOn(frame3, Slice({{&tagFlav, "B0bar"}, {&mixState, "unmixed"}}), LineColor(kCyan));


   // -------------------------------------------------

   // B - D e c a y   w i t h   C P   v i o l a t i o n

   // =================================================


   // C o n s t r u c t   p d f

   // -------------------------


   // Additional parameters needed for B decay with CPV

   RooRealVar CPeigen("CPeigen", "CP eigen value", -1);

   RooRealVar absLambda("absLambda", "|lambda|", 1, 0, 2);

   RooRealVar argLambda("absLambda", "|lambda|", 0.7, -1, 1);

   RooRealVar effR("effR", "B0/B0bar reco efficiency ratio", 1);


   // Construct Bdecay with CP violation

   RooBCPEffDecay bcp("bcp", "bcp", dt, tagFlav, tau, dm, w, CPeigen, absLambda, argLambda, effR, dw, truthModel,

                      RooBCPEffDecay::DoubleSided);


   // P l o t   s c e n a r i o   1   -   s i n ( 2 b )   =   0 . 7 ,   | l | = 1

   // ---------------------------------------------------------------------------


   // Generate some data

   std::unique_ptr<RooDataSet> data2{bcp.generate({dt, tagFlav}, 10000)};


   // Plot B0 and B0bar tagged data separately

   RooPlot *frame4 = dt.frame(Title("B decay distribution with CPV(|l|=1,Im(l)=0.7) (B0/B0bar)"));


   data2->plotOn(frame4, Cut("tagFlav==tagFlav::B0"));

   bcp.plotOn(frame4, Slice(tagFlav, "B0"));


   data2->plotOn(frame4, Cut("tagFlav==tagFlav::B0bar"), MarkerColor(kCyan));

   bcp.plotOn(frame4, Slice(tagFlav, "B0bar"), LineColor(kCyan));


   // P l o t   s c e n a r i o   2   -   s i n ( 2 b )   =   0 . 7 ,   | l | = 0 . 7

   // -------------------------------------------------------------------------------


   absLambda = 0.7;


   // Generate some data

   std::unique_ptr<RooDataSet> data3{bcp.generate({dt, tagFlav}, 10000)};


   // Plot B0 and B0bar tagged data separately (sin2b = 0.7 plus direct CPV |l|=0.5)

   RooPlot *frame5 = dt.frame(Title("B decay distribution with CPV(|l|=0.7,Im(l)=0.7) (B0/B0bar)"));


   data3->plotOn(frame5, Cut("tagFlav==tagFlav::B0"));

   bcp.plotOn(frame5, Slice(tagFlav, "B0"));


   data3->plotOn(frame5, Cut("tagFlav==tagFlav::B0bar"), MarkerColor(kCyan));

   bcp.plotOn(frame5, Slice(tagFlav, "B0bar"), LineColor(kCyan));


   // ---------------------------------------------------------------------------

   // G e n e r i c   B   d e c a y  w i t h    u s e r   c o e f f i c i e n t s

   // ===========================================================================


   // C o n s t r u c t   p d f

   // -------------------------


   // Model parameters

   RooRealVar DGbG("DGbG", "DGamma/GammaAvg", 0.5, -1, 1);

   RooRealVar Adir("Adir", "-[1-abs(l)**2]/[1+abs(l)**2]", 0);

   RooRealVar Amix("Amix", "2Im(l)/[1+abs(l)**2]", 0.7);

   RooRealVar Adel("Adel", "2Re(l)/[1+abs(l)**2]", 0.7);


   // Derived input parameters for pdf

   RooFormulaVar DG("DG", "Delta Gamma", "@1/@0", RooArgList(tau, DGbG));


   // Construct coefficient functions for sin,cos,sinh modulations of decay distribution

   RooFormulaVar fsin("fsin", "fsin", "@0*@1*(1-2*@2)", RooArgList(Amix, tagFlav, w));

   RooFormulaVar fcos("fcos", "fcos", "@0*@1*(1-2*@2)", RooArgList(Adir, tagFlav, w));

   RooFormulaVar fsinh("fsinh", "fsinh", "@0", RooArgList(Adel));


   // Construct generic B decay pdf using above user coefficients

   RooBDecay bcpg("bcpg", "bcpg", dt, tau, DG, RooConst(1), fsinh, fcos, fsin, dm, truthModel, RooBDecay::DoubleSided);


   // P l o t   -   I m ( l ) = 0 . 7 ,   R e ( l ) = 0 . 7   | l | = 1,   d G / G = 0 . 5

   // -------------------------------------------------------------------------------------


   // Generate some data

   std::unique_ptr<RooDataSet> data4{bcpg.generate({dt, tagFlav}, 10000)};


   // Plot B0 and B0bar tagged data separately

   RooPlot *frame6 = dt.frame(Title("B decay distribution with CPV(Im(l)=0.7,Re(l)=0.7,|l|=1,dG/G=0.5) (B0/B0bar)"));


   data4->plotOn(frame6, Cut("tagFlav==tagFlav::B0"));

   bcpg.plotOn(frame6, Slice(tagFlav, "B0"));


   data4->plotOn(frame6, Cut("tagFlav==tagFlav::B0bar"), MarkerColor(kCyan));

   bcpg.plotOn(frame6, Slice(tagFlav, "B0bar"), LineColor(kCyan));

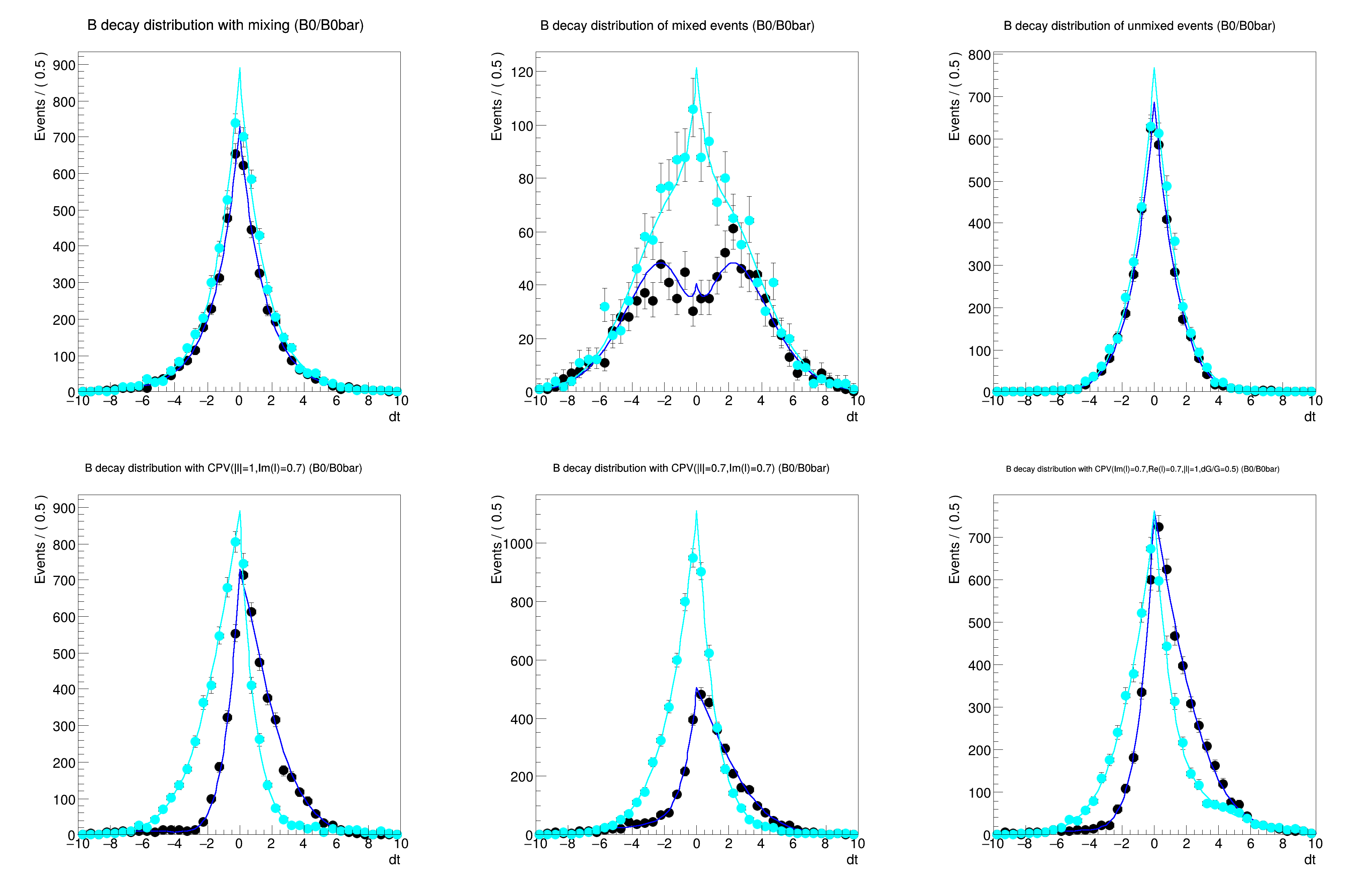

   TCanvas *c = new TCanvas("rf708_bphysics", "rf708_bphysics", 1200, 800);

   c->Divide(3, 2);

   c->cd(1);

   gPad->SetLeftMargin(0.15);

   frame1->GetYaxis()->SetTitleOffset(1.6);

   frame1->Draw();

   c->cd(2);

   gPad->SetLeftMargin(0.15);

   frame2->GetYaxis()->SetTitleOffset(1.6);

   frame2->Draw();

   c->cd(3);

   gPad->SetLeftMargin(0.15);

   frame3->GetYaxis()->SetTitleOffset(1.6);

   frame3->Draw();

   c->cd(4);

   gPad->SetLeftMargin(0.15);

   frame4->GetYaxis()->SetTitleOffset(1.6);

   frame4->Draw();

   c->cd(5);

   gPad->SetLeftMargin(0.15);

   frame5->GetYaxis()->SetTitleOffset(1.6);

   frame5->Draw();

   c->cd(6);

   gPad->SetLeftMargin(0.15);

   frame6->GetYaxis()->SetTitleOffset(1.6);

   frame6->Draw();

}

c
