#include "RooRealVar.h"

#include "RooDataSet.h"

#include "RooGaussian.h"

#include "RooAddPdf.h"

#include "RooChebychev.h"

#include "RooFitResult.h"

#include "TCanvas.h"

#include "TAxis.h"

#include "RooPlot.h"

#include "TFile.h"

#include "TStyle.h"

#include "TH2.h"

#include "TMatrixDSym.h"


using namespace RooFit;


void rf607_fitresult()

{

   // C r e a t e   p d f ,   d a t a

   // --------------------------------


   // Declare observable x

   RooRealVar x("x", "x", 0, 10);


   // Create two Gaussian PDFs g1(x,mean1,sigma) anf g2(x,mean2,sigma) and their parameters

   RooRealVar mean("mean", "mean of gaussians", 5, -10, 10);

   RooRealVar sigma1("sigma1", "width of gaussians", 0.5, 0.1, 10);

   RooRealVar sigma2("sigma2", "width of gaussians", 1, 0.1, 10);


   RooGaussian sig1("sig1", "Signal component 1", x, mean, sigma1);

   RooGaussian sig2("sig2", "Signal component 2", x, mean, sigma2);


   // Build Chebychev polynomial pdf

   RooRealVar a0("a0", "a0", 0.5, 0., 1.);

   RooRealVar a1("a1", "a1", -0.2);

   RooChebychev bkg("bkg", "Background", x, RooArgSet(a0, a1));


   // Sum the signal components into a composite signal pdf

   RooRealVar sig1frac("sig1frac", "fraction of component 1 in signal", 0.8, 0., 1.);

   RooAddPdf sig("sig", "Signal", RooArgList(sig1, sig2), sig1frac);


   // Sum the composite signal and background

   RooRealVar bkgfrac("bkgfrac", "fraction of background", 0.5, 0., 1.);

   RooAddPdf model("model", "g1+g2+a", RooArgList(bkg, sig), bkgfrac);


   // Generate 1000 events

   std::unique_ptr<RooDataSet> data{model.generate(x, 1000)};


   // F i t   p d f   t o   d a t a ,   s a v e   f i t r e s u l t

   // -------------------------------------------------------------


   // Perform fit and save result

   std::unique_ptr<RooFitResult> r{model.fitTo(*data, Save(), PrintLevel(-1))};


   // P r i n t   f i t   r e s u l t s

   // ---------------------------------


   // Summary printing: Basic info plus final values of floating fit parameters

   r->Print();


   // Verbose printing: Basic info, values of constant parameters, initial and

   // final values of floating parameters, global correlations

   r->Print("v");


   // V i s u a l i z e   c o r r e l a t i o n   m a t r i x

   // -------------------------------------------------------

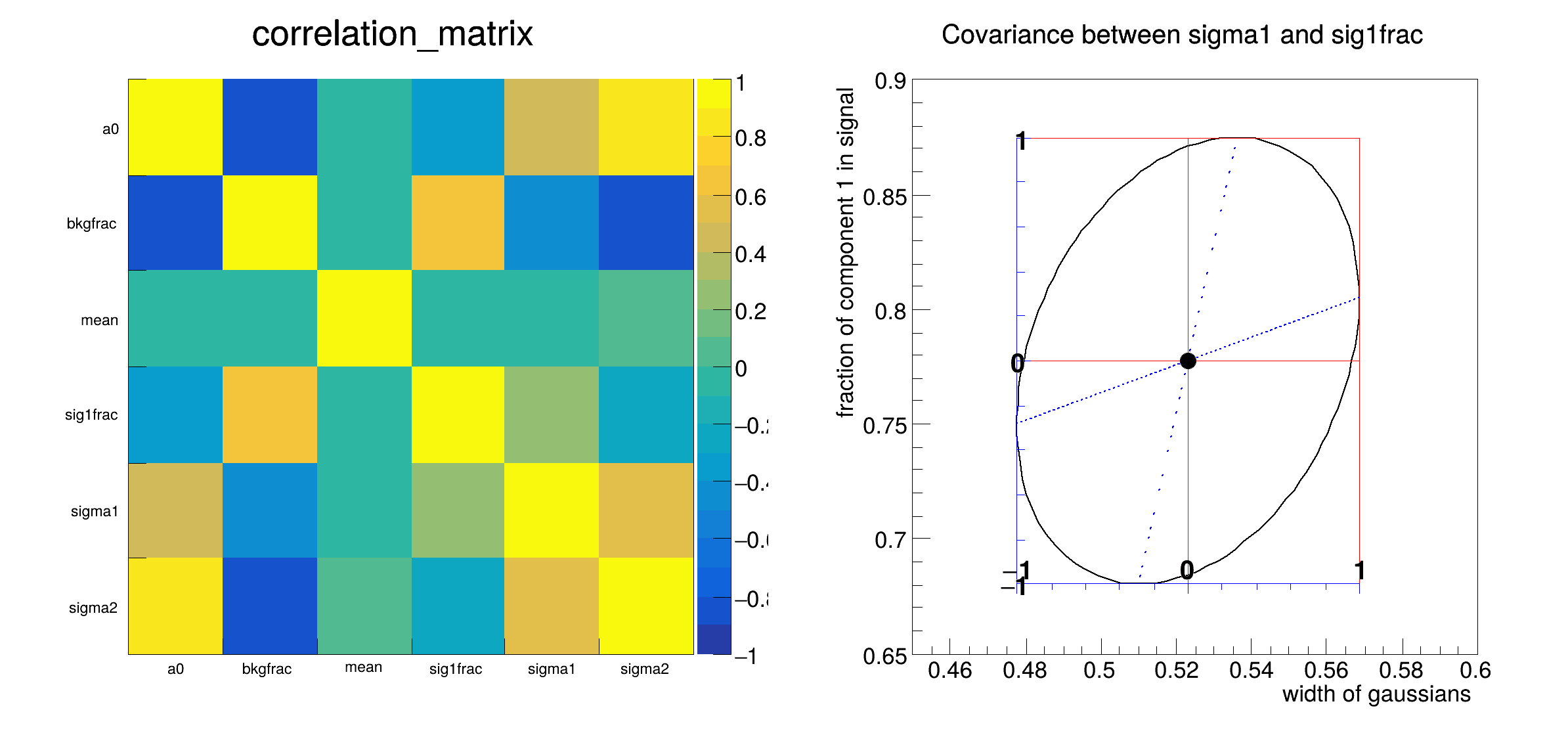

   // Construct 2D color plot of correlation matrix

   gStyle->SetOptStat(0);

   TH2 *hcorr = r->correlationHist();


   // Visualize ellipse corresponding to single correlation matrix element

   RooPlot *frame = new RooPlot(sigma1, sig1frac, 0.45, 0.60, 0.65, 0.90);

   frame->SetTitle("Covariance between sigma1 and sig1frac");

   r->plotOn(frame, sigma1, sig1frac, "ME12ABHV");


   // A c c e s s   f i t   r e s u l t   i n f o r m a t i o n

   // ---------------------------------------------------------


   // Access basic information

   cout << "EDM = " << r->edm() << endl;

   cout << "-log(L) at minimum = " << r->minNll() << endl;


   // Access list of final fit parameter values

   cout << "final value of floating parameters" << endl;

   r->floatParsFinal().Print("s");


   // Access correlation matrix elements

   cout << "correlation between sig1frac and a0 is  " << r->correlation(sig1frac, a0) << endl;

   cout << "correlation between bkgfrac and mean is " << r->correlation("bkgfrac", "mean") << endl;


   // Extract covariance and correlation matrix as TMatrixDSym

   const TMatrixDSym &cor = r->correlationMatrix();

   const TMatrixDSym &cov = r->covarianceMatrix();


   // Print correlation, covariance matrix

   cout << "correlation matrix" << endl;

   cor.Print();

   cout << "covariance matrix" << endl;

   cov.Print();


   // P e r s i s t   f i t   r e s u l t   i n   r o o t   f i l e

   // -------------------------------------------------------------


   // Open new ROOT file save save result

   TFile f("rf607_fitresult.root", "RECREATE");

   r->Write("rf607");

   f.Close();


   // In a clean ROOT session retrieve the persisted fit result as follows:

   // RooFitResult* r = gDirectory->Get("rf607") ;


   TCanvas *c = new TCanvas("rf607_fitresult", "rf607_fitresult", 800, 400);

   c->Divide(2);

   c->cd(1);

   gPad->SetLeftMargin(0.15);

   hcorr->GetYaxis()->SetTitleOffset(1.4);

   hcorr->Draw("colz");

   c->cd(2);

   gPad->SetLeftMargin(0.15);

   frame->GetYaxis()->SetTitleOffset(1.6);

   frame->Draw();

}
