rf503_wspaceread.C File Reference

Detailed Description

Organisation and simultaneous fits: reading and using a workspace

The input file for this macro is generated by rf502_wspacewrite.C


#include "RooRealVar.h"
#include "RooDataSet.h"
#include "RooGaussian.h"
#include "RooChebychev.h"
#include "RooAddPdf.h"
#include "RooWorkspace.h"
#include "RooPlot.h"
#include "TCanvas.h"
#include "TAxis.h"
#include "TFile.h"
#include "TH1.h"
using namespace RooFit;

void rf503_wspaceread()
{
   // R e a d   w o r k s p a c e   f r o m   f i l e
   // -----------------------------------------------

   // Open input file with workspace (generated by rf503_wspacewrite)
   TFile *f = new TFile("rf502_workspace.root");

   // Retrieve workspace from file
   RooWorkspace *w = (RooWorkspace *)f->Get("w");

   // R e t r i e v e   p d f ,   d a t a   f r o m   w o r k s p a c e
   // -----------------------------------------------------------------

   // Retrieve x,model and data from workspace
   RooRealVar *x = w->var("x");
   RooAbsPdf *model = w->pdf("model");
   RooAbsData *data = w->data("modelData");

   // Print structure of composite pdf
   model->Print("t");

   // F i t   m o d e l   t o   d a t a ,   p l o t   m o d e l
   // ---------------------------------------------------------

   // Fit model to data
   model->fitTo(*data, PrintLevel(-1));

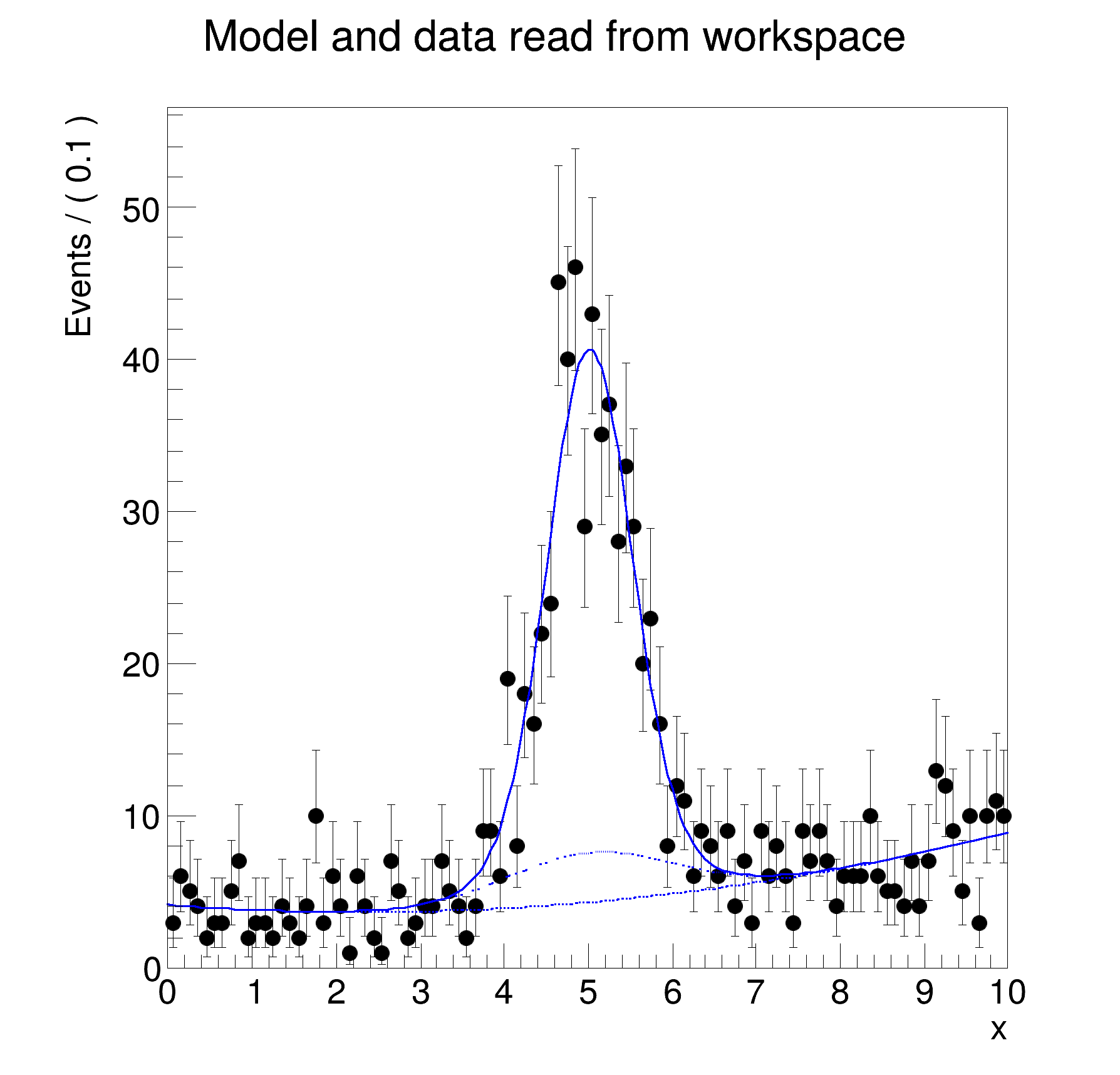

   // Plot data and PDF overlaid
   RooPlot *xframe = x->frame(Title("Model and data read from workspace"));
   data->plotOn(xframe);
   model->plotOn(xframe);

   // Overlay the background component of model with a dashed line
   model->plotOn(xframe, Components("bkg"), LineStyle(kDashed));

   // Overlay the background+sig2 components of model with a dotted line
   model->plotOn(xframe, Components("bkg,sig2"), LineStyle(kDotted));

   // Draw the frame on the canvas
   new TCanvas("rf503_wspaceread", "rf503_wspaceread", 600, 600);
   gPad->SetLeftMargin(0.15);
   xframe->GetYaxis()->SetTitleOffset(1.4);
   xframe->Draw();
}

0x55a4df0b1a80 RooAddPdf::model = 0.9/1 [Auto,Clean]
  0x55a4df2ecc50/V- RooChebychev::bkg = 0.8 [Auto,Dirty]
    0x55a4ded2b6a0/V- RooRealVar::x = 5
    0x55a4dec79c80/V- RooRealVar::a0 = 0.5
    0x55a4deb9c9a0/V- RooRealVar::a1 = 0.2
  0x55a4debacb50/V- RooRealVar::bkgfrac = 0.5
  0x55a4df37d230/V- RooAddPdf::sig = 1/1 [Auto,Clean]
    0x55a4df313cf0/V- RooGaussian::sig1 = 1 [Auto,Dirty]
      0x55a4ded2b6a0/V- RooRealVar::x = 5
      0x55a4decf7fd0/V- RooRealVar::mean = 5
      0x55a4decba720/V- RooRealVar::sigma1 = 0.5
    0x55a4deceb360/V- RooRealVar::sig1frac = 0.8
    0x55a4df321030/V- RooGaussian::sig2 = 1 [Auto,Dirty]
      0x55a4ded2b6a0/V- RooRealVar::x = 5
      0x55a4decf7fd0/V- RooRealVar::mean = 5
      0x55a4decf4370/V- RooRealVar::sigma2 = 1
[#1] INFO:Fitting -- RooAbsPdf::fitTo(model) fixing normalization set for coefficient determination to observables in data
[#1] INFO:Fitting -- using generic CPU library compiled with no vectorizations
[#1] INFO:Fitting -- Creation of NLL object took 18.68 ms
[#1] INFO:Fitting -- RooAddition::defaultErrorLevel(nll_model_modelData) Summation contains a RooNLLVar, using its error level
[#1] INFO:Minimization -- RooAbsMinimizerFcn::setOptimizeConst: activating const optimization
[#1] INFO:Minimization -- [fitFCN] No discrete parameters, performing continuous minimization only
[#1] INFO:Minimization -- RooAbsMinimizerFcn::setOptimizeConst: deactivating const optimization
[#1] INFO:Plotting -- RooAbsPdf::plotOn(model) directly selected PDF components: (bkg)
[#1] INFO:Plotting -- RooAbsPdf::plotOn(model) indirectly selected PDF components: ()
[#1] INFO:Plotting -- RooAbsPdf::plotOn(model) directly selected PDF components: (bkg,sig2)
[#1] INFO:Plotting -- RooAbsPdf::plotOn(model) indirectly selected PDF components: (sig)

Date

July 2008

Author

Wouter Verkerke

Definition in file rf503_wspaceread.C.
