#include "RooRealVar.h"

#include "RooDataSet.h"

#include "RooGaussian.h"

#include "TCanvas.h"

#include "TAxis.h"

#include "RooPlot.h"

#include "TMath.h"

#include "TF1.h"

#include "Math/DistFunc.h"

#include "RooTFnBinding.h"


using namespace RooFit;


void rf105_funcbinding()

{


   // B i n d   T M a t h : : E r f   C   f u n c t i o n

   // ---------------------------------------------------


   // Bind one-dimensional TMath::Erf function as RooAbsReal function

   RooRealVar x("x", "x", -3, 3);

   RooAbsReal *errorFunc = bindFunction("erf", TMath::Erf, x);


   // Print erf definition

   errorFunc->Print();


   // Plot erf on frame

   RooPlot *frame1 = x.frame(Title("TMath::Erf bound as RooFit function"));

   errorFunc->plotOn(frame1);


   // B i n d   R O O T : : M a t h : : b e t a _ p d f   C   f u n c t i o n

   // -----------------------------------------------------------------------


   // Bind pdf ROOT::Math::Beta with three variables as RooAbsPdf function

   RooRealVar x2("x2", "x2", 0, 0.999);

   RooRealVar a("a", "a", 5, 0, 10);

   RooRealVar b("b", "b", 2, 0, 10);

   RooAbsPdf *beta = bindPdf("beta", ROOT::Math::beta_pdf, x2, a, b);


   // Perf beta definition

   beta->Print();


   // Generate some events and fit

   std::unique_ptr<RooDataSet> data{beta->generate(x2, 10000)};

   beta->fitTo(*data, PrintLevel(-1));


   // Plot data and pdf on frame

   RooPlot *frame2 = x2.frame(Title("ROOT::Math::Beta bound as RooFit pdf"));

   data->plotOn(frame2);

   beta->plotOn(frame2);


   // B i n d   R O O T   T F 1   a s   R o o F i t   f u n c t i o n

   // ---------------------------------------------------------------


   // Create a ROOT TF1 function

   TF1 *fa1 = new TF1("fa1", "sin(x)/x", 0, 10);


   // Create an observable

   RooRealVar x3("x3", "x3", 0.01, 20);


   // Create binding of TF1 object to above observable

   RooAbsReal *rfa1 = bindFunction(fa1, x3);


   // Print rfa1 definition

   rfa1->Print();


   // Make plot frame in observable, plot TF1 binding function

   RooPlot *frame3 = x3.frame(Title("TF1 bound as RooFit function"));

   rfa1->plotOn(frame3);

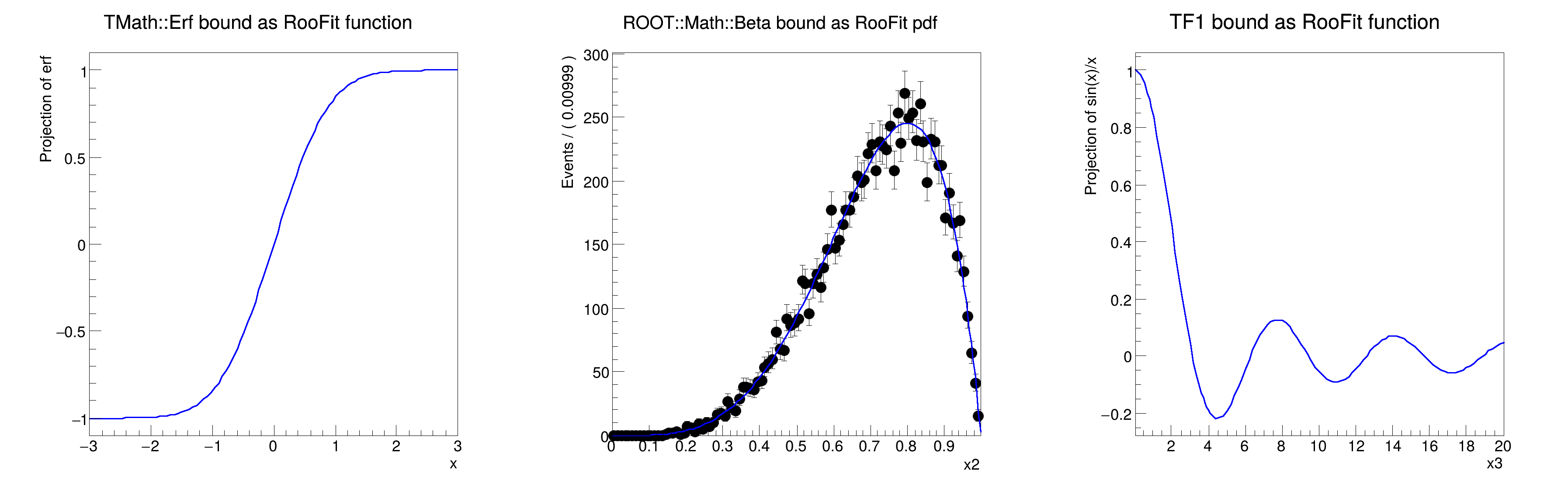

   TCanvas *c = new TCanvas("rf105_funcbinding", "rf105_funcbinding", 1200, 400);

   c->Divide(3);

   c->cd(1);

   gPad->SetLeftMargin(0.15);

   frame1->GetYaxis()->SetTitleOffset(1.6);

   frame1->Draw();

   c->cd(2);

   gPad->SetLeftMargin(0.15);

   frame2->GetYaxis()->SetTitleOffset(1.6);

   frame2->Draw();

   c->cd(3);

   gPad->SetLeftMargin(0.15);

   frame3->GetYaxis()->SetTitleOffset(1.6);

   frame3->Draw();

}
