quadset.C File Reference

Detailed Description

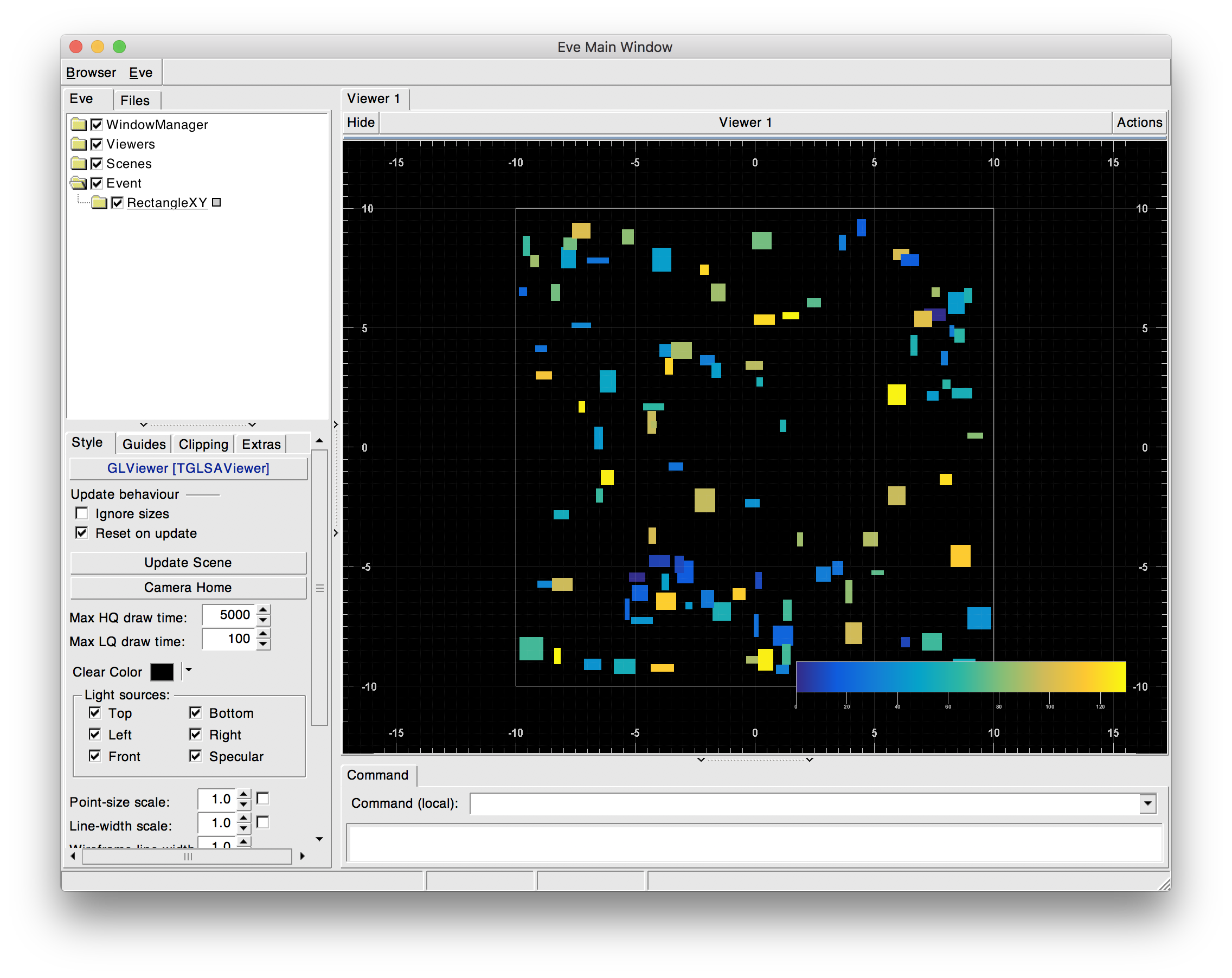

Demonstates usage of 2D digit class TEveQuadSet.


void quadset_callback(TEveDigitSet *ds, Int_t idx, TObject *obj);
TString quadset_tooltip_callback(TEveDigitSet *ds, Int_t idx);
void quadset_set_callback(TEveDigitSet *ds);

//------------------------------------------------------------------------------

TEveQuadSet *quadset(Float_t x = 0, Float_t y = 0, Float_t z = 0, Int_t num = 100, Bool_t registerSet = kTRUE)
{
   TEveManager::Create();

   TRandom r(0);

   TEveRGBAPalette *pal = new TEveRGBAPalette(0, 130);
   TEveFrameBox *box = new TEveFrameBox();
   box->SetAAQuadXY(-10, -10, 0, 20, 20);
   box->SetFrameColor(kGray);

   TEveQuadSet *q = new TEveQuadSet("RectangleXY");
   q->SetOwnIds(kTRUE);
   q->SetPalette(pal);
   q->SetFrame(box);
   q->Reset(TEveQuadSet::kQT_RectangleXY, kFALSE, 32);
   for (Int_t i = 0; i < num; ++i) {
      q->AddQuad(r.Uniform(-10, 9), r.Uniform(-10, 9), 0, r.Uniform(0.2, 1), r.Uniform(0.2, 1));
      q->QuadValue(r.Uniform(0, 130));
      q->QuadId(new TNamed(Form("QuadIdx %d", i), "TNamed assigned to a quad as an indentifier."));
   }
   q->RefitPlex();

   TEveTrans &t = q->RefMainTrans();
   t.RotateLF(1, 3, 0.5 * TMath::Pi());
   t.SetPos(x, y, z);

   TGLViewer *v = gEve->GetDefaultGLViewer();
   v->SetCurrentCamera(TGLViewer::kCameraOrthoZOY);
   TGLCameraOverlay *co = v->GetCameraOverlay();
   co->SetShowOrthographic(kTRUE);
   co->SetOrthographicMode(TGLCameraOverlay::kGridFront);

   // Uncomment these two lines to get internal highlight / selection.
   // q->SetPickable(1);
   // q->SetAlwaysSecSelect(1);

   TEveRGBAPaletteOverlay *po = new TEveRGBAPaletteOverlay(pal, 0.55, 0.1, 0.4, 0.05);
   v = gEve->GetDefaultGLViewer();
   v->AddOverlayElement(po);

   // To set user-interface (GUI + overlay) to display real values
   // mapped with a linear function: r = 0.1 * i + 0;
   // pal->SetUIDoubleRep(kTRUE, 0.1, 0);

   if (registerSet) {
      gEve->AddElement(q);
      gEve->Redraw3D(kTRUE);
   }

   Info("quadset", "use alt-left-mouse to select individual digits.");

   return q;
}

TEveQuadSet *quadset_emc(Float_t x = 0, Float_t y = 0, Float_t z = 0, Int_t num = 100)
{
   TEveManager::Create();

   TRandom r(0);

   TEveQuadSet *q = new TEveQuadSet("EMC Supermodule");
   q->SetOwnIds(kTRUE);
   q->Reset(TEveQuadSet::kQT_RectangleXZFixedDimY, kFALSE, 32);
   q->SetDefWidth(8);
   q->SetDefHeight(8);

   for (Int_t i = 0; i < num; ++i) {
      q->AddQuad(r.Uniform(-100, 100), r.Uniform(-100, 100));
      q->QuadValue(r.Uniform(0, 130));
      q->QuadId(new TNamed(Form("Cell %d", i), "Dong!"));
   }
   q->RefitPlex();

   TEveTrans &t = q->RefMainTrans();
   t.SetPos(x, y, z);

   gEve->AddElement(q);
   gEve->Redraw3D();

   return q;
}

TEveQuadSet *quadset_circ()
{
   TEveManager::Create();

   TRandom rnd(0);

   Float_t R = 10, dW = 1, dH = .5;

   TEveFrameBox *box = new TEveFrameBox();
   {
      Float_t frame[3 * 36];
      Float_t *p = frame;
      for (Int_t i = 0; i < 36; ++i, p += 3) {
         p[0] = 11 * TMath::Cos(TMath::TwoPi() * i / 36);
         p[1] = 11 * TMath::Sin(TMath::TwoPi() * i / 36);
         p[2] = 0;
      }
      box->SetQuadByPoints(frame, 36);
   }
   box->SetFrameColor(kGray);

   TEveQuadSet *q = new TEveQuadSet("Pepe");
   q->SetFrame(box);
   q->Reset(TEveQuadSet::kQT_HexagonXY, kFALSE, 32);

   for (Float_t r = R; r > 2; r *= 0.8) {
      Int_t maxI = 2.0 * TMath::Pi() * r / 2;
      for (Int_t i = 0; i < maxI; ++i) {
         Float_t x = r * TMath::Cos(TMath::TwoPi() * i / maxI);
         Float_t y = r * TMath::Sin(TMath::TwoPi() * i / maxI);
         q->AddHexagon(x, y, rnd.Uniform(-1, 1), rnd.Uniform(0.2, 1));
         q->QuadValue(rnd.Uniform(0, 130));
      }
   }
   q->RefitPlex();

   TEveTrans &t = q->RefMainTrans();
   t.RotateLF(1, 3, 0.5 * TMath::Pi());

   gEve->AddElement(q);
   gEve->Redraw3D();

   return q;
}

TEveQuadSet *quadset_hex(Float_t x = 0, Float_t y = 0, Float_t z = 0, Int_t num = 100, Bool_t registerSet = kTRUE)
{
   TEveManager::Create();

   TRandom r(0);

   {
      TEveQuadSet *q = new TEveQuadSet("HexagonXY");
      q->Reset(TEveQuadSet::kQT_HexagonXY, kFALSE, 32);
      for (Int_t i = 0; i < num; ++i) {
         q->AddHexagon(r.Uniform(-10, 10), r.Uniform(-10, 10), r.Uniform(-10, 10), r.Uniform(0.2, 1));
         q->QuadValue(r.Uniform(0, 120));
      }
      q->RefitPlex();

      TEveTrans &t = q->RefMainTrans();
      t.SetPos(x, y, z);

      if (registerSet) {
         gEve->AddElement(q);
         gEve->Redraw3D();
      }
   }

   {
      TEveQuadSet *q = new TEveQuadSet("HexagonYX");
      q->Reset(TEveQuadSet::kQT_HexagonYX, kFALSE, 32);
      for (Int_t i = 0; i < num; ++i) {
         q->AddHexagon(r.Uniform(-10, 10), r.Uniform(-10, 10), r.Uniform(-10, 10), r.Uniform(0.2, 1));
         q->QuadValue(r.Uniform(0, 120));
      }
      q->RefitPlex();

      TEveTrans &t = q->RefMainTrans();
      t.SetPos(x, y, z);

      if (registerSet) {
         gEve->AddElement(q);
         gEve->Redraw3D();
      }

      return q;
   }
}

TEveQuadSet *quadset_hexid(Float_t x = 0, Float_t y = 0, Float_t z = 0, Int_t num = 100, Bool_t registerSet = kTRUE)
{
   TEveManager::Create();

   TRandom r(0);

   TEveQuadSet *q = new TEveQuadSet("HexagonXY");

   {

      q->SetOwnIds(kTRUE);
      q->Reset(TEveQuadSet::kQT_HexagonXY, kFALSE, 32);
      for (Int_t i = 0; i < num; ++i) {
         q->AddHexagon(r.Uniform(-10, 10), r.Uniform(-10, 10), r.Uniform(-10, 10), r.Uniform(0.2, 1));
         q->QuadValue(r.Uniform(0, 120));
         q->QuadId(new TNamed(Form("Quad with idx=%d", i), "This title is not confusing."));
      }
      q->RefitPlex();

      TEveTrans &t = q->RefMainTrans();
      t.SetPos(x, y, z);

      if (registerSet) {
         gEve->AddElement(q);
         gEve->Redraw3D();
      }
   }

   quadset_set_callback(q);

   // With the following you get per digit highlight with tooltip.
   // q->SetPickable(1);
   // q->SetAlwaysSecSelect(1);
   // Otherwise you need to Alt - left click to get info printout.

   return q;
}

void quadset_hierarchy(Int_t n = 4)
{
   TEveManager::Create();

   TEveRGBAPalette *pal = new TEveRGBAPalette(20, 100);
   pal->SetLimits(0, 120);

   TEveFrameBox *box = new TEveFrameBox();
   box->SetAABox(-10, -10, -10, 20, 20, 20);
   box->SetFrameColor(33);

   TEveElementList *l = new TEveElementList("Parent/Dir");
   l->SetTitle("Tooltip");
   //  l->SetMainColor(3);
   gEve->AddElement(l);

   for (Int_t i = 0; i < n; ++i) {
      TEveQuadSet *qs = quadset_hexid(0, 0, 50 * i, 50, kFALSE);
      qs->SetPalette(pal);
      qs->SetFrame(box);
      l->AddElement(qs);
   }

   gEve->Redraw3D();
}

//------------------------------------------------------------------------------

void quadset_callback(TEveDigitSet *ds, Int_t idx, TObject *obj)
{
   printf("dump_digit_set_hit - 0x%lx, id=%d, obj=0x%lx\n", (ULong_t)ds, idx, (ULong_t)obj);
}

TString quadset_tooltip_callback(TEveDigitSet *ds, Int_t idx)
{
   // This gets called for tooltip if the following is set:
   //   q->SetPickable(1);
   //   q->SetAlwaysSecSelect(1);

   return TString::Format("callback tooltip for '%s' - 0x%lx, id=%d\n", ds->GetElementName(), (ULong_t)ds, idx);
}

void quadset_set_callback(TEveDigitSet *ds)
{
   ds->SetCallbackFoo(quadset_callback);
   ds->SetTooltipCBFoo(quadset_tooltip_callback);
}

Author

Matevz Tadel

Definition in file quadset.C.
