mt_parallelHistoFill.C File Reference

Detailed Description

Fill histogram in parallel with a multithreaded approach using TThreadedObject and TThreadedObject::SnapshotMerge.

The difference with the multiprocessing case, see mp_parallelHistoFill, is that we cannot count on the copy-on-write mechanism here. Instead, we need to protect the histogram resource with a TThreadedObject class. The result of the filling is monitored with the SnapshotMerge method. This method is not thread safe: in the presence of ROOT histograms, the system will not crash but the result is not uniquely defined.


const UInt_t poolSize = 4U;

Int_t mt_parallelHistoFill()
{
   ROOT::EnableThreadSafety();

   // The concrete histogram instances are created in each thread
   // lazily, i.e. only if a method is invoked.
   ROOT::TThreadedObject<TH1F> ts_h("myHist", "Filled in parallel", 128, -8, 8);

   // The function used to fill the histograms in each thread.
   auto fillRandomHisto = [&](int seed = 0) {
      TRandom3 rndm(seed);
      // IMPORTANT!
      // It is important to realise that a copy on the stack of the object we
      // would like to perform operations on is the most efficient way of
      // accessing it, in particular in presence of a tight loop like the one
      // below where any overhead put on top of the Fill function call would
      // have an impact.
      auto histogram = ts_h.Get();
      for (auto i : ROOT::TSeqI(1000000)) {
         histogram->Fill(rndm.Gaus(0, 1));
      }
   };

   // The seeds for the random number generators.
   auto seeds = ROOT::TSeqI(1, poolSize + 1);

   std::vector<std::thread> pool;

   // A monitoring thread. This is here only to illustrate the functionality of
   // the SnapshotMerge method.
   // It allows "to spy" the multithreaded calculation without the need
   // of interrupting it.
   auto monitor = [&]() {
      for (auto i : ROOT::TSeqI(5)) {
         std::this_thread::sleep_for(std::chrono::duration<double, std::nano>(500));
         auto h = ts_h.SnapshotMerge();
         std::cout << "Entries for the snapshot " << h->GetEntries() << std::endl;
      }
   };
   pool.emplace_back(monitor);

   // The threads filling the histograms
   for (auto seed : ROOT::TSeqI(seeds)) {
      pool.emplace_back(fillRandomHisto, seed);
   }

   // Wait for the threads to finish
   for (auto &&t : pool)
      t.join();

   // Merge the final result

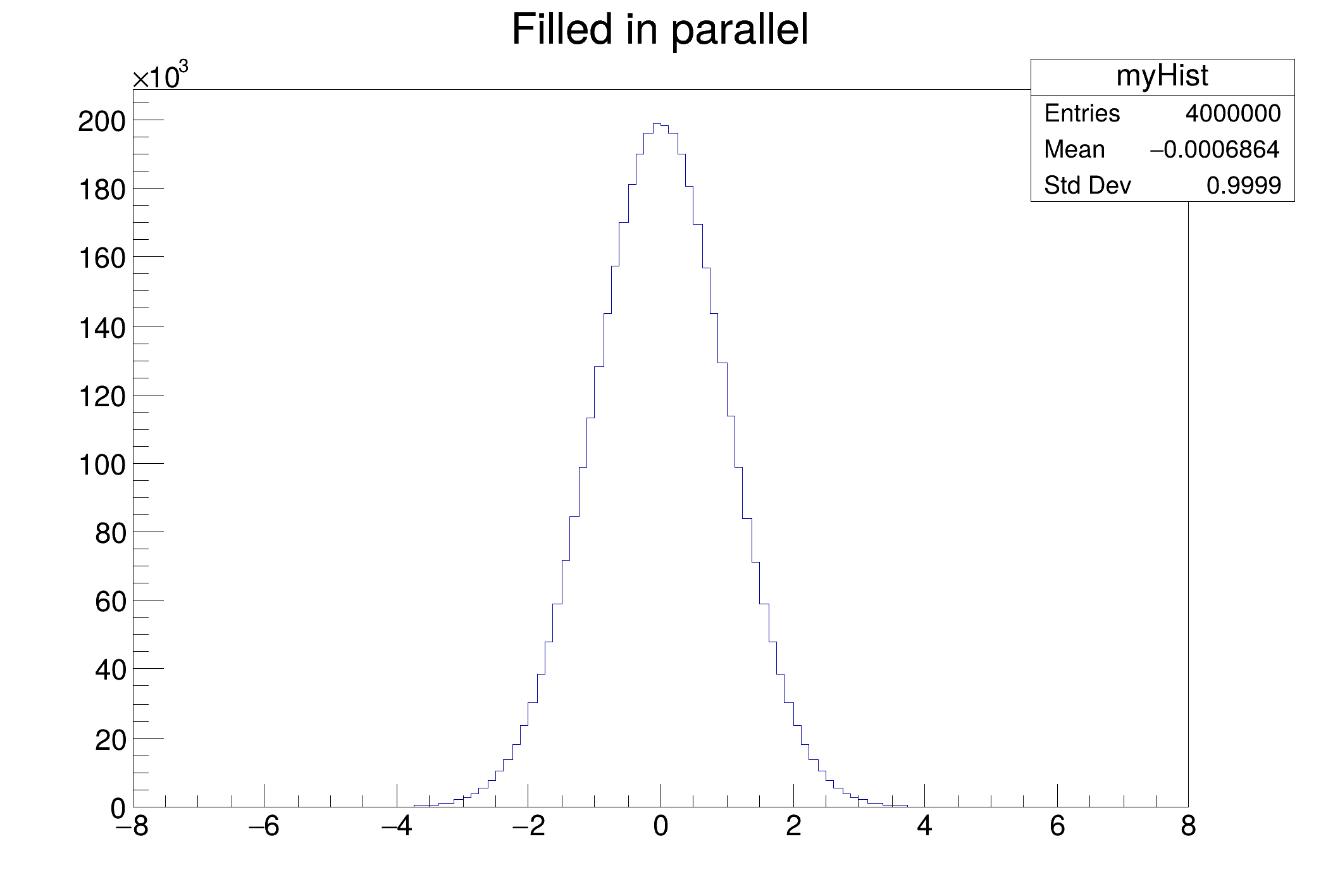

   auto sumRandomHisto = ts_h.Merge();

   std::cout << "Entries for the total sum " << sumRandomHisto->GetEntries() << std::endl;

   auto c = new TCanvas();
   sumRandomHisto->DrawClone();
   return 0;
}

Date

January 2016

Author

Danilo Piparo

Definition in file mt_parallelHistoFill.C.
