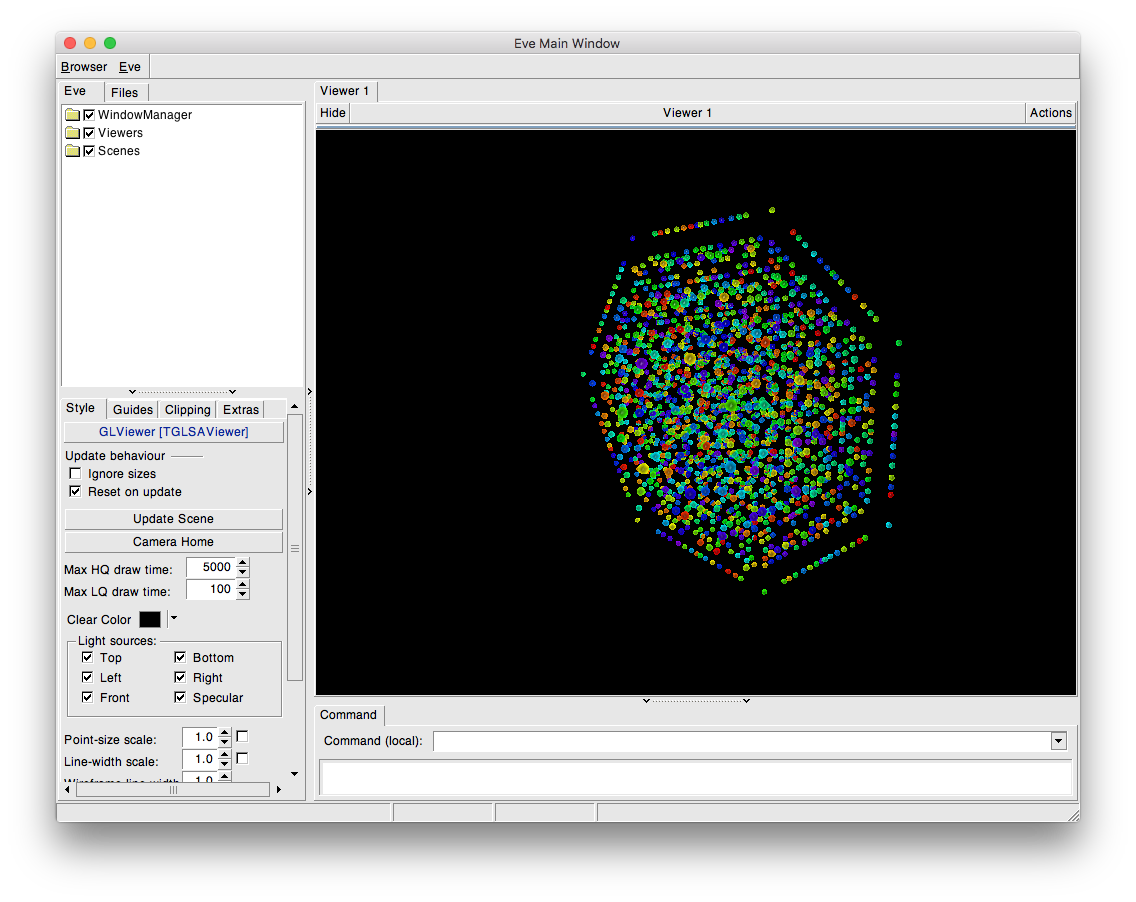

hierarchical_scene.C File Reference

Detailed Description


const Int_t Ns = 7;

void add_blobs(TEveElement *p, Float_t rad, Float_t height, Float_t size, Int_t level)
{
   if (level <= 0)
      return;

   for (Int_t i = 0; i < Ns; ++i) {
      auto x = new TEveGeoShape("SS");
      x->SetShape(new TGeoSphere(0, size));
      Double_t phi = TMath::TwoPi() * i / Ns;
      x->RefMainTrans().SetPos(rad * TMath::Cos(phi), rad * TMath::Sin(phi), height);
      x->SetMainColor(TColor::GetColorPalette(gRandom->Integer(TColor::GetNumberOfColors())));
      p->AddElement(x);

      add_blobs(x, 0.8 * rad, 0.8 * height, 0.8 * size, level - 1);
   }
}

void hierarchical_scene()
{
   TEveManager::Create();

   TColor::SetPalette(1, 0);
   gRandom = new TRandom3(0);

   auto s = gEve->SpawnNewScene("Hierarchical Scene", "OoogaDooga");
   s->SetHierarchical(kTRUE);

   gEve->GetDefaultViewer()->AddScene(s);

   add_blobs(s, 6, 4, 0.5, 4);

   gEve->Redraw3D(kTRUE);
}

Author

Matevz Tadel

Definition in file hierarchical_scene.C.
